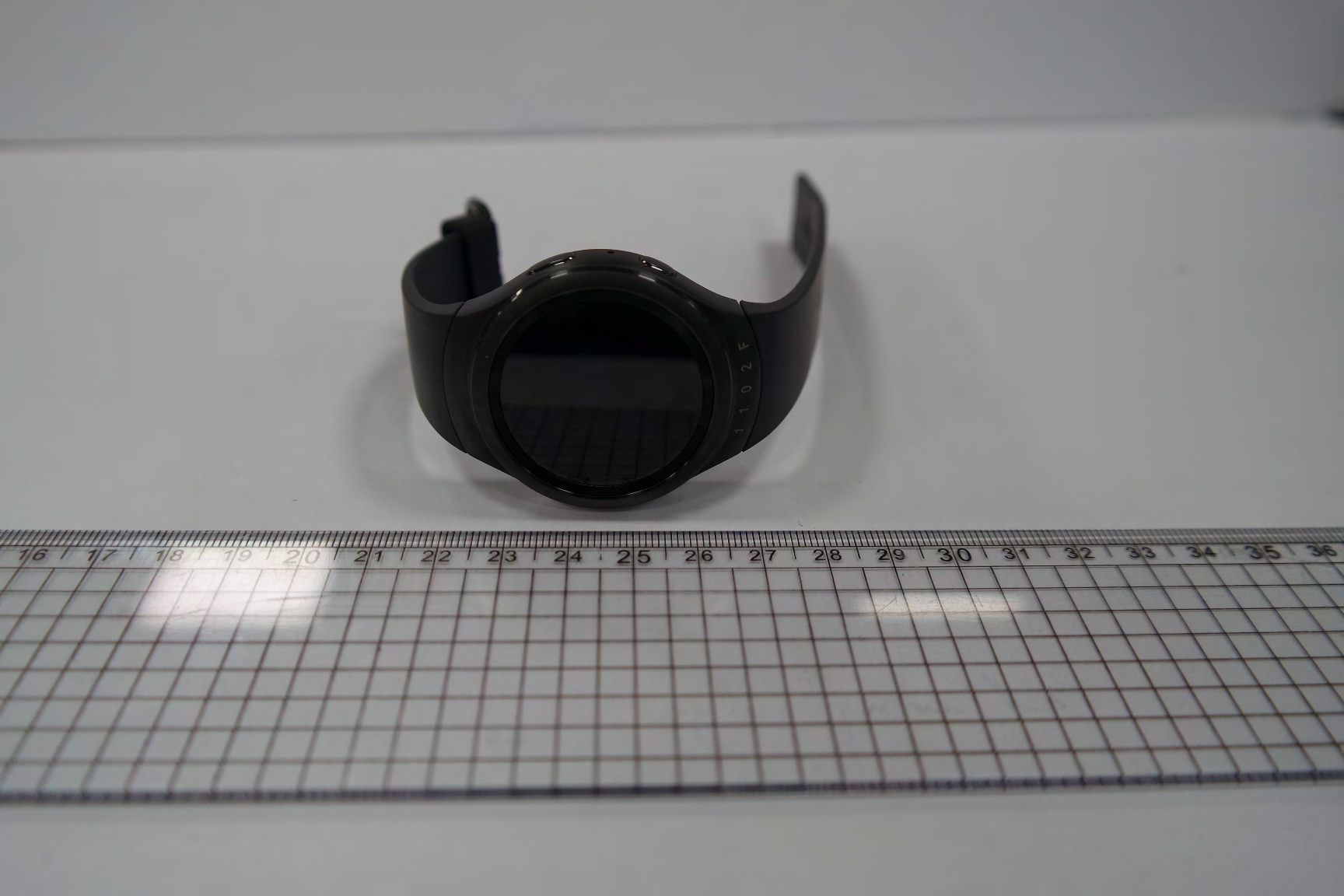

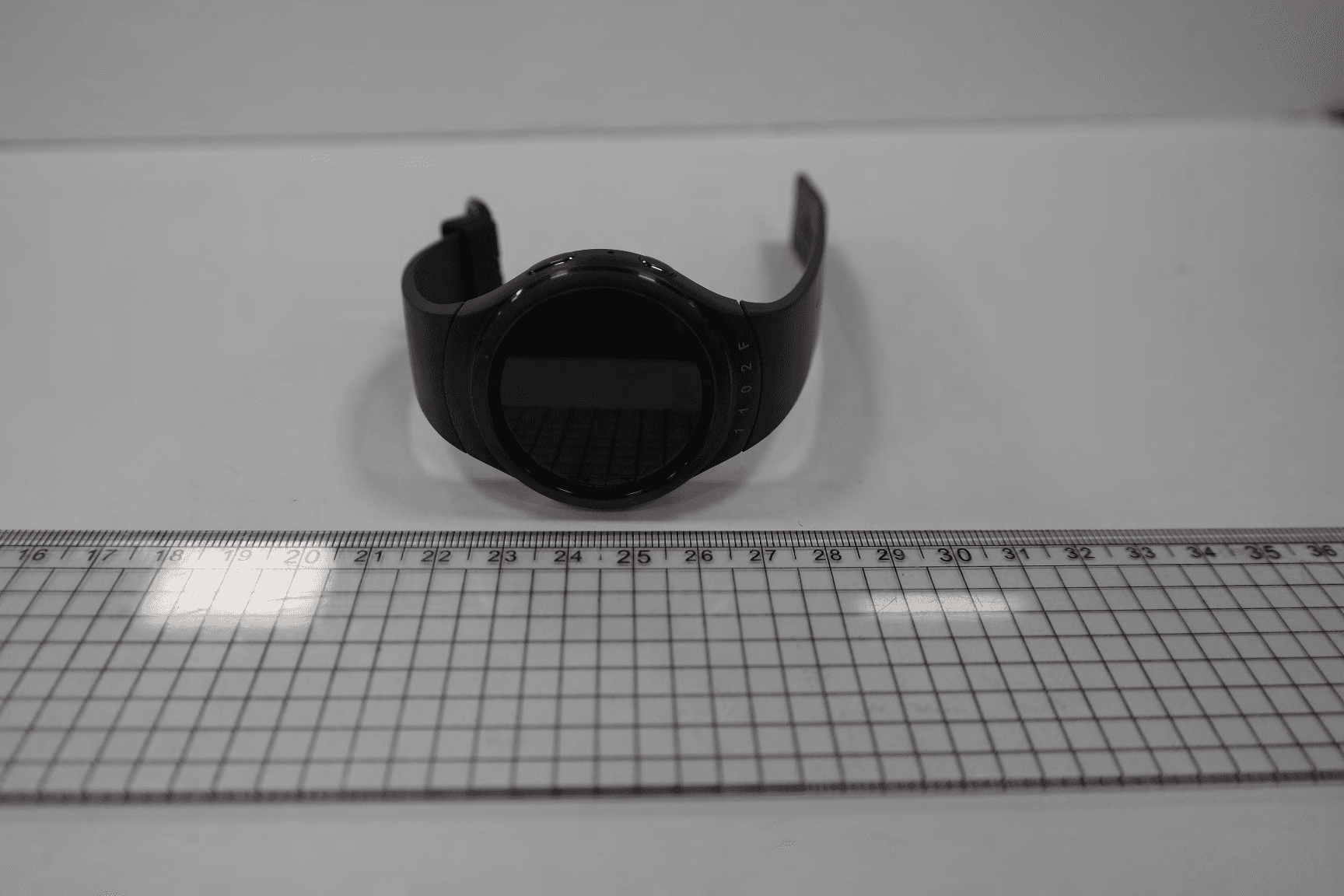

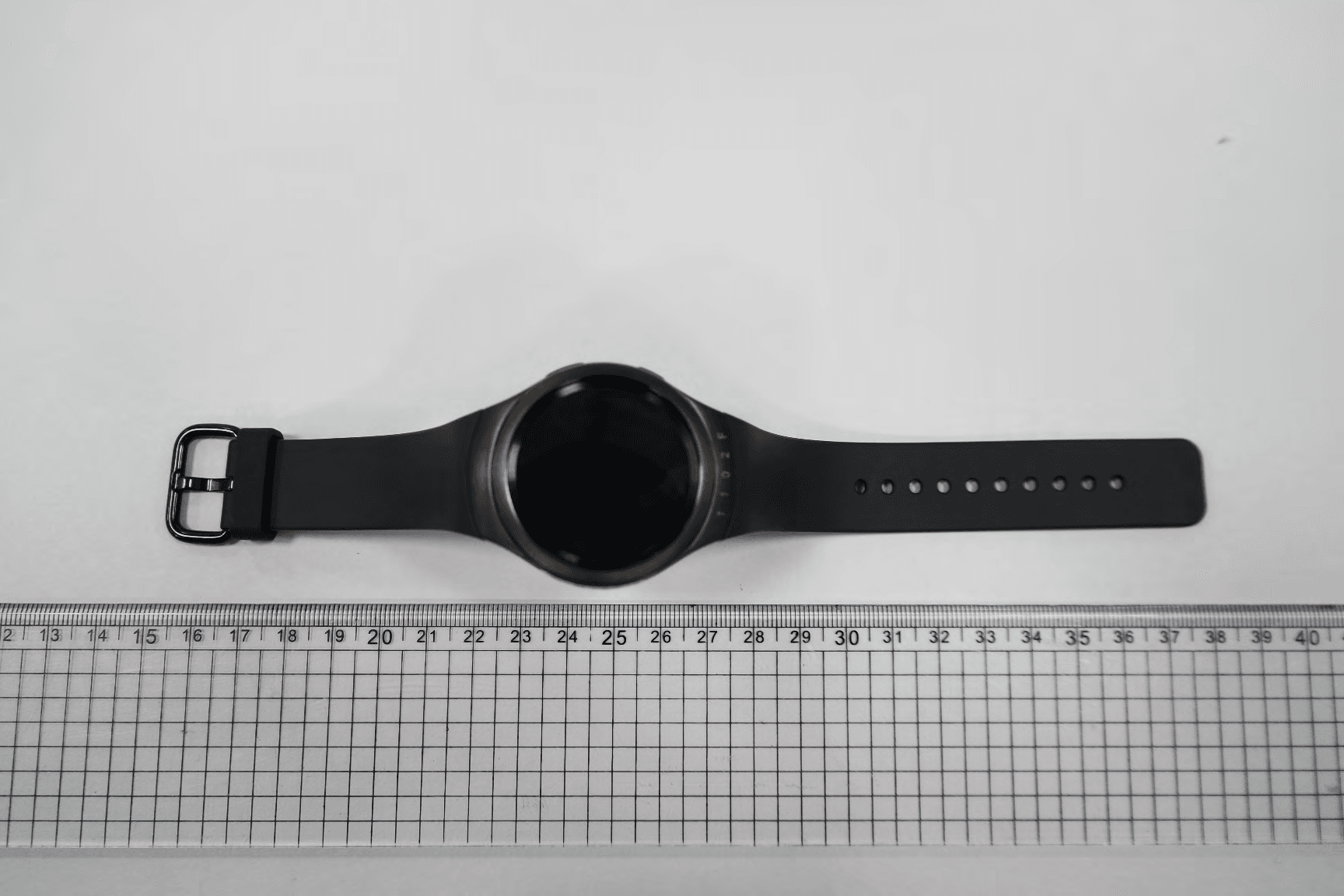

A3LSMR720Watch with Bluetooth/BLE and DTS b/g/n

DRAFT User manual [SM-R720] Confidential Accessing more information To view the full user manual, open the Apps screen of the mobile device, tap Samsung Gear → Settings → About Gear. Visit www.samsung.com to view device information, the user manual, and more. The user manual may not be available depending on the web browser or service provider. Adjusting the input value Rotate the control wheel to adjust the volume or brightness. You can also use the control wheel to enter a specific value while using S Health or setting an alarm. Using the control wheel Scrolling through the screens Rotate the control wheel to view other screens or select menu items. • Connection methods may vary depending on your device and software version. • Supported mobile devices may vary depending on your region, service provider, and device manufacturer. Visit www.samsung.com for more information. Connecting the Gear to a mobile device For the best results, connect your Gear to a mobile device with the Samsung Gear app installed on it. 1 Turn on the Gear. 2 Launch Samsung Gear. 3 Tap CONNECT GEAR. 4 When the Bluetooth pairing request window appears, tap OK. 5 Read the on-screen instructions and approve the connection. 6 Follow the on-screen instructions to complete the connection. Device layout To turn on the Gear, press and hold the Power key for a few seconds. Power key Back key Control wheel Charging the battery Before using the device for the first time, you must charge the battery. The charger should remain close to the electric socket and be easily accessible while charging. QUICK START GUIDE Printed in Korea GH68-xxxxx Rev.1.0 English (CA). 08/2015 Waking up the Gear and activating sleep mode While you are wearing the Gear, it recognises when you raise your wrist and displays the Clock screen. To activate sleep mode, cover the screen with your palm. Some content may differ from your device depending on the region, service provider, or software version, and is subject to change without prior notice. Copyright © 2015 Samsung Electronics IC Notice This device complies with Industry Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. R720_QSG_CA_Eng_D1.indd 12015-08-25 20:00:34 1 Remove the strap from the Gear. 2 Remove the screen from the Gear’s body using a flat edged tool. 3 Disconnect the battery connectors. 4 Remove the circuit board by lifting it out of the Gear’s body. 5 Remove the battery by pulling the battery connector at the right side of the Gear upwards. Removing the battery • To remove the battery, you must visit an authorised service centre with the provided instructions. • For your safety, you must not attempt to remove the battery. If the battery is not properly removed, it may lead to damage to the battery and device, cause personal injury, and/or result in the device being unsafe. • Samsung does not accept liability for any damage or loss (whether in contract or tort, including negligence) which may arise from failure to precisely follow these warnings and instructions, other than death or personal injury caused by Samsung’s negligence. All devices must meet the federal standard, which incorporates a substantial margin of safety. As stated above, variations in SAR values between different model devices do not mean variations in safety. SAR values at or below the federal standard of 1.6 W/kg are considered safe for use by the public. The highest reported SAR values for the SM-R720 are: Head : 0.075 W/kg Body : 0.613 W/kg This device has been tested and meets RF exposure guidelines when used with an accessory that contains no metal and that positions the mobile device a minimum of 0.0 cm from the body. Specific Absorption Rate (SAR) certification information The SAR is a value that corresponds to the relative amount of RF energy absorbed by a user of a wireless handset. The SAR value of a device is the result of an extensive testing, measuring and calculation process. It does not represent how much RF the device emits. All device models are tested at their highest value in strict laboratory settings. But when in operation, the SAR of a device can be substantially less than the level reported to Industry Canada. This is because of a variety of factors including its proximity to a base station antenna, device design and other factors. What is important to remember is that each device meets strict federal guidelines. Variations in SARs do not represent a variation in safety. Your device has been tested in a controlled environment and certified to be water- and dust-resistant in specific situations (meets requirements of classification IP67 as described by the international standard IEC 60529 - Degrees of Protection provided by Enclosures [IP Code]; test conditions: 15 - 35°C, 86 - 106 kPa, 1 metre, 30 minutes). Despite this classification, your device is not impervious to water damage in any situation. • Do not expose the device to water moving with force, such as water running from a tap, ocean waves, or waterfalls. • If the device or your hands ar e wet, dry them thoroughly before handling the device. • If the device is exposed to freshwater, dry it thoroughly with a clean, soft cloth. If the device is exposed to any liquid other than freshwater, rinse the device with freshwater immediately and dry it thoroughly with a clean, soft cloth. Failure to rinse the device in freshwater and dry it as instructed may cause the device to suffer from operability or cosmetic issues. • If the device is dr opped or receives an impact, the water- and dust-resistant features of the device may be damaged. • The touchscreen and other features may not work properly if the device is used in water or in other liquids. THIS DEVICE AND ANY SOFTWARE, SERVICE, FUNCTION PROVIDED THEREIN IS SOLELY INTENDED FOR FITNES…

Text truncated - open the document above for the full version.

DRAFT User manual [SM-R720] Confidential GH68-42555C MOBILE DEVICE Health and Safety and Warranty Guide Please read this manual before operating your device and keep it for future reference. Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG mobile device, including but not limited to, accessories, parts, or software relating thereto (the “mobile device”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE DEVICE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Samsung Telecommunications America (STA), LLC Address: 1301 E. Lookout Drive Richardson, TX 75082 Phone: 1-800-SAMSUNG (726-7864) Phone: 1-888-987-HELP (4357) Internet Address: www.samsung.com © 2014 Samsung Telecommunications America, LLC. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support 1 Table of Contents Section 1: Health/Safety Information .................................. 3 Maintaining Water and Dust Resistance . . . . . . . . . . . . . . . . . . 4 Exposure to Radio Frequency (RF) Signals . . . . . . . . . . . . . . . . . . . . 7 Specific Absorption Rate (SAR) Certification Information . . . . . . 24 FCC Part 15 Information to User . . 29 Commercial Mobile Alerting System (CMAS) . . . . . . . . . . . . . . . . . . . 32 Smart Practices While Driving . . . . 33 Battery Use and Safety . . . . . . . . . 37 Samsung Mobile Products and Recycling . . . . . . . . . . . . . . . . . . 44 2 UL Certified Travel Charger . . . . . . . 46 Display / Touch-Screen . . . . . . . . . 48 GPS & AGPS . . . . . . . . . . . . . . . . . . 50 Emergency Calls . . . . . . . . . . . . . . 54 Care and Maintenance . . . . . . . . . . 59 Responsible Listening . . . . . . . . . . . 65 Operating Environment . . . . . . . . . . 72 Restricting Children's Access to Your Mobile Device . . . . . . . . . . . 79 FCC Notice and Cautions . . . . . . . . 80 Other Important Safety Information . . . . . . . . . . . . . . . . . 81 Section 2: Warranty Information ................................ 87 Standard Limited Warranty . . . . . . . 88 End User License Agreement for Software . . . . . . . . . . . . . . . . . . 106 Index ........................................ 133 3 Section 1: Health/Safety Information This section outlines the safety precautions associated with using your device. The terms "device" or "mobile device" are used in this section to refer to your Gear. Read this information before using your mobile device. Note: When the Gear is synced with a compatible S Health app, you can use additional features. The additional features include checking your exercise records, and more. Health/Safety Information 4 Note: Applications such as Pedometer, Sleep, Exercise, UV, and Heart Rate are intended for leisure,…

Text truncated - open the document above for the full version.

Date: August 5, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

August 20, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSM R720 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Label and Location Model: SM-R720 FCC ID: A3LSMR720 Label: Location: Top Back of device Bottom Smart Wearable : FCC ID is printed on bottom of the device The FCC ID is printed on the bottom of the device. The FCC ID is readily visible to the user. The label is permanently engraved printed and not easily removed from the device. Label

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For Bluetooth & WLAN 2.4GHz b/g/n Wrist Device FCC ID: A3LSMR720 Model Name: SM-R720 Report Number: 15K21506-S1 Issue Date: 8/25/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 443-742, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K21506-S1 Issue Date: 8/25/2015 Page 2 of 21 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Revision History Rev. Date Revisions Revised By -- 8/25/2015 Initial Issue Justin Park Report No.: 15K21506-S1 Issue Date: 8/25/2015 Page 3 of 21 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd Table of Contents 1. Attestation of Test Results ......................................................................................................... 4 2. Test Specification, Methods and Procedures ............................................................................ 5 3. Facilities and Accreditation ........................................................................................................ 5 4. SAR Measurement System & Test Equipment .......................................................................... 6 4.1. SAR Measurement System ........................................................................................................ 6 4.2. SAR Scan Procedures ............................................................................................................... 7 4.3. Test Equipment .......................................................................................................................... 9 5. Measurement Uncertainty ........................................................................................................... 9 6. Device Under Test (DUT) Information ...................................................................................... 10 6.1. DUT Description ...................................................................................................................... 10 6.2. Wireless Technologies ............................................................................................................. 10 6.3. Nominal and Maximum Output Power ...................................................................................... 11 7. RF Exposure Conditions (Test Configurations) ...................................................................... 12 8. Dielectric Property Measurements & System Check .............................................................. 13 8.1. Dielectric Property Measurements ........................................................................................... 13 8.2. System Check.......................................................................................................................... 15 9. Conducted Output Power Measurements ................................................................................ 17 9.1. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 17 9.2. Bluetooth ................................................................................................................................. 17 10. Measured and Reported (Scaled) SAR Results ....................................................................... 18 10.1. Wi-Fi (DTS Band) ................................................................................................................. 19 10.2. Bluetooth .............................................................................................................................. 19 11. SAR Measurement Variability ................................................................................................... 20 12. Simultaneous Transmission SAR Analysis ............................................................................. 20 Appendixes .......................................................................................................................................... 21 A_15K21506-S1 SAR Photos & Ant. Locations .................................................................................. 21 B_15K21506-S1 SAR Highest Test Plots ........................................................................................... 21 C_15K21506-S1 SAR System Check Plots ........................................................................................ 21 D_15K21506-S1 SAR Tissue Ingredients ........................................................................................... 21 E_15K21506-S1 SAR Probe Cal. Certificates .................................................................................... 21 F_15K21506-S1 SAR Dipole Cal. Certificates .................................................................................... 21 Report No.: 15K21506-S1 Issue Date: 8/25/2015 Page 4 of 21 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd 1. Attestation of Test Results Applicant Name SAMSUNG ELECTRONICS CO.,LTD. FCC ID A3LSMR720 Model Name SM-R720 Applicable Standards FCC 47 CFR § 2.1093 Published RF exposure KDB procedures IEEE Std 1528-2013 SAR Limits (W/Kg) Exposure Category Peak spatial-average(1g of tissue) Extremities (hands, wrists, ankles, etc.) (10g of tissue) General population / Uncontrolled exposure 1.6 4.0 The Highest Reported SAR (W/kg) RF Exposure Conditions Equipment Class Licensed DTS U-NII DSS (BT) Extremity (Wrist) N/A 0.613 N/A 0.134 Next-to-Mouth 0.075 0.017 Date Tested 8/20/2015 to 8/24/2015 Test Results Pass UL Korea, Ltd. tested the above equipment in accordance with the requirem…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-08-23 Wi-Fi 2.4Ghz_0823 Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.979 S/m; ε r = 52.458; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(7.12, 7.12, 7.12); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:xxxx Extremity Body/802.11b_ch 6 SN:11085/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.90 W/kg Extremity Body/802.11b_ch 6 SN:11085/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 30.50 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.09 W/kg SAR(1 g) = 1.24 W/kg; SAR(10 g) = 0.559 W/kg Maximum value of SAR (measured) = 1.87 W/kg 0 dB = 1.87 W/kg = 2.72 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-08-23 Wi-Fi 2.4Ghz_0823 Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.861 S/m; ε r = 37.827; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7314; ConvF(7.23, 7.23, 7.23); Calibrated: 2014-08-27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:1854 Next-to-Mouth/Wi-Fi_ 802.11b_ch 6 PLS18 SN:110A9/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0990 W/kg Next-to-Mouth/Wi-Fi_ 802.11b_ch 6 PLS18 SN:110A9/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.661 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 0.119 W/kg SAR(1 g) = 0.068 W/kg; SAR(10 g) = 0.034 W/kg Maximum value of SAR (measured) = 0.0965 W/kg 0 dB = 0.0965 W/kg = -10.15 dBW/kg Plot No. 3 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-08-20 Bluetooth Frequency: 2402 MHz; Duty Cycle: 1:1.29033; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2402 MHz; σ = 1.944 S/m; ε r = 52.541; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(7.12, 7.12, 7.12); Calibrated: 2015-07-23; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:xxxx Extremity Body/Bluetooth GFSK_ ch 0/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.438 W/kg Extremity Body/Bluetooth GFSK_ ch 0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.69 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.711 W/kg SAR(1 g) = 0.285 W/kg; SAR(10 g) = 0.125 W/kg Maximum value of SAR (measured) = 0.450 W/kg 0 dB = 0.450 W/kg = -3.47 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-08-20 Bluetooth Frequency: 2402 MHz; Duty Cycle: 1:1.29033; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2402 MHz; σ = 1.78 S/m; ε r = 38.119; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn614; Calibrated: 2014-09-18 - Probe: EX3DV4 - SN7314; ConvF(7.23, 7.23, 7.23); Calibrated: 2014-08-27; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: SAM Phantom CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:1854 Next-to-Mouth/Bluetooth GFSK_ ch 0/Area Scan (7x7x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.0220 W/kg Next-to-Mouth/Bluetooth GFSK_ ch 0/Zoom Scan (9x8x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.624 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.0780 W/kg SAR(1 g) = 0.016 W/kg; SAR(10 g) = 0.00632 W/kg Maximum value of SAR (measured) = 0.0238 W/kg 0 dB = 0.0238 W/kg = -16.23 dBW/kg

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-08-20 20150820_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.992 S/m; ε r = 52.426; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(7.12, 7.12, 7.12); Calibrated: 2015-07-23; - Sensor-Surface: 4mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:xxxx Body/Pin=100 mW 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 4.39 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 63.96 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.23 W/kg; SAR(10 g) = 2.41 W/kg Maximum value of SAR (measured) = 7.47 W/kg 0 dB = 7.47 W/kg = 8.73 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-08-20 20150820_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.88 W/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-08-24 20150824_SystemPerformanceCheck-D2450V2 SN 960 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.021 S/m; ε r = 52.974; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE4 Sn1447; Calibrated: 2014-08-25 - Probe: EX3DV4 - SN7313; ConvF(7.12, 7.12, 7.12); Calibrated: 2015-07-23; - Sensor-Surface: 4mm (Mechanical Surface Detection) - Phantom: SAM (20deg probe tilt) with CRP v5.0(Middle); Type: QD000P40CD; Serial: TP:xxxx Body/Pin=100 mW 2/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 5.03 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7) (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.95 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.33 W/kg; SAR(10 g) = 2.42 W/kg Maximum value of SAR (measured…
