Quick Reference Guide (Terms an d Conditions) SM-S911U SM-S911U1 Read this document before operating the mobile device, accessories, or software (defined collectively and individually as the “Product”) and keep it for future reference. This document contains important Terms and Conditions. Electronic acceptance, opening the packaging, use, or retention of the Product constitutes acceptance of these Terms and Conditions. Visit www.samsung.com/us to view device information, the user manual, and more. You may incur additional charges for accessing the Internet. Device Layout To turn on the device, pr ess and hold th e Side key for a few seconds. The charger should remain close to the electric socket and easily accessible while charging. Installing a nano-SIM card Nano- SIM cards are sold separately. Contact us Questions? Visit us.community.samsung.com Get Support Call 1.800.SAMSUNG Service locations Find a service location near you at Samsung.com/us/support/service/locations Switching made simple Whether you are coming from an iOS or Android platform, you can easily transfer your data with Smart Switch. Back up your old phone Back up your old phone using your favorite back-up app. Samsung Smart Switch 1. From your new Galaxy device, tap Settings > Accounts and backup > Smart Switch. 2. Tap Receive data. 3. Select your old device type. 4. Tap Cable (Android) or Wireless (Android and iOS) and follow the prompts to connect your phones. Customize Tap Settings to personalize your phone. Flight mode This disables all wireless functions on your devic e. You can use only non- network services On the setting screen, tap Flight mode. Important l egal information Arbitration Agreement - This Product is subject to a binding arbitrat ion agreement between you and SAMSUNG ELECTRONICS AMERICA, INC. (“Samsung”). You can opt out of t he agreement within 30 calendar days of the first consumer purchase by emailing [email protected] or calling 1-800-SAMSUNG (726-7864) and providing the applicable information. The full Arbitration Agreement, Standard One-year Limited Warranty, End User License Agreement (EULA), and Health & Safety Information for your device are available online: •English: www.samsung.com/us/Legal/Phone-HSGuide •Spanish: www.samsung.com/us/Legal/Phone-HSGuide-SP This information can also be found on the device in the “About device” or “About phone” or “About tablet” section, for example: •Settings > About phone or About device or About tablet > Legal information > Samsung legal •Or,Search “Legal” If your device required Federal Communications Commission (FCC) approval, you can view the FCC certification by opening Settings > About phone or About device or About tablet> Status Information Health and Safety WARNING! To avoid electri c shock and damage to your device, do not charge device while it is wet or in an area where it co uld get wet. Do not handle device, c harger or cords with wet hands while charging. Maint aining dust and water resistance The device is not impervious to dust and water damage in any situation. It is important that all c ompartments are closed tightly. Follow these tips carefully to prevent damage to the device and maintain dust and water resistance performance: •Water resistant based on IP68 rating, which tests submersion in fresh water deeper than 1.5 meters or keep it submerged for more than 30 minutes. If device is exposed to fresh water, dry it thoroughly with a clean, soft cloth; if exposed to liquid other than fresh water, rinse with fresh water and dry as directed. •Any device which uses accessible compar tments or por ts that can be opened should have these se aled or closed tightly to prevent liquid from entering th e system. •If the device has been immersed i n water or the microphone or speaker is wet, sound may not be heard clearly during a call. After wiping the device with a dry cloth, dry it thoroughly before using it. •Do not expose the device to water at high pressure. •If the device is dropped or receives an impact, the water and dust resistant features of the device may be damaged. Note: Liquid other than fresh water may enter the device fa ster. Failure to rinse the device in fresh water and dry it as instructed may cause the device to suffer from operability or cosmetic issues. Samsung Knox Samsung Knox is Samsung’s security platf orm. Additional licensing fees may be required for enterprise use. For more information about Knox, pl ease refer to: www.samsung.com/us/knox Specific Absorption Rate (SAR) certification information For information about SAR, visit : •https://www.fcc.gov/general/radio-frequency-safety-0 •www.fcc.gov/encyclopedia/ speci fic -absorption-rate-sar-cellular-telephones •www.samsung.com/sar Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 1.5cm separation between the device and the user's body. Samsung Wireless Power Sharing feature allows device -to -device charging without the need for a charger. If your device supports the wireless power sharing function, this equipment should be operated with a minimum distance of 20 cm between the device and your body. Note: Foldable devices can be stored in an environment with ambient temperatures of -10°C / 14.0°F to 50°C / 122°F safely; prolonged exposure to temperatures outside these recommended temperatures can pose a high risk of damage to the device. Samsung mobile products and recycling WARNING! Never dispose of batteries in a fire because they may explode. Do not disassemble, crush, puncture, heat, burn or reuse. F or battery and cell phone recycling, go to call2re cycle. org or call 1- 800-822-8837. F or more recycling information, go to our website: www.samsung.com/re cycling or call 1-800-S AMSUNG. Your location Location-based information on that can be used to determine the approximate location of a mobile device. If you use applic ations that require location-based i…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 04, 2022 FCC ID: A3LSMS911U To whom it may concern: We, the undersigned, hereby authorize Element Washington DC LLC, to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by Element Washington DC LLC. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea Nov, 3 rd , 2022 Federal Communications Commiss ion 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMS911U To whom it may concern We her eby provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find the FCC ID per CRF 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung have programmed the e-label and it is not able to be modified by any third party. Pe r CFR 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Shoul d you have any questions or comments concerning the above, please contact the undersigned. Si ncerely Yours, Jenni Chun/ General Manager Samsung Electronics America. Inc Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

Date: 2022.11.14 Samsu ng Electronics Co., LTD. 129, Samsung-ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 443-742, Korea Subject: VoLTE Transport over 5G and OTT Pre-install HAC Attestation FCC ID: A3LSMS911U To Whom it May Concern We attest that VoLTE voice service may be transported over 5G NR Sub-6 GHz bands in this device and that Google Meet has been pre-installed by the manufacturer for OTT VoIP services. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Jenni Chun / Gener al Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1- 973-808-6375

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: November 04, 2022 Federal Communications Commission Authorization and Evaluation Div ision 7435 Oak land Mills Road, Columbia, MD 21046 RE:Request of Confidentiality for FCC ID: A3LSMS911U To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily re leased to th e public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST ExhibitDescription PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Jenni Chun / General Manager Samsung Electronics America, Inc. Address: 19 Chapin Rd., Building D Pine Brook, NJ 07058 Tel: 1-973-808-6375

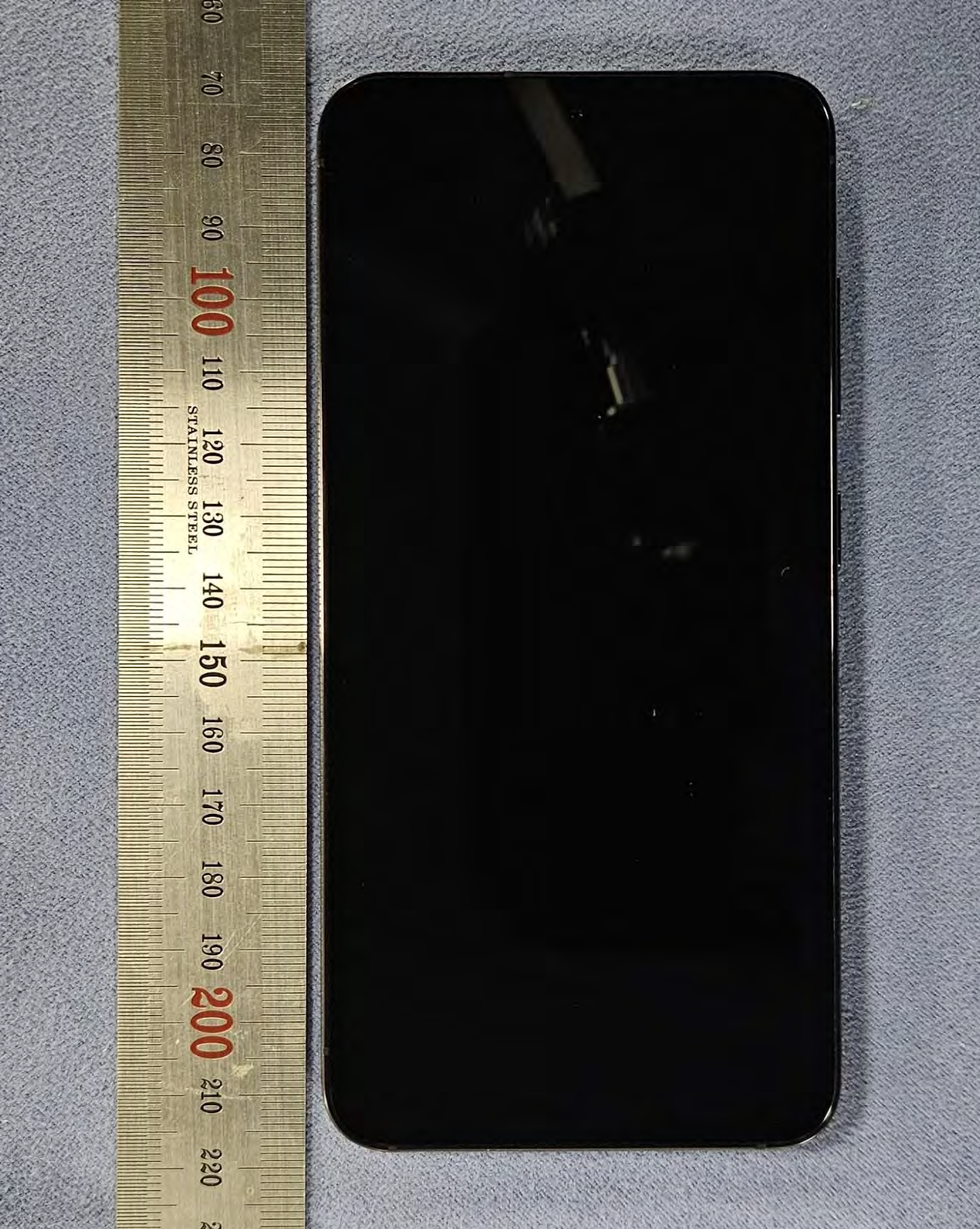

FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs FCC ID : A3LSMS911U External Photographs

Description of E-label on the A3LSMS911U Date: Nov. 3 rd , 2022 FCC ID: A3LSMS911U This model is applied E-label, please find description of E-label below. 1.FCC ID (E-label): Settings > About Phone > Status Information FCC certific ation FCC ID: A3LSMS911U <Device Display Screen> 2.FCC ID on the Quick Start Guide The FCC has granted an Equipment Authorization for this model device based on the compliance of all reported SAR levels with the FCC RF exposure guide lines. This device has a FCC ID number A3LSMS911U [Model Number: SM-S911U, SM-S911U1] and the specific SAR levels for this device can be found at the following. FCC website: www.fcc.gov/oet/ea/ The SAR information for this device can be found on Samsung’s website: www.samsung.com/sar

FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs FCC ID : A3LSMS911U Internal Photographs

© 2020 PCTEST APPENDIX A: SAR TEST DATA A1 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0277M Communication System: UID 0, GSM; Frequency: 836.6 MHz; Duty Cycle: 1:8.3 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.917 S/m; ε r = 41.41; ρ = 1000 kg/m 3 Phantom section: Right Section; Test Date: 09/21/2022; Ambient Temp: 20.6°C; Tissue Temp: 19.5°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 836.6 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM V8.0 (20); Type: QD 000 P41 Ax; Serial: 1937 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) Mode: GSM 850, Right Head, Cheek, Mid.ch Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.45 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.204 W/kg SAR(1 g) = 0.165 W/kg Smallest distance from peaks to all points 3 dB below = 20.7 mm Ratio of SAR at M2 to SAR at M1 = 81.7% 0 dB = 0.189 W/kg = -7.24 dBW/kg A2 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0227M Communication System: UID:10021 - DAC, GSM; MAIA: Y; Frequency: 1850.2 MHz Medium: 1900 Head; Medium parameters used: f = 1850.2 MHz; cond = 1.37 S/m; perm = 40.1; density = 1000 kg/m3 Phantom Section: LeftHead; Space: 0.00 mm Test Date: 09/21/2022; Ambient Temp: 23.4°C; Tissue Temp: 21.5°C Probe: EX3DV4 - SN7488; ConvF:(8.37,8.37,8.37); Calibrated: 2022-02-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1415; Calibrated: 2022-02-23 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.2.0.1425 Mode: GSM 1900, Left Head, Cheek, Low Ch. Area Scan (120.0 x 180.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.10 W/kg; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.142 W/kg SAR(1 g) = 0.094 W/kg Smallest distance from peaks to all points 3 dB below is 13.8 mm Ratio of SAR at M2 to SAR at M1 = 88.7 % A3 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0277M Communication System: UID 0, UMTS; Frequency: 836.6 MHz; Duty Cycle: 1:1 Medium: 835 Head; Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.943 S/m; ε r = 42.165; ρ = 1000 kg/m 3 Phantom section: Right Section; Test Date: 09/19/2022; Ambient Temp: 21.8°C; Tissue Temp: 21.1°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 836.6 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM V8.0 (20); Type: QD 000 P41 Ax; Serial: 1937 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) Mode: UMTS 850, Right Head, Cheek, Mid.ch Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.99 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.335 W/kg SAR(1 g) = 0.268 W/kg Smallest distance from peaks to all points 3 dB below: Larger than measurement grid (> 16 mm) Ratio of SAR at M2 to SAR at M1 = 79.9% 0 dB = 0.312 W/kg = -5.06 dBW/kg A4 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0245M Communication System: UID:10011 - CAC, WCDMA; MAIA: Y; Frequency: 1732.4 MHz Medium: 1750 Head; Medium parameters used: f = 1732.4 MHz; cond = 1.37 S/m; perm = 40.0; density = 1000 kg/m3 Phantom Section: LeftHead; Space: 0.00 mm Test Date: 09/12/2022; Ambient Temp: 23.0°C; Tissue Temp: 22.5°C Probe: EX3DV4 - SN7660; ConvF:(9.38,9.38,9.38); Calibrated: 2022-05-18 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1678; Calibrated: 2022-05-10 Phantom: Twin-SAM V5.0; Serial: 1692rightback Measurement SW: DASY Module SAR V16.2.0.1425 Mode: UMTS 1750, Left Head, Cheek, Mid Ch. Area Scan (120.0 x 180.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.12 W/kg; Power Drift = -0.02 dB Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.146 W/kg Smallest distance from peaks to all points 3 dB below is 11.6 mm Ratio of SAR at M2 to SAR at M1 = 86.8 % A5 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0227M Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 1852.4 MHz Medium: 1900 Head; Medium parameters used: f = 1852.4 MHz; cond = 1.35 S/m; perm = 39.5; density = 1000 kg/m3 Phantom Section: LeftHead; Space: 0.00 mm Test Date: 10/23/2022; Ambient Temp: 21.9°C; Tissue Temp: 22.8°C Probe: EX3DV4 - SN7527; ConvF:(7.77,7.77,7.77); Calibrated: 2022-03-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2022-03-16 Phantom: Twin-SAM V5.0; Serial: 1757 Measurement SW: DASY Module SAR V16.0.0.116 Mode: UMTS 1900, Left Head, Cheek, Low Ch. Area Scan (120.0 x 180.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.18 W/kg; Power Drift = -0.05 dB Peak SAR (extrapolated) = 0.241 W/kg SAR(1 g) = 0.156 W/kg Smallest distance from peaks to all points 3 dB below is 13.4 mm Ratio of SAR at M2 to SAR at M1 = 88.2 % A6 ELEMENT DUT: A3LSMS911U; Type: Portable Handset; Serial: 0230M Communication System: UID 0, LTE Band 71; Frequency: 680.5 MHz; Duty Cycle: 1:1 Medium: 750 Head; Medium parameters used (interpolated): f = 680.5 MHz; σ = 0.894 S/m; ε r = 40.479; ρ = 1000 kg/m 3 Phantom section: Right Section; Test Date: 09/13/2022; Ambient Temp: 21.8°C; Tissue Temp: 22.9°C Probe: EX3DV4 - SN7491; ConvF(10.11, 10.11, 10.11) @ 680.5 MHz; Calibrated: 6/29/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1532; Calibrated: 6/14/2022 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1626 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (…

Text truncated - open the document above for the full version.

APPENDIX B: SAR DIPOLE VERIFICATION PLOTS B1 ELEMENT DUT: Dipole 13.0 MHz; Type: CLA-13 - SN1002 Communication System: UID: 0, CW; Frequency: 13.0 MHz Medium: 30 Head; Medium parameters used: f = 13.0 MHz; cond = 0.745 S/m; perm = 53.0; density = 1000 kg/m3 Phantom Section: Flat; Space: 0 mm Test Date: 11/10/2022; Ambient Temp: 22.8°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7527; ConvF:(17.78,17.78,17.78); Calibrated: 2022-03-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2022-03-16 Phantom: ELI V8.0; Serial: 2077 Measurement SW: DASY Module SAR V16.2.0.1425 13.0 MHz System Verification at 30.0 dBm (1W) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 1.16 W/kg SAR(1 g) = 0.587 W/kg; SAR(10 g) = 0.365 W/kg Deviation (1 g) = 5.39%; Deviation (10 g) = 5.49% B2 ELEMENT DUT: Dipole 750.0 MHz; Type: D750V3 - SN1054 Communication System: UID: 0, CW; Frequency: 750.0 MHz Medium: 750 Head; Medium parameters used: f = 750.0 MHz; cond = 0.889 S/m; perm = 41.2; density = 1000 kg/m3 Phantom Section: Flat; Space: 15 mm Test Date: 09/08/2022; Ambient Temp: 22.0°C; Tissue Temp: 21.9°C Probe: EX3DV4 - SN7409; ConvF:(9.88,9.88,9.88); Calibrated: 2022-06-16 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1334; Calibrated: 2022-06-14 Phantom: Twin-SAM V5.0; Serial: 1792 Measurement SW: DASY Module SAR V16.2.0.1425 750 MHz System Verification at 23 dBm (200 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 2.69 W/kg SAR(1 g) = 1.71 W/kg; SAR(10 g) = 1.12 W/kg Deviation (1 g) = 0.35%; Deviation (10 g) = 0.00% B3 ELEMENT DUT: Dipole 750 MHz; Type: D750V3; Serial: 1046 Communication System: UID 0, CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 750 Head Medium parameters used: f = 750 MHz; σ = 0.917 S/m; ε r = 40.278; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 09/13/2022; Ambient Temp: 21.8°C; Tissue Temp: 22.9°C Probe: EX3DV4 - SN7491; ConvF(10.11, 10.11, 10.11) @ 750 MHz; Calibrated: 6/29/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1532; Calibrated: 6/14/2022 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1626 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) 750 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 2.59 W/kg SAR(1 g) = 1.7 W/kg; SAR(10 g) = 1.11 W/kg Deviation(1 g) = -0.47%; Deviation (10 g) = -1.07% 0 dB = 2.29 W/kg = 3.60 dBW/kg B4 ELEMENT DUT: Dipole 750 MHz; Type: D750V3; Serial: 1046 Communication System: UID 0, CW; Frequency: 750 MHz; Duty Cycle: 1:1 Medium: 750 Head Medium parameters used: f = 750 MHz; σ = 0.917 S/m; ε r = 40.09; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 09/15/2022; Ambient Temp: 21.5°C; Tissue Temp: 21.7°C Probe: EX3DV4 - SN7491; ConvF(10.11, 10.11, 10.11) @ 750 MHz; Calibrated: 6/29/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1532; Calibrated: 6/14/2022 Phantom: Twin-SAM V5.0 (30); Type: QD 000 P40 CD; Serial: 1626 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) 750 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x15x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 2.72 W/kg SAR(1 g) = 1.79 W/kg ; SAR(10 g) = 1.16 W/kg Deviation(1 g) = 4.80%; Deviation (10 g) = 3.39% 0 dB = 2.41 W/kg = 3.82 dBW/kg B5 ELEMENT DUT: D835V2 - SN4d119; Type: D835V2; Serial: SN4d119 Communication System: UID 0, CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.942 S/m; ε r = 42.169; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 09/19/2022; Ambient Temp: 21.8°C; Tissue Temp: 21.1°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 835 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM V8.0 (20); Type: QD 000 P41 Ax; Serial: 1937 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) 835 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 3.16 W/kg SAR(1 g) = 2.09 W/kg; SAR(10 g) = 1.36 W/kg Deviation(1 g) = 8.18% ; Deviation (10 g) = 7.26% 0 dB = 2.78 W/kg = 4.44 dBW/kg B6 ELEMENT DUT: D835V2 - SN4d119; Type: D835V2; Serial: SN4d119 Communication System: UID 0, CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium: 835 Head Medium parameters used: f = 835 MHz; σ = 0.916 S/m; ε r = 41.414; ρ = 1000 kg/m 3 Phantom section: Flat Section; Space: 1.5 cm Test Date: 09/21/2022; Ambient Temp: 20.6°C; Tissue Temp: 19.5°C Probe: EX3DV4 - SN7637; ConvF(10.32, 10.32, 10.32) @ 835 MHz; Calibrated: 3/22/2022 Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1652; Calibrated: 3/14/2022 Phantom: Twin-SAM V8.0 (20); Type: QD 000 P41 Ax; Serial: 1937 Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7501) 835 MHz System Verification at 23.0 dBm (200 mW) Area Scan (7x14x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 2.74 W/kg SAR(1 g) = 1.81 W/kg; SAR(10 g) = 1.18 W/kg Deviation(1 g) = -6.31% ; Deviation (10 g) = -6.94% 0 dB = 2.44 W/kg = 3.87 dBW/kg B7 ELEMENT DUT: Dipole 835.0 MHz; Type: D835V2 - SN4d132 Communication System: UID: 0, CW; Frequency: 835.0 MHz Medium: 835 Head; Medium parameters used: f = 835.0 MHz; cond = 0.908 S/m; pe…

Text truncated - open the document above for the full version.

A P P E N D I X C : P R O B E A N D D I P O L E C A L I B R A T I O N C E R T I F I C A T E S

Object:Date Issued: Page 1 of 4 D2600V2 – SN: 1004 04/04/2022 Certification of Calibration Object D2600V2 – SN: 1004 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 04/04/2022 Description: SAR Validation Dipole at 2600 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Bizunesh Baldinazzo Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Agilent N5182A MXG Vector Signal Generator 6/21/2021 Annual 6/21/2022MY47420603 Amplifier Research 15S1G6 Amplifier CBTN/A CBT343971 Anritsu MA2411B Pulse Power Sensor 9/21/2021 Annual 9/21/20221339008 Anritsu MA2411B Pulse Power Sensor 10/21/2021 Annual 10/21/20221339027 Anritsu ML2496A Power Meter 11/29/2021 Annual 11/29/20221840005 Anritsu ML2496A Power Meter 4/21/2021 Annual 4/21/20221351001 Control Company 4040Therm./ Clock/ Humidity Monitor 3/12/2021 Biennial 3/12/2023210202100 Control Company 4352Ultra Long Stem Thermometer 10/2 5 /2021 Annual 10/25/2022200645916 Control Company 4353Long Stem Thermometer 10/28/2020 Biennial 10/28/2022200670653 MiniCircuits VLF‐6000+ Low Pass Filter CBTN/A CBTN/A Mini‐Circuits BW‐N20W5+ DC to 18 GHz Precision Fixed 20 dB Attenuator CBTN/A CBTN/A Mini‐Circuits NLP‐2950+ Low Pass Filter DC to 2700 MHz CBTN/A CBTN/A Narda 4772‐3 Attenuator (3dB) CBTN/A CBT9406 Paster nack NC‐100 Torque Wrench 8/4/2020 Biennial 8/4/2022N/A Mini‐CircuitsZHDC‐16‐63‐S+Coupler CBTN/A CBTN/A Rohde & Schwarz ZNLE6Vector Network Analyzer 10/20/2021 Annual 10/20/2022101307 SPEAG DAK‐3.5 Dielectric Assessment Kit 5/12/2021 Annual 5/12/20221070 Keysight Technologie s85033EStandard Mechanical Calibration Kit (DC to 9GHz, 3.5mm) 9/27/2021 Annual 9/27/2022MY53401181 SPEAGEX3DV4SAR Probe8/5/2021 Annual 8/5/20227670 SPEAG DAE4 Dasy Data Acquisition Electronics 8/3/2021 Annual 8/3/20221681 ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com Object:Date Issued: Page 2 of 4 D2600V2 – SN: 1004 04/04/2022 DIPOLE CALIBRATION EXTENSION Per KDB 865664 D01, calibration intervals of up to three years may be considered for reference dipoles when it is demonstrated that the SAR target, impedance and return loss of a dipole have remained stable according to the following requirements: 1. The measured SAR does not deviate more than 10% from the target on the calibration certificate. 2. The return‐ loss does not deviate more than 20% from the previous measurement and meets the required 20dB minimum return‐loss requirement. 3. The measurement of real or imaginary parts of impedance does not deviate more than 5Ω from the previous measurement. The following dipole was chec ked to pass the above 3 requirements to have 2‐ye ar calibration period from the calibration date: Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Head ( 1g) W/kg @ 20.0 dBm Measured Head SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Head (10g) W/kg @ 20.0 dBm Measured Head SAR (10g) W /kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Head (Ohm) Real Measured Impedance Head (Ohm) Real Difference (Ohm) Real Certificate Impedance Head (Ohm) Imaginary Measured Impedance Head (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Head ( dB) Measured Return Loss Head (dB) Deviation (%)PASS/FAIL 4/14/20214/4/20221.155.785.881.73%2.572.632.33%48.946.62.3-4.8-40.8-26.1-25.42.80%PASS Calibration Date Extension Date Certificate Electrical Delay (ns) Certificate SAR Target Body (1g) W/kg @ 20.0 dBm Measured Body SAR (1g) W/kg @ 20.0 dBm Deviation 1g (%) Certificate SAR Target Body (10g) W/kg @ 20.0 dBm Measured Body SAR (10g) W /kg @ 20.0 dBm Deviation 10g (%) Certificate Impedance Body (Ohm) Real Measured I mpedanc e Body (Ohm) Real Difference (Ohm) Real Certificate Impedance Body (Ohm) Imaginary Measured Impedance Body (Ohm) Imaginary Difference (Ohm) Imaginary Certificate Return Loss Body (dB) Measured Return Loss Body (dB) Deviation (%)PASS/FAIL 4/14/20214/4/20221.155.545.540.00%2.482.47-0.40%45.945.70.2-3.6-21.6-25-26-4.10%PASS Object:Date Issued: Page 3 of 4 D2600V2 – SN: 1004 04/04/2022 Impedance & Return‐Loss Measurement Plot for Head TSL Object:Date Issued: Page 4 of 4 D2600V2 – SN: 1004 04/04/2022 Impedance & Return‐Loss Measurement Plot for Body TSL Object: Date Issued: Page 1 of 4 D2600V2 – SN: 1071 11/12/2020 Certification of Calibration Object D2600V2 – SN: 1071 Calibration procedure(s) Procedure for Calibration Extension for SAR Dipoles. Extension Calibration date: 11/12/2020 Description: SAR Validation Dipole at 2600 MHz. Calibration Equipment used: Measurement Uncertainty = ±23% (k=2) Name Function Signature Calibrated By: Brodie Halbfoster Test Engineer Approved By: Kaitlin O’Keefe Senior Technical Manager Manufacturer Model Description Cal Date Cal Interval Cal Due Serial Number Control Company 4040Therm./Clock/Humidity Monitor 6/29/2019 Biennial 6/29/2021192291470 Control Company 4352Ultra Long Stem Thermometer 11/29/2018 Biennial 11/29/2020 181766816 Amplifier Research 15S1G6 Amplifier CBTN/ACBT433971 Narda 4772‐3 Attenuator (3dB) CBTN/ACBT9406 Agilent 85033E 3.5mm Standard Calibration Kit 6/6/2020Annual 6/6/2021 MY53402352 Rohde & Schwarz ZNLE6 Vector Network Analyzer 9/29/2020 Annual 9/29/2021101307 Mini‐Circuits BW‐N20W5+ DC to 18 GHz Precision Fixed 20 dB A ttenuator CBTN /AC…
