A3LSMT-I8110Frame -UPCS with WiFi 802.11b/g

Quick Guide 1. Introduction This guide is an interim for approval test. It is not a final user’s guide. It covers installation guide and telephone operation only. 2. Installation 2.1 Before you begin Make sure your package includes the items listed here. ‚ 1 Base ‚ 1 Frame ‚ 1 Handset ‚ 1 AC power adaptor for Handset ‚ 2 AC power adaptors for Frame or Base ‚ 1 Battery for Frame ‚ 1 Battery for Handset ‚ 1 charging cradle for Handset ‚ 1 charging cradle for Frame ‚ 1 Telephone line for connecting between Base and telephone wall jack (RJ11) ‚ 1 Ethernet line for connecting between Base and DSL/Cable router (RJ45) 2.2 Layout for devices 2.2.1 Base layout - Rear view - Front view 2.2.2 Handset layout - Front view - Right view - Rear view 2.2.3 Frame layout - Front view - Left view - Right view - Rear view 2.2.4 Charging cradle for Handset - Rear view 2.2.5 Charging cradle for Frame - Rear view 2.3 Installing devices 2.3.1 Installing Base 1. Choose an area near an electrical outlet, a telephone wall jack (RJ11), and a DSL/Cable modem router (RJ45). 2. Plug one end of the telephone line cord into TEL LINE jack on the rear panel of the Base and other end into a modular jack. 3. Plug one end of the ethernet line cord into Internet jack on the rear panel of the Base and other end into a LAN port of your DSL/Cable modem router. 4. Plug the AC power adaptor into the electrical outlet and the DC connector into the power jack of the Base. (Base and Frame power adaptors are the same.) - Even if you don’t have a DSL/Cable modem router, you can make a call and answer. 2.3.2 Installing Handset 1. Separate battery door by pushing the door down. 2. Plug the battery pack cord into the jack. 3. Insert battery pack. 4. Close the door by pushing up. 5. Then the power is automatically on. 6. Plug AC power adaptor into the jack of charging cradle. (Connector of handset power adaptor is different from those of Base and Frame.) 7. Place the handset in the cradle. 2.3.3 Installing Frame 1. Plug the battery pack into the back of Frame. 2. Plug AC power adaptor into the jack of charging cradle. (Base and Frame power adaptors are the same.) 3. Place the frame in the cradle. 4. Hold green button for a while. 5. Then the power is on and system boots up. 6. If you don’t have a DSL/Cable modem router, the frame cannot obtain IP address. You can choose “Use phone features only” button in booting time. 3. Telephone Operation 3.1 Make a call 3.1.1 Make a call with Handset 3.1.1.1 Make a call with Handset (Overlap mode) 1. Press Green button. 2. Then you can hear dial tone. 3. Press digits to make a call. (E.g. 12135431234) 3.1.1.2 Make a call with Handset (Enbloc mode) 1. Press digits to make a call. (E.g. 12135431234) 2. Press Green button. 3. Then you can hear DTMF tones. 3.1.2 Make a call with Frame 3.1.2.1 Make a call with Frame (Overlap mode) 1. Press Green button 2. Then you can hear dial tone and see the following call screen. 3. Press digits to make a call. (E.g. 12135431234) 3.1.2.2 Make a call with Frame (Enbloc mode) 1. Press “Keypad” button in the following touch screen. 2. Then pop up the call screen. 3. Press digits to make a call. (E.g. 12135431234) 4. Press Green button. 5. Then you can hear DTMF tones. 3.2 Answer calls 3.2.1 Answer calls with Handset - When the phone rings, press Green button or “Answer” soft button. 3.2.2 Answer calls with Frame - When the phone rings, press Green button or “Answer” soft button. 3.3 Intercom 3.3.1 Make an intercom call with Handset 1. Press Intercom button on right side. 2. Then you can see device lists you can make an intercom call. 3. Scroll and click the device you want to connect. 3.3.2 Make an intercom call with Frame 1. Press Intercom button on right side or touch Intercom button in the call screen. 2. Then you can see device lists you can make an intercom call. 3. Touch the device you want to connect. Consumer Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the back of this equipment is a label that contains, among other information, a product identifier in the format US:A3LW400BSMT-i8130. If requested, this number must be provided to the telephone company. An applicable certification jacks Universal Service Order Codes(USOC) for the equipment is provided RJ11, RJ45 in the packaging with each piece of approval terminal equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:A3LW400BSMT-i8130. The digits represented by 00 are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD. 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-600 Date : January. 16. 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. sung-kyu Cho of Korea Testing Laboratory and hereafter referred to as KTL, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. sung-kyu Cho of KTL on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Steve Kim General Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SAMSUNG ELECTRONICS CO., LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT-I8110 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Circuit description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until March 31, 2008. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards General Manager Steve Kim Date 16 of January , 2008

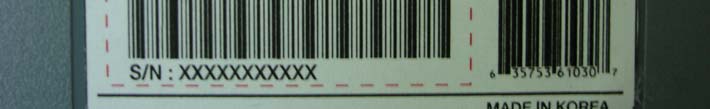

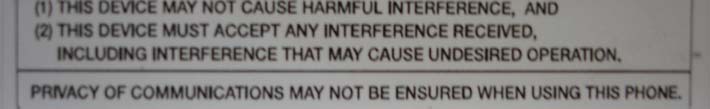

Photographs (Outside) <Battery label>

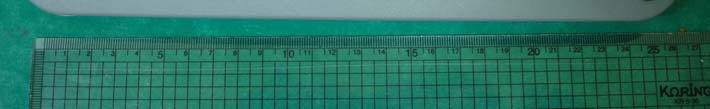

Photographs (In-side)

Report No.: 08-2341-009-3 Page 1 of 19 Pages 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 TEST REPORT 1. Applicant Name : SAMSUNG ELECTRONICS CO., LTD. Address : 2. Products Name : AT&T HomeManager Model/Type : SMT-i8110 Manufacturer : SAMSUNG ELECTRONICS CO., LTD. 3. Test Standard : 4. Test Method : ANSI C63.4-2003 5. Test Result : Positive 6. Date of Application : January 14, 2008 7. Date of Issue : February 19, 2008 Tested by Approved by ` Bum-Jong Kim Seok-Jin Kim Telecommunication Team Engineer Telecommunication Team Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-600 CFR 47 Part 15, Subpart C Report No.: 08-2341-009-3 Page 2 of 19 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-131 http://www.ktl.re.kr Fax. : +82-31-5000-159 FP-204-03-01 TABLE OF CONTENTS 1. GENERAL INFORMATIONS .........................................................................................3 1.1. Applicant (Client)...........................................................................................................................................3 1.2. Equipment (EUT) ...........................................................................................................................................3 1.3. Testing Laboratory ........................................................................................................................................4 2. SUMMARY OF TEST RESULTS ...................................................................................5 3. TEST FACILITY .............................................................................................................6 3.1. Korea Testing Laboratory test location ......................................................................................................6 4. MEASUREMENT & RESULTS ......................................................................................7 4.1. Radiated Emissions (FCC Part15.109) .......................................................................................................7 4.1.1. Test Procedure .........................................................................................................................................7 4.1.2. Limits ........................................................................................................................................................8 4.1.3. Sample Calculation ..................................................................................................................................8 4.1.4. Photograph for the test configuration.......................................................................................................8 4.1.5. Test Results..............................................................................................................................................9 4.2. Conducted Emissions (FCC Part 15.107)..................................................................................................10 4.2.1. Test Procedure .......................................................................................................................................10 4.2.2. Limits ...................................................................................................................................................... 11 4.2.3. Sample calculation ................................................................................................................................. 11 4.2.4. Photograph for the test configuration..................................................................................................... 11 4.2.5. Test Results............................................................................................................................................12 5. TEST EQUIPMENTS ...................................................................................................16 APPENDIX.1 EUT PHOTO .......................................................................................................17 APPENDIX.2 TEST SETUP PHOTO ........................................................................................18 Report No.: 08-2341-009-3 Page 3 of 19 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-131 http://www.ktl.re.kr Fax. : +82-31-5000-159 FP-204-03-01 1. GENERAL INFORMATIONS 1.1. Applicant (Client) Name SAMSUNG ELECTRONICS CO., LTD. Address Dong Suwon P.O.BOX 105, 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 442-600 Contact Person HagYoun Bae Telephone No. +82-31-279-4387 Facsimile No. +82-31-279-0389 E-mail address [email protected] 1.2. Equipment (EUT) Type of equipment PC Peripheral Model Name SMT-i8110 FCC ID A3LSMT-I8110 CPU ARM926EJ-297MHz, C64x + DSP-594MHz Memory 256MB NAND Flash(8bit), 64MB DDR2 SDRAM(16bit) Display 7” TFT-LCD (800*480) & Touch Screen Audio Stereo Speaker, 64 Poly Phonic Sound(YMU765), Hands-free Speakerphone (ZL38004), MIC WLAN IEEE802.11b/g (2.4GHz) SWL-2480 DECT DECT Module (1.92 ~ 1.93 GHz) Battery Li-Ion 5200mAh(2600mAh * 2), 3.7VDC Interface USB 2.0 port (Master), JTAG I/F connector UART for Debug Power Source Adaptor Input : AC 120V Output : DC 5V Manufacturer Name SAMSUNG ELECTRONICS CO., LTD. Manufacturer Address 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do Report No.: 08-2341-009-3 Page 4 of 19 Pages 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea. Tel. : +82-31-5000-131 http://www.ktl.re.kr Fax. : +82-31-5000-159 FP-204-03-01 1.3. Testing Laboratory Testing Place Korea Testing Labortory (KTL) 1271-12, Sa-Dong Sangnok-Gu, Ansan-si Gyunggi-Do , Korea Test Engineer Bum-Jong KIM Telephone number +82 31 5000 131 Fa…

Text truncated - open the document above for the full version.

TEST Setup Photographs < Radiated emission Test > < Radiated emission Test > < Radiated emission Test > < RF conducted Test > < Conducted emission Test > <Conducted emission Test >
