A3LSMT-I8120UPCS Handset

Quick Guide 1. Introduction This guide is an interim for approval test. It is not a final user’s guide. It covers installation guide and telephone operation only. 2. Installation 2.1 Before you begin Make sure your package includes the items listed here. ‚ 1 Base ‚ 1 Frame ‚ 1 Handset ‚ 1 AC power adaptor for Handset ‚ 2 AC power adaptors for Frame or Base ‚ 1 Battery for Frame ‚ 1 Battery for Handset ‚ 1 charging cradle for Handset ‚ 1 charging cradle for Frame ‚ 1 Telephone line for connecting between Base and telephone wall jack (RJ11) ‚ 1 Ethernet line for connecting between Base and DSL/Cable router (RJ45) 2.2 Layout for devices 2.2.1 Base layout - Rear view - Front view 2.2.2 Handset layout - Front view - Right view - Rear view 2.2.3 Frame layout - Front view - Left view - Right view - Rear view 2.2.4 Charging cradle for Handset - Rear view 2.2.5 Charging cradle for Frame - Rear view 2.3 Installing devices 2.3.1 Installing Base 1. Choose an area near an electrical outlet, a telephone wall jack (RJ11), and a DSL/Cable modem router (RJ45). 2. Plug one end of the telephone line cord into TEL LINE jack on the rear panel of the Base and other end into a modular jack. 3. Plug one end of the ethernet line cord into Internet jack on the rear panel of the Base and other end into a LAN port of your DSL/Cable modem router. 4. Plug the AC power adaptor into the electrical outlet and the DC connector into the power jack of the Base. (Base and Frame power adaptors are the same.) - Even if you don’t have a DSL/Cable modem router, you can make a call and answer. 2.3.2 Installing Handset 1. Separate battery door by pushing the door down. 2. Plug the battery pack cord into the jack. 3. Insert battery pack. 4. Close the door by pushing up. 5. Then the power is automatically on. 6. Plug AC power adaptor into the jack of charging cradle. (Connector of handset power adaptor is different from those of Base and Frame.) 7. Place the handset in the cradle. 2.3.3 Installing Frame 1. Plug the battery pack into the back of Frame. 2. Plug AC power adaptor into the jack of charging cradle. (Base and Frame power adaptors are the same.) 3. Place the frame in the cradle. 4. Hold green button for a while. 5. Then the power is on and system boots up. 6. If you don’t have a DSL/Cable modem router, the frame cannot obtain IP address. You can choose “Use phone features only” button in booting time. 3. Telephone Operation 3.1 Make a call 3.1.1 Make a call with Handset 3.1.1.1 Make a call with Handset (Overlap mode) 1. Press Green button. 2. Then you can hear dial tone. 3. Press digits to make a call. (E.g. 12135431234) 3.1.1.2 Make a call with Handset (Enbloc mode) 1. Press digits to make a call. (E.g. 12135431234) 2. Press Green button. 3. Then you can hear DTMF tones. 3.1.2 Make a call with Frame 3.1.2.1 Make a call with Frame (Overlap mode) 1. Press Green button 2. Then you can hear dial tone and see the following call screen. 3. Press digits to make a call. (E.g. 12135431234) 3.1.2.2 Make a call with Frame (Enbloc mode) 1. Press “Keypad” button in the following touch screen. 2. Then pop up the call screen. 3. Press digits to make a call. (E.g. 12135431234) 4. Press Green button. 5. Then you can hear DTMF tones. 3.2 Answer calls 3.2.1 Answer calls with Handset - When the phone rings, press Green button or “Answer” soft button. 3.2.2 Answer calls with Frame - When the phone rings, press Green button or “Answer” soft button. 3.3 Intercom 3.3.1 Make an intercom call with Handset 1. Press Intercom button on right side. 2. Then you can see device lists you can make an intercom call. 3. Scroll and click the device you want to connect. 3.3.2 Make an intercom call with Frame 1. Press Intercom button on right side or touch Intercom button in the call screen. 2. Then you can see device lists you can make an intercom call. 3. Touch the device you want to connect. Consumer Information This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the back of this equipment is a label that contains, among other information, a product identifier in the format US:A3LW400BSMT-i8130. If requested, this number must be provided to the telephone company. An applicable certification jacks Universal Service Order Codes(USOC) for the equipment is provided RJ11, RJ45 in the packaging with each piece of approval terminal equipment. A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:A3LW400BSMT-i8130. The digits represented by 00 are the REN without a decimal point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the label. If this equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn't practical, the telephone company will notify the customer as soon as possible. Also, you will be advised The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD. 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-600 Date : January. 16. 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. sung-kyu Cho of Korea Testing Laboratory and hereafter referred to as KTL, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. sung-kyu Cho of KTL on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Steve Kim General Manager REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

SAMSUNG ELECTRONICS CO., LTD. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT-I8120 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Circuit description Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until March 31, 2008. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards General Manager Steve Kim Date 16 of January , 2008

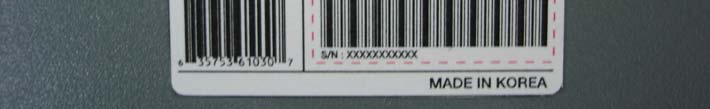

Photographs (Outside)

Photographs (In-side)

Frequency (MHz)1921.5361924.9921928.448 Max Gain (dBi)-2.75-2.96-2.92 SMT-I8120 XY Plane XY Plane Power (dBm) Angle (°) Scale: 5/div Min: - 35 Max: 0 0 180 30 210 60 240 90270 120 300 150 330 1921.54 MHz 1924.99 MHz 1928.45 MHz Frequency (MHz)1921.5361924.9921928.448 Max Gain (dBi)-3.86-4.05-4.12 SMT-I8120 YZ Plane YZ Plane Power (dBm) Angle (°) Scale: 5/div Min: - 35 Max: 0 0 180 30 210 60 240 90270 120 300 150 330 1921.54 MHz 1924.99 MHz 1928.45 MHz Frequency (MHz)1921.5361924.9921928.448 Max Gain (dBi)-3.98-4.00-3.84 SMT-I8120 ZX Plane ZX Plane Power (dBm) Angle (°) Scale: 5/div Min: - 35 Max: 0 0 180 30 210 60 240 90270 120 300 150 330 1921.54 MHz 1924.99 MHz 1928.45 MHz

Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 Calibration Data Sheet E-Field Probe 3020 DAE4 559 Dipole Antenna D1900V2 5d038

Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 SAR Plots & Tissue Measurement Data Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 Test Laboratory: KTL 1900MHz Validation – D1900V2; SN: 5d038 *Test Date : 11th/Feb./2008 Measured Liquid Temperature(°C) : 22.0, Ambient Temperature(°C) : 21.0 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900 Medium parameters used: f = 1900 MHz; σ = 1.41 mho/m; ε r = 38.8; ρ = 1000 kg/m 3 Phantom section: Flat Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: • Probe: ES3DV3 - SN3020; ConvF(5, 5, 5); Calibrated: 2007-07-18 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn559; Calibrated: 2007-04-17 • Phantom: SAM Twin Phantom_1800MHz; Type: SAM; Serial: TP-1433 • Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (61x71x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 12.6 mW/g Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 91.1 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 19.3 W/kg SAR(1 g) = 10.2 mW/g; SAR(10 g) = 5.24 mW/g Maximum value of SAR (measured) = 11.5 mW/g 0 dB = 11.5mW/g Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 Test Laboratory: KTL SMT-I8120 Ch.1 LEFT Cheek Touch *Test Date : 11th/Feb./2008 Measured Liquid Temperature(°C) : 22.0, Ambient Temperature(°C) : 21.0 Communication System: UPCS1900; Frequency: 1921.54 MHz;Duty Cycle: 1:24 Medium: HSL1900 Medium parameters used: f = 1921.54 MHz; σ = 1.43 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: • Probe: ES3DV3 - SN3020; ConvF(4.7, 4.7, 4.7); Calibrated: 2007-07-18 • Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) • Electronics: DAE4 Sn559; Calibrated: 2007-04-17 • Phantom: SAM Twin Phantom_1800MHz; Type: SAM; Serial: TP-1433 • Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (41x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.031 mW/g Z Scan (1x1x16): Measurement grid: dx=20mm, dy=20mm, dz=20mm Maximum value of SAR (interpolated) = 0.004 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.07 V/m; Power Drift = -0.083 dB Peak SAR (extrapolated) = 0.027 W/kg SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.00904 mW/g Maximum value of SAR (measured) = 0.016 mW/g Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 0 dB = 0.016mW/g Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 Test Laboratory: KTL SMT-I8120 Ch.3 LEFT Cheek Touch *Test Date : 11th/Feb./2008 Measured Liquid Temperature(°C) : 22.0, Ambient Temperature(°C) : 21.0 Communication System: UPCS1900; Frequency: 1924.99 MHz;Duty Cycle: 1:24 Medium: HSL1900 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: • Probe: ES3DV3 - SN3020; ConvF(4.7, 4.7, 4.7); Calibrated: 2007-07-18 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn559; Calibrated: 2007-04-17 • Phantom: SAM Twin Phantom_1800MHz; Type: SAM; Serial: TP-1433 • Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (41x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.029 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.19 V/m; Power Drift = -0.002 dB Peak SAR (extrapolated) = 0.026 W/kg SAR(1 g) = 0.015 mW/g; SAR(10 g) = 0.00877 mW/g Maximum value of SAR (measured) = 0.016 mW/g 0 dB = 0.016mW/g Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 Test Laboratory: KTL SMT-I8120 Ch.3 LEFT Ear Tilt *Test Date : 11th/Feb./2008 Measured Liquid Temperature(°C) : 22.0, Ambient Temperature(°C) : 21.0 Communication System: UPCS1900; Frequency: 1924.99 MHz;Duty Cycle: 1: 24 Medium: HSL1900 Medium parameters used: f = 1924.99 MHz; σ = 1.44 mho/m; ε r = 38.7; ρ = 1000 kg/m 3 Phantom section: Left Section Measurement Standard: DASY4 (High Precision Assessment) DASY4 Configuration: • Probe: ES3DV3 - SN3020; ConvF(4.7, 4.7, 4.7); Calibrated: 2007-07-18 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE4 Sn559; Calibrated: 2007-04-17 • Phantom: SAM Twin Phantom_1800MHz; Type: SAM; Serial: TP-1433 • Measurement SW: DASY4, V4.7 Build 55; Postprocessing SW: SEMCAD, V1.8 Build 176 Area Scan (41x91x1): Measurement grid: dx=20mm, dy=20mm Maximum value of SAR (interpolated) = 0.022 mW/g Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.43 V/m; Power Drift = 0.20 dB Peak SAR (extrapolated) = 0.027 W/kg SAR(1 g) = 0.013 mW/g; SAR(10 g) = 0.00651 mW/g Maximum value of SAR (measured) = 0.014 mW/g 0 dB = 0.014mW/g Report No.: 2008-1341-010-02 222-13, Guro3-Dong Guro-Gu Seoul 152-718, Korea. Tel. : +82-2-860-1463 http://www.ktl.re.kr Fax. : +82-2-860-1468 FP-204-03-01 Test Laboratory: KTL SMT-I8120 Ch.3 Right Cheek Touch *Test Date : 11th/Feb./2008 Measured Liquid Temperature(°C) : 22.0, Ambient Temperature(°C) : 21.0 Communication System: UPCS1900; Frequency: 1924.99 MHz;Duty Cycle: 1: 24 Medium: HSL1900 Medium parameters u…

Text truncated - open the document above for the full version.

Report No.: 08-2341-008-02 Page 1 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel: +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 TEST REPORT 1. Applicant Name : SAMSUNG ELECTRONICS CO., LTD. Address : 2. Products Name : AT&T HomeManager Model/Type : SMT-i8120 Manufacturer : SAMSUNG ELECTRONICS CO., LTD. 3. Test Standard : 4. Test Method : ANSI C63.17-2006 5. Test Result : Positive 6. Date of Application : January 14, 2008 7. Date of Issue : Feburary 19, 2008 Tested by Approved by ` Sung-Kyu Cho Seok-Jin Kim Telecommunication Team Engineer Telecommunication Team Manager The test results contained apply only to the test sample(s) supplied by the applicant, and this test report shall not be reproduced in full or in part without approval of the KTL in advance. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR 47 Part 15, Subpart D Report No.: 08-2341-008-02 Page 2 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel : +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 TABLE OF CONTENTS I. GENERAL INFORMATION 3 1. Applicant (client) 2. Equipment (EUT) 3. Testing Laboratory II. SUMMARY OF TEST RESULTS 5 III. TEST FACILITY 7 IV. TEST RESULTS 8 4.1 Antenna Requirements 8 4.2 Digital Modulation Technics 8 4.3 Emission Bandwidth 9 4.4 Power adjustment for antenna gain 11 4.5 Conducted Emission 12 4.6 Radiated Out of Band Emission 15 4.7 Peak transmit power 16 4.8 Power spectral density 19 4.9 Automatically Discontinued Transmission 21 4.10 In-band emissions 22 4.11 Out-of-band emissions 24 4.12 Carrier frequency stability 30 4.13 Frame repetition stability 31 4.14 Frame Period and Jitter 32 4.15 Monitoring time 33 4.16 Monitoring threshold 34 4.17 Maximum transmit time 35 4.18 System acknowledgement 36 4.19 Least Interfered Channel & Channel confirmation 38 4.20 Random waitting 39 4.21 Monitoring Bandwidth 40 4.22 Maximum reaction time 43 4.23 Monitoring antenna 45 4.24 Duplex Connections 47 4.25 Alternative Monitoring Interval for Co-located Device 50 V. TEST SET UP 51 VI. TEST EQUIPMENTS 52 Report No.: 08-2341-008-02 Page 3 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel : +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 I. GENERAL INFORMATIONS 1.1 Applicant (Client) Name SAMSUNG ELECTRONICS CO., LTD. Address 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 Contact Person Bae, HagYoun Telephone No. +82-31-279-4387 Facsimile No. +82-31-279-0389 E-mail address [email protected] 1.2 Equipment (EUT) Type of equipment UPCS Handset Model Name SMT-i8120 FCC ID A3LSMT-I8120 Operating Standard DECT Operating Frequency 1921.536 ~ 1928.448 MHz Type of Modulation TDMA Number of channels 5 RF Channels, 5x12=60 TDMA duplex Channels Type of Modulation GFSK Antenna 2 build-in antennas which support Antenna Diversity Temperature Range -20 ~ +50 °C Manufacturer Name SAMSUNG ELECTRONICS CO., LTD. Manufacturer Address 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030, Korea 1.3 Testing Laboratory Testing Place Korea Testing Labortory (KTL) 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Test Engineer Sungkyu Cho Telephone number +82 31 500 0312 Facsimile number +82 31 500 0159 E-mail address [email protected] Other Comments Report No.: 08-2341-008-02 Page 4 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel : +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 1.4 Technical specifications Frequency Band 1920 ~ 1930 MHz Frame Period 10 ms Time Slot Length 416.67 us Slots 12 RX, 12 TX slots Slot Structure 6 active duplex pairs per frame Bit Rate 1.152 Mbit Number of channels 5 RF Channels, 5x12=60 TDMA duplex Channels Frequency Channel Frequency Channel 1 1921.536 MHz Channel 2 1923.264 MHz Channel 3 1924.992 MHz Channel 4 1926.720 MHz Channel 5 1928.448 MHz Report No.: 08-2341-008-02 Page 5 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel : +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 II. SUMMARY OF TEST RESULTS Testing performed for : SAMSUNG ELECTRONICS CO., LTD. Equipment Under Test : SMT-i8120 Receipt of Test Sample : January 14, 2008 Test Start Date : January 18, 2008 Test End Date : February 19,2008 The following table represents the list of measurements required under the FCC CFR47 Part 15 Sunpart D. Name of Test FCC Part Test Procedure ANSIC63.17 Verdict Antenna Requirements 15.317, 15.203 Declaration Attestation Digital Modulation Techniques 15.319(b) 6.1.4 Attestation Emission Bandwidth 15.323(a) 6.1.3 Complies Power adjustment for antenna gain 15.319(e) 4 Complies Conducted Emission 15.207(a) ANSI C63.4 Complies Radiated Out of Band Emission 15.209(a) ANSI C63.4 Attestation Peak transmit power 15.319(c)(e) 6.1.2 Complies Power spectral density 15.319(d) 6.1.5 Complies Automatically discontinue transmission 15.319(f) -- Complies In-band emissions 15.323(d) 6.1.6.1 Complies Out-of-band emission 15.323(d) 6.1.6.2 Complies Carrier frequency stability 15.323(f) 6.2.1 Complies Frame repetition stability 15.323(e) 6.2.2 Complies Frame period and jitter 15.323(e) 6.2.3 Complies Monitoring time 15.323(c)(1) 7.3.4 Complies Monitoring threshold 15.323(c)(2) 7.3.1 Complies Maximum transmit time 15.323(c)(3) 8.2.2 Complies System acknowledgement 15.323(c)(4) 8.1.1 & 8.2.1 Complies Least Interfered Channel 15.323(c)(5) 7.3.2, 7.3.3 Complies Report No.: 08-2341-008-02 Page 6 of 53 Pages 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901 KOREA Tel : +82-31-500-0132 http://www.ktl.re.kr Fax: +82-31-500-0159 FP-204-03-01 Name of Test FCC Part Test Procedure ANSIC63.17 Verdict Random waiting 15.323(c)(6) 8.1.3 Attestation Monitoring Bandwidth 15.323(c)(7) 7.4 Complies Maximum reaction time 15.323(c)(7) 7.5 Complies Monitoring ant…

Text truncated - open the document above for the full version.

Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 SAR Measurement Setup Photo Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 Test Sample Photo – SMT-I8120 <Front> <Rear> Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 < Battery > Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 Head SAR set-up Photos < Left Cheek Touch > < Left Ear Tilt > Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 < Right Cheek Touch > < Right Ear Tilt > Report No.: 2008-1341-010-02 516 Haean-ro, Sa-dong, Sangnok-gu, Ansan-si, Gyeonggi-do, 426-901, KOREA Tel. : +82-31-500-0133 http://www.ktl.re.kr Fax. : +82-31-500-0159 Body SAR set-up Photos < Front to Phantom > < Back to Phantom >

TEST Setup Photographs < Radiated emission Test > < Conducted emission Test > <Conducted emission Test >
