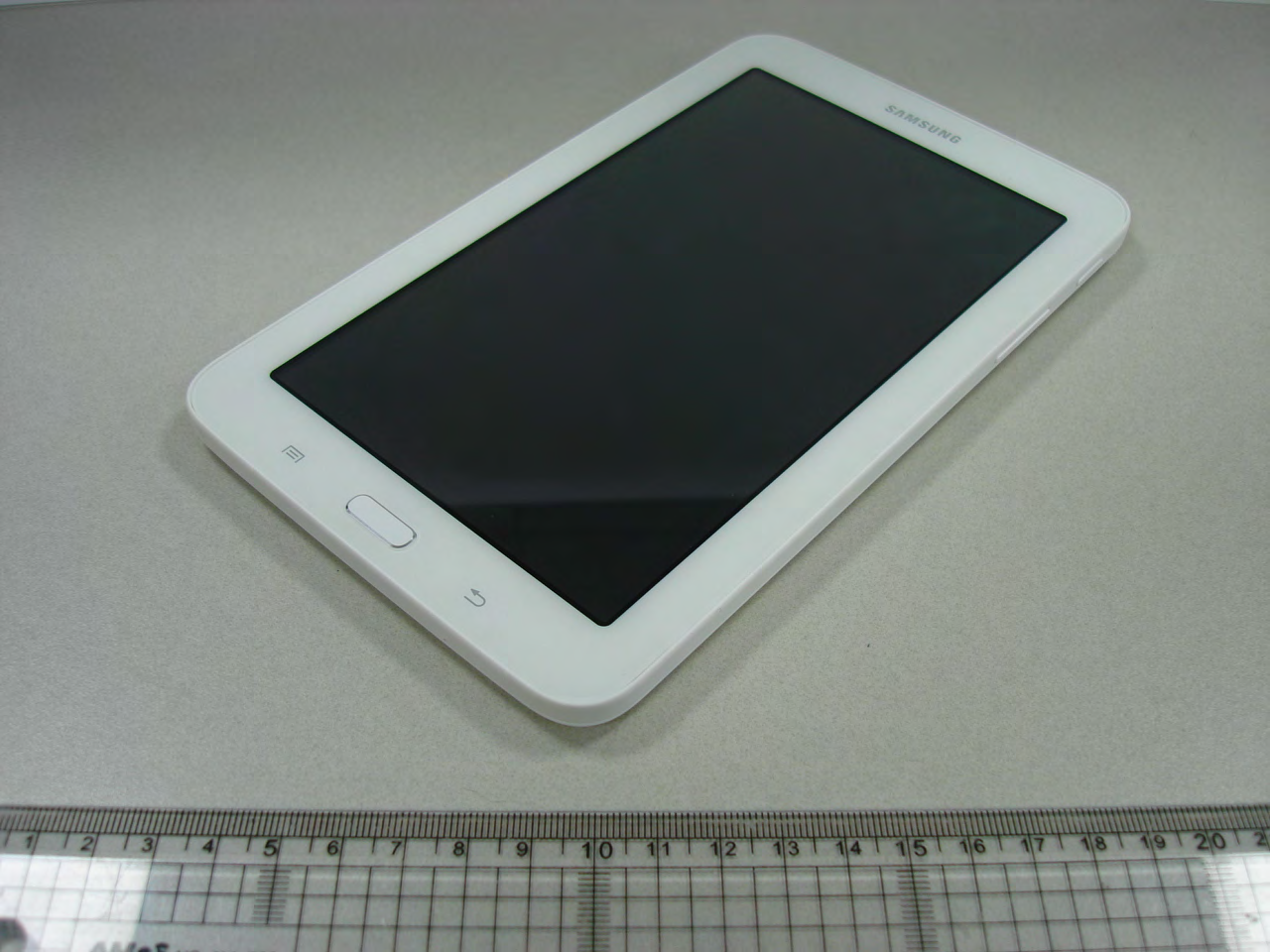

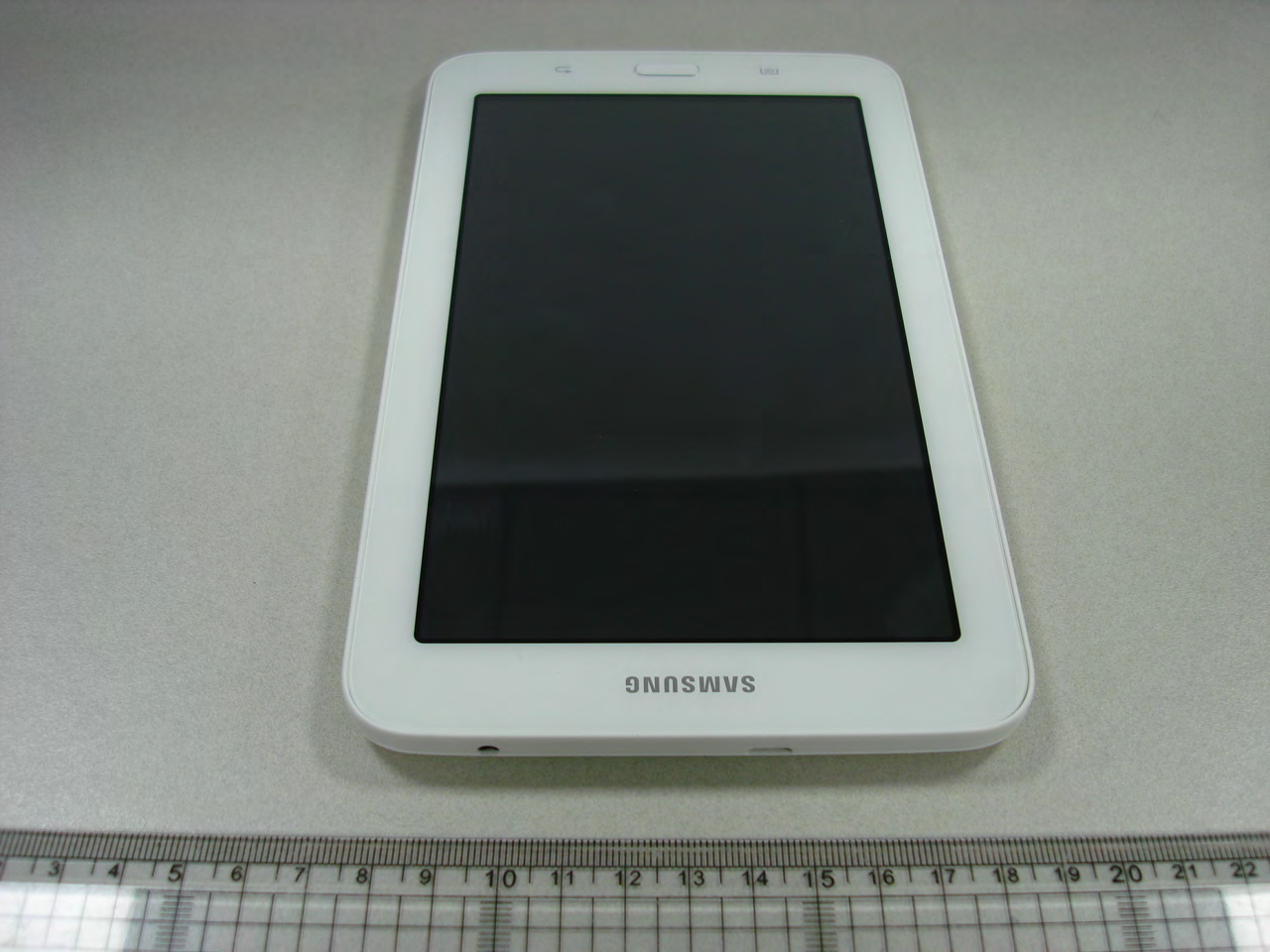

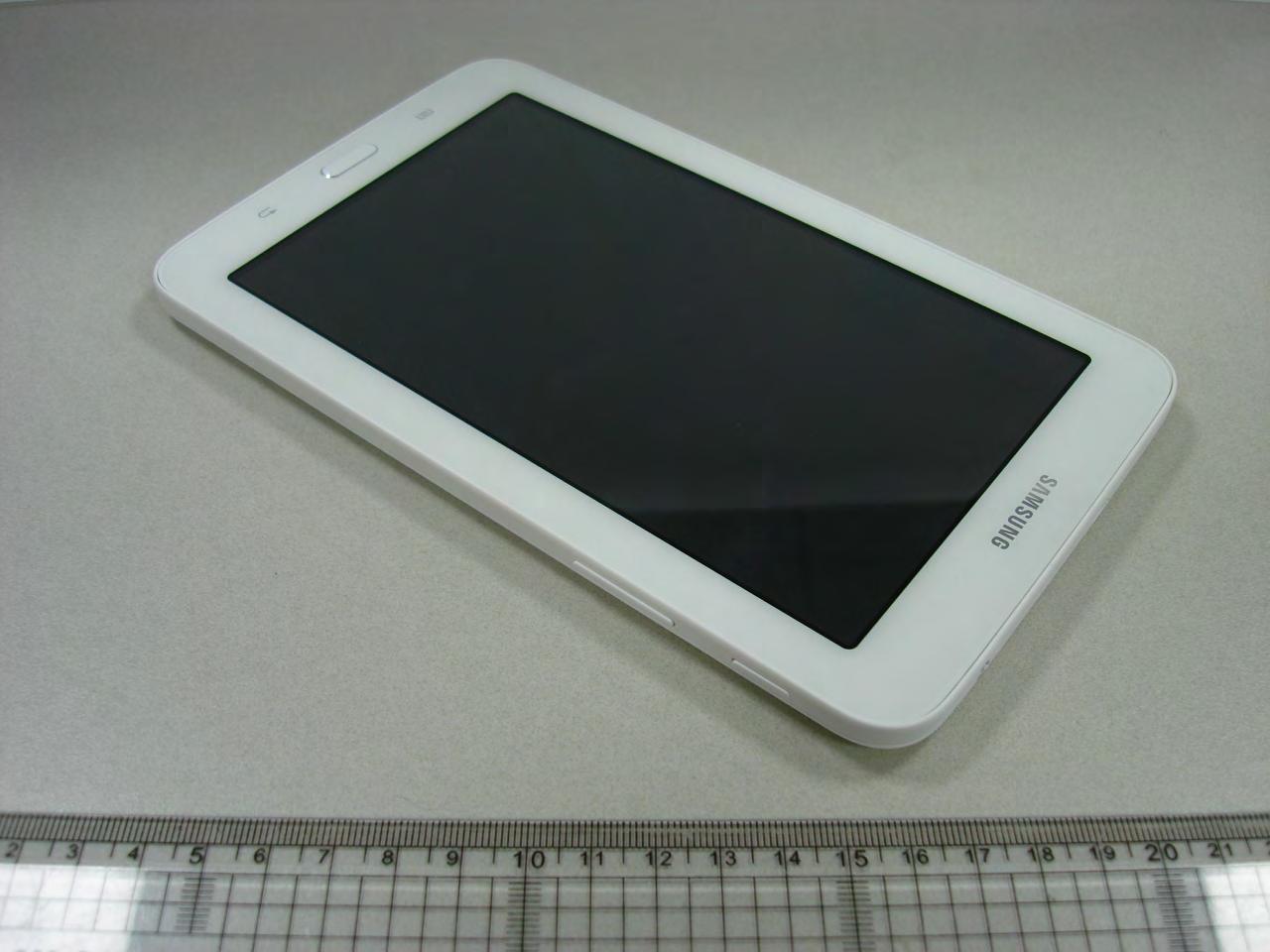

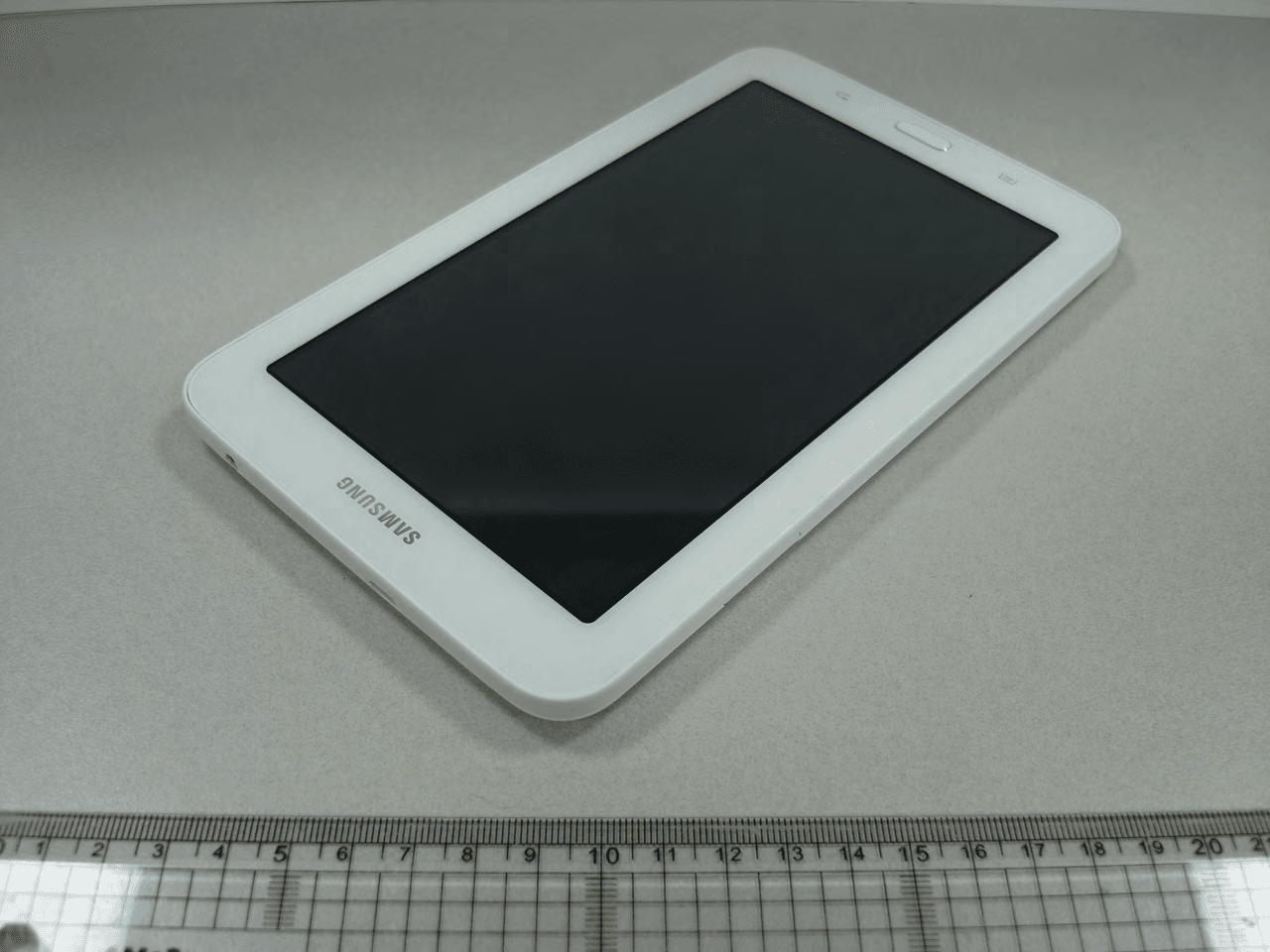

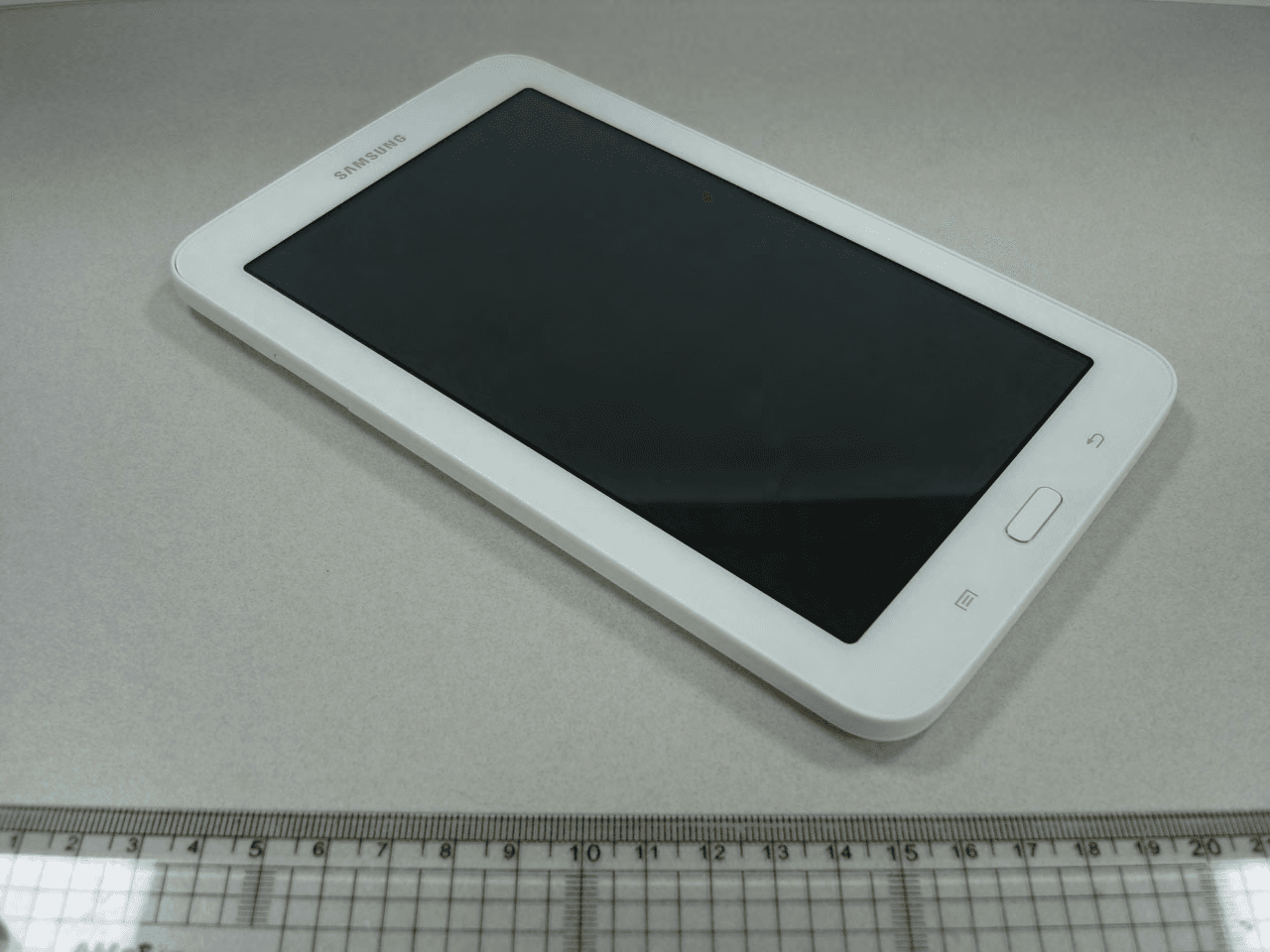

A3LSMT113Tablet with WLAN and Bluetooth

www.samsung.com User Manual SM-T113 2 About this manual This device provides high quality mobile communication and entertainment using Samsung’s high standards and technological expertise. This user manual is specially designed to detail the device’s functions and features. • Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Images and screenshots may differ in appearance from the actual product. • Content may differ from the final product, or from software provided by service providers or carriers, and is subject to change without prior notice. For the latest version of the manual, refer to the Samsung website, www.samsung.com. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Applications related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Available features and additional services may vary by device, software, or service provider. • Applications and their functions may vary by country, region, or hardware specifications. Samsung is not liable for performance issues caused by applications from any provider other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or applications to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. About this manual 3 • Default applications that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an application provided with the device, contact a Samsung Service Centre. For user-installed applications, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tips, or additional information Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of this guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and retrieval system, without the prior written permission of Samsung Electronics. About this manual 4 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • The Android logo, Google ™ , Google Maps ™ , Google Mail ™ , YouTube ™ , Google Play ™ Store, and Google Talk ™ are trademarks of Google, Inc. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • All other trademarks and copyrights are the property of their respective owners. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under licence. ABOUT DIVX VIDEO DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that has passed rigorous testing to verify that it plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. 5 Table of Contents Getting started 8 Device layout 9 Buttons 10 Package contents 10 Charging the battery 13 Inserting a memor y card 14 Turning the devic e on and off 15 Holding the device 15 Locking and unlocking the device 15 Adjusting the volume 15 Switching to silent mode Basics 16 Indicator icons 17 Using the touch screen 20 Contr ol motions 22 Activating Multi Window 23 Notifications 24 Home screen 26 Locked screen 28 Using applications 29 Applications scr een 30 Help 30 Enter ing text 32 Connecting t o a Wi-Fi network 33 Setting up acc ounts 34 Setting up user profiles 34 Transferring files 35 Securing the device 37 Upgrading the device Communication 38 Contacts 41 Email 43 Google Mail 44 Talk 45 ChatON Web & network 46 Internet 47 Chrome 48 Bluetooth 49 Screen Mirroring 50 Samsung Link 51 Group Play 52 WatchON 53 Smart Remot e Media 55 Music Player 56 Camer a 62 Galler y Table of Contents 6 86 My Files 87 Downloads 87 Tr ipAdvisor Travel & local 88 Maps 89 Local 90 Navigation Settings 91 About Settings 91 Wi-Fi 92 Bluetooth 92 Data usage 92 More settings 93 Blocking mode 93 Sound 94 Display 95 Storage 95 Power saving mode 95 Battery 95 Application manager 96 Users 96 Location services 96 Lock screen 97 Security 98 Language and input 101 Cloud 102 Backup and reset 65 Story Album 67 Paper Artist 68 Video Player 69 YouTube 70 Flipboard Application & media stores 71 Play Store 72 Samsung Apps 72 Game Hub 73 Music Hub 74 Play B ooks 74 Play M ovies 74 Play M usic 75 Readers Hub 75 Vide…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7, 2015 FCC ID: A3LSMT113 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: January 7, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT113 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location 0RGHO607 )&&,'$/607 Label:   Location: 7RS     %DFN RIGHYLFH     %RWWRP  )&&,'LVSODFHGRQUHDURIWKHGHYLFH  Label FCC ID: A3LSMT113

FCC ID: A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Date: DUT Type: Page 1 of 21 0Y1412152275.A3L 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/04/2014 – 12/17/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1412152275.A3L FCC ID: A3LSMT113 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): Serial Number(s): SM-T113 412-4, 1512-2 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile Manufacturers Forum (MMF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MMF. Further details can be obtained by emailing: [email protected]. SAR 1 gm Body (W /kg) DTS2.4 GHz WLAN2412 - 2462 MHz0.78 DTSBluetooth LE2402 - 2480 MHzN/A DSSBluetooth2402 - 2480 MHz0.14 Band & ModeTx Frequency Equipment Class PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Date: DUT Type: Page 2 of 21 0Y1412152275.A3L 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 INTRODUCTION ..............................................................................................................................5 3 DOSIMETRIC ASSESSMENT .........................................................................................................6 4 SAR TESTING PROCEDURES .......................................................................................................7 5 RF EXPOSURE LIMITS ...................................................................................................................8 6 FCC MEASUREMENT PROCEDURES ...........................................................................................9 7 RF CONDUCTED POWERS ......................................................................................................... 10 8 SYSTEM VERIFICATION .............................................................................................................. 12 9 SAR DATA SUMMARY ................................................................................................................. 14 10 SAR MEASUREMENT VARIABILITY ........................................................................................... 16 11 EQUIPMENT LIST ......................................................................................................................... 17 12 MEASUREMENT UNCERTAINTIES ............................................................................................ 18 13 CONCLUSION ............................................................................................................................... 19 14 REFERENCES .............................................................................................................................. 20 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Date: DUT Type: Page 3 of 21 0Y1412152275.A3L 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1 DEVICE UNDER TEST 1.1 Device Overview 1.2 Nominal and Maximum Output Power Specifications This device operates using the following maximum and nominal output power specifications. SAR values were scaled to the maximum allowed power to determine compliance per KDB Publication 447498 D01v05. 2.4 GHz WLANData2412 - 2462 MHz BluetoothData 2402 - 2480 MHz Band & ModeTx Frequency Operating Modes Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal Maximum Nominal IEEE 802.11b (2.4 GHz) 12.5 IEEE 802.11g (2.4 GHz) Mode / Band IEEE 802.11n (2.4 GHz) 11.5 Modulated Average (dBm) 12.0 11.0 11.0 11.5 Bluetooth LE 9.0 8.5 Bluetooth 9.5 9.0 FCC ID: A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Date: DUT Type: Page 4 of 21 0Y1412152275.A3L 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 1.3 DUT Antenna Locations Exact antenna dimensions and separation distances are shown in the Technical Descriptions in the FCC Filing. The overall diagonal dimension of this device is greater than 20 cm. Therefore, this device is a tablet per KDB Publication 616217. Table 1-1 Body Sides for SAR Testing Note: Per FCC KDB 616217 D04v01r01, particular DUT edges were not required to be evaluated for SAR based on the SAR exclusion threshold in KDB 447498 D01v05r01. 1.4 Simultaneous Tran…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT113 FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 46 0Y1412152278.A3L 12/15 - 12/17/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.31 11/19/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 12/15 - 12/17/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1412152278.A3L FCC ID: A3LSMT113 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T113 EUT Type: Portable Tablet Computer Max. RF Output Power: 9.539 mW (9.8 dBm) Peak Conducted Frequency Range: 2402 – 2480MHz (Bluetooth for US) Type of Modulation: GFSK, /4-DQPSK, 8DPSK FCC Classification: FCC Part 15 Spread Spectrum Transmitter (DSS) FCC Rule Part(s): Part 15 Subpart C (15.247) Test Procedure(s): DA 00-705 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in DA 00-705. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 Bluetooth FCC ID: A3LSMT113 FCC Pt. 15.247 BLUETOOTH TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 46 0Y1412152278.A3L 12/15 - 12/17/2014 Portable Tablet Computer © 2014 PCTEST Engineering Laboratory, Inc. V 1.31 11/19/2014 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................ 6 3.1 EVALUATION PROCEDURE ......................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 6 3.3 RADIATED EMISSIONS ................................................................................................................................ 7 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................. 7 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 8 5.0 TEST EQUIPMENT CALIBRATION DATA .............................................................................................. 9 6.0 TEST RESULTS .................................................................................................................................... 10 6.1 SUMMARY ................................................................................................................................................... 10 6.2 20DB BANDWIDTH MEASUREMENT ......................................................................................................... 11 6.3 OUTPUT POWER MEASUREMENT ........................................................................................................... 17 6.4 BAND EDGE COMPLIANCE ....................................................................................................................... 27 6.5 CARRIER FREQUENCY SEPARATION ...................................................................................................... 30 6.6 TIME OF OCCUPANCY ............................................................................................................................... 31 6.7 NUMBER OF HOPPING CHANNELS .......................................................................................................... 32 6.8 CONDUCTED SPURIOUS EMISSIONS ...................................................................................................... 34 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS .............................................................................. 38 6.10 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 42 6.11 LINE CONDUCTED MEASUREMENT DATA ...…

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LSMT113 Model: SM-T113 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 1 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.31 11/19/2014 TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSMT113 Model: SM-T113 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 2 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.31 11/19/2014 Samsung Electronics, Co. Ltd. FCC ID: A3LSMT113 Model: SM-T113 Test Set-Up Photos EUT Type: Portable Tablet Computer Page 3 of 3 © 2014 PCTEST Engineering Laboratory, Inc. V 1.31 11/19/2014

FCC ID A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 1 of 3 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 APPENDIX F: S AR TEST SETUP PHOTOGRAPHS FCC ID A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 2 of 3 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 1 – Back Side at 0.0 mm SAR Test Setup Photo 2 – Top Edge at 0.0 mm FCC ID A3LSMT113 SAR EVALUATION REPORT Reviewed by: Quality Manager Test Dates: DUT Type: APPENDIX F: Page 3 of 3 12/04/2014 – 12/17/2014 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. REV 14.0 M 07/21/2014 SAR Test Setup Photo 3 – Right Edge at 0.0 mm Figure 1 – DUT Antenna Locations 1 Top Side Left Edge Bottom Side 114 mm 191 mm Right Edge Front View 2 Antenna Legend 1.BT/WIFI Antenna (Tx/Rx) 1.2.4 GHz WIFI 2.2.4 GHz Bluetooth 2.GPS Antenna (Rx Only)
