Confidential SM-T2105 2013.08. -1- FCC Approval Document for SM-T2105 9. User manual SAMSUNG ELECTRONICS CO, LTD ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Galaxy Tab, including but not limited to, accessories, parts, or software relating there to (the “Galaxy Tab System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. Samsung Electronics America (SEA), Inc Address:85 Challenger Road Ridgefield Park, New Jersey 07660 Toll Free Telephone: 1-800-SAMSUNG Internet Address: http://www.samsung.com © 2013 Samsung Electronics America, Inc. All rights reserved. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Nuance ® , VSuite™, T9 ® Text Input, XT9 ® Smart Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications, Inc., or its affiliates in the United States and/or other countries. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. microSD TM , microSDHC TM , and the microSD logo are Trademarks of the SD Card Association. Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Latitude, Google Local, Google Maps, Google Play Books, Google Play Magazines, Google Play Movies & TV, Google Play Music, Google Talk, Picasa, andYouTube and other marks are trademarks of Google Inc. Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. Peel and the Peel logo are marks owned by Peel Technologies, Inc. and may be registered. Polaris Office and the Polaris Office logo are marks owned by Infraware and may be trademarks or registered trademarks. DivX ® , DivX Certified ® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license. DivX Certified ® to play DivX ® video up to HD 720p, including premium content. ABOUT DIVX VIDEO: DivX ® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX Certified ® device that plays DivX video. Visit www.divx.com for more information and software tools to convert your files into DivX videos. ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified ® device must be registered in order to play purchased DivX Video-on- Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu ( Apps > Settings > About device > Legal information > License settings > DivX® VOD > Register ). Go to vod.divx.com for more information on how to complete your registration. 1 Table of Contents Section 1: Getting Started ...........................5 Understanding This User Manual . . . . . . . . . . . .5 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Turning Your Device On and Off . . . . . . . . . . . . .8 Setting Up Your Device . . . . . . . . . . . . . . . . . . .8 Creating a New Google Account . . . . . . . . . . .12 Retrieving Your Google Account Password . . . .12 Using Google Maps . . . . . . . . . . . . . . . . . . . . .12 Task Manager . . . …

Text truncated - open the document above for the full version.

Applications 98 Contacts Store contact information for your friends, family and colleagues, to quickly access information or to send a message. For more information, refer to “Contacts” on page40.  Touch Contacts. Downloads Files, apps, and other items you download in Internet, Gmail, Email, or in other ways, are stored on your tablet’s internal storage. Use the Downloads app to view, reopen, or delete what you have downloaded. 1.Touch Downloads. 2.Touch an item to open it. 3.Touch headings for earlier downloads to view them. 4.Touch items you want to send, to check them, and then touch Share. Touch an option to share the item. 5.Touch items you want to delete, to check them, and then touch Delete. The items are deleted from your tablet. 6.Touch Sort by size or Sort by date, at the bottom of the Downloads pop-up, to switch back and forth. Touch Clear list to cancel the download and clear the download history. Dropbox Dropbox provides access to your personal computer files directly from your device. It allows you to take your files with you when you are on the go, edit files in your Dropbox from your device, upload photos and videos to Dropbox, and share your selected files freely with family and friends. The in-device application works together with a partner program placed on a target computer using an active Internet connection. Dropbox creates a folder that automatically synchronizes its contents across all of your connected devices on your account. Update a file to your dropbox on your computer, and it is automatically updated to the same folder on your other devices. 99 Download the Desktop Application 1.Use your computer’s browser to navigate to: http://www.dropbox.com/. 2.Follow the on-screen instructions to install this application on your target computer containing the desired files. Important! The computer application must be installed on the computer containing the desired files and that computer must have an active Internet connection. Note: It might be necessary to configure your router’s firewall settings to allow this application to gain access to the Internet. Accessing Dropbox On Your Device 1.Touch Dropbox. 2.Follow the on-screen instructions. Email Send and receive email using popular email services. For more information, refer to “Email” on page 48.  Touch Email. Flipboard This application creates a personalized digital magazine out of everything being shared with you. Access news stories, personal feeds and other related material. Flip through your Facebook newsfeed, tweets from your Twitter account, photos from friends and much more. 1.Touch Flipboard. 2.Touch FLIP and swipe across the screen to the left, select some on-screen categories, and touch Build Your Flipboard to create a new profile. – or – Touch Tap to sign In to log into your previously created profile. 3.Follow the on-screen instructions. Applications 100 Gallery Use Gallery to view, capture, and manage photos and videos. For more information, refer to “Gallery” on page79.  Touch Gallery. Game Hub Access social and premium games. Join Game Hub to enjoy free games with your friends. 1.Touch Game Hub. A Disclaimer screen displays. 2.Read the Disclaimer and touch Confirm. 3.Touch Menu to display the following options: • Uninstall: Touch this option to uninstall a previously installed game. • Legal notices: Displays Game Hub legal information. 4.Touch a game and follow the on-screen instructions. Gmail Send and receive email with Gmail, Google’s web-based email. For more information, refer to “Gmail” on page47.  Touch Gmail. Google Search the internet using the Google search engine. For more information, refer to “Google Search” on page54.  From the main Home screen, touch . – or – Touch Apps ➔ Google. Google Settings Use this app to manage your Google settings.  Touch Google Settings. 101 Google+ Share updates and see what is going on around you with Google+ for mobile. For more information, refer to “Google+” on page55.  Touch Google+. Group Play Group Play is an easy way to share files in real time with others who are on the same Wi-Fi network. Group Play can be used when you want to share documents, images, music, and so on. You can use Group Play for meetings, sales presentations, conferences, and classes. All you need is a Wi-Fi network that works with Group Play, and most do. Using Group Play from an Application While using various applications, such as Gallery, when you touch Share to share a file, you see Group Play as an option. To share a file using Group Play: 1.Touch Gallery. 2.Navigate to the file you want to share and touch Share via ➔ Group Play. For more information, refer to “Gallery” on page79. Note: After the initial Group Play request, touch Group Play instead of Share. 3.Use the keyboard to enter a PIN code and touch Done. This process makes sure only desired recipients can view your shared image. The Group Play screen displays and the device waits for other connected recipients to accept the connection and enter the PIN on their screens. You can now interact and draw with the on-screen image, and users will instantaneously see the same gestures and also be able to interact. Note: The newly altered image (with markups and comments) cannot be saved, but you can take a screen shot of the current image and save it to your Clipboard. Applications 102 Using Group Play Directly You can also access Group Play from the Applications screen. 1.Touch Group Play. The Group Play screen displays. 2.If Not connected is displayed on the left side of the screen, touch Wi-Fi settings to connect to a Wi-Fi network. Once your device is connected to a Wi-Fi network, the network name is displayed. 3.Touch Start to share a picture, document, or music. For more information, refer to “Using Group Play from an Application” on page101. 4.Touch Join to join a Group Play session in progress. Use the keyboard to enter the required PIN code and touch Done. Help Use this app to learn more about your camera, ch…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: August 22, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT2105 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description SHORT-TERM 3 External Photos 4 Internal Photos 5 Test-Setup Photos 6 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea August 15, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT2105 Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

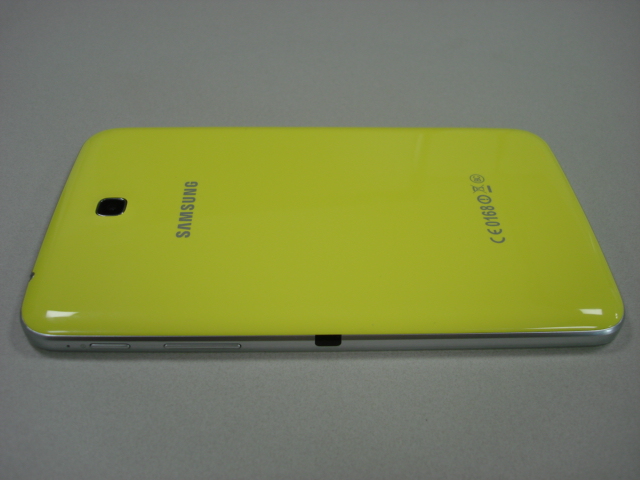

  M   TXT       2,3. Label and Location SAMSUNG ELECTRONICS CO, LTD Label and Location       ! "#  Label:   Location:      $  %      &    ! %%'% (  Label

-1/13- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20134186 Issue No. 1 Applicant Name of organization Samsung Electronics Co., Ltd. Address (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742, Republic of Korea Date of application August 6, 2013 EUT Type of device Class B personal computers and peripherals All other devices Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LSMT2105 Kind of product Bluetooth/Wi-Fi Portable Device Model No. SM-T2105 Variant Model No. Refer to clause 4.6 Manufacturer SAMSUNG ELECTRONICS CO., LTD. 94-1, Imsu-dong, Gumi-si, Gyengsangbuk-do, 730-722, Republic of Korea SAMSUNG ELECTRONICS CO.,LTD. 730-722 Yenphong 1-I.P, Yentrung Commune, Yenphong Dist. Bacninh Province Vietnam Applied Standards FCC Part 15, Subpart B, Class B / ANSI C63.4-2009 Test Period August 14, 2013 ~ August 22, 2013 Issue date September 11, 2013 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Ho-Jin Choi Reviewed by : Tae-Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-so, 443-742, Republic of Korea Tel: 82 31 279 1750, Fax: 82 31 279 1745 Project No. : LBE20134186 Bluetooth/Wi-Fi Portable Device : SM-T2105 -2/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 Table of contents 1. Report Information 1.1 Revision history ------------------------------------------------------------------------------------------------------------------ 3 2. Summary of test results 2.1 Emission ------------------------------------------------------------------------------------------------------------------------------- 3 3. General Information 3.1 Test facility ---------------------------------------------------------------------------------------------------------------------------- 3 4. Test Configuration 4.1 Test Peripherals ----------------------------------------------------------------------------------------------------------------- 4 4.2 EUT operating mode -------------------------------------------------------------------------------------------------------- 4 4.3 Details of Sampling ----------------------------------------------------------------------------------------------------------- 5 4.4 Used cable description ---------------------------------------------------------------------------------------------------- 5 4.5 Test arrangement -------------------------------------------------------------------------------------------------------------- 5 4.6 EUT Description ----------------------------------------------------------------------------------------------------------------- 6 4.7 Clock Frequencies ------------------------------------------------------------------------------------------------------------ 6 4.8 Test configuration and condition ---------------------------------------------------------------------------------- 7 4.9 Measurement uncertainty ---------------------------------------------------------------------------------------------- 7 5. Result of individual tests 5.1 Conducted disturbance --------------------------------------------------------------------------------------------------- 8 5.2 Radiated disturbance ------------------------------------------------------------------------------------------------------- 10 Project No. : LBE20134186 Bluetooth/Wi-Fi Portable Device : SM-T2105 -3/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 1. Report Information 1.1 Revision history No. Revised detailed information Issue 0 - LBE20134186 (SAMSUNG) Issue 1 - 3 page, Added the note regarding ANSI C63.4 in Section 4.1. 2. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains port) FCC Part 15 Subpart B / ANSI C63.4-2009 (Class B) Complied Radiated Disturbance Complied 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at (Maetan-dong) 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Republic of Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE20134186 Bluetooth/Wi-Fi Portable Device : SM-T2105 -4/13- This report must not be reproduced, except in full, without written permission from CS & Environment center. Form No.: SRA-TRF-46/0 4. Test Setup configuration 4.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Mark Description Model No. Serial No. Manufacturer / Trademark FCC ID / DoC A Bluetooth/Wi-Fi Portable Device SM-T2105 - SAMSUNG A3LSMT2105 B Battery SP4960C3C - SAMSUNG - C Headset - - SAMSUNG - D Data Cable ECB-DU4EWE SW1D506VS E SAMSUNG - E microSD Card 16GB - SANDISK - F Desk-Top Computer DM300S3A - SAMSUNG DoC EBDEDC6FFD SAMSUNG DoC G LCD TV Monitor CF19MS CF19H1LS700048Y SAMSUNG DoC EF23TS EM23H1LS300070L SAMSUNG DoC H Mouse SML-210PB TAKD125024 V SAMSUNG DoC TAKD124911 M SAMSUNG DoC I Keyboard SDM8500P 8M001183 SAMSUNG DoC 8M001033 SAMSUNG DoC J Gigabit Switch 8 J9794A CN33FQ703Q HP DoC CN33FQ71XK HP DoC K Power Supply …
