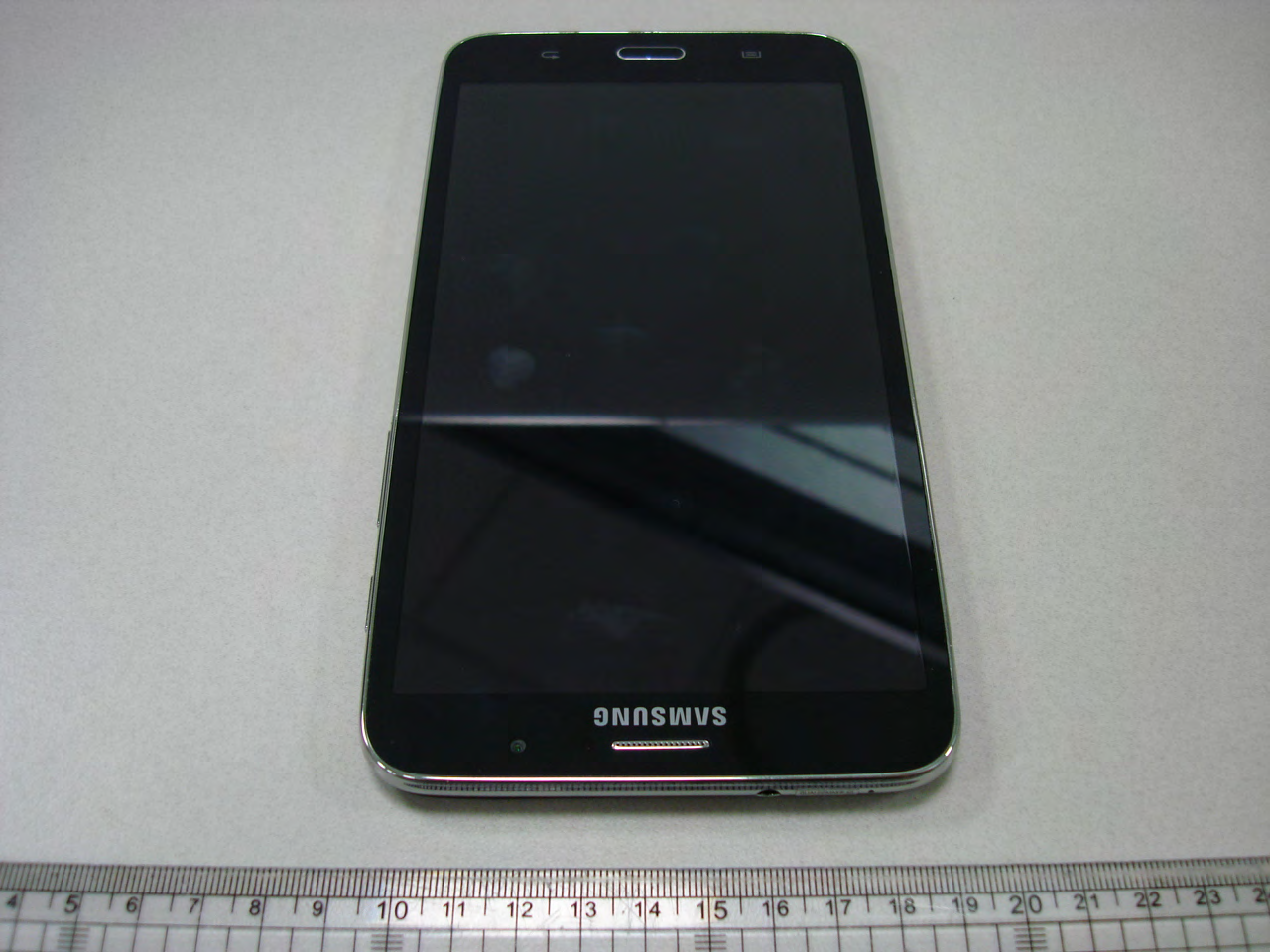

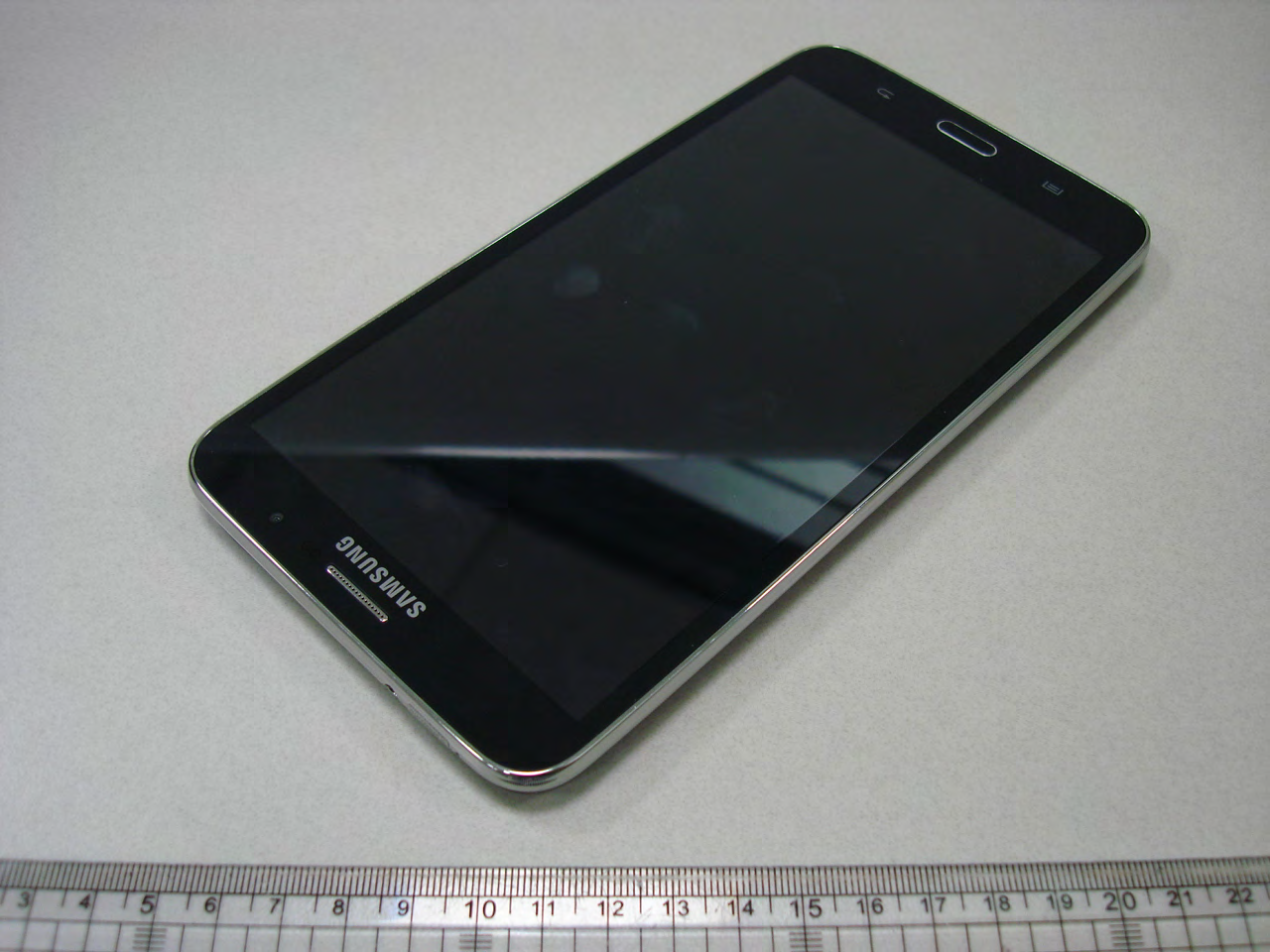

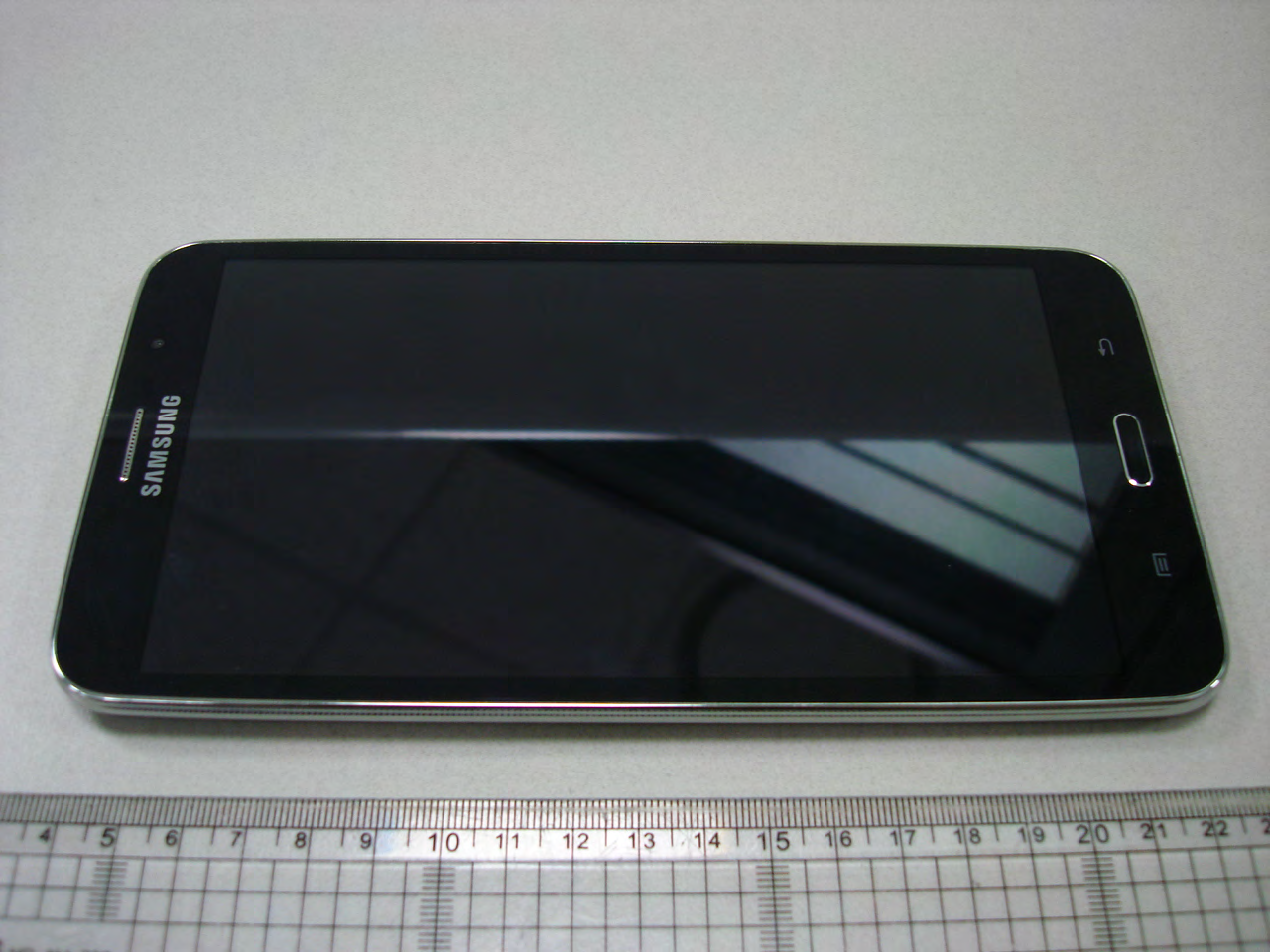

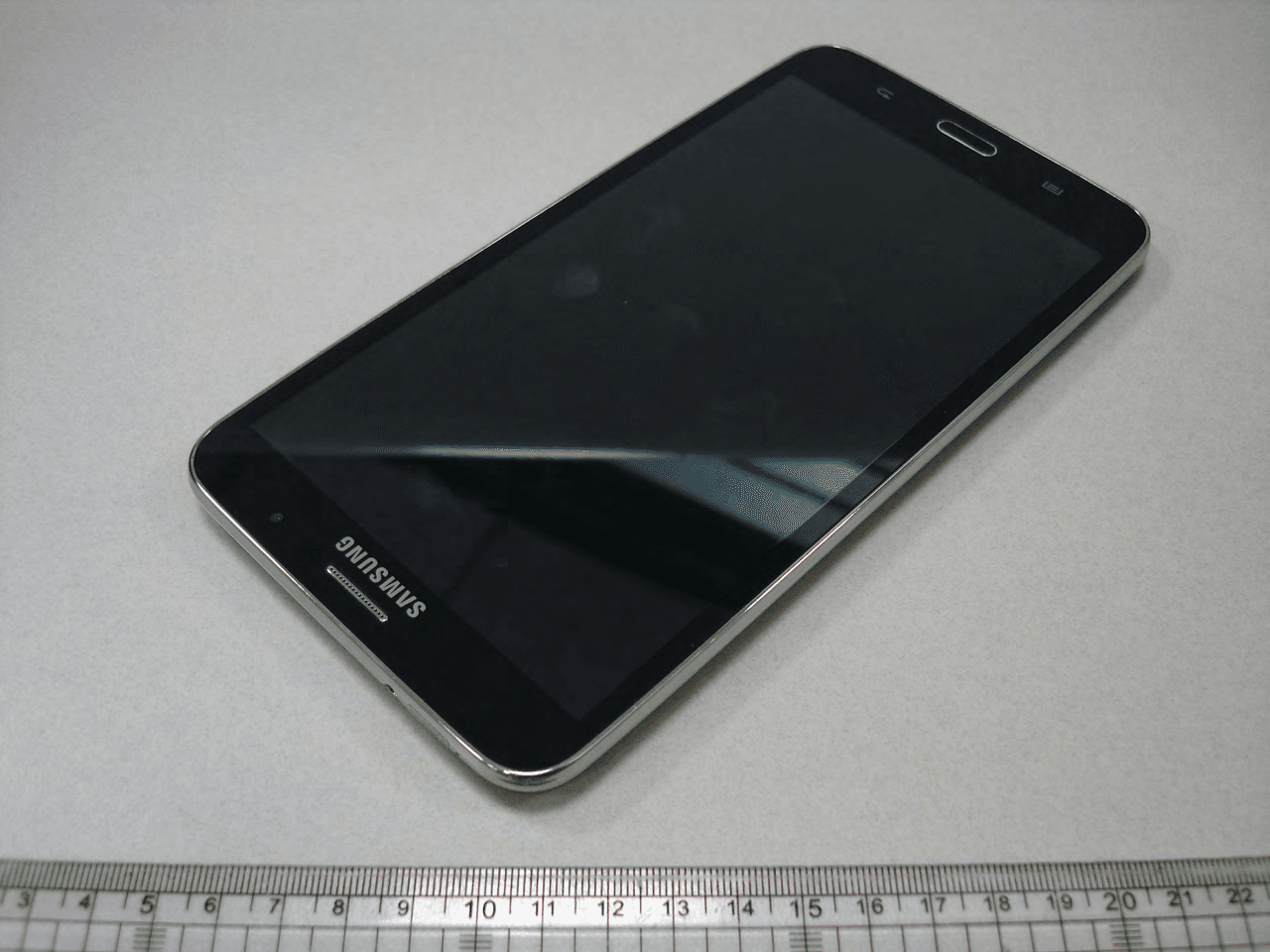

A3LSMT255SGSM/WCDMA/LTE Tablet + Bluetooth, DTS/UNII abgn, ANT+ & NFC

SM-T255S QuickStartGuide You can access the full user manual formore information.To learntoaccess the usermanual,see “Viewing the usermanual”in this quickstartguide. Draft Versi on / 2014-04-22 2 Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Note: notes, usage tip s, or additional inf ormation 5 Copyright Copyright © 2013 Samsung Electronics This guide is protected under international copyright laws. No part of thi s guide may be reproduced, distributed, translated, or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or storing in any information storage and ret rieval system, without the prior written permission of Samsung Electronics. 6 Trademarks • SAMSUNG and the SAMSUNG logo are registered trademarks of Samsung Electronics. • Bluetooth ® is a registered trademark of Bluetooth SIG, Inc. worldwide. • Wi-Fi ® , Wi-Fi Protected Setup ™ , Wi-Fi Direct ™ , Wi-Fi CERTIFIED ™ , and th e Wi-Fi logo are registered trademarks of th e Wi-Fi Alliance. Your device uses a non-harmonised frequency and is intended for use in all European countries. The WLAN can be operated in the EU without restriction indoors, but cannot be operated outdoors. • All other trademarks and copyrights are the property of their respectiv e owners. 7 Getting started Device layout Volume button Power button Light sensor Touch screen Menu button Home button Front camera IrLED Speaker Multipurpose jack Memory card slot Back button 8 started Rear camera Flash Microphone GPS antenna Headset jack Speaker Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. 9 started Charging the battery Before using th e device for the first time or when the battery has been unused for extended periods, you must charge the battery. Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or c ables can cause the battery to explode or damage the device. Connect the USB cable to the USB power adaptor and then plug the end of the USB cable into the multipurpose jack. When using a USB 2.0 cable, plug th e USB cable into th e right side of the multipurpose jack as shown in the image below. 1 started Connectin g the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty. After fully charging, disconnect the device from the charger. Firs t unplug th e charger from the device, and then unplug it from the electric socket. To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging. 11 started Checking the battery charge status When you charge the battery while the device is off, the following icons wil l show the current battery charge status: Charging Full y charged Turning the device on and off When turning on the device for the first time, follow the on-screen instructions to set up your device. 1 started Press and hold the Power button for a few seconds to turn the device on and off. Viewing the user manual The user manual provides complete information about operating your device. You may incur additional charges for accessing the Internet or downloading media files. For details, contact your service provider. 13 started From your device 1 Open the Internet application. 2 Tap to open the bookmarks list. 3 Select th e bookmark for th e user manual. To access the user manual more easily, place a shortcut or widget for the user manual on the Home screen. The user manual may not be available depending on the web browser or service provider. From your computer Acc ess www.samsung.com and then search for th e user manual by th e model name of your device. 16 Safet y information This safety information contains content for mobile devices. Some content may be not applicable to your device. To prevent injury to yourself and others or damage to your device, read the safety information about your device before using the device. Warning Failure to comply with safety warnings and regulations can cause serious injury or death Do not use damaged power cords or plugs, or loose electrical sockets Unsecured connections can cause electri c shock or fire. Do not touch the power cord with wet hands or disconnect the charger by pulling the cord Doing so may result in electrocution. Do not bend or damage the power cord Doing so may cause electri c shock or fire. 17 information Do not use your device while it is charging or touch your device with wet hands Doing so may cause electric shock. Do not short-circuit the charger or the device Doing so may cause electri c shock or fire, or th e battery may malfunctio n or explode. Do not use your device outdoor during a thunderstorm Doing so may result in electri c shock or device malfunctio n. Use manufacturer-approved batteries, chargers, accessories, and supplies • Using generic batteries or chargers may shorten the lif e of your device or cause the device to malfunction. They may also cause a fire or cause th e battery to explode. • Use only Samsung-approved battery and charger specifically designed for your device. Incompatible battery and charger can cause serious injuries or damage to your device. • Samsung cannot be responsible for the user’s safety when using accessories or supplies that are not approved by Samsung. 18 information Do not drop or cause an impact to the charger or the device Handle and dispose of the device and charger with care • Never dispose of the battery or device in a fire. Never place th e battery or device on or in heatin g devices, such as microwave ovens, stoves, or radiators. The device may explode when overheated. Foll ow all local regulations when disposin…

Text truncated - open the document above for the full version.

 April 22  4             !" # $  $ %   &" SMT255S  ' () &%  "  *    )+ ,  $  -  -. $)  / 0 11-2-.324#  5)   4)) ) $  4 5 )   $    $ +    $ %-     ! ! !!! "! # $!%& #'$  6 ,        %  # +  +   + +% $     +  $)# +  -')+     $ ,    5)) $    + % 4 5,  +   $, 5 ) -  &    ,      2+    * 7 68 $ )  /+ %2    +%4))  55     1-9 ) +     1-24)   5)    , $      $  )   5 $ 4% ) : ,-(#  5)   5 ) 8  $ %#  )$  4 5)    ( ')  *+!# ,!!# $ # &-!$  &    5)    + 2 &$     +    5$ ,4+  5  $       ) $   4,$ + ,4 )5  $ # +   ) :  -  ;5        5<% 50*32=>  5    5?  -@' '?@".8998 6A".8998 ?8 "B  5-

129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Date : October 22 nd , 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 129, Samsung-Ro, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter), RA Head of QA Lab (General Manager) Samsung Electronics America, Inc 19 Chapin Rd, Bldg D Pine Brook, NJ 07058

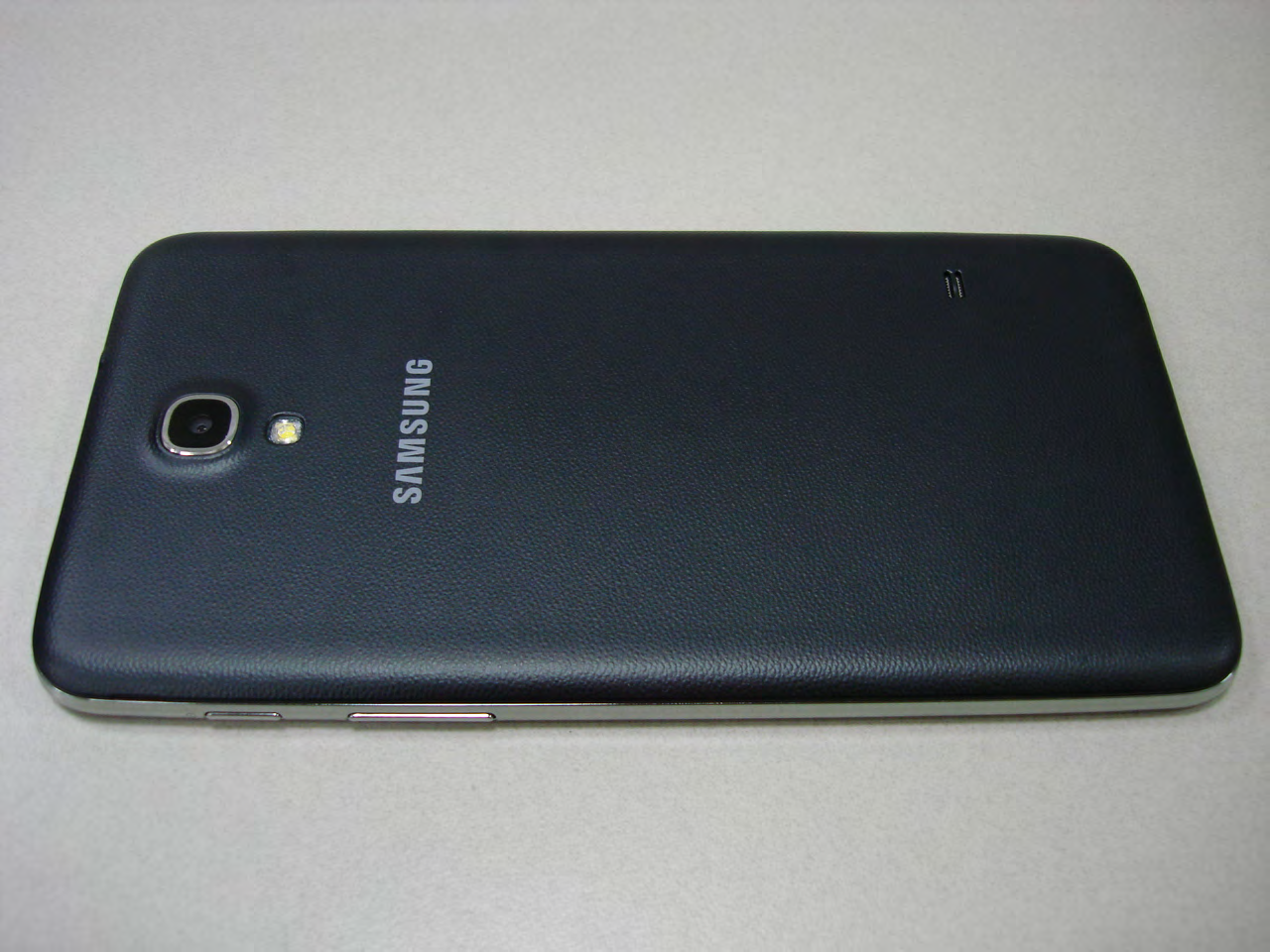

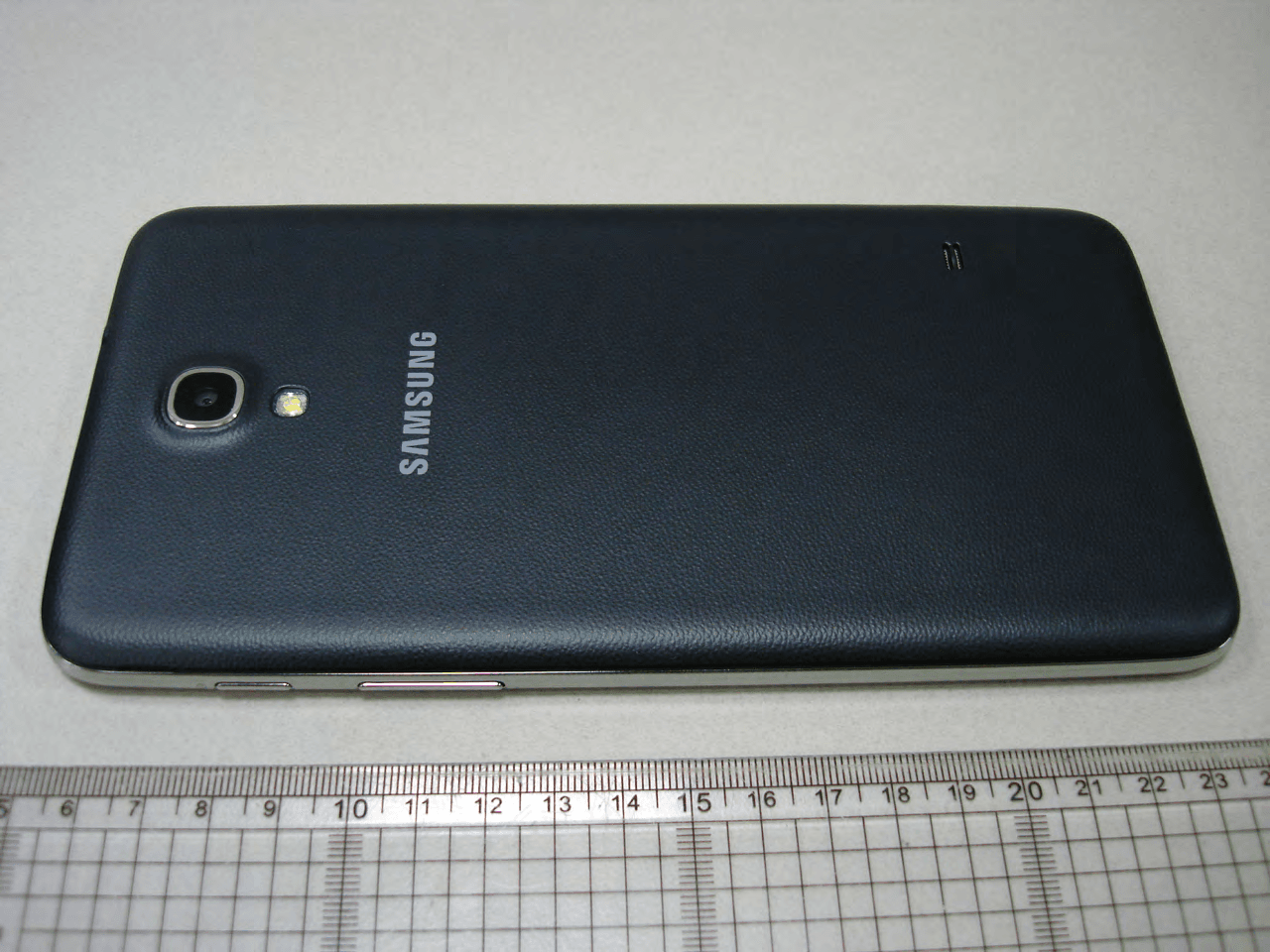

Label and Location Samsung Phone Model: SM-T255S FCC ID: A3LSM T255S Label: Location: Top Back plate of device Bottom  Label is placed inside of the battery compartment. Label \UW 㥐㦤㜤㠈㢰Ga 㢰⥜ⶼ䝬Ga 㚔⏼䂐hzⱬ㢌V㜼㚱GaGX\__T^Y_\VžžžUZZ]]UŠ–U’™ GGGGXUGὤ㣄㣠㢌G⮹㾡O⯜(q)⮹PaG㢨┍䋩㐔㟝Gⱨ㉔㉘缶㢌GὤὤOztT{Y\\zP GGGGYUG㐑ⷸ⺴䝬GaGGtzpwTjttTzljTzt{Y\\GGG GGGGZUG㥉ᷝGa GGGGYUGGmjjGpkGGaGhZszt{Y\\z GGGGZUGGpjGaG][`lTzt{Y\\zGG GGGG]UGGㇵ䝬⮹GGaGㇰ㉥㤸㣄O㨰PGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGGG GGGG^UGG㥐㦤㣄V㥐㦤ạᴴGaGㇰ㉥㤸㣄O㨰PV␴䚐ⴰạGGGGGGGGGGGGGG GGGG_UGG䚨␭Gⱨ㉔㉘缶⏈G㟨㟝G㩅G㤸䑀䝰㐔Gᴴ⏙㉥㢨G㢼㢀G X]WWG”h ZU_}

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea April 22, 2014 Federal Communications Commission 7435 Oakland Mills Road Columb ia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT255S Gentlemen: We hereby provide the label statement letter for the above-mentioned device by a new label statement policy of KDB 784748 D01.. The label statement is as follows: The FCC ID label is located on the rear of the device with the battery installed. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

FCC 47 CFR Parts 1 & 2 Published RF Exposure KDB Procedures IEEE Std 1528-2013 SAR EVALUATION REPORT For GSM/WCDMA/LTE Tablet + Bluetooth, DTS/UNII abgn, ANT+ & NFC Model: SM-T255S FCC ID: A3LSMT255S Report Number: 14U17414-S9B Issue Date: 5/12/2014 Prepared for SAMSUNG ELECTRONICS CO. LTD. 416 MAETAN 3-DONG, WEONGTONG-GU SUWON CITY, GYEONGGI-DO, SOUTH KOREA, 443-742 Prepared by UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 14U17414-S9B Issue Date: 5/12/2014 FCC ID: A3LSMT255S Page 2 of 67 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Revision History Rev. Issue Date Revisions Revised By -- 5/1/2014 Initial Issue -- A 5/7/2014 Remove LTE Band 7. Devin Chang B 5/12/2014 Section 12.8.1.: Updated Bluetooth Min. test separation distance to 5 mm. Devin Chang Report No.: 14U17414-S9B Issue Date: 5/12/2014 FCC ID: A3LSMT255S Page 3 of 67 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This report shall not be reproduced except in full, without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ............................................................................................................... 6 2. Test Methodology .............................................................................................................................. 7 3. Facilities and Accreditation .............................................................................................................. 7 4. Calibration and Uncertainty .............................................................................................................. 8 4.1. Measuring Instrument Calibration ................................................................................................. 8 4.2. Measurement Uncertainty............................................................................................................. 8 5. Measurement System Description and Setup ................................................................................. 9 6. SAR Measurement Procedure ........................................................................................................ 10 6.1. Normal SAR Measurement Procedure ....................................................................................... 10 6.2. Volume Scan Procedures ........................................................................................................... 12 7. Device Under Test ........................................................................................................................... 13 7.1. General Information .................................................................................................................... 13 7.2. Wireless Technologies ............................................................................................................... 14 7.3. RF Output Power Tolerance ....................................................................................................... 15 7.4. Simultaneous Transmission Condition ....................................................................................... 15 7.5. General LTE SAR Test and Reporting Considerations .............................................................. 16 7.6. Power Reduction by Proximity Sensing ...................................................................................... 17 7.6.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................. 17 7.6.2. Proximity Sensor Triggering Distance Measurement Results ............................................. 18 7.6.3. Proximity Sensor Coverage (KDB 616217 §6.3) ................................................................. 24 7.6.4. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................. 24 8. RF Exposure Conditions ................................................................................................................. 26 8.1. Head Exposure Conditions ......................................................................................................... 26 8.2. Standalone SAR Test Exclusion Considerations ........................................................................ 27 8.3. Required Test Configurations ..................................................................................................... 29 9. RF Output Power Measurement ..................................................................................................... 30 9.1. GSM ........................................................................................................................................... 30 9.2. W-CDMA .................................................................................................................................... 31 9.3. LTE Band .................................................................................................................................... 35 9.4. Wi-Fi (2.4 GHz Band) ................................................................................................................ 39 9.5. Wi-Fi (5 GHz Bands) .................................................................................................................. 40 9.6. Bluetooth .................................................................................................................................... 42 Report No.: 14U17414-S9B Issue Date: 5/12/2014 FCC ID: A3LSMT255S Page 4 of 67 UL Verification Services Inc. FORM NO: CCSUP4031G 47173 BENICIA STREET, FREMONT, CA 94538, USA TEL: (510) 771-1000 FAX: (510) 661-0888 This rep…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/23/2014 20140423_SystemPerformanceCheck-D750V3 SN 1024 Frequency: 750 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 750 MHz; σ = 0.965 S/m; ε r = 53.498; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(9.88, 9.88, 9.88); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-B v5.0; Type: QDOVA002AA; Serial: TP:1195 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 32.644 V/m; Power Drift = 0.05 dB Fast SAR: SAR(1 g) = 0.883 W/kg; SAR(10 g) = 0.599 W/kg Maximum value of SAR (interpolated) = 1.04 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 32.644 V/m; Power Drift = 0.05 dB Peak SAR (extrapolated) = 1.29 W/kg SAR(1 g) = 0.868 W/kg; SAR(10 g) = 0.576 W/kg Maximum value of SAR (measured) = 1.05 W/kg 0 dB = 1.05 W/kg = 0.21 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/23/2014 20140423_SystemPerformanceCheck-D750V3 SN 1024 Frequency: 750 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.02 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/14/2014 20140414_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 835 MHz; σ = 0.908 S/m; ε r = 41.534; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3929; ConvF(9.05, 9.05, 9.05); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Head/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 36.182 V/m; Power Drift = 0.01 dB Fast SAR: SAR(1 g) = 0.992 W/kg; SAR(10 g) = 0.665 W/kg Maximum value of SAR (interpolated) = 1.17 W/kg Head/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 36.182 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 1.47 W/kg SAR(1 g) = 0.963 W/kg; SAR(10 g) = 0.629 W/kg Maximum value of SAR (measured) = 1.17 W/kg 0 dB = 1.17 W/kg = 0.68 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/14/2014 20140414_SystemPerformanceCheck-D835V2 SN 4d142 Frequency: 835 MHz; Duty Cycle: 1:1 Head/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 1.17 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/19/2014 20140418_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1900 MHz; σ = 1.569 S/m; ε r = 51.713; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(7.59, 7.59, 7.59); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Reference Value = 59.234 V/m; Power Drift = 0.04 dB Fast SAR: SAR(1 g) = 4.02 W/kg; SAR(10 g) = 2.03 W/kg Maximum value of SAR (interpolated) = 5.36 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 59.234 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 6.99 W/kg SAR(1 g) = 4.07 W/kg; SAR(10 g) = 2.2 W/kg Maximum value of SAR (measured) = 5.37 W/kg 0 dB = 5.37 W/kg = 7.30 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/19/2014 20140418_SystemPerformanceCheck-D1900V2 SN 5d163 Frequency: 1900 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.40 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/21/2014 20140421_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.031 S/m; ε r = 51.989; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(7.16, 7.16, 7.16); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Reference Value = 60.473 V/m; Power Drift = 0.03 dB Fast SAR: SAR(1 g) = 5.18 W/kg; SAR(10 g) = 2.25 W/kg Maximum value of SAR (interpolated) = 7.59 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 60.473 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.27 W/kg; SAR(10 g) = 2.43 W/kg Maximum value of SAR (measured) = 7.48 W/kg 0 dB = 7.48 W/kg = 8.74 dBW/kg Plot No. 8 Test Laboratory…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/9/2014 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:2.60016; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.522 S/m; ε r = 52.108; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3929; ConvF(7.28, 7.28, 7.28); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 RHS/Touch_GPRS 3 Slot_ch 661/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.358 W/kg RHS/Touch_GPRS 3 Slot_ch 661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.563 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.433 W/kg SAR(1 g) = 0.293 W/kg; SAR(10 g) = 0.189 W/kg Maximum value of SAR (measured) = 0.351 W/kg 0 dB = 0.351 W/kg = -4.55 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/22/2014 GSM 1900 Frequency: 1880 MHz; Duty Cycle: 1:1.99986; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.524 S/m; ε r = 52.282; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3871; ConvF(7.59, 7.59, 7.59); Calibrated: 12/11/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Rear/GPRS 4 slot_ch 661_Prox ON_0mm/Area Scan (8x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.622 W/kg Rear/GPRS 4 slot_ch 661_Prox ON_0mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 12.569 V/m; Power Drift = -0.04 dB Peak SAR (extrapolated) = 1.43 W/kg SAR(1 g) = 0.631 W/kg; SAR(10 g) = 0.277 W/kg Maximum value of SAR (measured) = 0.978 W/kg 0 dB = 0.978 W/kg = -0.10 dBW/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/10/2014 WCDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.897 S/m; ε r = 40.212; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3929; ConvF(9.05, 9.05, 9.05); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 RHS/Touch_RMC Rel99_Ch 4183/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.125 W/kg RHS/Touch_RMC Rel99_Ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.859 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 0.141 W/kg SAR(1 g) = 0.114 W/kg; SAR(10 g) = 0.090 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.126 W/kg 0 dB = 0.126 W/kg = -9.00 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date: 4/19/2014 WCDMA Band V Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 23.0C; Liquid Temperature: 22.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.005 S/m; ε r = 53.393; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - ; - Probe: EX3DV3 - SN3531; ConvF(10.36, 10.36, 10.36); Calibrated: 11/21/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI B v4.0; Type: QDOVA002AA; Serial: 1196 Rear/Prox. On_0 mm_RMC Rel99_Ch 4183/Area Scan (10x9x1): Measurement grid: dx=15mm, dy=15mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.732 W/kg Rear/Prox. On_0 mm_RMC Rel99_Ch 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 27.305 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.573 W/kg; SAR(10 g) = 0.344 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.743 W/kg 0 dB = 0.743 W/kg = -1.29 dBW/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date: 4/9/2014 WCDMA Band II Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.4 S/m; ε r = 40; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE3 Sn427; Calibrated: 1/21/2014 - Probe: EX3DV4 - SN3929; ConvF(7.71, 7.71, 7.71); Calibrated: 6/24/2013; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 LHS/Touch_RMC Rel99_Ch 9400/Area Scan (9x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.336 W/kg LHS/Touch_RMC Rel99_Ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 15.249 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 0.418 W/kg SAR(1 g) = 0.296 W/kg; SAR(10 g) = 0.189 W/kg Maximum value of SAR (measured) = 0.342 W/kg 0 dB = 0.342 W/kg = -4.66 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab …
