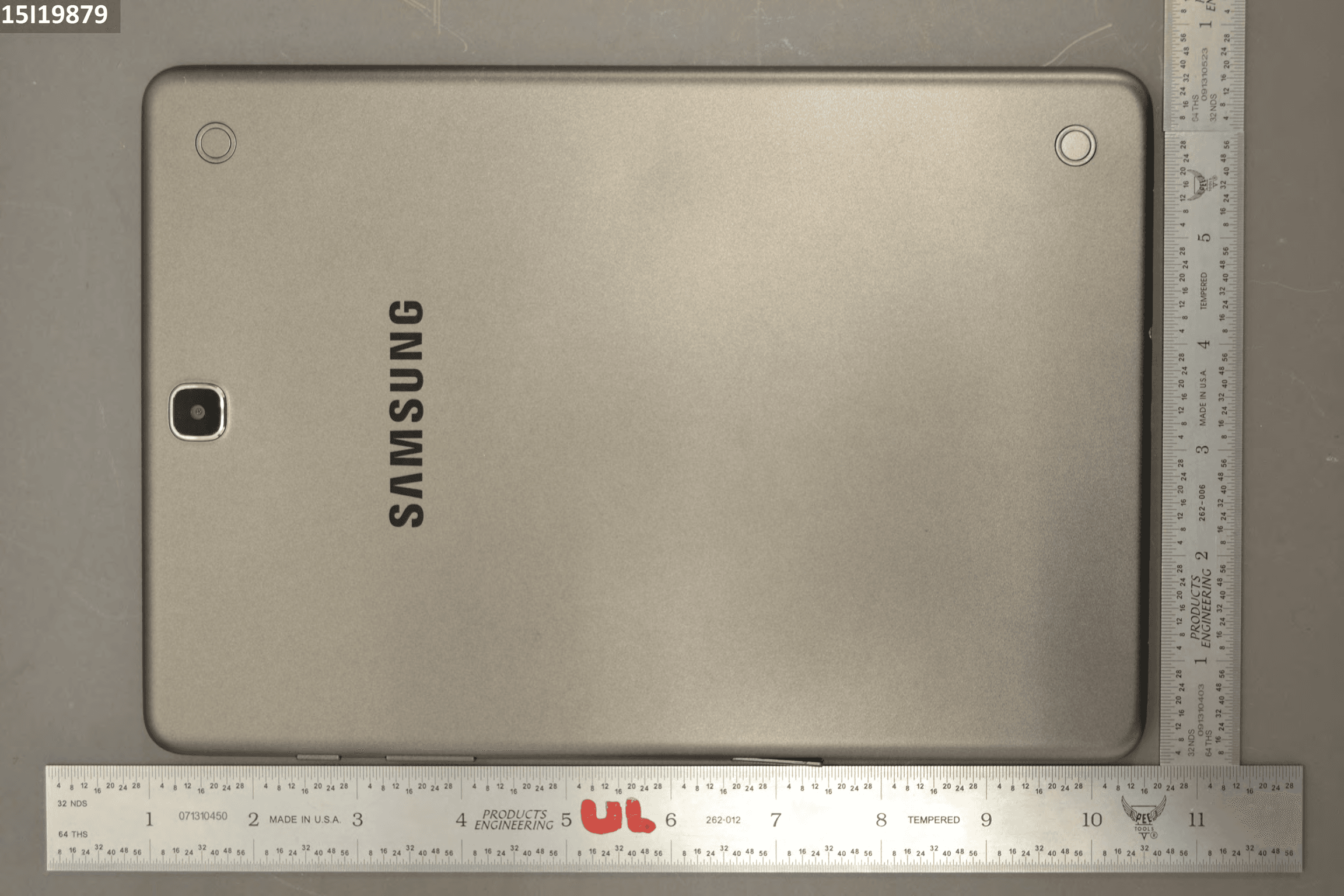

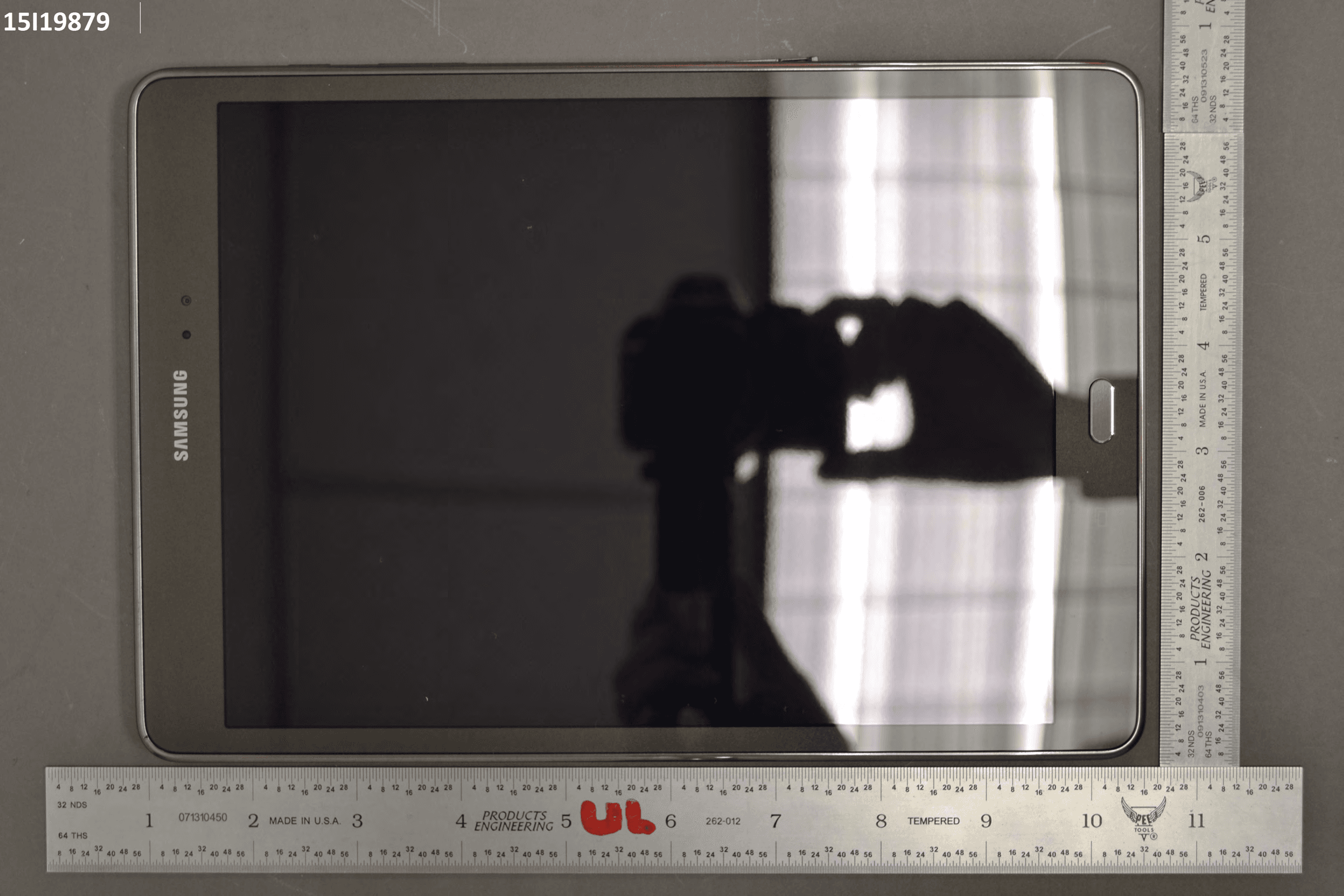

A3LSMT550Tablet with Bluetooth, DTS/UNII a/b/g/n and ANT+

User manual SM-T550 Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ● Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ● JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ● Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held tablet while driving. Park your vehicle first. Switch off the tablet when refuelling Do not use the tablet at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless tablets can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the tablet near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless tablets may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your tablet whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your tablet is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the tablet is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your tablet away from small children Keep the tablet and all its parts, including accessories, out of the reach of small children. Accessories and batteries Use only Samsung-approved batteries and accessories, such as headsets and PC data cables. Use of any unauthorised accessories could damage you or your tablet and may be dangerous. Qualified service Only qualified service personnel may repair your tablet. For more detailed safety information, see ¡°Health and safety information¡± on page 20. • The tablet could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufactureri’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the eartablets into an audiosource and use only the minimum volume setting necessary to hear your conversation or music. Unpack Make sure you have each item • Tablet • Adapter • Stereo headset • Battery • Battery travel holder • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your tablet from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable battery kit • Portable PC data cable • Music controller • Bluetooth mono/ stereop headset kit Get started First steps to operate your tablet Install and charge the tablet 1. Install the battery: To remove the battery, slide the battery catch toward the top of the tablet and hold it. 2. Plug the adapter into the tablet. 3. Plug the adapter into a standard AC wall outlet. 4. When the tablet is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the tablet. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the tablet automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local Tablet Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your tablet, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Tablet locked Enter password” • The automatic locking function has been enabled. You must enter the tablet¡ ̄s password before you can use the tablet. “Enter PIN1” • You are using your tablet for the first time. You must enter the PIN1 supplied with the USIM card. • The PIN1 Check feature is enabled. Every time the tablet is switched on, the PIN1 has to be entered. To disable this feature, use the PIN check menu. “Enter PUK” • The PIN1 code has been entered incorrectly three times in succession, and the tablet is now blocked. Enter the PUK1 supplied by your service provider. “No Service” “Network Failure,” or “Not Done” displays • The network…

Text truncated - open the document above for the full version.

February 10, 2015 Federal Comm unica tions Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT550 To Whom It May Concern: Pursuant t o the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Date: July 23, 2014 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: comply with the relevant provisions of the certification program; a) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; b) make claims regarding certification only in respect of the scope for which certification has been granted; c) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; d) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; e) use certification only to indicate the products are certified as being in conformity with specified standards; f) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; g) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; h) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; i) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; j) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

Label: Location: Top Back of EUT Bottom Tablet : FCC ID is printed on bottom of the device The FCC ID label is located in the back cover. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. SM-T550 FCC ID:A3LSMT550 SAMSUNG, YATELEY, GU46 6GG. UK MADE IN VIETNAM BY SAMSUNG S/N:4A67LP85K5Q

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For BT/BLE, DTS/UNII a/b/g/n and ANT+ Tablet FCC ID: A3LSMT550 Model Name: SM-T550 Report Number: 15I19879-S1E Issue Date: 3/16/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI GYEONGGI-DO 443-742, SOUTH KOREA Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15I19879-S1E Issue Date: 3/16/2015 Page 2 of 28 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 2/18/2015 Initial Issue -- A 2/24/2015 Report revised based on the Reviewer's comments: 1. Sec 7: Updated note. 2. Sec 9.2: Revised Table. Art Thammanavarat B 3/3/2015 Report revised: 1. Sec. 9.1.: Updated table Kenneth Mak C 3/6/2015 Report revised: 1. Sec. 6.1.: Updated table Kenneth Mak D 3/13/2015 Report revised: 1. Sec. 4.3.: Updated table 2. Sec. 6.4., 7.1.: Updated Edge 1 trigger distance 3. Sec. 8.: Updated 4. Sec.10, Updated SAR tables 5. Sec. 11 Updated Table 6. Appendix A, B, C: Updated Jose Abadilla E 3/16/2015 Report revised: 1. Sec.1 Table updated 2. Appendix E updated Jose Abadilla Report No.: 15I19879-S1E Issue Date: 3/16/2015 Page 3 of 28 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 11 6.4. Power Reduction by Proximity Sensing ................................................................................... 12 6.4.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 12 6.4.2. Proximity Sensor Triggering Distance Measurement Results ............................................ 13 6.4.3. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 13 6.4.4. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 13 6.4.5. Resulting test positions for SAR measurements ............................................................... 13 7. RF Exposure Conditions (Test Configurations) ...................................................................... 14 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 14 7.2. Required Test Configurations .................................................................................................. 15 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 19 9. Conducted Output Power Measurements ................................................................................ 21 9.1. Wi-Fi 2.4GHz ........................................................................................................................... 21 9.2. Wi-Fi 5GHz .............................................................................................................................. 22 9.3. Bluetooth ................................................................................................................................. 23 10. Measured and Reported (Scaled) SAR Results ....................................................................... 24 10.1. Wi-Fi (DTS Band) ................................................................................................................. 25 10.2. Wi-Fi (U-NII Band) ................................................................................................................ 25 10.3. Bluetooth .............................................................................................................................. 26 11. SAR Measurement Variability ................................................................................................... 27 Report No.: 15I19879-S1E Issue Date: 3/16/2015 Page 4 of 28 UL Verification Services Inc. Doc. No.: 1.0 This report sh…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 1/29/2015 10:32:36 AM 20150129_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 1.993 S/m; ε r = 51.398; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(6.43, 6.43, 6.43); Calibrated: 2/26/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0 (B); Type: QDOVA001BB; Serial: 1099 Body/Pin=100 mW 2/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 5.16 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.39 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 11.1 W/kg SAR(1 g) = 5.21 W/kg; SAR(10 g) = 2.37 W/kg Maximum value of SAR (measured) = 7.51 W/kg 0 dB = 7.51 W/kg = 8.76 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 1/29/2015 10:51:24 AM 20150129_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.47 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 9:09:45 AM 20150209_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.022 S/m; ε r = 50.793; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(6.43, 6.43, 6.43); Calibrated: 2/26/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0 (B); Type: QDOVA001BB; Serial: 1099 Body/Pin=100 mW 2/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.06 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 61.34 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 11.3 W/kg SAR(1 g) = 5.36 W/kg; SAR(10 g) = 2.45 W/kg Maximum value of SAR (measured) = 7.67 W/kg 0 dB = 7.67 W/kg = 8.85 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 9:28:35 AM 20150209_SystemPerformanceCheck-D2450V2 SN 899 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 7.49 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 11:37:15 AM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5800 MHz; σ = 6.208 S/m; ε r = 47.47; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(3.85, 3.85, 3.85); Calibrated: 2/26/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Body/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 17.4 W/kg Body/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.56 V/m; Power Drift = -0.13 dB Peak SAR (extrapolated) = 33.2 W/kg SAR(1 g) = 6.95 W/kg; SAR(10 g) = 1.93 W/kg Maximum value of SAR (measured) = 17.5 W/kg 0 dB = 17.5 W/kg = 12.43 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/9/2015 12:03:41 PM 20150209_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5800 MHz; Duty Cycle: 1:1 Body/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 10.5 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 2/10/2015 1:32:35 PM 20150210_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5600 MHz; σ = 5.558 S/m; ε r = 47.054; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 9/29/2014 - Probe: EX3DV4 - SN3989; ConvF(4.6, 4.6, 4.6); Calibrated: 4/15/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1180 Body/5.6 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 16.7 W/kg Body/5.6 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 46.619 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 37.0 W/kg SAR(1 g) = 7.58 W/kg; SAR(10 g) = 2.11 W/kg Maximum value of SAR (measured) = 18.9 W/kg 0 dB = 18.9 W/kg = 12.76 dBW/kg Plot No. 8 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 2/10/2015 1:55:18 PM 20150210_SystemPerformanceCheck-D5GHzV2 SN 1138 Frequency: 5600 MHz; Duty Cycle: 1:1 Body/5.6 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 11.2 W/kg Plot No. 9 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 3/13/2015 12:50:56 AM 20150313_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2450 MHz; σ = 2.004 S/m; ε r = 52.358; ρ = 1000 kg/m …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 1/30/2015 12:10:03 PM Wi-Fi 2.4GHz Frequency: 2437 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2437 MHz; σ = 1.975 S/m; ε r = 51.438; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(6.43, 6.43, 6.43); Calibrated: 2/26/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0 (B); Type: QDOVA001BB; Serial: 1099 Rear/802.11b_ch 6 /Area Scan (10x9x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 1.46 W/kg Rear/802.11b_ch 6/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 26.96 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 2.37 W/kg SAR(1 g) = 1.02 W/kg; SAR(10 g) = 0.461 W/kg Maximum value of SAR (measured) = 1.45 W/kg Plot No. 2 Test Laboratory: UL Verification Services Inc. SAR Lab A Date: 2/3/2015 Wi-Fi 5GHz (FCC) Frequency: 5280 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5280 MHz; σ = 5.192 S/m; ε r = 48.59; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(4.03, 4.03, 4.03); Calibrated: 2/26/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Rear/802.11a ch 56/Area Scan (10x10x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.894 W/kg Rear/802.11a ch 56/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 13.68 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 2.68 W/kg SAR(1 g) = 0.625 W/kg; SAR(10 g) = 0.169 W/kg Maximum value of SAR (measured) = 1.22 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/11/2015 11:08:05 AM Wi-Fi 5GHz Frequency: 5670 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5670 MHz; σ = 6.04 S/m; ε r = 47.603; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(3.54, 3.54, 3.54); Calibrated: 2/26/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (A); Type: QDOVA001BB; Serial: 1117 Rear/802.11n_HT40_ch 134/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 2.27 W/kg Rear/802.11n_HT40_ch 134/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 17.75 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 5.83 W/kg SAR(1 g) = 1.04 W/kg; SAR(10 g) = 0.213 W/kg Maximum value of SAR (measured) = 2.55 W/kg Plot No. 4 Test Laboratory: UL Verification Services Inc. SAR Lab E Date/Time: 2/12/2015 3:14:52 PM Wi-Fi 5GHz Frequency: 5755 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 5755 MHz; σ = 5.758 S/m; ε r = 46.901; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1257; Calibrated: 9/29/2014 - Probe: EX3DV4 - SN3989; ConvF(4.23, 4.23, 4.23); Calibrated: 4/15/2014; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v5.0 B; Type: QDOVA002AA; Serial: 1180 Rear/802.11n_HT40_ch 151/Area Scan (9x9x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 1.48 W/kg Rear/802.11n_HT40_ch 151/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 16.373 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 4.42 W/kg SAR(1 g) = 0.825 W/kg; SAR(10 g) = 0.173 W/kg Maximum value of SAR (measured) = 1.86 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc. SAR Lab A Date/Time: 2/11/2015 9:53:54 PM Bluetooth Frequency: 2402 MHz; Duty Cycle: 1:1.29033; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 2402 MHz; σ = 1.946 S/m; ε r = 50.906; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1433; Calibrated: 4/14/2014 - Probe: EX3DV4 - SN3772; ConvF(6.43, 6.43, 6.43); Calibrated: 2/26/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v4.0 (B); Type: QDOVA001BB; Serial: 1099 Rear/Bluetooth GFSK_ch 0/Area Scan (10x10x1): Measurement grid: dx=12mm, dy=12mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.516 W/kg Rear/Bluetooth GFSK_ch 0/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.331 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 1.24 W/kg SAR(1 g) = 0.446 W/kg; SAR(10 g) = 0.188 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.687 W/kg

Head Tissue Simulating Liquids Head Tissue Parameters according to IEEE Std 1528-2013 / IEC 62209 / FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 HSL1450V2 HSL1750V2 HSL1800V2 HSL1900V2 HSL1950V2 HSL2450V2 Test Frequency (MHz) 300 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2000 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product HBBL30-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 30-250 1400-1800 1750-1900 1950-3000 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil Body Tissue Simulating Liquids Body Tissue (Muscle) Parameters according to FCC KDB 865664 D01 Narrow- Band Solutions (±5% tolerance) Product MSL300V2 MSL450V2 MSL750V2 MSL900V2 MSL1450V2 MSL1750V2 MSL1800V2 MSL1900V2 MSL1950V2 MSL2450V2 Test Frequency (MHz) 300 400, 450 750 835, 900 1450, 1500, 1640 1750 1800, 1900 1900 1950, 2100 2450, 2600 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Water, DGBE Broad- Band Solutions (±5% tolerance) Product MBBL130-250V3 MBBL1350-1850V3 MBBL1550-1950V3 MBBL1900-3800V3 MBBL3500-5800V5 Test Frequency (MHz) 130-250 1350-1800 1550-1850 1950-3800 3500-5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

FCC 47 CFR PART 15 SUBPART C INDUSTRY CANADA RSS…
