A3LSMT567VMulti-band UMTS/LTE Tablet with WLAN, Bluetooth and ANT+

DRAFT FOR INTERNAL USE ONLY Tab E ANDROID TABLET User Manual Please read this manual before operating your device and keep it for future reference. This document is watermarked because certain important information in the document has not yet been verified. This document has been sent to you as a draft and for informational purposes only. The document should only be used for internal purposes and may not be distributed outside of the company. Distributing the document outside of the company could result in legal exposure to the company if the preliminary, unverified information in the draft turns out to be inaccurate. DRAFT FOR INTERNAL USE ONLY i Legal Notices Legal Notices VZW_T567V_EN_UM_TN_XXX_071615_R0 Warning: This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. For more information, please call 1-800-SAMSUNG (726-7864). Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG mobile device, including but not limited to, accessories, parts, or software relating there to (the “mobile device”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to ‘PowerTOP’ and ‘e2fsprogs’, incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT “AS IS”, AND SAMSUNG MAKES NO EXPRESS OR IMPLIED DRAFT FOR INTERNAL USE ONLY ii Legal Notices WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE DEVICE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. DRAFT FOR INTERNAL USE ONLY iii Legal Notices Samsung KNOX™ Samsung Knox™ is Samsung’s security platform and is a mark for a Samsung device tested for security with enterprise use in mind. Additional licensing fee may be required. For more information about Knox, please refer to: samsung.com/us/knox. [030115] Samsung Electronics America (SEA), Inc. Address: 85 Challenger Road Ridgefield Park, New Jersey 07660 Phone: 1-800-SAMSUNG (726-7864) Int ernet Address: samsung.com ©2015 Samsung Electronics America, Inc. Samsung and Galaxy Tab are registered trademarks of Samsung Electronics Co., Ltd. Screen images are simulated. Appearance of device may vary. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: samsung.com/us/support. The actual available capacity of the internal memory is less than the specified capacity because the operating system and default applications occupy part of the memory. The available capacity may change when you upgrade the device. The Bluetooth ® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG. Google, the Google logo, Android, the Android logo, Google Play, Gmail, Google Maps, Google Music, Google Hangouts, Picasa, Play Newsstand, YouTube, and other marks are trademarks of Google Inc. DRAFT FOR INTERNAL USE ONLY iv Legal Notices Wi-Fi is a registered trademark of the Wireless Fidelity Alliance, Inc. Swype and the Swype logos are trademarks of Swype, Inc. Legal Information Important legal information can be accessed in writing on the mobile device or at samsung.com. Read this information before using your mobile …

Text truncated - open the document above for the full version.

ANDROID TA B L E T Product Safety & Warranty Information Please read this manual before operating your device and keep it for future reference. T567V_.book Page 1 Monday, July 20, 2015 9:43 AM VZW_T567V_EN_HS_PS_OF3_072015_R2 Warning! This product contains chemicals known to the State of California to cause cancer and reproductive toxicity. For more information, please call 1-800-SAMSUNG (726-7864). Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG mobile device, including but not limited to, accessories, parts, or software relating thereto (the “mobile device”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All T567V_.book Page 2 Monday, July 20, 2015 9:43 AM applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Open Source Software Some software components of this product, including but not limited to 'PowerTOP' and 'e2fsprogs', incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com. Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE T567V_.book Page 3 Monday, July 20, 2015 9:43 AM WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of Software SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS T567V_.book Page 4 Monday, July 20, 2015 9:43 AM TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS. IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT THE DEVICE WILL NO LONGER OPERATE AND BE INSTRUCTED TO POWER DOWN THE DEVICE. YOU MUST THEN CONTACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Samsung KNOX Samsung Knox™ is Samsung’s security platform and is a mark for a Samsung device tested for security with enterprise use in mind. Additional licensing fee may be required. For more information about Knox, please refer to: www.samsung.com/us/knox. [030115] T567V_.book Page 5 Monday, July 20, 2015 9:43 AM Samsung Electronics America (SEA), Inc © 2015 Samsung Electronics America, Inc. Samsung is a registered trademark of Samsung Electronics Co., Ltd. Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support Address: 85 Challenger Road Ridgefield Park, New Jersey 07660 Phone: 1-800-SAMSUNG (726-7864) Internet Address: www.samsung.com T567V_.book Page 6 Monday, July 20, 2015 9:43 AM Legal Information Important legal information can be accessed in writing on the mobile device or on samsung.com. Read this information before using your mobile device. Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty. Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Legal Information ➔ Samsung legal or at samsung.com. The online version of the Health/Safety and Warranty guide for your device can be found at: English: www.samsung.com/us/Legal/Tablet-HSGuide Spanish: www.samsung.com/us/Legal/Tablet-HSGuide-SP Location of Legal Information on the device: Health and Safety Information • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety T567V_.book Page 7 Monday, July 20, 2015 9:43 AM Warranty • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty EULA • Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement T567V_.book Page 8 Monday, July 20, 2015 9:43 AM 1 Table of Contents Section 1: Health and Safety Information ................................................. 2 Specific Absorption Rate (SAR) Certification Information . . . . . . . . . . . . . . . . . . . . . . . . . . 3 FCC Part 15 Information to User . .…

Text truncated - open the document above for the full version.

Samsung Electronics America, Inc 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 24, 2015 FCC ID: A3LSMT567V To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to any application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea July 24, 2015 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT567V Gentlemen: The device is compliant in accordance to the FCC rules about identification of equipment, stated in 47 CFR Part 2.925(d). The label statement is as follows: The FCC ID label is located on the rear bottom of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: July 24, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT567V To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, CHANHO, YOUN General Manager American QA Lab SAMSUNG Electronics America INC.

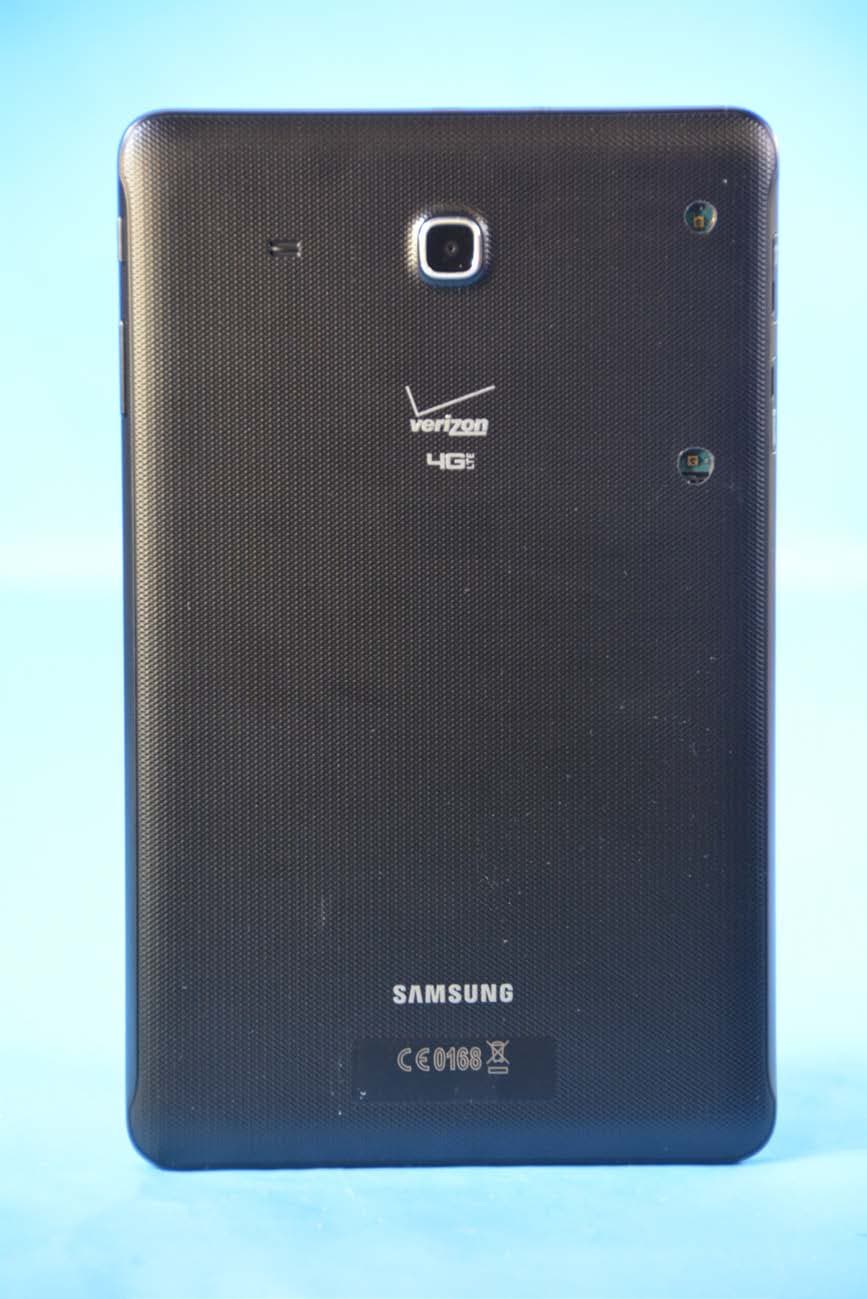

Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V External Photos EUT Type: Portable Tablet Page 1 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V External Photos EUT Type: Portable Tablet Page 2 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V External Photos EUT Type: Portable Tablet Page 3 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V External Photos EUT Type: Portable Tablet Page 4 of 4 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015

Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 1 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 2 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 3 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 4 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 5 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 6 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 7 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 8 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 9 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 10 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Samsung Electronics Co., Ltd. FCC ID: A3LSMT567V Model: SM-T567V Internal Photos EUT Type: Portable Tablet Page 11 of 11 © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015

FCC ID: A3LSMT567V FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 97 0Y1506241343.A3L 6/25-7/20/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Applicant Name: Date of Testing: Samsung Electronics Co., Ltd. 6/25-7/20/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506241343.A3L FCC ID: A3LSMT567V APPLICANT: Samsung Electronics Co., Ltd. Application Type: Certification Model(s): SM-T567V EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 D02 v01 1205180 - 524012.70611.04 2A205260 - 532013.55211.32 2C205500 - 572013.70911.37 3205745 - 582513.64611.35 1205180 - 524014.09311.49 2A205260 - 532011.91210.76 2C205500 - 572013.80411.40 3205745 - 582513.70911.37 1405190 - 52308.1669.12 2A405270 - 53108.4929.29 2C405510 - 57108.6909.39 3405755 - 57958.0179.04 Channel Bandwidth (MHz) Conducted Power Tx Frequency (MHz) Max. Power (mW) Max. Power (dBm) ModeUNII Band 802.11a 802.11n 802.11n This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 D02 v01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n FCC ID: A3LSMT567V FCC Pt. 15.407 802.11a/n UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 97 0Y1506241343.A3L 6/25-7/20/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .......................................................................................................................................... 3 1.0 INTRODUCTION ........................................................................................................................................................................... 4 1.1 SCOPE ............................................................................................................................................................................ 4 1.2 PCTEST TEST LOCATION .............................................................................................................................................. 4 2.0 PRODUCT INFORMATION ........................................................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION ........................................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................................... 5 2.3 TEST CONFIGURATION ................................................................................................................................................. 5 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................................................ 5 3.0 DESCRIPTION OF TEST............................................................................................................................................................... 6 3.1 EVALUATION PROCEDURE ........................................................................................................................................... 6 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................................... 6 3.3 RADIATED EMISSIONS .................................................................................................................................................. 7 3.4 ENVIRONMENTAL CONDITIONS ................................................................................................................................... 7 4.0 ANTENNA REQUIREMENTS ........................................................................................................................................................ 8 5.0 TEST EQUIPMENT CALIBRATION DATA ..................................................................................................................................... 9 6.0 TEST RESULTS .......................................................................................................................................................................... 10 6.1 SUMMARY ..................................................................................................................................................................... 10 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N ....................................................................................................... 11 6.3 6DB BANDWIDTH MEASUREMENT – 802.11A/N ......................................................................................................... 26 6.4 UNII OUTPUT POWER MEASUREMENT – 802.11A/N ................................................................................................. 32 6.5 MAXIMUM POWER SPECTRAL DENSITY – 802.11A/N ..............................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT567V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 15 0Y1506241344.A3L 6/25-7/7/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 Company Name: Date of Testing: Samsung Electronics Co., Ltd. 6/25-7/7/2015 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1506241344.A3L FCC ID: A3LSMT567V COMPANY: Samsung Electronics Co., Ltd. Model(s): SM-T567V EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability® Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5720 MHz (UNII-2C Band) Output Power: 13.552 mW (11.32 dBm) Conducted (802.11a UNII Band 2A) 13.804 mW (11.40 dBm) Conducted (802.11n UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) Test Procedure(s): KDB 905462 D02 v01r02 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 905462 D02 v01r02 Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT567V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 15 0Y1506241344.A3L 6/25-7/7/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 EUT CAPABILITIES ....................................................................................................................................... 5 2.3 MODIFICATIONS ........................................................................................................................................... 5 3.0 DESCRIPTION OF DYNAMIC FREQUENCY SELECTION TEST ......................................................... 6 3.1 APPLICABILITY ............................................................................................................................................. 6 3.2 REQUIREMENTS .......................................................................................................................................... 6 3.3 DFS DETECTION THRESHOLD VALUES .................................................................................................... 8 3.4 PARAMETERS OF DFS TEST SIGNALS ...................................................................................................... 8 3.5 PROCEDURE ................................................................................................................................................ 9 4.0 TEST EQUIPMENT ................................................................................................................................10 4.1 ADDITIONAL EQUIPMENT ......................................................................................................................... 10 5.0 TEST RESULTS ....................................................................................................................................11 6.0 CONCLUSION .......................................................................................................................................15 FCC ID: A3LSMT567V FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 15 0Y1506241344.A3L 6/25-7/7/2015 Portable Tablet © 2015 PCTEST Engineering Laboratory, Inc. V 2.9 06/10/2015 DFS MEASUREMENT REPORT FCC Part 15.407 § 2.1033 General Information APPLICANT: Samsung Electronics Co., Ltd. APPLICANT ADDRESS: 129, Samsung-ro, Maetan dong, Yeongtong-gu, Suwon-si, Gyeonggi-do 443-742, Korea TEST SITE: PCTEST ENGINEERING LABORATORY, INC. TEST SITE ADDRESS: 7185 Oakland Mills Road, Columbia, MD 21046 USA FCC RULE PART(S): Part 15.407(h) BASE MODEL: SM-T567V FCC ID: A3LSMT567V Test Device Serial No.: 990005808724323 Production Pre-Production Engineering DEVICE CLA…

Text truncated - open the document above for the full version.
