A3LSMT677AWCDMA/LTE Tablet+Bluetooth/BLE, DTS/UNII a/b/g/n/ac and ANT+

ANDROID DEVICE Health & Safety and Warranty Guide Please read this manual before operating your device and keep it for future reference. T677A_.book Page 1 Tuesda y, September 29, 2015 4:56 PM ATT_T677A_EN_HS_PS_OI3_092915_R2 Legal Information Important legal information can be accessed in writing on the mobile device or on samsung.com READ THIS INFORMATION BEFORE USING YOUR MOBILE DEVICE.Samsung Limited Warranty - This product is covered under the applicable Samsung Limited Warranty including its dispute re solution procedure . Full written terms and detailed information about the warranty and obtaining service are available on the device at: Settings ➔ About device ➔ Legal Information ➔ Samsung legal or you may access the on line version of the Health/Safety and Warranty guide for your device at: English: www.samsung.com/us/Legal/Tablet-HSGuide Spanish: www.samsung.com/us/Legal/Tablet-HSGuide-SP T677A_.book Page 2 Tuesda y, September 29, 2015 4:56 PM Location of Legal Information on the device: Health and Safety Information• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Health and Safety Warranty• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ Warranty End User License Agreement (EULA)• Settings ➔ About device ➔ Legal information ➔ Samsung legal ➔ End User License Agreement T677A_.book Page 3 Tuesda y, September 29, 2015 4:56 PM Warning! This product contains chem icals known to the State of California to cause cancer, birth defects, or other repro ductive harm. For more information, please call 1-800-SAMSUNG (726-7864). Intellectual Property All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG mobile device, including but not limited to, accessories, parts, or software relating thereto (the “mobile device”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provision s. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs , and related documentation and other T677A_.book Page 4 Tuesda y, September 29, 2015 4:56 PM works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Mo reover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is tran sferred to you. All applicable rights of the Intellectual Property shall rema in with SAMSUNG and its suppliers. Open Source Software Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit: http://opensource.samsung.com T677A_.book Page 5 Tuesda y, September 29, 2015 4:56 PM Disclaimer of Warranties; Exclusion of Liability EXCEPT AS SET FORTH IN THE EX PRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTH ING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREA TE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, T677A_.book Page 6 Tuesda y, September 29, 2015 4:56 PM SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR US E OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCL UDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Modification of SoftwareSAMSUNG IS NOT LIABLE FOR PERFORMA NCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE. USING CUSTOM OPERATING SYSTEM SOFT WARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YO UR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE , SUCH AS CUSTOM OS. T677A_.book Page 7 Tuesda y, September 29, 2015 4:56 PM IF YOUR CARRIER PROHIBITS THIS, IF YOU ATTEMPT TO DOWNLOAD SOFTWARE ONTO THE DEVICE WITHOUT AUTHORIZATION, YOU WILL BE NOTIFIED ON THE SCREEN THAT UNAUTHORIZED SOFTWARE HAS BEEN DETECTED. YOU SHOULD THEN POWER DOWN THE DEVICE AND CONT ACT YOUR CARRIER TO RESTORE THE DEVICE TO THE CARRIER AUTHORIZED SETTINGS. Diagnostic SoftwareThis device is equipped with diagnostic software reporting usage and performance information used solely to deliver improved network quality and overall device experience to AT&T customers. Please refer to your AT&T Wireless Customer Agreement and/or the AT&T Privacy Policy ( www.att.com/privacy ) for more information. T677A_.book Page 8 Tuesda y, September 29, 2015 4:56 PM Samsung Electronics America (SEA), Inc Address:85 Challenger RoadRidgefield Park, New Jersey 07660Phone: 1-800-SAMSUNG (726-7864)Internet Address: www.samsung.com T677A_.book Page 9 Tuesda y, September 29, 2015 4:56 PM © 2015 Samsung Electronics America, Inc. Sa msung is a registered trademark of Samsung Electronics Co., Ltd.Do you have questions about your Samsung Mobile Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at: www.samsung.com/us/support T677A_.book Page 10 Tuesday, September 29, 2015 4:56 PM 1 Table o…

Text truncated - open the document above for the full version.

www.samsung.com User Manual English (EU). 01/2015. Rev.1.0 'UaIW 0anXaO 7KH 0anXaO LV SUHOLPLnaU\ and VRPH IHaWXUHV dLVFXVVHd Pa\ nRW EH aSSOLFaEOH RU FRPSOHWH and aUH nRW ILnaO LH 0RdHO 1aPHV and ,WHPV VXFK aV EaWWHU\ 6,0 &aUd 6RIWNH\ dLVFXVVLRn HWF SM-T677A DRAFT, Not FINAL 2 Table of Contents Basics 4 Read me first 5 Package contents 6 Device layout 8 SIM or USIM card 11 Battery 15 Turning the device on and off 16 Touchscreen 19 Home screen 25 Lock screen 27 Notification panel 30 Entering text 33 Screen capture 33 Opening apps 34 Multi window 38 Device and data management 44 Connecting to a TV 46 Emergency mode Settings 47 Introduction 47 Wi-Fi 49 Bluetooth 51 Tethering and Mobile hotspot 52 Flight mode 52 Data usage 53 Mobile networks 53 More 58 Sound and notification 58 Display 59 Motions & gestures 59 Applications 60 Wallpaper 60 Themes 60 Lock screen & security 65 Privacy & safety 68 Easy mode 68 Accessibility 69 Accounts 70 Backup and reset 70 Language and input 71 Battery 71 Storage 72 Date and time 72 User manual 72 About device Applications 73 Installing or uninstalling apps 74 Phone 77 Contacts 79 Messages 80 Internet 81 Email DRAFT, Not FINAL Table of Contents 3 82 Camera 98 Gallery 99 Smart Manager 100 S Planner 102 S Health 105 S Voice 106 Music 107 Video 107 Voice Recorder 110 My Files 110 Memo 111 Clock 112 Calculator 113 Google apps 115 Microsoft apps Appendix 116 Accessibility 131 Troubleshooting 136 Removing the battery (non-removable type) DRAFT, Not FINAL 4 Basics Read me first Please read this manual before using the device to ensure safe and proper use. • Descriptions are based on the device’s default settings. • Some content may differ from your device depending on the region, service provider, model specifications, or device’s software. • Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in. • Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung. • Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly. • Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media. • You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature. • Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers. • Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty. DRAFT, Not FINAL Basics 5 • Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, tap Apps → Settings → About device. Instructional icons Warning: situations that could cause injury to yourself or others Caution: situations that could cause damage to your device or other equipment Notice: notes, usage tips, or additional information Package contents Check the product box for the following items: • Device • Quick start guide • The items supplied with the device and any available accessories may vary depending on the region or service provider. • The supplied items are designed only for this device and may not be compatible with other devices. • Appearances and specifications are subject to change without prior notice. • You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase. • Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty. • Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website. DRAFT, Not FINAL Basics 6 Device layout Microphone Microphone Loud speaker Back key Multipurpose jack Front camera Speaker Power key Touchscreen Recents key Headset jack Home key (Fingerprint recognition sensor) LED indicator Proximity/Light sensor SIM card tray Main antenna Infrared port Flash Volume key NFC antenna/Wireless charging coil Rear camera Microphone GPS antenna DRAFT, Not FINAL Basics 7 • Do not cover the antenna area with your hands or other objects. This may cause connectivity problems or drain the battery. • Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction. • Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water. Keys KeyFunction Power • Press and hold to turn the device on or off. • Press to turn on or lock the screen. Recents • Tap to open the list of recent apps. • Tap and hold to launch the split screen view. Home • Press to turn on the screen while the screen is locked. • Press to return to the Home screen. • Press and hold to launch Google. Back • Tap to return to the previous screen. Volume • Press to adjust t…

Text truncated - open the document above for the full version.

Date: August 5, 2015 UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16675, Korea To whom it may concern: I, the undersigned, hereby authorize UL Korea, Ltd. Suwon Laboratory, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Korea, Ltd. Suwon Laboratory on our behalf shall have the same effect as acts of our own. In authorizing UL Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. l) the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) This authorization is valid until further written notice from the applicant. Sincerely Yours CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

September 15, 2015 Federal Comm uni ca tions Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LSMT677A To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematics Block Diagram Operational Description Antenna Specification Parts List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments until 180 days External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondence during certification review process cannot be granted as confidential documents and such information will be available for public review once the grant of equipment authorization is issued. Best Regards CHANHO, YOUN General Manager Samsung Electronics CO. LTD TEL: +1-973-808-6362 E-mail: [email protected]

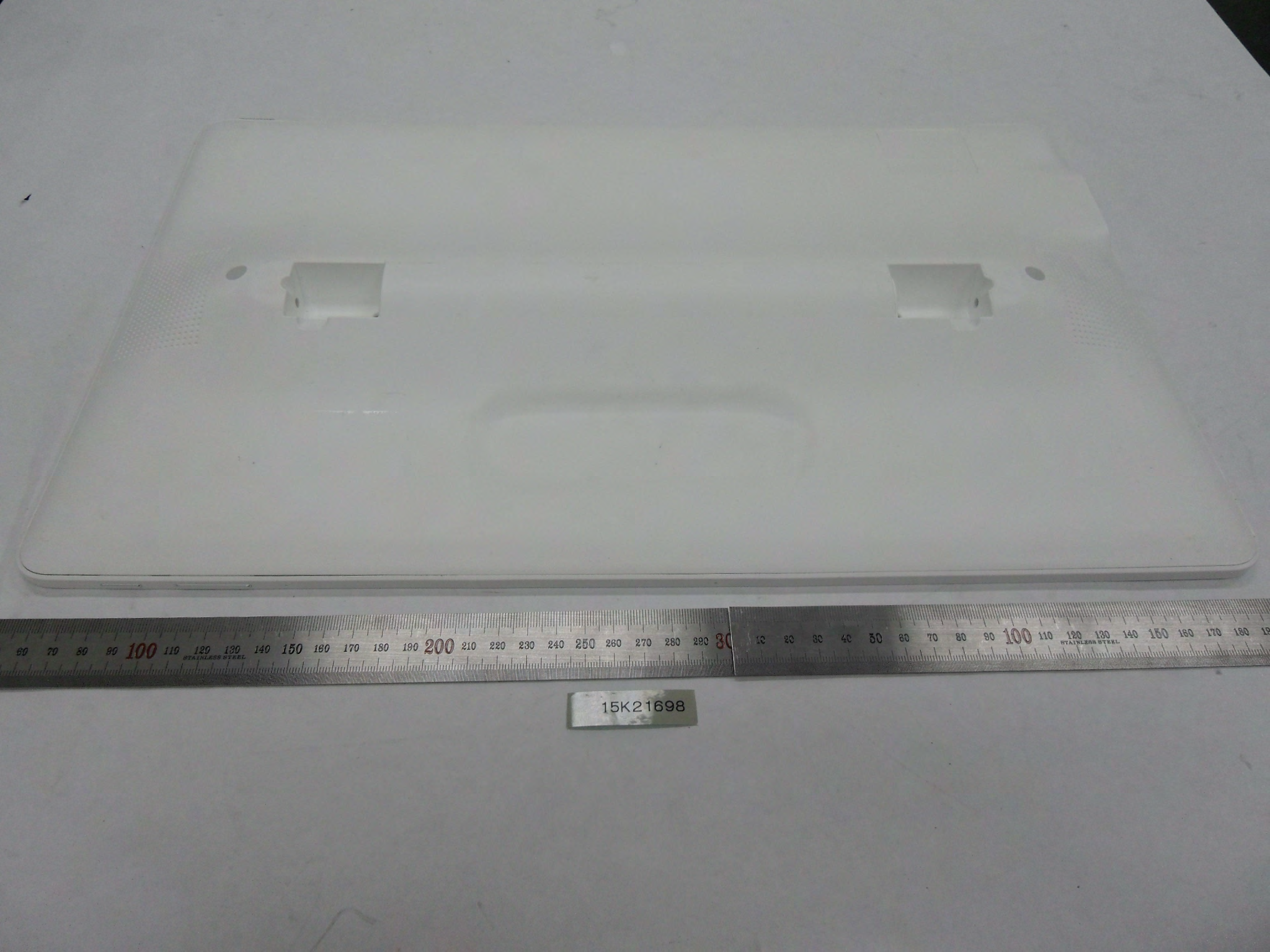

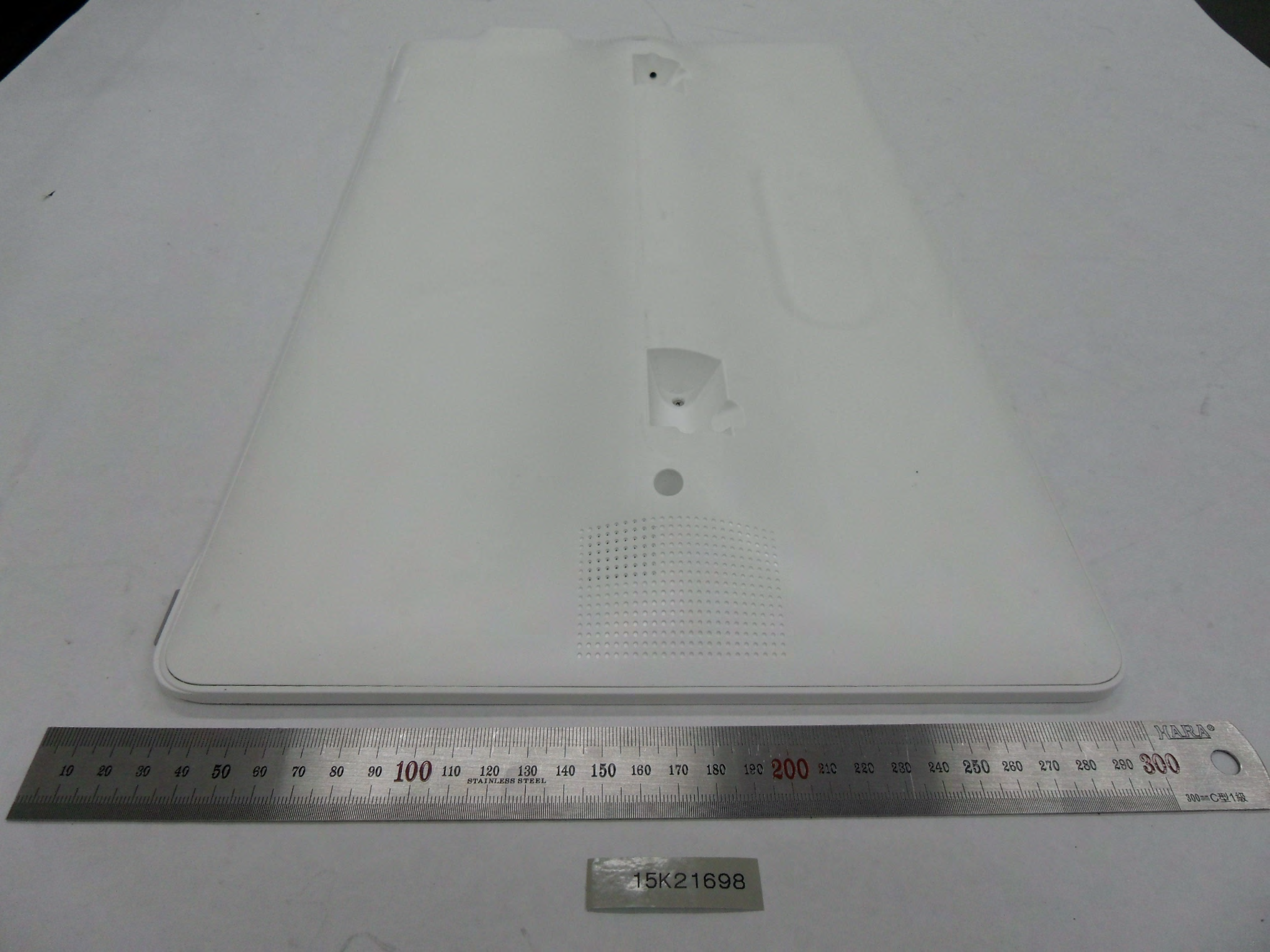

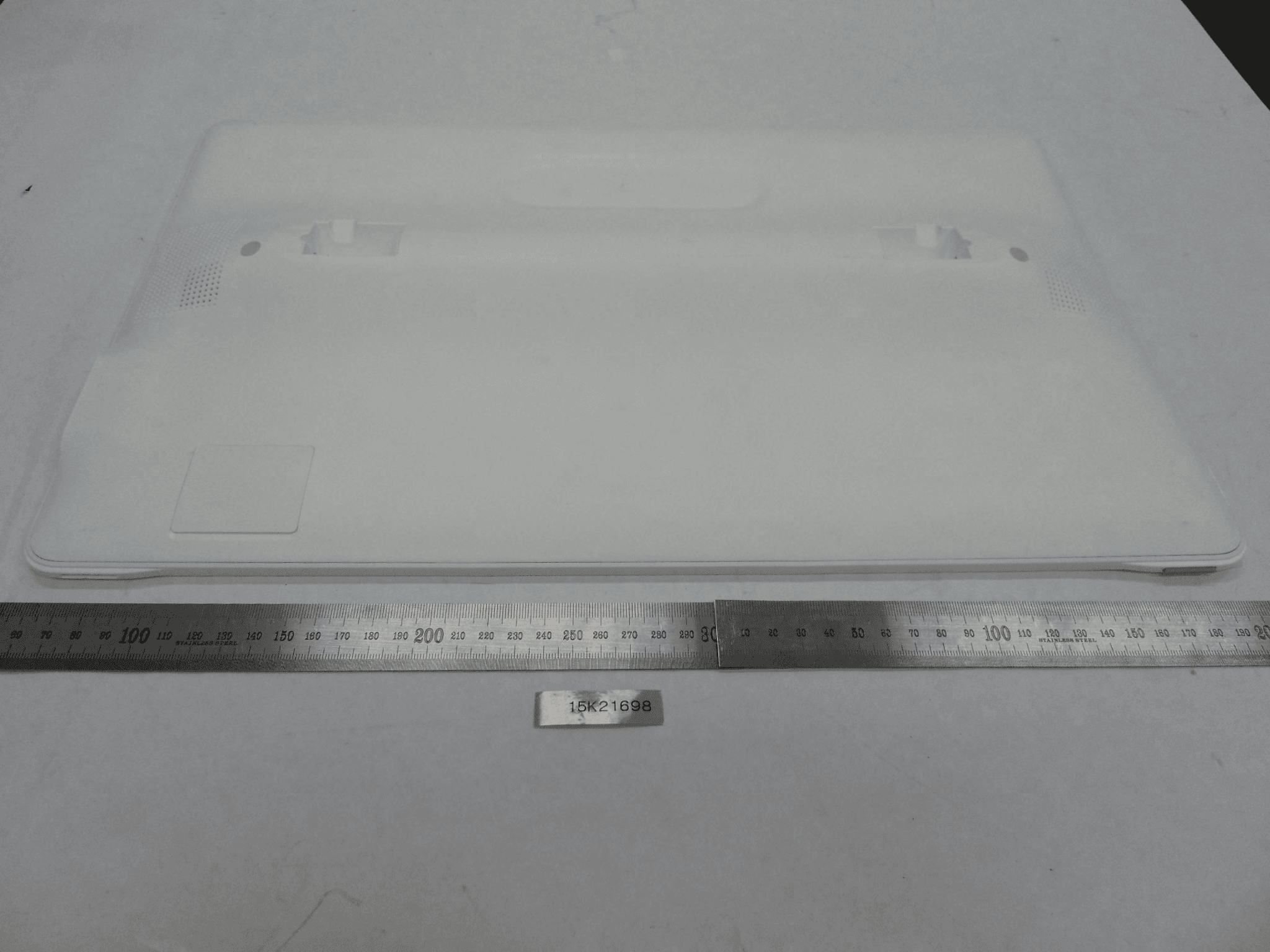

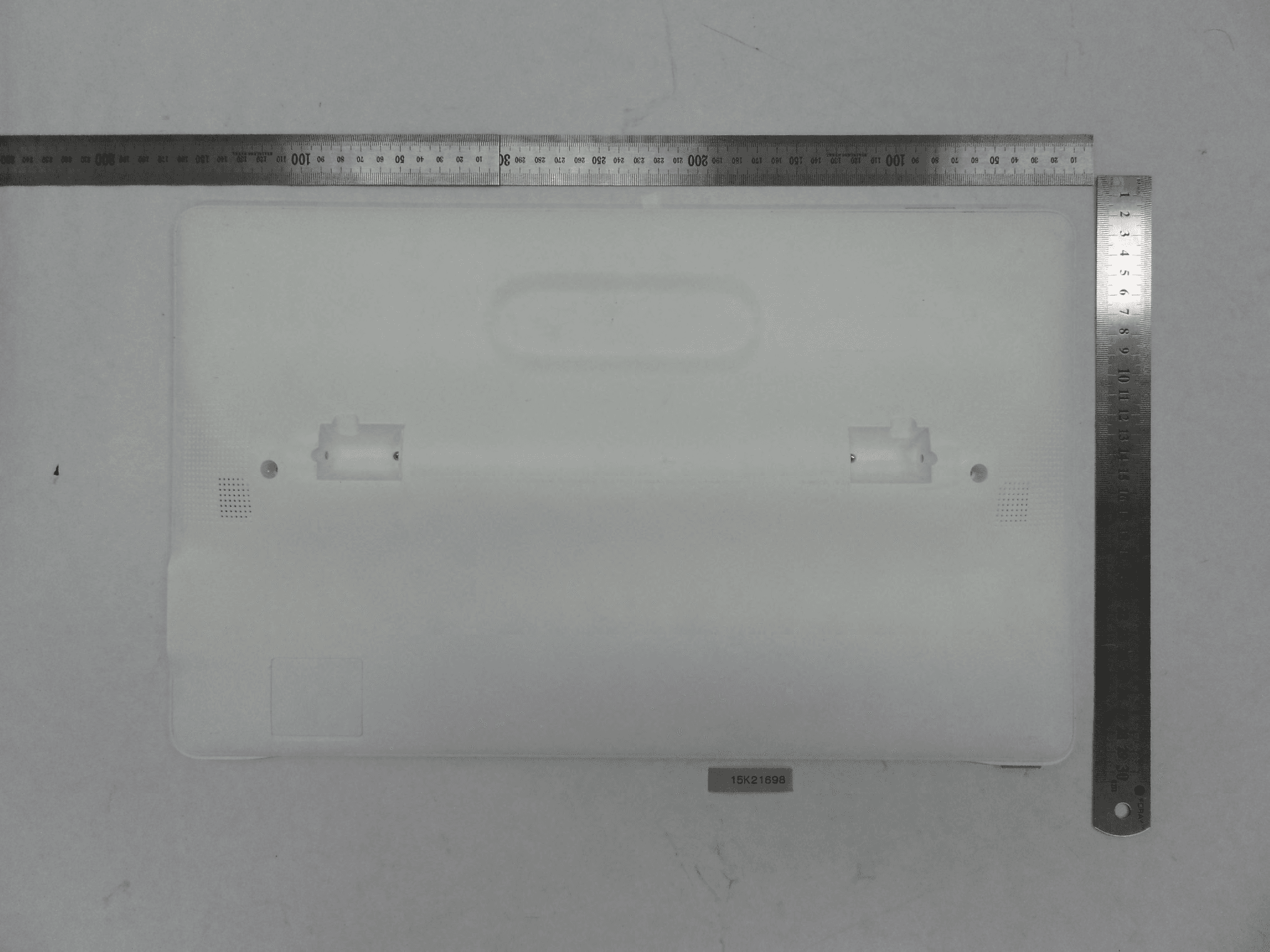

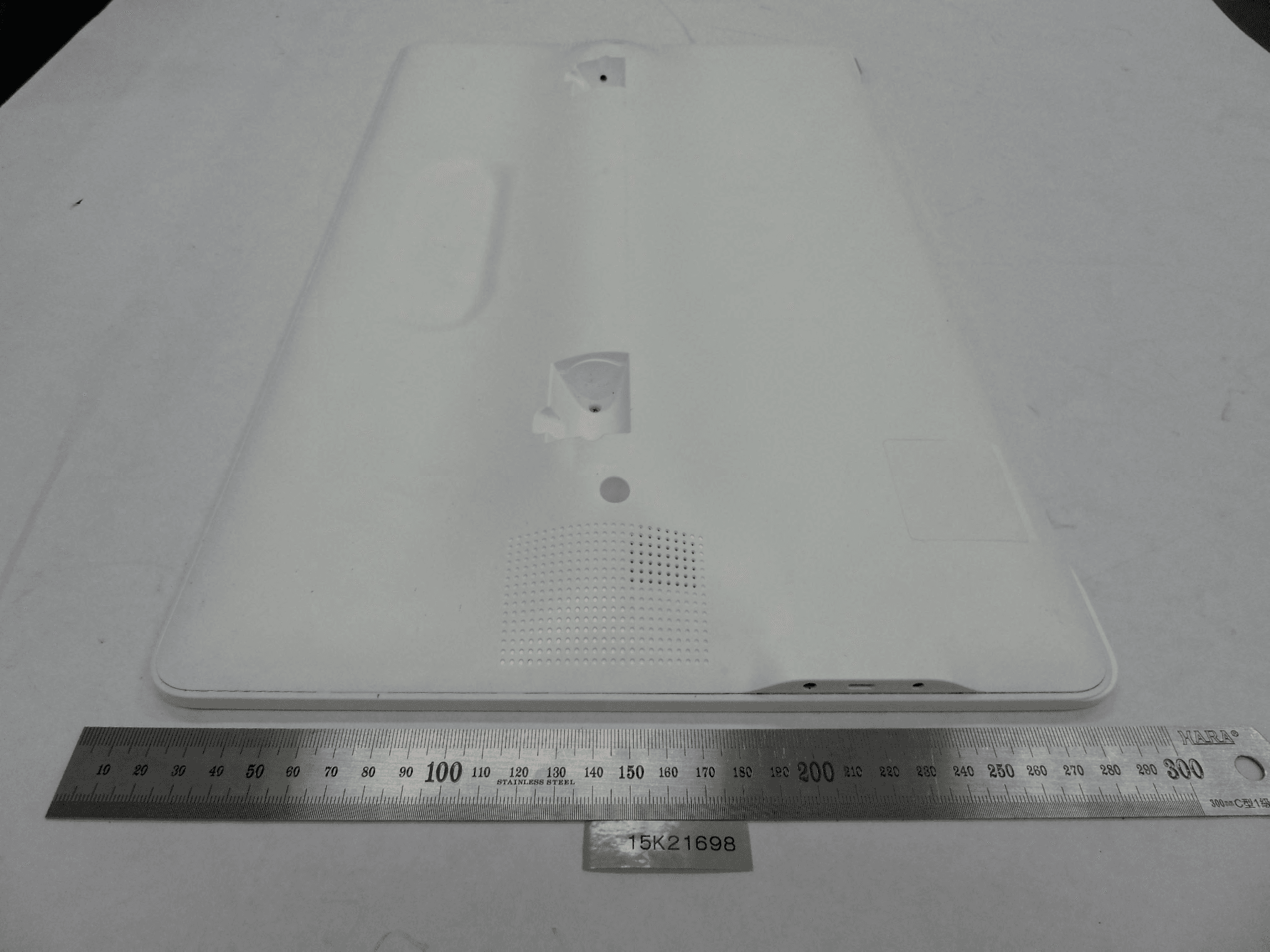

SM-T677A Label Location Back side view

TL-637 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For WCDMA/LTE Tablet + Bluetooth/BLE, DTS/UNII a/b/g/n/ac and ANT+ FCC ID: A3LSMT677A Model Name: SM-T677A Report Number: 15K21698-S1V1 Issue Date: 9/22/2015 Prepared for SAMSUNG ELECTRONICS CO., LTD. 129 SAMSUNG-RO, YEONGTONG-GU, SUWON-SI, GYEONGGI-DO, 443-742, KOREA Prepared by UL Korea, Ltd. Suwon Laboratory 218 Maeyeong-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-823, Korea TEL: (031) 337-9902 FAX: (031) 213-5433 Report No.: 15K21698-S1V1 Issue Date: 9/22/2015 Page 2 of 62 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. Revision History Rev. Date Revisions Revised By -- 9/22/2015 Initial Issue DoYoung Seo Report No.: 15K21698-S1V1 Issue Date: 9/22/2015 Page 3 of 62 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 10 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 13 6.5. Power Reduction by Proximity Sensing ................................................................................... 15 6.5.1. Proximity Sensor Triggering Distance (KDB 616217 §6.2) ................................................ 15 6.5.2. Proximity Sensor Coverage (KDB 616217 §6.3) ............................................................... 19 6.5.3. Proximity Sensor Tilt Angle Assessment (KDB 616217 §6.4) ............................................ 19 6.5.4. Resulting test positions for SAR measurements ............................................................... 19 7. RF Exposure Conditions (Test Configurations) ...................................................................... 20 7.1. Standalone SAR Test Exclusion Considerations ...................................................................... 20 7.2. Required Test Configurations .................................................................................................. 23 8. Dielectric Property Measurements & System Check .............................................................. 24 8.1. Dielectric Property Measurements ........................................................................................... 24 8.2. System Check.......................................................................................................................... 27 9. Conducted Output Power Measurements ................................................................................ 30 9.1. W-CDMA ................................................................................................................................. 30 9.2. LTE .......................................................................................................................................... 34 9.2.1. LTE Rel. 10 Carrier Aggregation ....................................................................................... 45 9.3. Wi-Fi 2.4GHz (DTS Band) ....................................................................................................... 46 9.4. Wi-Fi 5GHz (U-NII Bands)........................................................................................................ 47 9.5. Bluetooth ................................................................................................................................. 48 10. Measured and Reported (Scaled) SAR Results ....................................................................... 49 10.1. W-CDMA Band V ................................................................................................................. 51 Report No.: 15K21698-S1V1 Issue Date: 9/22/2015 Page 4 of 62 UL Korea, Ltd. Suwon Laboratory Doc. No.: 1.0 This report shall not be reproduced except in full, without the written approval of UL Korea, Ltd. 10.2. W-CDMA Band II .................................................................................................................. 51 10.3. LTE Band 2 (20MHz Bandwidth) .......................................................................................... 51 10.4. LTE Band 4 (20MHz Bandwidth) .......................................................................................... 51 10.5. LTE Band 5 (10MHz Bandwidth) .....................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-10 WCDMA Band 5_Power Reduction Frequency: 836.6 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.6 MHz; σ = 1.016 S/m; ε r = 55.708; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(9.35, 9.35, 9.35); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (20deg probe tilt); Type: QDOVA002AA; Serial: TP:2005 Rear/Rel99_ch 4183 2/Area Scan (9x15x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.887 W/kg Rear/Rel99_ch 4183 2/Zoom Scan (5x6x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.63 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 1.10 W/kg SAR(1 g) = 0.554 W/kg; SAR(10 g) = 0.289 W/kg Maximum value of SAR (measured) = 0.808 W/kg 0 dB = 0.808 W/kg = -0.93 dBW/kg Plot No. 2 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-14 WCDMA Band 2_Power Reduction Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.554 S/m; ε r = 51.87; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI Phantom v5.0; Type: QDOVA002AA; Serial: TP:2001 Rear/Rel99_ch 9400/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.888 W/kg Rear/Rel99_ch 9400/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.17 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 1.71 W/kg SAR(1 g) = 0.752 W/kg; SAR(10 g) = 0.323 W/kg Maximum value of SAR (measured) = 1.15 W/kg 0 dB = 1.15 W/kg = 0.61 dBW/kg Plot No. 3 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-14 LTE Band 2_Power Reduction Frequency: 1880 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1880 MHz; σ = 1.554 S/m; ε r = 51.87; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.82, 7.82, 7.82); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI Phantom v5.0; Type: QDOVA002AA; Serial: TP:2001 Rear/QPSK RB 1/49 ch 18900/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.860 W/kg Rear/QPSK RB 1/49 ch 18900/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 23.94 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 1.75 W/kg SAR(1 g) = 0.785 W/kg; SAR(10 g) = 0.344 W/kg Maximum value of SAR (measured) = 1.29 W/kg 0 dB = 1.29 W/kg = 1.11 dBW/kg Plot No. 4 Test Laboratory: UL Korea, Ltd. Suwon Laboratory Date: 2015-09-15 LTE Band 4_Power Reduction Frequency: 1745 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 1745 MHz; σ = 1.427 S/m; ε r = 52.101; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(7.98, 7.98, 7.98); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI Phantom v5.0; Type: QDOVA002AA; Serial: TP:2001 Rear/QPSK RB 1/99 ch 20300/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.46 W/kg Rear/QPSK RB 1/99 ch 20300/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 31.06 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 1.98 W/kg SAR(1 g) = 0.912 W/kg; SAR(10 g) = 0.415 W/kg Maximum value of SAR (measured) = 1.33 W/kg 0 dB = 1.33 W/kg = 1.24 dBW/kg Plot No. 5 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-10 LTE Band 5_Power Reduction Frequency: 836.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 836.5 MHz; σ = 1.016 S/m; ε r = 55.709; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1446; Calibrated: 2015-08-17 - Probe: EX3DV4 - SN7330; ConvF(9.35, 9.35, 9.35); Calibrated: 2015-02-12; - Sensor-Surface: 2mm (Mechanical Surface Detection), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI v5.0 (20deg probe tilt); Type: QDOVA002AA; Serial: TP:2005 Rear/QPSK RB 1/49_ch 20525/Area Scan (9x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.765 W/kg Rear/QPSK RB 1/49_ch 20525/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 26.69 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.552 W/kg; SAR(10 g) = 0.281 W/kg Maximum value of SAR (measured) = 0.797 W/kg 0 dB = 0.797 W/kg = -0.99 dBW/kg Plot No. 6 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-16 LTE Band 12_Reduce_1 Frequency: 707.5 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used (interpolated): f = 707.5 MHz; σ = 0.936 S/m; ε r = 54.014; ρ = 1000 kg/m 3 DASY5 Configuratio…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-09 20150909_SystemPerformanceCheck-D2300V2 SN1049 Frequency: 2300 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0C; Liquid Temperature: 23.0C Medium parameters used: f = 2300 MHz; σ = 1.846 S/m; ε r = 50.669; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Averaged Fast SAR: Polynomial fit - Electronics: DAE3 Sn479; Calibrated: 2014-10-15 - Probe: EX3DV4 - SN7376; ConvF(7.54, 7.54, 7.54); Calibrated: 2015-09-02; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Phantom: ELI v6.0; Type: QDOVA003AA; Serial: TP:2013 Body/Pin=100 mW 2/Area Scan (9x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.71 W/kg Body/Pin=100 mW 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 64.50 V/m; Power Drift = 0.04 dB Peak SAR (extrapolated) = 10.1 W/kg SAR(1 g) = 5.11 W/kg; SAR(10 g) = 2.46 W/kg Maximum value of SAR (measured) = 7.57 W/kg 0 dB = 7.57 W/kg = 8.79 dBW/kg Plot No. 2 Test Laboratory: UL Korea Ltd. Suwon Laboratory Date: 2015-09-09 20150909_SystemPerformanceCheck-D2300V2 SN1049 Frequency: 2300 MHz; Duty Cycle: 1:1 Body/Pin=100 mW 2/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 3.92 W/kg Plot No. 3 Test Laboratory: The name of your organizati…

Text truncated - open the document above for the full version.
