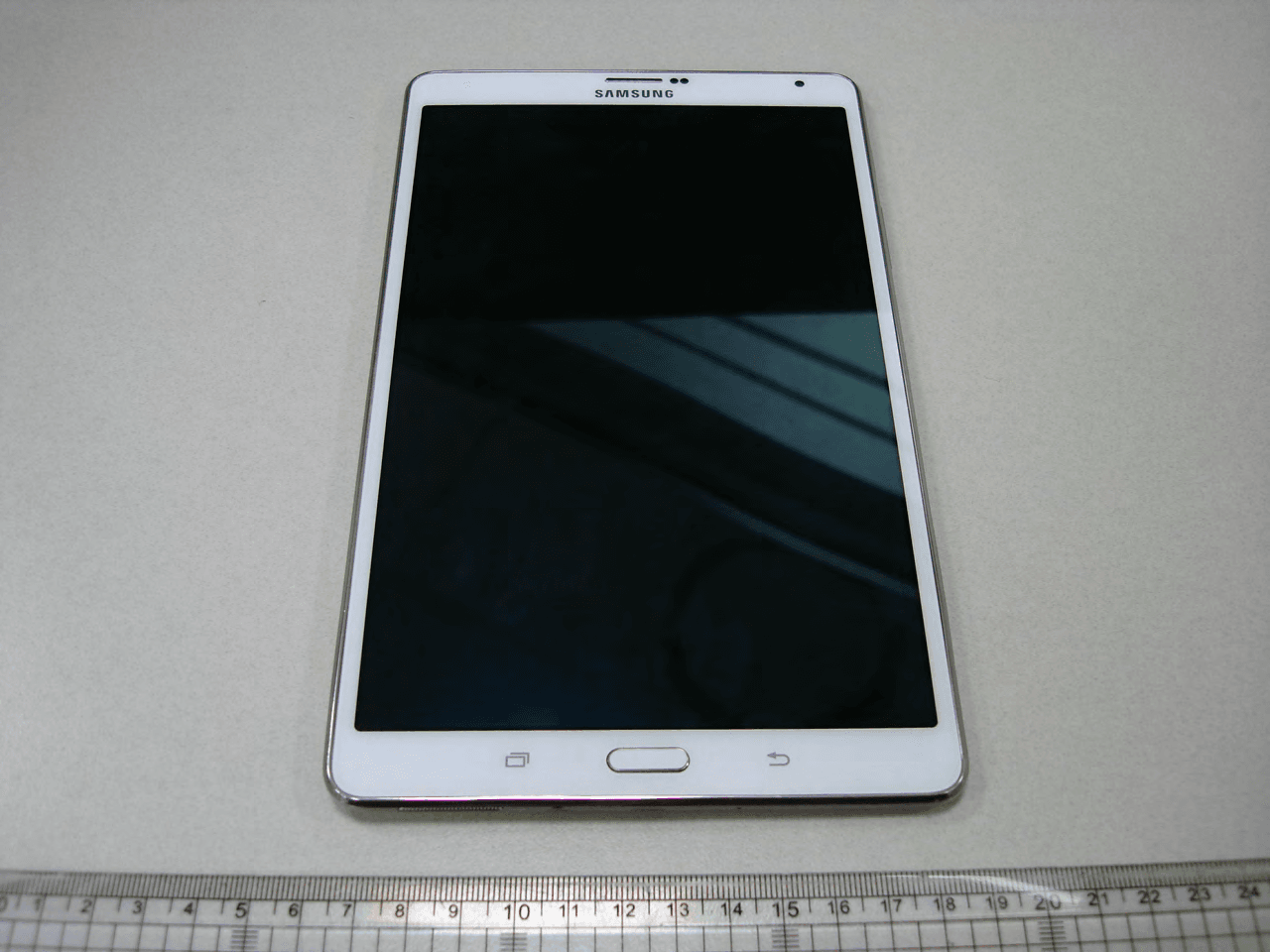

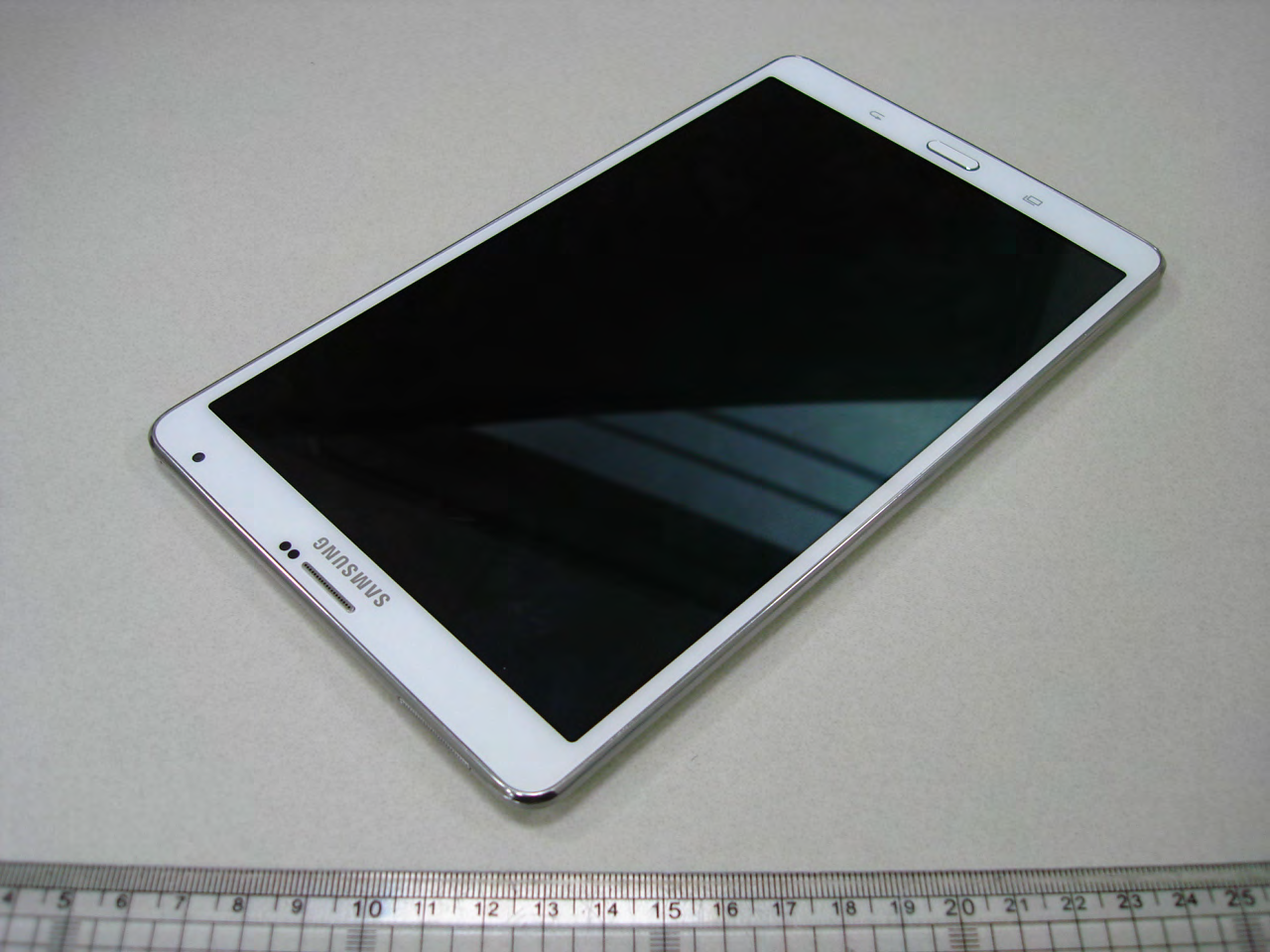

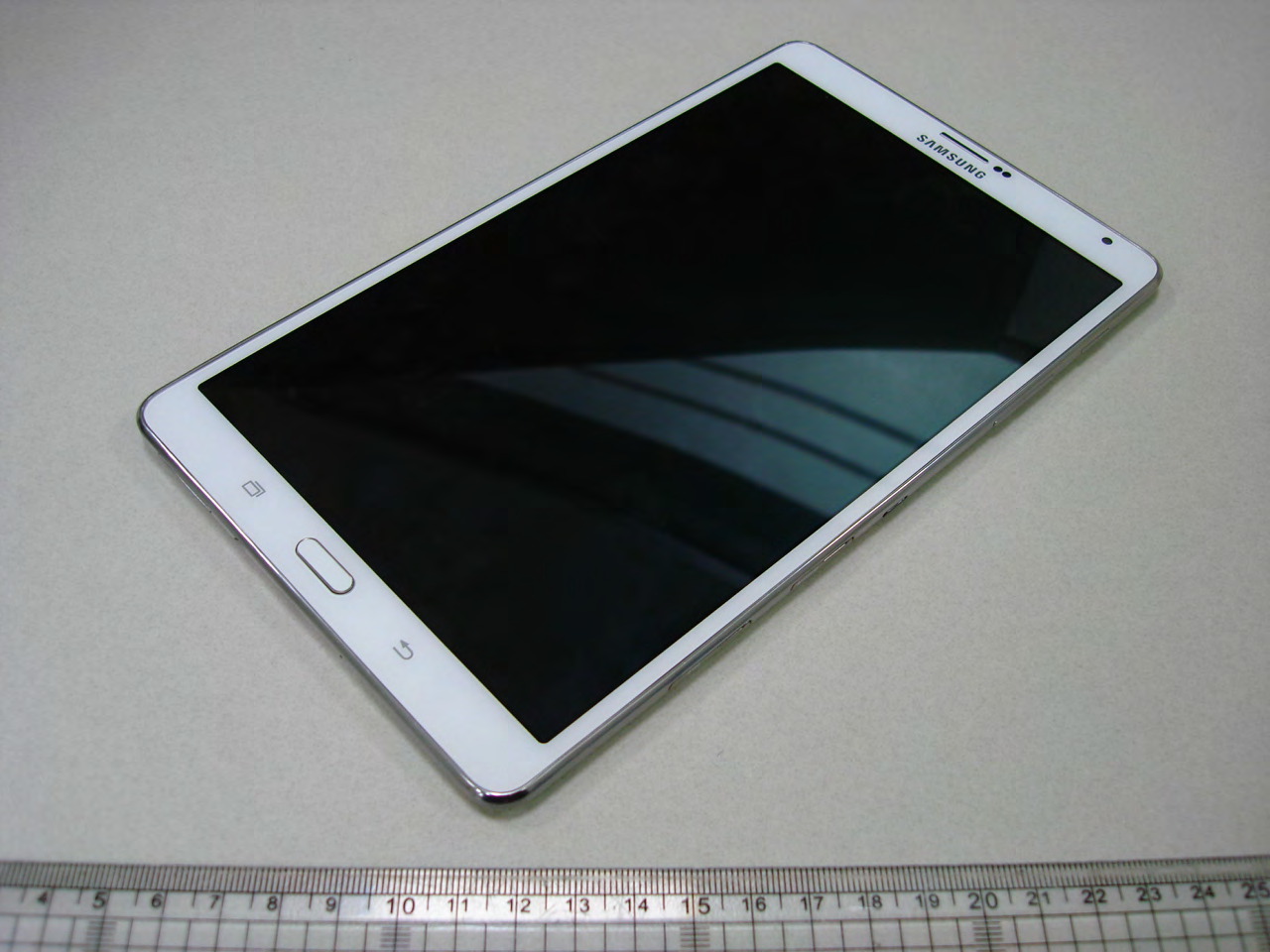

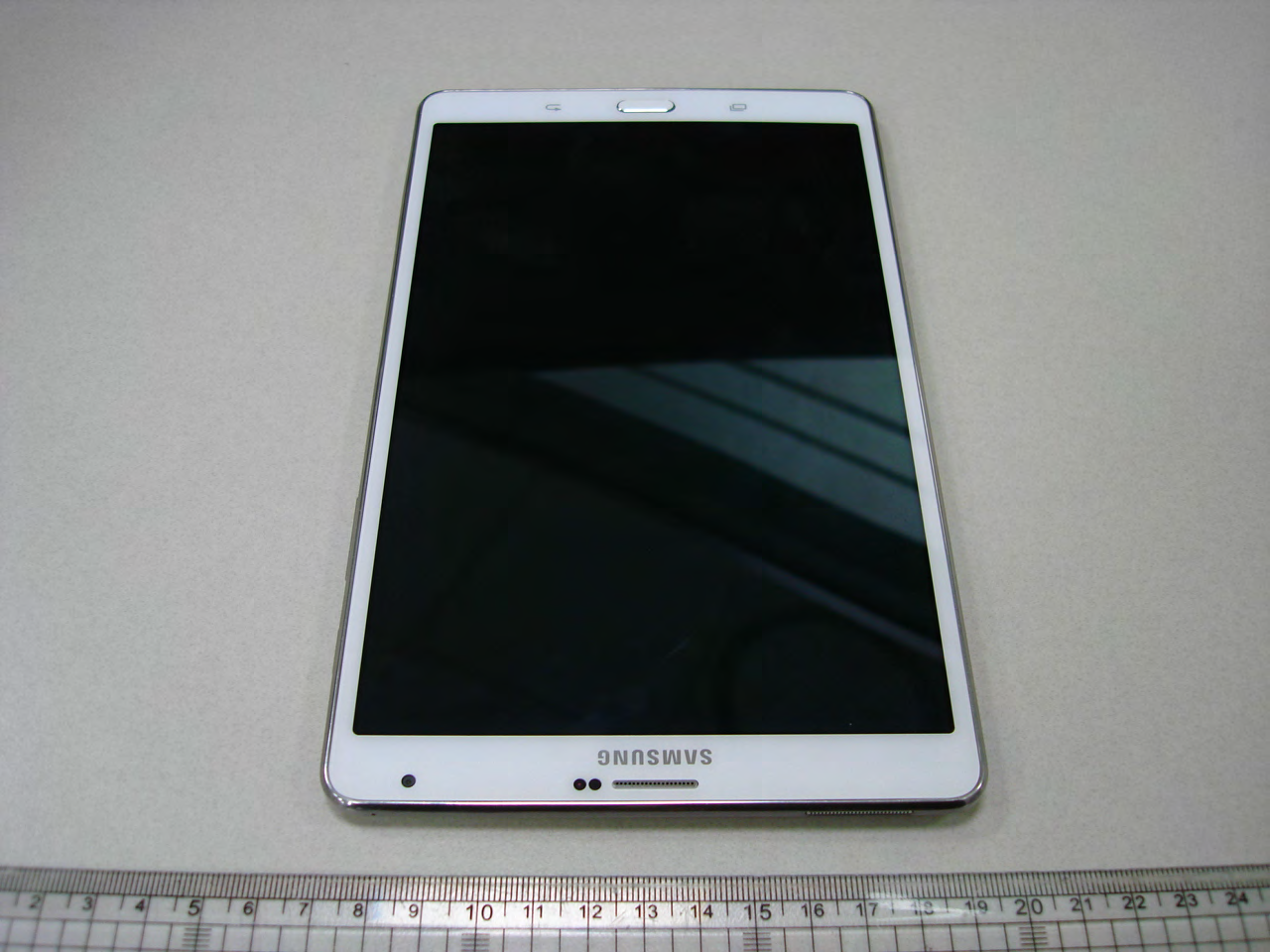

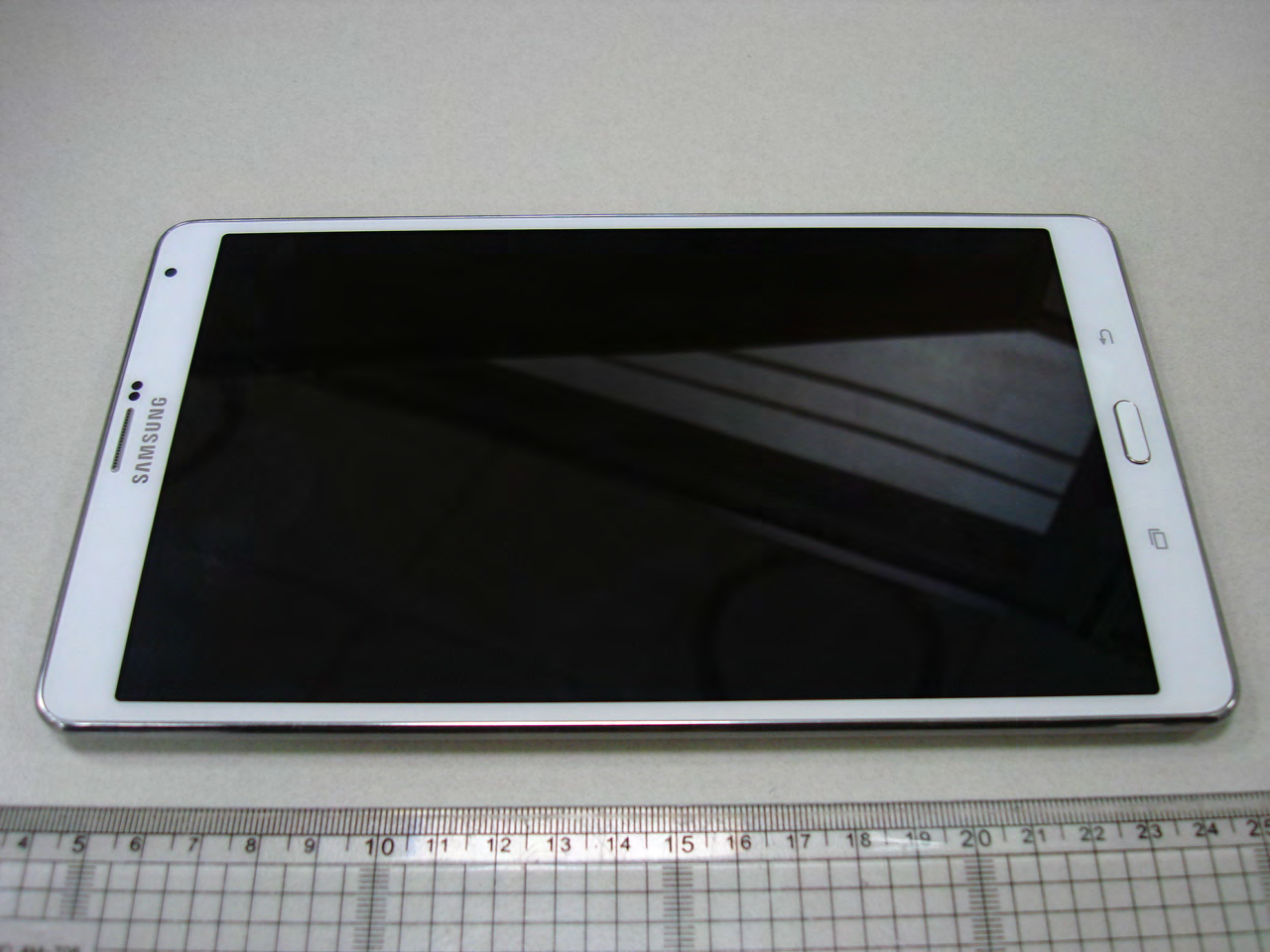

A3LSMT705MMulti-Band GSM/ EDGE/ UMTS/ LTE Portable Tablet with WLAN, Bluetooth and ANT+

User manual SM-T705M This device is capable of operating in 802.11a/n/ac mode. For 802.11a/n/ac devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a/n/ac mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Copyright information ●Bluetooth? is a registered trademark of the Bluetooth SIG, Inc. worldwide. ●JavaTM is a trademark or registered trademark of Sun Microsystems, Inc. ●Picsel and Picsel ViewerTM are trademarks of Picsel Technologies, Inc. Drive safely at all times Do not use a hand-held device while driving. Park your vehicle first. Switch off the device when refuelling Do not use the device at a refuelling point (service station) or near fuels or chemicals. Switch off in an aircraft Wireless devices can cause interference. Using them in an aircraft is both illegal and dangerous. Switch off the device near all medical equipment Hospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Interference All wireless devices may be subject to interference, which could affect their performance. Be aware of special regulations Meet any special regulations in force in any area and always switch off your device whenever it is forbidden to use it, or when it may cause interference or danger. Water resistance Your device is not water-resistant. Keep it dry. Sensible use Use only in the normal position (held to your ear). Avoid unnecessary contact with the antenna when the device is switched on. Emergency calls Key in the emergency number for your present location, then press [ ]. Keep your device away from small children Keep the device and all its parts, including accessories, out of the reach of small children. Accessories Use only Samsung-approved accessories, such as headsets and PC data cables. Use of any unauthorized accessories could damage you or your device and may be dangerous. Qualified service Only qualified service personnel may repair your device. For more detailed safety information, see Health and safety information on page 20. • The device could explode if the battery is replaced with an incorrect type. • Dispose of used batteries according to the manufacturer’s instructions. Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the eardevices into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Unpack Make sure you have each item • Device • Adapter • Stereo headset • User’s manual Suitable Adapter or Charger, certified according to the relevant safety standard, will be provided for each country in use. You can obtain the following accessories for your device from your local Samsung dealer. • Multi adapter • Travel charger • Car charger • PC data cable • Portable PC data cable • Music controller • Bluetooth mono/ stereo headset kit Get started First steps to operate your device Install and charge the device 1. Install the battery: To remove the battery, slide the battery catch toward the top of the device and hold it. 2. Plug the adapter into the device. 3. Plug the adapter into a standard AC wall outlet. 4. When the device is completely charged (the battery icon stops blinking), unplug the adapter from the power outlet. 5. Remove the adapter from the device. Low battery indicator When the battery is low: • a warning tone sounds, • the battery low message displays, and • the empty battery icon [ ] blinks. If the battery level becomes too low, the device automatically turns off. Recharge your battery. Keys and display Buttons Function Power • Press and hold to turn the device on or off. • Press and hold for more than 7 seconds to reset the device if it has fatal errors or hang-ups, or freezes. • Press to lock or unlock the device. The device goes into lock mode when the touch screen turns off. Menu • Tap to open a list of options available for the current screen. • Tap and hold on the Home screen to launch Google application. Home • Press to return to the Home screen. • Press twice to launch S Voice application. • Press and hold to open the list of recent applications. Back • Tap to return to the previous screen. Volume • Press to adjust the device volume. Overview of menu functions To access Menu mode, press [환경설정] in ldle mode. T service ChatON Maps Call log Samsung Link Local Device Group Play Navigation Contacts S Health Downloads Messaging S Voice Optical Reader Samsung Hub S Memo Messenger Samsung Apps S Translator Play Books WatchON Email Play Movies & TV Camera Shopping & wallet T nao Gallery T cloud App Guide Story Album hoppin T Membership DMB MelOn Remote Care T store Chrome T world T LTE Pack Gmail 11st Music Google SmartWallet Video Voice Search NATE Internet YouTube Calculator Clock Talk Voice Recorder S Planner Google+ Dictionary Settings Play Store My Files B tv mobile Pickat Basket Cyworld SmartTouch Cymera NateOnUC Dropbox Samsung service V3 Mobile 2.0 Help Google Settings Solve problems Help and personal needs To save the time and expense of an unnecessary service call, perform the simple checks in this section before contacting a service professional. When you switch on your device, the following messages may appear: “Insert USIM card” • Be sure that the USIM card is correctly installed. “Device locked Enter password” • The automatic locking function has been enabled. You must enter the device’s password before you can use the device. “En…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD 129, Samsung-ro,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea May 21, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT : Label Statement FCC ID : A3LSMT705M To Whom It May Concern: We hereby provide the label statement letter for the above-mentioned device by the label statement policy of KDB 784748 D01. The label statement is as follows: The FCC ID label is located on the rear of the device. At this time the FCC ID is readily visible to the user. The label is permanently engraved by laser and not easily removed from the device. This st atement could not be included in the label. So we inform you of it through this letter. Should yo u hav e any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 19 Chapin Rd, Building D. Pine Brook, NJ 07058 Date: May 21st, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSMT705M To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Label and Location Model: SM-T705M FCC ID: A3LSMT705M Label: Location: Top Back of device Bottom Tablet : FCC ID is printed on bottom of the device Model:SM-T705M FCC ID:A3LSMT705M RATED:5.3V =; 2A MADE BY SAMSUNG S/N:R32F4036YTF

FCC ID: A3LSMT705M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 1 of 95 0Y1404300881.A3L 04/30/14 - 05/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 04/30/14 - 05/14/14 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Document Serial No.: 0Y1404300881.A3L FCC ID: A3LSMT705M APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. DUT Type: Portable Tablet Application Type: Certification FCC Rule Part(s): CFR §2.1093 Model(s): SM-T705M 1 gm Head (W /kg) 1 gm Body (W /kg) PCBGSM/GPRS/EDGE 850824.20 - 848.80 MHz< 0.10.37 PCBGSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.35 PCBUMTS 850826.40 - 846.60 MHz < 0.10.48 PCBUMTS 19001852.4 - 1907.6 MHz< 0.10.61 PCBLTE Band 17706.5 - 713.5 MHz< 0.10.38 PCBLTE Band 5 (Cell)824.7 - 848.3 MHz< 0.10.32 PCBLTE Band 4 (AWS)1710.7 - 1754.3 MHz0.160.63 PCBLTE Band 2 (PCS)1850.7 - 1909.3 MHz< 0.10.57 DTS2.4 GHz WLAN2412 - 2462 MHz0.220.95 DTSBluetooth LE2402 - 2480 MHz NII5.8 GHz WLAN5745 - 5825 MHz NII5.2 GHz WLAN5180 - 5240 MHz NII5.3 GHz WLAN5260 - 5320 MHz NII5.5 GHz WLAN5500 - 5700 MHz DTSBluetooth2402 - 2480 MHzN/A0.15 0.541.56 SAR Band & ModeTx Frequency Simultaneous SAR per KDB 690783 D01v01r02: Equipment Class N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR EVALUATION REPORT FCC ID: A3LSMT705M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 2 of 95 0Y1404300881.A3L 04/30/14 - 05/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 TABLE OF CONTENTS 1 DEVICE UNDER TEST ....................................................................................................................3 2 LTE INFORMATION ...................................................................................................................... 11 3 INTRODUCTION ........................................................................................................................... 12 4 DOSIMETRIC ASSESSMENT ...................................................................................................... 13 5 DEFINITION OF REFERENCE POINTS ...................................................................................... 14 6 TEST CONFIGURATION POSITIONS FOR HANDSETS ............................................................ 15 7 RF EXPOSURE LIMITS ................................................................................................................ 17 8 FCC MEASUREMENT PROCEDURES ........................................................................................ 18 9 RF CONDUCTED POWERS ......................................................................................................... 22 10 SYSTEM VERIFICATION .............................................................................................................. 65 11 SAR DATA SUMMARY ................................................................................................................. 67 12 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 77 13 SAR MEASUREMENT VARIABILITY ........................................................................................... 90 14 EQUIPMENT LIST ......................................................................................................................... 91 15 MEASUREMENT UNCERTAINTIES ............................................................................................ 92 16 CONCLUSION ............................................................................................................................... 93 17 REFERENCES .............................................................................................................................. 94 APPENDIX A: SAR TEST PLOTS APPENDIX B: SAR DIPOLE VERIFICATION PLOTS APPENDIX C: PROBE AND DIPOLE CALIBRATION CERTIFICATES APPENDIX D: SAR TISSUE SPECIFICATIONS APPENDIX E: SAR SYSTEM VALIDATION APPENDIX F: SAR TEST SETUP PHOTOGRAPHS APPENDIX G: SENSOR TRIGGERING INFORMATION FCC ID: A3LSMT705M SAR EVALUATION REPORT Reviewed by: Quality Manager Document S/N: Test Dates: DUT Type: Page 3 of 95 0Y1404300881.A3L 04/30/14 - 05/14/14 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. REV 13.5 M 04/28/2014 1 DEVICE UNDER TEST 1.1 Device Overview GSM/GPRS/EDGE 850Voice/Data824.20 - 848.80 MHz GSM/GPRS/EDGE 1900Voice/Data1850.20 - 1909.80 MHz UMTS 850Voice/Data826.40 - 846.60 MHz UMTS 1900Voice/Data1852.4 - 1907.6 MHz LTE Band 17Data706.5 - 713.5 MHz LTE Band 5 (Cell)Data824.7 - 848.3 MHz LTE Band 4 (AWS)Data1710.7 - 1754.3 MHz LTE Band 2 (PCS)Data1850.7 - 1909.3 MHz 2.4 GHz WLANData2412 - 2462 MHz 5.8 GHz WLANData5745 - 5825 MHz 5.2 GHz WLANData5180 - 5240 MHz 5.3 GHz WLANData5260 - 5320 MHz 5.5 GHz WLANData5500 - 5700 MHz BluetoothData2402 - 2480 MHz ANT+Data2402 - 2480 MHz Band & ModeTx FrequencyOperating Modes 1.2 Power Reduction for SAR This device uses a sensor for SAR compliance. The se…

Text truncated - open the document above for the full version.

© 2014 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 4/11 - 5/8/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab, Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404300885.A3L FCC ID: A3LSMT705M APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SM-T705M EUT Type: Portable Tablet FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407 Test Procedure(s): KDB 789033 v01r03, KDB 644545 v01r02, KDB 662911 v02r01 Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) Max. Power (mW) Max. Power (dBm) 1205180 - 52405.4707.385.7037.56 ‐‐ 2A205260 - 53205.5087.415.5597.45 ‐‐ 2C205500 - 57005.8347.665.6897.55 ‐‐ 1205180 - 52405.4317.355.7177.574.8146.82 2A205260 - 53205.5597.455.5457.444.0006.02 2C205500 - 57005.8347.665.1267.104.7916.80 1405190 - 52304.9336.934.4996.534.2756.31 2A405270 - 53104.5956.624.4046.443.5975.56 2C405510 - 56704.6216.655.4087.334.9596.95 180 5210 4.3216.364.3356.373.5755.53 2A80 5290 4.2446.284.3056.343.3105.20 2C80 5530 4.4256.464.2176.253.5355.48 802.11a 802.11n 802.11n 802.11ac ModeUNII Band Channel Bandwidth (MHz) Tx Frequency (MHz) ANT1ANT2MIMO Conducted PowerConducted PowerConducted Power This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB 789033 v01r03 and KDB 644545 v01r02. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC Part 15.407 UNII 802.11a/n/ac FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION ............................................................................................................................ 4 2.0 PRODUCT INFORMATION ..................................................................................................................... 5 2.1 EQUIPMENT DESCRIPTION......................................................................................................................... 5 2.2 DEVICE CAPABILITIES ................................................................................................................................. 5 2.3 TEST CONFIGURATION ............................................................................................................................... 6 2.4 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ...................................................................................... 6 2.5 LABELING REQUIREMENTS ........................................................................................................................ 6 3.0 DESCRIPTION OF TEST ........................................................................................................................ 7 3.1 EVALUATION PROCEDURE ......................................................................................................................... 7 3.2 AC LINE CONDUCTED EMISSIONS ............................................................................................................. 7 3.3 RADIATED EMISSIONS ................................................................................................................................ 8 4.0 ANTENNA REQUIREMENTS .................................................................................................................. 9 5.0 TEST EQUIPMENT CALIBRATION DATA ............................................................................................ 10 6.0 TEST RESULTS .................................................................................................................................... 11 6.1 SUMMARY ................................................................................................................................................... 11 6.2 26DB BANDWIDTH MEASUREMENT – 802.11A/N/AC .............................................................................. 12 6.3 UNII OUTPUT POWER MEASUREMENT – 802.11A/N/AC ........................................................................ 49 6.4 PEAK POWER SPECTRAL DENSITY – 802.11A/N/AC .............................................................................. 56 6.5 PEAK EXCURSION RATIO – 802.11A/N/AC ............................................................................................... 88 6.6 FREQUENCY STABILITY ....................................................................................…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 88 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 6.5 Peak Excursion Ratio – 802.11a/n/ac §15.407(a.6) Test Overview and Limit The spectrum analyzer was connected to the antenna terminal while the EUT was operating at its maximum duty cycle (>98%), at its maximum power control level, as defined in KDB 789033 v01r03, and at the appropriate frequencies. Method SA-1, as defined in KDB 789033 v01r03, was used to capture the average trace used to make the peak excursion measurement. The largest permissible difference between the modulation envelope (measured using a peak hold function) and the maximum power spectral density is 13 dBm/MHz. Test Procedure Used KDB 789033 v01r03 – Section G Test Settings 1. Analyzer was set to the center frequency of the UNII channel under investigation 2. Span was set to encompass the entire emission bandwidth of the signal 3. RBW = 1MHz 4. VBW = 3MHz 5. Detector = peak 6. Trace mode = max hold 7. Trace was allowed to stabilize 8. The peak search function of the spectrum analyzer was used to find the peak of the spectrum. This level was compared to the peak power density level found from the previous section to determine the peak excursion. Test Setup The EUT and measurement equipment were set up as shown in the diagram below. Figure 6-4. Test Instrument & Measurement Setup Test Notes The peak excursion was investigated for all signal types, modulation types, channel bandwidths, and variations in signal parameters and the worst case data is shown below. Only the worst case modulation mode on a single channel among all bands is reported since that is sufficient to demonstrate compliance to the peak excursion requirement per KDB 789033 v01r03. FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 89 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Antenna-1 Peak Excursion Ratio – 802.11a/n/ac 518036a67.8113.0-5.19Pass 518036n (20MHz) 6.5/7.2 (MCS0) 7.9913.0-5.01Pass 519038n (40MHz) 13.5/15 (MCS0) 7.1313.0-5.87Pass 521042 ac (80MHz) 58.5/65 (MCS0) 8.0913.0-4.91Pass Max Permissible Peak Excursion Ra tio [dBm/MHz] Frequenc y [MHz] Pass / Fail Margin [dB] Measured Peak Excursion Ra tio [dBm] Channel No. Da ta Ra te [Mbps] 802.11 Mode Table 6-21. Conducted Peak Excursion Ratio Measurements Plot 6-125. Peak Excursion Ratio Plot (802.11a (UNII Band 1) – Ch. 36) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 90 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-126. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) Plot 6-127. Peak Excursion Ratio Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 91 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-128. Peak Excursion Ratio Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 92 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Antenna-2 Peak Excursion Ratio – 802.11a/n/ac 518036a67.8913.0-5.11Pass 518036n (20MHz) 6.5/7.2 (MCS0) 7.8913.0-5.11Pass 519038n (40MHz) 13.5/15 (MCS0) 8.3913.0-4.61Pass 521042 ac (80MHz) 29.3/32.5 (MCS0) 8.7813.0-4.23Pass Mar gin [dB] Pass / Fail Frequency [MHz] Channel No. 802.11 Mode Da ta Ra te [Mbps] Measured Peak Excursion Ra tio [dBm] Max Permissible Peak Excursion Ra tio [dBm/MHz] Table 6-22. Conducted Peak Excursion Ratio Measurements Plot 6-129. Peak Excursion Ratio Plot (802.11a (UNII Band 1) – Ch. 36) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 93 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-130. Peak Excursion Ratio Plot (20MHz BW 802.11n (UNII Band 1) – Ch. 36) Plot 6-131. Peak Excursion Ratio Plot (40MHz BW 802.11n (UNII Band 1) – Ch. 38) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 94 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Plot 6-132. Peak Excursion Ratio Plot (80MHz BW 802.11ac (UNII Band 1) – Ch. 42) FCC ID: A3LSMT705M FCC Pt. 15.407 802.11a/n/ac UNII MEASUREMENT REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 95 of 182 0Y1404300885.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 6.6 Frequency Stability §15.407(g) The EUT was placed inside of an environmental chamber as the temperature in the chamber was varied between -30 o C and +50 o C. The temperature was incremented by 10 o intervals and the unit was allowed to stabilize at each temperature before each measurement. The center frequency of the transmitting channel was evaluated at each temperature and the frequency deviation from the channel’s center frequency was recorded. Data for the worst case channel is shown below. OPERATING FREQUENCY: Hz CHANNEL: REFERENCE VOLTAGE: VDC 100 %3.80 + 20 (Ref)5,179,999,980-20-0.000…

Text truncated - open the document above for the full version.

FCC ID: A3LSMT705M FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 13 0Y1404300886.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 Company Name: Date of Testing: Samsung Electronics, Co. Ltd. 4/11 - 5/8/2014 129, Samsung-ro, Maetan dong, Test Site/Location: Yeongtong-gu, Suwon-si PCTEST Lab. Columbia, MD, USA Gyeonggi-do 443-742, Korea Test Report Serial No.: 0Y1404300886.A3L FCC ID: A3LSMT705M COMPANY: Samsung Electronics, Co. Ltd. Model(s): SM-T705M EUT Type: Portable Tablet Type of Device: Client Only Device, No Radar Detection Capability Frequency Range: 5260 – 5320 MHz (UNII-2A Band) 5500 – 5700 MHz (UNII-2C Band) Output Power: 5.559 mW (7.45 dBm) Conducted (802.11n UNII Band 2A) 5.834 mW (7.66 dBm) Conducted (802.11n UNII Band 2C) FCC Classification: Unlicensed National Information Infrastructure (UNII) FCC Rule Part(s): Part 15.407(UNII) This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC 06-96 Appendix B Compliance Measurement Procedures for Unlicensed-National Information Infrastructure Devices Operating in the 5.25 – 5.35 GHz and 5.47 – 5.725 GHz Bands Incorporating Dynamic Frequency Selection. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST ENGINEERING LABORATORY, INC. 7185 Oakland Mills Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.407 DFS FCC ID: A3LSMT705M FCC Pt. 15.407 DFS TEST REPORT (CERTIFICATION) Reviewed by: Quality Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 13 0Y1404300886.A3L 4/11 - 5/8/2014 Portable Tablet © 2014 PCTEST Engineering Laboratory, Inc. V 5.0 01/13/2014 TABLE OF CONTENTS FCC PART 15.407 MEASUREMENT REPORT .................................................................................................. 3 1.0 INTRODUCTION ...................................................................................................................................... 4 1.1 SCOPE ........................................................................................................................................................... 4 1.2 EVALUATION PROCEDURE ......................................................................................................................... 4 1.3 SUMMARY OF TEST RESULTS ................................................................................................................... 4 2.0 PRODUCT INFORMATION ...........................................…

Text truncated - open the document above for the full version.
