Samsung Electronics Co., LTD. 129, Samsung -ro, Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea Date: June 28, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I , the undersigned, hereby authorize Ms. Lena Lim / Assistant Manager of KCTL Inc. and hereafter referred to as KCTL to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Lena Lim / AssistantManager of KCTL Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 8 53(a). I n authorizing KCTL as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)t ake appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)doc ument the actions taken. This authorization is valid until further written notice from the applicant. S incerely Yours, Jenni Chun, General Manager Regulatory & Environmental Affairs Samsung Electronics America, Inc

Samsung Electronics Co., LTD. 129, Samsung -ro , Yeongtong-gu Suwon-City, Gyeonggi-do, 16677, Korea CONFIDENTIALITY REQUEST Feder al Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 May 17, 2021 TO WHOM IT MAY CONCERN Pur suant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number A3LSMT733 Product Title/Model Tablet PC/SM-T733 The f ollowing exhibits contain trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our product. This material is not customarily available to the general public and we request that it be withheld from public inspection. We request that the following information submitted be held permanent confidential treatment. Permanent Confidential Request -. Schematics -. Block Diagram -. Operational Description -. Antenna specification -. Antenna Distance -. Parts list -. U-NII Device SW Security Statement We also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give temporary confidentiality of commercially sensitive information prior to product release. Short-Term Confidential Request -. External Photos -. Internal Photos -. Test set-up photo -. User Manual If yo u have any questions, please feel free to contact me at the address shown below. Sin cerely, Jenni Chun/ General Manager Regulatory & Environmental Affairs

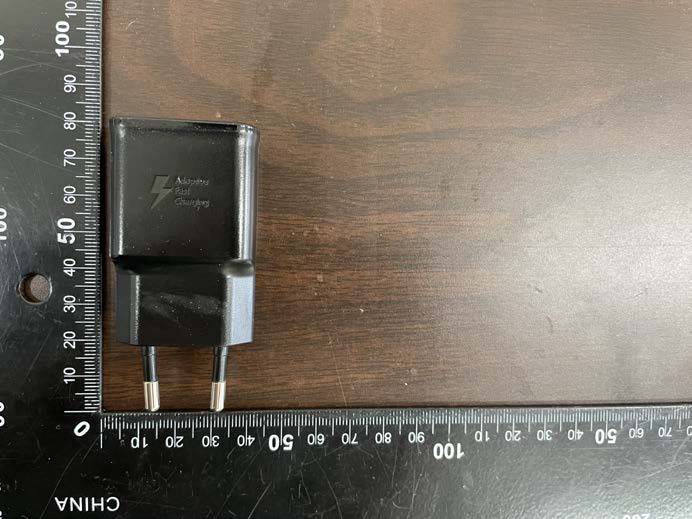

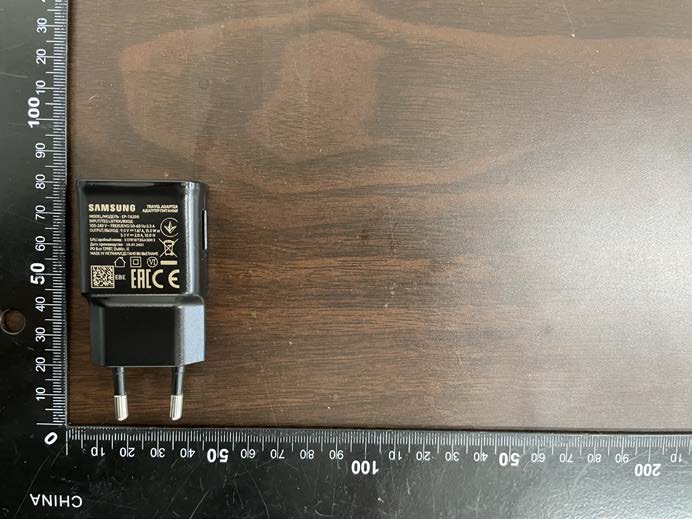

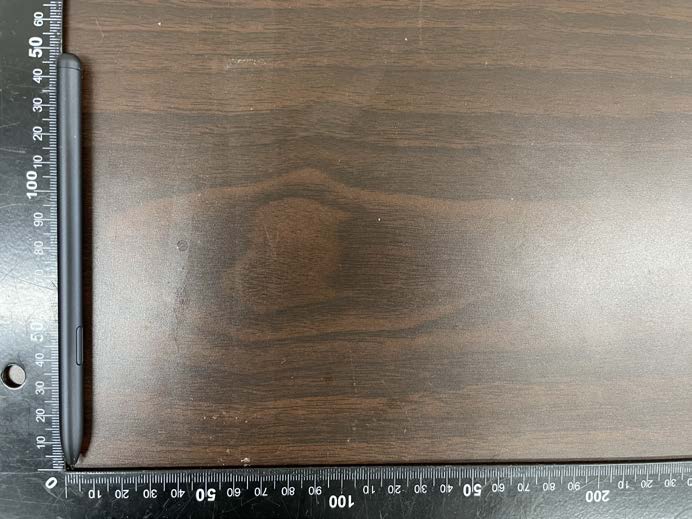

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval External photos of EUT http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval <Case + S-Pen> http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Note : Case and S-Pen is one of the accessory, there has no transmission and reception fuctions. http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval

Description of E-label on the A3LSMT733 July. 19. 2 021 FCC ID : A3LSMT733 This model is applied E-label, please find description of E-label below. 1.FCC ID and ISED(E-label) : Settings > About Tablet > Status FCC and ISED Certification FCC ID:A 3LSMT733 IC : 649E-SMT733 <Device Display Screen> 2. Instruction of E-label on the Us er manual (online manual) SAR information on this and other model phones can be viewed on-line at http://www.fcc.gov/oet/ea/fccid/. Please use the phone FCC ID number for search, A3LSMT733. Once you have the FCC ID number for a particular phone, follow the instructions on the website and it should provide values for a typical or maximum SAR for a particular phone . Additiona l product specific SAR information can also be obtained at http://www.fcc.gov/encyclopedia/specific- absorption-rate-sarcellular- tele phones

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 16677, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 E-label Attestation Letter - FCC ID : A3LSMT733 - Model : SM-T733 To Who m It May Concern We hereb y provide the following attestations according to CFR 2.935 and FCC KDB 784748 D02: At the time of purchase, the FCC ID is readily and physically visible to the purchaser on the exterior package per CFR 2.935(f). The FCC ID will be readily legible without the aid of magnification according to CFR 2.935(d). The literature in the package describes how to access the electronic display to find FCC ID per CFR 2.935(b) and FCC KDB 784748. Per CFR 2.935(c), the user will be able to access this information within a maximum of 3 steps. The user will be able to access this information without a SIM card, special accessories or supplemental plug-ins. Per CFR 2.935(e), We, Samsung Electronics Co., Ltd., have programmed the e-label and it is not able to be modified by any third party. Per CF R 2.935(f), the FCC ID will be able to survive normal shipping and handling so it is visible for inspection at the time of import. Should you have any questions or comments concerning the above, please contact the undersigned. Sincer ely, Ms. Jenn i Chun General Manager Regulatory & Environmental Affairs Samsung Electronics Co., Ltd. TEL : +1-973- 808- 6375 E- mail : [email protected]

http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Internal photos of EUT http://www. kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www. kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www. kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www. kctl.co.kr This test report shall not be reproduced, except in full, without the written approval http://www.kctl.co.kr This test report shall not be reproduced, except in full, without the written approval Metal Antenna Metal Antenna

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (61) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 Appendix A. Calibration certificate Appendix A.1 Probe Calibration certificate (EX3DV4_3928) KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (62) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (63) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (64) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (65) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (66) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (67) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (68) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (69) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (70) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (71) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (72) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (73) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (74) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (75) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (76) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (77) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (78) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (79) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (80) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-2…

Text truncated - open the document above for the full version.

KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (114) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 Appendix F. Power Reduction Verification Proximity Sensor Triggering Distance (KDB 616217 §6.2) Rear, Right Edge, Right Corner, Left Edge, Left Corner and Top of the DUT was placed directly below the flat phantom. The DUT was moved toward the phantom in accordance with the steps outlined in KDB 616217 §6.2 to determine the trigger distance for enabling power reduction. The DUT was moved away from the phantom to determine the trigger distance for resuming full power. The DUT featured a visual indicator on its display that showed the status of the proximity sensor (Triggered or not triggered).This was used to determine the status of the sensor during the proximity sensor assessment as monitoring the output power directly was not practical without affecting the measurement. It was confirmed separately that the output power was altered according to the proximity sensor status indication. This was achieved by observing the proximity sensor status at the same time as monitoring the conducted power contains both the full and reduced conducted power measurements. LEGEND Direction of DUT travel for determination of power reduction triggering point Direction of DUT travel for determination of full power resumption triggering point Resulting test positions for SAR mearsurementes Tissue simulating liquid Band Trigger distance – Rear Moving toward phantom Moving from phantom Worst case distance for SAR 2450 Head WLAN Ant.1 18mm 18mm 17mm 5000 Head 18mm 18mm 17mm 2450 Head WLAN Ant.2 17mm 17mm 16mm 5000 Head 17mm 17mm 16mm KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (115) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 Proximity Sensor Triggering Distance Measurement Results – Rear Side (Ant.1) DUT Moving Toward (Trigger) and Away (Release) from the Phantom Distance to DUT Output Power (dBm) Distance (mm) 23 22 21 20 19 18 17 16 15 14 2.4 GHz 802.11b 17.24 17.24 17.32 17.28 17.26 11.77 11.74 11.74 11.75 11.71 2.4 GHz 802.11g 17.39 17.38 17.22 17.36 17.37 11.77 11.70 11.79 11.71 11.77 2.4 GHz 802.11n 16.15 16.28 16.21 16.28 16.10 11.90 11.81 11.93 11.82 11.84 5 GHz 802.11a 16.47 16.44 16.59 16.49 16.40 8.63 8.67 8.63 8.55 8.62 5 GHz 802.11n 20MHz 16.69 16.58 16.63 16.66 16.55 8.99 9.08 9.01 9.01 8.95 5 GHz 802.11n 40MHz 16.20 16.26 16.27 16.38 16.33 8.77 8.75 8.80 8.72 8.64 5 GHz 802.11ac 20MHz 16.47 16.48 16.42 16.31 16.39 8.67 8.65 8.66 8.62 8.66 5 GHz 802.11ac 40MHz 16.43 16.59 16.54 16.48 16.52 9.10 9.06 9.00 9.04 9.00 5 GHz 802.11ac 80MHz 16.45 16.49 16.50 16.41 16.45 8.79 8.81 8.77 8.90 8.85 Proximity Sensor Triggering Distance Measurement Results – Rear Side (Ant.2) DUT Moving Toward (Trigger) and Away (Release) from the Phantom Distance to DUT Output Power (dBm) Distance (mm) 22 21 20 19 18 17 16 15 14 13 2.4 GHz 802.11b 14.87 14.91 14.85 15.00 14.89 11.55 11.62 11.57 11.67 11.54 2.4 GHz 802.11g 17.49 17.43 17.41 17.51 17.56 11.73 11.60 11.77 11.72 11.62 2.4 GHz 802.11n 16.32 16.36 16.23 16.38 16.23 11.52 11.60 11.54 11.70 11.50 5 GHz 802.11a 16.20 16.23 16.35 16.26 16.23 8.79 8.80 8.90 8.73 8.82 5 GHz 802.11n 20MHz 16.31 16.44 16.42 16.43 16.38 9.06 9.11 9.13 9.13 9.05 5 GHz 802.11n 40MHz 16.26 16.24 16.39 16.28 16.30 8.86 8.80 8.84 8.74 8.71 5 GHz 802.11ac 20MHz 16.63 16.59 16.52 16.56 16.69 8.56 8.65 8.64 8.59 8.55 5 GHz 802.11ac 40MHz 16.85 16.88 16.82 16.80 16.85 9.00 9.07 8.91 8.90 9.00 5 GHz 802.11ac 80MHz 16.54 16.45 16.44 16.41 16.44 8.59 8.69 8.55 8.64 8.65 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (116) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 LEGEND Direction of DUT travel for determination of power reduction triggering point Direction of DUT travel for determination of full power resumption triggering point Resulting test positions for SAR mearsurementes Tissue simulating liquid Band Trigger distance – Right Edge Moving toward phantom Moving from phantom Worst case distance for SAR 2450 Head WLAN Ant.1 10mm 10mm 9mm 5000 Head 10mm 10mm 9mm 2450 Head Bluetooth Ant.1 10mm 10mm 9mm Proximity Sensor Triggering Distance Measurement Results – Right Edge DUT Moving Toward (Trigger) and Away (Release) from the Phantom Distance to DUT Output Power (dBm) Distance (mm) 15 14 13 12 11 10 9 8 7 6 2.4 GHz 802.11b 17.32 17.27 17.31 17.33 17.39 12.16 12.13 12.18 12.20 12.11 2.4 GHz 802.11g 17.60 17.56 17.51 17.55 17.50 12.04 11.91 11.98 12.05 12.09 2.4 GHz 802.11n 16.70 16.58 16.53 16.60 16.70 11.85 11.86 11.88 11.91 11.86 5 GHz 802.11a 16.15 16.10 16.30 16.14 16.17 8.50 8.63 8.52 8.63 8.56 5 GHz 802.11n 20MHz 16.37 16.38 16.21 16.22 16.20 9.10 8.93 8.92 8.96 9.10 5 GHz 802.11n 40MHz 16.24 16.33 16.31 16.29 16.31 8.85 8.98 8.80 8.98 8.83 5 GHz 802.11ac 20MHz 16.51 16.54 16.45 16.57 16.58 8.68 8.71 8.78 8.71 8.65 5 GHz 802.11ac 40MHz 16.33 16.48 16.37 16.39 16.30 8.59 8.69 8.57 8.61 8.69 5 GHz 802.11ac 80MHz 16.67 16.67 16.79 16.64 16.76 8.63 8.73 8.68 8.76 8.61 Bluetooth BDR_DH5 17.32 17.45 17.43 17.39 17.33 10.52 10.5 10.55 10.53 10.51 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (117) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 LEGEND Direction of DUT travel for determination of power reduction triggering point Direction of DU…

Text truncated - open the document above for the full version.

verify No.593535313303 KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (2) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 REPORT REVISION HISTORY Date Revision Page No 2021-08-02 Originally issued - This report shall not be reproduced except in full, without the written approval of KCTL Inc. This document may be altered or revised by KCTL Inc. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KCTL Inc. will constitute fraud and shall nullify the document. This test report is a general report that does not use the KOLAS accreditation mark and is not related to KS Q ISO/IEC 17025 and KOLAS accreditation. General remarks for test reports Statement concerning the uncertainty of the measurement systems used for the tests (may be required by the product standard or client) Internal procedure used for type testing through which traceability of the measuring uncertainty has been established: Procedure number, issue date and title: Calculations leading to the reported values are on file with the testing laboratory that conducted the testing. Statement not required by the standard or client used for type testing 1. Identification when information is provided by the customer: Information marked " # " is provided by the customer. - Disclaimer: This information is provided by the customer and can affect the validity of results. KCTL Inc. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea TEL: 82-31-285-0894 FAX: 82-505-299-8311 www.kctl.co.kr Report No.: KR21-SPF0051 Page (3) of (123) This test report shall not be reproduced, except in full, without the written approval KCTL-TIA002-004/4 KP21-04072 CONTENTS 1. General information .................................................................................................................................. 4 2. Device information .................................................................................................................................... 5 3. Specific Absorption Rate ..................................................................................................................... 14 4. SAR Measurement Procedures ........................................................................................................ 15 5. SAR Measurement Configurations .................................................................................................. 16 6. RF Exposure Limits ............................................................................................................................... 17 7. FCC SAR General Measurement Procedures ............................................................................ 18 8. RF Average Conducted Output Power........................................................................................... 21 9. System Verification ................................................................................................................................ 28 10. SAR Test Results ................................................................................................................................... 31 11. Simultaneous Transmission ..............................................................................…
