A3LSMTI6021Internet Phone

User Manual - SMT-i6021, SMT-i6011, SMT-i6020, SMT-i6010 WARNING Power Do not use damaged power cord or loose outlets. Do not pull or bend the cord by force, and do not touch the power plug with wet hand. When the phone is out of use for a long time, leave the plug pulled out of the outlet. For the power connection port of the phone, use the provided optional power adapter. Use of a power adapter that does not meet the specifications may cause the product to become damaged, to overheat, or to explode. If there is dirt or moisture on the pin contact surface of a power plug, pull out the plug and wipe it away with a cloth. If dirt or moisture remains on the product even after wiping, contact the service center. If an abnormal sound, smell or smoke is emitted from the phone, pull out the power plug immediately, and then contact the service center. Installation/Maintenance Do not place the phone in a location with a lot of dust, in a location that is subject to severe changes in temperature, or near a heating device (cigarette heat, heater, etc.) Do not use or store flammable spray or materials near the phone. Do not place objects containing water such as vases, flowerpots, cups, cosmetics, or medicines near your phone. Humidity or liquid may damage the parts and circuits of this product. 1. Parts and Names < SMT-i6021, SMT-i6020> < SMT-i6011, SMT-i6010 > Navigation Button - OK button: Selects and confirm menu - Direction key: Navigates menu OK Direction key Phone Status Indicator Program key Soft button Direction key OK button Back button Volume button Dial button Speaker button LCD screen Handset Menu button Contacts button Transfer button Message button Hold button Conference button Redial button Headset button Mute button Move button Phone Status Indicator Program key Soft button Direction key OK button Back button Volume button Dial button Speaker button LCD screen Handset Menu button Contacts button Transfer button Message button Hold button Conference button Redial button Headset button Mute button Move button Navigation Button - OK button: Selects and confirm menu - Direction key: Navigates menu OK Direction key 2. Phone Installation 3. Assembling the Wall-Mount Bracket Assemble the wall-mount bracket where you want to use the phone. The wall-mount bracket is an optional item. If necessary, please contact your dealer. 1 First, choose the location where you want to install the phone, and then determine the positions of the screws by placing the phone at the target location on the wall 2 Remove the desk cradle of the phone. 3 Insert the wall-mount bracket as shown in the figure 4 Install the phone onto the wall. 4. Dialing/Answering Dialing Extension Call or button  Enter a phone number.  Select [Voice Call] in the soft menu. Outbound Call or button  Dial button  Enter a phone number.  Select [Voice Call] in the soft menu.  Headset connection  Handset connection  PC connection  Network connection  Power connection (options)  USB port       Answering Incoming Calls or button 5. Basic Function Volume Control or button or  button Call Park In a call, press the  press the button  (To release the call hold, press the button) Call Transfer In a call  press the button  and enter a phone number to which a call will be transferred (If it is an outbound call, press Dial button and then enter the phonzze number).  6. Menu Screen Standby Screen Soft Menu Screen - Status Screen: The icons representing phone function settings are displayed. - Main screen: The selectable menus, call processing status or various other messages are displayed. - Soft menu: The menus that the user can select according to status are displayed. From the soft menu, the user can select the convenient functions available according to phone status (standby/busy). 7. Parts in the Package A. Phone Body B. Handset C. LAN Cable D. Quick Guide E. Phone Cradle F. Power Adaptor (option) G. Wall-Mount Bracket (option) Status Screen Main Screen Soft Menu 8. Product Specifications Item Specifications Adaptor input power AC 100-250 V/50-60 Hz, 1.0 A Adaptor output power DC 12 V; 2 A PoE Input Power DC 48 V (802.3af) PoE Device 802.3 af standard support (For CLASS 3) Operating conditions Temperature: 0-45°C, humidity: 10-90 % Wire interface Gigabit Ethernet Wireless interface (Only SMT-i6021, SMT-i6011) WLAN 802.11a/b/g/n 1x1 Bluetooth 4.0 ( Not support BLE ) Frequency Range (Only SMT-i6021, SMT-i6011) 2400~2483.5 MHz 5150~5825 MHz Adapter Model The adapter output power is DC 12V, 2A and the maker and the model are as follows. - WEIHAI SUNGHO ELECTRONICS CO LTD/SHA24S12-EU - WEIHAI SUNGHO ELECTRONICS CO LTD/SHA24S12-GB - WEIHAI SUNGHO ELECTRONICS CO LTD/SHA24S12-US Class B Device (Broadcasting communication device for home use) This device obtained EMC registration mainly for home use (Class B) and may be used in all areas. Caution: This wireless device is subject to electromagnetic interference. This product is intended to be supplied by a Listed Power Unit marked “Class2” or “LPS” and rated 12 Vdc, Min 0.8A 9. Notice Approval Statement CE Statement Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. FCC approval This device complies with Part 15 & 68 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Date: June 22, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: A3LSMTI6021 including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Samsung Electronics Co., Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Chan Ho Youn Manager

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: June 22, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Date: June 22, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: A3LSMTI6021 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part List and Tuned-up Procedure 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Chan Ho Youn Manager

Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-Do, 443-742 Korea, Republic of Date: JUN. 19, 2015 Letter of Declaration - Product description: Internet Phone - Model name: SMT-i6021 - Add Model SMT-i6011 - Wireless Specification 802.11 a/b/g/n, Bluetooth BDR, EDR As above information, the SMT-i6021 has additional Model (SMT-i6011) by deletion of function keys as below table of changes. List SMT-i6021 SMT-i6011 RF Specification No changes Function Keys 24 Keys 12 Keys Function Key LED 24 ea. 12 ea. LCD Size 384x160 128x64 Changes PCB Part for Function Keys Refer to next Page Deletion Q12, LED11, LED13, LED15, LED17, LED19, LED2, LED21, LED23, LED25, LED27, LED7, LED9, U3, U5, U6, R47, R101, R102, R103, R104, R105, R106, R107, R108, R57, R50, R66, R82, R89, R110, R134, , 145, R165, R177, R19, R32, R41, R49, R68, R80, R92, R109, R135, R146, R164, R176, R18, R31, R40, R48, R67, R79, R91, C45, C46, C47, C53, C54, C314, C60, C83, C88, C44, C48, C49, C50, L40, L41, L42, L43, L44, L45 ,L46 L47, L48, L49, L7 Addition D8, U16, R250, R297, R292, R295, R298, R299, R296, C325, C326, C328, C327 We declare that there are nothing different regarding RF characteristics between SMT-i6021 and SMT-i6011 exclusive of above List. Thank you Applicant Samsung Electronics Co., Ltd. Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-Do, 443-742 Korea, Republic of SMT-i6021 SMT-i6011

FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1(SMT-i6021) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2(SMT-i6021) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 3(SMT-i6021) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 4(SMT-i6011) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 5(SMT-i6011) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 6(SMT-i6011)

FCC ID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase Model Number SMT-i6021 SMT-i6011 - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included on this label.

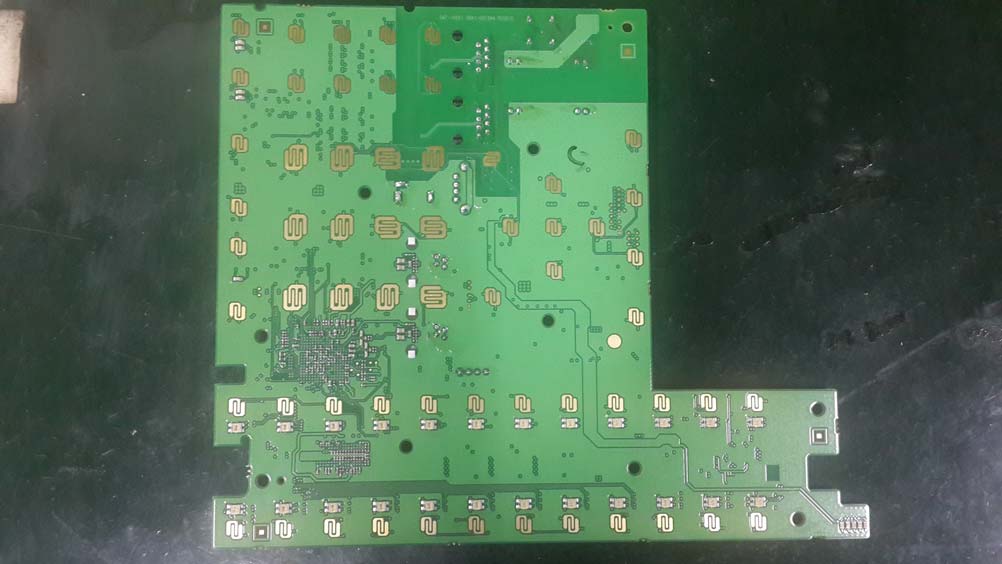

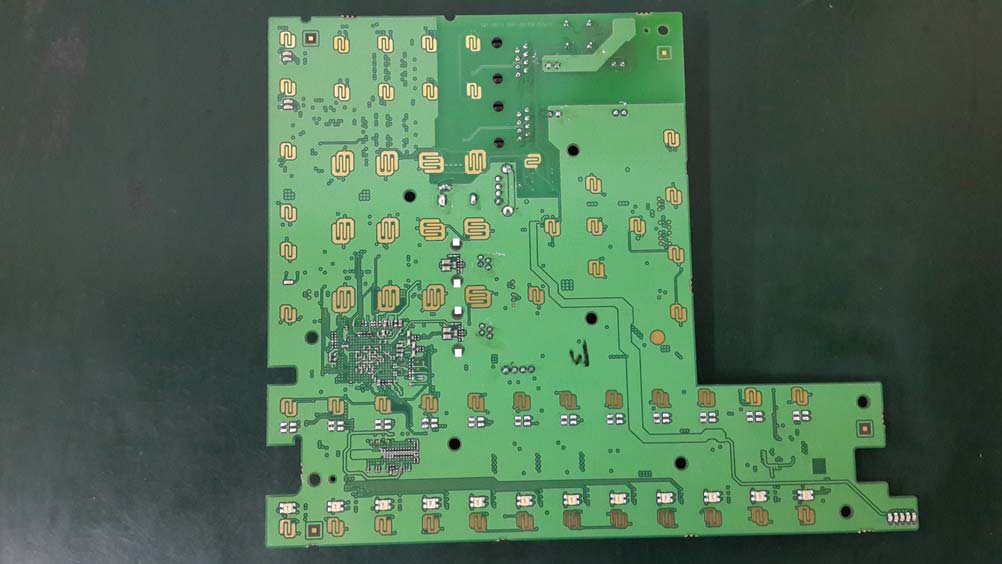

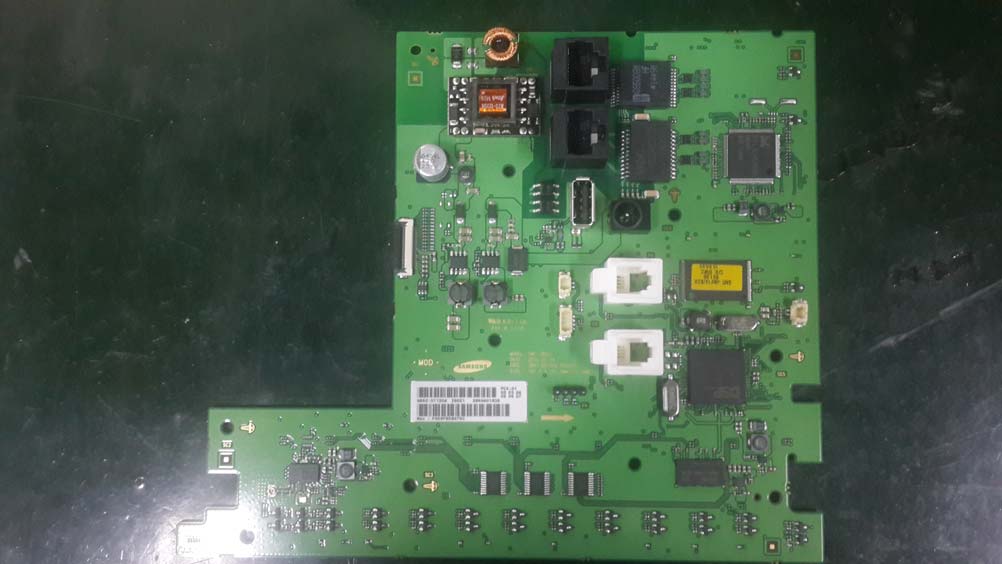

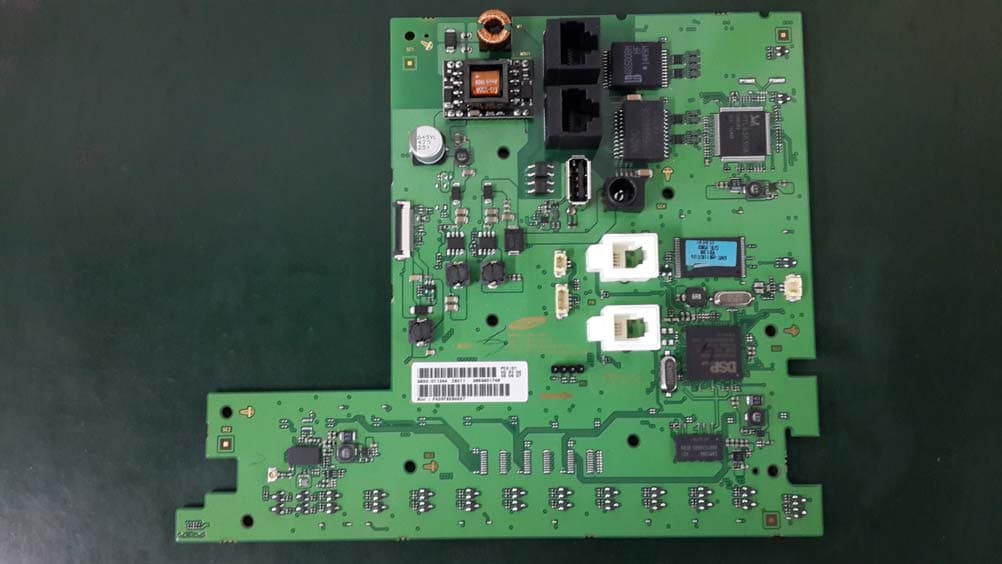

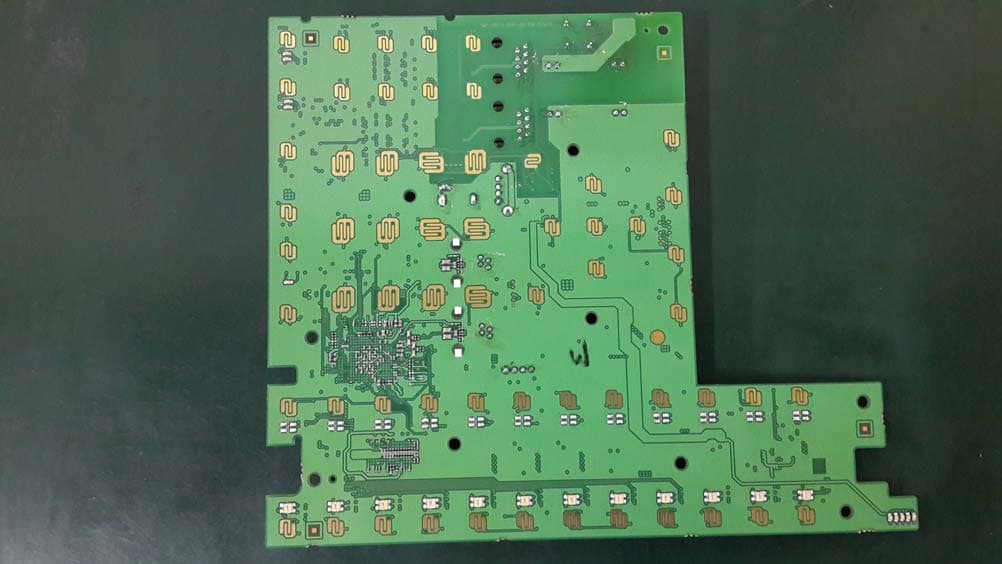

FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 1(SMT-i6021) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 2(SMT-i6021) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 3(SMT-i6011) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 4(SMT-i6011) FCCID: A3LSMTI6021 IC: 639E-SMTI6021 Copyright Ⓒ 2015, DT&C Co., Ltd. View 5 <Antenna>

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: June 19, 2015 Maximum Permissible Exposure (MPE) - FCCID : A3LSMTI6021 - Product name : Internet Phone - Model name : SMT-i6021, SMT-i6011 - Device category : Mobile device For maximum permissible exposure(MPE) evaluation of mobile device, the calculation is: S = Maximum Power density P = Maximum power with tolerance G = Numeric power gain of the antenna R = Distance from transmitting antenna RF Function Frequency Range (MHz) Antenna gain (dBi) Max. Target Power (dBm) MPE (mW/cm 2 ) ANT 1 ANT 2 Directional Bluetooth 2402 ~ 2480 2.77 N/AN/A6 0.002392 802.11b 2412 ~ 2462 2.77 N/AN/A17.5 0.033553 802.11g 2412 ~ 2462 2.77 N/AN/A10.5 0.006695 802.11n(HT20) – 1TX 2412 ~ 2462 2.77 N/AN/A10.5 0.006695 802.11a – 1TX 5180 ~ 5240 5260 ~ 5320 5500 ~ 5700 5745 ~ 5825 3.64 3.64 4.05 5.02 N/A N/A 14.5 0.023053 802.11n(HT20) – 1TX 5180 ~ 5240 5260 ~ 5320 5500 ~ 5700 5745 ~ 5825 3.64 3.64 4.05 5.02 N/A N/A 13.5 0.016320 802.11n(HT40) – 1TX 5190 ~ 5230 5270 ~ 5310 5510 ~ 5670 5755 ~ 5795 3.64 3.64 4.05 5.02 N/A N/A 12.5 0.012964 For simultaneous transmission, the calculation is; Calculated MPE 1 + Calculated MPE 2 + ... + Calculated MPE N This device does not support the simultaneous transmission. According to above calculation, this device complies with FCC 1.1310 limit.

DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 2 / 109 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1506-0122 Jun. 19, 2015 Initial issue DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 3 / 109 Copyright ○ C 2015, DT&C Co., Ltd. CONTENTS 1. EUT DESCRIPTION .................................................................... 4 2. Information about test items ..................................................... 5 2.1 Test mode / Channel Information ............................................ 5 2.2 Tested Channel Information .................................................... 5 2.3 Auxiliary equipment ................................................................. 6 2.4 Tested environment ................................................................. 6 2.5 EMI Suppression Device(s)/Modifications ............................... 6 3. SUMMARY OF TESTS ................................................................ 7 4. TEST METHODOLOGY .............................................................. 8 4.1 EUT configuration .................................................................... 8 4.2 EUT exercise ........................................................................... 8 4.3 General test procedures .......................................................... 8 4.4 Description of test modes ........................................................ 8 5. INSTRUMENT CALIBRATION .................................................... 9 6. FACILITIES AND ACCREDITATIONS ........................................ 9 6.1 Facilities .................................................................................. 9 6.2 Equipment ............................................................................... 9 7. ANTENNA REQUIREMENTS ..................................................... 9 8. TEST RESULT .......................................................................... 10 8.1 Emission Bandwidth (26 dB Bandwidth) .............................. 10 8.2 Minimum Emission Bandwidth (6 dB Bandwidth) ................. 28 8.3 Maximum Conducted Output Power .................................... 34 8.4 Maximum Power Spectral Density ....................................... 37 8.5 Frequency Stability .............................................................. 61 8.6 Radiated Spurious Emission Measurements ....................... 64 8.7 AC Conducted Emissions..................................................... 79 8.8 Occupied Bandwidth ............................................................ 84 9. LIST OF TEST EQUIPMENT ................................................... 106 APPENDIX I................................................................................. 107 APPENDIX II................................................................................ 107 DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 4 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 1. EUT DESCRIPTION FCC Equipment Class Unlicensed National Information Infrastructure (UNII) Product Internet Phone Model Name SMT-i6021 Add Model Name SMT-i6011 Power Supply DC 12 V(Adaptor), DC 48 V(PoE) Frequency Range Band I(5150 ~ 5250MHz) ▪ 802.11a/n(HT20): 5180 ~ 5240 MHz ▪ 802.11n(HT40): 5190 ~ 5230 MHz Band II(5250 ~ 5350MHz) ▪ 802.11a/n(HT20): 5260 ~ 5320 MHz ▪ 802.11n(HT40): 5270 ~ 5310 MHz Band III(5470 ~ 5725MHz) ▪ 802.11a/n(HT20): 5500 ~ 5700 MHz ▪ 802.11n(HT40): 5510 ~ 5670 MHz Band IV(5725 ~ 5850MHz) ▪ 802.11a/n(HT20): 5745 ~ 5825 MHz ▪ 802.11n(HT40): 5755 ~ 5795 MHz Modulation type 64-QAM, 16QAM, QPSK BPSK for OFDM Antenna Specification Antenna type: Internal Antenna Antenna gain ▪ Band I: 3.64 dBi ▪ Band II: 3.64 dBi ▪ Band III: 4.05 dBi ▪ Band IV: 5.02 dBi Note: The applicant declares that there is some difference between the models. For detailed information, please refer to the ID letter. DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 5 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 2. Information about test items 2.1 Test mode / Channel Information 5GHz Band Mode Data Rate Band I 802.11a 54Mbps 802.11n(HT20) MCS 7 802.11n(HT40) MCS 7 802.11ac(VHT80) - Band II 802.11a 54Mbps 802.11n(HT20) MCS 7 802.11n(HT40) MCS 7 802.11ac(VHT80) - Band III 802.11a 54Mbps 802.11n(HT20) MCS 7 802.11n(HT40) MCS 7 802.11ac(VHT80) - Band IV 802.11a 54Mbps 802.11n(HT20) MCS 7 802.11n(HT40) MCS 7 802.11ac(VHT80) - The worst case data rate for each modulation is determined as above table. And all tests conducted in this report were made at the worst case data rate of each modulation. 2.2 Tested Channel Information 5GHz Band 802.11a/n(HT20) 802.11n(HT40) 802.11ac(VHT80) Channel Frequency [MHz] Channel Frequency [MHz] Channel Frequency [MHz] Band I 36 5180 38 5190 - - 40 5200 - - - - 48 5240 46 5230 - - Band II 52 5260 54 5270 - - 60 5300 - - - - 64 5320 62 5310 - - Band III 100 5500 102 5510 - - 116 5580 110 5550 - - 140 5700 134 5670 - - Band IV 149 5745 151 5755 - - 157 5785 - - - - 165 5825 159 5795 - - DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 6 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 2.3 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - 2.4 Tested environment Temperature : 21 o C ~ 25 o C Relative humidity content : 40 % ~ 45 % R.H. Details of power supply : AC 120V / 60Hz 2.5 EMI Suppression Device(s)/Modifications EMI suppression device(s) added and/or modifications made during testing → None DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 7 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Sect…

Text truncated - open the document above for the full version.

DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 61 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 8.5 Frequency Stability ▣ Test requirements Manufacturers of U-NII devices are responsible for ensuring frequency stability such that an emission is maintained within the band of operation under all conditions of normal operation as specified in the user’s manual. ▣ Test Procedure The EUT was placed inside of an environmental chamber as the temperature in the chamber was varied between -20°C and +50°C. The temperature was incremented by 10°C intervals and the unit was allowed to stabilize at each measurement. The center frequency of the transmitting channel was evaluated at each temperature and the frequency deviation from the channel’s center frequency was recorded. ▣ Test Result : Comply Band I & Band II : (5150 MHz ~ 5350 MHz) 26 dB Bandwidth Reference Note 1 Low edge High edge 5,170,775,000 5,329,187,500 Supply Voltage (V DC) TEMP (°C) Operating Frequency 5180 MHz 5320 MHz Measured Frequency (Hz) Deviation (%) 26dBc low edge not3 2 (Hz) Measured Frequency (Hz) Deviation (%) 26dBc high edge not3 3 (Hz) 12.000 +25(Ref) 5,180,036,712 0.000709 5,170,811,712 5,320,036,763 0.000691 5,329,224,263 +50 5,180,041,359 0.000798 5,170,816,359 5,320,041,503 0.000780 5,329,229,003 +40 5,180,040,302 0.000778 5,170,815,302 5,320,039,509 0.000743 5,329,227,009 +30 5,180,039,365 0.000760 5,170,814,365 5,320,037,706 0.000709 5,329,225,206 +20 5,180,034,059 0.000658 5,170,809,059 5,320,035,778 0.000673 5,329,223,278 +10 5,180,029,867 0.000577 5,170,804,867 5,320,031,001 0.000583 5,329,218,501 0 5,180,025,628 0.000495 5,170,800,628 5,320,026,523 0.000499 5,329,214,023 -10 5,180,021,376 0.000413 5,170,796,376 5,320,022,054 0.000415 5,329,209,554 -20 5,180,017,153 0.000331 5,170,792,153 5,320,017,482 0.000329 5,329,204,982 10.200 +25 5,180,036,707 0.000709 5,170,811,707 5,320,036,762 0.000691 5,329,224,262 13.800 +25 5,180,036,738 0.000709 5,170,811,738 5,320,036,792 0.000692 5,329,224,292 Note 1: Please refer to the test plot. Note 2: 26 dB Bandwidth Reference Low edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 26dBc low edge (Hz) Note 3: 26 dB Bandwidth Reference High edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 26dBc High edge (Hz) DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 62 / 109 Copyright ○ C 2015, DT&C Co., Ltd. Band III : (5470 MHz ~ 5725 MHz) 26 dB Bandwidth Reference Note 1 Low edge High edge 5,490,750,000 5,709,362,500 Supply Voltage (V DC) TEMP (°C) Operating Frequency 5500 MHz 5700 MHz Measured Frequency (Hz) Deviation (%) 26dBc low edge not3 2 (Hz) Measured Frequency (Hz) Deviation (%) 26dBc high edge not3 3 (Hz) 12.000 +25(Ref) 5,500,037,514 0.000682 5,490,787,5145,700,038,084 0.000668 5,709,400,584 +50 5,500,042,136 0.000766 5,490,792,1365,700,042,581 0.000747 5,709,405,081 +40 5,500,040,394 0.000734 5,490,790,3945,700,040,870 0.000717 5,709,403,370 +30 5,500,038,491 0.000700 5,490,788,4915,700,039,038 0.000685 5,709,401,538 +20 5,500,036,605 0.000666 5,490,786,6055,700,036,967 0.000649 5,709,399,467 +10 5,500,031,943 0.000581 5,490,781,9435,700,032,455 0.000569 5,709,394,955 0 5,500,027,290 0.000496 5,490,777,2905,700,027,941 0.000490 5,709,390,441 -10 5,500,022,628 0.000411 5,490,772,6285,700,023,237 0.000408 5,709,385,737 -20 5,500,018,229 0.000331 5,490,768,2295,700,018,719 0.000328 5,709,381,219 10.200 +25 5,500,037,514 0.000682 5,490,787,5145,700,038,078 0.000668 5,709,400,578 13.800 +25 5,500,037,539 0.000683 5,490,787,5395,700,038,109 0.000669 5,709,400,609 Note 1: Please refer to the test plot. Note 2: 26 dB Bandwidth Reference Low edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 26dBc low edge (Hz) Note 3: 26 dB Bandwidth Reference High edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 26dBc High edge (Hz) DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 63 / 109 Copyright ○ C 2015, DT&C Co., Ltd. Band IV : (5725 MHz ~ 5850 MHz) 6 dB Bandwidth Reference Note 1 Low edge High edge 5737.445000 5833.192000 Supply Voltage (V DC) TEMP (°C) Operating Frequency 5745 MHz 5825 MHz Measured Frequency (Hz) Deviation (%) 26dBc low edge not3 2 (Hz) Measured Frequency (Hz) Deviation (%) 26dBc high edge not3 3 (Hz) 3.700 +25(Ref) 5,745,024,571 0.000428 5,737,469,5715,825,024,0780.000413 5,833,216,078 +50 5,745,056,171 0.000978 5,737,501,1715,825,015,1380.000260 5,833,207,138 +40 5,745,048,339 0.000841 5,737,493,3395,825,001,9920.000034 5,833,193,992 +30 5,745,035,247 0.000614 5,737,480,2475,825,018,3640.000315 5,833,210,364 +20 5,745,024,143 0.000420 5,737,469,1435,825,024,0010.000412 5,833,216,001 +10 5,745,018,932 0.000330 5,737,463,9325,825,029,8910.000513 5,833,221,891 0 5,745,032,291 0.000562 5,737,477,2915,825,040,1940.000690 5,833,232,194 -10 5,745,048,329 0.000841 5,737,493,3295,825,036,2740.000623 5,833,228,274 -20 5,745,056,171 0.000978 5,737,501,1715,825,055,3480.000950 5,833,247,348 3.145 +25 5,745,024,701 0.000430 5,737,469,7015,825,024,7010.000424 5,833,216,701 4.255 +25 5,745,024,653 0.000429 5,737,469,6535,825,024,2520.000416 5,833,216,252 Note 1: Please refer to the test plot. Note 2: 6 dB Bandwidth Reference Low edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 6dBc low edge (Hz) Note 3: 6 dB Bandwidth Reference High edge (Hz) + (Measured Frequency (Hz) - Operating Frequency (Hz)) = 6dBc High edge (Hz) DTNC1504-02133, DTNC1504-02134 FCCID: A3LSMTI6021 Report No.: DRTFCC1506-0122 IC: 649E-SMTI6021 TRF-RF-227(01)150201 Page 64 / 109 Copyright ○ C 2015, DT&C Co., Ltd. 8.6 Radiated Spurious Emission Measurements ▣ Test Procedure ▪ FCC Part 15.209(a) and (b) Frequency (MHz) Limit (uV/m) Measurement Distance (meter) 0.009 – 0.490 2400/F(KHz) 300 0.490 – 1.705 24000/F(KHz) 30 1.705 …

Text truncated - open the document above for the full version.

DTNC1504-02133, DTNC1504-02134 FCC ID: A3LSMTI6021 Report No.: DRTFCC1506-0123 IC: 649E-SMTI6021 TRF-RF-228(00)1401006 Page 2 / 13 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1506-0123 Jun. 19, 2015 Initial issue DTNC1504-02133, DTNC1504-02134 FCC ID: A3LSMTI6021 Report No.: DRTFCC1506-0123 IC: 649E-SMTI6021 TRF-RF-228(00)1401006 Page 3 / 13 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. EUT DESCRIPTION .................................................................... 4 1.1. Auxiliary equipment ................................................................ 4 2. DYNAMIC FREQUENCY SELECTION TEST DESCRIPTION ... 5 2.1. Applicability of DFS requirements prior to use of a channel ... 5 2.2. Applicability of DFS requirements during normal operation ... 5 2.3. Requirements of client devices .............................................. 6 2.4. DFS response requirement values ......................................... 6 2.5. DFS detection thresholds ....................................................... 7 2.6. Radar test waveforms ............................................................ 8 3. Test procedure ........................................................................... 9 3.1. Setup for Client with injection at the Master ........................... 9 3.2. Spectrum analyzer setting parameter .................................... 9 3.3. Conducted test procedure ...................................................... 9 4. SUMMARY OF TESTS .............................................................. 10 5. LIST OF EQUIPMENTS ............................................................ 11 6. TEST RESULTS ........................................................................ 12 6.1. Move time and aggregate time ............................................. 12 6.1.1. U-NII-2A : 802.11n(HT40), 5310MHz ............................................... 12 6.1.2. U-NII-2C : 802.11n(HT40), 5510MHz ............................................... 12 6.2. Non-occupancy period ......................................................... 13 6.2.1. U-NII-2A : 802.11n(HT20), 5310MHz ............................................... 13 6.2.2. U-NII-2C : 802.11n(HT20), 5510MHz ............................................... 13 DTNC1504-02133, DTNC1504-02134 FCC ID: A3LSMTI6021 Report No.: DRTFCC1506-0123 IC: 649E-SMTI6021 TRF-RF-228(00)1401006 Page 4 / 13 Copyright ○ C 2015, DT&C Co., Ltd. 1. EUT DESCRIPTION FCC equipment class Unlicensed National Information Infrastructure (UNII) Product Internet Phone Model name SMT-i6021 Add model name SMT-i6011 EUT capabilities Bluetooth, 2.4GHz/5GHz WLAN Power supply DC 12 V(Adaptor), DC 48 V(PoE) Test condition Conducted Radiated Channel bandwidth 802.11a/n(HT20): 20MHz 802.11n(HT40): 40MHz Frequency Range 5260 ~ 5320 MHz (802.11a/n(HT20): U-NII-2A) 5270 ~ 5310 MHz (802.11n(HT40): U-NII-2A) 5500 ~ 5700 MHz (802.11a/n(HT20): U-NII-2C) 5500 ~ 5700 MHz (802.11n(HT40): U-NII-2C) Output Power 11.667 dBm (802.11a: U-NII-2A) Note2 10.298 dBm (802.11a: U-NII-2C) Note2 Modulation type OFDM Operational mode Master mode Client mode without radar detection Client mode with radar detection Antenna specification Antenna type: Internal Antenna Antenna gain U-NII-2A 3.64 dBi U-NII-2C 4.05 dBi Note1: The above EUT information was declared by the manufacturer. Note2: Ref…
