1 SAFETY CONCERNS For product safety and correct operation, the following information must be given to the operator/user and shall be read before the installation and operation. Conventions WARNING Provides information or instructions that the reader should follow in order to avoid personal injury or fatality. CAUTION Provides information or instructions that the reader should follow in order to avoid a service failure or damage to the system. NOTE Indicates additional information as a reference. Symbols Indication of a general caution. Indication for prohibiting an action for a product. Indication for commanding a specifically required action. WIP-6000M User Guide 2 Waring WARNING Do not connect conductive objects, such as neckless or coins, to the charging terminals of the battery (metallic part). The object may explode and cause fire due to overheating. Wireless phones can cause interference. Meet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger(in a hospital for example). It may cause interference or danger. Use only the batteries (Type: Hitachi/ ICP053450GH/1000 mAh, Manufacturer: Neo Prime Tech.) that tested and accessories provided with the SMT-W6100 phone. Using other batteries and accessories can result in overheating or explosion and may cause malfunction. WIP-6000M User Guide 3 Do not place the phone in a dusty area or in fluctuating temperature environments. It may cause a fire or electric shocks. Do not install the phone near a heater(cigarette lighter, heating apparatus, etc.). It may cause a fire or electric shocks. Do not use the phone at a refuelling point(service station) or near fuels or chemicals. It may cause a fire or electric shocks. Do not use inflammable solvent or material near the phone. Do not store them near the phone. It may cause a fire or electric shocks. The battery shall be used only for the SMT-W6100 phone. Using the battery for other purposes may cause malfunction, a fire, or electric shocks. WIP-6000M User Guide 4 Caution CAUTION Use a soft dry cloth to clean the phone. Do not use any chemical solvents like wax, benzene, alcohol, thinner, mosquito spray, aerosol, lubricant, or detergent. The use of chemicals on the phone may cause fading/discoloring or damage to the parts. Ensure the phone is switched on and in service. Key in the emergency number for your present location, then press the key. If certain features are in use, deactivate those features before you can make an emergency call. Give all the necessary information as accurately as possible. Do not cut off the call until given permission to do so. Do not install the phone on an unstable place or near the direct rays of sunlight. It may cause severe damage to the parts of the phone, and your phone may not work properly. WIP-6000M User Guide 5 Do not separate, repair nor remodel the phone arbitrarily. Only qualified service personnel may install or repair your phone. For more detailed safety information, see ‘Health and Safety Information’ section of this guide. Use only in the normal position(held to the ear). WIP-6000M User Guide 6 FCC Guide This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. WIP-6000M User Guide 6 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. SMT-WIP-6000M User Guide 8 Important Note: FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. The antenna(s) used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Do Not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. 8 TABLE OF CONTENTS SAFETY CONCERNS 1 Conventions....................................................1 Symbols.........................................................1 Waring...........................................................2 Caution..........................................................4 PREPARATION 11 About This Guide...........................................11 Overview of SMT-W6100................................11 Unpacking....................................................12 Phone Layout................................................13 Display.........................................................17 Backlight......................................................20 Service Light.................................................21 Camera........................................................21 GETTING STARTED 22 Before to Start..............................................22 Installing/Remo…

Text truncated - open the document above for the full version.

SAMSUNG Electronics Co., Ltd #259, Gongdan-Dong, Gumi-City Gyeong-Buk, Korea, 730-030 If you have not received all pages, please call the direct phone number. FAX : 031-279-2296 TEL : 031-279-4256 Date: March 2, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; SAMSUNG Electronics Co., Ltd #259, Gongdan-Dong, Gumi-City Gyeong-Buk, Korea, 730-030 If you have not received all pages, please call the direct phone number. FAX : 031-279-2296 TEL : 031-279-4256 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, C. L. Chung / Manager /Samsung Electronics Co., Ltd.

Helen Zhao Subject: FW: SAMSUNG ELECTRONICS CO., LTD., FCC ID: A3LSMTW6100, Assessment NO.: AN06T5597, Notice#1 4/5/2006 From: Kwon, James Sent: Tuesday, April 04, 2006 6:19 PM To: Helen Zhao Subject: RE: SAMSUNG ELECTRONICS CO., LTD., FCC ID: A3LSMTW6100, Assessment NO.: AN06T5597, Notice#1 Hi Helen, Thanks for your further comment. Pls refer to below. Thanks and have a nice day. James Kwon -----Original Message----- From: Helen Zhao Sent: Friday, March 24, 2006 5:37 PM To: Helen Zhao Subject: SAMSUNG ELECTRONICS CO., LTD., FCC ID: A3LSMTW6100, Assessment NO.: AN06T5597, Notice#1 User manual: Question #1: This is a WiFi phone, a portable device, but the user manual contains the following statement: "The antenna(s) used for this device must be installed to provide a separation distance of at least 20 cm from all persons...", which is not applicable. Please revise the user manual. [James] Sorry. Deleted. Question #2: The user manual address EU RF exposure requirement only, it lists 0.842 as highest SAR value, this may be test result per CE standard, since this device is seeking FCC approval, please address FCC RF exposure requirement. Please note SAR value is not required to list on the user manual, but if you choose to list, then it must be correct. [James] Updated and uploaded it. EMC test report: Question #3: This device comes with battery charger, please advise whether the device can be operating when the device is in charging mode. Most likely, it can, so power line conducted emission test can not be waived. Please submit power line conducted emission test data and test setup photos. [James] We proceeded this test, and uploaded "updated RF test report" Question #4: The EMC test report does not indicate data rate for several test items: 6dB bandwidth test, radiated spurious emission test, RF conducted spurious emission test. [James] We updated "RF test report". Question #5: The EMC test report does not indicate how the device is tuned to the required channel for testing purpose, by software installed in the device, controlled via a notebook PC. [James] We updated "RF test report". SAR test report: Question # 6 : The SAR report indicates that head test was done on 3/7/06, body test on 3/9/06, but only one system validation plot was submitted. Based upon OET 65 supplement C, system verification must be done daily (see page 43). Some head test plots show 3/8/06, please confirm it is still within 24 hours after system validation on 3/7/06. If yes, please submit system validation plots of 3/9, otherwise, submit plots of 3/8 & 3/9. [James] 3/8/06 Plots are within 24 hours after system validation on 3/7/06 and please refer to the time on top of each plot. Validation plot of 3/9 was inserted in the revised SAR test report. I uploaded SAR test report updated. Question # 7 : The EMC test report shows the highest power output is 17dBm (avg) for 11b and 15.5dBm (avg) for 11g. But the SAR report indicates the maximum RF conducted power is 16.42dBm for 11b and 15.44dBm for 11g. Based on FCC TCB training notes and check list provided to TCB: "Conducted power in SAR report should be greater than or equal to what in EMC report, but not exceeding tune-up/tolerance". You may need to report power setting in each channel, compared to EMC report, so that you may not need to repeat all the SAR test, but definately, some retesting is necessary. [James] There was some mistakes. The right value is 17 dBm and 15.5 dBm. The SAR test report was revised. Please refer to the SAR Test Result Table on page 14 & 15. We uploaded SAR test report re-updated. Question # 8 : The SAR report does not contain power reference measurement procedure in Evaluation procedure. Please add this information. Or if I overlooked it, please let me know the page number. [James] Please refer to page 4 of the revised SAR test report. Question # 9: This is for your information. Page 10 of SAR report "Tissue DIELECTRIC PARAMETERS" lists 39 as Head Permitivity limit, which should be 39.2. Please update test report. [James] We updated SAR test report. Question #10: Based upon OET 65 supplemental C page 40, "If the SAR measured at the middle channel for each test configuration (left, right, Cheek/Touch, Tile/Ear, extended and retracted) is at least 2.0 dB lower than the SAR limit, testing at the high and low channels is optional for such test configuration(s)." The SAR report - Summary of Results indicates most of head postions were tested at middle channel only, even though SAR value is around 1.2 W/kg, way above 0.8 W/kg. Please retest at low and high channels for left Tilt, right cheek, right tilt position. On the other hand, based on the test result at middle channel, reseting low and high channel for body rear is not necessary. [James] Testing at the high and low channel for Left tilt, Right cheek and Right tilt position was fulfilled. Question #11: The user manaul indicates the device has a headset port, but body positions (front/back) were not tested when headset was connected to the device. Based upon OET 65 supplemental C page 41, "Devices with a headset output should be tested with a headset connected to the device." Please retest these two positions when headset is connected, if the manufacturer provides the headset, use the special headset, otherwise, use whatever on the market which meets device spec. [James] All measurements for Body were conducted with an ear phone connected to EUT. I just missed to take setup photos with an earphone. Please refer to setup photos in the revised test report. Sorry for making you confused. Question #12: Please show antenna location in Appendix A EUT photographs. [James] Please refer to the revised test report Best Regards, Helen Zhao 4/5/2006 The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the fil…

Text truncated - open the document above for the full version.

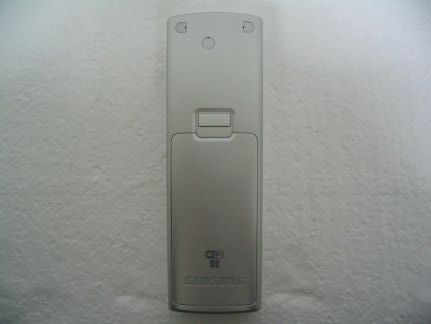

FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 9. Attachment B – Photos of the EUT Front View of EUT Rear View of EUT FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Right View of EUT Left View of EUT FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Top View of EUT Bottom View of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Remove Battery of EUT Inner of EUT FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Top of Main-board Bottom of Main-board

Report File No. : STROS-06-008 Date of Issue : 2006-04-03 Page : 1 / 82 TEST REPORT Equipment Under Test : WLAN Phone Model No. : SMT-W6100 Applicant : SAMSUNG ELECTRONICS Co., Ltd. Address of Applicant : 3351 Michelson Drive, Suite 290, Irvine, California USA (92612) FCC ID A3LSMTW6100 Date of Receipt : 2006-02-17 Date of Test(s) : 2006-03-07 ~ 2006-03-27 Date of Issue : 2006-04-03 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3 In the configuration tested, the EUT complied with the standards specified above. Remarks: Tested by : Leo Kim 2006-04-03 Approved by : Albert Lim 2006-04-03 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. Report File No. : STROS-06-008 Date of Issue : 2006-04-03 Page : 2 / 82 Contents 1. General Information 1.1 Testing Laboratory........................................................................................... 3 1.2 Details of Applicant.......................................................................................... 3 1.3 Version of Report............................................................................................. 3 1.4 Description of EUT(s)....................................................................................... 3 1.5 Test Environment............................................................................................. 4 1.6 Operation description........................................................................................ 4 1.7 Evaluation procedures....................................................................................... 4 1.8 The SAR Measurement System............................................................................ 5 1.9 System Components.......................................................................................... 7 1.10 SAR System Verification.................................................................................... 8 1.11 Tissue Simulant Fluid for the Frequency Band.......................................................... 10 1.12 Test Standards and Limits.................................................................................. 11 2. Instruments List.................................................................................... 13 3. Summary of Results................................................................................ 14 APPENDIX A. DASY4 SAR Report B. Uncertainty Analysis C. Photographs of EUT & EUT’s Test Setup D. Calibration certificate Report File No. : STROS-06-008 Date of Issue : 2006-04-03 Page : 3 / 82 1. General Information 1.1 Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 Homepage : www.sgstesting.co.kr 1.2 Details of Applicant Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Address : 259, Gongdan-dong, Kumi-city, Kyung-buk, Korea Contact Person : Mu-Seong Kwak Phone No. : 82-31-279-4256 Fax No. : 82-31-279-2296 1.3 Version of Report Version Number Date 00 2006-03-16 01 2006-03-28 02 2006-04-03 1.4 Description of EUT(s) EUT Type WLAN Phone Model SMT-W6100 Serial Number S63A169333 Hardware Version - Software Version - Mode of Operation W-LAN IEEE 802.11 b/g Maximum RF Conducted Power 17 dBm(11b), 15.50 dBm(11g) Tx Frequency Range 2412 ~ 2462 MHz Rx Frequency Range 2412 ~ 2462 MHz Traffic Channel 1, 6, 11 Antenna Type / Gain Chip Antenna / 0.68 dBi Battery Type 3.8 VDC Lithium-Ion Report File No. : STROS-06-008 Date of Issue : 2006-04-03 Page : 4 / 82 1.5 Test Environment Ambient temperature : 22.3 ° C Tissue Simulating Liquid : 22.3 ° C Relative Humidity : 58 % 1.6 Operation Configuration The device was controlled by using a Host Note PC. Communication between the device and the tester was established by air link. Measurements were performed on the lowest, middle and highest channels of the operating band. The EUT was set to maximum power level during all tests and at the beginning of each test the battery was fully charged. The DASY4 system measures power drift during SAR testing by comparing e-field in the same location at the beginning and at the end of measurement. 1.7 EVALUATION PROCEDURES - Power Reference Measurement Procedures The Power Reference Measurement and Power Drift Measurements are for monitoring the power drift of the device under test in the batch process. The Minimum distance of probe sensors to surface determines the closest measurement point to phantom surface. The minimum distance of probe sensors to surface is 4 mm. This distance cannot be smaller than the Distance of sensor calibration points to probe tip as defined in the probe properties (for example, 2.7 mm for an ET3DV6 probe type). - The entire evaluation of the spatial peak values is performed within the Post-processing engine (SEMCAD). The system always gives the maximum values for the 1 g and 10 g cubes. The algorithm to find the cube with highest averaged SAR is divided into the following stages: 1. The extraction of the measured data (grid and values) from the Zoom Scan. 2. The calculation of the SAR value at every measurement point based on all stored data (A/D values and measurement parameters) 3. The generation of a high-resolution mesh within the measured volume 4…

Text truncated - open the document above for the full version.

FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr TEST REPORT FCC RULES Part 15 Subpart C Equipment Under Test : WLAN Phone Model No. : SMT-W6100 Serial No. : N/A Applicant : Samsung Electronics Co., Ltd. Manufacturer : Samsung Electronics Co., Ltd. Date of Test(s) : Feb. 01, 2006 ~ Feb. 21, 2006 Date of Issue : Mar. 16, 2006 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Testing Korea Co., Ltd. or testing done by SGS Testing Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Testing Korea Co., Ltd. in writing. FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr VERIFICATION OF COMPLIANCE Applicant : Samsung Electronic Co., Ltd. Kind of Product : WLAN Phone Brand Name : - Model Name : SMT-W6100 Model Difference : - Report File No. : STROR-06-029 Date of test : Feb. 01, 2006 ~ Feb. 21, 2006 Receiver EUT : - APPLICABLE STANDARDS STANDARD TEST RESULT Part 15 Subpart B ,Subpart C §15.247 Complied The above equipment was tested by SGS Testing Korea Co., Ltd. for compliance with the requirements set forth in the FCC RULES Part Subpart §15.247. The results of testing in this report apply to the product system that was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date Mar.16, 2006 Feel Jeong Approved By Date Mar.16, 2006 Albert Lim FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr INDEX CONTENTS Page 1. GENERAL INFORMATION ---------------------------------------------- 4 2. CONDUCTED POWERLINE TEST ------------------------------------ 6 3. SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BAND TEST ----- 15 4. 6 dB BANDWIDTH MEASUREMENT -------------------- 30 5. MAXIMUM PEAK OUTPUT POWER MEASURMENT ---------- 36 6. POWER SPECTRAL DENSITY MEASURMENT ------------------ 38 7. ANTENNA REQUIREMENT -------------------------------------------- 44 8. Attachment A – Photos of the Test Set up ------------------------------- 45 9. Attachment B – Photos of the EUT-------------------------------------- 47 FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1. GENERAL INFORMATION 1.1 General Description of EUT & Power Product Name WLAN Phone Model Number SMT-W6100 Frequency Range 2412 MHz ~ 2462 MHz(802.11b, 802.11g) Channel Number 11 Channel(802.11b, 802.11g) Air Data Rate 54 Mbps(802.11g Mode) 11 Mbps(802.11b Mode) Type of Modulation 802.11b : DSSS(CCK, DQPSK, DBPSK) 802.11g : OFDM(64QAM,16QAM,QPSK,BPSK) Frequency Selection By software controlled via a notebook PC. EUT Description 2.4 GHz (Direct Sequence Spread Spectrum and Orthogonal Frequency Division Multiplex) Date Transceiver for WLAN application Antenna Type Internal Antenna Gain 0.68 dBi (2.4 GHz) Input Power(System) DC 3.8 V FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1.2 Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC 47 C.F.R. Part 15, Subpart B and Subpart C Standard Section Test Item Result 15.107 15.207 AC Power Conducted Emission PASS 15.247(a)(2) 6 dB Bandwidth PASS 15.247(b) Maximum Peak Output Power PASS 15.205(a) 15.209(a) 15.247(d) Spurious Emission, Band Edge, and Restricted Bands PASS 15.247(d) Power Spectral Density PASS 15.247(i) 1.1307(b)(1) RF Exposure PASS FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2. CONDUCTED POWERLINE TEST 2.1 Test Setup Main power source Shield room enclosure to Test Receiver Table height 0.8m 0.4m LISN LISN Note PC EUT FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2.2 Limit According to §15.107(a) for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is con…

Text truncated - open the document above for the full version.

FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 8. Attachment A-1 Photo of the test set up FCC ID : A3LSMTW6100 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Attachment A-2 Photos of the test set up
