A3LSNCL200WNETWORK CAMERA

Netcam(W) SNC-L200(W) User’s manual Safety instructions and precautions are designed to protect users and prevent any property damage. Please read and observe these instructions thoroughly before using the Netcam. NETWORK CAMERA SNC-L200 AB68-000524B(01) -SNC-L200(130*180)-E 4/21/06 1:17 PM Page 2 Netcam(W)_SNC-L200(W) Important Safety Instructions Netcam(W)_SNC-L200(W) Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is presentinside. It is dangerous to make any kind ofcontact with any inside part of this product. This symbol alerts you that important literatureconcerning operation and maintenance has been included with this product. To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain or moisture. This device complies with part 15 of the FCCRules. Operation is subject to the following two conditions. 1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Class B NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can reaiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures : - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit defferent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer ’s instructions. RF Radiation Exposure Statement This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Important Safety Instructions 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer ’sinstructions. 8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with cart, stand, tripod, bracket, or table specified by the manufacturer,or sold with the apparatus. When a used, caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. NOTE : THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.? SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. 23 Declaration of Conformity to R&TTE Directive 1999/5/EC This equipment fulfils the R&TTE directive(Council Directive 1999/5/EC). - European States qualified under wireless approvals: EUAustria, Belgium, Denmark, Finland, France (with frequency restrictions), Germany, Greece, Ireland, Italy, Luxembourg, The Netherlands, Portugal, Spain, Sweden, and the United Kingdom Accept EUIceland, Liechtenstein, Norway, and Switzerland - European States with restrictions on use: EU In France,the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wireless. Accept EU No Limitations at this time. -SNC-L200(130*180)-E 4/21/06 1:17 PM Page 2 Netcam(W)_SNC-L200(W)Netcam(W)_SNC-L200(W) 45 Features 1/4° 320,000-pixel CMOS Provides high-quality video of 320,000-pixels (pixel is a number of dots comprising an image)by adopting high-resolution CMOS. Pan &Tilt Moves the lens up and down and left and right, allowing shooting of every corner in every direction. Preset Sets the directions of the lens up to eight spots. You can return the lens to the stored position easily after movement. Night Flash Yo…

Text truncated - open the document above for the full version.

416, Maethan 3-Dong, Paldal-Ku, Suwon-City, Kyung-ki-Do, KOREA DATE : Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To Whom it may concern : We, the undersigned, hereby authorize NEMKO KOREA CO., LTD. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by NEMKO KOREA CO., LTD. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988.21U.S.C.853(a). Sincerely, NAME : KANG JEI-SOON TITLE : SENIOR ENGINEER COMPANY : SAMSUNG ELECTRONICS CO., LTD

416, Maethan 3-Dong, Paldal-Ku, Suwon-City, Kyung-ki-Do, KOREA Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A3LSNCL200W Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagrams, Circuit Diagrams, Parts List, and Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Kang Jei-Soon / Senior Engineer Name/ Title

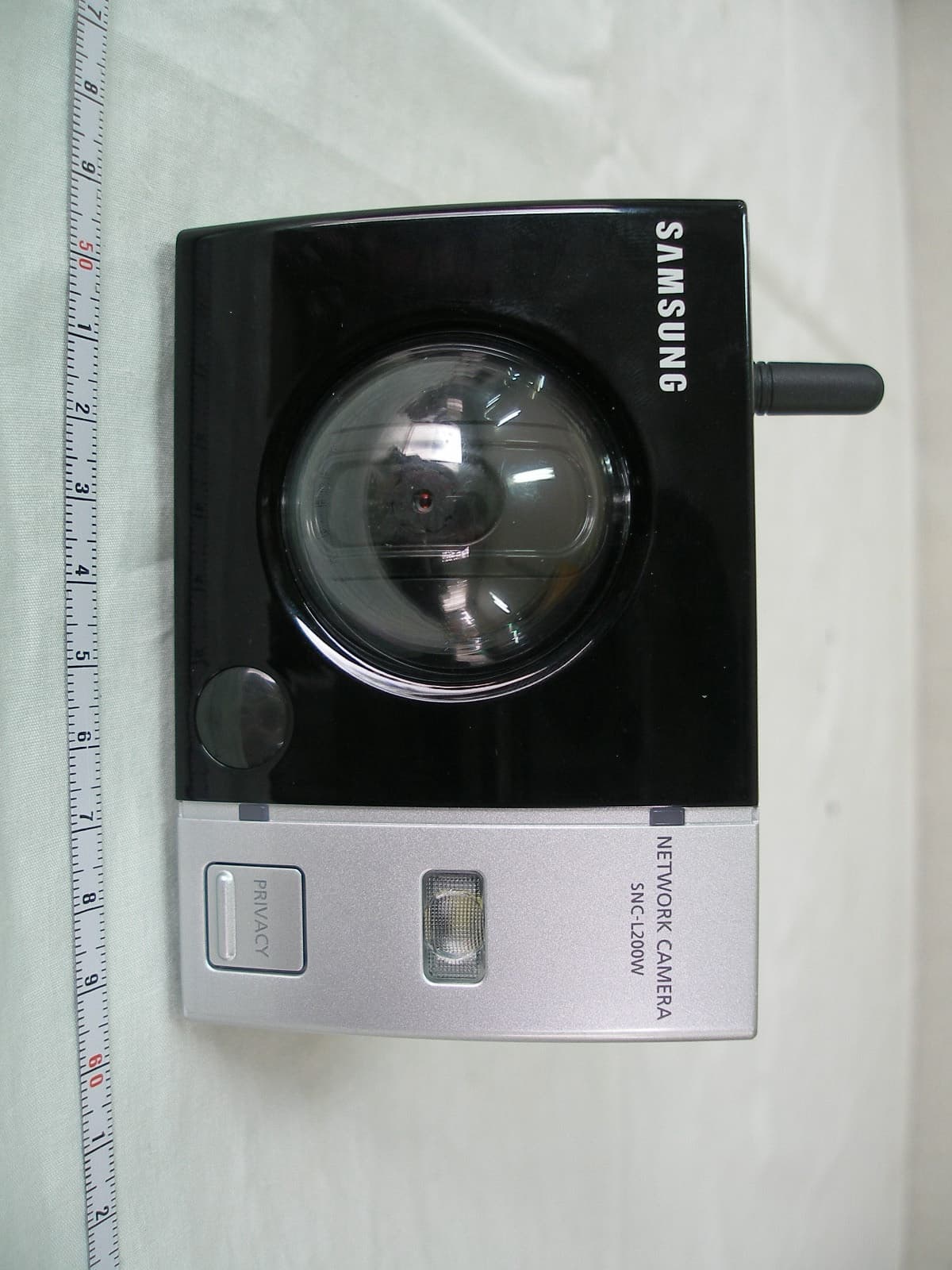

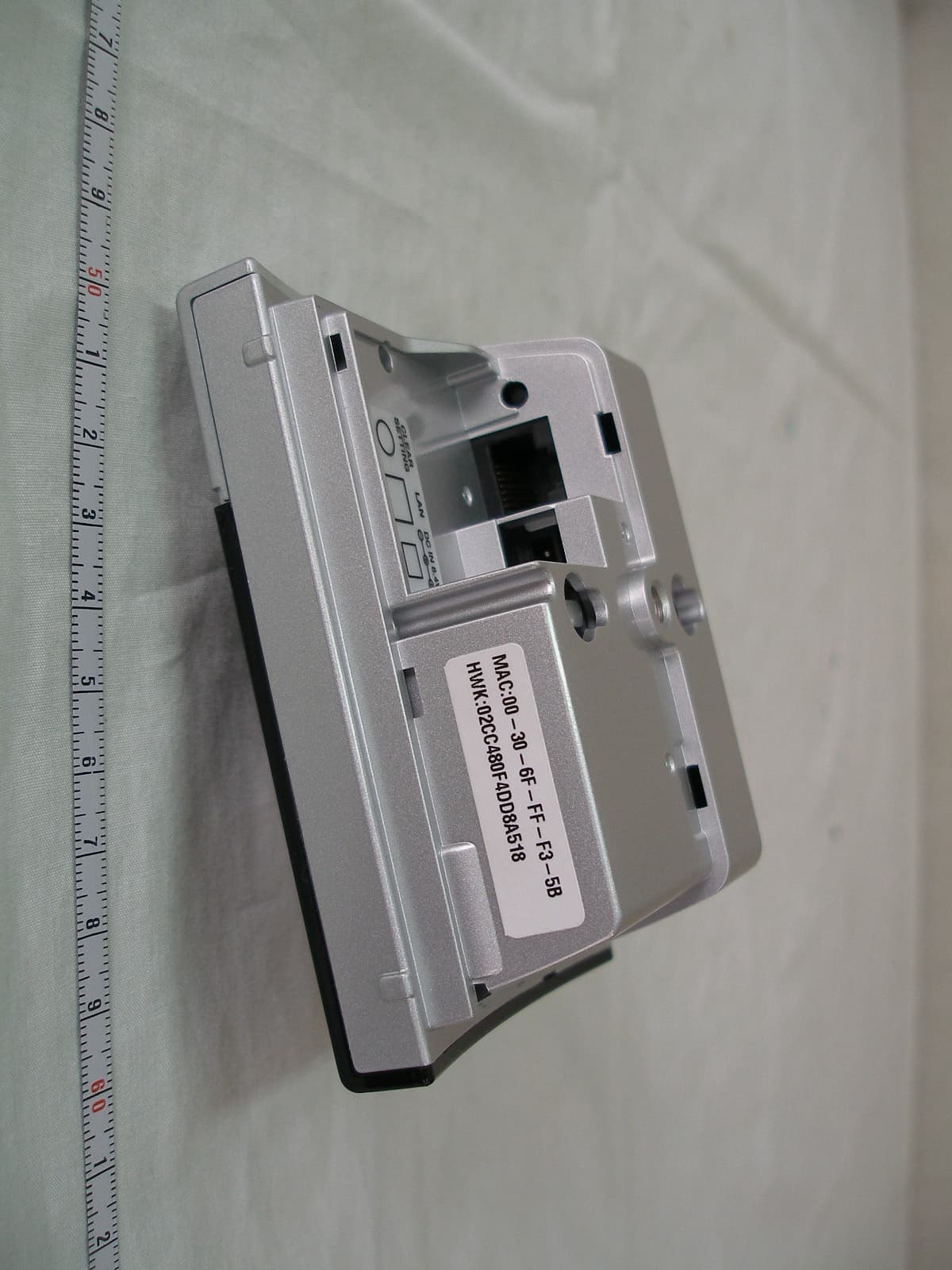

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 49 of 68 APPENDIX D – EUT PHOTOGRAPHS z Front view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 50 of 68 z Front view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 51 of 68 z Rear view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 52 of 68 z Rear view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 53 of 68 z IO ports view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 61 of 68 z Front view of Adapter Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 62 of 68 z Rear view of EUT

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 45 of 68 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual. Labelling Requirements

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 54 of 68 z Inside view of EUT Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 55 of 68 z Front view of Mainboard Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 56 of 68 z Rear view of Mainboard Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 57 of 68 z Rear view of mainboard Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 58 of 68 z View of RF module

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 59 of 68 z Front view of pir board Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 60 of 68 z Rear view of pir board Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 63 of 68 z Inside view of Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 64 of 68 z Front view of Adapter board Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 65 of 68 z Rear view of Adapter board

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 1 of 68 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Dates of Issue : Apr 19, 2006 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea. Test Report No. : NK2GR075 Test Site : Nemko Korea Co., Ltd. (Post code : 442-600) EMC site, Korea Attn. : Mr. Jei-soon,Kang FCC ID Brand Name CONTACT PERSON Applied Standard: FCC 47 CFR Part 15, Subpart C : 2004 Classification : FCC Class B Device EUT Type: Network Camera The device bearing the brand name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S.Lee Reviewed By : H.H. Kim Engineer Manager & Chief Engineer A3LSNCL200W SAMSUNG Samsung Electronics Co., Ltd. 314, Maetan3-Dong, Youngtong-Gu, Suwon-Shi, Kyunggi-Do, Korea, 442-600. Mr. Jei-soon,Kang Telephone No. : +82-31-277-3695 Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 2 of 68 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) TEST CONDITIONS EUT INFORMATION SUMMARY OF TEST RESULTS RECOMMANDATION / CONCLUSION SAMPLE CALCULATION DESCRIPTION OF TESTS TEST DATA (Conducted Emissions) PLOT OF EMISSION TEST DATA (Radiated Emissions) TEST DATA ( Modulated Bandwidth) PLOT OF TEST DATA TEST DATA (Peak Power Output) TEST DATA (Conducted & Radiated Spurious Emission) PLOT OF TEST DATA TEST DATA (Peak Power Spectral Density) PLOT OF TEST DATA TEST DATA (Maximum Permissible Exposure) ACCURACY OF MEASUREMENT TEST EQUIPMENT APPENDIX A – LABELLING REQUIREMENTS APPENDIX B – CIRCUIT DIAGRAM APPENDIX C – PHOTOGRAPHS OF TEST SET-UP APPENDIX D – EUT PHOTOGRAPHS APPENDIX E – CIRCUIT DIAGRAM APPENDIX F – USER’S MANUAL APPENDIX G – OPERATING DESCRIPTION 4 5 6 7 7 7 8 11 12 16 18 19 21 22 23 38 39 41 43 44 45 46 47 49 66 67 68 Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 3 of 68 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jei-soon,Kang Tianjin Samsung Electronics Co.,Ltd. TSEC12, 4th Avenue, TEDA, Tianjin, China z FCC ID: A3LSNCL200W z Model: SNC-L200W z Brand Name: SAMSUNG z EUT Type: Network Camera z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: z Test Report No.: FCC Class B FCC 47 CFR Part 15, Subpart C ANSI C63.4 (2003) Apr 6, 2006 ~ Apr 15, 2006 Nemko Korea Co., Ltd. EMC Site NK2GR075 INTRODUCTION Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 4 of 68 The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LSNCL200W These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyun-Myun, Yongin-City, Kyungki-Do, KOREA The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyun-Myun, Yongin- City Kyungki-Do,KOREA 449-852 Tel)+82-31-322-2333 Fax)+82-31-322-2332 Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 5 of 68 TEST CONDITIONS & EUT INFORMATION Operating During Test The EUT was monitored from a remote PC through various networks (Cable LAN, Wireless LAN) and video was remotely monitored through a Viewer program the manufacturer supported exclusively. The test was performed during the data transmission at communication link mode through networks. Support equipments other than EUT are placed out of test area. Support Equipment Network Camera (EUT) Samsung Electronics Co., Ltd. FCC ID: A3LSNCL200W 10m unshielded LAN cable Adaptor : Samsung Model : AA-E8 1.2m unshielded AC cable, 1.5m shielded DC cable with ferrite core (two turn) at DC jack end. S/N: N/A S/N:6CAY507336 Notebook Computer Dell Computer Corporation. Model : PPT(Latitude D400) DOC Adaptor : ASTEC Model : AA22830 1.2m unshielded AC cable, 1.5m shielded DC cable with ferrite core (two turn) at DC jack end. S/N: N/A S/N: N/A Wireless Router NETGEAR, Model : MR814 V2 FCC ID : PY3MR814V2 3m unshielded LAN cable Adaptor : NETGEAR Model: AD-121AB 1.2m unshielded AC…

Text truncated - open the document above for the full version.

Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 47 of 68 APPENDIX C – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK2GR075 FCC Certification Samsung Electronics Co.,Ltd. FCC ID : A3LSNCL200W Page 48 of 68 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
