A3LSO40UOLCD TV Monitor

8 Block Diagrams 8-1 8 Block Diagram h This Document can not be used without Samsung's authorization.















Page : 1 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE050937 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-Si,Gyeonggi-Do, Korea,443-742 Product Name TFT-LCD Monitor Model Name SO40UO Manufacturer Samsung Electronics Co., Ltd. Brand Name SAMSUNG Variant Model See Page 3 FCC ID A3LSO40UO Date of Test April 26~27, 2005 Issued Date April 29, 2005 Name/Position Signature Tested by Tae Young, Jang Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name SO40UO Applicant Address Samsung Electronics Co. Ltd 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Chang Young, Choi Kind of product TFT-LCD Monitor Valiant list None Manufacturer Samsung Electronics Co., Ltd. 1.2 Detail Information related Product Specification Item(s) Description Power Supply AC 110 ~ 120 V, 60 Hz Maximum Resolution 1360 x 768 @ 60 Hz Horizontal Frequency 60 KHz Vertical Frequency 75 Hz 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. - PC video in 1.4 Equipment Modifications No equipment modifications were required. Page : 4 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker FCC ID A TFT-LCD Monitor SO40UO - SAMSUNG A3LSO40UO B Personal Computer M6300 468792GN200335 SAMSUNG DoC C Printer ML-1750 BABX822977N SAMSUNG A3LML-1750 D PS/2 Keyboard SEM-DT35S 3V019197 SAMSUNG DoC E PS/2 Mouse M-S48a LZA95254368 SAMSUNG DoC Port Description Connect Cable Length [m] Shielded [Y/N] Remark 1 Power 1.5 No to the Mains 2 Ant in (air) 1.5 Yes Termination 3 Ant in (cable) 1.5 Yes Termination 4 Composite in 1.5 No Termination 5 S-video in 1.5 No Termination 6 Audio in 1.5 No Termination 7 Component 1 in 1.5 No Termination 8 Component 2 in 1.5 No Termination 9 HDMI in 1.5 No Termination 10 DVI audio in 1.5 No Termination 11 PC video in 1.5 No To the PC 12 Audio out 1.5 No Termination Page : 5 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 6 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Applied Standards Test Procedure FCC Part15 Subpart B ANSI C63.4: 2003 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1, 16-2. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Emission ±5.09 Conducted Emission ±1.64 (According to NAMAS Pub.NIS81) Page : 7 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B Complied Page : 8 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 3. Description of Individual Tests 3.1 Conducted Emission Test Information Test Engineer Tae Young, Jang Test Date April 27, 2005 Climate Condition Ambient Temperature : 20.5°C R…

Text truncated - open the document above for the full version.

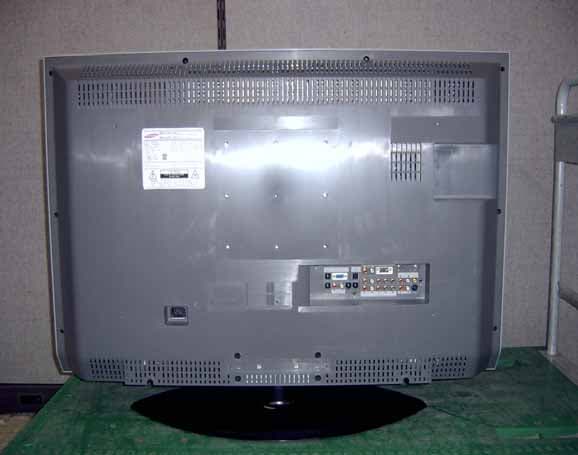

Page : 12 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission Picture 2. Radiated Emission (front view) Page : 13 of 14 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050937 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (rear view)
