A3LSONYZEUSDVD Player/ Video Cassette Recorder

filename[GB01COV-US.fm] model name1[SLV-D560P] model name2 [SLV-D360P] [2-584-679-11 (1) US] filename[C:\2584679111SLVD560PUS\GB01COV-US.fm] 2-584-679-11 (1) US DVD Player/ Video Cassette Recorder Operating Instructions For customers in the USA If you have any questions about your Sony DVD-VCR, you may call Sony Customer Information Services Company at 1-800-VHS-SONY (847-7669). For all other Sony product questions, please call Sony Customer Information Services Company at 1-800-222-SONY (7669). Or write to: Sony Customer Information Services Company 12451 Gateway Boulevard Ft. Myers, FL 33913 For Customers in Canada If this product is not working properly, please call 1-877-602-2008 for Peace of Mind Warranty Replacement service. For other product related questions please contact our Customer Information Service Center at 1-877-899-7669 or write to us at: Customer Information Service 115 Gordon Baker Road, Toronto, Ontario, M2H 3R6 SLV-D560P SLV-D360P © 2005 Sony Corporation GB03COV-US.book Page 1 Friday, November 12, 2004 6:03 PM filename[GB02WAR-US.fm] model name1[SLV-D560P] model name2 [SLV-D360P] [2-584-679-11 (1) US] 2WARNING filename[C:\2584679111SLVD560PUS\GB02WAR-US.fm] WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. USE OF ANY CONTROLS, ADJUSTMENTS, OR PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. CAUTION TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. For customers in the U.S.A Owner’s Record The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. ______________ Serial No.______________ CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. Welcome! Thank you for purchasing this Sony DVD Player/Video Cassette Recorder. Before operating this player, please read this manual thoroughly and retain it for future reference. General Precautions • Operate the unit only on 120 V AC, 60 Hz. • This unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off. • Unplug the unit from the wall outlet if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord. • If the unit is brought directly from a cold to a warm location, moisture may condense inside the unit and cause damage to the video head and tape. When you first install the unit, or when you move it from a cold to a warm location, wait for about three hours before operating the unit. • Do not install the unit in a confined space such as a bookshelf or similar unit. • Do not install the unit in an inclined position. It is designed to be operated in a horizontal position only. • Keep the unit and cassettes away from equipment with strong magnets, such as microwave ovens or large loudspeakers. • Do not place heavy objects on the unit. GB03COV-US.book Page 2 Friday, November 12, 2004 6:03 PM 3Important Safety Instructions filename[GB02WAR-US.fm] model name1[SLV-D560P] model name2 [SLV-D360P] [2-584-679-11 (1) US] filename[C:\2584679111SLVD560PUS\GB02WAR-US.fm] Important Safety Instructions 1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the pr…

Text truncated - open the document above for the full version.

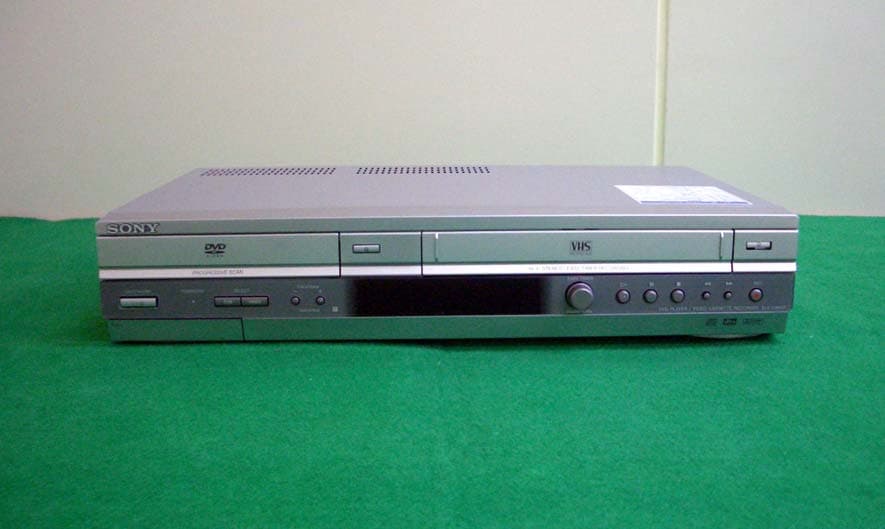

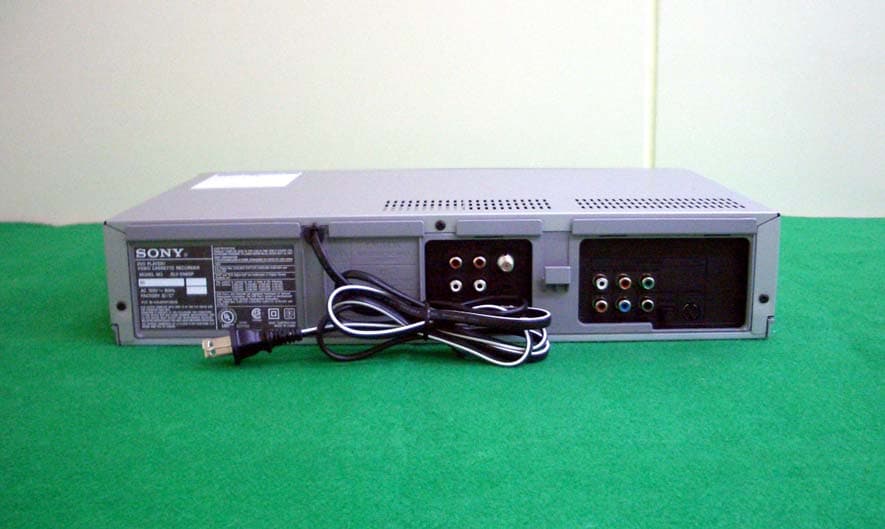

Photograph of SLV-D560P FCC ID : A3LSONYZEUS Fro nt View Rear View

Labeling requirement FCC IDENTIFICATION Location: on the label rating FCC ID:A3LSONYZEUS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND THE CANADIAN ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

Photograph of SLV-D560P - FCC ID : A3LSONYZEUS Front View – Front/Top cover open Top View – Top cover open Photograph of SLV-D560P - FCC ID : A3LSONYZEUS Top of Main PCB View Bottom of Main PCB View Photograph of SLV-D560P - FCC ID : A3LSONYZEUS Top of DVD PCB View Bottom of Main PCB View Photograph of TM-BLOCK TM-BLOCK TYPE: VHA35ASE To p V i e w Bottom View Labeling requirement FCC IDENTIFICATION Location: on the label rating FCC ID:A3LSONYZEUS THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND THE CANADIAN ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

“” “” ““ ’

Page : 1 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE042320 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name DVD Player / Video Cassette Recorder Model Name SLV-D560P Manufacturer SAMSUNG Brand Name SONY Broadcasting System NTSC-M Variant Model See Page 3 Date of Test December 06 ~ 14, 2004 Issued Date December 20, 2004 Name/Position Signature Tested by Seung Beom, Choi Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 3.3 Output Signal Level 3.4 Output Terminal Conducted Spurious Emission 3.5 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd Model name SLV-D560P Applicant Address 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Contact Person Woo Sung, Cho Kind of product DVD Player / Video Cassette Recorder Valiant list None Manufacturer Samsung Electronics Co. Ltd 1.2 Detail Information related Product Specification Page : 4 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page : 5 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The EUT was tested in the following operating mode(at both channel 3 and 4) for the tests mention in this report : 1) DVD Play In this test mode, a DVD recorded with NTSC signal was played on the EUT. 2) VCR Recording ( NTSC Signal ) A NTSC signal was supplied at ch.5(77.25MHz) through the RF input connector 3) VCR Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) VCR Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 5) VCR Play In this test mode, a video tape recorded with VITS signal was played on the EUT. Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Equipment Modifications No equipment modifications were required. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A DVD Player / Video Cassette Recorder SLV-D560P - SONY EUT B Remote Controller RMT-V501D - SONY EUT Page : 6 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Used Cable Description Connect Cable Length [m] Shielded [Y/N]Remark 1 AC Power 1.5 N to the mains 2 Line In 1 1.2 N Terminated video : 75 ohm Audio In : 1k ohm 3 Line In 2 1.2 N Terminated video : 75 ohm Audio In : 1k ohm 4 Line Out 1.2 N Terminated video : 75 ohm Audio In : 10k ohm 5 Component Out 1.2 N Terminated video : 75 ohm 6 Line Out 1.2 N Terminated audio : 10k ohm 7 Coaxial 1.2 N Terminated audio : 10k ohm 8 RF In 1.2 Y 75 ohm Terminated 9 RF Out 1.2 Y 75 ohm Terminated 10 S-Video 1.5 N Terminated Page : 7 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram A B 3 248965710 Page : 8 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Applied Standards Test Procedure FCC Part15 Subpart B ANSI C 63.4 : 2003 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1, 16-2. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Emission 5.09 Conducted Emission 1.64 (According to NAMAS Pub.NIS81) Page : 9 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not…

Text truncated - open the document above for the full version.

Page : 45 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (rear view) Picture 2. Radiated Emission (front view) Page : 46 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (rear view) Picture 4. Output Signal Level Page : 47 of 49 Samsung EMC Testing and Certification Laboratory Project NO. :LBE042320 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Output Terminal Conducted Spurious Emission Picture 6. Ant. Transfer Switch
