A3LSP20MPPLaser Beam Printer

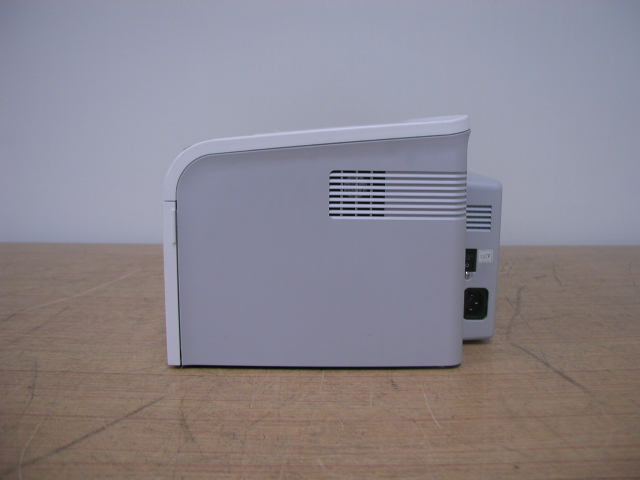

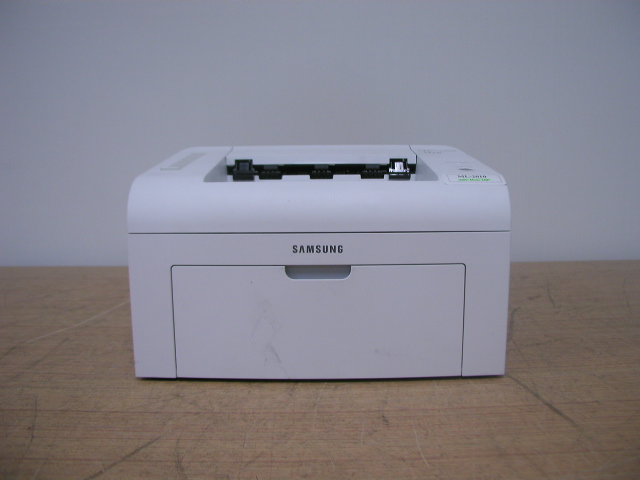

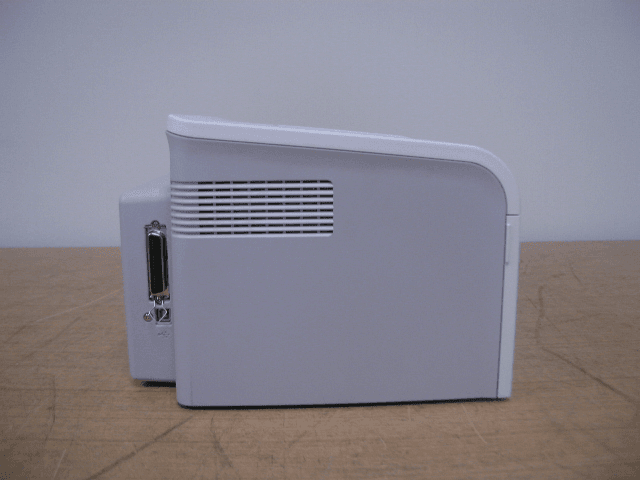

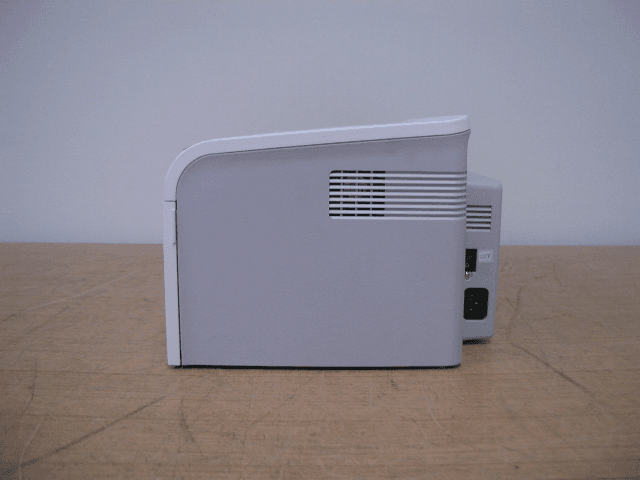

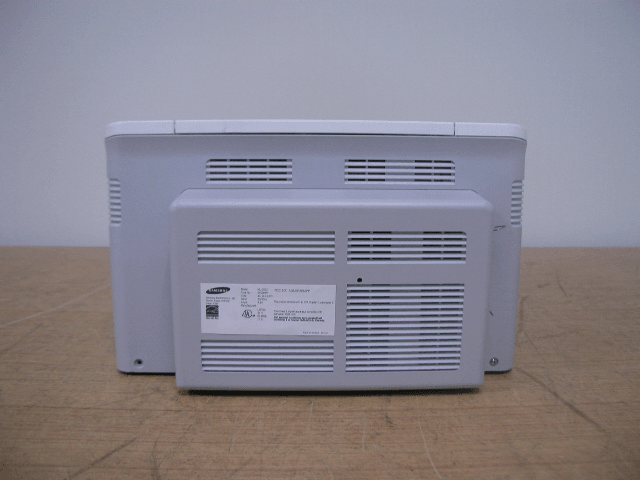

1.ExternalPictures 1)FrontView 2)RearView 3)SideView1 4)SideView2

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) 21 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 9. Label of Samsung Electronics Co., Ltd. (SP20MPP / SP20MPU) 22 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 10. Label of Shandong Samsung Telecommunications Co., Ltd. (SP20MPP / SP20MPU / Phaser 3122) 23 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 11. Label of Intops(Weihai) Electronics Co., Ltd. (SP20MPP / SP20MPU / Phaser 3122) 24 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 12. Label of Weihai Shin Heung Digital Electronics Co. (SP20MPP / SP20MPU / Phaser 3122)

1 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE050711 Equipment under Test Applicant Samsung Electronics Co., Ltd. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 FCC ID A3LSP20MPP Product Name Laser Beam Printer Model Name SP20MPP Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyongsandbuk-Do, 730-030 KOREA 2) Shandong Samsung Telecommunications Co., Ltd. #264209, Samsung Road, Weihai Hi-tech IDZ Shandong Province CHINA 3) Intops(Weihai) Electronics Co., Ltd. 3, Huoju Road, Weihai Hi-tech IDZ Shandong Province CHINA 4) Weihai Shin Heung Digital Electronics Co. 98, Samsung Road, Weihai Hi-tech Industry Development Zone, Shandong Province CHINA Date of Test April 1, 2005 Issued Date April 12, 2005 Name/Position Signature Tested by Kyeong Dong, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC filing Registration Number : 873282 NVLAP LAB CODE 200623-0 2 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name SP20MPP Applicant Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Kyeong Dong, Kim Kind of product Laser Beam Printer Variant list SP20MPP (Brand : Samsung) : Basic Model SP20MPU (Brand : Samsung) : Only USB Port Phaser 3122 (Brand : Xerox ) : same as SP20MPP except for Model No. Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyongsandbuk-Do, 730-030 KOREA 2) Shandong Samsung Telecommunications Co., Ltd. #264209, Samsung Road, Weihai Hi-tech IDZ Shandong Province CHINA 3) Intops(Weihai) Electronics Co., Ltd. 3, Huoju Road, Weihai Hi-tech IDZ Shandong Province CHINA 4) Weihai Shin Heung Digital Electronics Co. 98, Samsung Road, Weihai Hi-tech Industry Development Zone, Shandong Province CHINA New / Alternative / Permissive change Information New 4 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.2 Detail Information related Product Specification Item Specification Remark Print Speed Up to 20PPM (A4), Up to 22PPM(Letter) - Printing Resolution Up to 1200 x 600 dpi - Memory 8MB(Nonexpendable) - Toner Cartridge Life 2000 pages (for starter, 1000 pages) @ IDC 5% coverage - Interface IEEE1284 1Port, USB1.1 1Port - Power Consumption AC 100~127V(USA, Canada), 50/60Hz, 4.5A - Weight 5.8 Kg External Dimensions 358mm X 299mm X 217mm (W X D X H) - Operating Frequency System Clock : 75MHz Main Clock : 12MHz V / USB Clock : 48MHz VDO Frequency : 80MHz 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. Host PC link to EUT and transfer print file formation "H" character document continuously. This Printer is supporting the IEEE1284 and USB printing mode. In each test mode, finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the data of the maximum EUT operation, USB printing was reported. 5 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.4 Test System Details Refer to 1.2 1.5 Equipment Modifications No equipment modifications were required. 6 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Disturbance Voltage at Mains The EUT was placed on a platform nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30cm to 40cm long and were handed at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety)lead, were individua…

Text truncated - open the document above for the full version.

17 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) 18 of 24 Samsung EMC Testing and Certification Laboratory Project No: LBE050711 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
