A3LSPHA780Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jun 14, 2004
Application Purpose: Original Equipment
Date of Application: Jun 14, 2004
Equipment Note: Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPH - a780 Draf t (31-Ma y-2004) PCS Service www.sprintpcs.com Copyright © 2004 Sprint Spectrum L.P. All rights reserved. No reproduction in whole or in part allowed without prior written approval. Sprint, the diamond logo and all other trademarks listed herein are registered trade marks of Sprint Communications Company, L.P., used under license. Printed in South Korea WJ10.06_LMAA760_010804F5 1 Table of Contents How to Use This Guide ......................................................... i Getting Advanced Phone and Service Information ...........ii Getting Started...................................................................... 1 Basics of Your PCS Phone ................................................ 15 Your New PCS Phone ........................................................................... 16 Open View............................................................................................................ 16 Your Phone’s Features ....................................................................................... 17 Closed View.......................................................................................................... 19 Viewing the Display Screen ............................................................................... 20 Turning Your Phone On and Off ......................................................... 22 Turning Your Phone ON................................................................................... 22 Turning Your Phone OFF ................................................................................. 22 Setting the Language ........................................................................................... 22 Using the Battery and Charger ............................................................ 23 Installing and Removing the Battery ................................................................ 23 Charging the Battery ........................................................................................... 24 Making and Answering Calls ............................................................... 25 Making Calls ......................................................................................................... 25 Answering Calls ................................................................................................... 25 Signal Strength ..................................................................................................... 25 Controlling Your Roaming Experience ............................................... 26 Setting Your Phone’s Roam Mode ................................................................... 26 Call Guard............................................................................................................. 27 Internal Phone Book ............................................................................. 28 Saving Phone Numbers ...................................................................................... 28 Finding Phone Numbers .................................................................................... 30 Changing Your Phone’s Settings ........................................................ 31 Airplane Mode ..................................................................................................... 31 Changing the Greeting........................................................................................ 32 Adjusting the Ringer and Key Beep Volume .................................................. 32 Adjusting Volume During a Conversation ...................................................... 32 TTY Use With PCS Service From Sprint ........................................................ 33 2 Messages ...............................................................................................34 Receiving Voicemail Messages ......................................................................... 34 Reading Messages ............................................................................................... 34 Writing Messages ................................................................................................ 35 Camera ...................................................................................................37 Taking a Photo .................................................................................................... 37 Viewing a Photo.................................................................................................. 37 Recording a Video .............................................................................................. 38 Viewing a Video .................................................................................................. 38 PCS Service Features ...........................................................................39 Call Waiting ......................................................................................................... 39 Call Forwarding................................................................................................... 39 Three-Way Calling .............................................................................................. 40 PCS Voice CommandSM .................................................................................. 41 PCS VisionSM ........................................................................................42 Getting Started With PCS Vision..................................................................... 42 PCS Vision Services ........................................................................................... 43 Accessing PCS Vision Services......................................................................... 44 PCS Vision Symbols on Your Screen.............................................................. 44 PCS Vision Billing Information........................................................................ 44 Downloading Content With PCS Vision ...............…

Text truncated - open the document above for the full version.

Attestation Statements

May 25, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHA780 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America May 25, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHA780), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned.

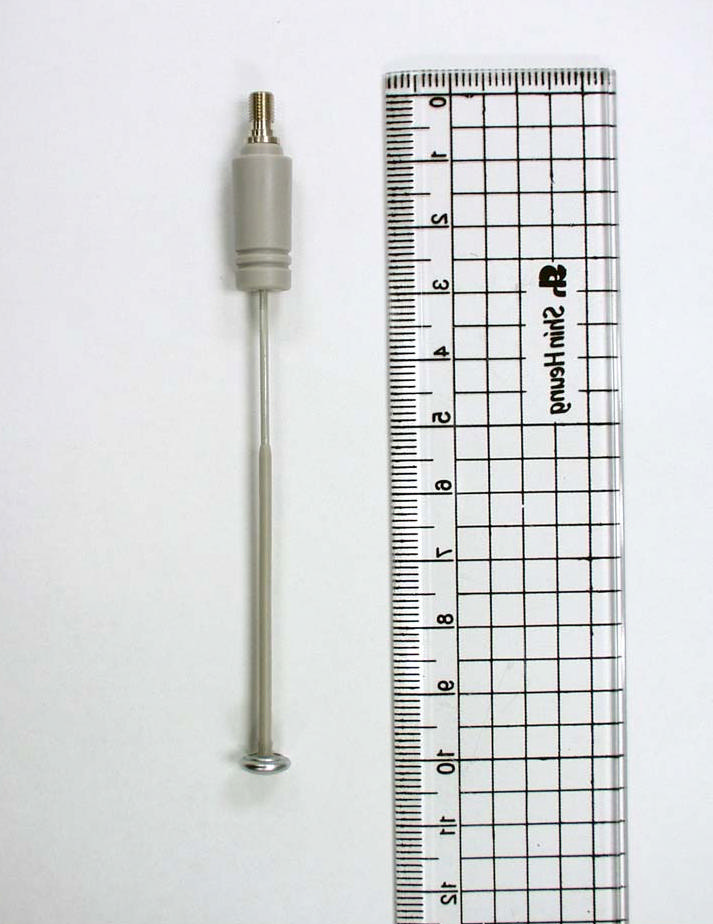

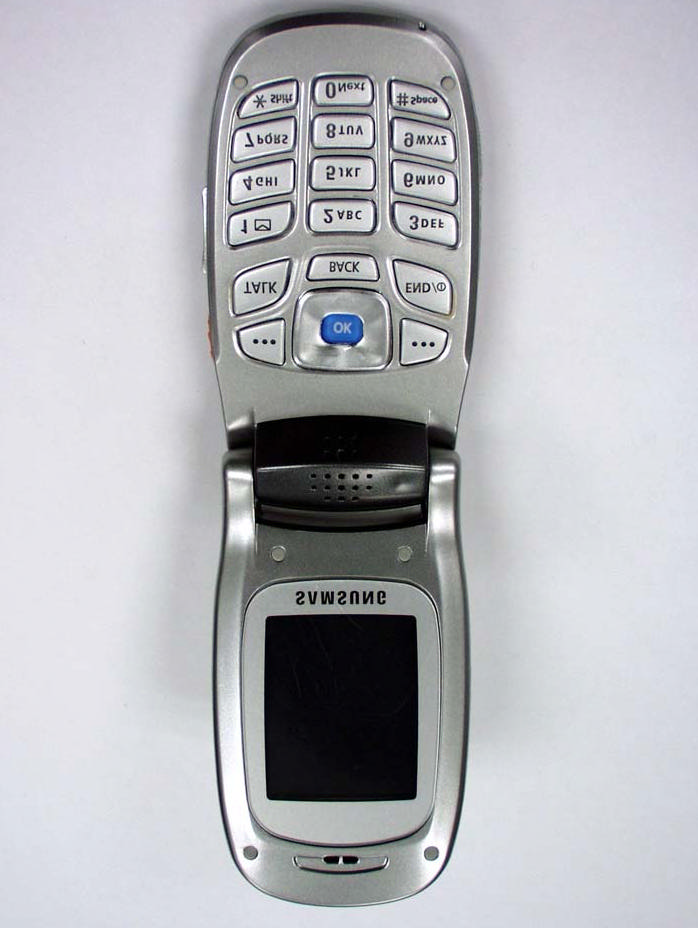

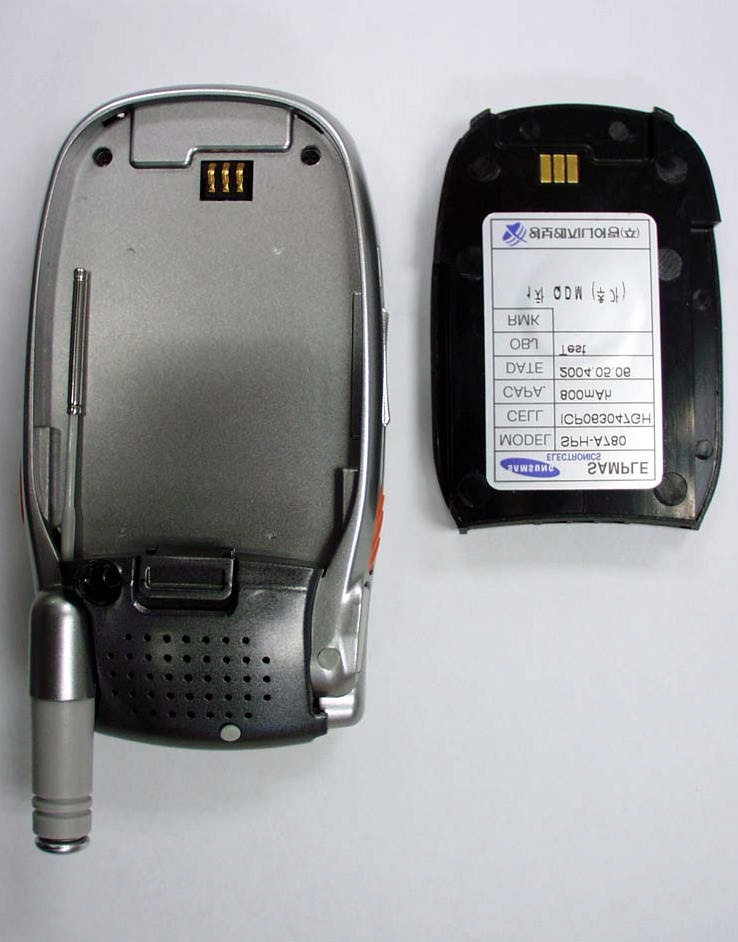

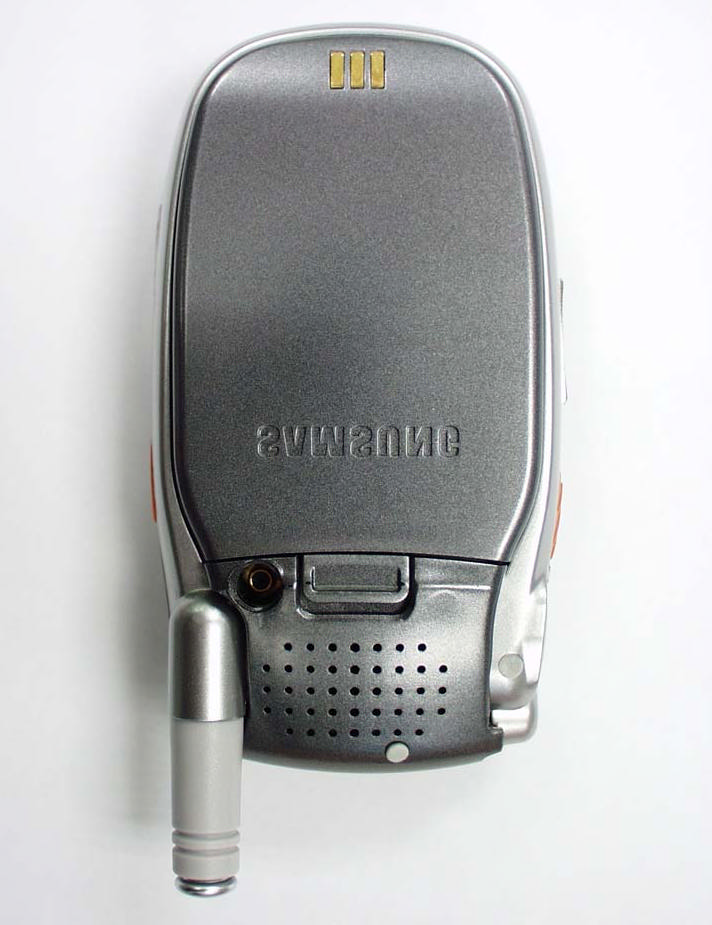

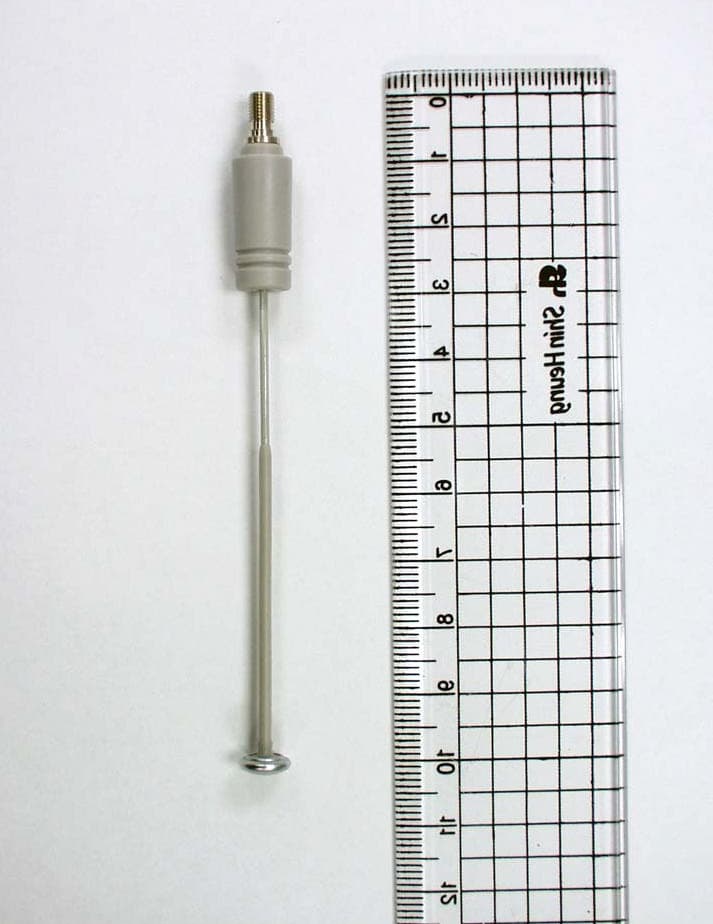

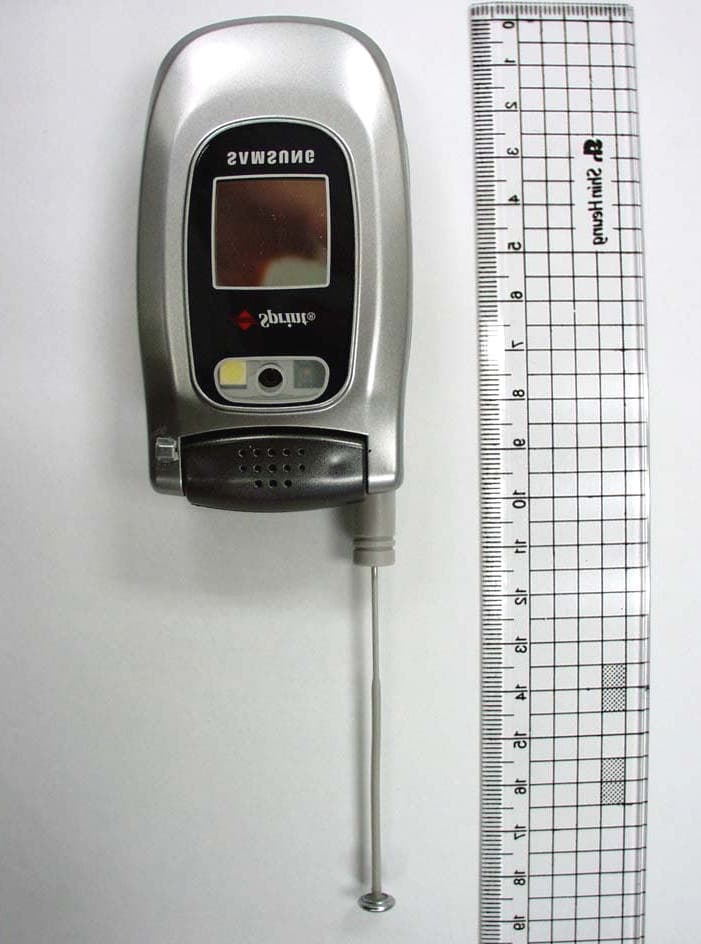

External Photos

Internal Photos

RF Exposure Info

© 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA) © 2004 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHA780 Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA)

Test Report

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3Dong, Youngtong-Gu, Suwon-city, Gyeonggi-Do, Korea 442-600 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SPH-A780 FCC ID (Requested): A3LSPHA780 Report No: FB-027-R1 Job No: FB-027 Date issued: May 28, 2004 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part22, Part24. Prepared By Date SS LEE – Test Engineer Checked By Date JH CHOI - Engineer Authorized By Date JK CHOI – Senior Manager © Copyright SAMSUNG Electronics 2004 Report Number : FB-027-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Effective Radiated Power/Equivalent Isotropic Radiated Power 7 5.2 Radiated Spurious & Harmonic Emission 8 5.3 Occupied Bandwidth 10 5.4 Spurious and Harmonic Emissions at Antenna Terminal 10 5.4.1 Occupied Bandwidth Emission Limits 10 5.4.2 Conducted Spurious Emission 11 5.5 Frequency Stability / Temperature Variation 12 6. TEST DATA 13 6.1 Effective Radiated Power(E.R.P.) 13 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.3 Cellular CDMA Radiated Spurious & Harmonic Measurement 15 6.4 PCS CDMA Radiated Spurious & Harmonic Measurement 16 6.5 CDMA Radiated Spurious & Harmonic Conversion Table 17 6.6 PCS Radiated Spurious & Harmonic Conversion Table 18 6.7 Frequency Stability 19 6.7.1 CDMA Frequency Stability Table 19 6.7.2 PCS Frequency Stability Table 20 6.7.3 CDMA Frequency Stability Graph 21 6.7.4 PCS Frequency Stability Graph 23 7.SAMPLE CALCULATION 25 7.1 Emission Designator 8. CONCLUSION 26 9. TEST PLOTS 27 Report Number : FB-027-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Rart2, Subpart J, Sections 2.1033 – 2.1055. 2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416, Maetan-3Dong, Youngtong-Gu, Suwon City Gyeonggi-Do, KOREA 442-600 Attention: FCC ID: Wallace Oh, Engineering Manager (QA Lab) A3LSPHA780 Quantity: Quantity production is planned Emission Designators: 40K0F8W, 40K0F1D (AMPS), 1M25F9W Tx Freq. Range: 824.04-848.97MHz (AMPS) 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.04-893.97 MHz (AMPS) 869.70-893.31 MHz (CDMA) 1931.25-1988.75 MHz (PCS CDMA) Max. Power Rating: 0.389W ERP AMPS( 25.90 dBm) 0.344W ERP CDMA( 25.37 dBm) 0.262W EIRP PCS CDMA ( 24.18 dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Tri-Mode Dual-Band Analog/PCS Phone Modulation(s): AMPS/CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 24(E), 22(H), 2. Dates of Test: May 21, 27~28,2004 Place of Test: SAMSUNG Lab, Test Report S/N: FB-027-R1 Report Number : FB-027-R1 2. INTRODUCTION General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416,Maetan-3Dong, Youngtong-Gu, Suwon City, Gyeonggi-Do, KOREA 442- 600 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FB-027-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FB-027-R1 4. TEST EQUIPMENT LIST Name of Equipment Model Serial No. Due Date ESI26 836119/010 2004-09-15 E4440A(3Hz~26.5GHz) MY41000236 2004-11-07 Spectrum Analyzer E4440A(3Hz~26.5GHz) MY41000233 2004-11-14 SMIQ03B 83824/021 2005-01-15 Signal Generator SMR20 835197/030 2005-01-15 Power Meter E4419B GB41293846 2004-10-02 8481B 3318A10325 2004-10-06 Power Sensor 8485A 3318A19924 2004-10-04 Amplifier 5S1G4 304866 2004-11-17 Pre-Amplifier 8449B 3008A00691 2005-01-16 8960 GB42230535 2004-11-17 Communication test set 8960 GB42360886 2004-11-10 Antenna Master MA0001 ANT0967 Not Required Controller HD100 100/756 Not Required PL-4S 13005454 2004-08-22 SH-241 92000548 2004-12-04 Environmental Chamber SH-241 92000549 2004-12-04 Horn Antenna HF906 360306/011 2005-03-11 Dipole Antenna 3121C-DB4 9007-587 2004-10-21 Receive Antenna HL040 353255/019 2004-07-14 8494A 3308A31997 2005-01-17 Attenuator 8496A 3308A14426 2005-01-17 4278-311-2 B3679637 2005-01-14 Directional Coupler 4278-111-2 B103DC8722 2005-01-14 WHK1.0/15G-10SS 1 Not Required WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 3 Not Required High Pass Filter WHK/3.5/18G-10SS 4 Not Required Shielded Semi-Anechoic Chamber RF0002 ANT0001 Not Required Report Number : FB-027-R1 5. DESCRIPTION OF TESTS 5.1 Effective Radiated Power / Equivalent Isotropic Radiated Power Test Set-up for the ERP/EIRP T…

Text truncated - open the document above for the full version.

Test Report

PCTEST PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 22/24.240601331.A3L Test Dates: June 11, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA780 Page 1 of 6 © 2004 PCTEST ENGINEERING LABORATORY, INC. 1.1 Test Data 1.2 Effective Radiated Power Output A. POWER: Low (Analog Mode) Freq. Tuned REF. LEVEL POLERPERP (MHz)(dBm)(H/V)(W)(dBm) 824.04-35.450H0.0045.823 836.49-35.530H0.0045.899 848.97-35.900H0.0045.685 B. POWER: High (Analog Mode) Freq. Tuned REF. LEVEL POLERPERPBATTERY (MHz)(dBm)(H/V)(W)(dBm) 824.04-15.450H0.38225.823Standard 836.49-15.530H0.38925.899Standard 848.97-15.900H0.37025.685Standard Note: Standard batteries are options for this phone NOTES: Effective Radiated Power Output Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3 MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1 MHz. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. The conducted power at the terminals of the dipole is measured. The ERP is recorded. PCTEST PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 22/24.240601331.A3L Test Dates: June 11, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA780 Page 2 of 6 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data 2.2 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 824.04MHz CHANNEL: 0991 (Low) MEASURED OUTPUT POWER: 25.899 dBm =0.389W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.90 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz)TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1648.08-44.486.10-38.38V 2472.12-52.086.70-45.38V 3296.16-45.986.80-39.18V 4120.20-50.486.50-43.98V 4944.24-57.787.00-50.78V NOTES: 76.7 69.9 65.1 71.3 64.3 (dBc) Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3 MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1 MHz. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. PCTEST PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 22/24.240601331.A3L Test Dates: June 11, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA780 Page 3 of 6 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data (Continued) 2.3 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 836.49MHz CHANNEL: 0383 (Mid) MEASURED OUTPUT POWER: 25.899 dBm =0.389W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.90 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz)TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1672.98-47.186.10-41.08V 2509.47-43.286.70-36.58V 3345.96-43.386.80-36.58V 4182.45-58.586.50-52.08V 5018.94-57.387.00-50.38V NOTES: 76.3 78.0 62.5 62.5 67.0 (dBc) Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive spectrum analyzer. For CDMA signals, a peak detector is used, with RBW = VBW = 3 MHz. For AMPS, GSM, and NADC TDMA signals, a peak detector is used, with RBW = VBW = 1 MHz. A half-wave dipole was substituted in place of the EUT. This dipole antenna was driven by a signal generator and the level of the signal generator was adjusted to obtain the same receive spectrum analyzer reading. This spurious level is recorded. For readings above 1GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic or dipole antenna are taken into consideration. PCTEST PT. 22/24 SUPPLEMENT FCC MEASUREMENT SUPPLEMENT Reviewed By: Quality Manager Test Report S/N: 22/24.240601331.A3L Test Dates: June 11, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHA780 Page 4 of 6 © 2004 PCTEST ENGINEERING LABORATORY, INC. 2.1 Test Data (Continued) 2.4 AMPS Radiated Measurements Field Strength of SPURIOUS Radiation OPERATING FREQUENCY: 848.97MHz CHANNEL: 0799 (High) MEASURED OUTPUT POWER: 25.899 dBm =0.389W MODULATION SIGNAL: FM (Internal) DISTANCE: 3meters LIMIT: 43 + 10 log 10 (W) = 38.90 dBc FREQ. LEVEL @ ANTENNA SUBSTITUTE ANTENNA CORRECT GENERATOR POL (MHz)TERMINALS (dBm) GAIN (dBd) LEVEL (dBm) (H/V) 1697.94-49.186.10-43.08V 2546.91-44.186.70-37.48V 3395.88-43.986.80-37.18V 4244.85-60.486.50-53.98V 5093.82-57.487.00-50.48V NOTES: 76.4 79.9 63.1 63.4 69.0 (dBc) Radiated Spurious Emission Measurements by Substitution Method according to ANSI/TIA/EIA-603-A-2001, Aug. 15, 2001: The EUT was placed on a wooden turn table 3-meters from the receive antenna. The receive antenna height and turntable rotation was adjusted for the highest reading on the receive sp…

Text truncated - open the document above for the full version.

Test Report

© 2004 PCTEST Lab SAMSUNG FCC ID: A3LSPHA780 © 2004 PCTEST Lab SAMSUNG FCC ID: A3LSPHA780 © 2004 PCTEST Lab SAMSUNG FCC ID: A3LSPHA780 © 2004 PCTEST Lab SAMSUNG FCC ID: A3LSPHA780 © 2004 PCTEST Lab SAMSUNG FCC ID: A3LSPHA780

Test Setup Photos

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Test Firm

SAMSUNG ELECTRONICS CO., LTD.No Cheon Park

[email protected]82-31-200-2185Fax: 82-31-200-2189

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	262.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is based on a separation distance of 2.0 cm between the back of the unit and the body of the user. Push-to-Talk PTT operating configuration is based on a separation distance of 2.5 cm from the front of the unit and the face of the user. End-users must be informed of the operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values under this FCC ID: are Part 22)- Head: 0.656 W/kg: Body-worn: 1.25 W/kg, (Part 24)- Head: 1.08 W/kg; Body-worn: 0.812 W/kg.
