A3LSPHI325Cellular/ PCS CDMA Phone with Bluetooth

SPH-i325 Quick Reference Please read this manual before operating the phone, and keep it for future reference. SPH-i325 Quick Reference.doc 1/28 Contents Safety Precautions.............................................................................................3 Introduction to SPH-i325....................................................................................6 Layout.............................................................................................................8 The Basics...................................................................................................... 10 Phone Calls.................................................................................................... 15 Another Applications........................................................................................ 19 Settings......................................................................................................... 23 Synchronizing Information................................................................................ 26 For More Information....................................................................................... 28 SPH-i325 Quick Reference.doc 2/28 Safety Precautions Compliance with Safety Standards The Samsung Cellular phone meets all standards and recommendations for the protection of the public from exposure to radio frequency (RF) electromagnetic energy established by governmental bodies and other qualified organizations. To reduce the risk of fire, electric shock, serious personal injury, or property damage, please follow these guidelines: Driving Using a wireless phone while driving is illegal in some states and countries. Know the laws and regulations for your area, and pull off the road and park if you need to make a call. If you must use the phone while driving, purchase and install the optional Hands-Free Car Kit. Electronic Devices Your wireless telephone is a radio transmitter and receiver. When the power is on, the phone receives and sends out RF energy. Most modern electronic equipment, such as equipment and cars, contains an RF signal shield. RF energy may affect some inadequately shielded electronic equipment. Turn off tour phone in health care facilities, and always request pacemakers and hearing aids, to determine if they are shielded adequately from external RF signals. Note if there are any regulations posted in area regarding the operation of wireless phones, and learn where you can use them safely within facility. Aircraft Turn off your phone before boarding any aircraft. The Federal Aviation Administration (FAA) requires that you have prior permission from the crew to use your phone while the plane is on the ground. FCC regulations prohibit using your phone is in the air. Do not use your phone at any time while traveling on board a plane. SPH-i325 Quick Reference.doc 3/28 Blasting Areas Construction crews often use remote-control RF devices to set off explosives. To avoid interfering with blasting operation, turn off your phone when you are in a blasting area or in any area with signs posted as "Turn off two-way radio." Other Dangerous Areas Turn off your phone in any area with a potentially explosive atmosphere. It is rare, but your phone or its accessories could generate sparks, which could explosion or fire. * Fueling areas, such as gas stations * Below deck on boats * Furl or chemical transfer or storage facilities * Areas where the air contain chemicals or particles such as grain, dust, or metal powders * Any other area where you would normally be advised to turn off your vehicle engine Do not transport or store flammable gas, liquid, or explosives in the compartment of a vehicle containing your or accessories. Certification Information (SAR) Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the exposure limits for radio frequency (RF) energy set by the Federal Communications Commission(FCC) of the U.S. government. These FCC exposure limits are derived from the recommendations of two expert organizations, the National Counsel on Radiation Protection and Measurement (NCRP) and the Institute of Electrical and Electronics Engineers (IEEE). In both cases, the recommendations were developed by scientific and engineering experts drawn from industry, government, and academia after extensive reviews of the scientific literature related to the biological effects of RF energy. The exposure limit set by the FCC for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate (SAR). The SAR is a measure of the rate of absorption of RF energy by the human body expressed in units of watts per kilogram (W/kg). The FCC requires wireless phones to comply with a safety limit of 1.6 watts per kilogram (1.6W/kg). The FCC exposure limit incorporates a substantial margin of safety to give additional protection to the public and to account SPH-i325 Quick Reference.doc 4/28 for any variations in measurements. SAR tests are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a new model phone is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the exposure limit established by the FCC. Tests for each model phone are performed in positions and locations (e.g. at the ear and worn on the body) as required by the FCC. The highest SAR values for this model phone as reported to the FCC are : CDMA Mode Head: 1.00 W/Kg, Body-worn…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: October 11, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSPHI325 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

㦤ᷱ䞌G SPH-I325 [W Y\ 㙼␴ἰ no]_T 䔨⫠䘸⦐䙸⥀O{aWUXZP wwRvww A3LSPHI325 XT___TYXXT[wjz zwoTZY\ A3LSPHI325 XT___TYXXT[wjz zwoTZY\

of 33 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SPH-i325 FCC ID (Requested): A3LSPHI325 Job No: FE-191 Report No: FE-191-S1 Date issued: Oct.23, 2007 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By YB KIM - Test Engineer Authorized By JH NAM - Technical Manager Report Number: FE-191-S1 2 of 33 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 19 7.1 Tissue Verification ................................................................................................................ 19 7.2 Test System Validation ......................................................................................................... 19 8. SAR MEASUREMENT RESULTS ................................................................................................ 20 8.1 Measurement Results(CDMA Right Head SAR - Touch) ..................................................... 22 8.2 Measurement Results(CDMA Right Head SAR - Tilt) .......................................................... 23 8.3 Measurement Results(CDMA Left Head SAR - Touch) ....................................................... 24 8.4 Measurement Results(CDMA Left Head SAR - Tilt) ............................................................ 25 8.5 Measurement Results(CDMA Body SAR without Holster)................................................... 26 8.6 Measurement Results(PCS Right Head SAR - Touch) ........................................................ 27 8.7 Measurement Results(PCS Right Head SAR - Tilt) ............................................................. 28 8.8 Measurement Results(PCS Left Head SAR - Touch) .......................................................... 29 8.9 Measurement Results(PCS Left Head SAR - Tilt) ............................................................... 30 8.10 Measurement Results(PCS Body SAR without Holster).................................................... 31 9. CONCLUSION .............................................................................................................................. 32 10. REFERENCES ............................................................................................................................ 33 Report Number: FE-191-S1 3 of 33 1. GENERAL INFORMATION Test Sample : Dual-Band CDMA Phone with Bluetooth Model Number : SPH-i325 Serial Number : Identical prototype (S/N : # FE-191-C) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : YI KIM Phone : +82-31-301-8672 Fax : +82-31-279-5515 Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Oct.05, 2007 ~ Oct.08, 2007 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 824.70 ~ 848.31 MHz (CDMA) 1851.25 ~ 1908.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 869.70 ~ 893.31 MHz (CDMA) 1931.25 ~ 1988.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Antenna Manufacturer : Ethertronics Model No.: KR62007 Antenna Dimensions : 52.2mm × 9.84mm × 5.85mm Ev-DO Support (Revision 0) CDMA 2000 1x Support Report Number: FE-191-S1 4 of 33 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 (or DASY5) automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near-…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 443-742 FCC CFR47 PART 22 & 24 SUBPART CERTIFICATION REPORT Model Tested: SPH-i325 FCC ID (Requested): A3LSPHI325 Report No: FE-191-R1 Job No: FE-191 Date issued: October 23, 2007 - Abstract – All measurement reported here in accordance with FCC Rules, 47CFR Part2, Part22, Part24 Prepared By SH ONG - Test Engineer Authorized By WW JANG - Technical Manager Report Number : FE-191-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information .......................................................................................3 1.1 §2.1033 General Information ...................................................................................3 2. INTRODUCTION .............................................................................................................4 2.1 General ....................................................................................................................4 3. MEASURING INSTRUMENT CALIBRATION .................................................................5 4. TEST EQUIPMENT LIST.................................................................................................6 5. DESCRIPTION OF TESTS..............................................................................................7 5.1 Output Power Variation ............................................................................................7 5.2 Effective Radiated Power / Equivalent Isotropic Radiated Power ............................8 5.3 Radiated Spurious & Harmonic Emission ................................................................9 5.4 Occupied Bandwidth .............................................................................................. 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal ........................................ 11 5.5.1 Occupied Bandwidth Emission Limits ........................................................... 11 5.5.2 Conducted Spurious Emission ......................................................................12 5.6 Frequency Stability / Temperature Variation...........................................................13 6. TEST DATA ...................................................................................................................14 6.1 Effective Radiated Power(E.R.P.) ..........................................................................14 6.2 Equivalent Isotropic Radiated Power(E.I.R.P.) .......................................................15 6.3 Cellular CDMA Radiated Spurious & Harmonic measurement...............................15 6.4 PCS CDMA Radiated Spurious & Harmonic measurement ...................................16 6.5 CDMA Radiated Spurious & Harmonic Conversion Table ......................................18 6.6 PCS Radiated Spurious & Harmonic Conversion Table .........................................19 6.7 Frequency Stability.................................................................................................20 6.7.1 CDMA Frequency Stability Table ...................................................................20 6.7.2 PCS Frequency Stability Table ......................................................................21 6.7.3 CDMA Frequency Stability Graph .................................................................22 6.7.4 PCS Frequency Stability Graph ....................................................................24 7. SAMPLE CALCULATION .............................................................................................26 7.1 Emission Designator ..............................................................................................26 8. CONCLUSION...............................................................................................................27 9. TEST PLOTS.................................................................................................................28 Report Number : FE-191-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information Applicant Name: SAMSUNG ELECRONICS CO., LTD. Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 Attention: FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSPHI325 Quantity: Quantity production is planned Emission Designators: 1M28F9W(CDMA), 1M27F9W(PCS CDMA) Tx Freq. Range: 824.70-848.31MHz (CDMA) 1851.25-1908.75MHz (PCS CDMA) Rx Freq. Range: 869.70-893.31MHz (CDMA) 1931.25-1988.75MHz (PCS CDMA) Max. Power Rating: 0.382 W ERP CDMA (25.82dBm) 0.532 W EIRP PCS (27.26dBm) FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) Equipment (EUT) Type: Dual-Band CDMA Phone with Bluetooth Modulation(s): CDMA Frequency Tolerance: 0.00025% (2.5ppm) FCC Rule Part(s): 2. Dates of Test: October 02 - 03 & 22, 2007 Place of Test: SAMSUNG Lab, Test Report S/N: FE-191-R1 Report Number : FE-191-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 443-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on the rotating device at the same height and at a distance of 3-meters from the receive antenna. The rotating device which can rotate horizontal axis was mounted on the turn unit to facilitate rotation around a vertical axis. The measurement was made for each horizontal/vertical position combination with receive antenna horizontally polarized. This measurement was repeated with receive antenna vertically polarized. The substitution antenna will replace the EUT antenna…

Text truncated - open the document above for the full version.

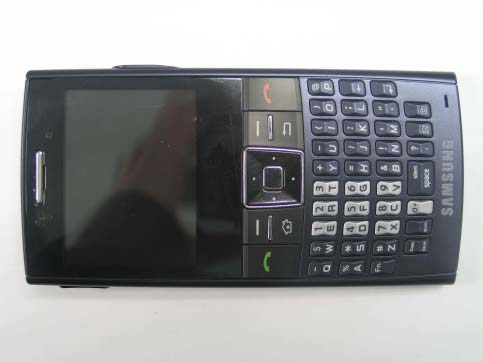

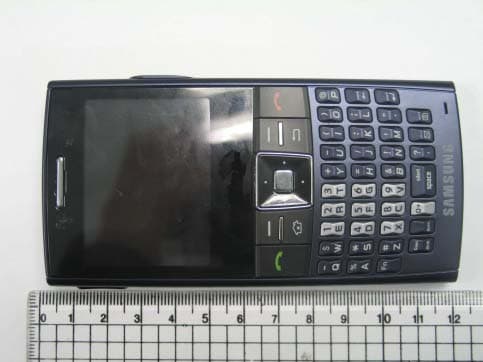

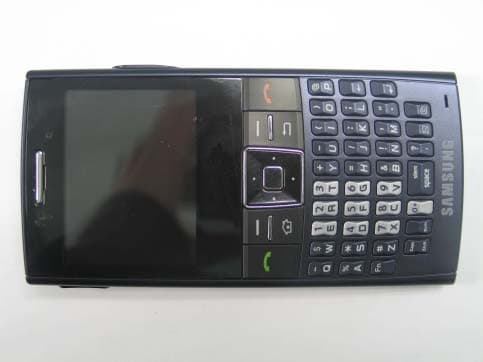

© 2007 SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG FCC ID: A3LSPHI325 Dual-Band CDMA Phone with Bluetooth

© 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth 1.5Cm © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth © 2007 SAMSUNG ELECTRONICS Co., Ltd SAMSUNG FCC ID:A3LSPHI325 Dual-Band CDMA Phone with Bluetooth
