A3LSPHI500Tri-Mode Dual-Band Analog/PCS PDA Phone AMPS/CDMA

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Aug 18, 2002
Application Purpose: Original Equipment
Date of Application: Aug 15, 2002
Equipment Note: Tri-Mode Dual-Band Analog/PCS PDA Phone AMPS/CDMA
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPH-i500 User's Manual Please read this manual before operating the phone, and keep it for future reference. 2 Contents Safety Quick Guide...................................................3 Introduction to SPH i500............................................5 Layout....................................................................6 . Keys and Features....................................................7 Interface.................................................................8 Phone Applications.................................................11 Phone Preferences..................................................12 Another Applications...............................................13 . Using HotSync.......................................................14 Health and Safety information..................................15 Acknowledging Special Precautions and the FCC and Industry Canada Notice.......................24 3 Safety Quick Guide Read these guidelines before using your wireless phone. Failure to comply with these guidelines may be dangerous or illegal. For more detailed safety information, see “Health and Safety Information” on page 15. Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Switch off when refueling Do not use the phone at a refueling point (service station) or near fuels or chemicals. Switch off on aircraft Wireless phones can cause interference. Using them on aircraft is both illegal and dangerous. Switch off in hospital Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may get interference which could affect performance. Respect special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). Radio frequency exposure information In August 1996, the Federal Communications Commission (FCC) of the U.S. adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. The design of this phone complies with the FCC guidelines and those standards. This device was tested for typical body-worn operations with the back of the phone kept 1.5 cm. from the body. To maintain compliance with FCC RF exposure requirements, use only belt-clips, holsters or similar accessories that maintain a 1.5 cm. separation distance between the user's body and the back of the phone, including the antenna. The use of belt-clips, holsters and similar accessories should not contain metallic components in its assembly. The use of accessories that do not satisfy these 4 requirements may not comply with FCC RF exposure requirements, and should be avoided. Use sensibly Use only in the normal position (to ear). Avoid unnecessary contact with the antenna when the phone is switched on. Accessories and batteries Use only SAMSUNG-approved accessories and batteries. Use qualified service Only qualified service personnel may install or repair your phone. 5 Introduction to SPH–i500 The following features provide a range of user options that make the phone both fun and easy to use. Phone features : You can use advanced phone capabilities. PDA features : Address, date book, memo pad , to do list, etc. Messaging feature : You can receive three kinds of messages - voicemail, text, e-mail. Data Capability : HotSync  technology to synchronize your phone and PC. Touch Screen Writing Recognition and On-Screen keyboard and PC input method 6 Layout The following picture shows the main elements of SPH i500. Earpiece Back key Menu Key Phone/PDA mode Switching key Display Application buttons End key Vo l u m e k eys Voice memo OK key Talk key Scroll keys Accessory connector Microphone PDA buttons Graffiti area 7 Keys and features End Key - To turn the power on. - To turn the phone mode on/off when pressed and held. - To end a call in phone mode. Talk Key - To make or receive a call OK Key - Soft key for the primary (blue) button in display. Back Key - To cancel and go back - To erase text in edit mode Voice Memo Key - Press and hold to record a voice memo. Phone/PDA mode switch Key - To switch the phone mode/PDA mode. Menu Key - To launch the menu list. Volume Keys - To adjust voice volume during conversation. - To adjust key beep volume in standby mode. Scroll Key - To scroll item by item in PDA mode. Application buttons - To launch each menu depending on the setting in “Preference / Buttons”. PDA buttons - Home: To launch the home menus. - Menu: To launch menus each application- Contrast: To adjust the contrast of display. - Keyboard: To open the on-screen keyboard. 8 Accessory connector - Connects your phone to the AC adapter to the wall current. Interface Tapping and Typing Like using a mouse to click elements on a computer screen, using the stylus to tap elements on your phone screen is the basic action that gets things done on your phone. Always use the point of the stylus for tapping or making strokes on the phone screen. Never use an actual pen, pencil, or other sharp object to write on the phone screen. How To Use Application You can use the Application Launcher to open any application installed on your phone. Tap the icon of the application that you want to open. If you have may applications installed on your phone, to the scroll bar to see all of your applications. You can also open the four main applications - Date Book, Address Book, To Do List, and To do List - with the application buttons below the display. You can also change them using the “Preference / Buttons” menu. 9 Using Menus Menus on your phone are easy to use. Once you have mastered them in one application, you can use them the same way in all other applications. -To open the menu bar: 1. Open an application. 2. Tap the Menu button in the PDA buttons. -Choosing a menu After you open the menu bar for an application, tap …

Text truncated - open the document above for the full version.

Attestation Statements

July 15, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHI5 00 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

Attestation Statements

February 4, 2002 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America July 15, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHI500), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSPHI500) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. July 15, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSPHI500 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

Cover Letter(s)

August 12, 2002 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSPHI500 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 24/22 Certification of the Tri-Mode Dual-Band Analog/PCS PDA Phone. Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

External Photos

ID Label/Location Info

© 2002 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SPH-I500 FCC ID: A3LSPHI500 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

Internal Photos

RF Exposure Info

PCTEST ENGINEERING LABORATORY, INC. 6660 — B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220714365.A3L Test Dates: July 15-16, 2002 Phone Type: Tri-Mode Dual-Band PDA FCC ID: A3LSPHI500 Page 1 of 35 © 2002 PCTEST Engineering Laboratory, Inc. APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: July 15-16, 2002 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.220714365.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID: A3LSPHI500 APPLICANT: SAMSUNG ELECTRONICS CO., LTD EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.401 W ERP AMPS (26.033 dBm) / 26.5 dBm Conducted 0.353 W ERP CDMA (25.473 dBm) / 26.0 dBm Conducted 0.297 W EIRP PCS CDMA (24.721 dBm) / 24.5 dBm Conducted Max. SAR Measurement: 1.38W/kg AMPS Head SAR; 0.97W/kg AMPS Body SAR; 1.25W/kg CDMA Head SAR; 0.77W/kg CDMA Body SAR; 1.34W/kg PCS CDMA Head SAR; 0.29W/kg PCS CDMA Body SAR Trade Name/Model(s): SPH-i500 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: Identical prototype This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (Draft 6.4, July 2001). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 220714365.A3L PCTEST SAR TEST REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR.220714365.A3L Test Dates: July 15-16, 2002 Phone Type: Tri-Mode Dual-Band PDA FCC ID: A3LSPHI500 Page 2 of 35 © 2002 PCTEST Engineering Laboratory, Inc. TABLE OF CONTENTS 1. INTRODUCTION ................................................................................................... 3 SAR DEFINITION.................................................................................................... 3 2. SAR MEASUREMENT SETUP .................................................................................. 4 Robotic System ....................................................................................................... 4 System Hardware .................................................................................................... 4 System Electronics................................................................................................... 4 3. DASY3 E-FIELD PROBE SYSTEM............................................................................. 5 Probe Measurement System .................................................................................... 5 Probe Specifications................................................................................................ 5 4. Probe Calibration Process ....................................................................................... 6 Dosimetric Assessment Procedure........................................................................... 6 Free Space Assessment............................................................................................ 6 Temperature Assessment ......................................................................................... 6 5. PHANTOM & EQUIVALENT TISSUES .................................................................... 7 SAM Phantom ......................................................................................................... 7 Brain & Muscle Simulating Mixture Characterization .............................................. 7 Device Holder ........................................................................................................ 7 6. TEST SYSTEM SPECIFICATIONS ............................................................................. 8 Automated Test System Specifications..................................................................... 8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS .................................................. 9 Measurement Procedure ......................................................................................... 9 Specific Anthropomorphic Mannequin (SAM) Specifications .................................. 9 8. DEFINITION OF REFERENCE POINTS .................................................................. 10 EAR Reference Point ............................................................................................. 10 Handset Reference Points ..................................................................................... 10 9. TEST CONFIGURATION POSITIONS ................................................................... 11 Positioning for Cheek/Touch ................................................................................. 11 Positioning for Ear / 15° Tilt................................................................................... 12 Body Holster /Bel…

Text truncated - open the document above for the full version.

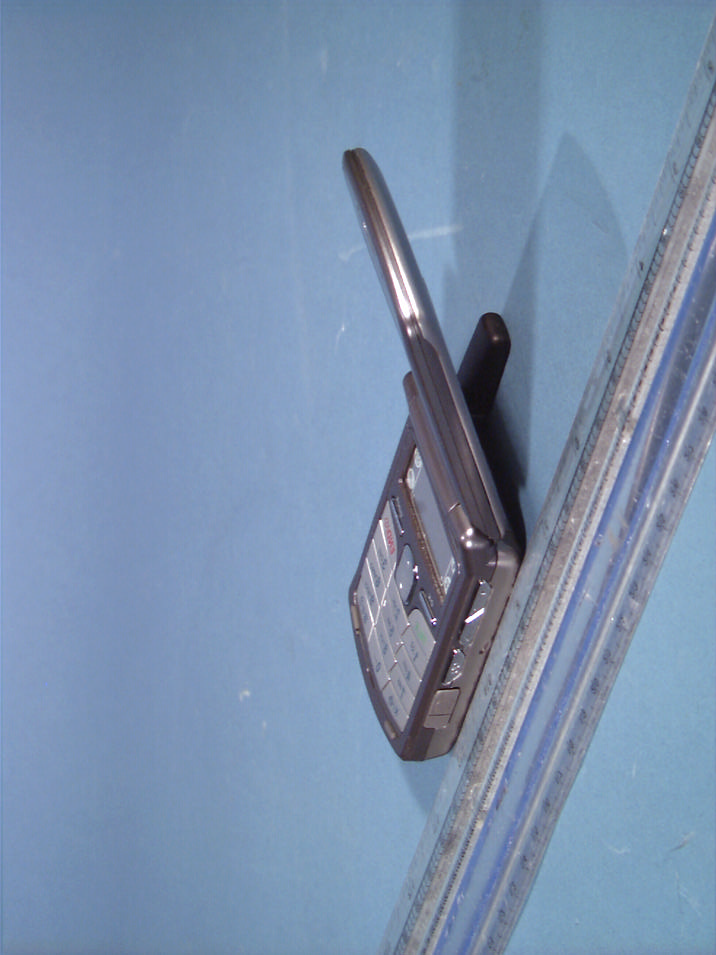

RF Exposure Info

© 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA) © 2002 PCTEST Lab SAMSUNG FCC ID: A3LSPHI500 (Model: SPH-i500) Tri-Mode Dual-Band Analog/PCS PDA Phone (AMPS/CDMA)

RF Exposure Info

File: 02-04-2002.cal Date: 04-Feb-02 01:20:16 pm Probe Name: PCT002 Frequency:835 MHz Comment:PCTEST TEM CAL Amp 1 Setting: 20.000 Amp 2 Setting: 20.000 Amp 3 Setting: 20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) File: 02-04-2002.cal2 Date: 04-Feb-02 03:18 :09 pm Probe Name: PCT002 Frequency:1900 MHz Comment:PCTEST TEM CAL Amp 1 Setting:20.000 Amp 2 Setting:20.000 Amp 3 Setting:20.000 0.0 0.2 0.4 0.6 0.8 1.0 1.2 050100150200250300350 Ch 0 Ch 1 Ch 2 Sum Degrees (x10) Voltage (in mV) Conversion Factor Assessment for IDX SAR Measurement System S/N: PCT002 835 MHz Brain ε r = 40.7 ± 5% σ = 0.89 ± 5% mho/m Conversion Factor = 5.8 ± 7% (k=2) 1900 MHz Brain ε r = 40.2 ± 5% σ = 1.41 ± 5% mho/m Conversion Factor = 4.7 ± 7% (k=2) Probe calibration 1900 MHz Brain (WG 1900) 0 1 2 3 4 5 6 7 8 0510152025303540 z in mm SAR in mW/cm^3 / W Analytical Measurements Probe Calibration 835 MHz Brain (WG 835) 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 0510152025303540 z in mm SAR in (mW/cm^3)/W Analytical Measurements

RF Exposure Info

SAR Data Report 02071602 Start : 16-Jul-02 11:17:12 am End : 16-Jul-02 11:23:14 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 835 MHz Transmit Pwr : 0.250 W Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 835 MHz Validation CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=-2.0 y=2.0 = 2.33 W/kg Zoom Scan - Max Peak SAR Value at x=-1.0 y=4.0 z=0.0 = 3.64 W/kg Max 1g SAR at x=-1.0 y=2.0 z=0.0 = 2.45 W/kg Max 10g SAR at x=-1.0 y=2.0 z=0.0 = 1.54 W/kg Validation Results at 0.25 W: Peak Nominal = 3.5, Error: 4.03 % 1g Nominal = 2.4, Error: 3.09 % 10g Nominal = 1.6, Error: -0.83 % 0 1 2 3 4 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:-1.0 y:4.0 1g SAR Values 2.448 2.369 2.290 2.210 2.131 2.052 1.972 1.893 1.814 1.734 1.655 SAR Data Report 02071501 Start : 15-Jul-02 9:06:43 am End : 15-Jul-02 9:12:23 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : Validation Frequency : 1900 MHz Antenna Type : Dipole Measurement Data: Phantom Name : SAM-FLAT Phantom Type : Uniphantom Tissue Type : Brain Tissue Dielectric : 41.110 Tissue Conductivity : 1.420 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 1900 MHz Tissue Type : Brain Calibrated Dielectric : 40.200 Calibrated Conductivity : 1.410 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 4.700 Probe Sensitivity : 3.000 2.995 2.653 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: 1900 MHz Validation CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=2.0 y=-3.0 = 8.99 W/kg Zoom Scan - Max Peak SAR Value at x=2.0 y=-3.0 z=0.0 = 16.69 W/kg Max 1g SAR at x=2.0 y=-3.0 z=0.0 = 9.64 W/kg Max 10g SAR at x=2.0 y=-2.0 z=0.0 = 5.03 W/kg Validation Results at 0.25 W: Peak Nominal = 18.0, Error: -7.40 % 1g Nominal = 9.9, Error: -2.88 % 10g Nominal = 5.1, Error: -1.82 % 0 2 4 6 8 10 12 14 16 18 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:2.0 y:-3.0 1g SAR Values 9.64 9.11 8.59 8.06 7.54 7.01 6.48 5.96 5.43 4.91 4.38

RF Exposure Info

SAR Data Report 02071506 Start : 15-Jul-02 10:53:37 am End : 15-Jul-02 11:00:03 am Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i500 Serial Number : F1BE9341 Frequency : 848.97 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-799 Cheek CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=75.0 y=12.0 = 1.16 W/kg Zoom Scan - Max Peak SAR Value at x=74.0 y=13.0 z=0.0 = 1.72 W/kg Max 1g SAR at x=75.0 y=13.0 z=0.0 = 1.19 W/kg Max 10g SAR at x=75.0 y=12.0 z=0.0 = 0.78 W/kg 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:74.0 y:13.0 1g SAR Values 1.194 1.157 1.120 1.082 1.045 1.007 0.970 0.933 0.895 0.858 0.820 SAR Data Report 02071609 Start : 16-Jul-02 12:53:09 pm End : 16-Jul-02 12:59:42 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i500 Serial Number : F1BE9341 Frequency : 848.97 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-R Phantom Type : Right Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-799 Tilt CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=29.0 y=3.0 = 0.42 W/kg Zoom Scan - Max Peak SAR Value at x=42.0 y=4.0 z=0.0 = 0.55 W/kg Max 1g SAR at x=40.0 y=5.0 z=0.0 = 0.42 W/kg Max 10g SAR at x=34.0 y=4.0 z=0.0 = 0.30 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:42.0 y:4.0 1g SAR Values 0.3349 0.3287 0.3225 0.3163 0.3101 0.3039 0.2977 0.2915 0.2853 0.2791 0.2729 SAR Data Report 02071611 Start : 16-Jul-02 01:28:08 pm End : 16-Jul-02 01:39:33 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i500 Serial Number : F1BE9341 Frequency : 848.97 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-799 Cheek CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=74.0 y=7.0 = 1.36 W/kg Zoom Scan - Max Peak SAR Value at x=74.0 y=5.0 z=0.0 = 1.87 W/kg Max 1g SAR at x=75.0 y=6.0 z=0.0 = 1.38 W/kg Max 10g SAR at x=74.0 y=5.0 z=0.0 = 0.95 W/kg 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:74.0 y:5.0 1g SAR Values 1.379 1.335 1.291 1.247 1.203 1.159 1.115 1.071 1.026 0.982 0.938 SAR Data Report 02071614 Start : 16-Jul-02 02:39:58 pm End : 16-Jul-02 02:46:42 pm Code Version : 4.08 Robot Version: 4.08 Product Data: Type : SAMSUNG Model Number : SPH-i500 Serial Number : F1BE9341 Frequency : 848.97 MHz Transmit Pwr : 0.450 W Antenna Type : Helical Antenna Posn. : Fixed Measurement Data: Phantom Name : SAM-L Phantom Type : Left Ear Tissue Type : Brain Tissue Dielectric : 40.560 Tissue Conductivity : 0.880 Tissue Density : 1.000 Robot Name : CRS Probe Data: Probe Name : PCT002 Probe Type : E Fld Triangle Frequency : 835 MHz Tissue Type : Brain Calibrated Dielectric : 40.700 Calibrated Conductivity : 0.890 Calibrated Density : 1.000 Probe Offset : 2.400 mm Conversion Factor : 5.800 Probe Sensitivity : 3.597 3.474 3.049 mV/(mW/cm^2) Amplifier Gains : 20.00 20.00 20.00 Sample: Rate: 6000 Samples/Sec Count: 100 Samples NIDAQ Gain: 5 Comments: AMPS Mode CH-799 Tilt CF=1; Amb. Temp= 22.4 'C; Liq. Temp=22.1 'C Area Scan - Max Peak SAR Value at x=37.0 y=10.0 = 0.50 W/kg Zoom Scan - Max Peak SAR Value at x=36.0 y=13.0 z=0.0 = 0.71 W/kg Max 1g SAR at x=36.0 y=12.0 z=0.0 = 0.51 W/kg Max 10g SAR at x=33.0 y=11.0 z=0.0 = 0.36 W/kg 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 SAR (mW/g) 0102030 Z Distance (mm) SAR - Z Axis at Hotspot x:36.0 y:13.0 1g SAR Values 0.513 0.502 0.492 0.481 0.470 0.459 0.448 0.437 0.426 0.415 0.404 SAR Data Report 02071622 Start : 16-Jul-02 04:51:52 pm End : 16-Jul…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Jenni Chun(General Manager)

[email protected]973-808-6375Fax: 973-808-6361

Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

6660-B Dobbin Road · Columbia, Maryland · United States

Non-Technical Contact

PCTEST Engineering Lab., Inc.Randy Ortanez

[email protected]410-290-6652

Test Firm

PCTEST Engineering Laboratory, Inc.Randy Ortanez

[email protected]410-290-6652Fax: 410-290-6654

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
4	24E	1.85 GHz - 1.91 GHz	297.00 mW	1M25F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body- worn operating configuration is based on a separation distance of 1.5 cm between the back of the unit and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. Belt clips or holsters may not contain metallic components. The highest reported SAR values under this FCC ID: are AMPS/CDMA modes (Part 22) � Head: 1.38 W/kg; Body-worn: 0.97 W/kg, PCS mode (Part 24) � Head: 1.34 W/kg; Body-worn: 0.29 W/kg
