A3LSPHI550Tri-Mode Dual-Band Analog/ PCS Phone (AMPS/CDMA)

SPH-I550 User's Manual Please read this manual before operating the phone, and keep it for future reference. 2 Contents Important Safety Precautions....................................3 Introduction to SPH–I550...........................................5 Unpacking ............................................................ 6 Layout....................................................................7 . Keys and Features....................................................8 Interface.................................................................10 Phone Applications................................................. 12 Phone Preferences..................................................14 Another Applications............................................... 15 . Using HotSync....................................................... 17 Health and Safety information.................................. 17 Acknowledging Special Precautions and the FCC and Industry Canada Notice....................... 26 3 Importance Safety Precautions Read these guidelines before using your wireless phone. Failure to comply with these guidelines may be dangerous or illegal. Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Switch off when refueling Do not use the phone at a refueling point (service station) or near fuels or chemicals. Switch off on aircraft Wireless phones can cause interference. Using them on aircraft is both illegal and dangerous. Switch off in hospital Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may be subject to interference, which could affect performance. Respect special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). Sensible use Use only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on. Emergency call Ensure the phone is switched on and in service. Key in the emergency number for your present location, then press the TALK key. If certain features are in use, you may need to deactivate those features before you can make an emergency call. Give all the necessary information as accurately as possible. Do not end the call until given permission to do so by the person on the other end of the phone. 4 Accessories and batteries Use only SAMSUNG-approved accessories and batteries. Qualified service Only qualified service personnel should install or repair your phone. Failure to do so may invalidate the warranty. For more detailed safety information, see “Health and Safety Information” on page 17. 5 Introduction to SPH–I550 The following features provide a range of user options that make the phone both fun and easy to use. Phone features : You can use advanced phone capabilities. PDA features : Address, date book, memo pad , to do list, etc. Messaging feature : You can receive three kinds of messages - voicemail, text, e-mail. Camera MP3 Player Data Capability : HotSync technology to synchronize your phone and PC. Touch Screen Writing Recognition and On-Screen keyboard and PC input method 6 Unpacking our package contains the following items: ■ Basic items - Handset - Standard Battery (1150mAh) - Extended Battery (1700 mAh) - Travel Charger - Desk Top Holder ( for Hotsync and Charging) - Ear-Microphone - Handstrap - cd - Stylus Pen (2EA) - Holster or Leather Case - User’s Manual - Graffiti Card ■ Optional items - Hands Free Kit (Full Duplex) - Cigarette Light Adapter - USB Data Communication Cable 7 Layout The following picture shows the main elements of SPH–I550. Open view Closed view Earpiece Camera key Volume keys Display Application buttons End key Date key Voice memo key Soft key 2 Accessory connector Home/DDM key Browser ke y OK key Back ke y Navigation keys Launcher keys Antenna Camera Flash Soft key 1 Soft key 3 External Display 8 Keys and features Home Key - To launch Pal m home. End Key - To turn the power on. - To turn the phone mode on/off when pressed and held. - To end a call in phone mode. Talk Key - To make or receive a call. - To display recent call history. - To redial the last call number. OK Key - o activate a selected application among menu lists. - Soft key for the primary soft key in display. Back Key - To cancel and go back. - To erase text in edit mode. - To go previous step. Date Key - To activate the Date application. Browser Key - To activate the Browser. Navigation Keys - To scroll through the display line by line. - Left/Right: Users can change key mapping using the Preference/Button option. Voice Memo Key - To launch the voice dial mode. - To record a voice memo by pressing and holding. - To send a greeting message. 9 Volume Keys - To adjust voice volume during conversation. - To adjust key beep volume in standby mode. - To scroll through the display page by page. Camera Key - To launch the camera application by pressing and holding. - To take a picture in camera mode. Launcher Key - Home: To go to home. - DDM: To activate the Drop Down Menu. - Find: To activate Find - On Screen Graffiti: To activate or deactivate the graffiti mode. - Soft keyboard: To activate the soft keyboard. Accessory connector - Connects your phone to the AC adapter to the wall current. Soft Key 1 - Linked with the first soft key. - Backward in mp3 player mode. - Activate Function as soft key indicated with graphically on the screen. Soft Key 2 - Linked with second soft key. - Play/Temporary stop in mp3 player mode. Soft Key 3 - Linked with the third soft key. - Forward in mp3 player mode. 10 Interface Tapping and Typing Like using a mouse to click elements on a computer screen, using the stylus to tap elements on your phone screen is the basic action that gets things done on your phone. Always use the point of the stylus for tapping or making strokes on the ph…

Text truncated - open the document above for the full version.

March 12, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsun Electronics America March 12, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHI550), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. March 12, 2004 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHI550 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Wallace Oh Engineering Manager Samsun Samsung Electronics America

April 5, 2004 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSPHI550 Part 22/24 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 22/24 Certification of the Tri-Mode Dual-Band Analog/PCS CDMA Phone (AMPS/CDMA). Attached is the applicant’s Letter of Authorization, Confidentiality Request, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550

© 2004 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550

PCTEST ENGINEERING LABORATORY, INC. 6660 – B Dobbin Road • Columbia, MD 21045 • USA Telephone 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com (email: [email protected]) CERTIFICATE OF COMPLIANCE (SAR EVALUATION) PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240310186.A3L Test Dates: March 10-12, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHI550 Page 1 of 35 © 2004 PCTEST Engineering Laboratory, Inc APPLICANT NAME & ADDRESS: DATE & LOCATION OF TESTING: SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: March 10-12, 2004 3351 Michelson Drive, Suite 290 Test Report S/N: SAR.240310186.A3L Irvine, CA 92612 Test Site: PCTEST Lab, Columbia MD FCC ID: A3LSPHI550 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.284 W ERP AMPS (24.529 dBm) / 26.0 dBm Conducted 0.226 W ERP CDMA (23.533 dBm) / 25.0 dBm Conducted 0.547 W EIRP PCS CDMA (27.371 dBm)/ 24.5 dBm Conducted Max. SAR Measurement: 0.945 W/kg AMPS Head SAR; 0.297 W/kg AMPS Body SAR; 0.749 W/kg CDMA Head SAR; 0.303 W/kg CDMA Body SAR; 1.200 W/kg PCS CDMA Head SAR; 0.618 W/kg PCS CDMA Body SAR Trade Name/Model(s): SPH-i550 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001] Application Type: Certification Test Device Serial No.: identical prototype [S/N: #1] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. P1528 D1.2 (April 2003). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is ERP for Part 22 and EIRP for Part 24. SAR compliance for body-worn operating configuration is limited to the specific belt-clip tested for this filing. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240310186.A3L Test Dates: March 10-12, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHI550 Page 2 of 35 © 2004 PCTEST Engineering Laboratory, Inc TABLE OF CONTENTS 1. INTRODUCTION / SAR DEFINITION................................................................................3 2. SAR MEASUREMENT SETUP............................................................................................4 3. DASY4 E-FIELD PROBE SYSTEM.......................................................................................5 4. PROBE CALIBRATION PROCESS......................................................................................6 5. PHANTOM & EQUIVALENT TISSUES................................................................................7 6. TEST SYSTEM SPECIFICATIONS........................................................................................8 7. DOSIMETRIC ASSESSMENT & PHANTOM SPECS...............................................................9 8. DEFINITION OF REFERENCE POINTS.............................................................................10 9. TEST CONFIGURATION POSITIONS..............................................................................11 10. ANSI/IEEE C95.1 - 1992 RF EXPOSURE LIMITS................................................................14 11. MEASUREMENT UNCERTAINTIES..................................................................................15 12. SYSTEM VERIFICATION.................................................................................................16 13. SAR TEST DATA SUMMARY.......................................................................................17-32 15. SAR TEST EQUIPMENT..........................................................................................33 16. CONCLUSION..............................................................................................................34 17. REFERENCES.................................................................................................................35 PCTEST SAR REPORT FCC CERTIFICATION Reviewed by: Quality Manager SAR Filename: SAR-240310186.A3L Test Dates: March 10-12, 2004 Phone Type: Tri-Mode Dual-Band FCC ID: A3LSPHI550 Page 3 of 35 © 2004 PCTEST Engineering Laboratory, Inc 1. INTRODUCTION / SAR DEFINITION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous…

Text truncated - open the document above for the full version.

PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 1.44 W/kg SAR(1 g) = 0.945 mW/g; SAR(10 g) = 0.610 mW/g Reference Value = 10.7 V/m 0 dB = 1.1mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.417 W/kg SAR(1 g) = 0.327 mW/g; SAR(10 g) = 0.249 mW/g Reference Value = 13.7 V/m 0 dB = 0.367mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 1.44 W/kg SAR(1 g) = 0.931 mW/g; SAR(10 g) = 0.620 mW/g Reference Value = 11.5 V/m 0 dB = 1.08mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 26.0 dBm Communication System: AMPS; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.364 W/kg SAR(1 g) = 0.284 mW/g; SAR(10 g) = 0.216 mW/g Reference Value = 12.1 V/m 0 dB = 0.315mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 25.0 dBm Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Touch, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.749 mW/g; SAR(10 g) = 0.485 mW/g Reference Value = 9.02 V/m 0 dB = 0.882mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 25.0 dBm Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Right Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 Tilt, Ch.0383, Extended Battery Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Peak SAR (extrapolated) = 0.310 W/kg SAR(1 g) = 0.242 mW/g; SAR(10 g) = 0.183 mW/g Reference Value = 11.1 V/m 0 dB = 0.269mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: SPH-i550; Type: SAMSUNG Tri Mode Phone; Serial: #1; Conducted Power: 25.0 dBm Communication System: Cellular CDMA; Frequency: 836.49 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Left Section Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm…

Text truncated - open the document above for the full version.

ES3DV2-SN:3022 Page 1 of 2 December 3, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 3, 2003 September 23, 2003 ES3DV2-SN:3022 Page 2 of 2 December 3, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1950 MHz ConvF 4.7 ± 9.5% e r = 40.0 ± 5% s = 1.40 ± 5% mho/m (head tissue) 1950 MHz ConvF 4. 3 ± 9.5% e r = 53.3 ± 5% s = 1.52 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2November 28, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich November 28, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2November 28, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 1600 MHzConvF5.2 ± 8% e r =40.3 ± 5% s =1.29 ± 5% mho/m (head tissue) 1600 MHzConvF4.9 ± 8% e r =53.8 ± 5% s =1.40 ± 5% mho/m (body tissue) ES3DV2-SN:3022Page 1 of 2December 9, 2003 Additional Conversion Factors for Dosimetric E-Field Probe Type: Serial Number: Place of Assessment: Date of Assessment: Probe Calibration Date: Schmid & Partner Engineering AG hereby certifies that conversion factor(s) of this probe have been evaluated on the date indicated above. The assessment was performed using the FDTD numerical code SEMCAD of Schmid & Partner Engineering AG. Since the evaluation is coupled with measured conversion factors, it has to be recalculated yearly, i.e., following the re-calibration schedule of the probe. The uncertainty of the numerical assessment is based on the extrapolation from measured value at 900 MHz or at 1800 MHz. Assessed by: ES3DV2 3022 Zurich December 9, 2003 September 23, 2003 ES3DV2-SN:3022Page 2 of 2December 9, 2003 Dosimetric E-Field Probe ES3DV2 SN:3022 Conversion factor (± standard deviation) 2140 MHzConvF4.5 ± 8% e r =39.8 ± 5% s =1.49 ± 5% mho/m (brain tissue)

PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 835 MHz; Type: D835V2; Serial: 406 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: 835 Brain ( σ = 0.89 mho/m, ε r = 40.66, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.5 cm Test Date: 03-10-2004; Ambient Temp: 22.0°C; Tissue Temp: 20.2°C Probe: ES3DV2 - SN3022; ConvF(6.1, 6.1, 6.1); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 835 MHz Dipole Validation Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 24.0 dBm (250 mW) SAR(1 g) = 2.4 mW/g; SAR(10 g) = 1.56 mW/g Target SAR(1g) = 2.375 mW/g; Deviation = +1.05 % 0 dB = 2.81mW/g PCTEST ENGINEERING LABORATORY, INC. DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 502 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: 1900 Brain ( σ = 1.38 mho/m, ε r = 39.71, ρ = 1000 kg/m 3 ) Phantom section: Flat Section; Space: 1.0 cm Test Date: 03-12-2004; Ambient Temp: 22.7°C; Tissue Temp: 20.6°C Probe: ES3DV2 - SN3022; ConvF(5, 5, 5); Calibrated: 9/23/2003 Sensor-Surface: 3mm (Mechanical Surface Detection) Electronics: DAE3 Sn455; Calibrated: 1/6/2004 Phantom: SAM 12b; Type: SAM 4.0; Serial: TP:1197 Measurement SW: DASY4, V4.2 Build 12; Postprocessing SW: SEMCAD, V1.8 Build 93 1900MHz Dipole Validation Area Scan (41x51x1): Measurement grid: dx=15mm, dy=15mm Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Input Power = 20.0 dBm (100 mW) SAR(1 g) = 3.76 mW/g; SAR(10 g) = 1.88 mW/g Target SAR(1g) = 3.97 mW/g; Deviation = -5.28 % 0 dB = 4.92mW/g

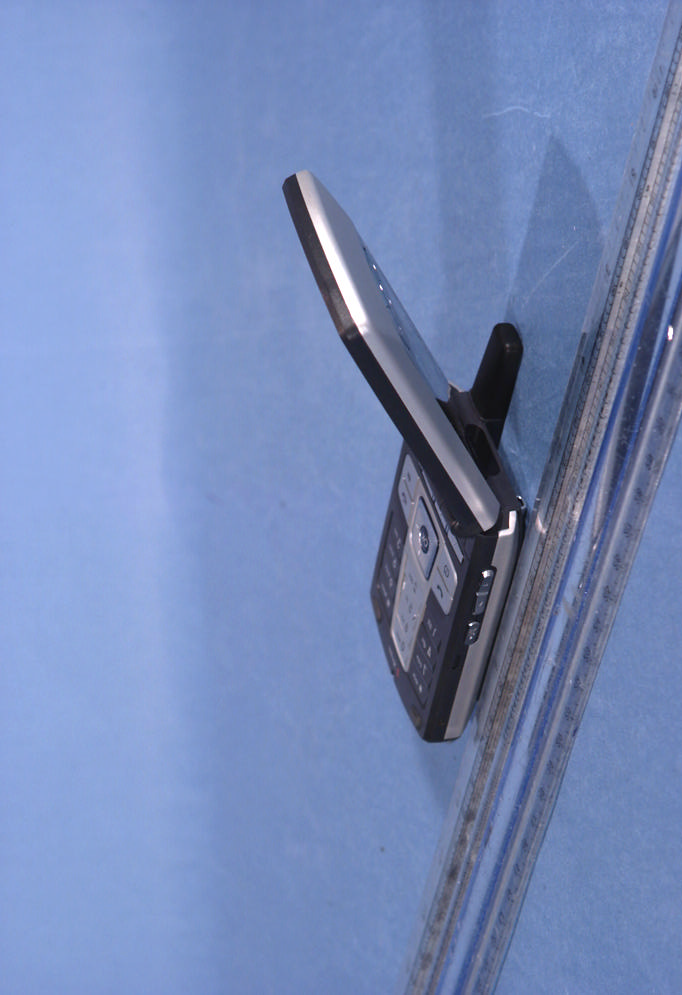

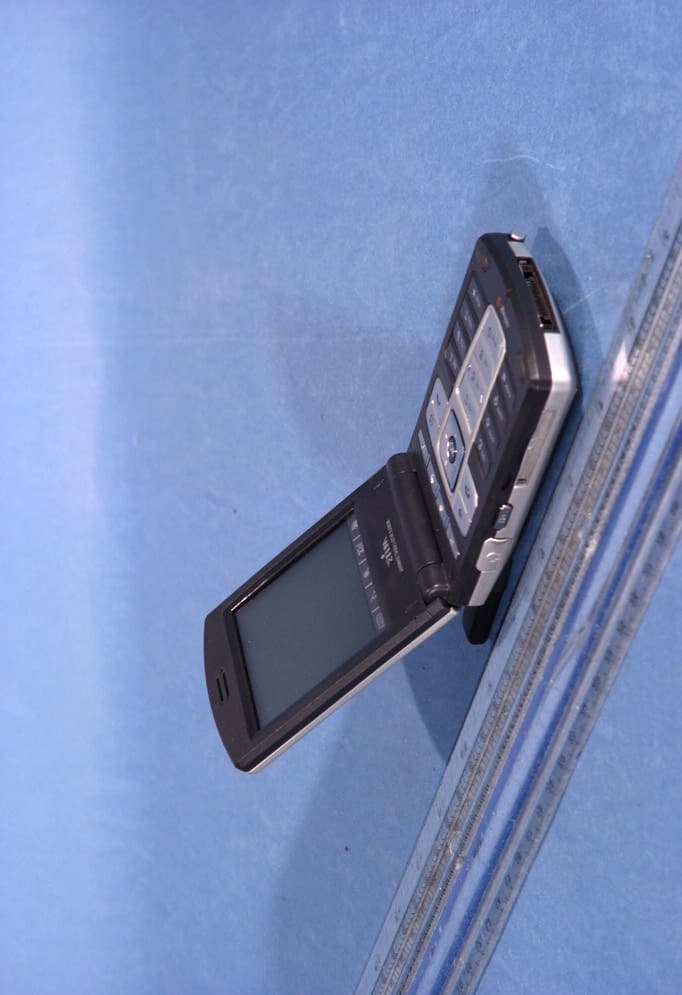

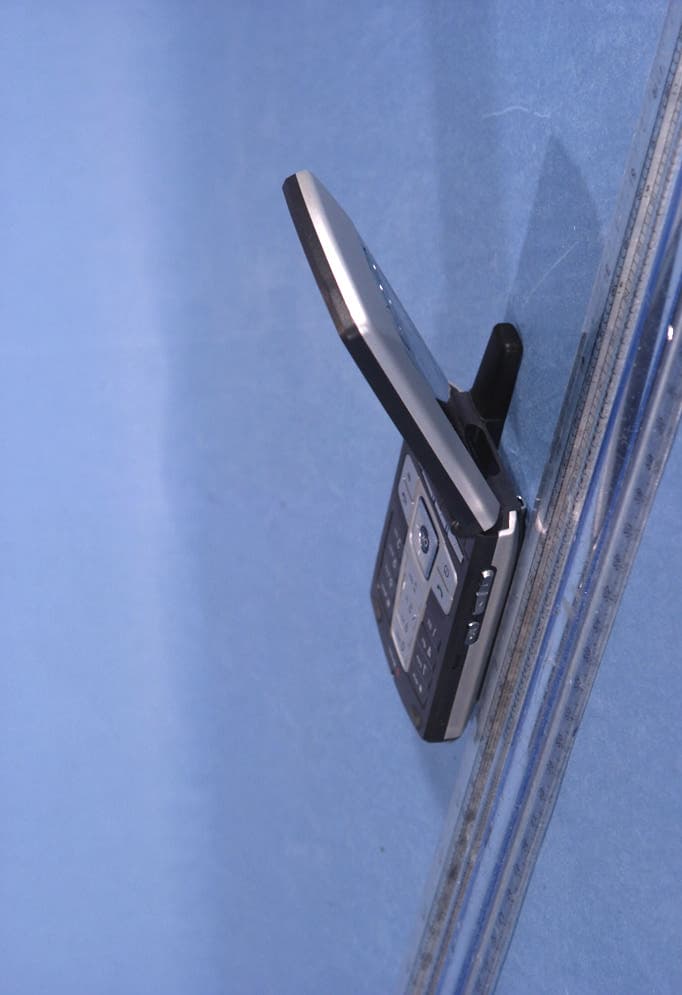

SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550 SAMSUNG FCC ID: A3LSPHI550 EUT Photographs © 2004 PCTEST Lab. Tri-Mode Dual-Band Analog/PCS Phone Model: SPH-i550…
