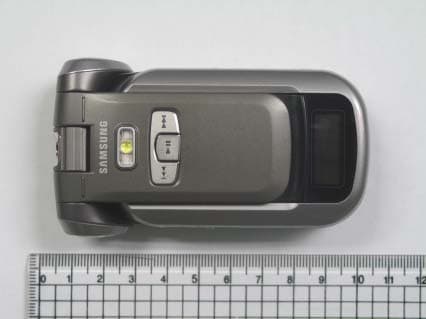

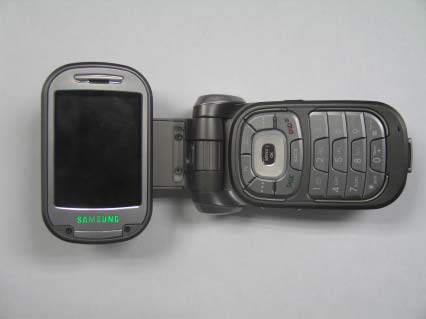

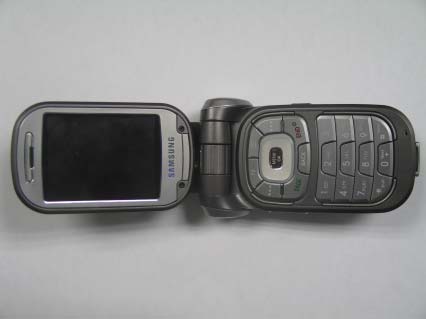

A3LSPHM250Single-Mode PCS CDMA Phone with Bluetooth

* Some of the contents of this manual may differ from your phone, depending on the software insta lled or your service provider. World Wide Webhttp://www.samsungmobile.com SPH-M250User’s Guide Intellectual PropertyAll Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relati ng to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and intern ational treaty provisions. Intellectual Property includ es, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers. Samsung Telecommunications America (STA), Inc.Headquarters:1301 East Lookout Drive Suite 150 Richardson, TX 75082 Tel: 972.761.7000 Customer Care Center:1601 E. Plano Parkway, Suite 150 Plano, TX 75074Toll Free Tel: 1.888.987.HELP (4357)Fax: 972.801.6065Internet Address: http://www.samsungusa.com©2004 Samsung Telecommunications America, Inc. is a registered trademark of Samsung Electronics America, Inc. and its related entities.Licensed by Qualcomm Incorporated under one or more of the following patents: U.S. Patent No. 4, 901, 307; 5, 056, 109; 5, 099, 204; 5,101, 501; 5, 103, 459; 5, 107, 225; 5, 109, 390.Openwave® is a registered Trademark of Openwave, Inc.RSA® is a registered TrademarSk RSA Security, Inc. Disclaimer of Warranties; Exclusion of LiabilityEXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS. Use road safety at all timesDo not use a hand-held phone while driving. Park the vehicle first. Switch off the phone when refuellingDo not use the phone at a refuelling point (service station) or near fuels or chemicals.Switch off in an aircraftWireless phones can cause interference. Using them in an aircraft is both illegal and dangerous.Switch off the phone near all medical equipmentHospitals or health care facilities may be using equipment that could be sensitive to external radio frequency energy. Follow any regulations or rules in force. Important safety precautions Failure to comply with the following precautions may be dangerous or illegal. Important safety precautions 1 InterferenceAll wireless phones may be subject to interference, which could affect their performance. Be aware of special regulationsMeet any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger.Water resistanceYour phone is not water-resistant. Keep it dry. Sensible useUse only in the normal position (held to the ear). Avoid unnecessary contact with the antenna when the phone is switched on.Emergency callKey in the emergency number for your present location, then press [ ]. Keep your phone away from small children Keep the phone and all its parts, including accessories, out of the reach of small children.Accessories and batteriesUse only Samsung-approved accessories and batteries. Use of any unauthorised accessories could damage your phone and may be dangerous.Qualified serviceOnly qualified service personnel may repair your phone.For more detailed safety information, see "Health and safety information" on page 21. • The phone could explode if the battery is replaced with an incorrect type.• Dispose of used batteries according to the manufacturer’s instructions. 2 Contents Unpack 3 Make sure you have each itemYour phone 3 Buttons, features, and locationsGet started 4 First steps to operate your phoneMenu functions 8 All menu options listedSolve problems 17 Help and personal needsHealth and safety information 19 3 Unpack Make sure you have each itemYou can obtain the following accessories for your phone from your local Samsung dealer. Phone Travel Adapter Battery User’s Manual • Standard battery • Extended battery • Battery charger • Leather case • Headset • Data link cable • Car charger/ adapter •Travel chager/ adapte • Portable hands free kit 4 Get started First steps to operate your phoneInstall and charge the phoneLow battery indicatorWhen the battery is low: • a warning tone sounds,• the battery low message displays, and• the empty battery icon blinks. If the battery level becomes too low, the phone automatically turns off. Recharge your battery. Power on or off Install the battery: To remove the battery, slide the battery catch toward the top of the phone and hold it. Plug the ad…

Text truncated - open the document above for the full version.


















18600 Broadwick Street





May 21, 2006        !"# $%&' ( &) "*   +,-   . / (0+1+//2(34 (5 /5 ///5 /4(0+1+// 2( 34(5555,4  .(5(65(5 / (5 1 # )57/(5)8 )94144 *4    1    1: ;&/ 1&19<;3<4 SAMSUNG ELECTRONICS CO.,LTD. 416 Maetan3-Dong Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 Date: May 21, 2006 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSPHM250 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Descriptions 3 Parts Lists and Tune-Up Procedure CONFIDENTIAL 4 Schematics 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, SEOUNG HO PARK SAMSUNG ELECTRONICS CO.,LTD.

2. Sample Label 3. Label Location

of 27 SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416, Maetan-3dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 TEST REPORT ON SAR Model Tested: SPH-M250 FCC ID (Requested): A3LSPHM250 Job No: FD-069 Report No: FD-069-S1 Date issued: May.08, 2006 - Abstract – This document reports on SAR Tests carried out in accordance with FCC/OET Bulletin 65, Supplement C(July 2001). Prepared By Date 2006.05.08 DK LEE - Test Engineer Checked By Date 2006.05.08 JH NAM - Senior Engineer Authorized By Date 2006.05.08 SH PARK - Senior Manager Report Number: FD-069-S1 2 of 27 Contents 1. GENERAL INFORMATION............................................................................................................. 3 2. DESCRIPTION OF DEVICE ........................................................................................................... 3 3. DESCRIPTION OF TEST EQUIPMENT ......................................................................................... 4 3.1 SAR Measurement Setup ......................................................................................................4 3.2 E-field Probe .......................................................................................................................... 6 3.3 SAM Phantom ........................................................................................................................ 8 3.4 Brain & Muscle Simulating Mixture Characterization ............................................................. 8 3.5 Device Holder for Transmitters ..............................................................................................9 3.6 Validation Dipole .................................................................................................................... 9 3.7 Equipment Calibration.......................................................................................................... 10 4. SAR MEASUREMENT PROCEDURE ......................................................................................... 11 5. DESCRIPTION OF TEST POSITION ........................................................................................... 12 5.1 SAM Phantom Shape...........................................................................................................12 5.2 Cheek/Touch Position .......................................................................................................... 12 5.3 EAR/Tilt 15° Position ............................................................................................................ 14 5.4 Body Holster/Belt Clip Configurations.................................................................................. 15 6. MEASUREMENT UNCERTAINTY................................................................................................ 17 7. SYSTEM VERIFICATION ............................................................................................................. 18 7.1 Tissue Verification ................................................................................................................ 18 7.2 Test System Validation ......................................................................................................... 18 8. SAR MEASUREMENT RESULTS................................................................................................ 19 8.1 Measurement Results(PCS Right Head SAR - Touch) ........................................................ 21 8.2 Measurement Results(PCS Right Head SAR - Tilt) ............................................................. 22 8.3 Measurement Results(PCS Left Head SAR - Touch) .......................................................... 23 8.4 Measurement Results(PCS Left Head SAR - Tilt) ............................................................... 24 8.5 Measurement Results(PCS Body SAR without Holster)...................................................... 25 9. CONCLUSION .............................................................................................................................. 26 10. REFERENCES ............................................................................................................................ 27 Report Number: FD-069-S1 3 of 27 1. GENERAL INFORMATION Test Sample : Single-Band PCS GSM Phone with Bluetooth Model Number : SPH-M250 Serial Number : Identical prototype (S/N : # FD-069-C) Manufacturer : SAMSUNG ELECTRONICS Co., Ltd. Contact : CS KIM Phone : +82-31-301-8213 Fax : - Test Standard : §2.1093; FCC/OET Bulletin 65, Supplement C(July 2001) FCC Classification : Licensed Portable Transmitter Held to Ear (PCE) Test Dates : Apr.26, 2006 Tested for : FCC/TCB Certification 2. DESCRIPTION OF DEVICE Tx Freq. Range : 1851.25 ~ 1908.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Rx Freq. Range : 1931.25 ~ 1988.75 MHz (PCS) 2402 ~ 2480 MHz (Bluetooth) Max. RF Output Power : 0.240 W EIRP PCS (23.80 dBm) Antenna Manufacturer : GALTRONICS Model No.: SPH-M250 Antenna Dimensions : 58.6mm Ev-Do Support (Revision 0) CDMA 2000 1x Support Report Number: FD-069-S1 4 of 27 3. DESCRIPTION OF TEST EQUIPMENT 3.1 SAR Measurement Setup Robotic System Measurements are performed using the DASY4 automated dosimetric assessment system. Which is made by Schmid & Partner Engineering AG (SPEAG) in Zurich, Switzerland and consists of high precision robotics system (Stäubli), robot controller, measurement server, Samsung computer, near- field probe, probe alignment sensor, and the SAM twin phantom containing the brain equivalent material. The robot is a six-axis industrial robot performing precise movements to position the probe to the location (points) of maximum electromagnetic field (EMF) (see Fig. 3.1). Figure 3.1 SAR Measurement System Setup System Hardware A cell controller system contains the power supply, robot controller, teach pendant (Joystick), and a remote control is used to drive the robot motors. The PC consists of the Samsung computer with Win…

Text truncated - open the document above for the full version.

APPENDIX F Plots of The SAR Measurements

APPENDIX E The Validation Measurements

APPENDIX H Calibration of The Validation Dipole

APPENDIX G Probe Calibration

SAMSUNG ELECTRONICS Co., Ltd., Regulatory Compliance Group IT R&D Center 416 Maetan3-Dong, Yeongtong-gu, Suwon city, Gyeonggi-Do, Korea 442-742 FCC CFR47 PART 24 SUBPART CERTIFICATION REPORT Model Tested: SPH-M250 FCC ID (Requested): A3LSPHM250 Report No: FD-069-R1 Job No: FD-069 Date issued: May 02, 2006 - Abstract – All measurement reported herein accordance with FCC Rules, 47CFR Part2, Part24. Prepared By Date YE PARK – Test Engineer Checked By Date WW JANG – Manager Authorized By Date SH PARK – Senior Manager © Copyright SAMSUNG Electronics 2006 Report Number : FD-069-R1 TABLE OF CONTENT MEASUREMENT REPORT Page 1. FCC Certification Information 3 1.1 2.1033 General Information 3 2. INTRODUCTION 4 2.1 General 4 3. MEASURING INSTRUMENT CALIBRATION 5 4. TEST EQUIPMENT LIST 6 5. DESCRIPTION OF TESTS 7 5.1 Output Power Variation 7 5.2 Effective Radiated Power/Equivalent Isotropic Radiated Power 8 5.3 Radiated Spurious & Harmonic Emission 9 5.4 Occupied Bandwidth 11 5.5 Spurious and Harmonic Emissions at Antenna Terminal 11 5.5.1 Occupied Bandwidth Emission Limits 11 5.5.2 Conducted Spurious Emission 12 5.6 Frequency Stability / Temperature Variation 13 6. TEST DATA 14 6.1 Equivalent Isotropic Radiated Power(E.I.R.P.) 14 6.2 PCS CDMA Radiated Spurious & Harmonic Measurement 15 6.3 PCS Radiated Spurious & Harmonic Conversion Table 16 6.4 Frequency Stability 17 6.4.1 PCS Frequency Stability Table 18 6.4.2 PCS Frequency Stability Graph 19 7.SAMPLE CALCULATION 20 7.1 Emission Designator 8. CONCLUSION 21 9. TEST PLOTS 22 Report Number : FD-069-R1 MEASUREMENT REPORT 1. FCC Certification Information The following information is in accordance with FCC Rules, 47CFR Part2, Subpart J, Sections 2.1033 – 2.1055. 1.1 §2.1033 General Information • Applicant Name: SAMSUNG ELECRONICS CO., LTD. • Address: 416 Maetan3-Dong, Yeongtong-gu, Suwon City Gyeonggi-Do, Korea 443-742 • Attention: • FCC ID: SungJoo KIM, Engineering Manager (QA Lab) A3LSPHM250 • Quantity: Quantity production is planned • Emission Designators: 1M25F9W • Tx Freq. Range: 1851.25-1908.75MHz (PCS CDMA) • Rx Freq. Range: 1931.25-1988.75 MHz (PCS CDMA) • Max. Power Rating: 0.254 W EIRP PCS CDMA ( 24.04 dBm) • FCC Classification(s): Licensed Portable Tx Held to Ear (PCE) • Equipment (EUT) Type: Single-Mode PCS CDMA Phone with Bluetooth • Modulation(s): CDMA • Frequency Tolerance: ±0.00025% (2.5ppm) • FCC Rule Part(s): §24(E), §2. • Dates of Test: April 25-26, 2006 • Place of Test: SAMSUNG Lab, • Test Report S/N: FD-069-R1 Report Number : FD-069-R1 2. INTRODUCTION 2.1 General These measurement test were conducted at SAMSUNG ELECTRONICS CO., LTD(SUWON). The site address is 416 Maetan3-Dong, Yeongtong-gu, Suwon City, Gyeonggi-Do, Korea 442-742 The site have 1 Fully-anechoic chamber and measurement facility. Measurement Procedure The radiated and spurious measurements were made Fully-anechoic chamber at a 3-meter test range (see Figure2). The equipment under testing was placed on a wooden turntable 3-meters from the receive antenna. The receive antenna height and turntable rotations were adjusted for the highest reading on the receive spectrum analyzer. The substitution antenna will replace the EUT antenna it the same position and in vertical polarization. The frequency of the signal generator shall be set to the frequencies that were measured on the EUT. The test antenna shall be raised and lowered, if necessary, to ensure that the maximum signal is still being received. The signal generator, output level, shall be adjusted until an equal or a known related level to what was measured from the EUT is obtained in the spectrum analyzer. This level was recorded. For readings above 1 GHz, the above procedure is repeated using horn antennas and the difference between the gain of the horn and an isotropic antenna are taken into consideration. Figure1. Map of the Suwon City area. Fi gure2. Photograph of 3m Fully-Anechoic Chamber Report Number : FD-069-R1 3.MEASURING INSTRUMENT CALIBRATION The measuring equipment, which was utilized in performing the tests documented herein, has been calibrated in accordance with the manufacturer’s recommendations for utilizing calibration equipment, which is traceable to recognized national standards. - End of page - Report Number : FD-069-R1 4. TEST EQUIPMENT LIST Name Of Equipment Model Serial No. Due Date Spectrum Analyzer ESI26 836119/010 2006-09-26 E4440A(3Hz~26.5GHz)MY41000236 2006-10-13 E4440A(3Hz~26.5GHz)MY41000233 2006-12-21 Signal Generator SMIQ03B 83824/021 2006-12-07 SMR20 835197/030 2007-01-10 Power Meter E4419B GB41293846 2006-09-07 Power Sensor 8481B 3318A10325 2006-09-08 8485A 3318A19924 2006-09-08 Amplifier 5S1G4 304866 2006-10-18 Pre-Amplifier 8449B 3008A00691 2007-01-02 Communication test set 8960 GB42230535 2007-01-02 8960 GB42360886 2007-02-28 Antenna Master MA240 240/618 Not Required Controller HD100 100/756 Not Required Environmental Chamber SH-241 92000548 2006-11-22 SH-241 92000549 2006-11-22 Horn Antenna HF906 360306/011 2007-03-31 Dipole Antenna 3121C-DB4 9007-587 2006-12-02 3121C-DB4 9007-588 2006-06-04 Receive Antenna HL040 353255/019 2006-08-24 HL040 353255/020 2006-06-21 Divider 11636B 51941 Not Required 11636B 51942 Not Required 11636B 51946 Not Required High Pass Filter WHK1.0/15G-10SS 1 Not Required WHK/3.5/18G-10SS 4 Not Required Shielded Fully Anechoic Chamber CHAMBER ANT0001 Not Required Report Number : FD-069-R1 5. DESCRIPTION OF TESTS 5.1 Output Power Variation Test Condition to measure the Output Power This device was tested under all R.C.s and S.O.s and worst case is reported with RC3/SO55, with “All Up” power control bits. The following procedures were followed according to FCC “SAR Measurement Procedures for 3G Devices”, May 2006. 1. If the mobile station (MS) supports Reverse TCH RC 1 and Forward TCH RC 1, set up a call using Fundamental Channel Test Move 1 (RC=1/1) with 9600 bps data rate only. 2. Under RC1, C.S0011 Table 4.4.5.2-1, Table 5-1 parameters were applied. 3. If the …
