A3LSPHM580Cellular/PCS CDMA Phone with WLAN and Bluetooth

9.Usermanual User manual SPH-M580 using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information   Refer to—pages with related information; for example:  p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [](represents the Phone Functions Menu key) < > Angled brackets—soft keys that control different functions at each screen; for example: <OK> (represents the OK soft key) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners:  Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide  Java™ is a trademark of Sun Microsystems, Inc.  Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Set up your device Charge the battery using basic functions Turn your phone on and off Access menus Customize your phone Use basic call functions Send and view messages Add and find contacts safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care  Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone.  Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones.  Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated.  Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wireless functions when in an aircraft Your phone can cause interference with aircraft equipment. Follow all airline regulations and turn off your phone or switch to a mode that disables the wireless functions when directed by airline personnel. Protect batteries and chargers from damage Avoid exposing batteries to very cold or very hot temperatures (below 0° C/32° F or above 45° C/ 113° F). Extreme temperatures can reduce the charging capacity and life of your batteries. Prevent batteries from contacting metal objects, as this can create a connection between the + and - terminals of your batteries and lead to temporary or permanent battery damage. Never use a damaged charger or battery. Handle your phone carefully and sensibly Do not al…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: February 22, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSPHM580 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

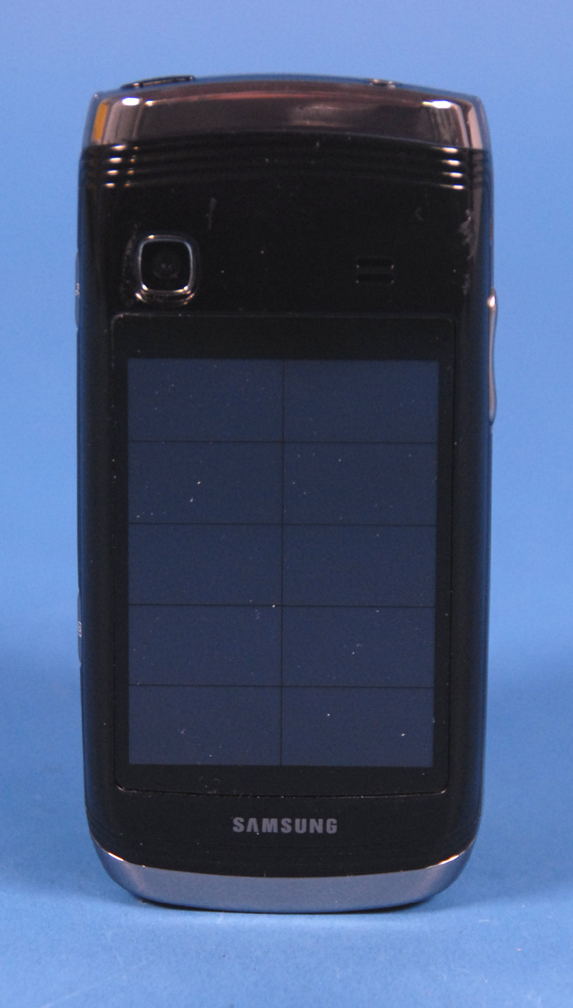

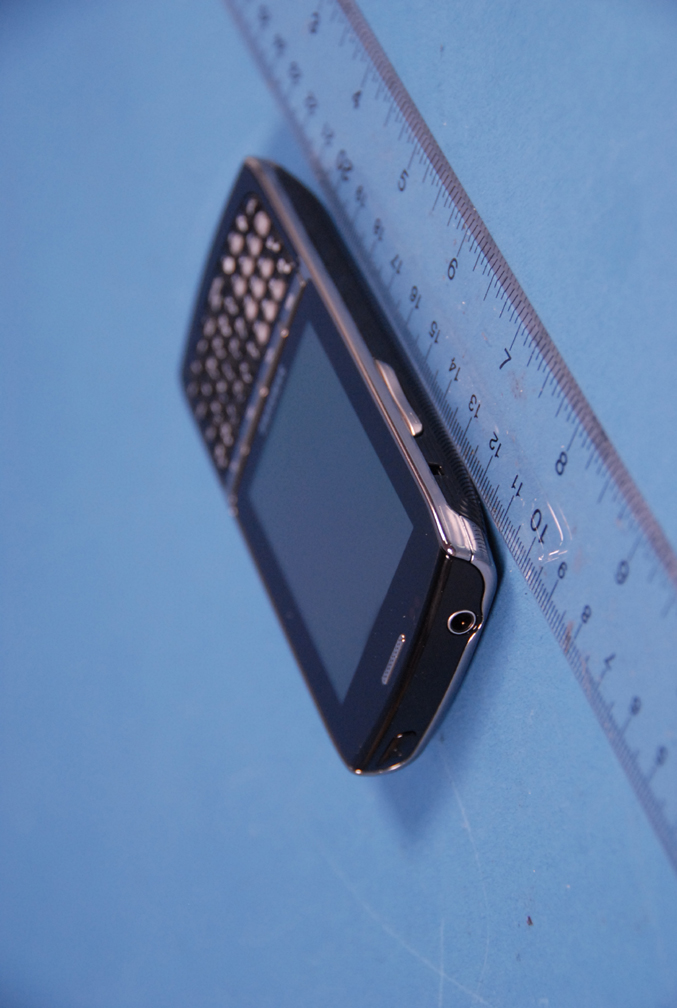

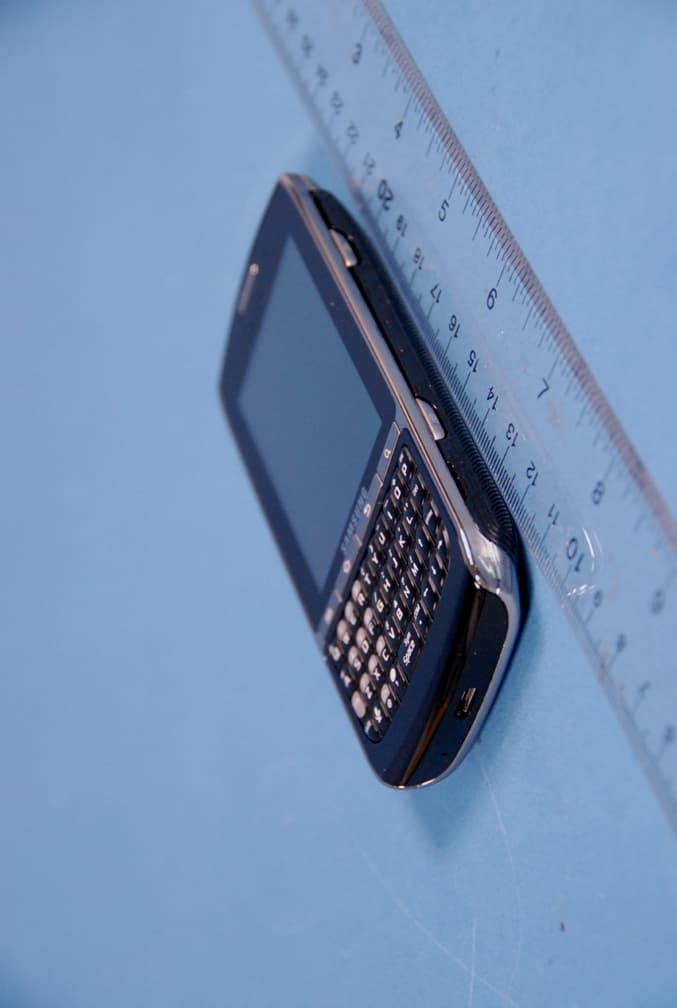

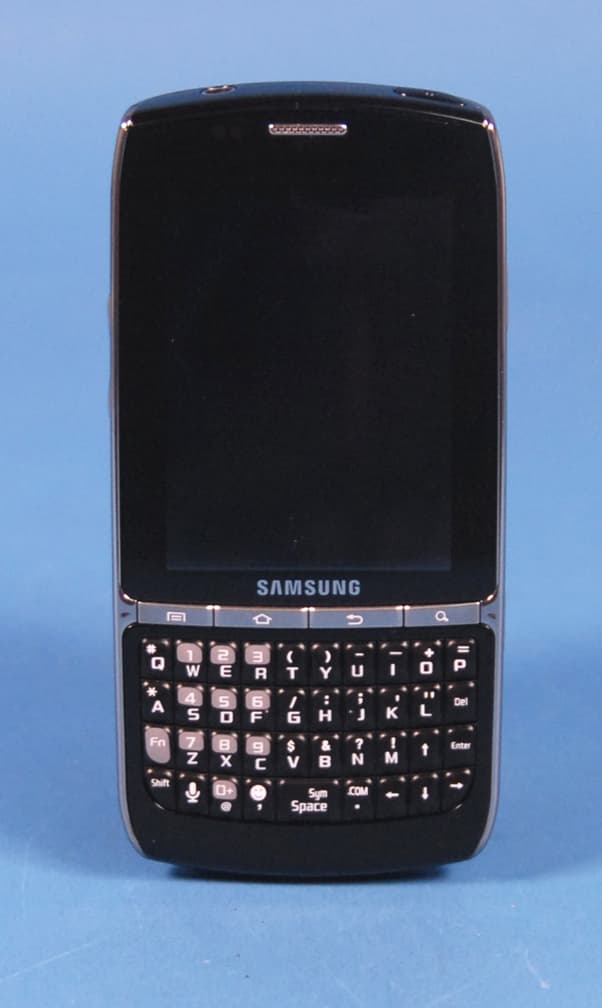

Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 4 © 2011 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 4 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 External Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 4 of 4 © 2011 PCTEST Engineering Laboratory Inc.

2.SampleLabel tvklsGaGzwoTt\_W yh{lkGaGZU^G} GXYWWG”h mvyGpumvyth{pvuGjhssGaGXT___TYXXT[wjz mjjGpkGaGhZszwot\_WGG thklGpuGrvylh XWW\ZX XWW\ZX zwoTt\_W XWW\ZX }lukvy 3. Label Location {ŒG“ˆ‰Œ“GšG—“ˆŠŒ‹G•š‹ŒG›ŒG‰ˆ››Œ™ GŠ–”—ˆ™›”Œ•›G tvklsGaGzwoTt\_W yh{lkGaGZU^G} GXYWWG”h mvyGpumvyth{pvuGjhssGaGXT___TYXXT[wjz mjjGpkGaGhZszwot\_WGG thklGpuGjopuh

Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 13 © 2011 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 4 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 5 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 6 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 7 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 8 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 9 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 10 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 11 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 12 of 13 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Internal Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 13 of 13 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 42 0Y1102140273.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 02/15/11 - 02/25/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1102140273.A3L F C C I D : A3 LS P HM5 8 0 AP P L I C AN T : S AMS UN G E LE CT RO NI CS , CO . LT D. EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Application Type: Certification FCC Rule Part(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] Model(s): SPH-M580 Tx Frequency: 824.70 - 848.31 MHz (Cellular CDMA) 1851.25 - 1908.75 MHz (PCS CDMA) 2412 - 2462 MHz (WLAN) Conducted Power: 25.00 dBm Cell. CDMA 25.33 dBm PCS CDMA 17.23 dBm 2.4 GHz WLAN Max. SAR Measurement: 0.30 W/kg Cell. CDMA Head SAR 0.75 W/kg Cell. CDMA Body SAR 0.54 W/kg PCS CDMA Head SAR 1.01 W/kg PCS CDMA Body SAR 0.13 W/kg 2.4 GHz WLAN Head SAR 0.09 W/kg 2.4 GHz WLAN Body SAR Test Device Serial No.: Pre-Production [S/N: FCC #1, FCC#2] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6554 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 42 0Y1102140273.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 T A B L E O F C O N T E N T S 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 19 13 SINGLE TX SAR CONSIDERATIONS .......................................................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 25 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 30 17 EQUIPMENT LIST ......................................................................................................................... 32 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 33 19 CONCLUSION ............................................................................................................................... 34 20 REFERENCES .............................................................................................................................. 35 21 SAR TEST SETUP PHOTOGRAPHS ........................................................................................... 37 FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 42 0Y1102140273.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 1 I N T R O D U C T I O N The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable d…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSPHM580 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1102140268.A3L February 17-18, 2011 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. February 17-18, 2011 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1102140268.A3L FCC ID: A3LSPHM580 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SPH-M580 EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Max. RF Output Power: 52.84 mW (17.23 dBm) Conducted (b) 27.48 mW (14.39 dBm) Conducted (g) 18.03 mW (12.56 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 Test Device Serial No.: ZB2004TB This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11b/g/n Reviewed by: FCC ID: A3LSPHM580 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1102140268.A3L February 17-18, 2011 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 45 © 2011 PCTEST Engineering Laboratory, Inc. REV 1.5WBGNFI 01/27/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 29 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 33 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 37 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 39 7.0 CONCLUSION ................................................................…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics Co., Ltd. FCC ID: A3LSPHM580 Model: SPH-M580 Test Set-Up Photos EUT Type: Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 37 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 21 SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 38 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-1 SAR Test Setup Photo 1 Figure 21-2 SAR Test Setup Photo 2 FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 39 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-3 SAR Test Setup Photo 3 Figure 21-4 SAR Test Setup Photo 4 FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 40 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-5 SAR Test Setup Photo 5 – Back at 1.0 cm Figure 21-6 SAR Test Setup Photo 6 – Front at 1.0 cm FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 41 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-7 SAR Test Setup Photo 7 – Top at 1.0 cm Figure 21-8 SAR Test Setup Photo 8 – Bottom at 1.0 cm FCC ID: A3LSPHM580 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 42 of 42 0Y1102140273-R1.A3L 02/15/11 - 02/25/11 Cellular/PCS CDMA/EvDO Phone with Bluetooth and WLAN © 2011 PCTEST Engineering Laboratory, Inc. REV 8.8M 01/04/2011 Figure 21-9 SAR Test Setup Photo 9- Right at 1.0 cm Figure 21-10 SAR Test Setup Photo 10 – Left at 1.0 cm
