A3LSPHN100Dual-Band Analog/PCS Cellular Phone

User Guide ELECT ELECTRONICS GH00-000000 ‘2000/3. Rev. 1. 1 SCH-N101 Series CDMA DIGITAL CELLULAR TELEPHONE Features Congratulations on the purchase of your Samsung Phone. Using the latest digital technlolgy,the Samsung Phone oper- ates similar to other wireless phones,while providing superi- or resonanc and tone quality. Your Samsung phone is packed with productive features that are easy to use.Here are some of them: u Answer and hang up calls just by opening the phone u Large,easy-to-use Phone Book with 229 memory locations u Turbo Dialing u Voice Dialing-20 memory locations with one-touch access u Event Scheduler,to-do list,world clock,and calculator u Web Browser u Data and Fax call capable u Short Message Services (SMS) and Voicemail u Fast Ringer Mute during incoming calls u 10 ring tones,11 melodies,or Vibrate alert u 10 Incoming and 10 Outgoing Call Logs with Caller ID u Pause Dialing for tele-services u Security features including Call Restriction u Alarm Clock u Dynamic Character Display 1 Table of Contents Your Consumer Package 7 Getting to Know Your Phone 8 Turning your Samsung Phone On and Off 15 To Turn it On 15 To Turn it Off 15 The Top Line of the Display 16 Using the Battery 18 Installing the Battery 18 Removing the Battery 18 Charging the Battery 18 Charging with the Tra veler Adapter 19 Your Phone’s Modes 20 Standby Mode 20 Conversation Mode 20 Power Save Mode 21 Basic Voice Call Functions 22 Making a Voice Call 22 Redialing Calls 22 Correcting Dialing Mistakes 23 Ending a Call 23 Incoming Call Notification 23 Answering a Call 24 Adjusting Ring Volume 24 Silencing the Ringer on an Incoming Call 25 Setting the Ringer Type 25 To Mute the Microphone During a Call 25 Adjusting Voice Volume 26 Using Caller ID 26 Three-Way Calling 27 3 Setting the Language of the Display 45 Displaying your phone’s Hardware and Software Version 46 Alarm 47 Setting the Alarm 47 To Change the Alarm Setting 48 To Cancel the Alarm 48 Sounds 49 Key Beep Volume Setting 49 Ringer Options 50 One-Touch Vibrate Ringer 50 Fast Ringer Mute 50 Ring type setting for Data and Fax Calls 51 Ring Volume Setting for all Incoming Calls 51 Differential Ring 53 Voice-Activated Dialing 54 Tips on Recording Names 54 Program the Phone for Voice-Activated Dialing 55 Voice Dialing Activation 56 Placing a Call using Voice Dialing 57 Reviewing Voice Dialing Entries 57 Erasing Voice Dialing Entries 58 Message Services 59 Incoming Messages 59 Incoming Message Memory Capacity 59 Reviewing Incoming Page,Text,or Browser Messages 60 Incoming Message Ringer 61 Incoming Messages and Lock Mode 61 Options when Reviewing Incoming Messages 61 Erasing Inbox Messages 62 Voicemail 63 Setting up your Voicemail 63 Reviewing Voicemail Messages 63 2 Call Forwarding 27 Call Waiting 28 Answering a Call Waiting Call 28 Missed Calls 29 Dropped Calls 29 Failed Calls 29 Prepend Dialing 30 Emergency Dialing 31 Pause Dialing 32 Storing Pauses in a Phone Book Entry 32 Pause Dialing From a Stored Phone Book Entry 33 Manual Pause Dialing 33 Basic Setup of Your Phone 34 Automatic Retry 34 Automatic Answer 34 Automatic Hyphenation 35 Answer Options 35 Tone Length Setting 36 Setting the Time 36 Setting Your NAM 37 System Selection 38 How to Setup For a Voice,Data,or Fax Call 39 How to Setup the Web Browser Prompts 39 Audible Alerts 40 Minute Beep 40 Service Alert 40 Connect Alert 41 Disconnect Alert 41 Display Options 43 Backlight Control 43 Personal Greeting 44 Animation Display 44 Displaying your own Phone Number 45 54 The Phone Book 64 Viewing Stored Entries 64 Storing Phone Numbers and Names 66 Storing phone numbers shortcuts 67 Storing phone numbers at the end of a call 67 Prepend a Phone Number 68 Adding a Name Ringer 69 Changing Your Phone Book 70 Editing Phone Book numbers 70 Secret Phone Book numbers 70 Erasing Phone Book Entries 71 Erasing the Phone Book 71 Set Speed Dial 71 Dialing numbers from your Phone Book 72 Memory Dialing Shortcuts 72 Your Phone’s Security Features 73 Lock Mode 73 Dialing in Lock Mode 73 Locking the Phone 74 Unlocking the Phone 75 Call Restriction Options 75 Lock Code Setting 76 Priority Numbers 77 Storing a Priority Number 77 Dialing Priority Numbers in Lock Mode 78 Personal Identification Number (PIN) 78 Erasing Your Phone Book (Clear Memory) 79 Hiding your Phone Number 79 Vocoder 80 Resetting Your Phone 81 Keeping Track of Your Calls 82 Displaying Your Call Logs 82 Erasing Call Logs 83 Reviewing Air Time 84 Scheduler 86 Today 86 View Month 88 Jump To Date 89 To Do List 90 Count Down 91 World Time 93 Calculator 94 Game 95 Fax and Data Calls 96 Receiving a Fax 96 Receiving a Data File 97 Sending a Fax or Data File 98 The Web Browser(WAP) 99 To Setup the Web Browser Prompts 99 Launching the Web Browser 100 To exit the Web Browser 101 The Web Browser Soft Keys 101 Navigating the Web Browser 102 Entering text,numbers,or symbols 104 Using Links 105 Initiating a Phone Call during a Web Browser Session 105 Receiving a phone call while in the Web Browser 105 Using Bookmarks 106 To Create a Bookmark 106 Finding a Bookmark 106 Orange Menu 107 Menus 108 Main Menu 108 In Use Menu 108 Navigating Menus 108 Your Phon’s Main Menu 109 76 Usage Guidelines: All about Performance and Safety 110 Understanding Signal Strength 110 Understanding Power Save Mode 110 Understanding How Your Phone Operates 110 Specifications Subject to Change 110 Radio Frequency Safety 111 Emergency Calls IMPORTNAT NOTICE! PLEASE READ! 111 Maintaining Your Phone’s Peak Performance 112 Protecting Your Battery 112 Battery Disposal and Recycling 113 Operating a Motor Vehicle 114 Following Safety Guidelines 115 Turn off Your Phone Before Flying 115 Restricting Children’s Access to Your Phone 115 Cautions 115 FCC Notice 115 Storing Your Phone 115 Using Your Phone Near Other Electronic Devices 116 FCC Compliance Information 116 Liquefied Petroleum Gas 117 Turn Off Your Phone in Dangerous Areas or Posted Areas117 Your Phone as a Network Device 117 Information To User 1…

Text truncated - open the document above for the full version.

May 30, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America May 30, 2000 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.:A3LSPHN100 Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, and Circuit Description of the attached test report. These documents contain detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. May 30, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHN100), using the Automatic A/B Roaming – Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSPHN100) is so designed that it complies with all the requirements for ESN protection specified in Sec. 22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative.

May 30, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHN100 Part 22/24 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22.901(d) & Part 24(E) Certification of the following Dual-Band PCS/Cellular Phone: FCC ID: A3LSPHN100 TRADE / MODEL(s): SAMSUNG SPH-N100 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) 1851.25 – 1908.75 MHz (CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) 1931.25 – 1988.75 MHz (CDMA) Max. RF Output Power: 0.517 W ERP AMPS (27.134 dBm) 0.323 W EIRP PCS CDMA (25.086 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

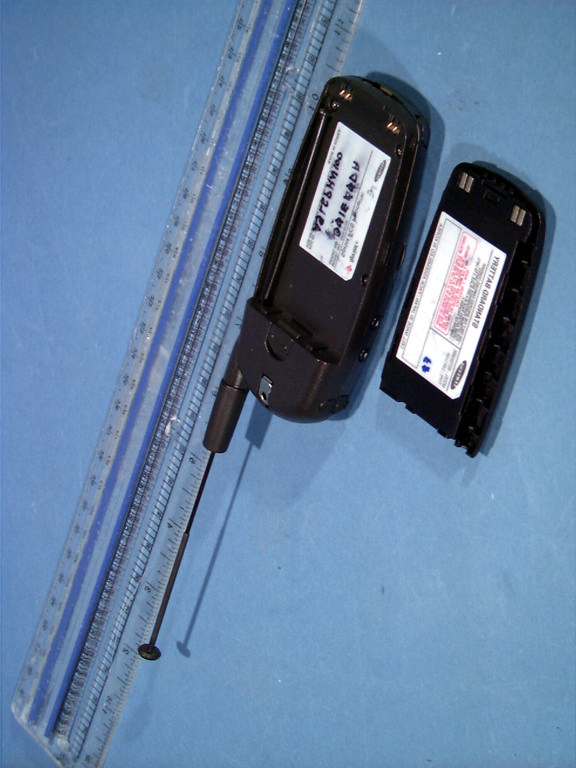

© 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SPH-N100 FCC ID: A3LSPHN100 CANADA: MADE IN KOREA

© 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Band Analog/ PCS Phone

SEC-CODE B'DPART NO DECRIPTIONREMARK 0405-001035D402DIODE-VARACTOR1SV279,15V,3nA,USC,TP 0405-001035D403DIODE-VARACTOR1SV279,15V,3nA,USC,TP 0405-001035D501DIODE-VARACTOR1SV279,15V,3nA,USC,TP 0405-001035D502DIODE-VARACTOR1SV279,15V,3nA,USC,TP 0406-001051ZD102DIODE-TVSSMS05C,6V,300W,SOT-23-6 0406-001051ZD103DIODE-TVSSMS05C,6V,300W,SOT-23-6 0407-000115D100DIODE-ARRAYDAN202U,80V,100mA,CA2-3,SC-70, 0407-000115D202DIODE-ARRAYDAN202U,80V,100mA,CA2-3,SC-70, 0407-001006D200DIODE-ARRAYDA221,20V,100mA,C2-3,EM3,TR 0407-001006D201DIODE-ARRAYDA221,20V,100mA,C2-3,EM3,TR 0407-001006D500DIODE-ARRAYDA221,20V,100mA,C2-3,EM3,TR 0409-001016D401DIODE-PINBAR63-02W,50V,100mA,SCD-80,TP 0501-000162Q106TR-SMALLSIGNAL2SA1576,PNP,200MW,SOT-323,TP,180-390 0501-000162Q301TR-SMALLSIGNAL2SA1576,PNP,200MW,SOT-323,TP,180-390 0501-000218Q400TR-SMALLSIGNAL2SC4081,NPN,200mW,UMT,TP,180-3 0501-000225Q102TR-SMALLSIGNAL2SC4617,NPN,200mW,EM3,TP,120-5 0501-000225Q108TR-SMALLSIGNAL2SC4617,NPN,200mW,EM3,TP,120-5 0501-002096Q503TR-SMALLSIGNALBFP420,NPN,160MW,SOT-343,TP,50-150 0501-002110Q401TR-SMALLSIGNALAT32033,NPN,200mW,SOT-23,TP,70 0501-002202Q107TR-SMALLSIGNALMMBT2222AWT1,NPN,150mW,SOT-323 0501-002202Q201TR-SMALLSIGNALMMBT2222AWT1,NPN,150mW,SOT-323 0504-000167Q104TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000167Q160TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000167Q302TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000167Q502TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000167Q510TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000167Q511TR-DIGITALRN1102,NPN,100MW,10K/10K,SSM,TP 0504-000168Q100TR-DIGITALRN1104,NPN,100MW,47K/47K,SSM,TP 0504-000168Q103TR-DIGITALRN1104,NPN,100MW,47K/47K,SSM,TP 0504-000168Q410TR-DIGITALRN1104,NPN,100MW,47K/47K,SSM,TP 0504-000172Q200TR-DIGITALRN2104,PNP,100MW,47K/47K,SSM,TP 0504-000172Q500TR-DIGITALRN2104,PNP,100MW,47K/47K,SSM,TP 0505-001037U502FET-SILICON-,P,-12V,+-2.5A,0.1ohm,1W,TSSO 0505-001119Q402FET-SILICON2SK2685,P,6V,20mA,-,100mW,CMPA 0505-001165Q110FET-SILICONSI3443DV,P,-20V,+-3.5mA,65mohm 0505-001165Q501FET-SILICONSI3443DV,P,-20V,+-3.5mA,65mohm 1001-001048U407IC-ANALOGSWITCHSW395TR,SPDP,SOT-26,6P,-,DUAL, 1103-001184U105IC-EEPROM24C256,32Kx8Bit,dBGA,8P,92MIL,-,2.7V 1109-001133U102IC-ETC.MEMORY84VD21194,2MX8/1MX16Bit,BGA,61P,354MIL 1201-001248U300IC-CASCODEAMP0916,SOT-143,4P,-,-,2.7V,-,6Vd 1201-001248U301IC-CASCODEAMP0916,SOT-143,4P,-,-,2.7V,-,6Vd 1201-001259U500IC-POWERAMP23124,LCC,8P,-,SINGLE,-,PLASTI 9.PARTSLIST 1201-001384U400IC-MMICAMPMD57-0001,SOT-26,6P,114MIL,SIN 1202-000192U200IC-VOLFAGECOMP.75W393,-,8P,-,DUAL,36V,CMOS,PL 1203-001285U403IC-SWITCHVOL.REG.5205,SOT-23,5P,150MIL,PLASTIC, 1203-001285U404IC-SWITCHVOL.REG.5205,SOT-23,5P,150MIL,PLASTIC, 1203-001285U503IC-SWITCHVOL.REG.5205,SOT-23,5P,150MIL,PLASTIC, 1203-001717U201IC-VOLTAGEREGULATOR5210,MSOP,8P,117MIL,PLASTIC,3.0V 1203-001835U101IC-RESET3470,SOT23,5P,-,PLASTIC,0.99/1.01V 1204-001375U202IC-ENCODER/DECODERST5092TQFPTR,QFP,44P,-,PLASTIC 1204-001504U401IC-IFCIRCUITIFR3000,TQFP,48P,-,PLASTIC,3.5V 1204-001505U501IC-IFCIRCUITIFT3000,TQFP,48P,-,PLASTIC,3.5V 1205-001535U504IC-MIXERRF2628,MSOP,8P,190MIL,PLASTIC, 1205-001670U104IC-TRANSCEIVERMSM3000,PBGA,196P,-,PLASTIC,3.5V 1209-001197U302IC-PLLLMX2332LSLB,CSP,20P,-,PLASTIC, 1404-001040R502THERMISTOR-NTC10Kohm,5%,3650K,-,TP 1404-001165TH1THERMISTOR-NTC10KOHM,3%,4100K,30MW/C,TP 2007-000137R143R-CHIP2Kohm,5%,1/16W,DA,TP,1005 2007-000137R330R-CHIP2Kohm,5%,1/16W,DA,TP,1005 2007-000137R405R-CHIP2Kohm,5%,1/16W,DA,TP,1005 2007-000137R526R-CHIP2Kohm,5%,1/16W,DA,TP,1005 2007-000138R101R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R103R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R106R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R108R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R111R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R144R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000138R302R-CHIP100ohm,5%,1/16W,DA,TP,1005 2007-000139R416R-CHIP220ohm,5%,1/16W,DA,TP,1005 2007-000140R110R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R117R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R126R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R127R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R135R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R146R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R210R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000140R213R-CHIP1Kohm,5%,1/16W,DA,TP,1005 2007-000141R204R-CHIP2.2Kohm,5%,1/16W,DA,TP,1005 2007-000141R309R-CHIP2.2Kohm,5%,1/16W,DA,TP,1005 2007-000142R505R-CHIP2.7Kohm,5%,1/16W,DA,TP,1005 2007-000143R124R-CHIP4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143R187R-CHIP4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143R206R-CHIP4.7Kohm,5%,1/16W,DA,TP,1005 2007-000143R529R-CHIP4.7Kohm,5%,1/16W,DA,TP,1005 2007-000144R281R-CHIP5.1Kohm,5%,1/16W,DA,TP,1005 2007-000144R310R-CHIP5.1Kohm,5%,1/16W,DA,TP,1005 2007-000145R506R-CHIP6.2Kohm,5%,1/16W,DA,TP,1005 2007-000146R105R-CHIP6.8Kohm,5%,1/16W,DA,TP,1005 2007-000146R128R-CHIP6.8Kohm,5%,1/16W,DA,TP,1005 2007-000147R532R-CHIP8.2Kohm,5%,1/16W,DA,TP,1005 2007-000148R109R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R121R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R132R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R139R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R194R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R196R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R426R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R427R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R510R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R512R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R517R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000148R582R-CHIP10Kohm,5%,1/16W,DA,TP,1005 2007-000151R134R-CHIP15Kohm,5%,1/16W,DA,TP,1005 2007-000153R100R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000153R123R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000153R125R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000153R129R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000153R145R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000153R147R-CHIP22Kohm,5%,1/16W,DA,TP,1005 2007-000155R185R-CHIP27Kohm,5%,1/16W,DA,TP,1005 2007-000157R102R-CHIP47Kohm,5%,1/16W,DA,TP,1005 2007-000157R107R-CHIP47Kohm,5%,1/16W,DA,TP,1005 2007-000157R520R-C…

Text truncated - open the document above for the full version.

1 GETTING STARTED Unpacking ....................................................................................................7 Phone Layout ................................................................................................8 Display .......................................................................................................11 Icons .......................................................................................................11 Backlight .....................................................................................................12 Service Light ...............................................................................................12 Installing Battery ..........................................................................................13 To Install the Battery ................................................................................13 To Remove the Battery .............................................................................14 Charging a Battery .......................................................................................15 Low Battery Indicator ...............................................................................16 Switching the Phone On/Off .........................................................................17 GENERAL FUNCTIONS Making a Call ...............................................................................................19 Correcting the Number .............................................................................19 Ending a Call ...........................................................................................19 Priority Dialing ........................................................................................20 Prepend Dialing .......................................................................................20 Making a Call from the Phone Book ............................................................21 Speed Dialing .............................................................................................21 One-Touch Dial .........................................................................................22 Two-Touch Dial .........................................................................................22 Three-Touch Dial ......................................................................................23 Voice Dialing ...............................................................................................24 Last Number Redial ......................................................................................24 Answering a Call ...........................................................................................25 Viewing Missed Calls .....................................................................................25 In-Call Options ..............................................................................................26 Call Waiting .............................................................................................27 Three-Way Calling.....................................................................................27 Call Forwarding.........................................................................................28 Adjusting the Volume.....................................................................................28 Quick Switching to Vibration Mode ................................................................29 Recording a Voice Memo or Phone Conversation ............................................29 Table of ContentsFCC RF EXPOSURE INFORMATION In August 1996 the Federal Communications Commission (FCC) of the United States with its action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies. The design of this phone complies with the FCC guidelines and these international standards. Use only the supplied or an approved antenna. Unauthorized antennas, modifications, or attachments could impair call quality, damage the phone, or result in violation of FCC regulations. Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with the skin, a minor burn may result. Please contact your local dealer for replacement antenna. Body-worn Operation This device was tested for typical body-worn operations using a spacing of 2.0 cm between the phone and the body. To comply with FCC RF exposure requirements, a minimum separation distance of 2.0cm must be maintained between the user’s body and the phone, including the antenna, whether extended or retracted. The use of third-party belt-clips/ holsters with no metallic components that provide the minimum separation distance of 2.0cm can be used to satisfy FCC RF exposure requirements. The use of non-tested accessories or other body-worn operations may not comply with FCC RF exposure requirements and should be avoided. Contact your local dealer for optional accessory items. For more information about RF exposure, please visit the FCC web site at www .fcc.gov

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 66606660--B Dobbin Road B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290TEL (410) 290--6652 6652 •• FAX (410) 290 FAX (410) 290--66546654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Dates of Tests: May 19-30, 2000 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.200508243.A3L Suwon City, Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia MD U.S.A. Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHN100 APPLICANT SAMSUNG Electronics Industries Co., Ltd. EUT Type: Dual-Band PCS/Cellular Phone (AMPS/CDMA) Tx Frequency: 824.04 – 848.97 MHz (AMPS) / 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 – 893.97 MHz (AMPS) / 1931.25 – 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.517W ERP AMPS (27.134 dBm) / 0.323W EIRP PCS CDMA (25.086 dBm) Trade Name/Model(s): SAMSUNG SPH-N100 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) Application Type: Certification Serial Number: n/a (pre-production) FCC Rule Part(s): 2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 200508243.A3L SAR Measurement Report FCC Part 22 Certification © 2000 PCTEST Lab Table of Contents 1.1: SCOPE .............................................................. 1 2.1-2: INTRODUCTION / SAR DEFINITION .......................... 2 3.1: SAR MEASUREMENT SET-UP ................................. 3 4.1-2: E-FIELD PROBE SYSTEM ....................................... 4 5.1-4: E-FIELD PROBE CALIBRATION .............................. 5-6 6.1-3: PHANTOM & EQUIVALENT TISSUE ........................... 7 7.1-2: SYSTEM SPECIFICATIONS ..................................... 8 8.1-2: MEASUREMENT PROCESS .................................... 9 9.1-2: TEST POSITION OF THE PHONE ............................. 10 10.1-2: BODY-WORN TEST SETUP .................................. 11 11.1: ANSI/IEEE C95.1 RF EXPOSURE LIMITS .................. 12 12.1: MEASUREMENT UNCERTAINTIES ....................... 13 13.1-3: TEST DATA SUMMARY ......................................... 14-17 14.1: SAR TEST EQUIPMENT LIST ............................... 18 15.1: CONCLUSION / REFERENCES .............................. 19 Test Report S/N: SAR.200508243.A3L SAR Measurement Report Test Dates: May 19-30, 2000 FCC Part 22 Certification SAMSUNG Dual-Band PCS/Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) 1 SAR MEASUREMENT REPORT 1.1 SCOPE Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do 441-742, KOREA Attention: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Dual-Band Cellular Phone (AMPS/CDMA) • Trade Name: SAMSUNG • FCC IDENTIFIER: A3LSPHN100 • Model: SPH-N100 • S/N: Pre-production • Tx Frequency: 824.04 – 848.97 MHz (AMPS) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 – 893.97 MHz (AMPS) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s): §2.1093, Docket 96-326 • Max. RF Output Power: 0.517W ERP AMPS (27.134 dBm) 0.323W EIRP PCS CDMA (25.086 dBm) • Modulation: AMPS / CDMA • Antenna Type: Helical (λ/2) • Dates of Test(s): May 19-30, 2000 • Place of Test(s): PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.200508243.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200508243.A3L SAR Measurement Report Test Dates: May 19-30, 2000 FCC Part 22 Certification SAMSUNG Dual-Band PCS/Cellular Phone (AMPS/CDMA) © 2000 PCTEST Lab FCC ID: A3LSPHN100 (Model: SPH-N100) 2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice f…

Text truncated - open the document above for the full version.

File : c:/idx3/SYSTEM/SARMEAS3/data/Normal/00051916_ZOOM.VLT Start : 19-May-100 02:27:49 pm End : 19-May-100 02:37:07 pm Radio Type : SAMSUNG Model Number : SPH-N100 Serial Number : B01E00DA Fr…

Text truncated - open the document above for the full version.
