A3LSPHN350Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Nov 12, 2001
Application Purpose: Original Equipment
Date of Application: Sep 25, 2001
Equipment Note: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

SPH-N350 User’s Manual Printed in Korea Code No. : GH68-00000A English. 2001/10. Rev.1.0 World Wide Web http://www.samsungmobile.com Please read this manual before operating your phone, and keep it for future reference . Safety Quick Guide Read these guidelines before using your wireless phone. Failure to comply with these guidelines may be dangerous or illegal. For more detailed safety information, see “Health and Safety Information” on page 73. Road safety comes first Do not use a hand-held phone while driving; park the vehicle first. Switch off when refuelling Do not use the phone at a refuelling point (service station) or near fuels or chemicals. Switch off on aircraft Wireless phones can cause interference. Using them on aircraft is both illegal and dangerous. Switch off in hospital Switch off your phone near medical equipment. Follow any regulations or rules in force. Interference All wireless phones may get interference which could affect performance. Respect special regulations Follow any special regulations in force in any area and always switch off your phone whenever it is forbidden to use it, or when it may cause interference or danger (in a hospital for example). 1 YOUR PHONE Key Descriptions...................................................................................5 Display ................................................................................................6 Service light ..........................................................................................8 GETTING STARTED Charging a Battery .................................................................................9 Low Battery Indicator ..........................................................................10 Switching the Phone On/Off ................................................................11 CALL FUNCTIONS Making a Call ......................................................................................12 Answering a Call..................................................................................18 In-Call Options ....................................................................................19 Using Caller ID ....................................................................................20 Viewing Missed Calls ...........................................................................21 Three-Way Calling ...............................................................................22 Call Waiting ........................................................................................23 Call Forwarding ....................................................................................23 Adjusting the Volume...........................................................................24 Quick Switching to Vibration Mode .......................................................24 ENTERING TEXT Changing Text Input Mode ...................................................................25 T9 Mode ..............................................................................................26 Alpha Mode ..........................................................................................27 Symbol Mode ......................................................................................29 Number Mode .....................................................................................29 Table of Contents Radio frequency exposure information In August 1996, the Federal Communications Commisision (FCC) of the U.S. adopted an updated safety standard for human exposure to radio frequency electromagnetic energy emitted by FCC regulated transmitters. The design of this phone complies with the FCC guidelines and those standards. To maintain compliance with FCC RF exposure guidelines, if you wear a handset on your body, use the Samsung-supplied or approved carrying case, holster, or other body-worn accessory. If you do not use a body-worn accessory, ensure the antenna is at least one inch (2.0cm) from your body when transmitting. Use of non-approved accessories may violate FCC RF exposure guidelines. Use sensibly Use only in the normal position (to ear). Avoid unnessary contact with the antenna when the phone is switched on. Accessories and batteries Use only SAMSUNG-approved accessories and batteries. Use qualified service Only qualified service personnel may install or repair your phone. 23 USINGTHEMENUS Accessing a Menu Functions by Scrolling ..............................................30 Accessing a Menu Functions by Using its Shortcut..................................31 Your Phone’s Main Menu ....................................................................32 CALLS Outgoing(MENU 1-1) ...................................................................34 Incoming(MENU 1-2) ...................................................................35 Missed(MENU 1-3) .......................................................................36 Erase History(MENU 1-4)..............................................................37 Air Time(MENU 1-5)......................................................................37 WIRELESSWEB Message(MENU 2-1) ....................................................................38 Web Alerts(MENU 2-2) .................................................................38 Launch Brows(MENU 2-3) ............................................................39 Connection (MENU 2-4) .................................................................39 Web Guard(MENU 2-5).................................................................39 Erase (MENU 2-6)..........................................................................40 PHONE BOOK Find Name(MENU 3-1)................................................................41 Add New Entry(MENU 3-2).........................................................43 My Phone # (MENU3-3)...............................................................44 Find Entry(MENU 3-4)..........................................…

Text truncated - open the document above for the full version.

Attestation Statements

April 2, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.862. Sincerely, Wallace Oh Engineering Manager Samsung Electronics America September 21, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID.: A3LSPHN350 Request for Confidentiality To Whom It May Concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality for the Block Diagram, Schematics, Parts list, Tune-up Procedure, Operational and Circuit Description of the attached test report. These documents contain detailed system and equipment descriptions and related information about the product, which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. September 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC E911 REQUIREMENTS PER §22.921 Gentlemen: Samsung Electronics Co., Ltd. hereby certifies that the analog cellular telephone (FCC ID: A3LSPHN350), using the Automatic A/B Roaming — Intelligent Retry method, meets the E911 requirements specified in Section 22.921 of the FCC Rules. This procedure recognizes when a “9-1-1” call is made and, at such time, will override any programming in the mobile unit that determines the handling of a non-911 call and permit the call to be handled by other analog carriers. Should you have any questions or comments concerning the above, please contact the undersigned. AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID: A3LSPHN350) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. September 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN350 Users Manual RF Exposure Warning Statement Gentlemen: Samsung Electronics Co., Ltd., hereby confirms that the attached RF exposure warning page will be readily visible to the user, and will be placed at a prominent location in the front section of the users manual. If you have any further questions regarding this matter, please do not hesitate to contact me or PCTEST Lab at (410) 290-6652.

Cover Letter(s)

September 21, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG Electronics Co., Ltd. FCC ID: A3LSPHN350 Part 24/22 Certification Gentlemen: Submitted herewith, on behalf of SAMSUNG Electronics Co., Ltd., is an application for Part 24/22 Certification of the following Tri-mode Dual-Band Analog/PCS Phone: FCC ID: A3LSPHN350 TRADE/MODEL(s): SAMSUNG SPH-N350 EUT TYPE: Tri-mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Freq. Range(s): 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.332 W ERP AMPS (25.211 dBm) / 0.220 W ERP CDMA (23.430 dBm) 0.322 W EIRP PCS CDMA (25.079 dBm) Max. SAR Measurement: 1.320mW/g AMPS Head SAR; 0.573mW/g AMPS Body SAR 0.863mW/g CDMA Head SAR; 0.338mW/g CDMA Body SAR 1 .470mW/g PCS Head SAR; 0.240mW/g PCS Body SAR Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 compliance statement, RF warning location, measurement report test data and plots, RF Exposure measurement report and data, FCC ID label and location, test setup photographs, internal and external photographs, block diagram (confidential), circuit diagrams & description (confidential), operational description (confidential), parts list & tune-up procedure (confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: SAMSUNG Electronics Co., Ltd.

Cover Letter(s)

October 30, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN350 731 Confirmation No.: EA102569 Correspondence Reference No.: 21053 Request for Tech. Info.: 10/25/01 Dear Stan: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated October 30, 2001. 1. The level readings in column two on pages 8-10 are the receive spectrum analyzer readings in dBm taken at a distance of 3 meters during the ERP test. The signal generator driving the substituted dipole was adjusted to produce this same meter reading. The level at the input terminals of the substituted dipole was then measured and the ERP value was recorded. 2. As stated in item #1 the levels in column two of pages 11-19 are maximum receive spectrum analyzer readings in dBm taken at a distance of 3 meters. 3. Please find the attached frequency response data. 4. Please find the attached modulation limiting data. 5. Please find the attached measurement data showing compliance with the SAT notch requirement. 6. Please find the attached plot of the voice modulation occupied bandwidth taken at 2500 Hz and SAT + audio plot. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

Cover Letter(s)

November 9, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Mr. Stan Lyles SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHN350 731 Confirmation No.: EA102569 Correspondence Reference No.: 21121 Request for Tech. Info.: 11/01/01 Dear Stan: Transmitted herewith, on behalf of Samsung Electronics Co., Ltd. is an amendment provided in response to the request for technical information dated November 9, 2001. 1. Please find attached the Users Manual. We trust this information is sufficient for the immediate grant of this application. If you have any further questions, please do not hesitate to contact us. cc: Samsung Electronics Co., Ltd.

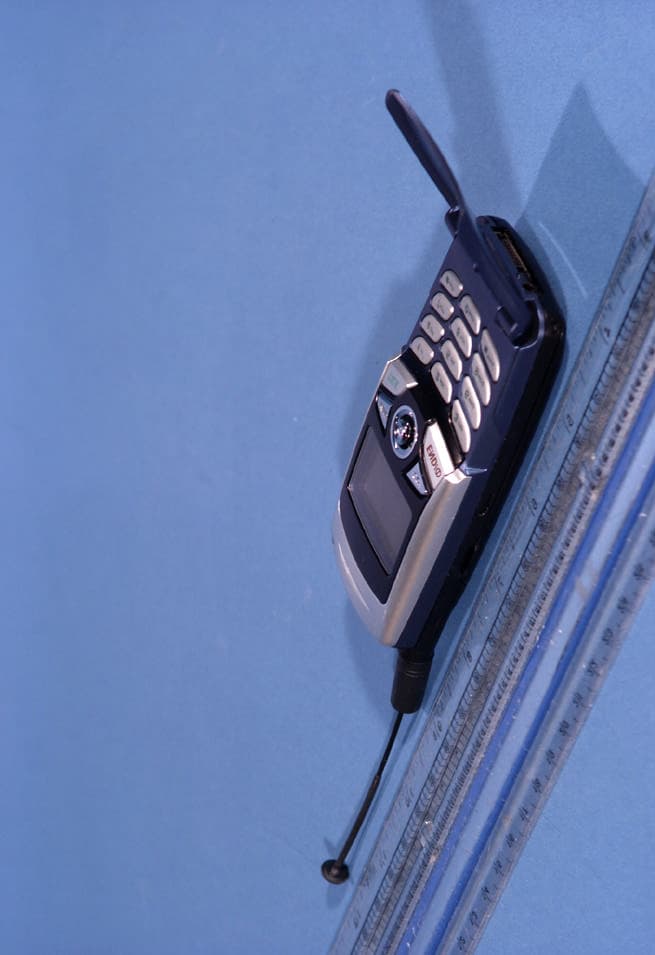

External Photos

ID Label/Location Info

© 2001PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) SAMSUNG ELECTRONICS CO., LTD. MODEL NO: SPH-N350 FCC ID: A3LSPHN350 MADE IN KOREA SAMSUNG ELECTRONICS CO., LTD

Internal Photos

RF Exposure Info

© 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road • Columbia, MD 21045 • U.S.A. TEL (410) 290-6652 • FAX (410) 290-6654 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG Electronics Co., Ltd. Dates of Tests: Sept. 6-7 & 10-12, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: SAR.210906535.A3L Suwon City Kyungki-Do 441-742, KOREA Test Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHN350 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type: Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency: 824.04 — 848.97 MHz (AMPS) / 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) Rx Frequency: 869.04 — 893.97 MHz (AMPS) / 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) Max. RF Output Power: 0.332 W ERP AMPS (25.211 dBm) / 0.220 W ERP CDMA (23.430 dBm) 0.322 W EIRP PCS CDMA (25.079 dBm) Max. SAR Measurement: 1.320mW/g AMPS Head SAR; 0.573mW/g AMPS Body SAR 0.863mW/g CDMA Head SAR; 0.338mW/g CDMA Body SAR 1.470mW/g PCS Head SAR; 0.240mW/g PCS Body SAR Trade Name/Model(s): SAMSUNG-SPH-N350 FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) FCC Rule Part(s): §2.1093; FCC/OET Bulletin Supplement C [July 2001] Application Type: Certification This wireless portable device has been shown to be capable of continued compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992 and IEEE Std. 1528 (Draft Aug.2000). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. 210906535.A3L SAR Measurement Report FCC Part 24/22 Certification © 2001 PCTEST Lab i Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 HEAD SAR TEST POSITIONS OF THE PHONE 10 10.1 BODY SAR TEST SETUP 11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-25 14.1 SAR TEST EQUIPMENT LIST 26 15.1 CONCLUSION 27 16.1 REFERENCES 28 Test Report S/N: SAR.210906535.A3L SAR Measurement Report Test Date(s): Sept. 6-7 & 10-12, 2001 FCC Part 24/22 Certification © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) 1 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name: SAMSUNG ELECTRONICS CO., LTD. Address: 416 Maetan-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, 441-742, KOREA Attention: Mr. Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type: Tri-Mode Dual-Band Analog/PCS Phone • Trade Name / Model: SAMSUNG-SPH-N350 • FCC IDENTIFIER: A3LSPHN350 • Tx Frequency: 824.04 — 848.97 MHz (AMPS) 824.70 — 848.31 MHz (CDMA) 1851.25 — 1908.75 MHz (PCS CDMA) • Rx Frequency: 869.04 — 893.97 MHz (AMPS) 869.70 — 893.31 MHz (CDMA) 1931.25 — 1988.75 MHz (PCS CDMA) • FCC Classification: Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s): AMPS / CDMA • FCC Rule Part(s): §2.1093, OET Bulletin 65, Supplement C (July 2001) • Max. RF Output Power: 0.332 W ERP AMPS (25.211 dBm) 0.220 W ERP CDMA (23.430 dBm) 0.322 W EIRP PCS CDMA (25.079 dBm) • Max SAR Measurement: 1.320mW/g AMPS Head SAR; 0.573mW/g AMPS Body SAR 0.863mW/g CDMA Head SAR; 0.338mW/g CDMA Body SAR 1.470mW/g PCS Head SAR; 0.240mW/g PCS Body SAR • Application Type: Certification • Dates of Tests: Sept. 6-7 & 10-12, 2001 Place of Tests: PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.: SAR.210906535.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.210906535.A3L SAR Measurement Report Test Date(s): Sept. 6-7 & 10-12, 2001 FCC Part 24/22 Certification © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) 2 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields …

Text truncated - open the document above for the full version.

RF Exposure Info

© 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) © 2001 PCTEST Lab SAMSUNG FCC ID: A3LSPHN350 (Model: SPH-N350) NVLAP Lab Code: 100431-0 Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)

RF Exposure Info

Probe ET3DV6 SN:1560 Manufactured:December 1, 2000 Calibrated:February 20, 2001 Calibrated for System DASY3 Page 1 of 8 ET3DV6 SN:1560 DASY3 - Parameters of Probe: ET3DV6 SN:1560 Sensitivity in Free SpaceDiode Compression NormX1.48 μV/(V/m) 2 DCP X98mV NormY1.51 μV/(V/m) 2 DCP Y98mV NormZ1.43 μV/(V/m) 2 DCP Z98mV Sensitivity in Tissue Simulating Liquid Head450MHz ε r =43.5 ± 5% σ = 0.87 ± 10% mho/m ConvF X7.17 extrapolatedBoundary effect: ConvF Y7.17 extrapolatedAlpha0.25 ConvF Z7.17 extrapolatedDepth3.21 Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1500MHz ε r =40.4 ± 5% σ = 1.23 ± 10% mho/m ConvF X5.82 interpolatedBoundary effect: ConvF Y5.82 interpolatedAlpha0.41 ConvF Z5.82 interpolatedDepth2.55 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection2.0 ± 0.2mm Page 2 of 8 ET3DV6 SN:1560 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 8 ET3DV6 SN:1560 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R26 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 8 ET3DV6 SN:1560 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 8 ET3DV6 SN:1560 Dynamic Range f(SAR brain ) ( TEM-Cell:ifi110 ) ET3DV6 SN:1560 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 8 Conversion Factor Assessment Head900MHz ε r =42 ± 5% σ = 0.97 ± 10% mho/m ConvF X6.59 ± 7% (k=2)Boundary effect: ConvF Y6.59 ± 7% (k=2)Alpha0.32 ConvF Z6.59 ± 7% (k=2)Depth2.93 Head1800MHz ε r =40 ± 5% σ = 1.40 ± 10% mho/m ConvF X5.43 ± 7% (k=2)Boundary effect: ConvF Y5.43 ± 7% (k=2)Alpha0.46 ConvF Z5.43 ± 7% (k=2)Depth2.36 ET3DV6 SN:1560 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 1.00 2.00 3.00 4.00 5.00 6.00 7.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 8 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 8 of 8

RF Exposure Info

835MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Brain: σ = 0.90 mho/m ε r = 41.5 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.09 mW/g, SAR (10g): 1.40 mW/g 835MHz Brain Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 2.08E-1 6.25E-1 1.04E+0 1.46E+0 1.88E+0 PCTEST Engineering Laboratory, Inc. 835MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 835 MHz Muscle: σ = 0.97 mho/m ε r = 55.2 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 2.11 mW/g, SAR (10g): 1.43 mW/g 835MHz Muscle Dipole Validation (D835V2 S/N: 406) Frequency: 835 MHz; Antenna Input Power: 250 [mW] PCTEST Muscle Tissue Simulating Liquid SAR Tot [mW/g] 2.10E-1 6.31E-1 1.05E+0 1.47E+0 1.89E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Brain Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Brain: σ = 1.62 mho/m ε r = 40.0 ρ = 1.00 g/cm 3 ; Antenna Position -- Out; Crest Factor 1.0 SAR (1g): 9.35 mW/g, SAR (10g): 4.79 mW/g 1900MHz Brain Dipole Validation (D1900V2 S/N: 502) Frequency: 1900 MHz; Antenna Input Power: 250 [mW] PCTEST Brain Tissue Simulating Liquid SAR Tot [mW/g] 9.15E-1 2.75E+0 4.58E+0 6.41E+0 8.24E+0 PCTEST Engineering Laboratory, Inc. 1900MHz Muscle Dipole Validation Generic Twin Phantom; Flat Section; Probe: ET3DV6 - SN1560 -- Probe Cal Date 20/02/01 Med. Parameters 1900 MHz Muscle: σ = 1.52 mho/m ε r = 53.3 ρ = 1.00 g/cm 3 ; Antenna Position -- Out;…
