A3LSPHT100Tri-Mode Dual-Band PCS/Analog Phone (AMPS/CDMA)

Samsung Electronics Co Ltd

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Jun 20, 2000
Application Purpose: Original Equipment
Date of Application: Mar 29, 2000
Equipment Note: Tri-Mode Dual-Band PCS/Analog Phone (AMPS/CDMA)
Frequency Range: 1851.25000000 - 1908.75000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

March 20, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHT100 Part 24/22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 24/22 Certification of the following Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA): FCC ID: A3LSPHT100 TRADE / MODEL(s): SAMSUNG SPH-T100 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 849.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power: 0.6 W ERP AMPS (27.80 dBm) / 0.43 W ERP CDMA (26.33 dBm) 0.355 W EIRP PCS CDMA (25.50 dBm) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, E911 Compliance Statement, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Wallace Oh Engineering Manager SAMSUNG American QA Lab

Cover Letter(s)

May 18, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Errol Chang / Kwok Chan SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSPHT100 731 Confirmation Number: EA97202 Correspondence Reference No.: 13585 Dear Joe / Kwok: Submitted herewith, on behalf of Samsung Electronics Co. Ltd., is an amendment in response to your e-mail dated April 21, 2000 requesting additional information for the subject application. 1. Attached is the remeasured ERP data in AMPS mode for SPH-T100 phone. Please note that the remeasured ERP data is performed using substitution method. 2. Attached is the revised tune-up procedure with + 0.2dB tolerance for AMPS mode (26.0dBm + 0.2dB/- 4.0dB) (see attached amended tune-up procedure page 5). Please note that production units will be tested for conducted power measurements with the above tolerance before shipment to ensure the maximum power does not exceed this level (+26.2dBm). 3. We confirm all values listed AMPS and PCS/CDMA modes in the tune-up procedure are conducted output measurements We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Wallace Oh, Engineering Manager SAMSUNG American QA Lab

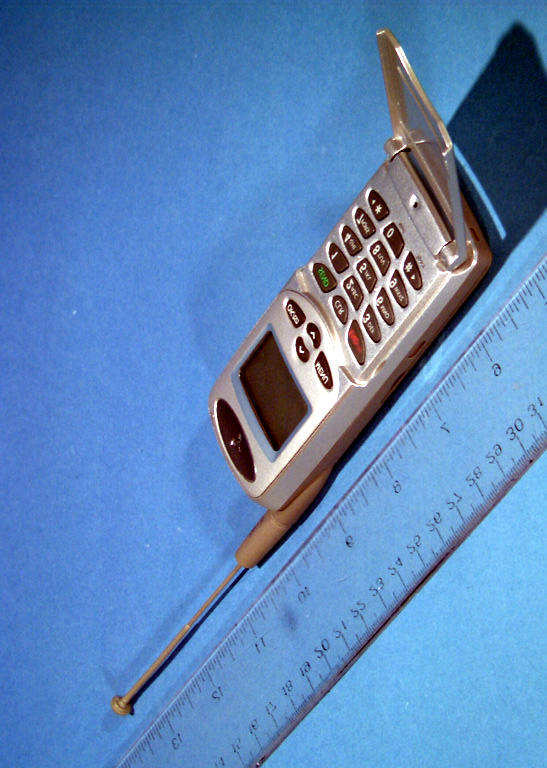

External Photos

ID Label/Location Info

© 2000 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SPH-T100 FCC ID: A3LSPHT100 MADE IN KOREA

Internal Photos

Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.200210054.A3LFCC Parts 24 & 22 Test Date(s): March 06-10, 2000Certification © 2000 PCTEST Lab FCC ID: A3LSPHT100 (Model: SPH-T100) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

Parts List/Tune Up Info

CHANGE TO TEST MODE A. To change the phone from Normal Mode to test Mode, You should enter the following keys. ”47 ’869#1 235” B. The command 06 l”(Suspend) is entered to start test. C. To finish the Test Mode, You should enter the command ” 0 2 “. CHANNEL SELECTION AND TX POWER OUTPUT LEVEL CONTROL I. AMPS A. You should change the phone from Normal Mode to AMPS Test mode “01,201QQQ1,02” B. The command 06 l”(Suspend) is entered to start test. C. You should enter the following keys. ~09xxxx#,07,73x,72xxx ” - If you enter the command “0 9”, You can select the channel ex) 0 9 0 3 8 3 (under-bar means channel number) - The command “0 7*means Carrier On (Carrier Off : l tl 8*j - If you enter the command “7 3”, You can select power mode. (” 0 ” : High Power Mode - above OdBm, ” 1 ” : Low Power Mode - below OdBm) - If you enter the command “7 2”, You can control the power output level. Following under-bar means AGC code. And you can control the power output level using [SEND] or [END] key. ex) 7 2 4 7 5 D. After enter the command “9 2” and control the TX Power Output Level to be each power level step using [SEND] or [END] key , press “OK” key to store Data in EEPROM. LEVEL 2 3 4 LCD Display TX OUPUT POWER STORE TXpwr[02] +26dBm +0.2 I-4dB OK TXpwr[03] +24dBm +2 /-4dB OK TXpwr[04] +20dBm +2 I-4dB +16dBm +2 /-4dB __I AMPS MODE TEST ITEM STEP PROCEDURE 1. PREPARE a Connect the test equipment b Enter the test mode: press [ 4 7 l 8 6 9 # 1 2 3 5 ] Select AMPS mode: Press in test mode [ 2 0 1 0 Q Q 1 ] 2. RF POWER c If you press a wrong key, press [#] key and then enter new command. d To exit the test mode at any time : press [0 21 a Set the channel 383 : Press [0 9 0 3 8 31 (Ch number must be 4 digits) b Turn the carrier on, and set the power level 2 : press [0 7, 7 3 0 #, 1 0 2 #] C Measure the RF Power Output : + 26 dBm +0.2/ 4 dB Note 1 : In case of using the antenna cable, must compensate for the cable loss(l.4dB). Note 2 : To prevent from damaging the hhp, must measure by calibrated test equrpment. Warning ! Adjustments without calibrated equipment can result in . excessive heat and will void the warranty. d Power level control mode is [I 0 X] Adjust power level by using [SEND] or [END]key, and store. : press [9 21 e Then measure the power output for each level by pressing [OK] or p-1 at every step : f Then turn carrier off : press [0 81 3. TX a Set the channel 383 : press [0 9 0 3 8 31 FREQUENCY b Turn the carrier on : press (0 71 I c Measure the tx frequency : 836.49OMHz l * 2.5ppm (-•2090Hz) d Turn the carrier off : press [0 81

Parts List/Tune Up Info

June 15, 2000 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Andy Leimer/ Kwok Chan SUBJECT: Samsung Electronics Co., Ltd. FCC ID: A3LSPHT100 (Tri-Mode Phone) 731 Confirmation Number: EA97202 Correspondence Reference No.: 14294 Dear Andy / Kwok: Submitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to your e- mail dated May 30, 2000 requesting additional information for the subject application. 1. Attached is the revised Tune-up Procedure for AMPS mode indicating 25.8dBm + .2dB/ -4dB tolerance 2. The following are the revised Tune up procedures for ALL modes, in conducted levels. FM 25.8 dBm + .2 / -4 CDMA 24.8 dBm + .2 / -4 PCS 24.8 dBm + .2 / -4 We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc: Wallace Oh, Engineering Manager Samsung American QA Lab

RF Exposure Info

© 2000 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD.Dates of Tests: March 06-10, 2000 416 Maetan-3 Dong, Paldal-KuTest Report S/N: SAR.200210055.A3L Suwon City Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia, MD USA Attn: Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSPHT100 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Tri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) Rx Frequency:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) 1931.25 – 1908.75 MHz (PCS CDMA) Max. RF Output Power:0.6 W ERP AMPS (27.8 dBm) / 0.43 W ERP CDMA (26.33 dBm) 0.355 W EIRP PCS CDMA (25.50 dBm) Trade Name/Model(s):SAMSUNG SPH-T100 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification FCC Rule Part(s):§2.1093; ET Docket 96.326 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). 200210055.A3L SAR Measurement ReportFCC Part 24/22 Certification © 2000 PCTEST Labi Table of Contents 1.1 SCOPE 1 2.1 INTRODUCTION / SAR DEFINITION 2 3.1 SAR MEASUREMENT SET-UP 3 4.1 E-FIELD PROBE SYSTEM 4 5.1 E-FIELD PROBE CALIBRATION PROCESS 5-6 6.1 PHANTOM, HOLDER, & EQUIVALENT TISSUE 7 7.1 SYSTEM SPECIFICATIONS 8 8.1 MEASUREMENT PROCESS 9 9.1 TEST POSITION OF THE PHONE 10 10.1 BODY SAR TEST SETUP11 11.1 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 12 12.1 MEASUREMENT UNCERTAINTIES 13 13.1 TEST DATA SUMMARY 14-17 14.1 SAR TEST EQUIPMENT LIST 18 15.1 CONCLUSION 19 16.1 REFERENCES 20 Test Report S/N: SAR.200210055.A3LSAR Measurement Report Test Dates: March 06-10, 2000FCC Part 24/22 Certification SAMSUNG FCC ID: A3LSPHT100 (Model: SPH-T100) © 2000 PCTEST LabTri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)1 SAR MEASUREMENT REPORT 1.1 Scope Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head and body tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SAMSUNG ELECTRONICS CO., LTD. Address:416 Maetan-3 Dong, Paldal-Ku Suwon City Kyungki-Do 441-742, KOREA Attention:Wallace Oh, Engineering Manager Samsung Electronics America (QA Lab) • EUT Type:Tri-Mode Dual-Band Analog/PCS Phone • Trade Name / Model:SAMSUNG SPH-T100 • FCC IDENTIFIER:A3LSPHT100 • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.70 – 848.31 MHz (CDMA) 1851.25 – 1908.75 MHz (PCS CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.70 – 893.31 MHz (CDMA) 1931.25 – 1988.75 MHz (PCS CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • Modulation(s):AMPS / CDMA • FCC Rule Part(s):§2.1093, Docket 96-326 • Max. RF Output Power:0.6W ERP - AMPS (27.8 dBm) 0.43W ERP - CDMA (26.33 dBm) 0.355W EIRP - PCS CDMA (25.50 dBm) • Antenna Type:Helical (λ/3) Antenna Dimensions:11.0 cm. (Length) • Dates of Tests:March 06-10, 2000 Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.200210055.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.200210055.A3LSAR Measurement Report Test Dates: March 06-10, 2000FCC Part 24/22 Certification SAMSUNG FCC ID: A3LSPHT100 (Model: SPH-T100) © 2000 PCTEST LabTri-Mode Dual-Band Analog/PCS Phone (AMPS/CDMA)2 2.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofreque…
