BN68-00326A-00(ENG) Owners Instructions SPM4227 Thank you for choosing Samsung! Your new Samsung product represents the latest in television technol-ogy. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making itone of the best products in its class. We are proud to offer you a product that will provide convenient,dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your Monitor. To reduce the risk of fire, electrical shock, and otherinjuries, keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your Monitor.• Keep the safety and operating instructions for future reference.• Heed all warnings on the Monitor and in the operating instructions.• Follow all operating and use instructions.• Unplug the Monitor from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners. • Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury. • Do not use the Monitor where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc. • Do not place the Monitor on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling Monitor can cause seriousinjury to a child or adult, and serious damage to the appliance. Useonly with a cart, stand, tripod, bracket, or table recommended by themanufacturer or sold with the Monitor. Follow the manufacturer'sinstructions when mounting the unit, and use a mounting accessoryrecommended by the manufacturer. Move the Monitor and cart withcare. Quick stops, excessive force, and uneven surfaces can make theunit and cart unsteady and likely to overturn. • Provide ventilation for the Monitor. The unit is designed with slots in the cabinet for ventilation to pro- tect it from overheating. Do not block these openings with any object, and do not place the Monitoron a bed, sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If youplace the Monitor on a rack or bookcase, ensure that there is adequate ventilation and that you'vefollowed the manufacturer's instructions for mounting. • Operate your Monitor only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local powercompany. • Use only a grounded or polarized outlet. For your safety, this Monitor is equipped with a polarized alternating current line plug having one blade wider than the other. This plug will fit into the poweroutlet only one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. Ifthe plug still does not fit, contact your electrician to replace your outlet. Warning! Important Safety Instructions 3 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product. Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti- cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre- spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE. Thank You for Choosing Samsung User InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the fol-lowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in a resi-dential installation.This equipment generates, uses and can radiateradio frequency energy and, if not installedand used in accordance with the instructions, maycause harmful interference to radio communica-tions. However, there is no guarantee that interfer-ence will not occur in a particular installation. Ifthis equipment does cause harmful interference toradio or television reception, which can be deter-mined by turning the equipment off and on, theuser is encouraged to try to correct the interfer-ence by one or more of the following measures.User InformationChanges or modifications not expressly approvedby the party responsible for compliance couldvoid the user’s authority to operate the equipment.If necessary, consult your dealer or an experi-enced radio/television technician for additionalsuggestions. You may find the booklet called Howto Identify and Resolve Radio/TV InterferenceProblems helpful. This booklet was prepared bythe Federal Communications…

Text truncated - open the document above for the full version.

Test Pattern Data Switch Gamma (GTS) Gain Control Error Diff. Diff. Filter 1 V Delay 1 H Delay SFGEN SF Matrix Mem control Data Rearr. 32 M 32 M APC control ASL detect 32 M 32 M Fix APC Peak Detect Area set Xcon Ycon XY Buffer I/F control eeprom 256K

Test Pattern Data Switch Gamma (GTS) Gain Control Error Diff. Diff. Filter 1 V Delay 1 H Delay SFGEN SF Matrix Mem control Data Rearr. 32 M 32 M APC control ASL detect 32 M 32 M Fix APC Peak Detect Area set Xcon Ycon XY Buffer I/F control eeprom 256K

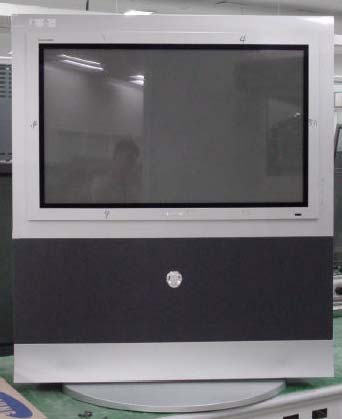

EUT Photographs

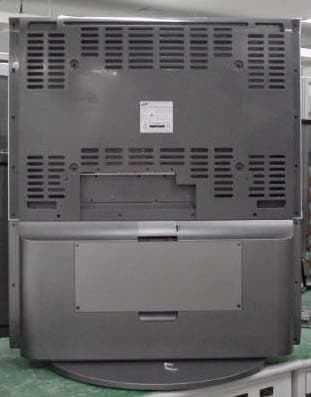

EUT Photographs [Label and Label position]

EUT Photographs [Label and Label position]

EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs

Project No. : LBE020315 Page 1 of 12 Project No. : LBE020315 Product :PDP Monitor Model No. :SM42** Date of test :June 26 ~ 28, 2002 Issued Date :29-Jun-02 Tested by: Chun Kyu , PARK / Test Engineer Reviewed by: Yang Soo, KIM / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE020315 Page 2 of 12 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE020315 Page 3 of 12 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SM42** SAMSUNG ELECTRONICS Co., Ltd. SAMSUNG ELECTRONICS Co., Ltd. LBE020315 PDP Monitor Main clock : 130MHz A3LSPM4227 120V 60Hz 300W - Project No. : LBE020315 Page 4 of 12 1.3 Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval 8566B3340A21744H.P02/04/18, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P01/10/09, 12Months RF Preselector85685A2602A00224H.P01/10/09, 12Months ESCS30839809/022R & S01/06/18, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESVP860688/015R & S02/02/28, 12Months L.I.S.NESH3-Z5847265/028R & S01/10/09, 12Months Bi-Log AntennaCBL6112B2766SCHAFFNER02/ 04/25, 12Months This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum analyzer Field strength meter Project No. : LBE020315 Page 5 of 12 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Horizontal F.:48.2kHz Vertical F. : 60Hz Measured about PC VIDEO INPUT mode of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidth Bandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display 1024x76824bits Frequency Band [MHz] Equipment EMI Test receiverAbove 1000 0.45 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE020315 Page 6 of 12 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerFCC ID A PDP MonitorSM42** -SamsungA3LSPM4227 BPersonal ComputerDHM7X37H11DELLDOC CPS/2 MouseX06-084776167967-8DELLDOC D KeyboardSK-811007N242DELLDOC EInkjet PrinterBJC-50CLG001000275CANONDOC FAC AdapterK30088-CANON- * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power cable1.9N 2AC Power cable1.9N 3AC Power cable1.5N 4Keyboard Cable1.45N 5Monitor cable2Y 6Mouse Cable1.8N 7DC Power Cable1.92N 8Printer Cable1.5Y 9S-Video Cable2Y 10 Audio/Video Cable2Y This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark From Printer to AC adapter Analog RCA Cable From Printer to PC LPT1 Project No. : LBE020315 Page 7 of 12 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 A B F D E 5 6 4 7 3 21 C 8 9 10 Project No. : LBE020315 Page 8 of 12 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the endin…

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] [RADIATED EMISSION MEASUREMENT]
