A3LSPN423542" PDP TV Monitor

AA68-0XXXXA-00(ENG) Owner’s Instructions SPN4235 SERVICE DIVISION 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 TEL : 1-800-SAMSUNG (1-800-726-7864) www.samsungusa.com Thank you for choosing Samsung! Your new Samsung product represents the latest in television technology. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making it one of the best products in its class. We are proud to offer you a product that will provideconvenient, dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your PDP. To reduce the risk of fire, electrical shock, and other injuries,keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your PDP.• Keep the safety and operating instructions for future reference.• Heed all warnings on the PDP and in the operating instructions.• Follow all operating and use instructions.• Unplug the PDP from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners. • Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury. • Do not use the PDP where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc. • Do not place the PDP on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling PDP can cause serious injuryto a child or adult, and serious damage to the appliance. Use onlywith a cart, stand, tripod, bracket, or table recommended by the man-ufacturer or sold with the PDP. Follow the manufacturer's instructionswhen mounting the unit, and use a mounting accessory recommendedby the manufacturer. Move the PDP and cart with care. Quick stops,excessive force, and uneven surfaces can make the unit and cartunsteady and likely to overturn. • Provide ventilation for the PDP. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the PDP on a bed,sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If you place thePDP on a rack or bookcase, ensure that there is adequate ventilation and that you've followed themanufacturer's instructions for mounting. • Operate your PDP only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power com-pany. • Use only a grounded or polarized outlet. For your safety, this PDP is equipped with a polarized alter- nating current line plug having one blade wider than the other. This plug will fit into the power outletonly one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet. Warning! Important Safety Instructions 3 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product. Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti- cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre- spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE. Thank You for Choosing Samsung User InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the fol-lowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in a resi-dential installation. This equipment generates,uses, and can radiate radio frequency energyand, if not installed and used in accordance withthe instructions, may cause harmful interference toradio communications. However, there is no guar-antee that interference will not occur in a particu-lar installation .If this equipment does cause harmful interferenceto radio or television receptions, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct the inter-ference by one or more of the following mea-sures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a cir- cuit different from that to which the receiver isconnected. • Consult the dealer or an experienced radio/TV technician for help. User InformationChanges or modifications not expressly a…

Text truncated - open the document above for the full version.

Separate VHF and UHF AntennasIf you have two separate antennas for your PDP(one VHF and one UHF), you must combine the twoantenna signals before connecting them to the PDP. This requires a combiner attachment, which youcan buy at an electronics store. 1 Connect both antenna leads to the combiner. 2 Plug the combiner into the VHF/UHF terminal on the PDP. 21 Connecting VHF and UHF Antennas 20 Antennas with 300-ohm Flat Twin LeadsIf your antenna looks like this: it has 300-ohm flat twin leads. 1 Place the wires from the twin leads under the screws on the 300-75 ohm adapter. Use a screwdriver to tighten the screws. 2 Plug the adapter into the VHF/UHF terminal on the PDP. Antennas with 75-ohm Round LeadsIf your antenna looks like this: it has 75-ohm round leads. 1 Plug the antenna lead into the VHF/UHF terminal on the PDP. Connecting Cable TVYou can connect different cable systems to your PDP, including cable without a cable box, and cable with a cable box that descrambles some or all channels. Cable without a Cable Box 1 Plug the incoming cable into the VHF/UHF terminal on the PDP. Cable with a Cable Box that Descrambles All Channels. 1 Find the cable connected to the ANTENNA OUT terminal on your cable box. This terminalmight be labeled "ANT OUT", "VHF OUT", or simply "OUT". 2 Connect the cable to the VHF/UHF terminal on the PDP. 22 Cable with a Cable Box that Descrambles Some (But Not All) ChannelsTo complete this connection you will need a two-way splitter, a RF (A/B) switch, and four coaxialcables (which you can buy from your Samsung dealer or any electronics store). 1 Find and disconnect the cable that is con-nected to the ANTENNA IN terminal of your cable box. This terminal might be labeled "ANT IN", "VHF IN", or simply, "IN". Connect this cable to a two-way splitter. 2 Connect a coaxial cable between an OUT-PUT terminal of the splitter and the IN termi- nal of the cable box. 3 Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch. 4 Connect a coaxial cable between theANTENNA OUT terminal of the cable box and the B-IN terminal of the A/B switch. 5 Connect the last coaxial cable between theOUT terminal of the RF (A/B) switch and the VHF/UHF ter-minal on the PDP. After you've made this connection, set the A/B switch to the "A" position for normal viewing. Set the A/B switch to the "B" position to view scrambled channels. (When you set the A/B switch to "B", you will need to tune your Set-Top Box to the cable box's output channel, which is usuallychannel 3 or 4.) 23 25 Connecting a VCR 24 Connecting a VCR to the Video or S-Video/Audio jack S-Video Cable Audio Cable Video Cable Power Plug Unplug the cable or antenna from the rear of PDP.Connect the cable or antenna to the antenna input jack on the VCR.Connect the coaxial cable between the antenna input jack on the PDP and the antenna outputjack on the VCR.Connect the Video/Audio cables between the AUDIO(L/R)/VIDEO jacks on the PDP andAUDIO/VIDEO OUT jacks on the VCR. (Note: For better video, you can use an S-Video cable.) Videotape Playback:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select “Video” or “S-Video”, then press the joystick to enter.3. Turn on your VCR, insert a videotape and press the play button. How to Connect 1234 Connecting Speakers Speaker Audio Cable Connect the speaker audio cable to the external speaker output jack on the PDP matching the“+” and “-” ends of the cable with the diagram on the PDP. How to Connect Fix the bracket onto the guide pole located on the rear of speaker and fasten the screws.After removing the three screws on the PDP, clamp the speaker and the PDP together andfasten the screws. Connecting PDP and Speakers / Stand and Speakers 12 GuidepoleGuidepole ✱ External speakers MUST have to a power handling capability of 10 watts minimum (impedance 8 ohm). Speaker Audio Cable Subwoofer Speaker (Option) 27 Connecting a Camcorder Connecting a DVD Player (480i, 480p) 26 Video/Audio Cables Power Plug Connect a Video/Audio cable between the AUDIO(L/R)/VIDEO jacks on the PDP and theVIDEO/AUDIO OUTPUT jacks on the camcorder.Viewing Tapes1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “Video”, then press the joystick to enter. 3. Turn on your camcorder and set it to Video Mode. (For details, refer to your camcorder owner's instructions.) 4. Set the IN/OUT switch on your camcorder to OUT.5. Insert the tape into the camcorder and press the Play button. How to Connect Viewing camcorder tapes Playing DVD Audio Cable Video Cable Power Plug Connect a Video Cable between the Y/P B /P R (COMPONENT1, 2) input jacks on the PDPand Y/P B /P R output jacks on the DVD players. Connect a Audio Cable between the AUDIO L/R(COMPONENT1, 2) input jacks on the PDPand the AUDIO OUT jacks on the DVD player. To Play DVD:1. Turn on your PDP, and press the SOURCE button on the remote control.2. Move the joystick up or down to select the “COMPONENT1” or “COMPONENT2”, then press the joystick to enter. 3. Turn on your DVD player, insert a DVD disc and press the Play button. • For an explanation of Component video, see your DVD owner’s instructions. How to Connect 12 PDP PDP DVD Player Camcorder PLASMA DISPLAY PANEL Operation Turning the PDP On and Off ..........................................................30Memorizing the Channels..............................................................32Setting Up Your Remote Control ....................................................36 Connecting a DTV Set-Top Box(480p, 720p, 1080i) 28 Watching DTV Video Cable Audio Cable DVI Cable or Power Plug Connect the cable or antenna to the antenna input jack on the DTV.Connect a Video cable between the Y, P B , P R (COMPONENT 1, 2) or DVI jack on the PDP and the Y, P B , P R (VIDEO OUTPUT JACKS) on the DTV receiver. Connect an Audio cable between the COMPONENT 1, 2 (L/R AU…

Text truncated - open the document above for the full version.

50 PLASMA DISPLAY PANEL Sound Control Customizing the Sound ................................................................52Using Automatic Sound Settings ....................................................53Choosing a Multi-Channel Sound (MTS)Soundtrack ..........................54Using the Auto Volume ..................................................................55Using Virtual Dolby ......................................................................56Using a Subwoofer ......................................................................57 Freezing the Picture StillPress the Still button on the remote control to freeze a moving picture. Press again to cancel. 53 Customizing the Sound 52 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick left or right to select “Custom”,“Standard”, “Music”, “Movie” or “Speech” sound setting. 3 Press the Menu button to exit. Using Automatic Sound Settings Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Music OffOff 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Adjust”,then press the joystick to enter. You will also see the items “Bass”, “Treble” and “Balance”. 3 Move the joystick up or down to select the item you wish to change. 4 Move the joystick left or right to change the value ofthe item. 5 Press the Menu button to exit. Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Enter Exit Custom Mono OffOff Adjust BassTrebleBalance Move Select Exit 5050 R 50 L 50 82 Bass Quick way to access the sound setting: Just press the “S.Mode” button on the remote control. ! 55 Choosing a Multi-Channel Sound (MTS)SoundtrackDepending on the particular program being broadcast, you can listen to stereo, mono, or a Separate Audio Program. (SAP audio is usually a foreign-language translation. Sometimes SAP has unrelated information like news or weather.) 54 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “MTS”. 3 Move the joystick left or right to select “Mono”,“Stereo” or “SAP”. 4 Press the Menu button to exit. Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Stereo OffOff Quick way to access the MTS menu: Just pressthe “MTS” button on the remote control. ! Using the Auto VolumeEach broadcasting station has its own signal conditions, which can make it necessary toadjust the volume every time the channel is changed. “Auto volume” lets you automaticallyadjust the volume of the desired channel by lowering the sound output when the modula-tion signal is high or by raising the sound output when the modulation signal is low. 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Auto Volume”. 3 Move the joystick right to select “On”. 4 Press the Menu button to exit. Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Mono On Off • Choose Stereo Stereo for channels that are broadcasting in stereo. • Choose Mono Mono for channels that are broadcasting in mono, or if you are having difficulty receiving a stereo signal. • Choose SAP SAP to listen to the Separate Audio Program, which is usually a foreign-language translation. Note• The MTS function operates in TV mode only. Using Virtual DolbyThis feature allows the PDP’s optional L/R speakers to provide a Home Theater-like Dolbyeffect. The center and surround sounds are mixed into the L/R speakers. Using a Subwoofer 56 57 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “Woofer”,then press the joystick to enter. 3 Move the joystick left or right to select “On”. 4 Move the joystick up or down to select “Volume”,then move the joystick left or right to adjust the value of the item. 5 Move the joystick up or down to select “CornerFreq.”, then move the joystick left or right to adjust the value of the item. 7 Press the Menu button to exit. Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Enter Exit Standard Mono OffOff Woofer WooferVolumeCorner Freq. Move Select Exit On 50 120Hz Woofer WooferVolumeCorner Freq. Move Adjust Exit On 50 120Hz 65 Volume Woofer WooferVolumeCorner Freq. Move Adjust Exit On 50 130Hz 1 Press the Menu button. Move the joystick up ordown to select “Sound”, then press the joystick to enter. 2 Move the joystick up or down to select “ Dolby Virtual ”. 3 Move the joystick left or right to select “On”. 4 Press the Menu button to exit. Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Custom Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Mono OffOff Sound ModeAdjustMTSAuto VolumeDolby VirtualWoofer Move Select Exit Standard Mono Off On Quick way to access the MTS menu: Just press the “Dolby Virtual” button on the remote control. ! PLASMA DISPLAY PANEL Channel Control Fine Tuning Channels....................................................................60LNA (Low Noise Amplifier) ............................................................61 61 Fine Tuning ChannelsUse fine tuning to manually adjust a particular channel …

Text truncated - open the document above for the full version.

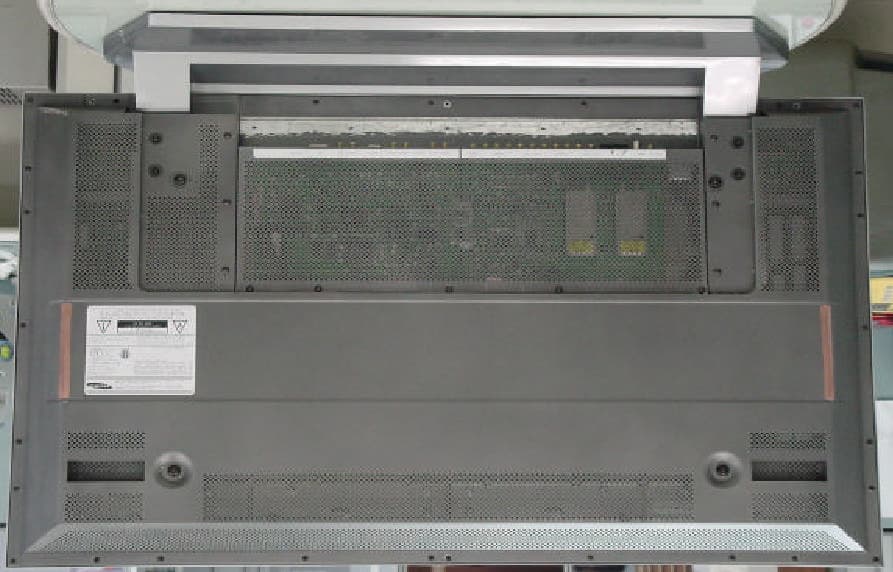

EUT Photographs

EUT Photographs [Label and Label position]

EUT Photographs EUT Photographs EUT Photographs EUT Photographs EUT Photographs

Project No. : LBE020979 Page 1 of 17 Project No. :LBE020979 Product :PDP TV Monitor Model No. :AX42** Date of test :November 12 ~ 15, 2002 Issued Date :November 19, 2002 Tested by: Chun Kyu, PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE020979 Page 2 of 17 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE020979 Page 3 of 17 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. AX42** SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE020979 PDP TV MONITOR 60Hz A3LSPN4235 120V~ - Project No. : LBE020979 Page 4 of 17 1.3 Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval 8566B3340A21744H.P02/04/18, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P02/10/09, 12Months RF Preselector85685A2602A00224H.P02/10/09, 12Months ESCS30839809/022R & S02/06/18, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESVP860688/015R & S02/02/28, 12Months L.I.S.N3825-29208-1981EMCO02/03/23, 12Months Bi-Log AntennaCBL6112B2766SCHAFFNER02/ 04/25, 12Months This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum analyzer Field strength meter Project No. : LBE020979 Page 5 of 17 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1024x76832bits Frequency Band [MHz] Equipment Horizontal F.:48.363kHz Vertical F. : 60.004Hz EMI Test receiverAbove 1000 0.45 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE020979 Page 6 of 17 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerFCC ID A PDP TV MonitorAX42** -Samsung- BPersonal ComputerM6050812092FRC02028Samsung- CPS/2 MouseM-S48a334684-007LogitechJNZ01213 DPS/2 Keyboard7800KIC103919BTCFCC MarK EInkjet PrinterK10158CLG001000275CANONDOC SpeakerSPK-L4000-Samsung- * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power cable1.9N 2AC Power cable1.9N 3AC Power cable1.5N 4Keyboard Cable1.45N 5Monitor cable1.7Y 6Mouse Cable1.8N 7Printer Cable1.5Y 8S-Video Cable2Y 9Audio/Video Cable2N 10Speaker Cable1.7N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Computer Printer Monitor RCA Cable Remark From Printer to PC LPT1 From Speaker to Monitor Project No. : LBE020979 Page 7 of 17 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 A B D E 5 6 4 3 21 C 7 89 HH 10 10 Project No. : LBE020979 Page 8 of 17 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to t…

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] [RADIATED EMISSION MEASUREMENT]
