A3LSPWB4339SWIFI Module

V ersion 1.1 Samsung Electronics page 1 of 5 User manual of SPW-B4339S 1. Introduction SPW-B4339S is a Wi-Fi / Bluetooth Combo module compliant with IEEE802.11a/b/g/n/ac MAC/baseband/radio and Bluetooth 4.1 optimized for low-power applications. The core chipset is from Broadcom, part number BCM4339 2. Hardware Architecture: 2.1 Main Chipset Information ItemVendorPart Number IEEE802.11a/b/g/n/ac mac/baseband/radio Bluetooth 4.1 Broadcom BCM4339 2.2 Circuit Block Diagram The major internal and external block diagram of SPW-B4339S is illustrated in Figure 1-1. Figure 1-1 SPW-B4339S block diagram and System Interface X-tal V ersion 1.1 Samsung Electronics page 2 of 5 3. Operatio n al Description SPW-B4339S is the 802.11a/b/g/n /ac +Bluetooth 4.1 COMBO Module that acts as a communication controller for users of a wireless device to connect to Printer - Features >IEEE 802.11ac compliant. >Dual-band 2.4GHz /5 GHz >Single-stream spatial multiplexing up to 433.3Mbps data rate >Support 20,40,80MHz channel with optional SGI(256QAM modulation) >On-chip power amplifiers and low–noise amplifiers for both bands. >Complies with Bluetooth Core Specification Version 4.0 >Bluetooth Class 1 or 2 transmitter operation. >Adaptive frequency hopping (AFH) for reducing radio frequency interference - Time base of the RF frequency For IF and RF frequency, a crystal(37.4MHz) is a clock reference. - Synthesizer Synthesizer inside Transceiver. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. Internal fractional nPLL allows support for a wide range of reference clock frequencies - WIFI Transmission Baseband data is modulated and upconverted to the 2.4GHz ISM and 5-GHz U-NII bands,respectively. Linear on chip power amplifier are included, which are capable of delivering high output powers while Meeting IEEE802.11ac and IEEE802.a/b/g/n specifications without the need for external PAs. When using the internal PAs, closed-loop output power control is completely integrated. Base-band Processing (BBP) IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM/25QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBP IC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and internal PA magnify output power. - WIFI Receiver The BCM43569 has a wide dynamic range, direct conversion receiver that employs high-order on-chip channel filtering to ensure reliable operation in the noisy 2.4GHz ISM band or the entire 5GHz U-NII band .Control signals are available that can support the use of optional LNAs for each band,which can increase the receive sensitivity by several decibels. Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. V ersion 1.1 Samsung Electronics page 3 of 5 - Bluetooth Low Energy The SPW-B4339S support the Bluetooth Low Energy operating mode. - Link Control Layer The link control layer is part of the Bluetooth link control functions that are implemented in dedicated logic in the link control unit(LCU). Each task performs a different state in the Bluetooth Link Controller. - Wideband speech The SPW-B4339S provides supports for wideband speech(WBS) using on-chip SmartAudio technology. The SPW-B4339S can perform subband-codec (SBC),as well as msbc encoding and decoding of linear 16bots at 16kHz(256kbps rate) transferred over the PCM bus. - Adaptive Frequency Hopping The SPW-B4339S gathers link quality statistics on a channel by basis to facilitate channel assessment and Channel map selection. The link quality is determined using both RF and baseband signal processing to Provide a more accurate frequency-hop map. - Product Details > Data Modulation DSSS:CCK,BPSK,QPSK for 802.11b OFDM:BPSK,QPSK,16QAM,64QAM,256QAM for 802.11a/g/n/ac FHSS:GFSK,QPSK, 8DPSK, π/4DPSK for Bluetooth > Frequency : 2.4GHz / 5GHz - Modulation modes 802.11n 802.11ac HT Modulation & Coding Data Rate VHT MCS (GI = 800ns) (GI = 400ns) (GI = 800ns) (GI = 400ns) (GI = 800ns) (GI = 400ns) MCS Index 20MHz 20MHz40MHz 40MHz80MHz80MHz Index 0 BPSK 1/2 6.5 7.213.51529.332.5 0 1 QPSK 1/2 13 14.4273058.565 1 2 QPSK 3/4 19.5 21.740.54587.897.5 2 3 16-QAM 1/2 26 28.95460117130 3 4 16-QAM 3/4 39 43.38190175.5195 4 5 64-QAM 2/3 52 57.8108120234260 5 6 64-QAM 3/4 58.5 65121.5135263.3292.5 6 7 64-QAM 5/6 65 72.2135150292.5325 7 256-QAM 3/478 86.7162180351390 8 256-QAM 5/6n/a n/a 180200390433.3 9 Ve rsion 1.1 Samsung Electronics page 4 of 5 4. ※ This appliance and its antenna mu st not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. ※Cet equipement doit etre installe et utilise avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Operation of this device is restricted for indoor use only. CE Statement Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. OEM Section - to whom wants to install the radio . This device complies with part 15 of the FCC Rules and Industry Canada license-exempt RSS standard(s).. Operation is subject to the following tw o conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation of the device. Caution: Any changes or modifications t…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd. Building D Pine Brook NJ 07058 Tel. +1-973-808-6362/ Fax. +1-310-609-1355 Company Letter head Date: February 16, 2015 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD Product: Wi-Fi module Model name: SPW-B4339S FCC ID: A3LSPWB4339S To Whom It May Concern: This letter is to ascertain that Samsung Electronics Co., Ltd. has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, please. contact us. Sincerely Yours, ___________________________ NAME : ChanHo Youn TITLE : /Manager E-MAIL: [email protected] TEL: +1-973-808-6362 Samsung Electronics Co., Ltd. 19 Chapin Rd. Building D Pine Brook NJ 07058

Samsung Electronics Co., Ltd. 19 Chapin Rd. Building D Pine Brook NJ 07058 Tel. +1-973-808-6362/ Fax. +1-310-609-1355 FCC Confidentiality Request Letter Date: January 30, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: A3LSPWB4339S We hereby request confidential treatment of information accompanying this application as outlined below: • Block diagram • Schematics • Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ___________________________ NAME : ChanHo Youn TITLE : /Manager E-MAIL: [email protected] TEL: +1-973-808-6362 Samsung Electronics Co., Ltd. 19 Chapin Rd. Building D Pine Brook NJ 07058

Samsung Electronics Co., Ltd. (Date) 16/02/2015 (Wireless Full Module) FCC ID : A3LSPWB4339S , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; √ 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; √ 3 The module must contain power supply regulation on the module; √ 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); √ 5 The module must demonstrate compliance in a stand-alone configuration; √ 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); √ 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; √ 8 The module must comply with RF exposure requirements √ Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. SCS-F26 Modular Approval Letter Page 2 of 4 Rev 8.0 Signature _________________________ NAME : ChanHo Youn TITLE : /Manager E-MAIL: [email protected] TEL: +1-973-808-6362 Samsung Electronics Co., Ltd. 19 Chapin Rd. Building D Pine Brook NJ 07058 SCS-F26 Modular Approval Letter Page 3 of 4 Rev 8.0

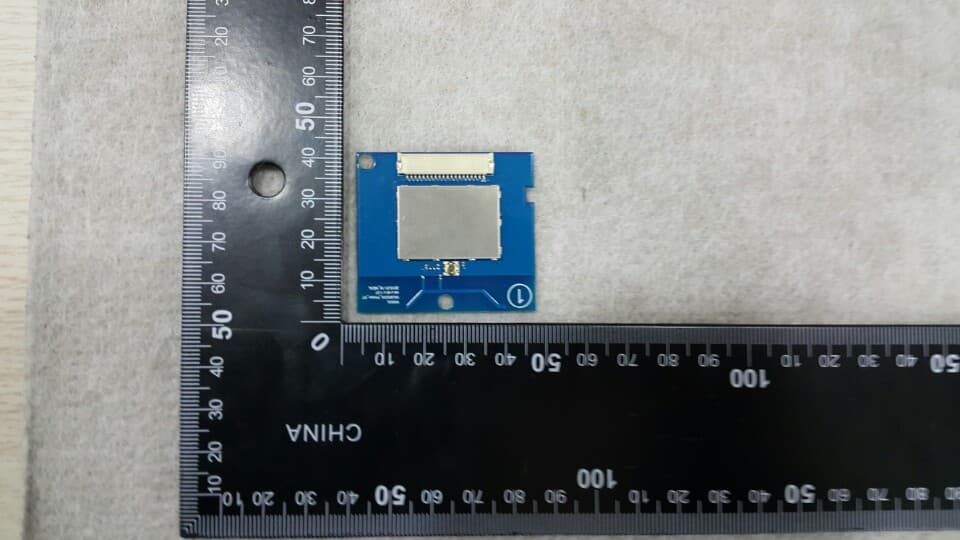

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 1 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. External photos of EUT

Label Location (Onto the Shield Can)

http://www.emc2000.co.kr Internal photos of EUT Antenna EMC compliance Ltd. Page: 1 of 1 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽/㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 ㎝ must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ Limit [㏈] [㏈] [㏈] [㎽] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Wifi 2.4 GHz 14.00 ±2 16.00 39.81 1.90 1.55 0.012 27 1.000 00 Wifi 5 GHz_5 150 Band 12.50 ±2 14.50 28.18 -0.70 0.85 0.004 77 1.000 00 Wifi 5 GHz_5 250 Band 12.00 ±2 14.00 25.12 1.40 1.38 0.006 90 1.000 00 Wifi 5 GHz_5 470 Band 13.50 ±2 15.50 35.48 0.30 1.07 0.007 56 1.000 00 Wifi 5 GHz_5 725 Band 14.00 ±2 16.00 39.81 0.30 1.07 0.008 49 1.000 00 Bluetooth 5.00 ±2 7.00 25.12 1.90 1.55 0.002 45 1.000 00 Total WiFi 2.4 GHz + Bluetooth 0.014 72 1.000 00 WiFi 5 GHz + Bluetooth 0.010 93 1.000 00 Note: Total = (MPE 1 / MPE 1 Limit)+ (MPE 2 / MPE 2 Limit)+ ... + (MPE n / MPE n Limit) 4. Target power and tolerance, Max tuneup power Wifi 2.4 GHz Mode Target power tolerance Max tuneup power 802.11b 14.00 ±2 16.00 802.11g 12.00 ±2 14.00 802.11n_HT20 11.00 ±2 13.00 Wifi 5 GHz Mode Target power tolerance Max tuneup power 802.11a 5150-5250 Band 12.50 ±2 14.50 802.11a 5250-5350 Band 12.00 ±2 14.00 802.11a 5470-5725 Band 13.50 ±2 15.50 802.11a 5725-5825 Band 14.00 ±2 16.00 http://www.emc2000.co.kr EMC compliance Ltd. Page: 3 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Mode Target power tolerance Max tuneup power 802.11n_HT20 5150-5250 Band 12.50 ±2 14.50 802.11n_HT20 5250-5350 Band 12.00 ±2 14.00 802.11n_HT20 5470-5725 Band 13.50 ±2 15.50 802.11n_HT20 5725-5825 Band 14.00 ±2 16.00 802.11n_HT40 5150-5250 Band 12.00 ±2 14.00 802.11n_HT40 5250-5350 Band 11.50 ±2 13.50 802.11n_HT40 5470-5725 Band 13.00 ±2 15.00 802.11n_HT40 5725-5825 Band 12.50 ±2 14.50 802.11n_VHT20 5150-5250 Band 12.50 ±2 14.50 802.11n_VHT20 5250-5350 Band 12.00 ±2 14.00 802.11n_VHT20 5470-5725 Band 13.50 ±2 15.50 802.11n_VHT20 5725-5825 Band 14.00 ±2 16.00 802.11n_VHT40 5150-5250 Band 12.00 ±2 14.00 802.11n_VHT40 5250-5350 Band 11.50 ±2 13.50 802.11n_VHT40 5470-5725 Band 13.00 ±2 15.00 802.11n_VHT40 5725-5825 Band 12.50 ±2 14.50 802.11n_VHT80 5150-5250 Band 10.00 ±2 12.00 802.11n_VHT80 5250-5350 Band 10.00 ±2 12.00 802.11n_VHT80 5470-5725 Band 12.50 ±2 14.50 802.11n_VHT80 5725-5825 Band 12.00 ±2 14.00 Bluetooth Mode Target power tolerance Max tuneup power GFSK 7.00 ±2 9.00 8DPSK 5.00 ±2 7.00 Low energy 7.00 ±2 9.00

http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0211 EMC compliance Ltd. Page: 2 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 6 3.3 Test frequency ............................................................................................................................................... 7 3.4 Test Voltage ................................................................................................................................................... 7 4. Summary of test results ..................................................................................................................................... 8 4.1 Standards & results ....................................................................................................................................... 8 4.2 Uncertainty ................................................................................................................................................... 8 5. Test results .......................................................................................................................................................... 9 5.1 Antenna Requirement ................................................................................................................................... 9 5.2 Maximum Peak Output Power .................................................................................................................... 10 5.3 Carrier Frequency Separation ..................................................................................................................... 15 5.4 20 ㏈ Channel Bandwidth .......................................................................................................................... 20 5.5 Number of Hopping Channels .................................................................................................................... 28 5.6 Time of Occupancy(Dwell Time) ............................................................................................................... 32 5.7 Spurious Emission, Band edge and Restricted bands ................................................................................. 37 5.8 Conducted Emission ................................................................................................................................... 48 6. Test equipment used for test ........................................................................................................................... 50 http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0211 EMC compliance Ltd. Page: 3 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Samsung Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 Telephone number: +82-31-277-6038 Contact person: Lee Kyeong Min / [email protected] Manufacturer: Samsung Electronics Co., Ltd. Address: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0211 EMC compliance Ltd. Page: 4 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone Number: 82-31-336-9919 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: KR0040 FCC Site Registration No.: 687132 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0211 EMC compliance Ltd. Page: 5 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant: Samsung Electronics Co., Ltd. Address of Applicant 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 Manufacturer Samsung Electronics Co., Ltd. Address of Manufacturer 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 443-742 Type of equipment Wi-Fi module Basic Model SPW-B4339S Serial number N/A http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0211 EMC compliance Ltd. Page: 6 of 50 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3.2 General description Frequency Range 2 402 ㎒ ~ 2 480 ㎒ (Bluetooth, Bluetooth LE) 2 412 ㎒ ~ 2 472 ㎒ (802.11b/g/n_HT20) 5 180 ㎒ ~ 5 240 ㎒ (802.11a/n/ac_HT20/VHT20)_Non DFS 5 190 ㎒ ~ 5 2…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Radiated Emission * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-31-336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over Conducted Emission
