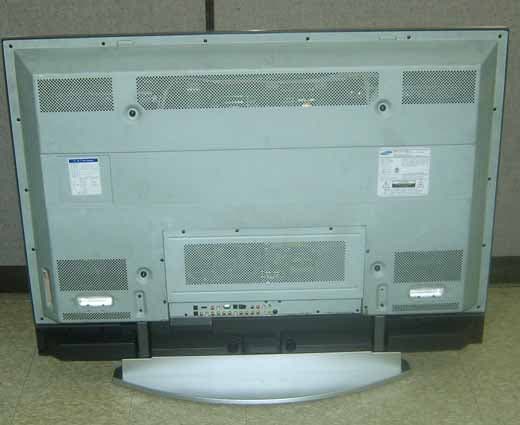

A3LSR50P5PDP Monitor

SAMSUNG Confidential Eagle + SVP-EX Block D/G SVP-EX62 Audio Process MSP4440G CVBS K4S281632 Flash 28F128J K4S643232 K4S643232 TS ARM9 CPU S3C2800X HDMI PC EM6A9320 LVDS Rx Buffer LCX16244 SPDIF Mux 74HC157 Clock CY24204 Audio AMP TDA3004 OSC 33M CS5333 Display R Speaker L SPDIF out I2S SIF 1,2 Mon R/L out RGB 24 bit PC RGB YPbPr DTV CVBS PCI Clock Mux VHC244 K4S281632 CIMAX Micom S3F866B Expender S3C9428 IR Control UART MAX232 AnynetDe-bug VSB NXT2004 NT VIF LA7657 Buffer Latch POD Module PCMCIA Slot Tuner-CVBS S-Video TS VIDEO 1 YPbPr I2S Mux VHC244 Monitor Out Audio SW 4052 Main Tuner QAM BCM3215 POD Option NIM Tuner Clock I2S SPDIF Buffer LCX245 Buffer LCX245 S5H2010X EAGLE+ Add./ Data Add. DATA I2S Add. SIF CVBS TS COMPONENT1 TAS5112 NSP6241 HDMI Rx SIL9993 MST9883 DNIe Lite LVDS Tx 24.0 Mhz 12.0 Mhz 18.432 Mhz 27 Mhz 6 Mhz 14.318180 Mhz 33 Mhz 27 Mhz 32.768 Khz

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Plasma DISPLAY MODEL : HP-R5052 TYPE. NO : SR50P5 RATED INPUT 120 ~ ,60Hz W CHASSIS NO.: D71C Manufactured/Fabrique : XX. XX. 2004 Serial NO. XXXXXXXXXXXXXXXXXXXXX MADE IN SUWON KOREA(SEC) FABRIQUE EN SUWON COREE FDXWLRQ RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING :TO PREVENT FIRE OR SHOCK HAZARD DO NOT OPEN EXPOSE THIS UNIT TO RAIN OR MOISTURE AVIS : RISQUE DE CHOC ELECTRIQUE-NE PAS OUVRIR SAMSUNG ELECTRONICS CANADA INC 7037 Financial Drive Mississauge,Ontario L5N 6R3 CANADA SAMSUNG ELECTRONICS AMERICA INC. 105 CHALLENGER ROAD,RIDGEFIELD PARK N.J.07660-0511,U.S.A U L R LISTED 77HN E215927 LR38329 FCC ID : A3LSR50P5 Picture 7. Label

Page : 1 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE050050 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name PDP MONITOR Model Name SR50P5 Manufacturer Samsung Electronics Co., Ltd Brand Name SAMSUNG Variant Model See Page 3 Date of Test January 03 ~ 07, 2005 Issued Date January 14, 2004 Name/Position Signature Tested by Dong Min, Lee Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd Model name SR50P5 Applicant Address Samsung Electronics Co., Ltd 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Kind of product PDP Monitor Valiant Model list None FCC ID A3LSR50P5 Manufacturer Samsung Electronics Co.,Ltd New / Alternative / Permissive change Information This report is original report # 1.2 Detail Information related Product Specification Item(s) Description Model Name SR50P5 Product Name PDP MONITOR Resolution 1024 * 768 Horizontal Frequency 48.363 ~ 60.023 KHz Vertical Frequency 60.004 ~ 75.029 Hz Page : 4 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 1.4 Equipment Modifications No equipment modifications were required. Page : 5 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A PDP Monitor SR50P5 - SAMSUNGEUT B Desktop PC M6050 802092FRC02513 SAMSUNGDOC C Printer ML-1740 BABX820386E SAMSUNGA3LML-1710P D PS/2 Keyboard 5900 K03119305 Samsung DOC E Mouse FRE204-USB 020002943 Samsung DOC Used Cable Description No Connect Cable Length [m] Shielded [Y/N] Remark 1 Power 1.7 No For EUT 2 Power 1.7 No For PC 3 Power 1.7 No For Printer 4 Monitor Analog 1.5 Yes 5 Parallel (Printer) 1.5 Yes 6 Keyboard 1.5 No 7 PS/2 Mouse 1.5 No Page : 6 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram Page : 7 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Applied Standards List Product or Generic Standards Basic Standards FCC Part15 Subpart B ANSI C63.4 : 2003 Page : 8 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.7 Test Facility General Information The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 22. This EMC Testing Lab. is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). This Lab. is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:1998. Accreditation and Listing Uncertainty Test Item Expanded Uncertainty Radiated Disturbance ±5.09 Disturbance voltage at the mains terminals ±1.64 (According to NAMAS Pub.NIS81) Page : 9 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. Summary of Test Results Result : PASS The equipment under test(EUT) has been found to comply with the applied standards. Test Name Applied Standard Result Electromagnetic Emission Test 3.1 Conducted Emission FCC Part15 Subpart B Complied 3.2 Radiated Emission FCC Part15 Subpart B Complied Page : 10 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 3.…

Text truncated - open the document above for the full version.

Page : 15 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Side) Page : 16 of 18 Samsung EMC Testing and Certification Laboratory Project NO. :LBE050050 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
