A3LSRC-BAMVC2S-DAQ (WLAN)

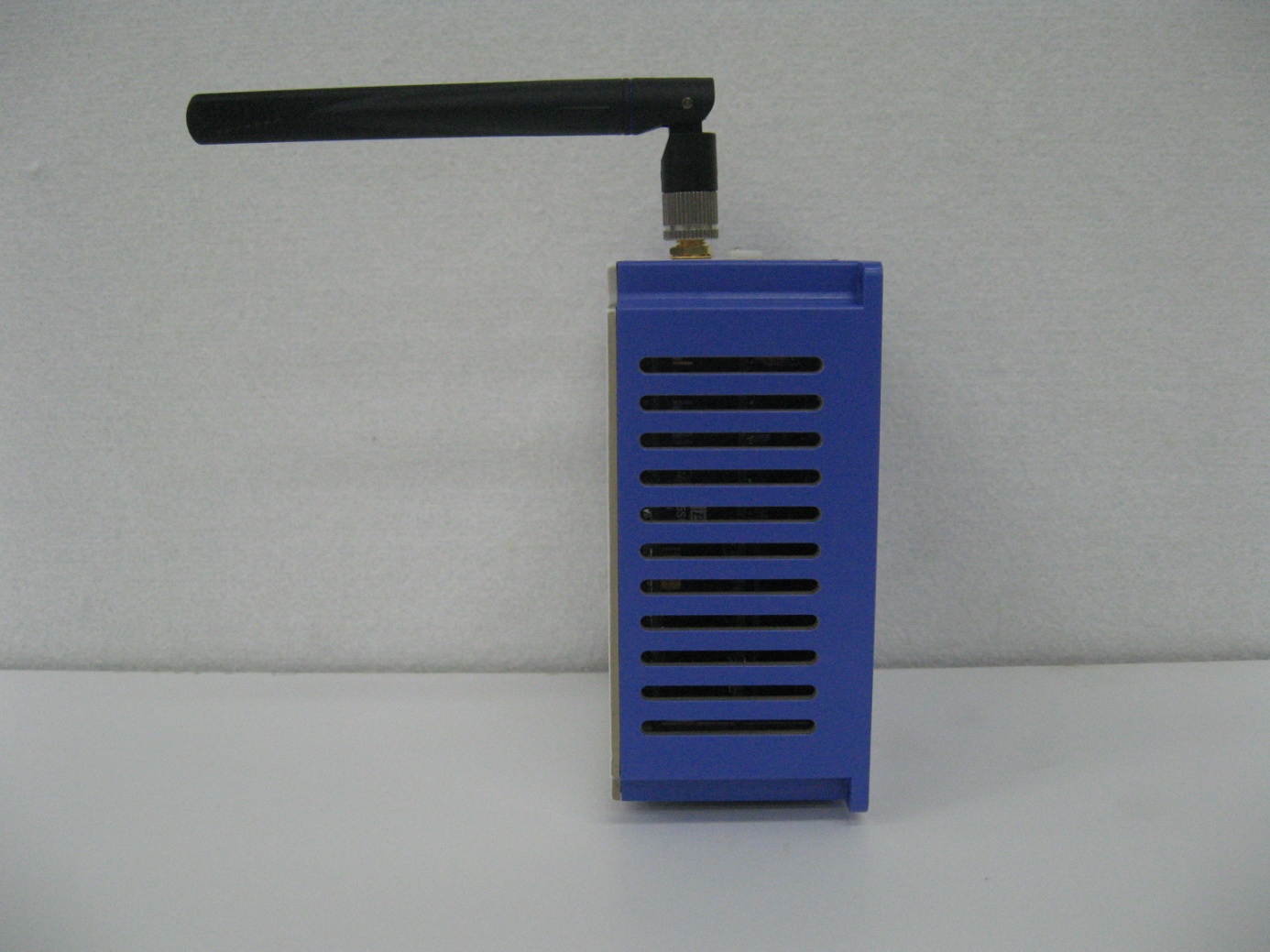

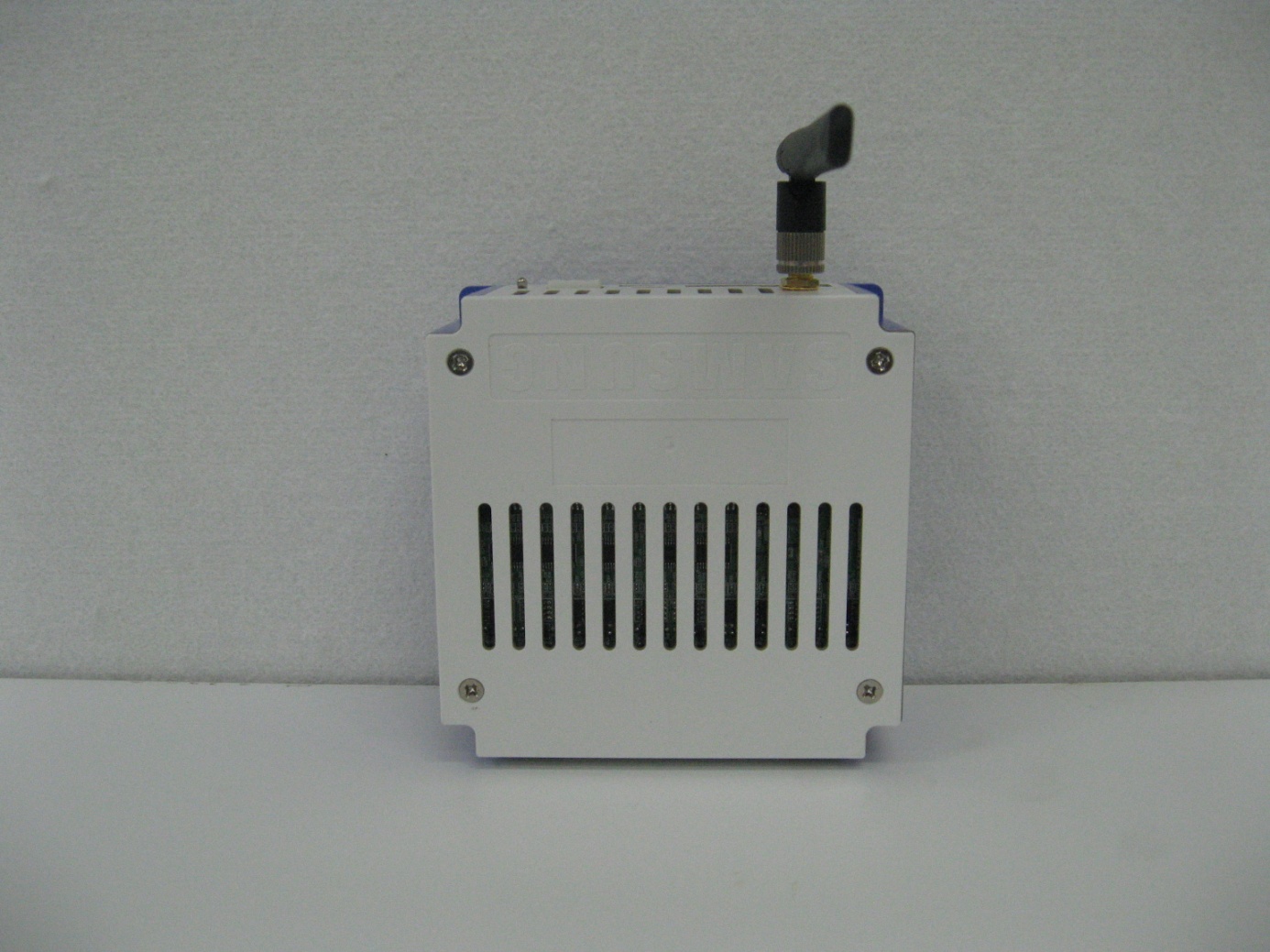

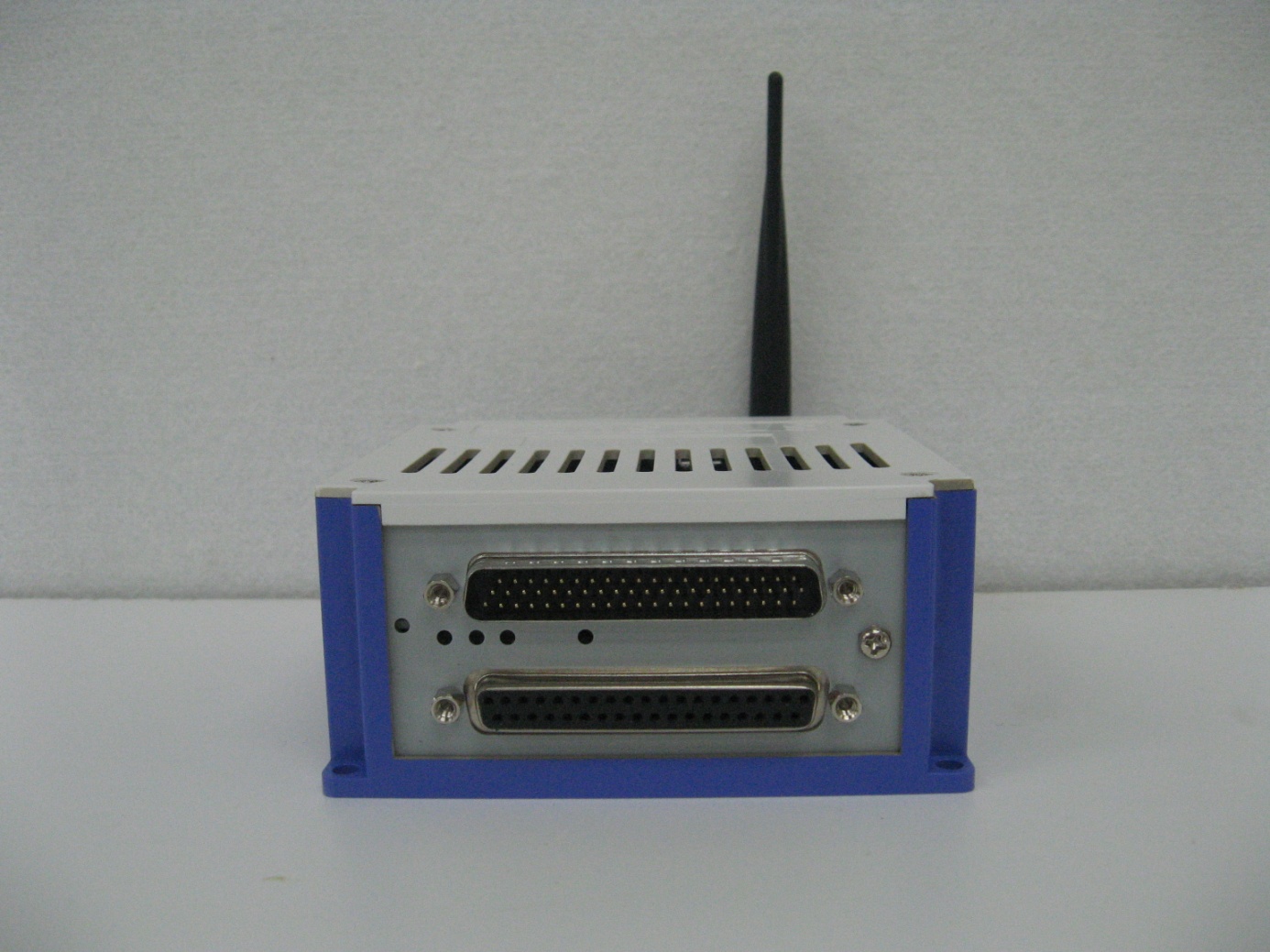

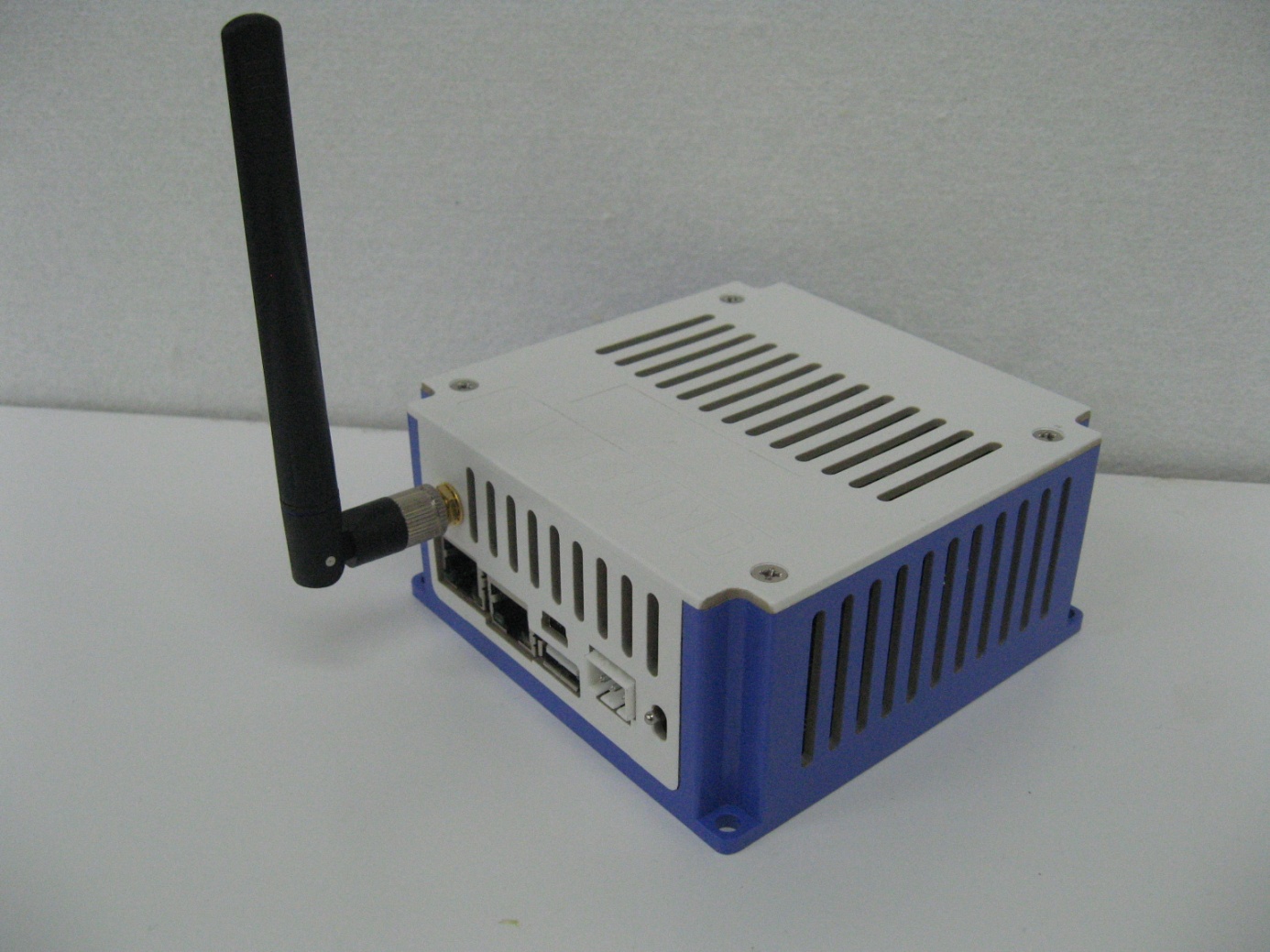

S-DAQ User Manual V0.1 S-DAQ User Manual 1  [ Revision History ] Version Date Change History Author Confirmed by V0.1 2015.09.06 SangHo Lee SangHo Lee S-DAQ User Manual 2  1. Introduction S-DAQ is a device for transferring voltage signal and equipment information to an agent PC through wired/wireless communication. Users are advised to read carefully all manuals provided with the package, to ensure safe and efficient use of S-DAQ unit. This manual explains necessary skills and information for setting up and using S-DAQ. S-DAQ User Manual 3  2. S-DAQ Basic Specifications S-DAQ comprises three boards (CPU Board, DAQ i Board, RS-232 ii Board) and each board contains following components. 1) Board Components A. CPU Board : CPU, Power Module, Communication Module (WIFI, LAN) B. DAQ Board : ADC Module(40 Channels), FPGA C. RS-232 Board : RS-232 (9 Channels) 2) Exterior The picture is of the S-DAQ board and case. The front panel of S-DAQ has power port (24Vdc), power on/off switch, USB memory port, LAN 2Port, Mini-USB Port, a port for an external antenna. The rear panel houses LED, FG, DAQ Port, RS-232 Port connections. Figure 1 S-DAQ Exterior S-DAQ User Manual 4  WIFI LAN0 LAN1 USB Power Power Switch Mini USB FG ADC : 40Channel RS-232 : 9Channel LED(1,2,3 A. Power : 24Vdc supply. B. WIFI : Port for connecting external antenna. C. LAN0, LAN1 : LAN Port for Ethernet communication with other devices using TCP/IP. D. Mini-USB : Developer’s Debug Port. E. USB : used for S-DAQ FW update. F. Power Switch : Power On/Off switch. G. ADC : Receives analogue voltage inputs up to 40 channels. H. LED(1,2,3) : Status LED I. RS-232 : for serial communications with other devices (supports up to 9 channels). J. FG : Frame Ground for noise reductions. Connects to host equipment ground. 3) H/W Specifications A. S-DAQ internal H/W has following characteristics. i. Freescale i.MX6 Qual Core(1 ㎓ × 4) ii. Dual Band WIFI, 802.11 a/b/g, Ethernet communications support iii. FPGA(SPARTAN LX4 ) support Figure 2 S-DAQ Front Panel Figure 3 S-DAQ Rear Panel S-DAQ User Manual 5  B. DAQ Board H/W Details C. CPU Board H/W Details ITEM SPECIFICATION ADC CH SINGLE 40CH, DIFFERENCIAL 20CH 16BIT INPUT MAX +/- 10V FILTER 40CH 300KHz LOWPASS FILTER SAMPLE RATE 40CH 1KSPS (NORMAL), 5CH 64KSPS (MAX) REFERNCE VOLTAGE 4.096V ADC CONTROL SPARTAN-6 FPGA SERIES ISOLATION POWER (1) 2W 5V to 7V DC-DC CONVERTER ISOLATION POWER (2) 2W 24V to +/- 12V DC-DC CONVERTER ISOLATION VOLTAGE MAX 6500VRMS 1SEC ADC I/F SPI 3.3MHz 5CH CPU I/F SPI 20MHz 1CH FPGA PROGRAMMING SPI 20MHz 1CH SUPPLY POWER (1) 3.3V SUPPLY POWER (2) 5V SUPPLY POWER (3) 24V Size 100 x 100 x 16 (mm) ITEM SPECIFICATION ADC CH SINGLE 40CH, DIFFERENCIAL 20CH 16BIT INPUT MAX +/- 10V FILTER 40CH 300KHz LOWPASS FILTER SAMPLE RATE 40CH 1KSPS (NORMAL), 5CH 64KSPS (MAX) REFERNCE VOLTAGE 4.096V ADC CONTROL SPARTAN-6 FPGA SERIES ISOLATION POWER (1) 2W 5V to 7V DC-DC CONVERTER ISOLATION POWER (2) 2W 24V to +/- 12V DC-DC CONVERTER ISOLATION VOLTAGE MAX 6500VRMS 1SEC ADC I/F SPI 3.3MHz 5CH CPU I/F SPI 20MHz 1CH FPGA PROGRAMMING SPI 20MHz 1CH SUPPLY POWER (1) 3.3V SUPPLY POWER (2) 5V SUPPLY POWER (3) 24V Size 100 x 100 x 16 (mm) S-DAQ User Manual 6  Ethernet 40Ch/Single 24Vdc Data PC(Host) S- Equipment ※ Data PC 1. 6GB RAM↑ 2. HDD : 1TB↑ ※ Connect Component Analog Output Ex. Servo Pack Analog Out (RPM, Torque) ※ DAQ Channel - Single Signal : 40Channel - Differential Signal : 20Channel D. RS-232 Board H/W Details ITEM SPECIFICATION ADC CH SINGLE 40CH, DIFFERENCIAL 20CH 16BIT INPUT MAX +/- 10V FILTER 40CH 300KHz LOWPASS FILTER SAMPLE RATE 40CH 1KSPS (NORMAL), 5CH 64KSPS (MAX) REFERNCE VOLTAGE 4.096V ADC CONTROL SPARTAN-6 FPGA SERIES ISOLATION POWER (1) 2W 5V to 7V DC-DC CONVERTER ISOLATION POWER (2) 2W 24V to +/- 12V DC-DC CONVERTER ISOLATION VOLTAGE MAX 6500VRMS 1SEC ADC I/F SPI 3.3MHz 5CH CPU I/F SPI 20MHz 1CH FPGA PROGRAMMING SPI 20MHz 1CH SUPPLY POWER (1) 3.3V SUPPLY POWER (2) 5V SUPPLY POWER (3) 24V Size 100 x 100 x 16 (mm) 3. How to Install and Use 1) S-DAQ Installations S-DAQ User Manual 7  Blinking 2) S-DAQ Connection Check A. Change IP Address for Data PC to 192.168.0.5. B. Power on and confirm LED2 is blinking green. C. Do a ping test to S-DAQ from Data PC to confirm connection. S-DAQ User Manual 8  3) S-DAQ Pin Map S-DAQ User Manual 9  4. HW Specifications i DAQ : Stands for Data Acquisition. General terminology for measurement of analog input/output, digital input/output and digital counter/timer. ii RS-232 : Serial type communication interface between PC and devices such as sound coupler and modem. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures. - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio, TV technical for help. - Only shielded interface cable should be used. Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void the users authority to operate such equipment. This device complies with Part 15 of the FCC Rules. O…
