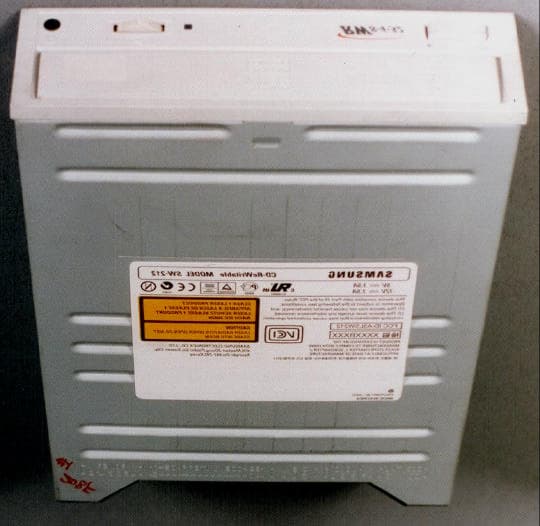

Page 1 of 13 JOB NO. : SEMC929A JOB NO. : SEMC929A Product :CD-ReWritable DRIVE Model No. :SW-212 FCC ID. :A3LSW212 Date of test :February 1, 2001 Issued Date :February 2, 2001 Tested by: No Cheon, PARK / Test Engineer Reviewed by: Seung Kyu, CHA / Manager of EMC Lab. Authorised by: Taek Jeong, SHIN / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. Suwon EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT According to FCC Part 15B Class B Page 2 of 13 JOB NO. : SEMC929A Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Configuration of EUT and peripherals 1.4 Used Cable Description 1.5 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Justification 2.4 EUT Exercise Soft ware 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Test Equipment Used This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 13 JOB NO. : SEMC929A 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT PERSON :Son Mun Eul CONTACT ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 REGULATION(S) :FCC Part 15B Class B MODEL NUMBER :SW-212(Trade Name "SAMSUNG") VARIANT MODEL NUMBER :- SERIAL NUMBER :- KIND OF PRODUCT :CD-ReWritable DRIVE TESTED DATE :February 1, 2001 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number: 98856 Anechoic Chamber #1 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 13 JOB NO. : SEMC929A 1.1 Product Description Data Transfer Rate Record : 1,200 KB/sec(8X), ReWrite : 600 KB/sec(4X) ReWrite : 600 KB/sec(4X), Read : 4,800 KB/sec(32X) Burst Transfer Rate PIO Mode 4 (16.6 MB/sec),DMA Mode 2 (16.6 MB/sec) Interface ConnectorATAPI Supported Disc CD-DA,CD-ROM,CD-ROM/XA,Video-CD,CD-I, Photo CD,CD-EXTRA,CD-UDF Size 1.2 Tested System Details MakersProduct ModelFCC IDSerial NumberRemarks (1)SAMSUNGCD-ReWritable DRIVEEUT M/N : SW-212A3LSW212S/N : - (2)SAMSUNG External Monitor Unshielded AC Power Cable M/N : CGE7507LA3LCGE750S/N : 9106H2JN401141Shielded Video Cable (3)HP PS/2 Mouse Unshielded Mouse Cable M/N : M-S34DZL211029S/N :LZB94959845 (4)HP Keyboard Shielded Keyboard Cable M/N :SK-2506DOCS/N :C9911227079 (5)H.P. Personal Computer Unshielded AC Power Cable M/N :G810GDOCS/N : 100075SCI (6)SONY Headphone Unshielded Cable M/N :MDR-A101-S/N : - (7)H.P. Inkjet Printer Unshielded AC Power Cable M/N :2225C+DSI6XU2225S/N : H3AH502500Shielded Printer Cable (8)SEJIN Serial Mouse Unshielded Mouse Cable M/N :SMB-400GJJS965M3S/N : 9GHF000178 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 149 * 42 * 200 mm Page 5 of 13 JOB NO. : SEMC929A 1.3 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A CD-ReWritable DRIVE SW-212-SamsungEUT BExternal MonitorCGE7507L 9106H2JN401141 Samsung CPersonal ComputerG810G100075SCIHP DMouseM-S34LZB94959845HP EKeyboardSK-2506C9911227079HP FHeadphoneMDR-A101-SONY GInkjet Printer2225C+H3AH502500HP HSerial MouseSMB-4009GHF000178SEJIN 1.4 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power cable1.7N 2Video Cable1.5Y 3Headphone Cable2N 4Mouse Cable2N 5Keyboard Cable1.5Y 6AC Power cable1.5N 7AC Power cable1.7N 8Mouse Cable2N 9Printer Cable1.5Y This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 6 of 13 JOB NO. : SEMC929A 1.5 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. C B F D E 5 4 6 3 2 1 A G 7 H 8 9 Page 7 of 13 JOB NO. : SEMC929A 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 13 JOB NO. : SEMC929A 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 9 of 13 JOB NO. : SEMC929A 2.2 Operation Enviroment ConductionRadiation Temperature [centigrade] :2122 Humidity [%] :4138 Power supply :AC120V/60HzAC120V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EM…

Text truncated - open the document above for the full version.

Page 7 of 13 JOB NO. : SEMC929A 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 13 JOB NO. : SEMC929A 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
