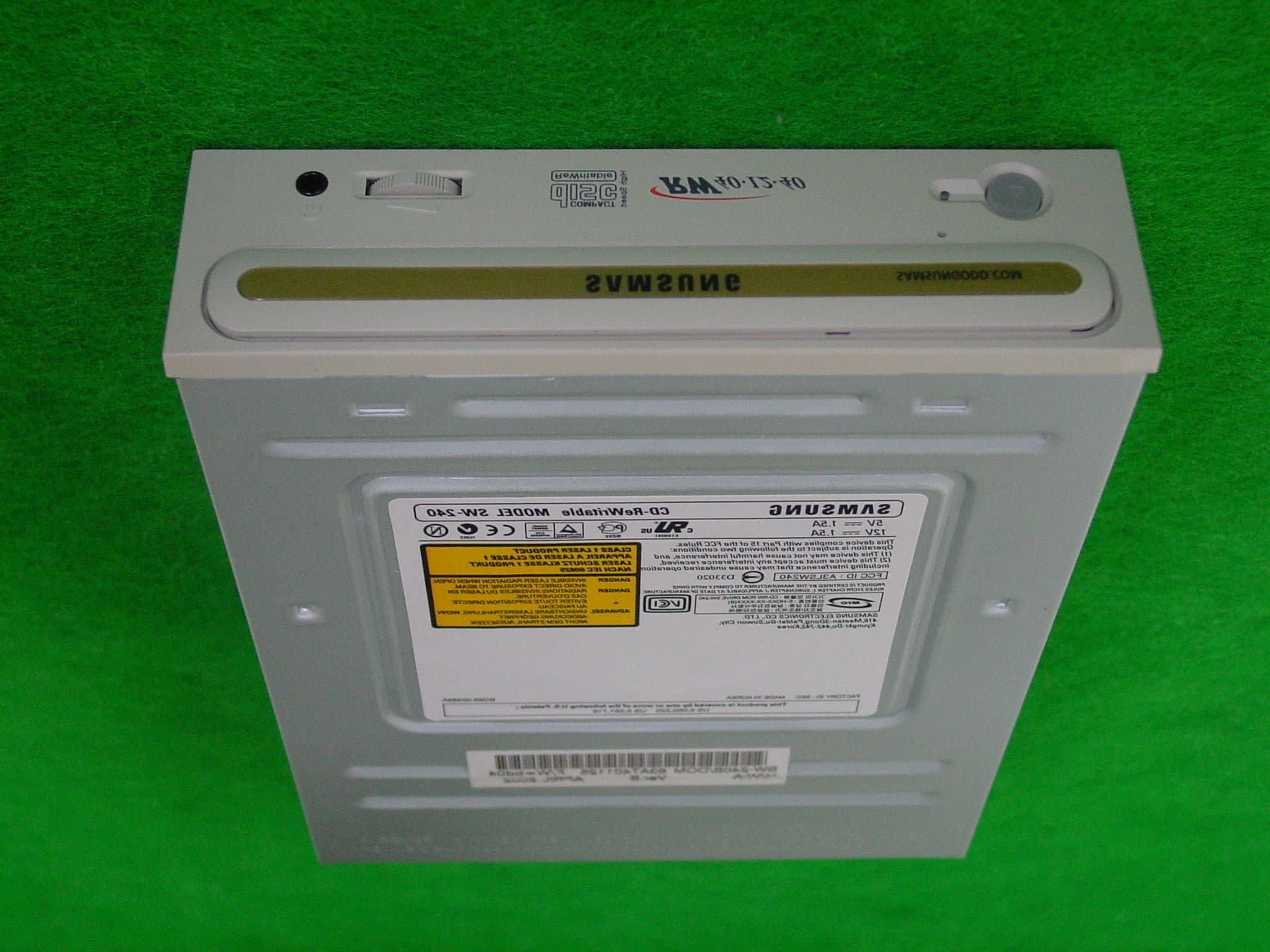

A3LSW240Internal CD-RW

BG68-00488A Rev:00 http://www.samsungodd.com www.samsungelectronics.com SW-240 SW-240  ENGLISH  ESPAÑOL  DEUTSCH  FRANÇAIS       CD-R/RW DRIVESW-240 User's Guide FCC Compliance This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules.These limits are designed to provide reasonable protection against harmfulinterference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and,if not installed and used in accordance with the instructions, may cause harmfulinterference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception,which can be deter-mined by turning the equipment off and on, the user isencouraged to try to correct the interference by one or more of the followingmeasures: Re-orient or relocate the receiving antenna.Increase the separation between the equipment and receiver.Connect the equipment into an outlet on a circuit different from that to whichthe receiver is connected.Consult the dealer or an experienced radio/TV technician for help. Contents 2 Safety Precautions 3 ENGLISH The following diagrams illustrate the precautions to be taken when usingyour CD-R/RW drive. ✱ Changes or modifications not expressly approved by the party responsible forcompliance could void the user’s authority to operate the equipment. You must not use the drive in any manner other than that specified in this guide. Avoid exposing your eyes or skin to direct or scattered radiation. CAUTION Do not attempt to repair the CD-R/RW drive yourself.Contact your dealer or local SAMSUNG representative for all repairs.If you make any adjustments or perform any operations other than thosespecified in this guide, you run the risk of exposure to hazardous radiation. WARRANTY Please refer to the Samsung limited warranty statements. PRECAUTIONS 1. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. 2. Always check each disc for cracks before using it. If there are cracks on the surfaces, especially around the border of the centerhole, we recommend that you make a copy of the disc immediatelyand then stop using it. If you continue using the disc, it will probablydevelop more cracks and eventually cause irreparable damage. 3. Do not use poor quality discs: From unknown sourcesWithout any copyrightScratched or damaged in any way Safety Precautions 3 Your CD-R/RW Drive 4 Upgrading the Firmware Flash Memory 5 System Requirements 5 Installing the CD-R/RW Drive 6 Connecting the Cables 6 Installing the CD Record Utility 9 Installing the Device Driver 9 Setting Up the Device Driver 10 Using the CD-R/RW Drive 11 Storing and Cleaning Your Discs 11 Solving Recording Problems 12 Caution with errors 13 Recommended Disc Types 14 Term Description 14 Solving Technical Problems 15 Technical Specifications 17 * All product names mentioned in this document are trademarks or registered trademarks of their respective owners. ENGLISH 5 Upgrading the Firmware Flash Memory Your CD-R/RW Drive 4 1. Connector for stereo headphones with a 3.6 mm stereo mini-jack.2. Headphone volume control.3. Emergency eject hole. (if the compartment does not open when you press the Eject button, power off the computer, insert a pin or unfoldedpaper clip in the hole and push firmly) 4. Indicator Light. (GREEN: Read RED: Record)5. Disc compartment. (the compartment opens and closes automatically when you press the Eject button) 6. Eject button. The product firmware can be upgraded by downloading the updated file from thefollowing Web site: http:// www.samsungodd.com www.samsungelectronics.com System Requirements Before you install the CD-R/RW drive, we strongly recommend that you check thatyour setup meets the system requirements listed below.Item Description Computer Intel Pentium II (or higher), 64 MB of RAM (or higher) with an E-IDE interface Disk space 700 MB minimum Windows version Windows 95 / 98 OSR2 / 2000 / ME or XP / Windows NT 4.0 (or higher) 1. Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features. 2. Four-pin sound output terminal for use with a sound card. (refer to the sound card documentation for further details) 3. Master/slave select terminal.4. 40pin host E-IDE interface connector.5. 4pin power terminal. 12 3 4 5 6 1 23 4 5 General DMA Installation Guide Windows 95/98/Me Important!Please read the entire DMA installation guide before installing your CD-R/RW drive.About DMA InstallationFor stable writing performance at high speeds, Installation of DMA transfer mode forE-IDE/ATAPIinterface is strongly recommended. We recommend DMA mode for fast writing.DMA SettingBefore you install your CD-R/RW drive, we recommend to set DMA to enabled on yourPC system. See the following procedure to set DMA transfer mode in windowsoprerating system. (Windows 95 OSR2/98/ME) Click on START  Click on Settings  Select Control Panel  Select the System Icon  Select the Device Manager panel in System Properties  Expand the CD-ROM icon  Select your CD-R/RW drive  Click on the Properties button  Click on the Settings tab  Check the DMA checkbox to enables DMA.  Click OK  Restart your PC Windows 2000/XPSelect the DMA mode by selecting [Start > Setting > Control Panel > System >Device Manager > IDEATA/ATAPI Controller > Default/Assistant IDE ChannelAdvanced Information] ENGLISH 7 6 Installing the CD-R/RW DriveConnecting the Cables To install your CD-R/RW drive in the PC, proceed as follows.1 Make sure that the PC is powered off and disconnected from any power source. 1 Connecting the power cableThe 4-pin power cable from the internal power unit of your computer must beconnected to the power terminal on the rear of the CD-R/RW drive. Note : An improperly connected power cable may cause trouble. Che…

Text truncated - open the document above for the full version.

Page 1 of 12 Project NO. : E2-02-0089 Project NO. : E2-02-0089 Product :CD-R/RW ROM Drive Model No. :SW-240 (VER:B) Date of test :April 24, 2002 - May 02, 2002 Issued Date :May 03, 2002 Tested by: Choon Kil, Kim / Test Engineer Reviewed by: Yang Soo, KIM / Technical Manager Authorised by: Yang Soo. KIM / Quality Manager SAMSUNG ELECTRONICS Co., Ltd. Suwon EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT According to FCC Part 15B Class B Page 2 of 12 Project NO. : E2-02-0089 Table of Contents 1. General Information 1.1 Product Description 1.2 System Block Diagram of Test Configuration 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Enviroment 2.3 Justification 2.4 EUT Exercise Soft ware 2.5 Test Procedure 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Test Equipment Used This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 12 Project NO. : E2-02-0089 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT ADDRESS :416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 CONTACT PERSON :Ki Ho,Kim REGULATION(S) :FCC Part 15B Class B MODEL NUMBER:SW-240 (VER:B) SERIAL NUMBER :- KIND OF PRODUCT :CD-R/RW ROM Drive TESTED DATE :April 24, 2002 - May 02, 2002 TEST SITE :SAMSUNG EMC TEST LAB. FCC Registration Number : 98856 Anechoic Chamber #1 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 12 Project NO. : E2-02-0089 1.1 Product Description Speed CDR: 40X, CD-RW : 12X Access Time CD-RW(110ms) Buffer8MB Interface ATAPI BUS(E-IDE) Size 1.2 System Block Diagram of Test Configuration This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 148.2(W) * 42(H) * 184(D) mm G G B C E A D 110V 110V 220V F Page 5 of 12 Project NO. : E2-02-0089 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark ACD-R/RW DriveSW-240 (B)-SamsungEUT BComputerNetvista 1S6841EA623A5618 IBM CMonitorCX151S-AZ N192H4NT319256 Samsung DPrinterDocuprintP8exJC68-30927FXerox EKeyBoardIBM 1S37L25141366363B IBM FEar phone- -SONY GMouseM-S35LZB05162649Logitech 2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power cable1.7N 2USB cable2.0Y 3 Video cable 1.8Y 4Mouse cable2.0N 5Keyboard Cable1.8N 6AC Power cable1.7N 7AC Power cable1.7N 8Centronics cable2.0Y This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Page 6 of 12 Project NO. : E2-02-0089 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 12 Project NO. : E2-02-0089 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 12 Project NO. : E2-02-0089 2.2 Operation Enviroment ConductionRadiation Temperature [centigrade] :21.523 Humidity [%] :4143 Power supply :AC120V/60HzAC120V/60Hz 2.3 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.4 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.5 Test Procedure 2.5.1 Conducted Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead,except the ground(safety) lead, were individually connected through a LISN to the input power source. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 9 of 12 Project NO. : E2-02-0089 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.5.2 Radiated Emissions Eut was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT,including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 12 Project NO. : E2-02-0089 3. Conducted Emission Test Data The initial step in collecting conducted data was to perform a quasi-peak scan over the measurement range using a receiver. The final data represents worst-case emissions. O Test Mode : FrequencyMeter…

Text truncated - open the document above for the full version.

Page 6 of 12 Project NO. : E2-02-0089 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 12 Project NO. : E2-02-0089 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
