A3LSWA5000Wireless Transmitter Module

Wireless Receiver Module SWA-5000_XAA 1/21/10 10:32 PM Page 1 Wireless Receiver Module Model : SWA-5000 Wireless Receiver ModuleTX Card (AH40-00163A) Speaker Cable (2EA) (AH81-02137A) Accessories Specifications Power RequirementsAC 120V ~ 60Hz Power Consumption50W Weight2.52 lbs Dimensions (W x H x D)3 x 9 x 6 inches Operating Temperature Range+41°Fto +95°F Operating Humidity Range10% ~ 75% OutputRefer to the Owner’s Manual of the Samsung product. Frequency range20Hz~20KHz S/N Ratio65dB Thank you for purchasing this product (SWA-5000). For more detailed information on how to connect and use the Wireless Receiver Module(SWA-5000), refer to the Owner's Manual of Samsung Home Theater (with TX Card port). If the main unit doesn't make wireless connection, the system needs ID Setting between main unit and wireless receiver module. With the main unit turned off, press remote control's number button "0" ➝ "1" ➝"3" ➝ "5" , then between the main unit and the wireless receiver module are ready for pairing. With the wireless receiver module turned on, press "ID SET" button on the back of the unit for 5 seconds. If this power supply is used at 240V ac, a suitable plug adapter should be used. SWA-5000_XAA 1/21/10 10:32 PM Page 2 Safety Warnings TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. WARNING • To reduce the risk of fire or electric shock,do not expose this appliance to rain or moisture. • To prevent injury,this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. • If this power supply is used at 240V ac,a suitable plug adapter should be used. CAUTION • Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids,such as vases,shall be placed on the apparatus. • The Mains plug is used as a disconnect device and shall stay readily operable at any time. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances,such as radios and televisions,use shielded cables and connectors for connections. FCC NOTE (FOR U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates,uses and can radiate radio frequency energy and,if not installed and used in accordance with the instructions,may cause harmful interference to radio communications.However,there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on,the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. RF Radiation Exposure Statement This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 7.87 inches (20cm) between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. RISK OF ELECTRIC SHOCK. DO NOT OPEN CAUTION The lighting flash and Arrowhead within Triangle Is a warning sign alerting you of dangerous voltage Inside the product The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product. CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK)NO USER SERVICEABLE PARTS INSIDE.REFER SERVICING TO QULAIFIED SERVICE PERSONNEL. SWA-5000_XAA 1/21/10 10:32 PM Page 3 Safety Warnings AH68-01877B IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference. 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings, Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specifi ed by the manufacturer, or sold with the apparatus. …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: February 26, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWA5000 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

416, Maethan 3-Dong, Youngtong-Ku, Suwon-City, Kyung-ki-Do, KOREA Attn: Reviewing Engineer Federal communications Commission 7435 Oakland Mills Road Columbia, MD 21046 January 05, 2010 RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To whom It May Concern: We, Samsung Electronics Co., Ltd., Hereby requests a Modular Approval of our RF Transceiver Module, described as follows: Brand name: SAMSUNG Model name: S WA-5000 FCC ID: A3LSWA5000 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our Blue tooth module complies with. 1. The modular transmitter must have an own shielding : The radio portion of this module has been shielded, Please see photographs provided with the application. 2. The modular transmitter must have buffered modulation/data inputs. : This module has a memory managements unit inside of the IC (DARR82 ). It buffers the data inputs from USB terminal. 3. The modular transmitter must have its own power supply regulation. : The IC (DARR82) Contain an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c: This module is equipped with an onboard PCB Chip Antenna. For further details please refer to the antenna data sheet included in the filing. 5. The modular transmitter must be tested in a stand-alone configuration: This module was tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number: This module is labeled with its own FCC ID number, Please see product label design and the external photograph of the device with this label submitted with the application. 7. The modular transmitter must comply with any specific rule of operation requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements: This module is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the test report. T Sincerely, Name: Jaywoo Lee Title: Engineer Company: SAMSUNG ELECTRONICS CO., LTD

From: 라상경 Sent: Thursday, February 25, 2010 8:48 PM To: [email protected]; [email protected]; [email protected]; [email protected] Subject: Fwd: Question regarding A3LSWA5000 / A3LDNUBS1) Page 1 of 2Samsung Enterprise Portal mySingle 2/26/2010 Dear Sir Sorry for late response and please refer to the following information Thanks Sang Kyung (Peter) Ra Model : A3LSWA5000 1. Regarding your response to question #1, the revised test report refers to the EUT as a modular transmitter; however, the data is the same as in the original report, and the test set- up photos show that the EUT was tested while installed inside another device (“wireless amplifier”). As stated in the modular requirement sheet that you submitted, a module must be tested “stand- alone” on the test stand. Please re-measure the radiated emission tests in a stand-alone configuration and submit new data. Î Please find the attached file ‘test setup photo_EUT out of zig box.pdf’. The EUT was located out of test Zig box. 2. In question #10, we requested a copy of the test lab’s ISO/IEC 17025 scope of accreditation, demonstrating the lab’s capability to perform Section 15.247 testing. What was submitted is a letter from Nemko Canada stating that they accept measurement data from Nemko Korea. This does not constitute demonstrable proficiency in the specific tests required to show compliance with Section 15.247. ISO/IEC Guide 65 requires that a TCB only accept data from a test lab with demonstrated proficiency in the testing methods required. Typically, ISO/IEC 17025 accreditation to the applicable standards is used to demonstrate this proficiency. Absent such accreditation, PCTEST TCB has a procedure for the eventual acceptance of test data, but this requires inter-lab comparison testing prior to that acceptance. Please address. Î For Kolas certification based on, the Lap contains all equipment for test, but the test Lap doesn't contain Antenna for 10th harmonic detects for 2.4GHz. When we need to test that frequency, we rent the antenna. In case of SWA-5000, we tested its high spurious with horn antenna (BBHA9170) and agilent amplifier (83051A). We check every frequency, required form FCC Standard, no frequency over 5th Harmonic frequency was detected. You can find ISO/IEC 17025 Scope at 7, 9 page on attached Kolas lap certification. Model : A3LDNUBS1 1. Is Full Modular Approval sought for the EUT? Or Limited Modular Approval? Î Full Modular Approval is sought for the EUT. Please proceed to have Full modular approval 2. If Modular Approval is sought, please submit a checklist detailing compliance with the 8 requirements of Section 15.212(a)(1) (a similar checklist, for a different FCC ID, was apparently submitted with this application?). Î Plese see the attached file : (Transmitter module approval(A3LDNUBS1) 3. The RFx warning statement in the user’s Regulatory Information must warn the user that, in order to comply with FCC RF Exposure requirements, the EUT must be installed and used such that a minimum 20 cm spacing is maintained between the antenna and all persons during normal use. Please revise and resubmit. Î Please see the attached file : (DNUB-S1_User manual) 4. Please submit a copy of the test lab’s ISO/IEC 17025 accreditation showing its capability to perform Section 15.247 testing. Î Accoring to Kolas certification, the Accredited Lap is containing all equipments for reasonable test, but the Test Lap doesn't have Antenna for 10th harmonic detects for 2.4GHz. When we need to test that frequency, we rent the antenna. In this Audio amplifier we check every frequency, required from FCC Standard, no frequency over 5th Harmonic frequency was detected you can find ISO/IEC 17025 Scope at 7,9 page on attached Kolas lap certification 5. The following tests were performed incorrectly: 6 dB bandwidth; Power Spectral Density; Spurious RF Conducted Emissions; and Bandedge Emissions. An average detector was used, while the FCC test procedure requires a peak detector for each of these tests. Please re-perform these tests using a peak detector and submit new data. Î I have attached the revised test report ‘ DNUB-S1_Part 15 report_rev 02.pdf ’ as your request. Thanks Jaywoo.Lee Engineer R&D Solution Group VD Division, Samsung Electronics --------------------------- Page 2 of 2Samsung Enterprise Portal mySingle 2/26/2010

Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 55 of 57 APPENDIX C – EUT PHOTOGRAPHS Front View of EUT Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 56 of 57 Rear View of EUT

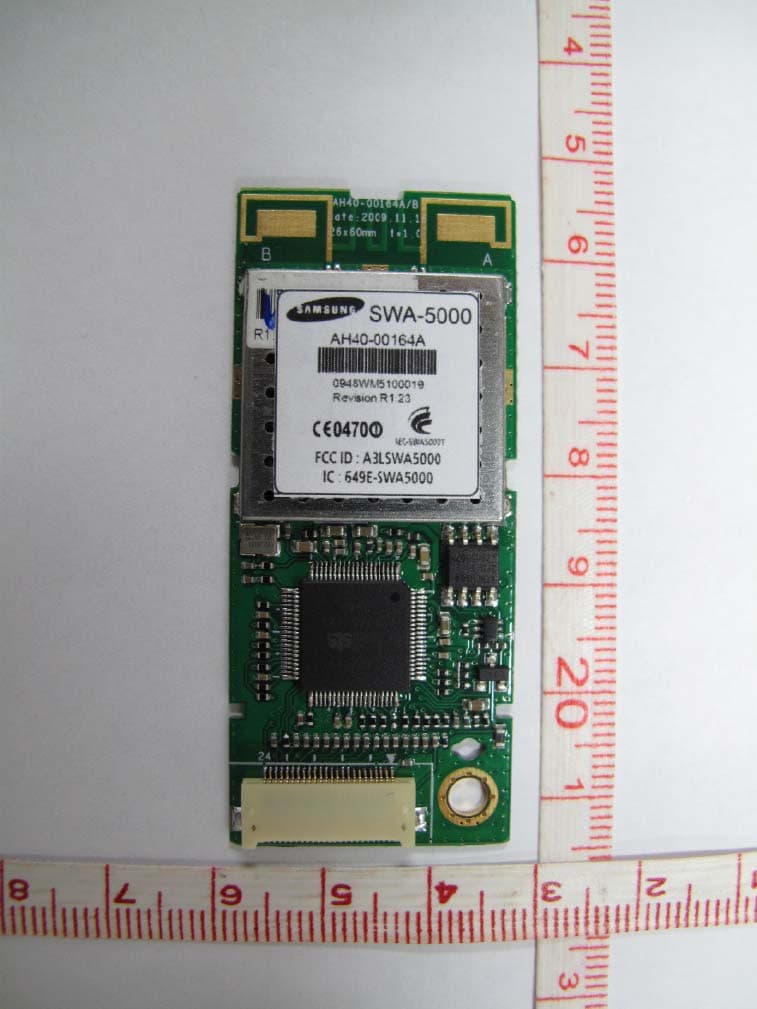

AH40-00164A 0948WM5100019 Revision R1.23 T SWA-5000

Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 57 of 57 Front View without shielding can

Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 1 of 57 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC and IC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Dates of Issue : December 22, 2009 416, Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea. (Post code : 443-742) Test Report No. : NK09R203 Test Site : Nemko Korea Co., Ltd. Attn. : Mr. Jaywoo. Lee FCC ID IC ID Brand Name Contact Person Applied Standard: FCC 47 CFR Part 15 and IC RSS-210 Classification: FCC part 15 Digital modulation Transmitter EUT Type: Audio transceiver module The device bearing the brand name and model specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : Minchul Shin Reviewed By : H.H. Kim Engineer Manager & Chief Engineer A3LSWA5000 649E-SWA5000 SAMSUNG Samsung Electronics Co., Ltd. 416, Maetan-3Dog, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 442-742. Mr. Jaywoo. Lee Telephone No. : +82-10-5691-9410 Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 2 of 57 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 3. Test Conditions & EUT Information 6 3.1 Operation During Test 6 3.2 Support Equipment 6 3.3 Setup Drawing 7 3.4 EUT Information 8 4. Summary of Test Results 9 5. Recommendation / Conclusion 10 6. Antenna Requirements 10 7. Description of Test 11 7.1 Conducted Emissions 11 7.2 Radiated Emissions 12 7.3 6 dB Bandwidth 13 7.4 Maximum Peak Output Power 13 7.5 Peak Power Spectral Density 14 7.6 Conducted Spurious Emissions 14 8. Test Data 15 8.1 Conducted Emissions 15 8.2 Radiated Emissions 20 8.3 6 dB Modulated Bandwidth 22 8.4 Peak Power Output 26 8.5 Power Spectral Density 27 8.6 Conducted Spurious Emissions 31 8.7 Radiated Spurious Emissions 40 8.8 Receiver Spurious Emissions 47 Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 3 of 57 9 Maximum Permissible Exposure 48 10 Accuracy of Measurement 50 11. Test Equipment 51 Appendix A: Labelling Requirement 52 Appendix B: Photographs of Test Set-up 53 Appendix C: EUT Photographs 55 Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 4 of 57 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jaywoo. Lee Samsung Electronics Co., Ltd. 416 Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 KOREA z FCC ID: A3LSWA5000 z IC ID: 649E-SWA5000 z Model: SWA-5000 z Brand Name: SAMSUNG z EUT Type: Audio transceiver module z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: FCC part 15 Digital modulation Transmitter FCC 47 CFR Part 15 subpart C and IC RSS-210 ANSI C63.4 (2003) Dec. 5, 2009 ~ Dec. 18, 2009 Nemko Korea Co., Ltd. Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 5 of 57 2. INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 and IC ID : 649E-SWA5000 These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-322-2333 Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 6 of 57 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT was controlled and monitored by testing jig which manufacturer supported. The EUT have two antennas which are not working simultaneously. All tests were performed the worst case antenna path at the Lowest, Middle, Highest channel. Power setti…

Text truncated - open the document above for the full version.

Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 53 of 57 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK09R203 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 54 of 57 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
