A3LSWCE100WiMAX Data Card

User’s Guide MWiMAX Express Card mWiMAX Connection Manager SWC-E100 Draft 2007.10. 25. Contents .............................................................4 1.INSTALL/UNINSTALL MWIMAX CONNECTION PROGRAM ..........................................................................................4 1.1.INSTALL MWIMAX CONNECTION PROGRAM .....................................................................................................8 1.1.1. Installation Checkup ......................................................................................9 1.2.UNINSTALL MWIMAX CONNECTION PROGRAM ...............................................................................................9 1.2.1. Uninstall on Start menu ......................................................................................10 1.2.2. Uninstall on [Control Panel] .................................................................................................12 2.MWIMAX CONNECTION MANAGER ....................................................................................12 2.1.MWIMAX CONNECTION MANAGER OVERVIEW ..................................................................................................................12 2.1.1. Product Mix ........................................................13 2.1.2. mWiMAX Connection Manager User Interface ........................................................................................13 2.2.TO USE MWIMAX CONNECTION MANAGER ...........................................................................13 2.2.1. Run mWiMAX Connection Manager ...............................................................................................13 2.2.1.1.Run on [Start] Menu .......................................................................................................14 2.2.1.2.Run on Desktop ..................................................................................................14 2.2.2. Screen Configuration .............................................................................................................14 2.2.2.1.Main Screen .......................................................................................................15 2.2.2.2.Settings Screen .............................................................................................................16 2.2.2.3.Tray Screen ...................................................................................................17 2.2.3. Connect to mWiMAX ....................................................................................................18 2.2.4. Disconnect mWiMAX ...............................................................................................................19 2.2.5. Show Settings ................................................................................................................................20 2.2.6. Exit ........................................................................................................................20 2.2.7. Use Tray .................................................................................................. 212.2.8. Tray Icon Description 3. Health and safety information............................................................................22 2/37 Revision History Version Date Author Description 1.0 2006.07.05 Jung Jae-young, Kim Ji-hoon, Noh Ji-hun, Kim Jae-mok Initial documentation 2.0 2006.07.31 Jung Jae-young, Kim Ji-hoon Write changes of Install method 3.0 2006.08.01 Jung Jae-young, Kim Ji-hoon Reflect operator’s request to Installer 4.0 2006.08.28 Jung Jae-young, Kim Ji-hoon, Noh Ji-hun, Kim Jae-mok Final revision before supplying to KT 5.0 2007.08.07 Jung Jae-young, Kim Jae-mok, Lee Woo-jin 3/37 1. Install/Uninstall mWiMAX Connection Program 1.1. Install mWiMAX Connection Program * Before installing mWiMAX Connection Program, insert mWiMAX Card into PCMCIA or PCI Express Slot on your laptop. - To install, please select language [English (United States)]. 4/37 - Click [Next] to start installation. 5/37 - Please click [Install]. * When either the card is not inserted, or its LED is off, a message pops up as in the following picture. Click [Retry] after inserting the card. When LED is off, also hit [Retry] to continue installation. 6/37 - mWiMAX PCMCIA device driver and mWiMAX virtual serial port driver are installed first. After this, mWiMAX Connection Manager is installed. * Driver installation process might cause some screen blinks. - Click [Finish] to end installation. 7/37 - Click [Yes] on Windows restart popup and restart the system. Then the installation of new mWiMAX Connection Program is completed. 1.1.1. Installation Checkup Select [Start] – [Control Panel] – [System] – [Hardware] – [Device Manager]. When mWiMAX Connection Program is normally installed, Device Manager is shown as 8/37 the following picture. 1.2. Uninstall mWiMAX Connection Program 1.2.1. Uninstall on Start menu Click [Start] menu, then select [Program] – [SAMSUNG ELECTRONICS] – [mWiMAX CM Express] Æ [Uninstall mWiMAX CM Express]. 9/37 1.2.2. Uninstall on [Control Panel] Select [Start] – [Control Panel]. On [Control Panel] menu, select [Add/Delete Program]. On [Add/Delete Program], select [mWiMAX Connection Manager] and hit [Delete] button on the right, then a message is displayed asking if you want to delete the program. By selecting [Yes], the program is deleted. 10/37 11/37 2. mWiMAX Connection Manager 2.1. mWiMAX Connection Manager Overview mWiMAX Connection Manager is Windows OS-based application supporting mWiMAX connection and features mWiMAX system connection and disconnection and other mWiMAX-related functions. mWiMAX system ConnectionConnectionConnection mWiMAX connection managermWiMAX connection managermWiMAX connection manager 2.1.1 Product Mix - Installation CD - mWiMAX(Mobile WiMAX) PCI Express Card - Easy Installation Guide 12/37 2.1.2. mWiMAX Connection Manager User Interface OS Microsoft Windows XP CPU Intel Pentium…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO.,LTD. Date: October 15, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWCE100 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description 3 Schematics CONFIDENTIAL 4 Parts List & Tune-Up Procedure 5 External Photos 6 Internal Photos 7 Test-Setup Photos SHORT-TERM CONFIDENTIAL 8 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

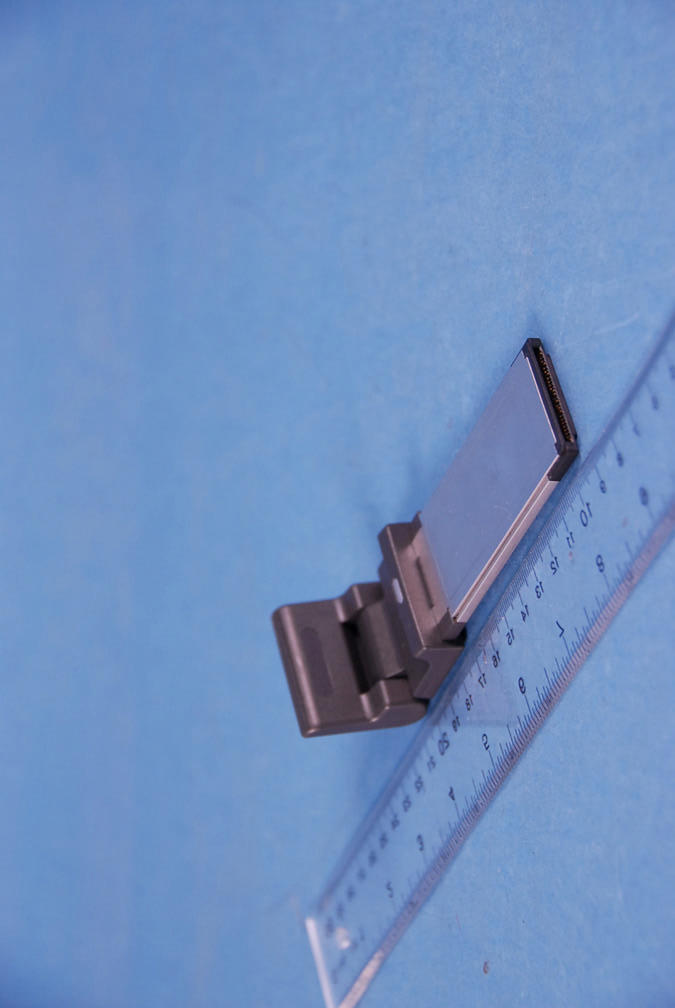

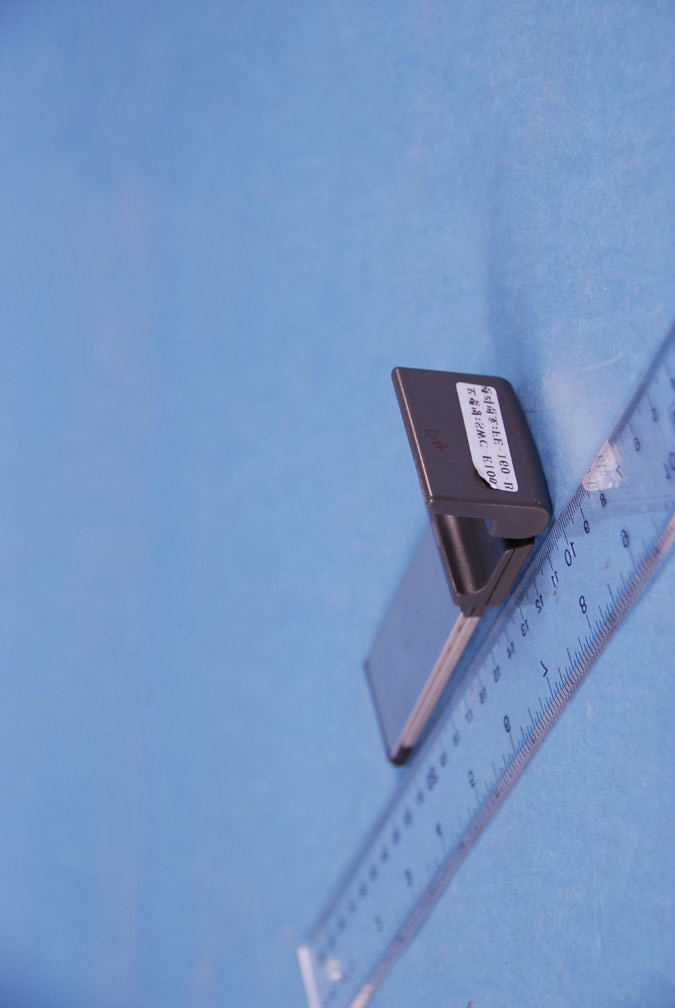

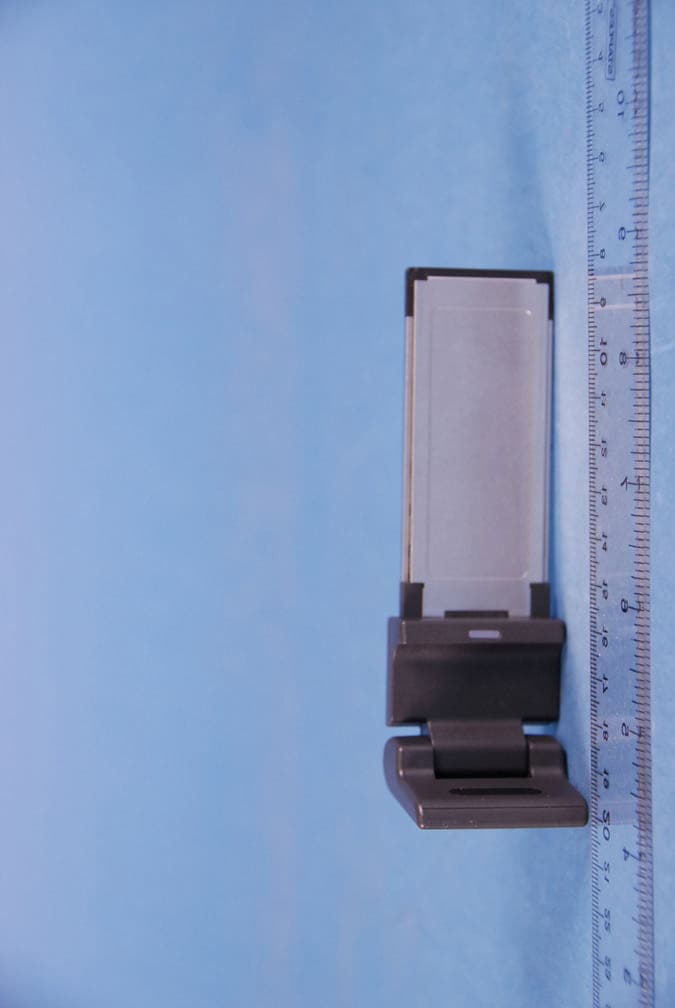

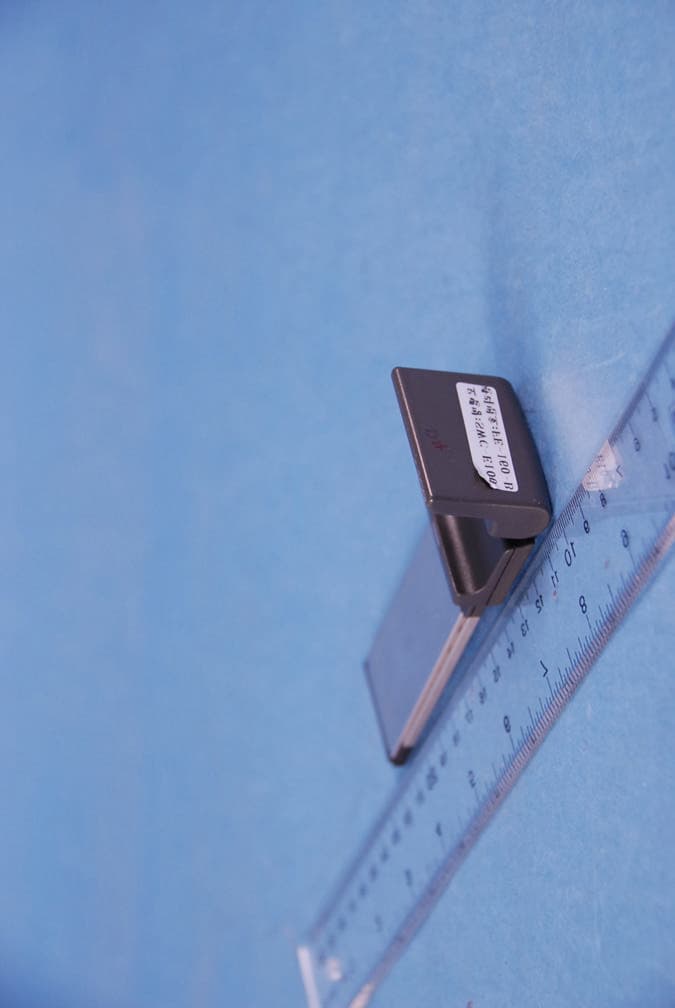

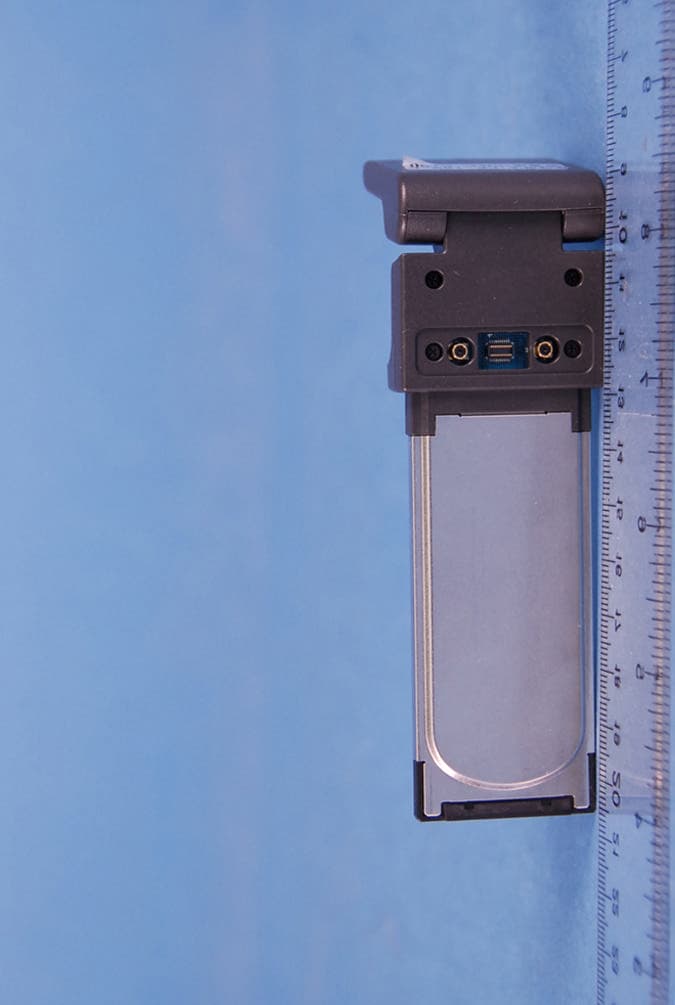

SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100

SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100

Reviewed by: FCC ID: A3LSWCE100 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0709101002.A3L 9/19/2007- 9/20/2007 WiMAX Data Card Page 1 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3B 09/18/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 9/19/2007- 9/20/2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0709101002.A3L FCC ID: A3LSWCE100 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: WiMAX Data Card Application Type: Certification FCC Rule Part(s): §2.1093; FCC/OET Bulletin 65 Supplement C [July 2001], Part 27 FCC Classification: Non-Broadcast Transmitter (TNB) Model(s): SWC-E100 Tx Frequency: 2501 - 2685 MHz Conducted Power: 23.87dBm Max. SAR Measurement: 0.468 W/kg (Body SAR) Test Device Serial No.: Pre-Production [S/N: FE-160-D] This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-2005 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Reviewed by: FCC ID: A3LSWCE100 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0709101002.A3L 9/19/2007- 9/20/2007 WiMAX Data Card Page 2 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3B 09/18/07 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 TEST CONFIGURATION POSITIONS ......................................................................................... 11 9 ANSI/IEEE C95.1-2005 RF EXPOSURE LIMITS......................................................................... 13 10 MEASUREMENT UNCERTAINTIES ............................................................................................ 14 11 SYSTEM VERIFICATION.............................................................................................................. 15 12 SAR DATA SUMMARY ................................................................................................................. 16 13 EQUIPMENT LIST......................................................................................................................... 19 14 CONCLUSION............................................................................................................................... 20 15 REFERENCES .............................................................................................................................. 21 Reviewed by: FCC ID: A3LSWCE100 CERTIFICATION REPORT Quality Manager Filename: Test Dates: EUT Type: 0709101002.A3L 9/19/2007- 9/20/2007 WiMAX Data Card Page 3 of 22 © 2007 PCTEST Engineering Laboratory, Inc. REV 4.3B 09/18/07 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-2005 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz[2] and Health Canada RF Exposure Guidelines Safety Code 6 [26]. The measurement procedure described in IEEE/ANSI C95.3-2002 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave [3] is used for guidance in measuring the Specific Absorption Rate (SAR) due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the International Committee for Non-Ionizing Radiation Protection (ICNIRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” Report No. Vol 74. SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values have been related to threshold levels for potential biological hazards. 1.1 SAR Definition Specific Absorption Rate is defined as the time derivative (rate) of the incremental energy (dU) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dV) of a given density (…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSWCE100 FCC Pt. 27 / 802.16e WiMAX MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709101001.A3L September 18 - 21, 2007WiMAX Data Card Page 1 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. September 18 - 21, 2007 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab., Columbia, MD, USA United States Test Report Serial No.: 0709101001.A3L FCC ID: A3LSWCE100 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. Application Type: Certification FCC Classification: Licensed Non-Broadcast Transmitter (TNB) FCC Rule Part(s): §2; §27 Subpart M EUT Type: WiMAX Data Card Model(s): SWC-E100 Tx Frequency Range: 2501 - 2685MHz (WiMAX) Max. RF Output Power: 0.241 W EIRP WiMAX (23.82) dBm (16QAM) 0.207 W EIRP WiMAX (23.16) dBm (QPSK) Emission Designator(s): 9M36G7D (QPSK) / 9M34W7D (16QAM) Test Device Serial No.: identical prototype [S/N: N/A] This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in §2.947. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is EIRP for Part 27. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC Part 27 Certification Reviewed by: FCC ID: A3LSWCE100 FCC Pt. 27 / 802.16e WiMAX MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709101001.A3L September 18 - 21, 2007WiMAX Data Card Page 2 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 TABLE OF CONTENTS FCC PART 27 MEASUREMENT REPORT..................................................................................3 1.0 INTRODUCTION ..............................................................................................................................4 1.1 MEASUREMENT PROCEDURE......................................................................................................... 4 1.2 SCOPE ................................................................................................................................................ 4 1.3 TESTING FACILITY............................................................................................................................. 4 2.0 PRODUCT INFORMATION..............................................................................................................5 2.1 EQUIPMENT DESCRIPTION .............................................................................................................. 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS ........................................................................... 5 2.3 LABELING REQUIREMENTS.............................................................................................................. 5 3.0 DESCRIPTION OF TESTS ..............................................................................................................6 3.1 OCCUPIED BANDWIDTH EMISSION LIMITS .................................................................................... 6 3.2 EBS/BRS - FREQUENCY BLOCKS .................................................................................................... 6 3.3 SPURIOUS AND HARMONIC EMISSIONS AT ANTENNA TERMINAL.............................................. 7 3.4 RADIATED SPURIOUS AND HARMONIC EMISSIONS ..................................................................... 7 3.5 FREQUENCY STABILITY / TEMPERATURE VARIATION ................................................................. 7 4.0 TEST EQUIPMENT CALIBRATION DATA ......................................................................................8 5.0 SAMPLE CALCULATIONS ..............................................................................................................9 6.0 TEST RESULTS .............................................................................................................................10 6.1 SUMMARY......................................................................................................................................... 10 6.2 TRANSMITTER CONDUCTED OUTPUT POWER ........................................................................... 11 6.3 EQUIVALENT ISOTROPIC RADIATED POWER OUTPUT DATA .................................................... 12 6.4 WIMAX RADIATED MEASUREMENTS............................................................................................. 13 6.5 WIMAX FREQUENCY STABILITY MEASUREMENTS..................................................................... 16 7.0 PLOT(S) OF EMISSIONS ..............................................................................................................18 8.0 CONCLUSION................................................................................................................................25 Reviewed by: FCC ID: A3LSWCE100 FCC Pt. 27 / 802.16e WiMAX MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0709101001.A3L September 18 - 21, 2007WiMAX Data Card Page 3 of 25 © 2007 PCTEST Engineering Laboratory, Inc. REV 1.0WMX 09/25/07 MEASUREMENT REPORT FCC Part 27 §2.1033 General Information APPLICANT: Samsung Electronics, Co. Ltd. APPLICANT ADDRESS: 18600 Broadwick St. Rancho Dominguez, CA 90220 TEST SITE: PCTEST ENGINEERING LABORAT…

Text truncated - open the document above for the full version.

SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100 SAMSUNG FCC ID: A3LSWCE100 EUT Photographs © 2007 PCTEST Lab. WiMAX Data Card Model: SWC-E100

FCC ID: A3LSW CE100 Model: SW C-E100 SAR Test Setup Photos BRS/ EBS Band, PC Card Page 1 of 3 © 2007 PCTEST Lab. REV 2.1 05/24/2007 1. Body SAR Set up. 2. Body SAR Laptop position. Antenna Closed. FCC ID: A3LSW CE100 Model: SW C-E100 SAR Test Setup Photos BRS/ EBS Band, PC Card Page 2 of 3 © 2007 PCTEST Lab. REV 2.1 05/24/2007 3. Body SAR Laptop position. Antenna Open. 4. Body SAR Tablet position. Antenna Closed. FCC ID: A3LSW CE100 Model: SW C-E100 SAR Test Setup Photos BRS/ EBS Band, PC Card Page 3 of 3 © 2007 PCTEST Lab. REV 2.1 05/24/2007 5. Body SAR Tablet position. Antenna Open. 6. Body SAR Laptop position for Tablet
