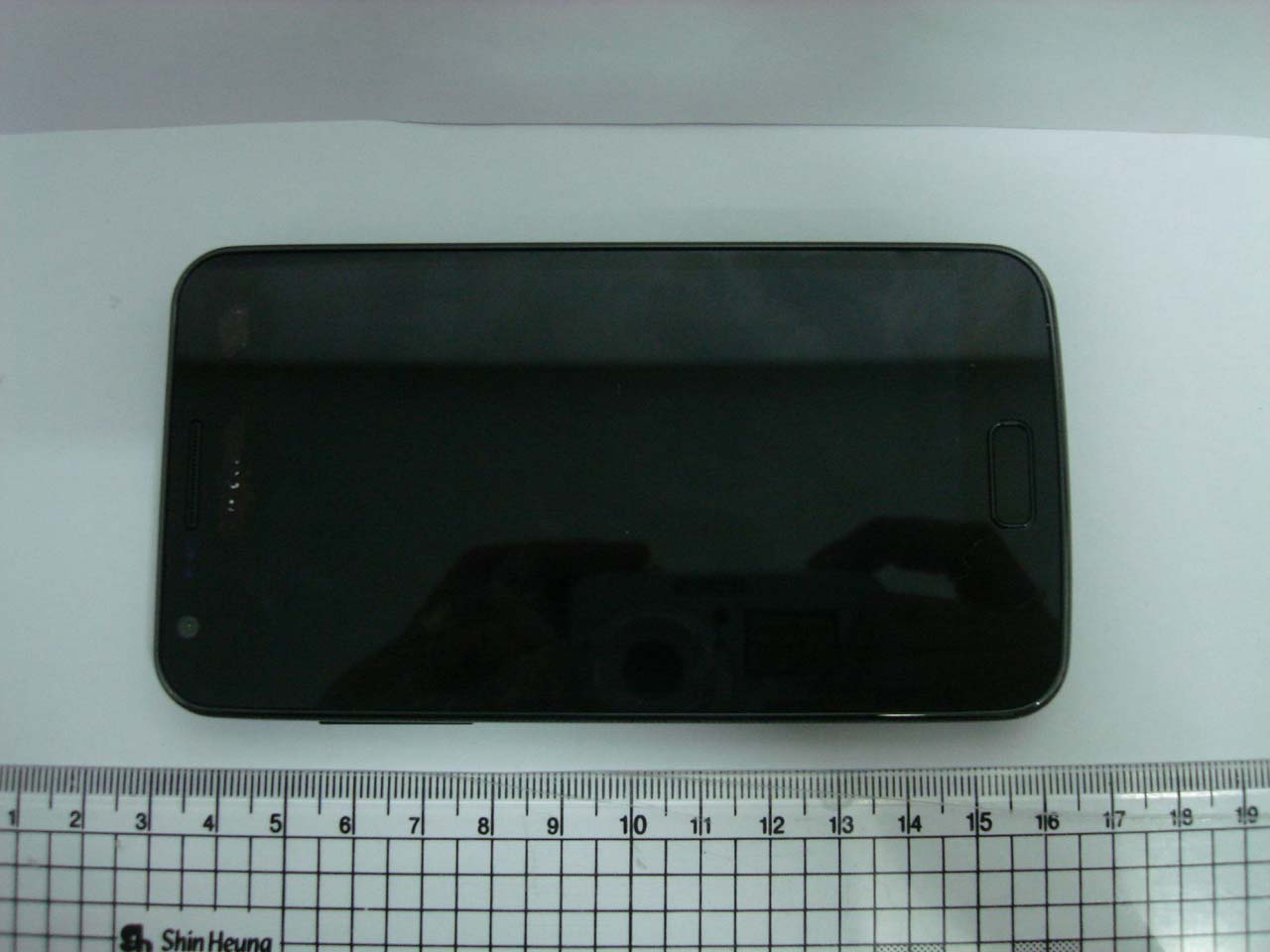

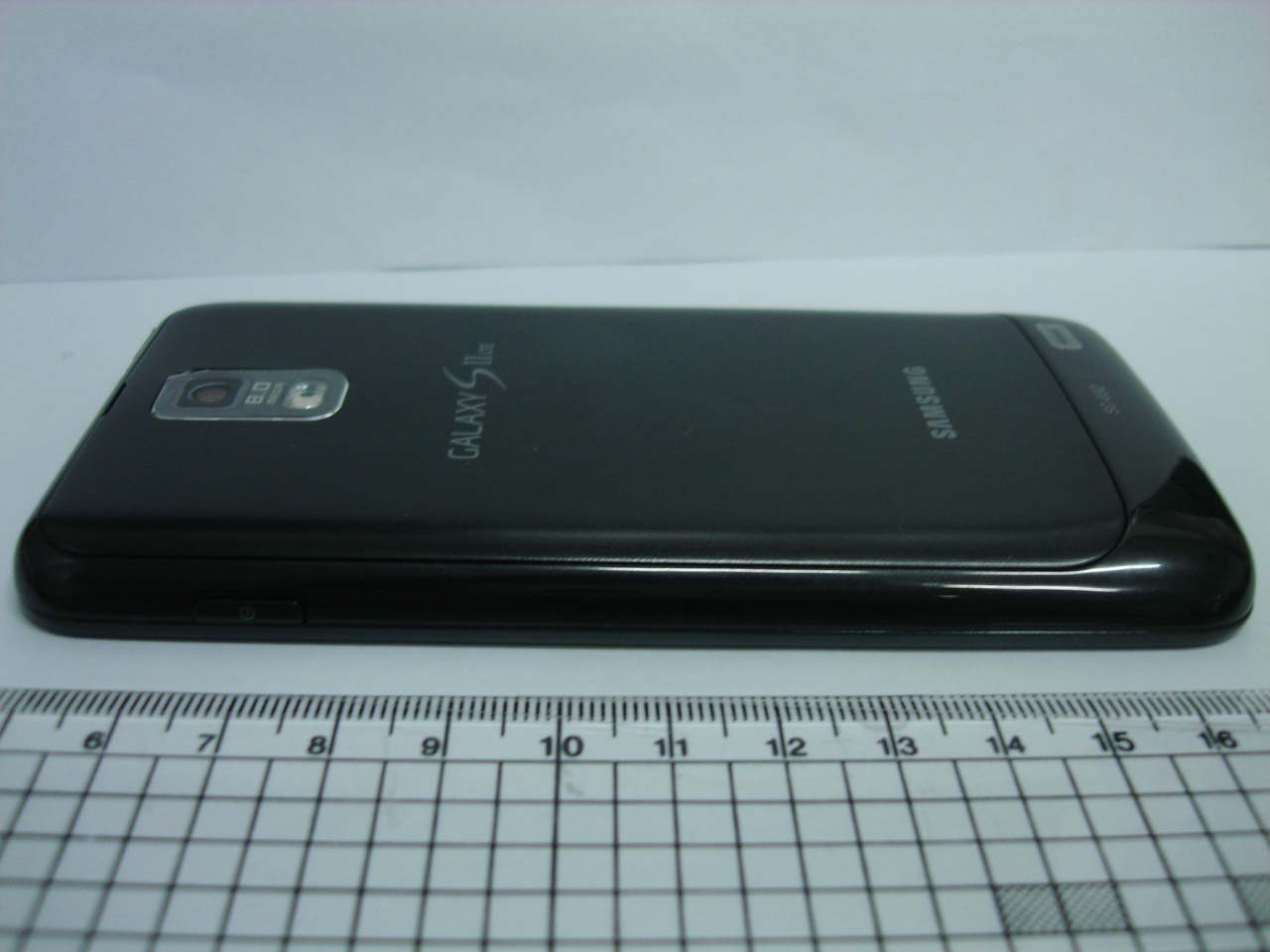

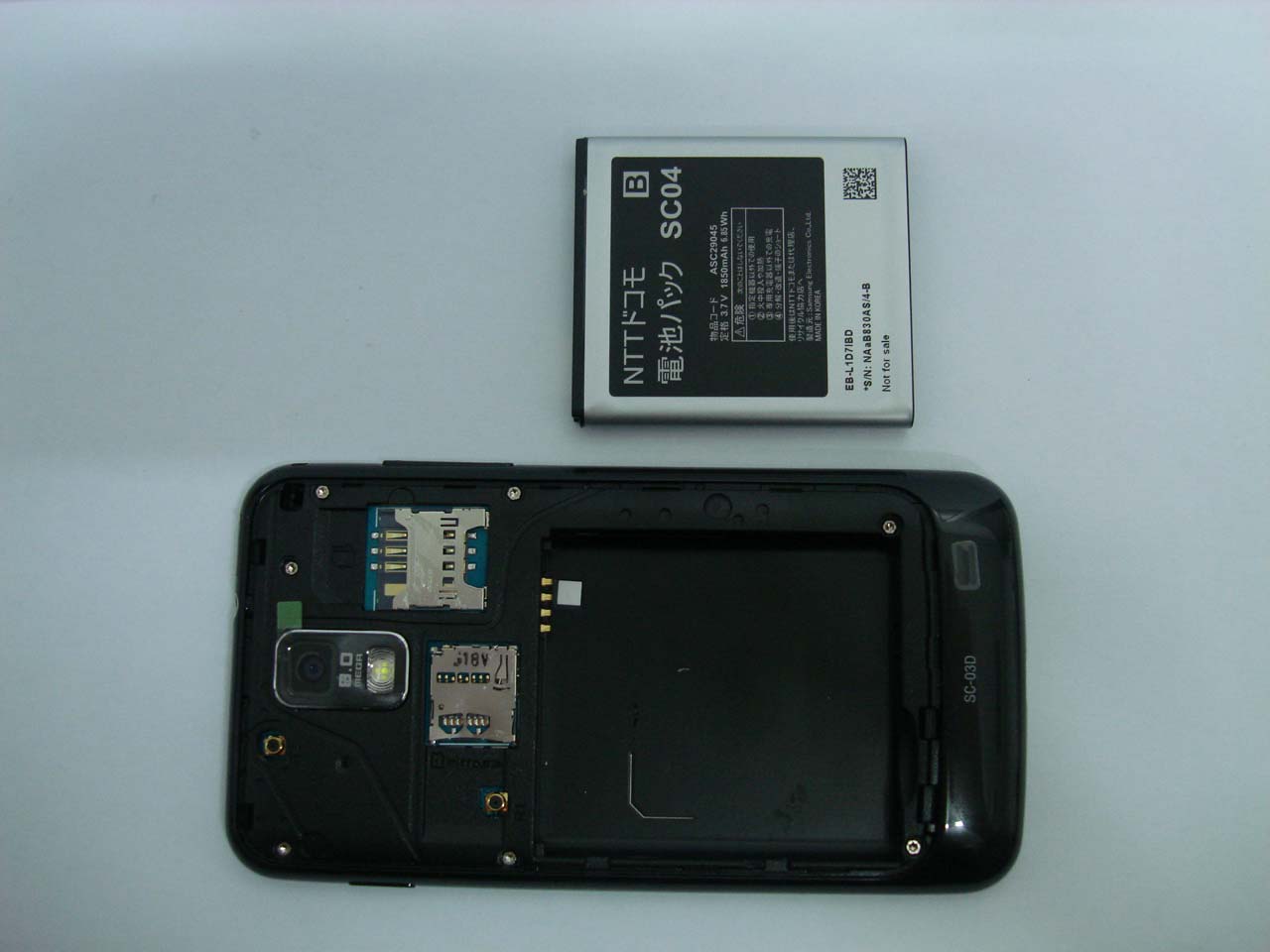

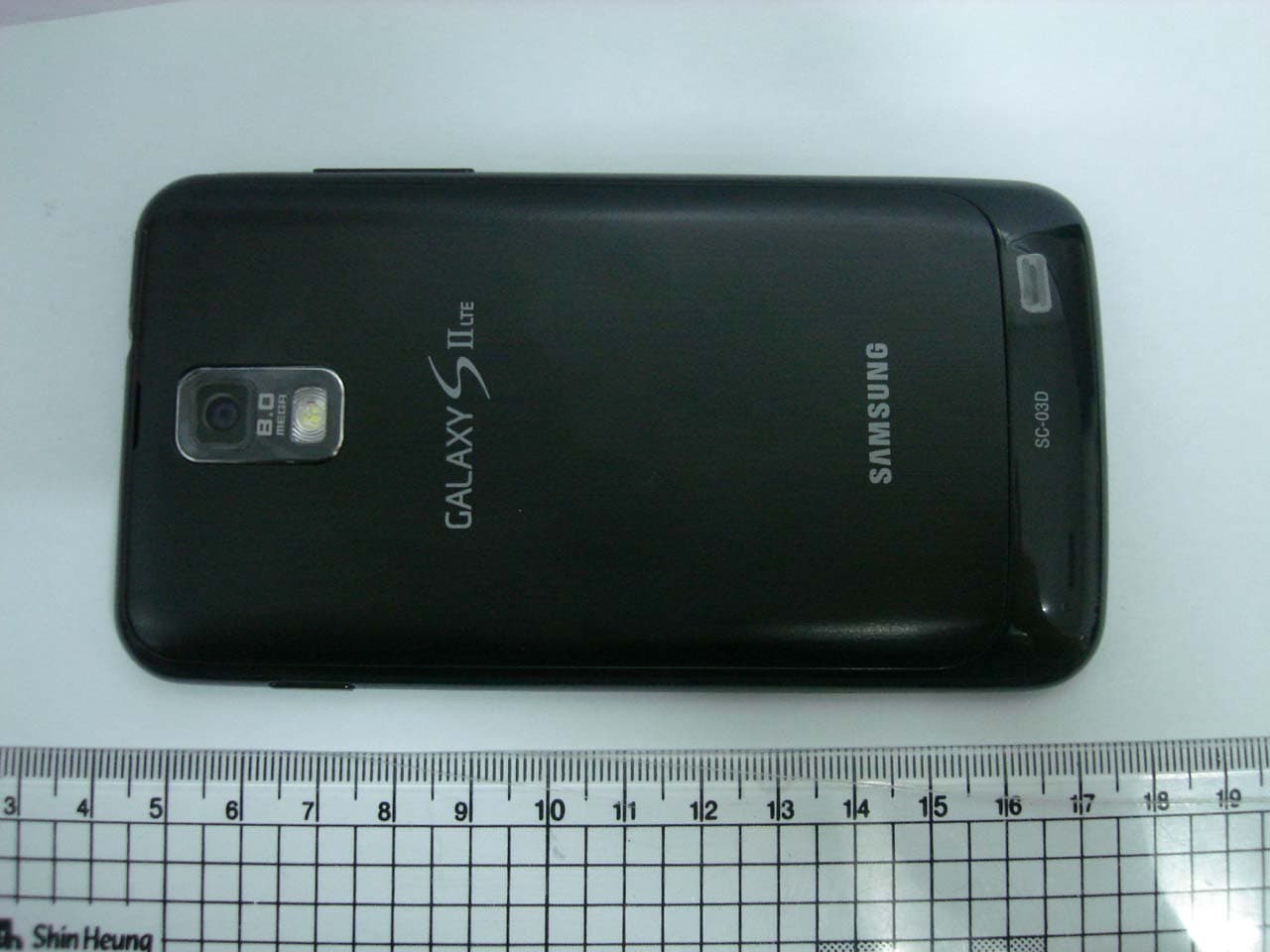

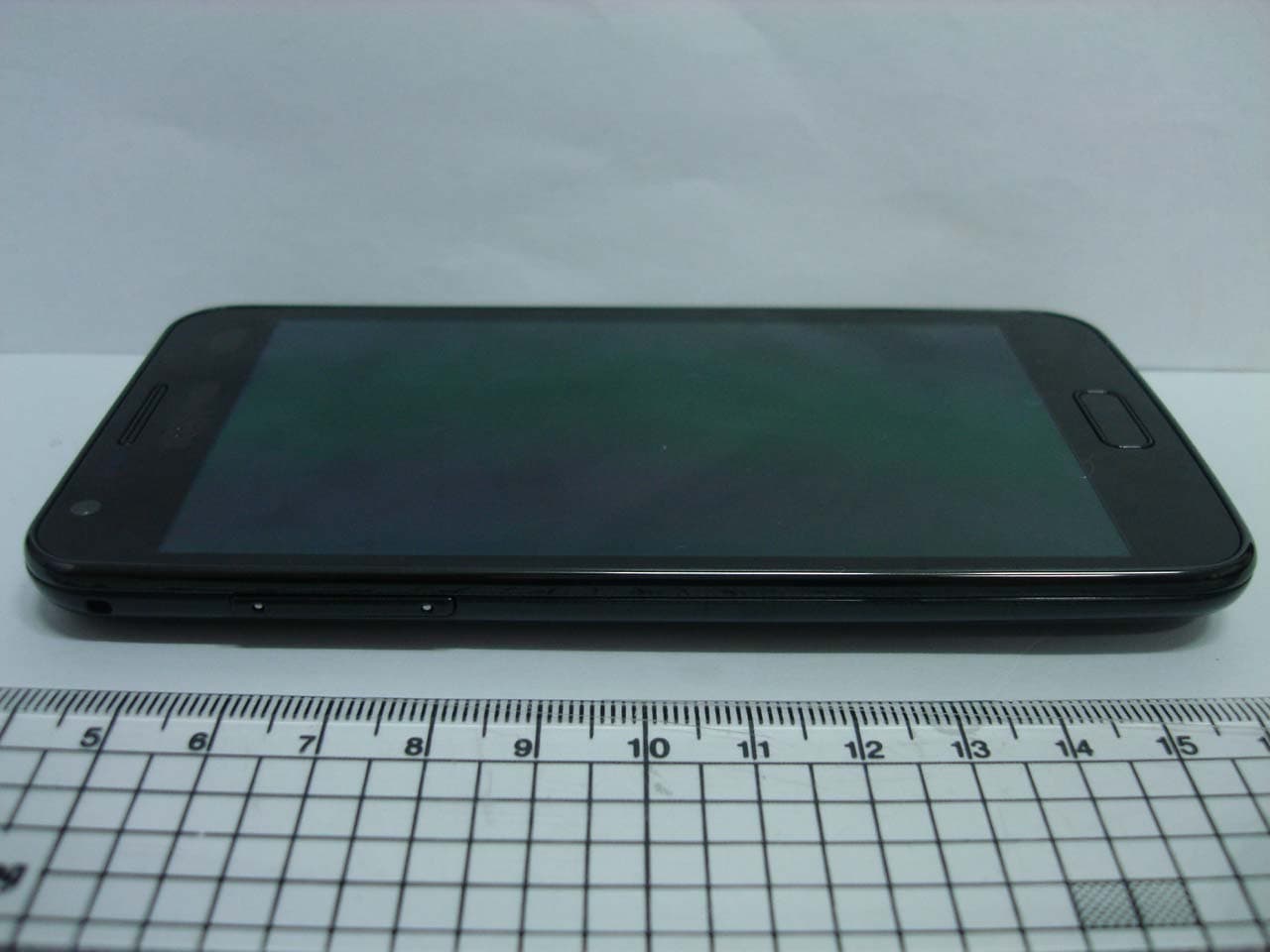

A3LSWDSC03DCellular/PCS GSM/EDGE Phone with WLAN, RFID and Bluetooth

9. UserManual Introduction Thank you for purchasing "SC-03D" mobile terminal. Before and during use of your terminal, be sure to thoroughly read this instruction manual to ensure you are able to correctly use your terminal. Before using your terminal • SC-03D supports LTE, W-CDMA, GSM/GPRS, and wireless LAN. • Because your terminal uses wireless transmission, it may not function in locations where it is difficult for radio waves to penetrate, such as tunnels, underground passages and some buildings, in areas where radio waves are weak, or out of Xi service area and FOMA service area. Even when you are high up in a tall building or condominium and nothing blocks your view outside, your terminal may not be able to receive or transmit signals. Also, communication may be interrupted even when the signal meter on your terminal indicates there are strong radio waves and you are not moving (traveling). • Because your terminal uses radio waves to communicate, it is possible that a third party may attempt to tap your calls. However, LTE, W-CDMA, GSM/GPRS system automatically applies a confidential communication function to all calls, so even if a third party could somehow tap a call, they only hear noise. • This terminal encodes voice communication as digital data. When you are operating your terminal while moving to a location subject to weaker radio wave conditions, the transmitted digital data may not be correctly decoded and as a result the decoded voice may differ somewhat from the actual voice. • This terminal supports Xi Area, FOMA Plus-Area and FOMA HIGH-SPEED Area. 1 • Note down the information saved in this terminal in a separate note and keep it safely. Note that DOCOMO assumes no responsibility for any loss of saved contents of data resulting from malfunction, repair, changing of the model or other handling of the terminal. • You are recommended to save important data to microSD card. • As with PCs, some applications that you perform installation may give the terminal instability of the operation, or may send your location information or personal information registered to this terminal to outside via the Internet and the information may be used improperly. Therefore, verify the supplier and operating conditions of the applications before use them. • In this manual, describe instructions in case of using DOCOMO UIM Card. Cancelling SIM Lock The SIM lock for this terminal can be unlocked. Non- DOCOMO SIM can be used with this terminal, once SIM Lock is unlocked. • Please come to docomo Shop to unlock SIM lock. • Handling fee for unlocking SIM lock occurs. • When using non-DOCOMO SIM, the service and function may be limited. Docomo shall not be liable for performance. • For details about unlocking SIM lock, refer to NTT DOCOMO website. Latest information about this manual can be downloaded from NTT DOCOMO website. • "User's Manual (PDF file)" Download http://www.nttdocomo.co.jp/support/ trouble/manual/download/index.html(In Japanese) * The URL and contents are subject to change without prior notice. To use the Instruction Manual, from the Home screen, "Applications" → "Manual". 2 LTE Service "Xi" "Xi" is a service of DOCOMO supported by LTE (Long term Evolution) which is the international communication standard. This is a super high speed data communication of up to 37.5 Mbps for receiving data and up to 12.5 Mbps for sending data (Part of the indoor facilities within Xi area can reach the speed of up to 75 Mbps for receiving data and up to 25 Mbps for sending data). You can enjoy the broadband with the speed as fast as optical LAN and the quick access within short time. • The maximum communication speed is calculated based on theoretical standard, not the real speed. It is provided by Best effort system. The real communication speed changes according to the communication environment and network condition. • The FOMA area which is out of Xi area is also available. • Refer to DOCOMO website for detailed areas support Xi. 10 Notes on usage of SC-03D • This terminal does not support accessing i-mode site (programs) and i-αppli, etc. • The FOMA Card is unavailable for this terminal. If you have the FOMA Card, exchange it for appropriate one at the docomo Shop. • This terminal automatically performs communication for some functions, for example, to synchronize data, check the latest software, maintain connection with the server, etc. And when you download applications or watch movie etc., a large amount of packet communication charges are executed. Therefore, it is highly recommended to use packet flat-rate service. • This terminal does not support Public mode (Driving mode). • In this terminal, functions may be added or operation steps may be changed due to upgrading Operating System (OS). For latest information of additional function or operation steps, refer to NTT DOCOMO website. • When OS is upgraded, some applications used for former OS may not work or unintended failure may occur. • In case of loss, please change passwords of each service accounts from a PC to prevent others from using Google service such as Google Talk, Gmail, Android Market, etc. or Facebook, Twitter or mixi. • The terminal does not support service providers other than sp-mode, mopera U or Business mopera Internet. 11 • The packet communication charge when tethering may be different depend on your charging plan. We strongly recommend to subscribe to flat-rate service. • If you subscribe to flat-rate service, the packet communication charge will become "パ ソ コ ン な ど の 外 部 機 器 を 接 続 し た 通 信 "(Communication via external devices such as PC,etc.). Also when tethering, even without connecting to external device, all packet communication charges will become "パソコンなどの外部機器を接続した 通信"(Communication via external devices such as PC,etc.). After completing data communication with external device, be sure to terminate the tethering function. • To use tethering, you must subscribe to sp-mode. • The security settings between the externa…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: October 28, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWDSC03D To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

SAMSUNG ELECTRONICS CO., LTD 416,Maetan-3dong,Yeongtong-gu Suwon-si,Gyeonggi-do, 443-742 Korea Federal Communicat ions Commission 7435 Oakland Mills Road Colum bia, MD 21046 SUBJECT : Label Statement FCC ID : A3L Gentlemen: We hereby provide the label statement letter for the above-mentioned phone by a new label statement policy instituted at the September 12, 2006, TCB-FCC Teleconference. The label statement is as follows: The FCC ID shown in the FCC ID label page will be readily visible at the time of purchase because the phone will be marketed without the battery installed. This statement could not be included in the label. So we inform you of it through this letter. Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely Yours, Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

2. SampleLabel GH68-35708A 111017111017111017 LABEL-MAIN SC-03D Yun Jun SangJo Kyeong HwanKim June Sop Technical Description 1. Use ‘AI/PDF’ provided by ‘SAMSUNG’ for letter and contents 2. Background color is ‘WHITE’, letter color is ‘BLACK’ (reverse for SAMSUNG LOGO) 3. Back side should be attached to release paper once adhesive is applied. 4. No letter should be blur/smeared 5. The production must be proceed after the approval of R&D Group 6. The product must be within approved sample's specification tolerance. 7. The product must be finished in a ROLL 8. Release paper must be unified for material and color(blue) Vendor HANSUNG P&I < 1:1 Artwork > 5.0 39.0 OPP Laminating 16 Adhesive 8 WHITE POLYESTER 50 Adhesive 25 (0.10T±0.01) 39.0 NTTドコモ 機器名称: SC-03D <Dark Gray> FCC ID: A3LSWDSC03D 製造元 申請者: Samsung Electronics Co., Ltd. ᆞ T R MADE IN KOREA 製造年 月 2011/04 2.4 FH1 / DS4 / OF4 IMEI : 000000/00/00000/0 S/N : R4W3S46754N RATED: 3.7 V ;1600 mA 005XYAA0325 005MWAA0260 005HUAA0006 005WWDA0418 005XWBA0024 005YWBA0019 AD11-0224005 5.0 5.0 IEEE802.11a/n(W52ᆞW53帯域) の屋外使用は法令により禁止されています。 NTTドコモ 機器名称: SC-03D <Dark Gray> FCC ID: A3LSWDSC03D 製造元 申請者: Samsung Electronics Co., Ltd. ᆞ T R MADE IN KOREA 製造年 月 2011/04 2.4 FH1 / DS4 / OF4 IMEI : 000000/00/00000/0 S/N : R4W3S46754N RATED: 3.7 V ;1600 mA IEEE802.11a/n(W52ᆞW53帯域) の屋外使用は法令により禁止されています。 005XYAA0325 005MWAA0260 005HUAA0006 005WWDA0418 005XWBA0024 005YWBA0019 AD11-0224005 Model : SC-03D FCC ID : A3LSWDSC03D 3. FCC ID Label Location The label is placed inside the battery compartment A3LSWDSC03D NTTドコモ 機器名称: SC-03D <Dark Gray> FCC ID: A3LSWDSC03D 製造元 申請者: Samsung Electronics Co., Ltd. ᆞ T R MADE IN KOREA 製造年 月 2011/04 2.4 FH1 / DS4 / OF4 IMEI : 000000/00/00000/0 S/N : R4W3S46754N RATED: 3.7 V ;1600 mA IEEE802.11a/n(W52ᆞW53帯域) の屋外使用は法令により禁止されています。 005XYAA0325 005MWAA0260 005HUAA0006 005WWDA0418 005XWBA0024 005YWBA0019 AD11-0224005

Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1110071772.A3L 10/10/11 - 10/12/11 Portable Handset Page 1 of 40 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/10/11 - 10/12/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1110071772.A3L FCC ID: A3LSWDSC03D APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] SC-03D Test Device Serial No.: Pre-Production [S/N: FI-252-A] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) GSM/GPRS/EDGE 850824.20 - 848.80 MHz32.970.210.500.75 GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz28.720.150.380.65 2.4 GHz WLAN2412 - 2462 MHz15.340.060.080.08 5.8 GHz WLAN5745 - 5825 MHz14.530.100.18 5.2 GHz WLAN5180 - 5240 MHz14.390.210.22 5.3 GHz WLAN5260 - 5320 MHz14.160.200.21 5.5 GHz WLAN5500 - 5700 MHz14.600.090.16 Bluetooth2402 - 2480 MHz9.46 Conducted Power [dBm] N/A 0.75 W/kg Simultaneous SAR per KDB 690783: SAR Band & ModeTx Frequency Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1110071772.A3L 10/10/11 - 10/12/11 Portable Handset Page 2 of 40 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 TABLE OF CONTENTS 1 INTRODUCTION ............................................................................................................................. 3 2 TEST SITE LOCATION ................................................................................................................... 4 3 SAR MEASUREMENT SETUP ....................................................................................................... 5 4 DASY E-FIELD PROBE SYSTEM .................................................................................................. 7 5 PROBE CALIBRATION PROCESS ................................................................................................ 8 6 PHANTOM AND EQUIVALENT TISSUES...................................................................................... 9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS........................................................................................................ 15 11 FCC 3G MEASUREMENT PROCEDURES .................................................................................. 16 12 SAR TESTING WITH IEEE 802.11 TRANSMITTERS .................................................................. 18 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 21 14 SYSTEM VERIFICATION.............................................................................................................. 23 15 SAR DATA SUMMARY ................................................................................................................. 25 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS......................................................... 32 17 EQUIPMENT LIST......................................................................................................................... 35 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 36 19 CONCLUSION............................................................................................................................... 38 20 REFERENCES .............................................................................................................................. 39 Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Filename: Test Dates: EUT Type: 0Y1110071772.A3L 10/10/11 - 10/12/11 Portable Handset Page 3 of 40 © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements …

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LSWDSC03D FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110071773.A3L 10/11/11 - 11/01/11 Portable Handset Page 1 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 10/11/11 - 11/01/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1110071773.A3L FCC ID: A3LSWDSC03D APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): SC-03D EUT Type: Portable Handset Max. RF Output Power: 34.2 mW (15.34 dBm) Conducted (b) 27.48 mW (14.39 dBm) Conducted (g) 21.98 mW (13.42 dBm) Conducted (n) - 2.4GHz 29.44 mW (14.69 dBm) Conducted (a) - 5.8GHz 22.8 mW (13.58 dBm) Conducted (n) - 5.8GHz Frequency Range: 2412 - 2462 MHz (DSSS/OFDM), 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSWDSC03D FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1110071773.A3L 10/11/11 - 11/01/11 Portable Handset Page 2 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G.................................................................................. 20 6.4 OUTPUT POWER MEASUREMENT – 802.11N (2.4GHZ) ...................................................................... 21 6.5 OUTPUT POWER MEASUREMENT – 802.11A...................................................................................... 22 6.6 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ) ...................................................................... 23 6.7 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 24 6.8 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 33 6.9 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 39 6.10 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 46 6.11 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 53 …

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSC03D Model: SC-03D Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSC03D Model: SC-03D Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSC03D Model: SC-03D Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page i of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page ii of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page iii of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page iv of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 5 – Back at 1.0 cm SAR Test Setup Photo 6 – Front at 1.0 cm Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page v of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 7 – Bottom at 1.0 cm SAR Test Setup Photo 8 – Right at 1.0 cm Reviewed by: FCC ID: A3LSWDSC03D SAR COMPLIANCE REPORT Quality Manager Test Dates: EUT Type: 10/10/11 - 10/12/11 Portable Handset Page vi of vi © 2011 PCTEST Engineering Laboratory, Inc. REV 9.4M 09/08/2011 SAR Test Setup Photo 9 – Left at 1.0 cm SAR Test Setup Photo 10 – Body-Worn at 1.0 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.
