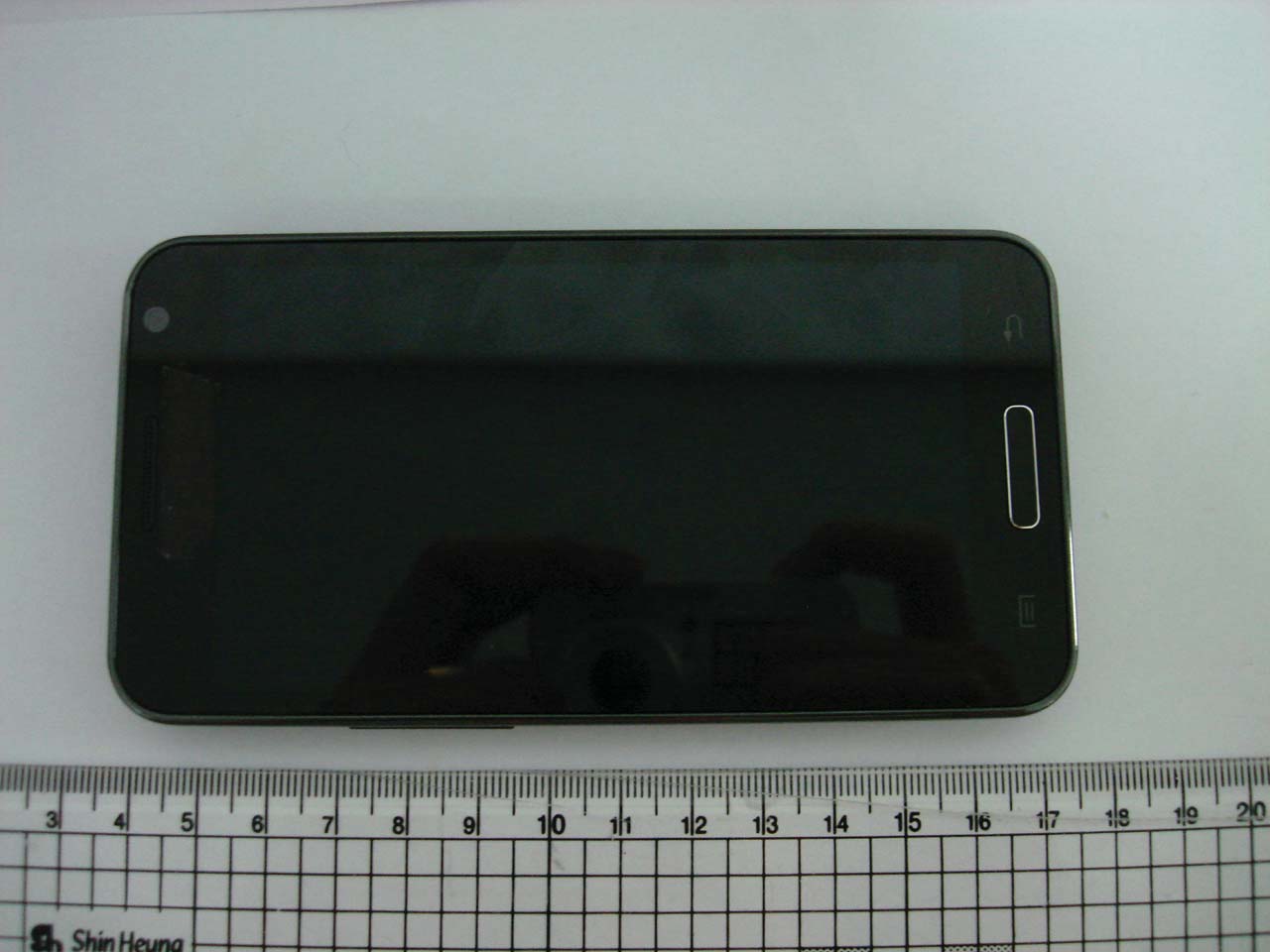

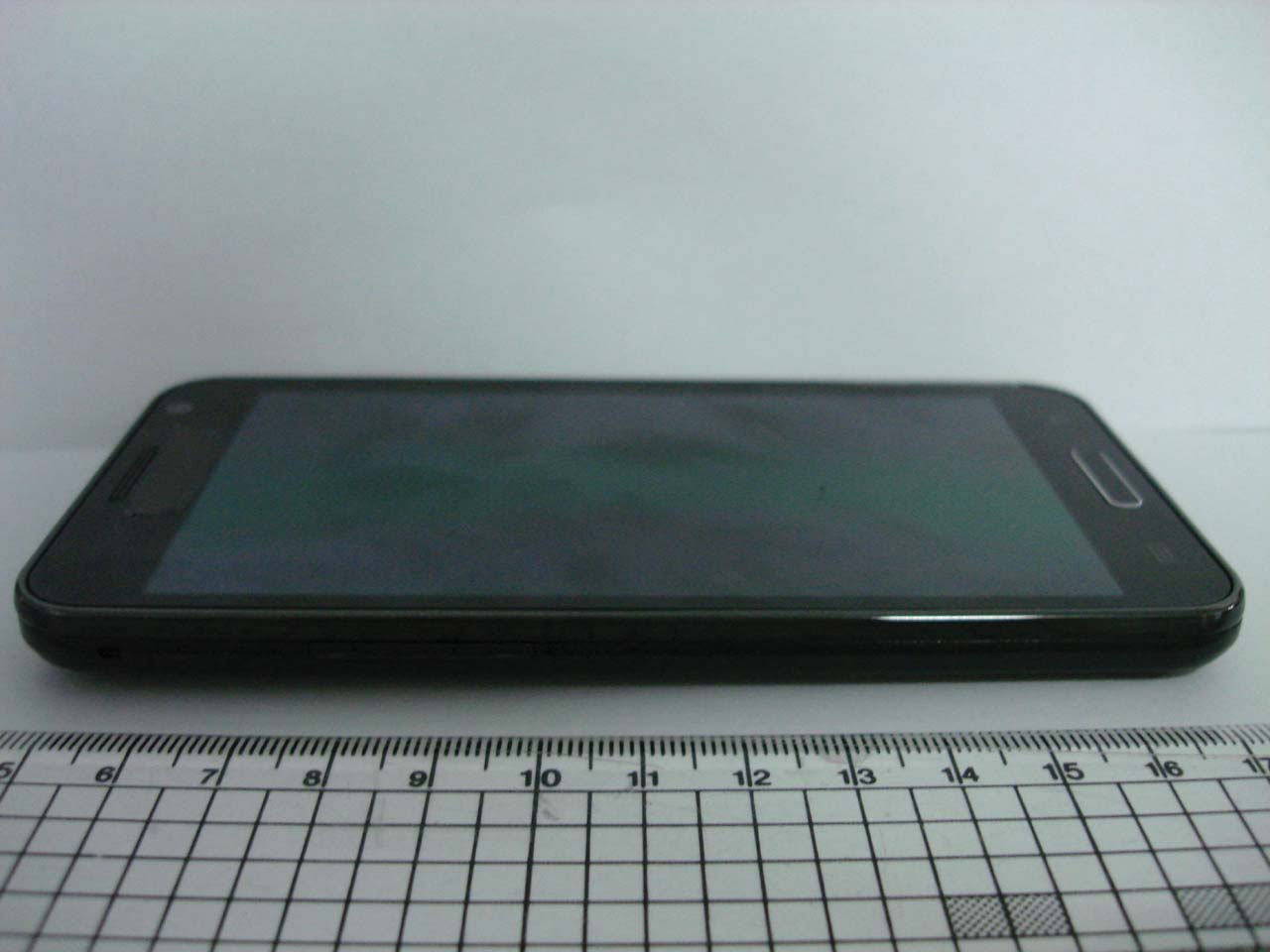

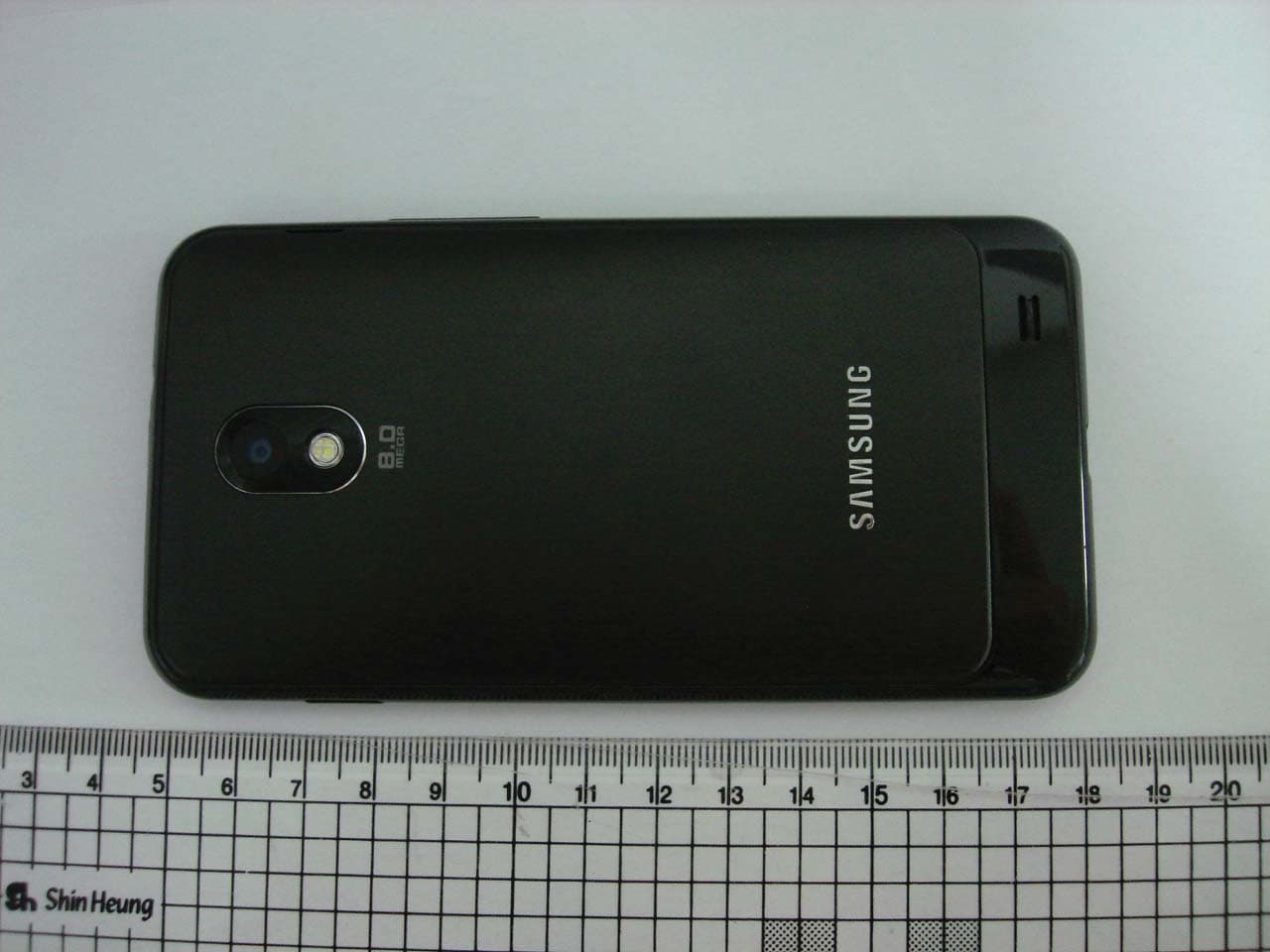

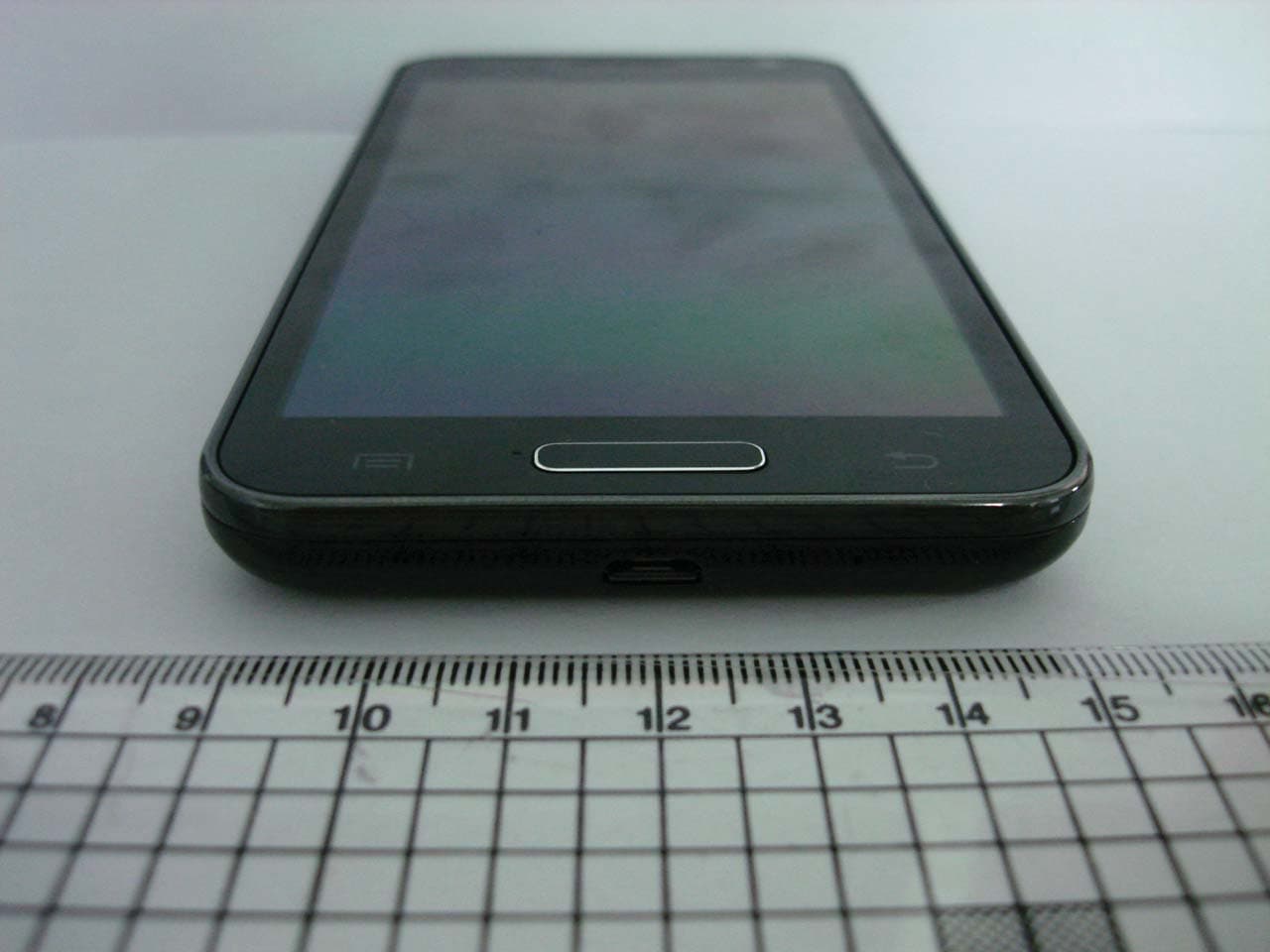

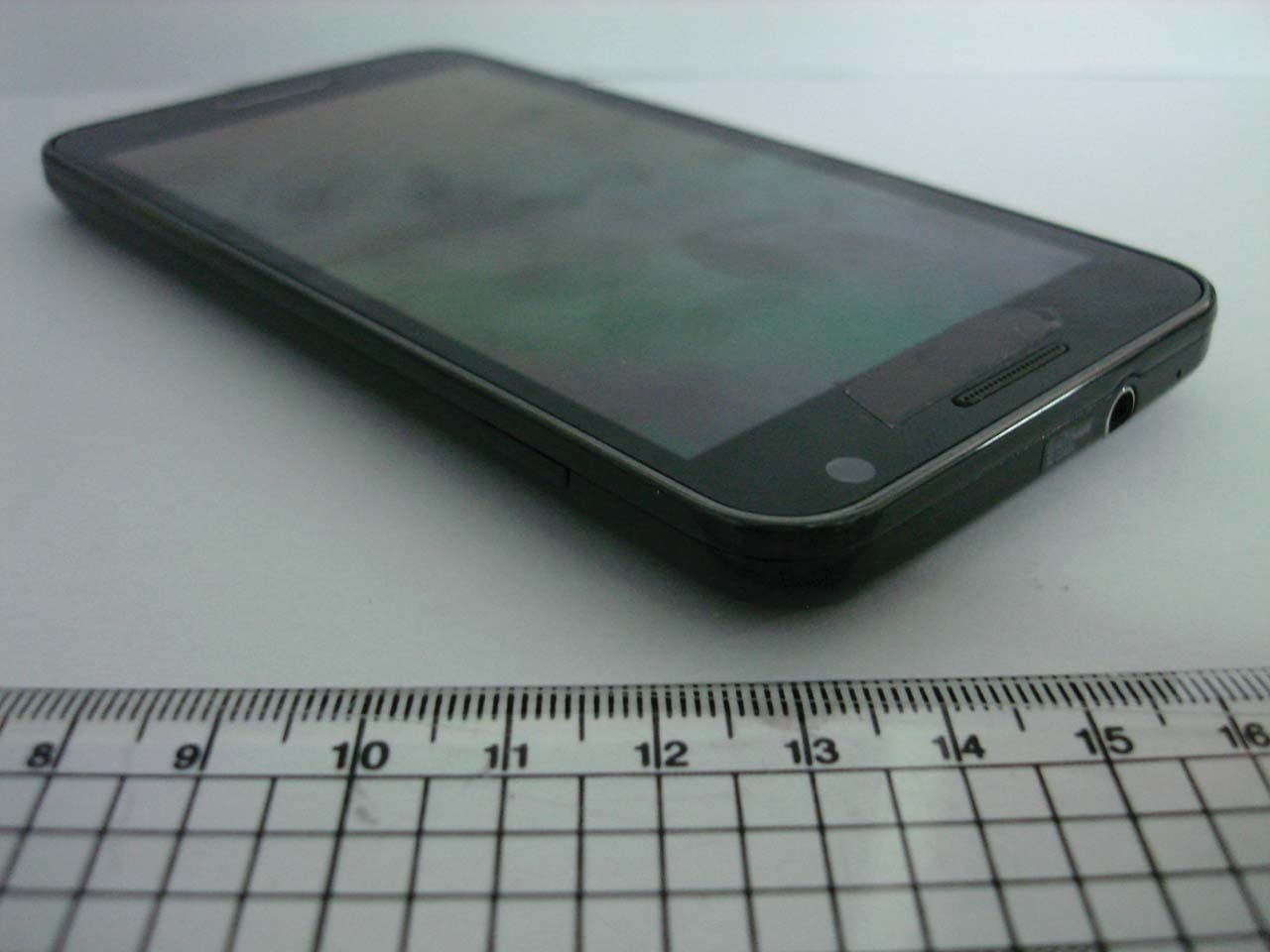

A3LSWDSCI11Cellular CDMA Phone with WLAN, RFID and Bluetooth

User manual SCI11 This device is capable of operating in 802.11a mode. For 802.11a devices operating in the frequency range of 5.15 - 5.25 GHz, they are restricted for indoor operations to reduce any potential harmful interference for Mobile Satellite Services (MSS) in the US. WIFI Access Points that are capable of allowing your device to operate in 802.11a mode (5.15 - 5.25 GHz band) are optimized for indoor use only. If your WIFI network is capable of operating in this mode, please restrict your WIFI use indoors to not violate federal regulations to protect Mobile Satellite Services. Draft 5 2011-10-13 Only for Marketing using this manual This user manual has been specially designed to guide you through the functions and features of your mobile phone. To get started quickly, refer to “introducing your mobile phone,” “ 오류! 참조 원본을 찾을 수 없습니다.,” and “오류! 참조 원본을 찾을 수 없습니다. .” Instructional icons Before you start, familiarise yourself with the icons you will see in this manual: Warning—situations that could cause injury to yourself or others Caution—situations that could cause damage to your phone or other equipment Note—notes, usage tips, or additional information X Refer to—pages with related information; for example: X p. 12 (represents “see page 12”) Õ Followed by—the order of options or menus you must select to perform a step; for example: In Menu mode, select Messages Õ Create new message (represents Messages, followed by Create new message) [ ] Square brackets—phone keys; for example: [ ](represents the Power/ Menu exit key) < > Angled brackets—softkeys that control different functions at each screen; for example: <OK> (represents the OK softkey) Copyright information Rights to all technologies and products that comprise this device are the property of their respective owners: z Bluetooth ® is a registered trademark of the Bluetooth SIG, Inc. worldwide z Java™ is a trademark of Sun Microsystems, Inc. z Windows Media Player ® is a registered trademark of Microsoft Corporation. contents safety and usage information Safety warnings Safety precautions Important usage information introducing your mobile phone Unpack .. Phone layout Keys Display Icons assembling and preparing your mobile phone Install the SIM card and battery Charge the battery using basic functions Turn your phone on and off Access menus Customise your phone Use basic call functions Send and view messages Add and find contacts troubleshooting safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your mobile phone. Safety warnings Keep your phone away from small children and pets Keep your phone and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Protect your hearing Excessive exposure to sound at high volumes can cause hearing damage. Always turn the volume down before plugging the earphones into an audio source and use only the minimum volume setting necessary to hear your conversation or music. Install mobile phones and equipment with caution Ensure that any mobile phones or related equipment installed in your vehicle are securely mounted. Avoid placing your phone and accessories near or in an air bag deployment area. Improperly installed wireless equipment can cause serious injury when air bags inflate rapidly. Handle and dispose of batteries and chargers with care z Use only Samsung-approved batteries and chargers specifically designed for your phone. Incompatible batteries and chargers can cause serious injuries or damage to your phone. z Never dispose of batteries or phones in a fire. Follow all local regulations when disposing used batteries or phones. z Never place batteries or phones on or in heating devices, such as microwave ovens, stoves, or radiators. Batteries may explode when overheated. z Never crush or puncture the battery. Avoid exposing the battery to high external pressure, which can lead to an internal short circuit and overheating. Avoid interference with pacemakers Maintain a minimum of 15 cm (6 inches) between mobile phones and pacemakers to avoid potential interference, as recommended by manufacturers and the independent research group, Wireless Technology Research. If you have any reason to suspect that your phone is interfering with a pacemaker or other medical device, turn off the phone immediately and contact the manufacturer of the pacemaker or medical device for guidance. Turn off the phone in potentially explosive environments Do not use your phone at refuelling points (service stations) or near fuels or chemicals. Turn off your phone whenever directed by warning signs or instructions. Your phone could cause explosions or fire in and around fuel or chemical storage and transfer areas or blasting areas. Do not store or carry flammable liquids, gases, or explosive materials in the same compartment as the phone, its parts, or accessories. Reduce the risk of repetitive motion injuries When sending text messages or playing games on your phone, hold the phone with a relaxed grip, press the keys lightly, use special features that reduce the number of keys you have to press (such as templates and predictive text), and take frequent breaks. Safety precautions Drive safely at all times Avoid using your phone while driving and obey all regulations that restrict the use of mobile phones while driving. Use hands-free accessories to increase your safety when possible. Follow all safety warnings and regulations Comply with any regulations that restrict the use of a mobile phone in a certain area. Use only Samsung-approved accessories Using incompatible accessories may damage your phone or cause injury. Turn off the phone near medical equipment Your phone can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Turn off the phone or disable the wirel…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 5, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWDSCI11 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

Seoung Ho Park Senior Manager SAMSUNG ELECTRONICS CO.,LTD Telecommunication Network Business Mobile Communication Division Regulatory Compliance Group.

FCC ID : A3LSWDSCI11 MADE IN KOREA CDMA SCI11 FCC ID : A3LSWDSCI11 MADE IN KOREA CDMA SCI11 Label is pl aced inside o f the battery c ompa rtment

FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 1 of 39 0Y1111212027.A3L 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 11/21/11 - 12/05/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1111212027.A3L FCC ID: A3LSWDSCI11 APPLICANT: SAMSUNG ELECTRONICS, CO. LTD. EUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): Model(s): CFR §2.1093; FCC/OET Bulletin 65 Supplement C [June 2001] CDMA SCI11 Test Device Serial No.: Pre-Production [S/N: FI-291-A, FI-291-C] 1 gm Head (W/kg) 1 gm Body-Worn (W/kg) 1 gm Hotspot (W/kg) Cell. CDMA/EVDO824.70 - 848.31 MHz24.140.260.510.70 2.4 GHz WLAN2412 - 2462 MHz17.000.020.060.06 5.8 GHz WLAN5745 - 5825 MHz14.070.09<0.01 5.2 GHz WLAN5180 - 5240 MHz14.140.090.02 5.3 GHz WLAN5260 - 5320 MHz14.360.100.01 5.5 GHz WLAN5500 - 5700 MHz14.940.090.01 Bluetooth2402 - 2480 MHz9.54 0.350.580.70 SAR Band & ModeTx Frequency Conducted Power [dBm] N/A Simultaneous SAR per KDB 690783 D01: Note: Powers in the above table represent output powers for the SAR test configurations and may not represent the highest output powers for all capabilities. This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001), IEEE 1528-2003 and in applicable Industry Canada Radio Standards Specifications (RSS); for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.pctestlab.com SAR COMPLIANCE EVALUATION REPORT FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 2 of 39 0Y1111212027.A3L 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 TABLE OF CONTENTS 1 INTRODUCTION ..............................................................................................................................3 2 TEST SITE LOCATION ....................................................................................................................4 3 SAR MEASUREMENT SETUP ........................................................................................................5 4 DASY E-FIELD PROBE SYSTEM ...................................................................................................7 5 PROBE CALIBRATION PROCESS .................................................................................................8 6 PHANTOM AND EQUIVALENT TISSUES .......................................................................................9 7 DOSIMETRIC ASSESSMENT & PHANTOM SPECS................................................................... 10 8 DEFINITION OF REFERENCE POINTS ...................................................................................... 11 9 TEST CONFIGURATION POSITIONS ......................................................................................... 12 10 FCC RF EXPOSURE LIMITS ........................................................................................................ 15 11 FCC MEASUREMENT PROCEDURES ........................................................................................ 16 12 RF CONDUCTED POWERS ......................................................................................................... 19 13 FCC PERSONAL WIRELESS ROUTER CONFIGURATIONS ..................................................... 22 14 SYSTEM VERIFICATION .............................................................................................................. 24 15 SAR DATA SUMMARY ................................................................................................................. 26 16 FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS ......................................................... 31 17 EQUIPMENT LIST ......................................................................................................................... 34 18 MEASUREMENT UNCERTAINTIES ............................................................................................ 35 19 CONCLUSION ............................................................................................................................... 37 20 REFERENCES .............................................................................................................................. 38 FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Filename: Test Dates: EUT Type: Page 3 of 39 0Y1111212027.A3L 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radio frequency (RF) radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices. [1] The safety limits used for the environmental evaluation measurements are base…

Text truncated - open the document above for the full version.

© 2011 PCTEST Engineering Laboratory, Inc. APPENDIX C: PROBE CALIBRATION

Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 1 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. 11/24/11-12/12/11 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1111212022.A3L FCC ID: A3LSWDSCI11 APPLICANT: Samsung Electronics, Co. Ltd. Application Type: Certification Model(s): CDMA SCI11 EUT Type: Portable Handset Max. RF Output Power: 50.82 mW (17.06 dBm) Conducted (b) 27.29 mW (14.36 dBm) Conducted (g) 16.71 mW (12.23 dBm) Conducted (n) - 2.4GHz 25.82 mW (14.12 dBm) Conducted (a) - 5.8GHz 20.23 mW (13.06 dBm) Conducted (n) - 5.8GHz Frequency Range: 2412 - 2462 MHz (DSSS/OFDM), 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 IC Specification(s): RSS-210 Issue 8 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been subject to a denial of Federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctestlab.com MEASUREMENT REPORT FCC PART 15.247 / IC RSS-210 WLAN 802.11a/b/g/n Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 2 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 DEVICE CAPABILITIES ............................................................................................................................. 5 2.3 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.4 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G/N........................................................................... 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B/G.................................................................................. 20 6.4 OUTPUT POWER MEASUREMENT – 802.11N (2.4GHZ) ...................................................................... 21 6.5 OUTPUT POWER MEASUREMENT – 802.11A...................................................................................... 22 6.6 OUTPUT POWER MEASUREMENT – 802.11N (5.8GHZ) ...................................................................... 23 6.7 POWER SPECTRAL DENSITY (802.11A/B/G/N) .................................................................................... 24 6.8 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 33 6.9 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 39 6.10 RADIATED SPURIOUS EMISSION MEASUREMENTS............................................…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 46 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 6.10 Radiated Spurious Emission Measurements §15.247(d) / §15.205 & §15.209; RSS-210 [A8.5] The EUT was tested from 9kHz up to the tenth harmonic of the fundamental frequency of the transmitter using CISPR quasi peak detector below 1GHz. Above 1 GHz, average measurements were taken using RBW = 1MHz, VBW = 10Hz, and linearly polarized horn antennas. Peak measurements were taken using RBW = VBW = 1MHz. All out of band emissions appearing in a restricted band as specified in Section 15.205 of the Title 47 CFR must not exceed the limits shown in Table 6-9 per Section 15.209. All data rates and modes were investigated for radiated spurious emissions. Only the radiated emissions of the configuration that produced the worst case emissions are reported in this section. Frequency Field Strength [V/m] Measured Distance [Meters] 0.009 – 0.490 MHz 2400/F (kHz) 300 0.490 – 1.705 MHz 24000/F (kHz) 30 1.705 – 30.00 MHz 30 30 30.00 – 88.00 MHz 100 3 88.00 – 216.0 MHz 150 3 216.0 – 960.0 MHz 200 3 Above 960.0 MHz 500 3 Table 6-9. Radiated Limits Sample Calculation o Field Strength Level [dBV/m] = Analyzer Level [dBm] + 107 + AFCL [dB] Notes: o AFCL = Antenna Factor [dB] + Cable Loss [dB] Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 47 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 Radiated Spurious Emission Measurements (Cont’d) §15.247(d) / §15.205 & §15.209; RSS-210 [A8.5] Mode: 802.11b Transfer Rate: 1 Mbps Distance of Measurements: 3 Meters Operating Frequency: 2412MHz Channel: 01 4824.00-92.43AvgH39.2353.8053.98-0.18 4824.00-89.21PeakH39.2357.0273.98-16.96 12060.00-135.00AvgH51.7623.7653.98-30.22 12060.00-125.00PeakH51.7633.7673.98-40.22 Frequency [MHz] Analyzer Level [dBm] Pol. [H/V] Margin [dB] Field Strength [dBV/m] Limit [dBV/m] Detector AFCL [dB] Table 6-10. Radiated Measurements @ 3 meters NOTES: 1. All emissions shown lie in the restricted bands specified in §15.205 are below the limit shown in Table 6-9. 2. Average measurements > 1GHz are performed using RBW = 1MHz and VBW = 10Hz. Peak measurements > 1GHz are performed using RBW = VBW = 1MHz. 3. The antenna is manipulated through typical positions, polarity and length during the tests. The EUT is manipulated through three orthogonal planes. 4. The EUT is supplied with nominal AC voltage and/or a new/fully-recharged battery. 5. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. No significant emissions were found beyond the fifth harmonic for this device. 6. Levels at - 135 dBm represent the analyzer noise floor and signify that no emission was detected. 7. Above 960MHz the limit is 500 V/m (54dB/m) at 3 meters radiated. Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 48 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 Radiated Spurious Emission Measurements (Cont’d) §15.247(d) / §15.205 & §15.209; RSS-210 [A8.5] Mode: 802.11b Transfer Rate: 1 Mbps Distance of Measurements: 3 Meters Operating Frequency: 2437MHz Channel: 06 4874.00-93.29AvgH39.2852.9953.98-0.99 4874.00-89.67PeakH39.2856.6173.98-17.37 7311.00-103.04AvgH42.3646.3253.98-7.66 7311.00-95.63PeakH42.3653.7373.98-20.25 12185.00-135.00AvgH52.2124.2153.98-29.77 12185.00-125.00PeakH52.2134.2173.98-39.77 AFCL [dB] Limit [dBV/m] Field Strength [dBV/m] Frequency [MHz] Analyzer Level [dBm] Pol. [H/V] Detector Margin [dB] Table 6-11. Radiated Measurements @ 3 meters NOTES: 1. All emissions shown lie in the restricted bands specified in §15.205 are below the limit shown in Table 6-9. 2. Average measurements > 1GHz are performed using RBW = 1MHz and VBW = 10Hz. Peak measurements > 1GHz are performed using RBW = VBW = 1MHz. 3. The antenna is manipulated through typical positions, polarity and length during the tests. The EUT is manipulated through three orthogonal planes. 4. The EUT is supplied with nominal AC voltage and/or a new/fully-recharged battery. 5. The spectrum is measured from 9kHz to the 10 th harmonic and the worst-case emissions are reported. No significant emissions were found beyond the fifth harmonic for this device. 6. Levels at - 135 dBm represent the analyzer noise floor and signify that no emission was detected. 7. Above 960MHz the limit is 500 V/m (54dB/m) at 3 meters radiated. Reviewed by: FCC ID: A3LSWDSCI11 FCC Pt. 15.247 802.11a/b/g/n MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1111212022.A3L 11/24/11-12/12/11 Portable Handset Page 49 of 65 © 2011 PCTEST Engineering Laboratory, Inc. REV 2.3WN 09/14/2011 Radiated Spurious Emission Measurements (Cont’d) §15.247(d) / §15.205 & §15.209; RSS-210 [A8.5] Mode: 802.11b Transfer Rate: 1 Mbps Distance of Measurements: 3 Meters Operating Frequency: 2462MHz Channel: 11 4924.00-93.79AvgH39.2952.4953.98-1.49 4924.00-90.14PeakH39.2956.1473.98-17.84 7386.00-100.03AvgH42.4749.4453.98-4.54 7386.00-93.64PeakH42.4755.8373.98-18.15 12310.00-135.00AvgH52.6024.6053.98-29.38 12310.00-125.00PeakH52.6034.6073.98-39.38 AFCL [dB] Pol. [H/V] Frequency [MHz] Analyzer Level [dBm] Detector Field Strength [dBV/m] Limit [dBV/m] Margin [dB] Table 6-12. Radiated Measurements @ 3 meters NOTES: 1. All emissions shown lie in the restricted bands specified in §15.205 are below the limit shown in Table 6-9. 2. Average measurements > 1GHz are performed using RBW = 1MHz and VBW = 10Hz. Peak measurements > 1GHz are pe…

Text truncated - open the document above for the full version.

Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSCI11 Model: CDMA SCI11 Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2011 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSCI11 Model: CDMA SCI11 Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2011 PCTEST Engineering Laboratory Inc. Samsung Electronics, Co. Ltd. FCC ID: A3LSWDSCI11 Model: CDMA SCI11 Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2011 PCTEST Engineering Laboratory Inc.

FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D1 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 APPENDIX D: SAR TEST SETUP PHOTOGRAPHS FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D2 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 SAR Test Setup Photo 1 – Right Touch SAR Test Setup Photo 2 – Right Tilt FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D3 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 SAR Test Setup Photo 3 – Left Touch SAR Test Setup Photo 4 – Left Tilt FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D4 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 SAR Test Setup Photo 5 – Back at 1.0 cm SAR Test Setup Photo 6 – Front at 1.0 cm FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D5 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 SAR Test Setup Photo 7 – Bottom at 1.0 cm SAR Test Setup Photo 8 – Right at 1.0 cm FCC ID: A3LSWDSCI11 SAR COMPLIANCE REPORT Reviewed by: Quality Manager Test Dates: EUT Type: Page D6 of D6 11/21/11 - 12/05/11 Portable Handset © 2011 PCTEST Engineering Laboratory, Inc. REV 10M 11/14/2011 SAR Test Setup Photo 9 – Left at 1.0 cm SAR Test Setup Photo 10 – Body-Worn at 1.0 cm Note: Headset Cable is connected to the device during body-worn SAR assessment, as seen above.
