A3LSWL-CQ51Wireless Full Module

SWL-CQ51 USER Manual REV 0.0 Samsung Electro-Mechanics Proprietary and Confidential 1/17 Revision Date 20140912 Revision No. 0.0 User Manual SWL - CQ51 802.11 b/g/n WLAN Module WARNING I. RF exposure warning statement - for keeping 20cm distance when installing this module. II. Warning that this module should not be installed and operating simultaneously with other radio without additional evaluation or FCC filing. III. Instruction for host system labeling, the host system should have proper label showing that it “Contains FCC ID : A3LSWL-CQ51 / Contains IC ID : 649E-SWLCQ51” SWL-CQ51 USER Manual Revision History Revision Date Descriptions 0.0 2014-09-12 - Initial release SWL-CQ51 USER Manual Table of Contents 1 GENERAL DESCRIPTION .................................................................................................... 4 1.1 FUNCTIONAL DESCRIPTION .......................................................................................................... 4 1.2 FEATURES ............................................................................................................................... 4 1.2.3 BLOCK DIAGRAM ..................................................................................................................... 6 2 DIMENSION , PIN ASSIGNMENTS , PICTURES ................................................................... 7 2.1 DIMENSION ............................................................................................................................. 7 2.2 PIN ASSIGNMENTS .................................................................................................................... 8 2.3 PICTURES ............................................................................................................................. 10 3 ELECTRICAL CHARACTERISTICS ...................................................................................... 11 3.1 ABSOLUTE MAXIMUM RATINGS ................................................................................................... 11 3.2 POWER CONSUMPTION ............................................................................................................. 11 3.3 RECOMMENDED OPERATING CONDITIONS ...................................................................................... 11 3.4 ENVIRONMENTAL CHARACTERISTICS ............................................................................................ 11 4 RF SPECIFICATIONS ........................................................................................................ 12 4.1 RECEIVER RF SPECIFICATIONS ................................................................................................... 12 4.2 TRANSMITTER RF SPECIFICATIONS .............................................................................................. 14 5. PRODUCT LABEL INFORMATION ..................................................................................................... 16 6. MANUFACTURING SITE ...................................................................................................... 17 SWL-CQ51 USER Manual 1 General Description 1.1 Functional Description SWL-CQ51 Module is a network protocol and Linux kernel based embedded wireless Full module. This module can be used for Smart appliance and a variety of applications such as standalone Wi-Fi AP or Station ( IEEE 802.11b/g/n , Main IC is QCA4531 ) Figure 1-1 Module Picture 1.2 Features  Consists of WiFi chipset which is QCA4531 for 2.4GHz band.  Includes 1T2R MAC/BB/RF, high performance 550MHz MIPS R24 K CPU core  Includes two 2.4GHz band Metal antennas (On-board)  Compliant to IEEE 802.11b/g/n Wireless LAN Standards  Supports standalone Wi-Fi AP or station for 2.4GHz band  Supports 135Mbps PHY data rate for 2.4GHz band  Supports 20MHz/40MHz channel bandwidth.  Supports WEP 64/128, WPA, WPA2, TKIP, AES.  Supports QOS – WMM, WMM Power Save.  Supports UART Host Interface (12V level)  Halogen free, RoHS Compliant.  Manufacturing Site – SEMTHAI in Thailand SWL-CQ51 USER Manual 1.2.1 Power Management  Supply voltage range VCC 5V_12V (4.75V ~ 13.2V)  Power Consumption 11b 2.425W (@ Continuous Tx , 1Mbps , 18dBm) T.B.D (@ Continuous Rx) 11g 2.242W (@ Continuous Tx , 6Mbps , 16dBm) T.B.D (@ Continuous Rx) 11n 2.183W (@ Continuous Tx , MCS0 , 6.5Mbps , 13dBm) T.B.D (@ Continuous Rx) 1.2.2 Applications  Home appliances (refrigerator, air conditioner , washing machine , electric oven , air cleaner)  smart grid system  Home energy management system solution  Building energy management system solution  Web server/client based IP-USN solution for Monitoring and Control SWL-CQ51 USER Manual 1.2.3 Block Diagram Figure 1-2 Hardware block diagram SWL-CQ51 USER Manual 2 Dimension , Pin Assignments , Pictures 2.1 Dimension 2.1.1 Array & Module Dimension - Array : L X W X H = 190.0 x 72.0 x 7.34mm Figure 2-1 Array & Module Dimension Parameter Conditions Min. Nom. Max. Unit Dimension (Array) X - - 190 - mm Y - - 72 - mm Height - - 7.34 - mm Dimension (Module) X - - 54 - mm Y - - 30 - mm Height - - 7.34 - mm SWL-CQ51 USER Manual 2.1.2 Antenna Dimension ANT 1 & ANT 2 : 11.7(+/-0.3) x 4.0 (+/-0.3) x Hight Top 2.5 (+/-0.3)mm ` Figure 2-2 Antenna Mechanical Dimension 2.2 Pin Assignments 2.2.1 UART Inte rface Figure 2-3 UART Pin Assignments (Top View) * Please use only allowed PIFA antenna below. Do not use any other antenna with antenna port. * Use other antenna may subject to additional testing and filing to FCC. SWL-CQ51 USER Manual No. Pin Name Description Type 1 H_UART_SOUT UART OUT O 2 H_UART_SIN UART IN I 3 H_nRESET Reset O 4 TP Test Point T 5 IN_12VDC +12V Power supply for WIFI P 6 GND Ground G 7 GND Ground G 2.2.2 USB Interface Figure 2-4 USB Pin Assignments (Top View) No. Pin Name Description Type 1 NC NC - 2 USB_DM USB 2.0 D- I/O 3 USB_DP USB 2.0 D+ I/O 4 GND Ground G SWL-CQ51 USER Manual 2.3 Pictures 2.3.1 Picture [Top Side] [Bottom Side] Figure 2-5 Module Picture SWL-CQ51 USER Ma…

Text truncated - open the document above for the full version.

SCS-F26 Modular Approval Letter Page 1 of 2 Rev 8.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (current) 7.0 8.0 Sept 05 2014 SCS-F26 Modular Approval Letter Page 2 of 2 Rev 8.0 Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Tel. +1-973-808-6362 / Fax. +1-973-808-6361 (Date) 11/05/2014 (Wireless Full Module) FCC ID : A3LSWL-CQ51 , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below: Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; X 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; X 3 The module must contain power supply regulation on the module; X 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); X 5 The module must demonstrate compliance in a stand-alone configuration; X 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); X 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; X 8 The module must comply with RF exposure requirements X Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Heejun Kang / Senior Engineer Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Tel. +1-973-808-6362 / Fax. +1-973-808-6361 Date: November 05, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Samsung Electronics Co., Ltd., hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project : - Product: Wireless Full Module - Model name: SWL-CQ51 - FCC ID: A3LSWL-CQ51 I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, ______________________________________ Heejun K ang /Senior Engineer /Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Tel. +1-973-808-6362 / Fax. +1-973-808-6361 FCC Confidentiality Request Letter Date: November 05, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia MD 21046 Subject: Permanent Confidentiality Request for FCC ID: A3LSWL-CQ51 We hereby request confidential treatment of information accompanying this application as outlined below: • Block diagram • Schematics • Operation Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely Yours, ______________________________________ Heejun Kang /Senior Engineer /Samsung Electronics Co., Ltd.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States, 07058 Tel. +1-973-808-6362 / Fax. +1-973-808-6361 Date: November 05, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Agent Authorization Letter I Chan Ho Youn, hereby authorize Heejun kang to sign all related documents for the following project(s) with the FCC: - Company: Samsung Electronics Co., Ltd. - Product : Wi-Fi Full Module - Model name : SWL-CQ51 - FCC ID : A3LSWL- CQ51 Sincerely Yours, ______________________________________ Chan Ho Youn /Manager /Samsung Electronics Co., Ltd.

External photos of EUT

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Lt d. 65, Sinwon-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 44 3- 390, Kor ea 82-31 -336-9919 (Main) 82-505-299-8311 (Fax) This test report shall not be reproduced, except in full, Without the written approval. FCC ID Label info A3LSWL-CQ51 649E-SWLCQ51 SAMSUNG

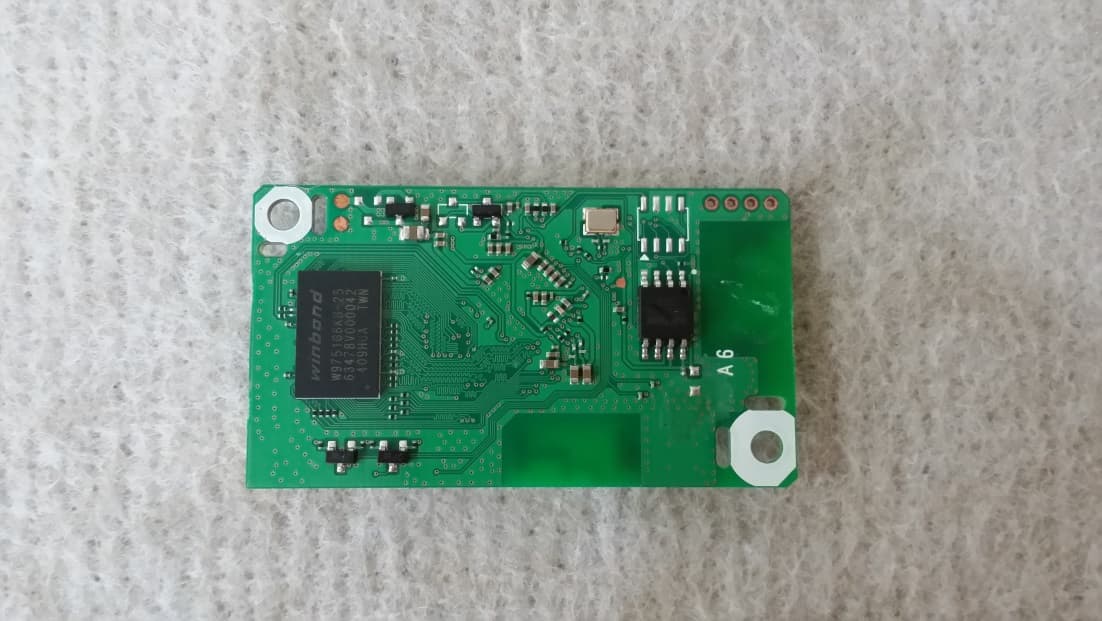

Internal photos of EUT

http://www.emc2000.co.kr EMC compliance Ltd. Page: 1 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * RF Exposure 1. Regulation According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Limits for Maximum Permissive Exposure: RF exposure is calculated. Frequency Range Electric Field Strength [V/m] Magnetic Field Strength [A/m] Power Density [㎽/㎠] Av er ag ing Time [minute] Limits for General Population / Uncontrolled Exposure 0.3 ~ 1.34 614 1.63 *(100) 30 1.34 ~ 30 824/f 2.19/f *(180/f 2 ) 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1 500 / / f/1 500 30 1 500 ~ 15 000 / / 1.0 30 f=frequency in ㎒, *= plane-wave equivalent power density MPE (Maximum Permissive Exposure) Prediction Predication of MPE limit at a given distance: Equation from page 18 of OET Bulletin 65, Edition 97-01  SPGRRPGS4 4 2  S = power density [㎽ /㎠] P = Power input to antenna [㎽] G = Power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna [㎝] Mode Target power Tune up tolerance Max tune up power Max tune up power Ant Gain Ant Gain Power Density at 20 ㎝ [㏈m] [㏈] [㏈m] [㎽] [㏈i] [㎽] [㎽/㎠] 2.4 ㎓ (WiFi) 18.00 ±2.5 20.50 112.20 1.44 1.39 0.031 10 Target power table Mode Target power [㏈m] Allowed tolerant [㏈] Max tune up power [㏈m] Measured Average power [㏈m] 802.11b 18 ±2.5 20.5 17.05 802.11g 16 ±2.5 18.5 15.61 802.11n HT20 16 ±2.5 18.5 16.01 802.11n HT40 12 ±2.5 14.5 12.59 http://www.emc2000.co.kr EMC compliance Ltd. Page: 2 of 2 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. RF Exposure Compliance Issue The information should be included in the user’s manual: This appliance and its antenna must not be co-located or operation in conjunction with any other antenna or transmitter. A minimum separation distance of 20 cm must be maintained between the antenna and the person for this appliance to satisfy the RF exposure requirements. 3. Calculation Result of RF Exposure * 802.11b Channel Frequency Ant Gain power power Power Density at 20 ㎝ Power Density at 2.5 ㎝ [㎒] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Lowest 2 412 1.39 19.42 87.50 0.024 25 1.552 07 Middle 2 437 1.39 19.50 89.13 0.024 70 1.580 92 Highest 2 462 1.39 19.20 83.18 0.023 05 1.475 40 * 802.11g Channel Frequency Ant Gain power power Power Density at 20 ㎝ Power Density at 2.5 ㎝ [㎒] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Lowest 2 412 1.39 21.93 155.96 0.043 22 2.766 37 Middle 2 437 1.39 21.79 151.01 0.041 85 2.678 61 Highest 2 462 1.39 21.79 151.01 0.041 85 2.678 61 * 802.11n HT20 Channel Frequency Ant Gain power power Power Density at 20 ㎝ Power Density at 2.5 ㎝ [㎒] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Lowest 2 412 1.39 22.57 180.72 0.050 09 3.205 61 Middle 2 437 1.39 22.67 184.93 0.051 25 3.280 27 Highest 2 462 1.39 22.53 179.06 0.049 63 3.176 22 * 802.11n HT40 Channel Frequency Ant Gain power power Power Density at 20 ㎝ Power Density at 2.5 ㎝ [㎒] [㏈m] [㎽] [㎽/㎠] [㎽/㎠] Lowest 2 412 1.39 17.85 60.95 0.016 89 1.081 21 Middle 2 437 1.39 17.62 57.81 0.016 02 1.025 44 Highest 2 462 1.39 17.84 60.81 0.016 86 1.078 72

http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 2 of 57 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. [ Contents ] 1. Client information ............................................................................................................................................. 3 2. Laboratory information .................................................................................................................................... 4 3. Description of E.U.T. ......................................................................................................................................... 5 3.1 Basic description ........................................................................................................................................... 5 3.2 General description ....................................................................................................................................... 5 3.3 Test frequency ............................................................................................................................................... 6 3.4 Test Voltage ................................................................................................................................................... 6 4. Summary of test results ..................................................................................................................................... 7 4.1 Standards & results ....................................................................................................................................... 7 4.2 Uncertainty ................................................................................................................................................... 7 5. Test results .......................................................................................................................................................... 8 5.1 Antenna Requirement ................................................................................................................................... 8 5.2 Maximum Peak Output Power ...................................................................................................................... 9 5.3 Peak Power Spectral Density ...................................................................................................................... 11 5.4 6 dB Bandwidth(DTS Channel Bandwidth) .............................................................................................. 17 5.5 Spurious Emission, Band Edge, and Restricted bands ................................................................................ 27 5.6 Conducted Emission ................................................................................................................................... 54 6. Test equipment used for test ........................................................................................................................... 57 http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 3 of 57 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 1. Client information Applicant: Samsung Electronics Co.,Ltd. Address: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Telephone number: +82-62-950-6474 Facsimile number: +82-62-950-6509 Contact person: Kang, Hee Jun / [email protected] Manufacturer: Samsung Electronics Co.,Ltd. Address: 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 4 of 57 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 2. Laboratory information Address EMC compliance Ltd. 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea Telephone Number: 82-070-5008-1021 Facsimile Number: 82-505-299-8311 Certificate KOLAS No.: 231 FCC Site Designation No.: 687132 FCC Site Registration No.: KR0040 VCCI Site Registration No.: R-3327, G-198, C-3706, T-1849 IC Site Registration No.:8035A-2 SITE MAP EMC Compliance Ltd. Suwon city http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 5 of 57 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3. Description of E.U.T. 3.1 Basic description Applicant: Samsung Electronics Co.,Ltd. Address of Applicant 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Manufacturer Samsung Electronics Co.,Ltd. Address of Manufacturer 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Type of equipment WiFi Full module Basic Model SWL-CQ51 Serial number N/A 3.2 General description Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (802.11b/g/n_HT20) 2 422 ㎒ ~ 2 452 ㎒ (802.11n_HT40) Communication IEEE 802.11b/g/n_HT20, HT40 Type of Modulation CCK, OFDM Number of Channels 11 ch (802.11b/g/n_HT20), 7 ch(802.11n_HT40) Type of Antenna PIFA Antenna Antenna Gain 1.44 ㏈i Transmit Power 22.67 ㏈m Power supply DC 4.75 ~ 13.20 V http://www.emc2000.co.kr FCC/IC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 6 of 57 480-5, Sin-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. 3.3 Test frequency For all test items, the low, middle and high channels of the modes were tested with above worst case data rate. 802.1…

Text truncated - open the document above for the full version.

http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 1 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. Te s t setup photos * 9 ㎑ ~ 30 ㎒ * 30 ㎒ ~ 1 ㎓ http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 2 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. * 1 ㎓ Over http://www.emc2000.co.kr FCC TEST REPORT Report No.: EMC-FCC-R0179 EMC compliance Ltd. Page: 3 of 3 480-5 Shin-dong, Yeongtong-gu, Suwon-city, Gyunggi-do, 443-390, Korea 82-70-5008-1021(Main) 82-505-299-8311 (Fax) This test report shall not be reproduced except in full, Without the written approval. *Conducted
