A3LSWLN01Wireless LAN Mini PCI Card with SM MIMO

1 SWLN01 : Wireless Module User Manual Date: April 9, 2007 Version: 1.0 Visual Display Division Samsung Electronics.Co.Ltd --------------------------------------------------------------- ------------------------------------------------ 2 SWLN01 : IEEE802.11n Wireless Module Data Sheet ..................... ........................1 Date: April 9, 2007.................... ................................. ............................ .......................1 Version: 1.0 ................... .................................. ......................... .................................... 1 1 Overview.................... ................................ ..................................... ............................ 3 1.1 Purpose........................ .................................. ............................... .......................3 2 Hardware Requirement s......................... ............................................. ......................3 2.1 Connector requirements ........................... ......................... ................................3 2.2 Block diagram.................... ......................... ............................... ..........................4 2.3 RF Requirements (in cluding system performance) ............... .........................5 3 Software requirements ........................................ ........................ .............................6 3.1 Description ........................ ..................................... ........................... .................6 3.2 Operating mode ........... ............................. ........................... ..............................6 3.3 UART Interface ................. ................................. ............................ .....................6 3.4 Security ................... ................................. ................................ ...........................6 3.5 Channel configuration.. .......................... ................................. ..........................7 3.6 Dynamic Channel Selection .... ................................. ........................................7 3.7 DFS Requirements ... ......................... ........................................... .....................7 3.8 Video streaming.................... .............................. ........................... ....................7 3.9 Quality of se rvice.......................... .................................................. ...................7 3.10 Software requirement s table .............. .................................. ..........................8 3.11 Compliance Testing .......... .................... ......................... .................................9 3.12 Temperature Range.. ............................... ......................... ...............................9 4. Rest Specifications ...... ...........................................................................9 5. Manufacturing Setup ... ...........................................................................9 ... 3 1 Overview 1.1 Purpose The SWLN01 platform will be used by Samsung Visual Display division to develop their 3 generation wireless TV solution. 2 Hardware Requirements 2.1 Connector requirements The base board contains the miniPCI host connector. The UART signals are routed via the miniPCI connector. The concept is shown in Figure 1 Figure 1 4 2.2 Block diagram The 88W8363 has connected to it an 8MB SDRAM for data storage and if necessary some code. The 8363 device is also connected to a Flash which stores the code. 88W8363 BasebandProcessor PCLK 88W8060 RF transceiver GPIO[0-9] TR_Q_N_A FLEX_BUS Flash 1MBit MEM_BUS DDR DDR DDR SDRAM 64Mbit JTAG TR_I_P_B TR_Q_P_B TR_I_N_B TR_Q_P_A TR_I_N_A TR_I_P_A TR_Q_N_B RX5A TX5A RX5B TX5B RX5C MDR753F BPF MDR753F MDR753FMDR753F MDR753F LNA LX5560 PA LX5530 LX5560LX5530 LX5560 LPF DEADEA SW MASW007- 107 MiniPCI Host interface PAD[31-0] PA/RF CONTROL PERR FRAME IRDY TRDY SW MASW007- 107 XTAL ... PCI Interface RX_I_P_C RX_I_N_C RX_Q_P_C RX_Q_N_C PCI_CLK_B CLK_IN GPIO[10-15] GPIO12 GPIO13 Regulator 88PG817E GPIO15 GPIO14 4 0 M h z 4 0 M h z CLK_O MEM_CLK 1 6 0 M h z 5 The Baseboard mPCI host connector will be a physical mPCI connector but the logical pins shall not be mPCI complaint. 2.3 RF Requirements (inc luding system performance) The Card should achieve good range performance at the specified operating points (in terms of data rate). The operating points of interest are 1. 75 Mbps MPEG TS throughput using 40MHz bandwidth 2. 50m outdoor / 75 Mbps throughput using 40MHz bandwidth 6 3 Software requirements 3.1 Description SWLN01 is a stand alone wireless client; it does not have any drivers on the host. The card is expected to boot-up automatically and function on it own. The only control interface is through the UART. The number of controls to the wireless UART interface: Essentially an end-to-end control interface. The commands that come-in to the wireless card are expected to be sent over the air to a similar card on the other side where the commands are sent out through the UART. A very few commands (such as initialize) are meant for the card itself. 3.2 Operating mode A pair of cards will operate as a point-to-point link. Ad-hoc mode of operation is adequate. It will be ideal to designate one card as master (lite AP) and the other as a client. The master will be the one that transmits the beacon. 3.3 UART Interface The UART Interface should support 1. 115,200 bps baud rate 2. RTS-CTS disabled 3. 8-N-1, No flow control The packet transmission should be in Big-Endean format. 3.4 Security SWLN01 should support AES-CCMP encryption similar to IEEE 802.11i standard. All MPEG TS packets received over the TS interface should be encrypted with the security key. Encrypted packets should be decrypted by the receiver. The security keys will be negotiated betwee n host processors. The encrypted security keys will be passed to SWLN01 throug…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: August 31, 2007 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LSWLN01 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Confidential and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description CONFIDENTIAL 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM CONFIDENTIAL 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

416, Maethan 3-Dong, Youngtong-Ku, Suwon-City, Kyung-ki-Do, KOREA Attn: Reviewing Engineer Federal communications Commission 7435 Oakland Mills Road Columbia, MD 21046 July 12, 2007 RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To whom It May Concern: We, Samsung Electronics Co., Ltd., Hereby requests a Modular Approval of our SWLN01 (802.11n Module), described as follows: Brand name : SAMSUNG Model name: SWLN01 FCC ID : A3LSWLN01 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our 802.11n Module complies with. 1. The modular transmitter must have an own shielding : The radio portion of this module has been shielded, 2. The modular transmitter must have buffered modulation/data inputs. : This module has a memory managements unit inside of the IC (88W8363, Marvell ). It buffers the data inputs from PCI terminal. The modular transmitter must have its own power supply regulation. : The IC ( 88PG817E , Marvell ,QFN-16) Contain an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 3. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c: This module is equipped with a connector for Antenna. For further details please refer to the antenna data sheet included in the filing. 4. The modular transmitter must be tested in a stand-alone configuration: This module was tested in a stand-alone configuration. 5. The modular transmitter must be labeled with its own FCC ID number: This module is labeled with its own FCC ID number, Please see product label design and the external photograph of the device with this label submitted with the application. 6. The modular transmitter must comply with any specific rule of operation requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 7. The modular transmitter must comply with any applicable RF exposure requirements: This module is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the test report. 8. Samsung designed this module only work for 802.11n This module is just for the wireless TV solution. Our samsung TV solution want to transmit Video and Audio signal with this module.(Those signals are high bitrate data) So we need large bandwidth. 802.11a is not adjustable to use for wireless TV solution. We do not support 802.11a. Sincerely, Name: Title: Company: SAMSUNG ELECTRONICS CO., LTD

Subject: Re: Questions Regarding FCC ID: A3LSWLN01 Attachments: EUT_schamatic.pdf; SWLN01USERMANUAL (revised version).doc; Antenna description.doc; HOW TO ASSEMBEL A3LSWLN01 MODULE.doc; Part15 subpart E Section15.407 Test Report(revised version).pdf Page 1 of 4Samsung Enterprise Portal mySingle 9/5/2007 From: SUNGJOO KIM [mailto:[email protected]] Sent: Thursday, August 23, 2007 7:38 PM To: Gregory Czumak Cc: ???; randy; [email protected]; [email protected]; [email protected]; ???; ???; ???; ??? Subject: Re: Fw: Questions Regarding FCC ID: A3LSWLN01 Dear Greg, How have you been? I'm sorry to you late response regard your additional requests for this FCC ID. According to your requests for correction, we prepared answer and verification documents as attached for 9 items. Please refer to the below comments and attached filesl 1. Please submit schematic diagrams for the EUT. (ANS) Please refer to attached #1 (Schemetic diagram) 2. Please submit an Operational Description (technical description) for the EUT. Please be sure that it completely describes the MIMO operation of the EUT. Does the EUT employ 2x2 Spatial Multiplexing (SM) MIMO? Please note that a TCB may grant an application for a SM MIMO device, or a Phased Array MIMO device, but not one that combines SM and Phased Array. (ANS) Please refer to operational description for the EUT as below; Our EUT uses 2x3 Spatial Multiplexing MIMO which meet the IEEE 802.11n Draft version 2.0. RF transmitter Data signal through MiniPCI type III interface will be modulated to 5GHz frequency band in A3LSWLN01 main IC and the signal will be transmitted to 2 antennas through Bandpass filter and Low pass filter. The transmitter uses 2-antenna Spatial Multiplexing (SM) in the MIMO operation mode. RF receiver The received signal from 3 antennas passes Bandpass filter in A3LSWLN01 and it will be transmitted through MiniPCI interface to DTV after the data signal is extracted from 5GHz frequency band. Power supply: 3.3V from DTV system 3. Please resubmit the user?s manual, including the language required by Sections 15.19 and 15.21. (ANS) Please refer to revised User's Manual as attached #2. 4. The EUT?s antennas are referred to, in the application, as ?integral?, however, various cable lengths are then listed. Please provide a more detailed description of the antennas (make, model, etc.), and address Section 15.203 with respect to the antenna connectors. (ANS) Please refer to the detailed description of the Antennas as attched #3. 5. To whom will the EUT be marketed? Typically, such devices are limited to sale to OEM integrators only- is that the case here? If so, please submit the installation instructions that will be provided to the OEM integrators. Please note that these instructions must provide the installer with information regarding RF exposure, and instruct him that, in order to comply with FCC RFx requirements, the EUT must be installed such that a minimum separation distance of 20 cm is maintained between the antennas and all persons during normal use. This information must also be presented to the user. (ANS) Please refer to the installation instruction of EUT as attached #4. 6. Please verify that both chains were transmitting (simultaneously) during the spurious radiated and conducted emission tests. (ANS) Please refer to the revised test report as attached #5. Test condition have been modified in page 6 and test datas also been changed in page 66~71. 7. Please address Section 15.407(c). (ANS) In case of operational failure such as link loss due to long range or power down of either WLAN module, WLAN module of DTV are designed not to send signal until it receives Beacon signals from STB. Even in this case, if STB modules are on, it sends Beacon signal all the time to acknowlege to the DTV WLAN module. 8. The user?s manual should inform user?s that operation in the low UNII band is restricted to indoor use only, pursuant to Section 15.407(e). (ANS) Please refer to revised User's Manual as attached #2. 9. Please address Section 15.407(g). Typically, frequency stability data is submitted in order to do so. (ANS) Please refer to revised test report as attached #5. (Page 8: Summary of Test Results, Page 72: Added test datas) Hopely, this will be helpful for your review. Thanks and Regards... -------- Steve Kim (Sung Joo Kim) Product Compliance Manager QA Lab of America Samsung Electronics America 18600 Broadwick St., Rancho Dominguez, CA 90220 SAMSUNG ELECTRONICS CO., LTD Page 2 of 4Samsung Enterprise Portal mySingle 9/5/2007 ----- Original Message ----- From: PCTEST TCB To: SAMSUNG - Sung Joo Kim Cc: PCTEST - Gregory Czumak ; PCTEST - Randy Ortanez ; PCTEST - Steve Liu ; PCTEST - Mia Kang Sent: Thursday, August 09, 2007 12:14 PM Subject: Questions Regarding FCC ID: A3LSWLN01 To: Mr. Steve Kim / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LSWLN01 Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L7711 Confirmation Number: 708070711 Date of Original Email: August 9, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information 1. Please submit schematic diagrams for the EUT. 2. Please submit an Operational Description (technical description) for the EUT. Please be sure that it completely describes the MIMO operation of the EUT. Does the EUT employ 2x2 Spatial Multiplexing (SM) MIMO? Please note that a TCB may grant an application for a SM MIMO device, or a Phased Array MIMO device, but not one that combines SM and Phased Array. 3. Please resubmit the user?s manual, including the language required by Sections 15.19 and 15.21. 4. The EUT?s antennas are referred to, in the application, as ?integral?, however, various cable lengths are then listed. Please provide a more detailed description of the antennas (make, model, etc.), and address Section 15.203 with respec…

Text truncated - open the document above for the full version.

Subject: FW: Follow-up Questions Regarding FCC ID: A3LSWLN01 Attachments: HOW TO ASSEMBEL A3LSWLN01 MODULE.doc Page 1 of 3Samsung Enterprise Portal mySingle 9/5/2007 From: SUNGJOO KIM [mailto:[email protected]] Sent: Tuesday, September 04, 2007 1:17 PM To: Gregory Czumak Cc: CHANGSEUB EUM; 김성주; 김선관; 이기원; 이승철; randy; [email protected]; [email protected] Subject: Re: FW: Follow-up Questions Regarding FCC ID: A3LSWLN01 Dear Gregory, Regard to your f/up questions for A3LSWLN01, please refer to our response as below; 1. Thank you for your response to our questions. Regarding your answer to question #2, please provide a more detailed operational description, which describes the RF function of the device (power, modulation, etc. (802.11(n))). (Ans) Our EUT uses 2x3 MIMO which meet the IEEE 802.11n Draft version 2.0. RF transmitter Data signal from STB(TX board) through MiniPCI type III interface will be modulated to 5GHz frequency band in A3LSWLN01 main IC and the signal will be transmitted to 2 antennas through Bandpass filter and Low pass filter. The 2 antennas transmit the same data simultaneously in MCS 7 in the MIMO operation mode. The modulation is 64QAM and coding rate is 5/6. The transmit power value is about 14-16dBm. RF receiver The received signal from 3 antennas passes Bandpass filter in A3LSWLN01 and it will be transmitted through MiniPCI interface to DTV(RX board) after the data signal is extracted from 5GHz frequency band. Power supply: 3.3V from DTV system 2. Regarding your answer to question #5, please verify that the EUT will only be marketed to OEM integrators. (Ans) EUT will only be marketed to OEM integrators. 3. Regarding your answer to question #5, the installation instructions that you provided do not address RFx. The instructions must include the warning that, in order to comply with FCC RFx requirements, the EUT must be installed such that a minimum separation distance of 20 cm is maintained between the antennas and all persons during normal use. Please resubmit the installation instructions with this warning included. (Ans) See attachments 4. Regarding your answer to question #7, what are DTV and STB? If a DTV receives a beacon, but does have some operational failure, will it still transmit? Will the EUT ever act in STB mode? If so, how does it comply with this requirement (15.407(c)) in this mode? (Ans) In Wireless system, there are Tx and Rx. In our system, STB(Settop Box) transmit Multimedia data to DTV(PDP). If DTV receives a beacon, but does some operational failure, it will not transmit. The beacons are control signaling in the system, so it complies with 15.407(c). Hopely, this will be enough information for you. Thanks and regards... ------- Original Message ------- Sender : PCTEST TCB<[email protected]> Date : 2007-08-27 15:43 Title : FW: Follow-up Questions Regarding FCC ID: A3LSWLN01 To: Mr. Steve Kim / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LSWLN01 Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L7711-A Confirmation Number: 708070711 Date of Original Email: August 27, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information 1. Thank you for your response to our questions. Regarding your answer to question #2, please provide a more detailed operational description, which describes the RF function of the device (power, modulation, etc. (802.11(n))). 2. Regarding your answer to question #5, please verify that the EUT will only be marketed to OEM integrators. 3. Regarding your answer to question #5, the installation instructions that you provided do not address RFx. The instructions must include the warnin g that, in order to comply -------- Steve Kim (Sung Joo Kim) Product Compliance Manager QA Lab of America Samsung Electronics America 18600 Broadwick St., Rancho Dominguez, CA 90220 SAMSUNG ELECTRONICS CO., LTD Mobile : +1-949-701-2610 Office : +1-310-900-5250 Fax : +1-310-537-5500 E-Mail : [email protected] Page 2 of 3Samsung Enterprise Portal mySingle 9/5/2007 with FCC RFx requirements, the EUT must be installed such that a minimum separation distance of 20 cm is maintained between the antennas and all persons during normal use. Please resubmit the installation instructions with this warning included. 4. Regarding your answer to question #7, what are DTV and STB? If a DTV receives a beacon, but does have some operational failure, will it still transmit? Will the EUT ever act in STB mode? If so, how does it comply with this requirement (15.407(c)) in this mode? The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 3 of 3Samsung Enterprise Portal mySingle 9/5/2007

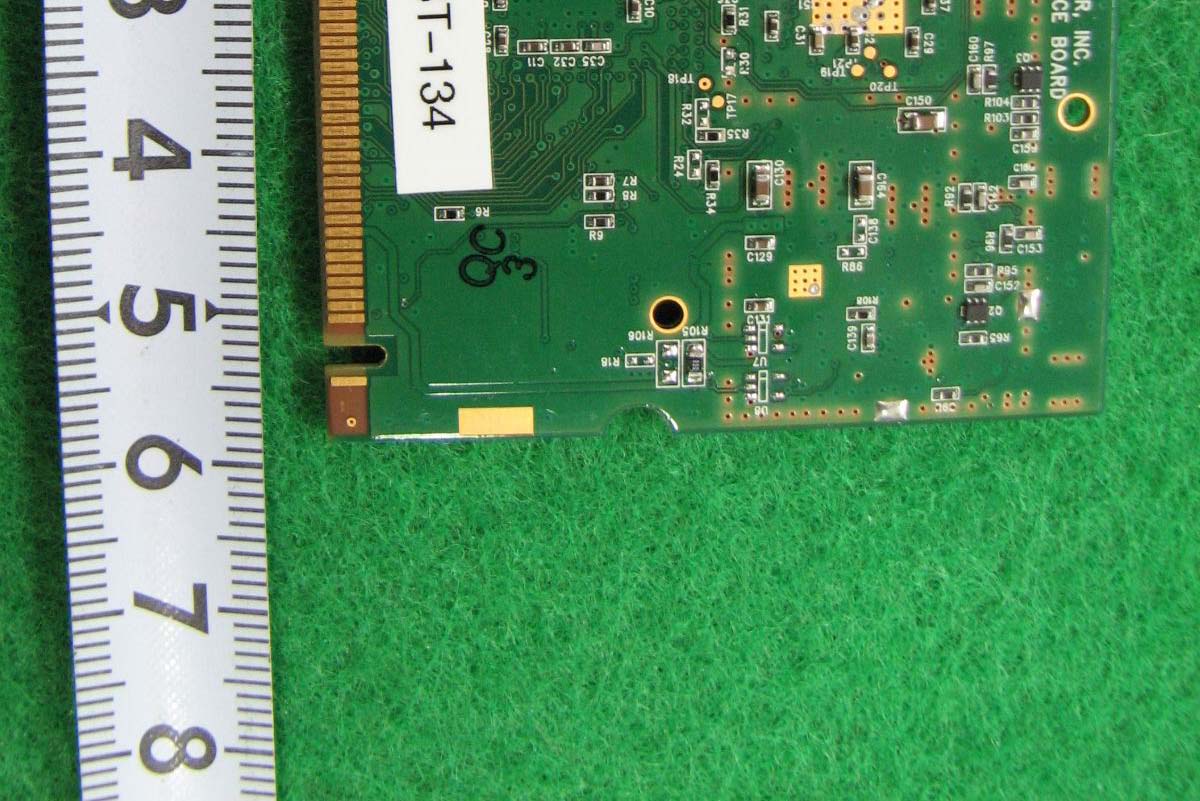

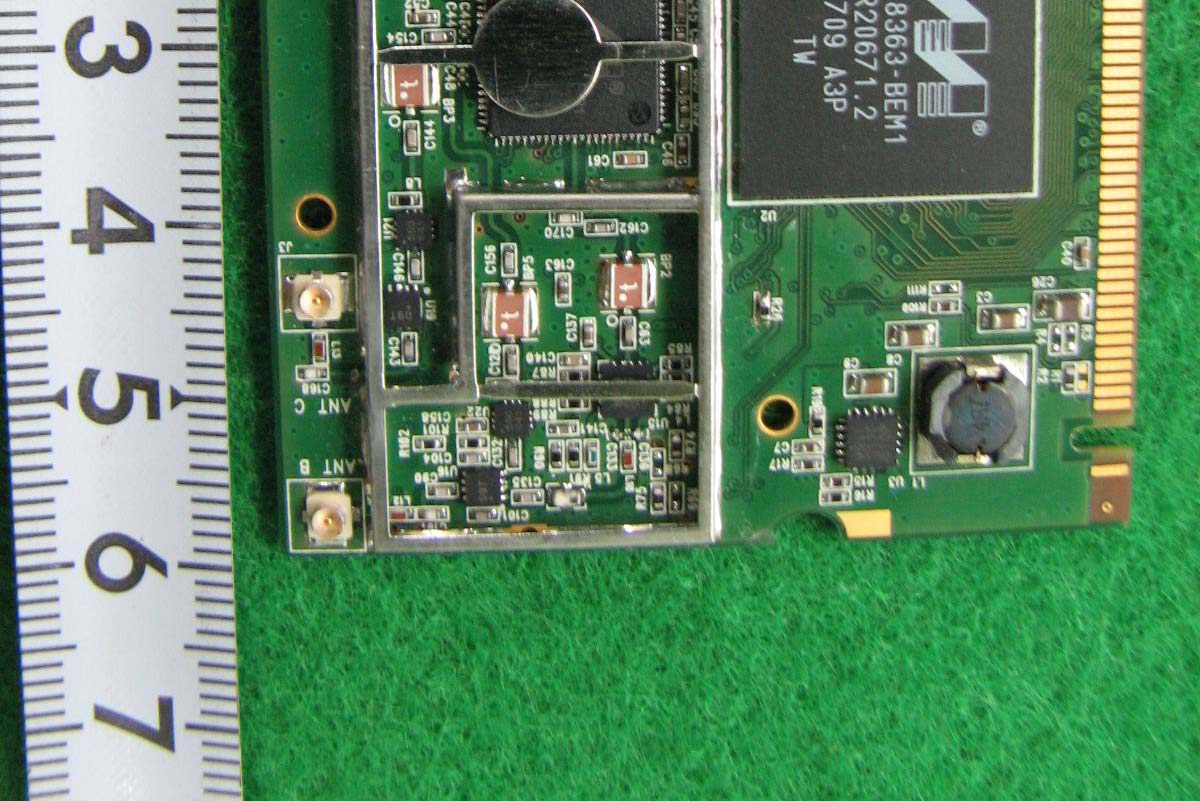

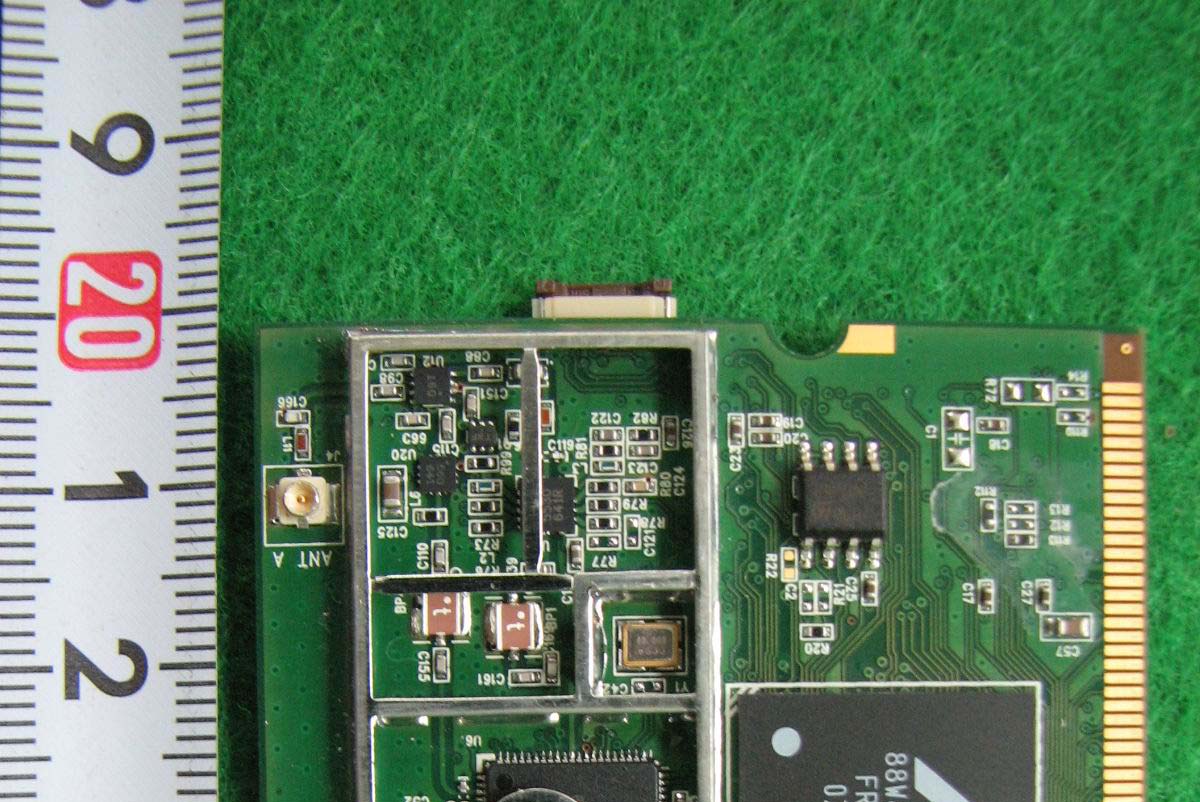

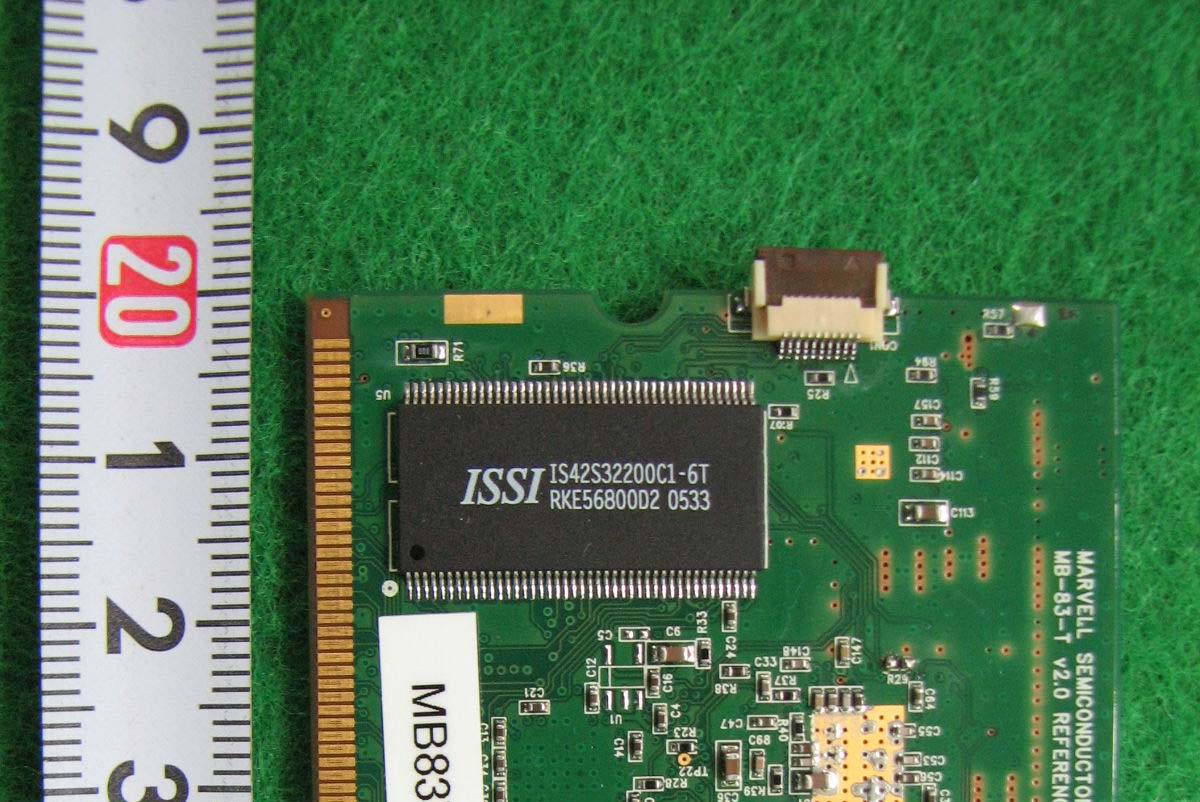

Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 110 of 118 Appendix C – EUT Photographs z Front View of EUT Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 111 of 118 z Rear View of EUT Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 112 of 118 z Front View of EUT without Shield Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 113 of 118 z Front View of EUT with Antenna ( Type 1) Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 114 of 118 z Front View of EUT with Antenna ( Type 2) Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 115 of 118 z Front View of 15Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 116 of 118 z Front View of 20Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 117 of 118 z Front View of 25Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 118 of 118 z Front View of 55Cm Antenna

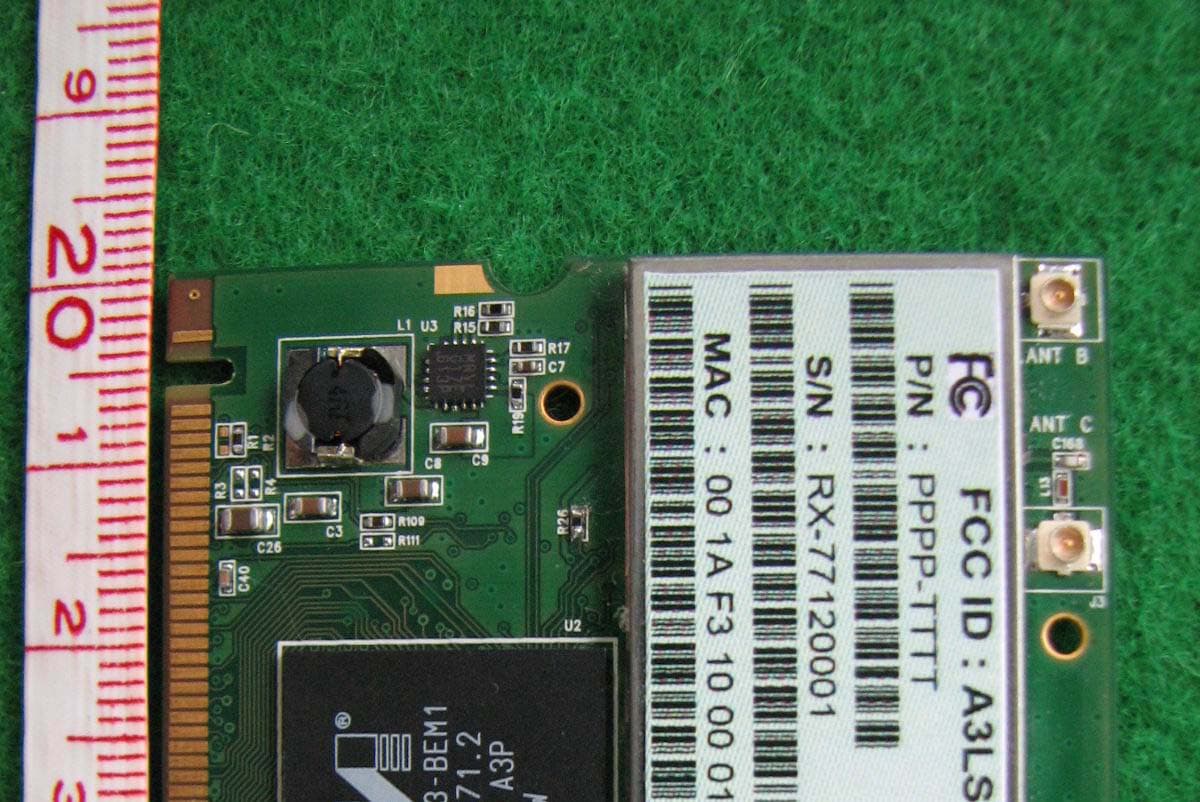

Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 107 of 118 Appendix A – Labelling Requirements The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual. z FCC ID Location of EUT Labelling Requirements

Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 110 of 118 Appendix C – EUT Photographs z Front View of EUT Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 111 of 118 z Rear View of EUT Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 112 of 118 z Front View of EUT without Shield Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 113 of 118 z Front View of EUT with Antenna ( Type 1) Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 114 of 118 z Front View of EUT with Antenna ( Type 2) Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 115 of 118 z Front View of 15Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 116 of 118 z Front View of 20Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 117 of 118 z Front View of 25Cm Antenna Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 118 of 118 z Front View of 55Cm Antenna

Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 103 of 118 9.10 Maximum Permissible Exposure RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density ( ㎽/㎠) Average Time (Minutes) (A) Limits for Occupational / Control Exposure 30 - 300 6.14 0.163 1.0 6 300 - 1500 ... ... F/300 6 1500 - 100000 ... ... 5 6 (B) Limits for General Population / Uncontrolled Exposure 30 - 300 27.5 0.073 0.2 30 300 - 1500 ... ... F/1500 30 1500 - 100000 ... ... 1 30 F = Frequency (MHz) Fries Formula Fries transmission formula : Pd = (Pout * G) / (4 * π* r²) r = √((Pout * G) / 4 * π* Pd)) Where Pd = Power density in ㎽/㎠ Pout = Output power to antenna in ㎽ G = Gain of antenna in linear scale π= 3.1416 r = Distance between observation point center of the radiator in cm Pd is the limit of MPE, 1 ㎽/㎠. If we know the Maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 104 of 118 The maximum antenna gain is 3.26dBi or 2.118(Numeric) Output power into antenna and RF Exposure Distance Frequency (MHz) Output power to Antenna (mW) Antenna Gain (Numeric) RF Exposure Distance (cm) 5765 37.67 2.118 2.52 MPE Safe Distance = 2.52cm

Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 1 of 110 Nemko Korea CO., Ltd. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyunggi-Do, KOREA TEL:+82 31 322 2333 FAX:+82 31 322 2332 FCC EVALUATION REPORT FOR CERTIFICATION Applicant : Samsung Electronics Co., Ltd. Visual Display Division,R&D Dept, 416,Maetan3-dong, Dates of Issue : July 31, 2007 YeongTong-gu Suwon-Si,Gyunggi-Do, Korea, Test Report No. : NK2HR101 (Post code : 442-742) Test Site : Nemko Korea Co., Ltd. Attn. : Mr.ChangSeub Eum FCC ID Brand Name Contact Person Applied Standard: 47 CFR Part 15, Subpart E Section 15.407 (UNII Devices) EUT Type: Wireless LAN Mini PCI Card The device bearing the brand name and FCC ID specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2003. I attest to the accuracy of data and all measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested By : S.Lee Reviewed By : H.H.Kim Engineer Manager & Chief Engineer A3LSWLN01 SAMSUNG Samsung Electronics Co., Ltd. Visual Display Division,R&D Dept,#416 Maetan3-dong, YeongTong-gu,Suwon-Si,Gyunggi-do, Korea , 442-742. Mr. ChangSeub Eum Telephone No. : +82 31 200 7611 Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 2 of 110 Table of Contents 1. Scope 4 2. Introduction 5 3. Test Conditions & EUT Information 6~7 4. Summary of Test Results 8 5. Antenna Requirement 9 6. Recommendation / Conclusion 10 7. Sample Calculation 10 8. Description of Test 11 8.1 Conducted Emissions 11 8.2 Radiated Emissions 12 8.3 Emission Bandwidth (26dB Bandwidth & 99% Bandwidth) 13 8.4 Peak Power Spectral Density 14 8.5 Maximum Peak Output Power 15 8.6 Peak Excursion 16 8.7 Conducted Spurious Emissions 17 9. Test Data 18 9.1 Emission Bandwidth (26dB Bandwidth & 99% Bandwidth) 18~29 9.2 Peak Power Spectral Density 30~41 9.3 Maximum Peak Output Power 42~53 9.4 Peak Excursion 54~65 9.5 Conducted Spurious Emissions 66~71 9.6 Frequency Stability / Temperature Variation 72 9.7 Band Edge 73~84 9.8 Radiated Emission below 1GHz 85 Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 3 of 110 9.9 Radiated Emission above 1GHz 86~91 9.10 Conducted Emissions 92~94 9.11 Maximum Permissible Exposure 95~96 10. Accuracy of Measurement 97 11. Test Equipment 98 Appendix A: Labelling Requirement 99 Appendix B: Photographs of Test Set-up 100~101 Appendix C: EUT Photographs 102~110 Test Report No.: NK2HR101 FCC Certification Samsung Electronics Co., Ltd. FCC ID:A3LSWLN01 Page 4 of 110 1.Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co…
