A3LTWIN2KVCR

FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. INFORMATION TO USER: This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1.Reorient / Relocate the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into an outlet on a circuit difference from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment

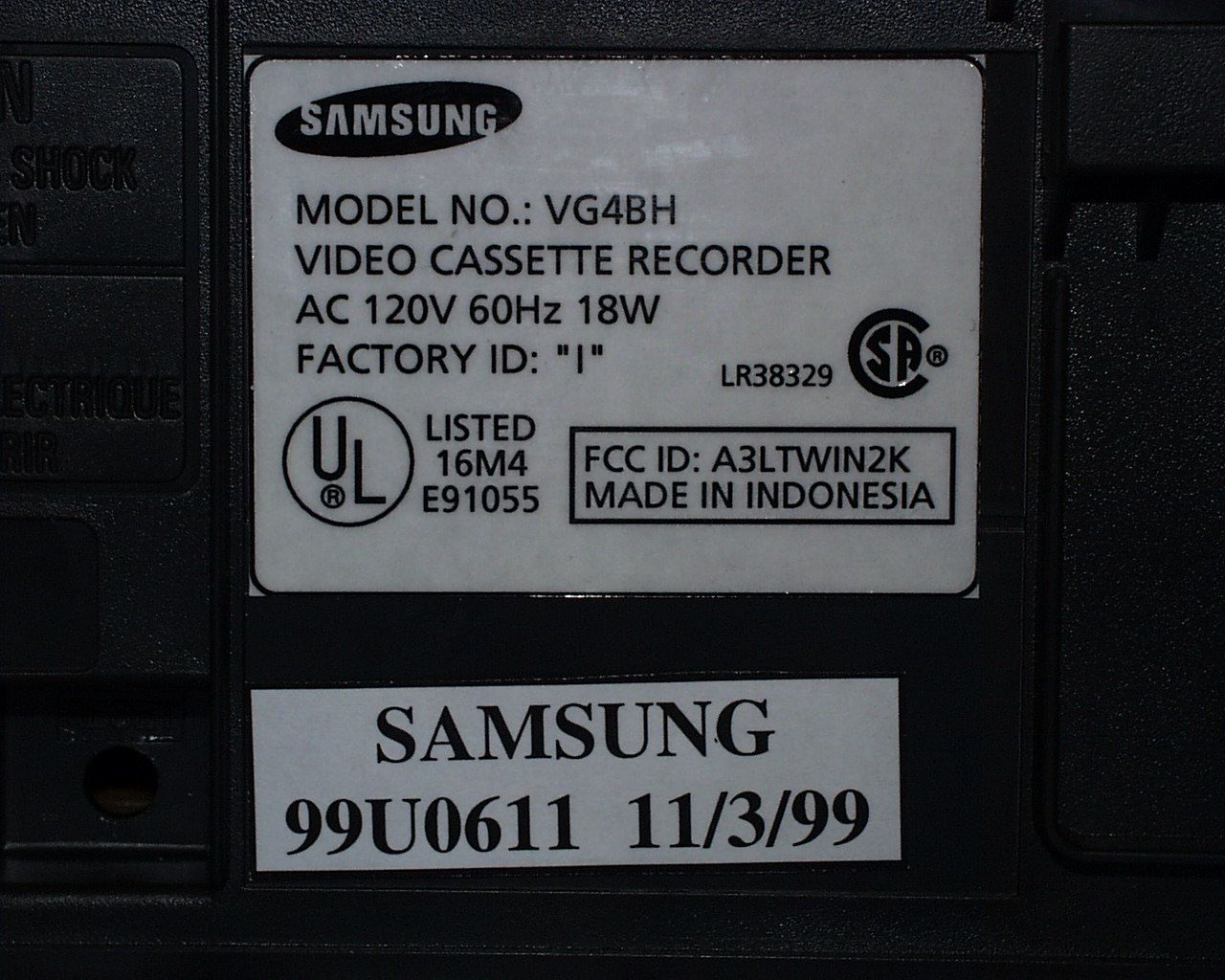

PROPOSED FCC ID LABEL AND LOCATION SAMSUNG ELECTRONICS CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: A3LTWIN2K FCC ID LABEL

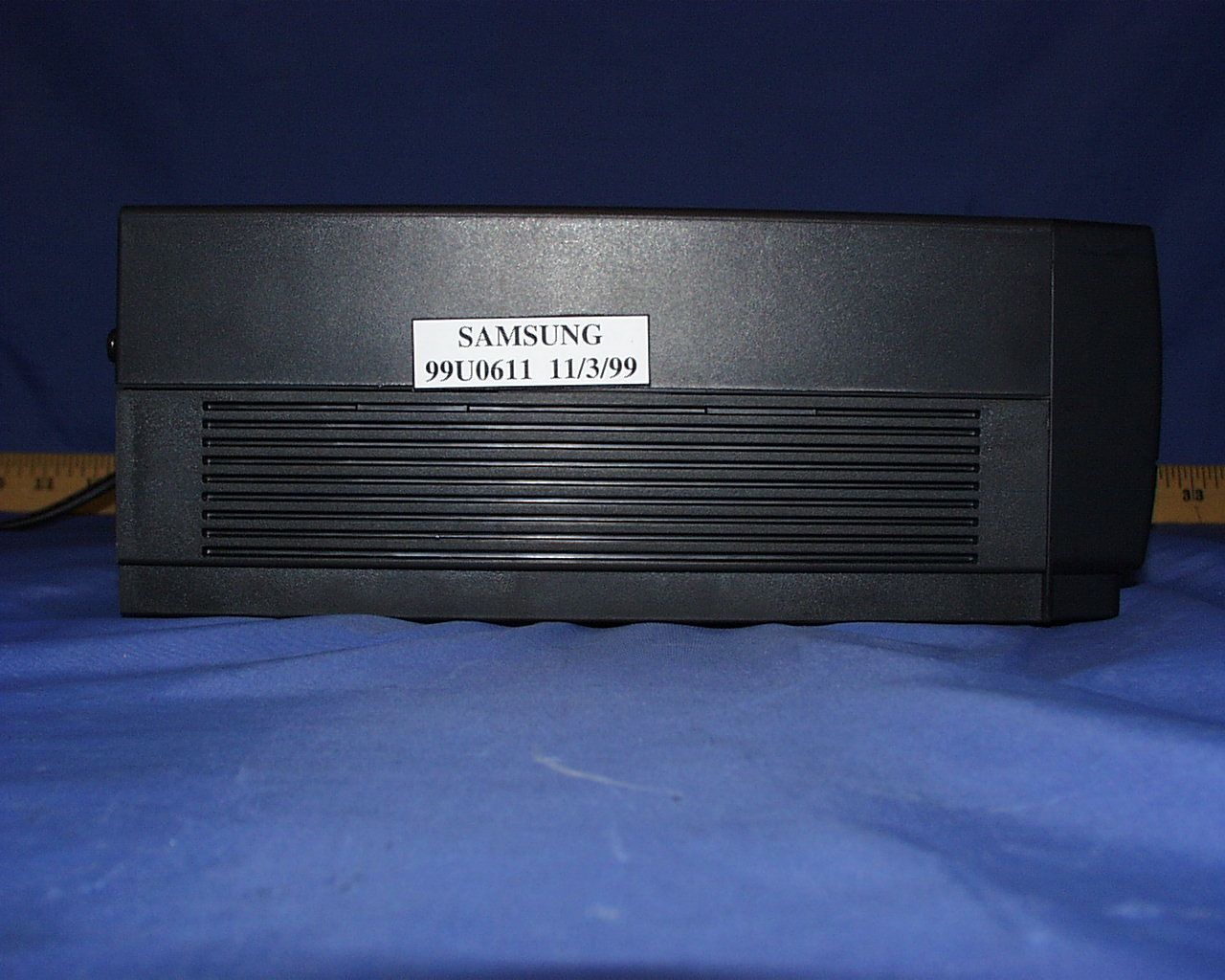

FCC CFR47 PART 15 TV INTERFACE DEVICE TEST REPORT FOR VCR MODEL: VG4BH FCC ID: A3LTWIN2K REPORT NUMBER: 99U0611 ISSUE DATE: October 6, 1999 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE.......................................................................................................2 2. PRODUCT DESCRIPTION.......................................................................................................................3 3. TESTED SYSTEM DETAILS....................................................................................................................6 4. TEST FACILITY........................................................................................................................................6 5. ACCREDITATION AND LISTING..........................................................................................................6 6. MEASUREMENT INSTRUMENTATION................................................................................................6 7. MEASURING INSTRUMENT CALIBRATION.......................................................................................7 8. UNITS OF MEASUREMENT....................................................................................................................7 9. ANTENNAS................................................................................................................................................7 10. CONDUCTED EMISSION TEST PROCEDURE.....................................................................................8 11. RADIATED EMISSION TEST PROCEDURE.........................................................................................8 12. AMBIENT CONDITIONS..........................................................................................................................9 13. EQUIPMENT MODIFICATIONS.............................................................................................................9 14. EUT SETUP PHOTOS.............................................................................................................................10 15. TEST EQUIPMENT LIST.......................................................................................................................12 16. TEST RESULT SUMMARY....................................................................................................................13 CONFIGURATION BLOCK DIAGRAM.........................................................................................................27 Exhibits 1. Proposed FCC ID Label Format 2. Authorization Letter 3. Modification Report 4. User’s Manual 5. Schematic Diagram 6. EUT Photographs REPORT NO:99U0611 DATE: OCTOBER 6, 1999 FCC ID: A3LTWIN2K EUT: VCR 2 OF 26 COMPLIANCE CONSULTING SERVICES DOCUMENT NO:CCSUP4027B 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME: SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA CONTACT PERSON: BEN KIM / MANAGER TELEPHONE NO: 408-544-5124 MODEL NO/NAME: VG4BH SERIAL NO: N/A DATE TESTED: OCTOBER 06, 1999 TYPE OF EQUIPMENT: TV INTERFACE DEVICE MEASUREMENT DISTANCE: (X) 3 METER ( ) 10 METER FCC RULES: PART 15.115 MEASUREMENT PROCEDURE ANSI C63.4:92 EQUIPMENT AUTHORIZATION PROCEDURE CERTIFICATION MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 21 for comments) NO TEST RESULT PASSED The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Reviewed By MIKE C.I. KUO / VICE PRESIDENT COMPLIANCE CERTIFICATION SERVICES REPORT NO:99U0611 DATE: OCTOBER 6, 1999 FCC ID: A3LTWIN2K EUT: VCR 3 OF 26 COMPLIANCE CONSULTING SERVICES DOCUMENT NO:CCSUP4027B 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPE METAL LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 14.31 MHz NUMBER OF PCB LAYERS 1 LAYER POWER REQUIREMENTS 110 V AC, 60 Hz NO. OF EXTERNAL I/O CONNECTORS 11 External Peripheral Devices Device Type Manufacturer Model Number Serial No. FCC ID / DoC TV KONKA K1988U N/A N/A REPORT NO:99U0611 DATE: OCTOBER 6, 1999 FCC ID: A3LTWIN2K EUT: VCR 4 OF 26 COMPLIANCE CONSULTING SERVICES DOCUMENT NO:CCSUP4027B 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. External I/O Cable Construction Description CABLE NO: 1 I/O Port: Antenna In Number of I/O ports of this type: 1 Number of Conductors: 2 Connector Type: F Connector Capture Type: Screw-In Type of Cable used: Shielded Cable Connector Type: Molded Cable Length: 4 M Bundled During Tests: Yes Data Traffic Generated: Yes Remark: N/A CABLE NO: 2 I/O Port: RF Out Number of I/O ports of this type: 1 Number of Conductors: 2 Connector Type: F Connector Capture Type: Screw-In Type of Cable used: Shielded Cable Connector Type: Molded Cable Length: 1 M Bundled During Tests: No Data Traffic Generated: Yes Remark: N/A CABLE NO: 3 I/O Port: S-Video Number of I/O ports of this type: 1 Number of Conductors: 5 Connector Type: S-Video Capture Type: Snap-In Type of Cable used: Unshielded Cable Connector Type: Molded Cable Length: 1.5 M Bundled During Tes…
