A3LWB1100FDigital Camera

This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. Click a topic WB1100F/WB1101F/WB1102F USER MANUAL Basic troubleshootingQuick referenceContents Basic functionsExtended functionsShooting options Playback/EditingWireless networkSettings AppendixesIndex 1 Health and safety information Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Prevent damage to subjects’ eyesight. Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage. Keep your camera away from small children and pets. Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. Warning—situations that could cause injury to yourself or others Do not disassemble or attempt to repair your camera. You can damage the camera and expose yourself to the risk of an electric shock. Do not use your camera near flammable or explosive gases and liquids. This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera. This may cause a fire or electric shock. Do not handle your camera with wet hands. This may result in an electric shock. 2 Avoid covering the camera or charger with blankets or clothes. The camera may overheat, which may distort the camera or cause a fire. Do not handle the power supply cord or the charger during a thunderstorm. This may result in electric shock. If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center. Comply with any regulations that restrict the use of a camera in a certain area. • Avoid interference with other electronic devices. • Turn off the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel. • Turn off the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Avoid interference with pacemakers. Maintain a safe distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. Health and safety information 3 Caution—situations that could cause damage to your camera or other equipment Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera. Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery. Inauthentic, damaged, or heated batteries may cause a fire or personal injury. Use only Samsung-approved batteries, chargers, cables and accessories. • Using unauthorized batteries, chargers, cables or accessories can cause batteries to explode, damage your camera, or cause injury. • Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables or accessories. Use the battery only for its intended purpose. Misusing the battery may cause a fire or electric shock. Do not touch the flash while it fires. The flash is very hot when fired and may burn your skin. When you use the AC charger, turn off the camera before you disconnect the power to the AC charger. Failing to do so may result in fire or electric shock. Disconnect the charger from the wall socket when not in use. Failing to do so may result in fire or electric shock. Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries. This may cause a fire or electric shock. Do not allow the AC charger to come in contact with the +/- terminals on the battery. This may cause a fire or electric shock. Do not drop or subject the camera to strong impacts. Doing so may damage the screen or external or internal components. Exercise caution when you connect cables or adapters and install batteries and memory cards. If you force the connectors, improperly connect cables, or improperly install batteries and memory cards, you can damage ports, connectors, and accessories. Health and safety information 4 Keep cards with magnetic strips away from the camera case. Information stored on the card may be damaged or erased. Never use a damaged charger, battery, or memory card. This may result in electric shock or camera malfunction or cause a fire. Do not place the camera in or near magnetic fields. Doing so may cause the camera to malfunction. Do not use the camera if the screen is damaged. If the glass or acrylic parts are broken, visit a Samsung Electronics Service Center to have the camera repaired. Check that the camera is operating properly before use. The manufacturer takes no responsibility for any loss of files or damage that may result from camera malfunction or improper use. You must plug the small end of the USB cable into your camera. If the cable is reversed, it may damage your files. The manufacturer is not responsible for any loss of data. Avoid interference with other electronic devices. Your camera emits radio frequency (RF) signals that may interfere with unshielded or imp…

Text truncated - open the document above for the full version.

(Company letterhead) XXXX (Address) TEL: XXX FAX: XXXX Declaration for no non‐US channel operation December 24, 2013 We, Samsung Electronics Co.,Ltd declare that the device does not support any non-US channels in all the operational mode(s) for the following product. FCC ID: A3LWB1100F If you should have any question(s) regarding this declaration, please don’t hesitate to contact us. Thank you! ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐ Name: Sang Kyung(peter) Ra / General Manager Tel: +1‐973‐808‐6362 Fax: 973‐808‐6361 E‐mail: [email protected]

LETTER HEAD (Company letterhead) XXXX (Address) TEL: XXX FAX: XXXX Date: 2013-12-24 FCC ID: A3LWB1100F To the attention of Federal Communications Commission Authorization and Evaluation Division Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ----------------------------------- Sang Kyung(peter) Ra / General Manager Samsung Electronics Co.,Ltd. Tel: +1-973-808-6362 Fax: 973-808-6361 E-mail: [email protected]

LETTER HEAD (Company letterhead) XXXX (Address) TEL: XXX FAX: XXXX Date: 2013-12-24 FCC ID: A3LWB1100F AUTHORIZATION LETTER To whom it may concern: We, the undersigned Samsung Electronics Co.,Ltd. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required in FCC and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------- Sang Kyung(peter) Ra / General Manager Samsung Electronics Co.,Ltd. Tel: +1-973-808-6362 Fax: 973-808-6361 E-mail: [email protected]

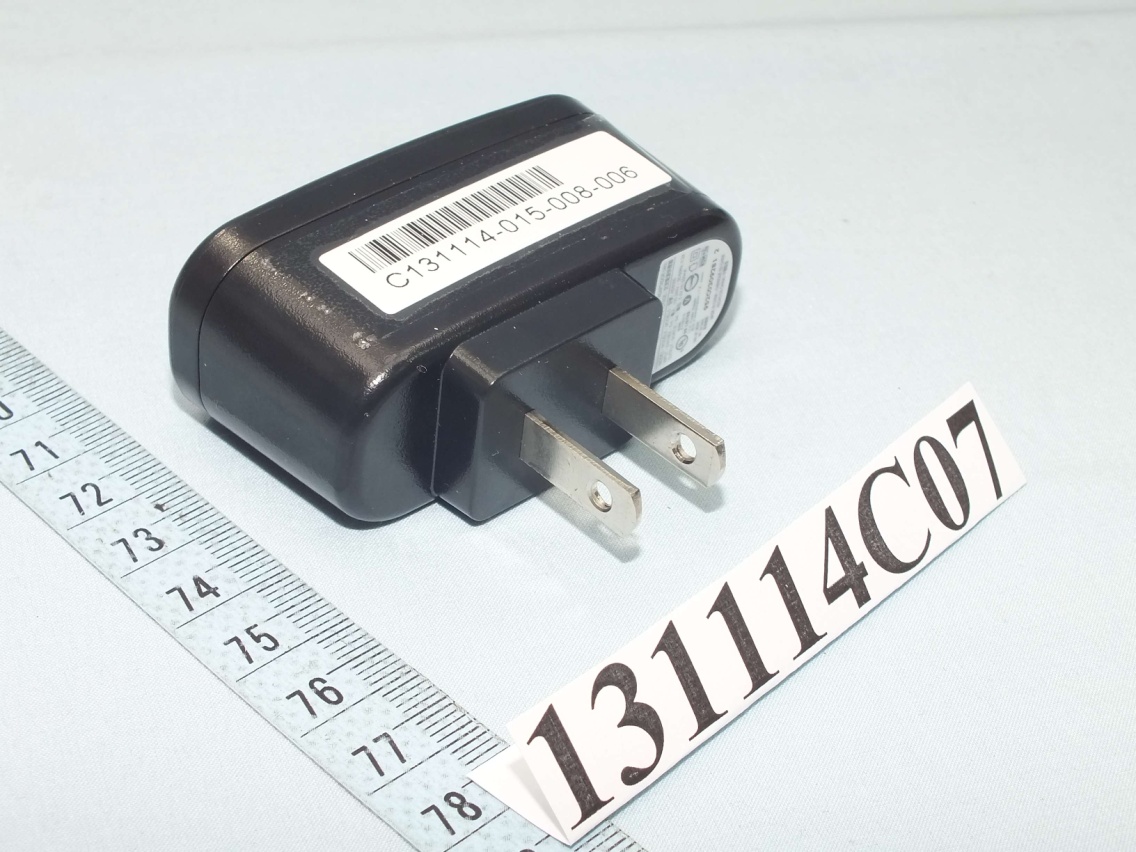

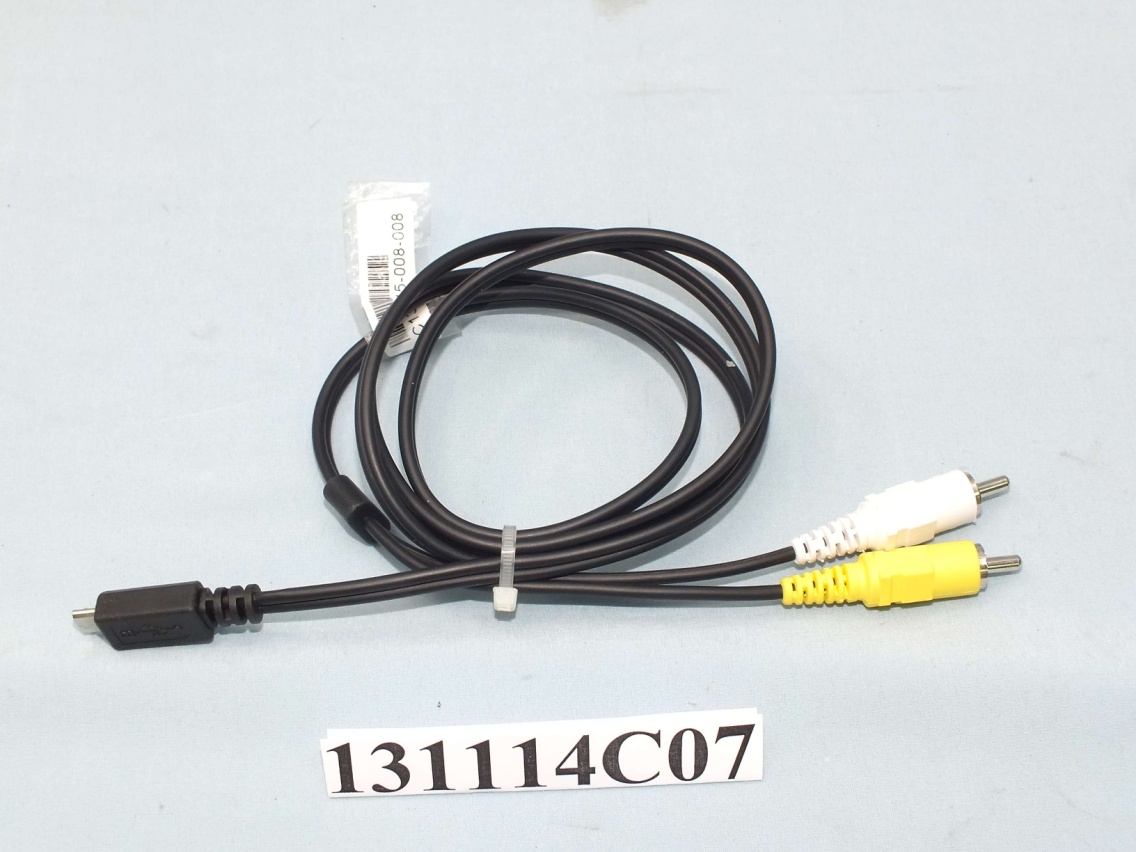

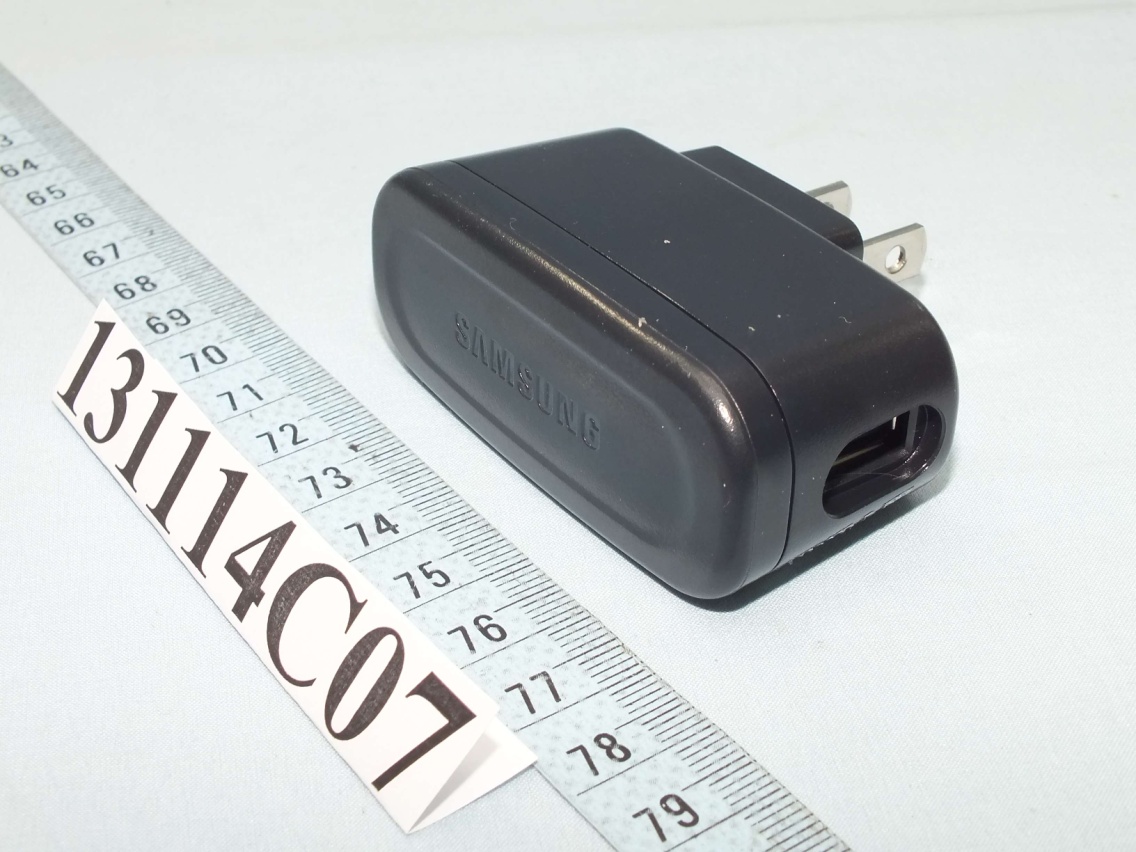

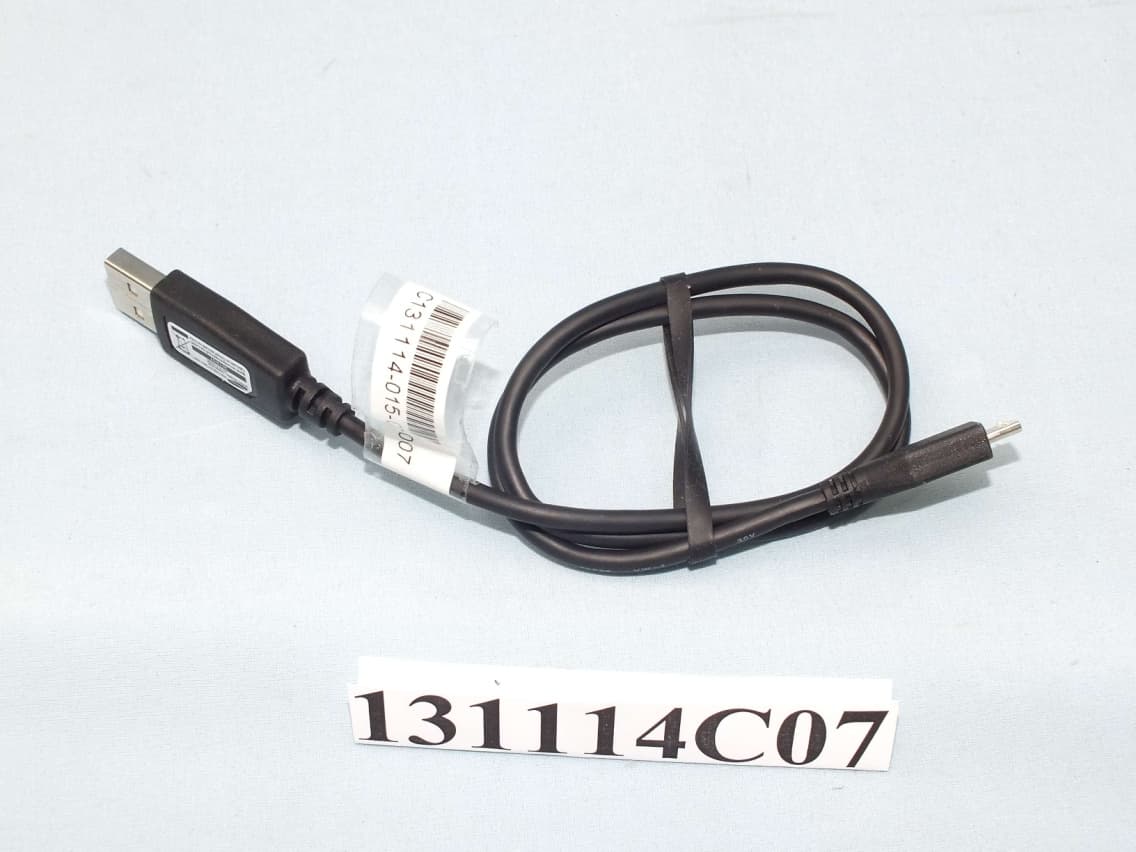

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2 Page 3 Page 4 Page 5 Page 6

Page 7 Page 8 Page 9 Page 10 Page 11 Page 12 Page 13 Page 14

Page 15 Page 16 Page 17 Page 18 Page 19 Page 20 Page 21 Page 22 Page 23

FCC ID: A3LWB1100F Report No.: RF131115C25 Operational Description This device is a Digital camera, which operates in 2.4GHz band; the maximum data rate could be up to 65Mbps with OFDM technique. If the signal to noise ratio is too poor which could not support 65Mbps, the 11Mbps data rate with DSSS technique will be applied. The transmitter of the EUT is powered by 3.7Vdc from battery or 5Vdc from adapter or 5Vdc from host equipment. The antenna is PCB antenna without antenna connectors.

FCC SAR Evaluation Report Report Format Version 5.0.0 Page No. : 1 of 8 Report No. : SA131114C07A, Reference No.: 131115C25 Issued Date : Jan. 08, 2014 Revision : R01 FCC SAR Evaluation Report Report No. : SA131114C07A Applicant : Samsung Electronics Co., Ltd. Address : 19 Chapin Rd. Building D Pine Brook NJ 07058 Product : Digital camera Brand : SAMSUNG FCC ID : A3LWB1100F Model No. : SAMSUNG WB1100F, SAMSUNG WB1101F, SAMSUNG WB1102F (Refer to item 2 for more details) Standards : FCC 47 CFR Part 2 (2.1093) / IEEE C95.1:1992 / IEEE 1528:2003 IEEE 1528a-2005 / KDB 865664 D01 v01r02 KDB 248227 D01 v01r02 / KDB 447498 D01 v05r01 CERTIFICATION: The above equipment have been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch – Lin Kou Laboratories, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s SAR characteristics under the conditions specified in this report. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product certification, approval, or endorsement by TAF or any government agencies. Prepared By : Evonne Liu / Specialist Approved By : Roy Wu / Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. FCC SAR Evaluation Report Report Format Version 5.0.0 Page No. : 2 of 8 Report No. : SA131114C07A, Reference No.: 131115C25 Issued Date : Jan. 08, 2014 Revision : R01 Table of Contents Release Control Record ............................................................................................................................................................... 3 1. Summary of Maximum SAR Value ....................................................................................................................................... 4 2. Description of Equipment Under Test ................................................................................................................................. 5 3. SAR Measurement Evaluation .............................................................................................................................................. 6 3.1 Maximum Output Power ............................................................................................................................................... 6 3.2.1 Maximum Conducted Power .............................................................................................................................. 6 3.2.2 Measured Conducted Power Result ................................................................................................................... 6 3.2 SAR Testing Results..................................................................................................................................................... 7 3.3.1 SAR Test Exclusions .......................................................................................................................................... 7 4. Information on the Testing Laboratories ............................................................................................................................. 8 Appendix A. Photographs of EUT and Setup FCC SAR Evaluation Report Report Format Version 5.0.0 Page No. : 3 of 8 Report No. : SA131114C07A, Reference No.: 131115C25 Issued Date : Jan. 08, 2014 Revision : R01 Release Control Record Issue No. Reason for Change Date Issued R01 Initial release Jan. 08, 2014 FCC SAR Evaluation Report Report Format Version 5.0.0 Page No. : 4 of 8 Report No. : SA131114C07A, Reference No.: 131115C25 Issued Date : Jan. 08, 2014 Revision : R01 1. Summary of Maximum SAR Value Equipment Class Mode Highest Reported SAR 1g (W/kg) DTS 2.4G WLAN N/A DXX NFC N/A Note: 1. The SAR limit (Head & Body: SAR 1g 1.6 W/kg) for general population / uncontrolled exposure is specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992. FCC SAR Evaluation Report Report Format Version 5.0.0 Page No. : 5 of 8 Report No. : SA131114C07A, Reference No.: 131115C25 Issued Date : Jan. 08, 2014 Revision : R01 2. Description of Equipment Under Test EUT Type Digital camera Brand Name SAMSUNG FCC ID A3LWB1100F Model Name SAMSUNG WB1100F, SAMSUNG WB1101F, SAMSUNG WB1102F (Refer to Note for more details) Tx Frequency Bands (Unit: MHz) WLAN : 2412 ~ 2462 NFC : 13.56 Uplink Modulations 802.11b : DSSS 802.11g/n : OFDM NFC : ASK Maximum Tune-up Conducted Power (Unit: dBm) 12.5 Antenna Type PCB Antenna EUT Stage Identical Prototype Note: 1. All models are listed as below. Model SAMSUNG WB1100F is the representative for final test. Brand Model Difference SAMSUNG SAMSUNG WB1…

Text truncated - open the document above for the full version.

Report No.: RF131114C07A 1 of 51 Report Format Version 5.2.0 Reference No.: 131115C25 FCC TEST REPORT REPORT NO.: RF131114C07A MODEL NO.: SAMSUNG WB1100F, SAMSUNG WB1101F, SAMSUNG WB1102F (Refer to item 3.1 for more details) FCC ID: A3LWB1100F RECEIVED: Nov. 15, 2013 TESTED: Dec. 03 ~ Dec. 16, 2013 ISSUED: Dec. 16, 2013 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. ADDRESS: 19 Chapin Rd. Building D Pine Brook NJ 07058 ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan, R.O.C. TEST LOCATION: No. 19, Hwa Ya 2nd Rd, Wen Hwa Tsuen, Kwei Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-com pliance to the specification. This report should not be used by the client to claim product certification, approval, or endorsement by TAF or any government agencies. Report No.: RF131114C07A 2 of 51 Report Format Version 5.2.0 Reference No.: 131115C25 TABLE OF CONTENTS RELEASE CONTROL RECORD ................................................................................................................ 4 1. CERTIFICATION ............................................................................................................................ 5 2. SUMMARY OF TEST RESULTS ................................................................................................... 6 2.1 MEASUREMENT UNCERTAINTY ................................................................................................ 6 3. GENERAL INFORMATION ............................................................................................................ 7 3.1 GENERAL DESCRIPTION OF EUT .............................................................................................. 7 3.2 DESCRIPTION OF TEST MODES ................................................................................................ 9 3.2.1 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL .............................................. 10 3.3 DUTY CYCLE OF TEST SIGNAL ................................................................................................ 12 3.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................ 13 3.4.1 CONFIGURATION OF SYSTEM UNDER TEST ......................................................................... 13 3.5 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 14 4. TEST TYPES AND RESULTS ..................................................................................................... 15 4.1 RADIATED EMISSION AND BANDEDGE MEASUREMENT ..................................................... 15 4.1.1 LIMITS OF RADIATED EMISSION AND BANDEDGE MEASUREMENT ................................... 15 4.1.2 TEST INSTRUMENTS ................................................................................................................. 16 4.1.3 TEST PROCEDURES ................................................................................................................. 17 4.1.4 DEVIATION FROM TEST STANDARD ....................................................................................... 17 4.1.5 TEST SETUP ............................................................................................................................... 18 4.1.6 EUT OPERATING CONDITIONS ................................................................................................ 18 4.1.7 TEST RESULTS .......................................................................................................................... 19 4.2 CONDUCTED EMISSION MEASUREMENT .............................................................................. 30 4.2.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT ........................................................... 30 4.2.2 TEST INSTRUMENTS ................................................................................................................. 30 4.2.3 TEST PROCEDURES ................................................................................................................. 31 4.2.4 DEVIATION FROM TEST STANDARD ....................................................................................... 31 4.2.5 TEST SETUP ............................................................................................................................... 31 4.2.6 EUT OPERATING CONDITIONS ................................................................................................ 31 4.2.7 TEST RESULTS .......................................................................................................................... 32 4.3 6dB BANDWIDTH MEASUREMENT ............................…

Text truncated - open the document above for the full version.

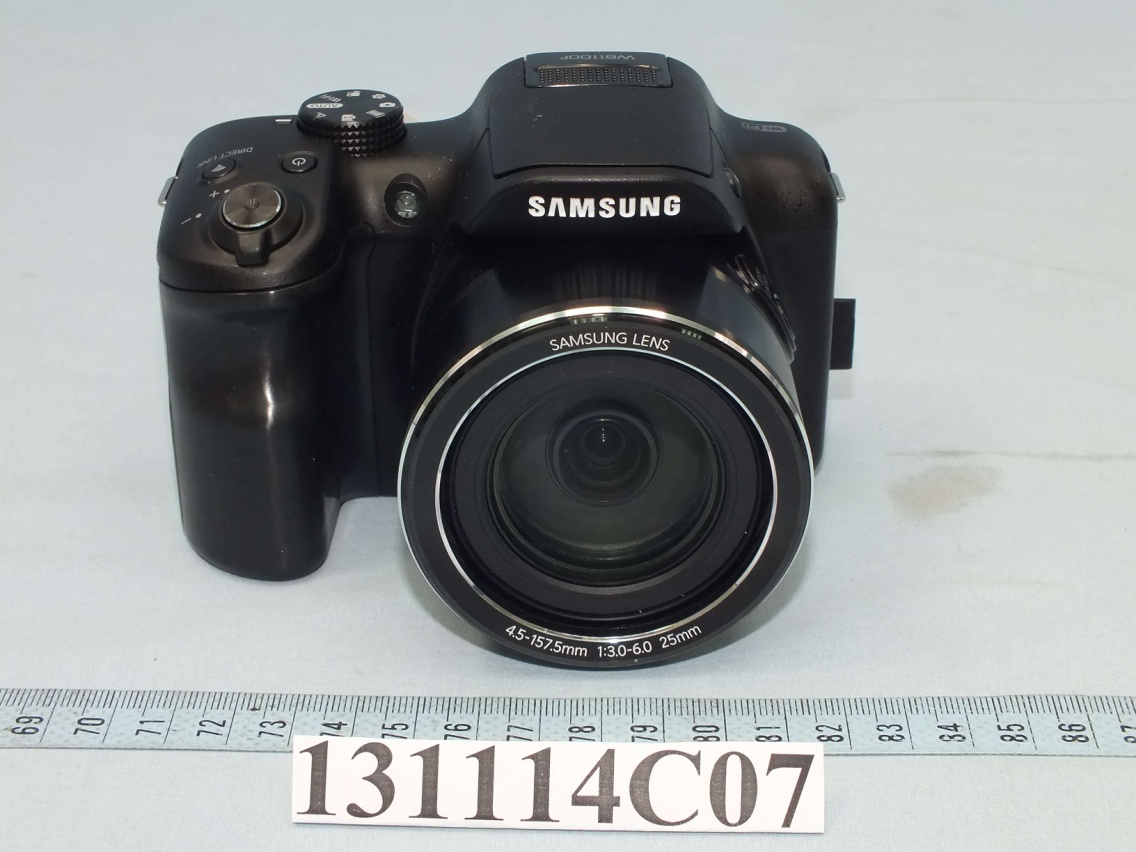

FCC SAR Evaluation Report Report Format Version 5.0.0 Issued Date : Jan. 08, 2014 Report No. : SA131114C07A, Reference No.: 131115C25 Revision : R01 Appendix A. Photographs of EUT and Setup FCC SAR Evaluation Report Report Format Version 5.0.0 Report No. : SA131114C07A, Reference No.: 131115C25 Revision : R01 <Photographs of EUT> EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left Side View EUT – Right Side View FCC SAR Evaluation Report Report Format Version 5.0.0 Report No. : SA131114C07A, Reference No.: 131115C25 Revision : R01 <Antenna Location> The separation distance for antenna to edge: Antenna To Front (mm) To Rear (mm) To Top Side (mm) To Bottom Side (mm) To Left Side (mm) To Right Side (mm) WLAN 42.3 49 33 20 98.5 16.3 Bottom Side Top Side Left Side Right Side <EUT Front View> WLAN Antenna

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (TEST MODE A) 3 RADIATED EMISSION TEST (TEST MODE B)
