A3LWEH720BWiFi Transmitter

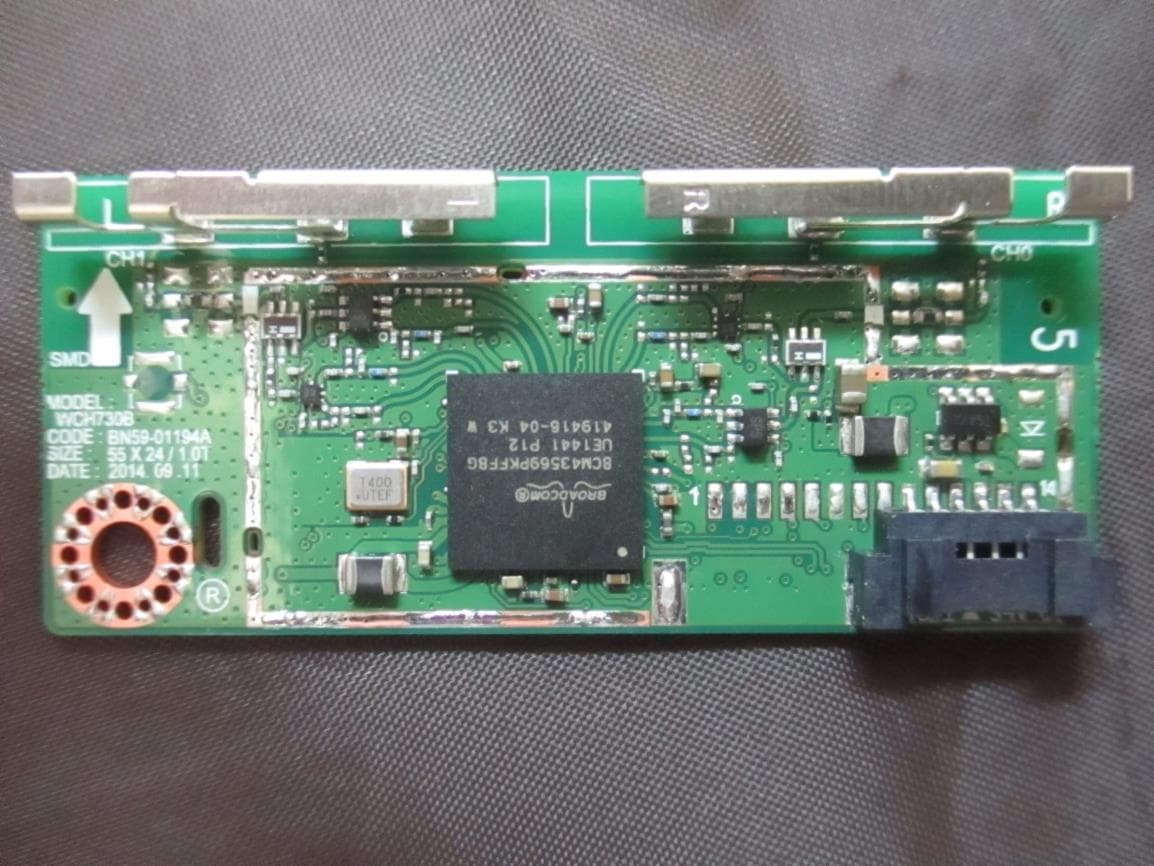

Version 1.0 Samsung Electronics page 1 of 3 Manual For WEH720B 1. Introduction WEH720B is a Wi-Fi module compliant with IEEE802.11 a/b/g/n/ac MAC/baseband/radio. The core chipset is from Broadcom, part number BCM43569 WEH720B is the 802.11a/b/g/n /ac module that acts as a communication controller for users of a wireless device to connect to SMART TV - Features >IEEE 802.11ac Draft compliant. >Dual-band 2.4GHz /5 GHz >Dual-stream spatial multiplexing up to 867Mbps data rate >Support 20, 40,80MHz channel with optional SGI (256QAM modulation) >On-chip power amplifiers and low –noise amplifiers for both bands - RF Details > Data Modulation DSSS: CCK, BPSK, QPSK for 802.11b OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM for 802.11a/g/n/ac > Frequency: 2.4 GHz and 5 GHz > Power: +5V ±5% (+4.75V ~ +5.25V) Version 1.0 Samsung Electronics page 2 of 3 2. Notice Approval Statement CE Statement Hereby, we declare that this device is in compliance with the essential requirements and other relevant provisions of directive 1999/5/EC. FCC approval This device complies with Part 15 of the FCC`s Rules. Operation is subject to the following two Conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesirable operation. To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product. Contains Transmitter module FCC ID: A3LWEH720B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/ TV technician for help. IC approval This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Cet appareil est conforme avec Industrie Canada exempts de licence standard RSS (s). L'opération est soumise aux deux conditions suivantes: (1) cet appareil ne peut causer d'interférences, et (2) cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement de l'appareil. The host device must be labeled to display the Industry Canada certification number of the module. Contains transmitter module IC:649E-WEH720B Le dispositif d'accueil doivent être étiquetés pour afficher le numéro de certification d'Industrie Canada du module. Contient module émetteur IC :649E-WEH720B Version 1.0 Samsung Electronics page 3 of 3 IMPORTANT NOTE This device complies with FCC & IC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and must not be co-located or operating in conjunction with any other antenna or transmitter. This device is intended only for OEM integrators under the following conditions: 1) This module may not be co-located with any other transmitters or antennas. 2) The antenna must be installed such that 20cm is maintained between the antenna and users. As long as 2 conditions above are met, further transmitter test will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements with this module installed. In the event that these conditions cannot be met, then the FCC & IC authorizations are no longer considered valid and the FCC ID cannot be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product including this module and obtaining separate FCC & IC authorizations. And OEM integrator is responsible for a notice about the distance of usage for end users. Cet appareil est conforme aux limites de la FCC et IC exposition aux radiations dans un environnement non contrôlé. Cet appareil doit être installé et ne doit pas être co-localisées ou opérant en conjonction avec une autre antenne ou un autre émetteur. Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions suivantes : 1 ) L' antenne doit être installée de telle sorte que 20 cm est maintenue entre l'antenne et les utilisateurs . 2 ) Ce module ne peut pas être co-localisé avec d'autres émetteurs ou des antennes . Aussi longtemps que deux conditions précitées sont remplies, le test du transmetteur supplémentaires ne seront pas tenus. Toutefois, l'intégrateur OEM est toujours responsable de tester leurs produits finis pour toutes les exigences de conformité supplémentaires avec ce module installé. Dans le cas où ces conditions ne peuvent pas être remplies, alors la FCC et IC autorisations ne sont plus considérés comme valides et l'ID de la FCC ne peut pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera responsable de réévaluer le produit final, y compris l'obtention de ce module et séparée de la FCC et IC autorisations Et intégrateur OEM est responsable d'un avis concernant la distance d'utilisation pour les utilisateurs finaux. User…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Date: January 20, 2015 Letter of Authorization We, the undersigned, hereby authorize Harvey Sung of DT&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCCID: A3LWEH720B including signing of all documents relating to these matters. Any and all acts carried out by Harvey Sung of DT&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Samsung Electronics Co., Ltd. . “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Chan Ho Youn Manager

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: January 20, 2015 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Ms. Claire Hoque/Application Examiner of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Ms. Claire Hoque of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards;

Samsung Electronics Co., Ltd. 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Date: January 20, 2015 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA RE: Request of Confidentiality for FCCID: A3LWEH720B To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description SHORT-TERM 5 Internal Photos 6 External Photos 7 Test-Setup Photos 8 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Name : ChanHo Youn Title : Manager

Samsung Electronics Co Ltd 19 Chapin Rd., Building D, Pine Brook, New Jersey, United States Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA January 20, 2015 Modular Approval Attestation for Wi-Fi Module Applicant: Samsung Electronics Co Ltd FCC ID: A3LWEH720B No. FCC requirements EUT 1 Have its own RF shielding RF Block shielded by Metal Case 2 Have buffered modulation/data inputs (if such inputs are provided), Yes, the module has buffered data input. 3 The modular transmitter must have its own power supply regulation. We used self own power supply regulation. 4 Meet the antenna requirements of section 15.203 This module uses Internal PIFA antenna This module meets the antenna requirements of section 15.203 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Yes, the EUT (module) was tested a stand-alone configuration. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The proposed FCC ID label format is to be placed on the module. If FCC ID label is not visible when module is install into the system, “Contains FCC ID: A3LWEH720B” shall be placed on the outside of final product. 7 The modular transmitter is manufactured so that the user can not influence the operation of the transmitter that will operate outside of the scope of the regulations. It complies with specific rules or operating requirements. And instruction is included User manual. 8 Address compliance with the Commission`s RF exposure limits in Sections 1.1310 and 2.1093. In addition, spread spectrum transmitters operation under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4) The exposure condition of this module is compliant with the requirements. Please refer to MPE calculation. Sincerely, Name : ChanHo Youn Title : Manager

FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Label locate Top side - The FCC label shown is representative of the label that will appear on the radio when in production. Other information may also be included in the user manual. - The device is so small that it is not practicable to place the statement specified under 15.19 statement requests, The information required by this paragraph shall be placed in a prominent location in the user manual.

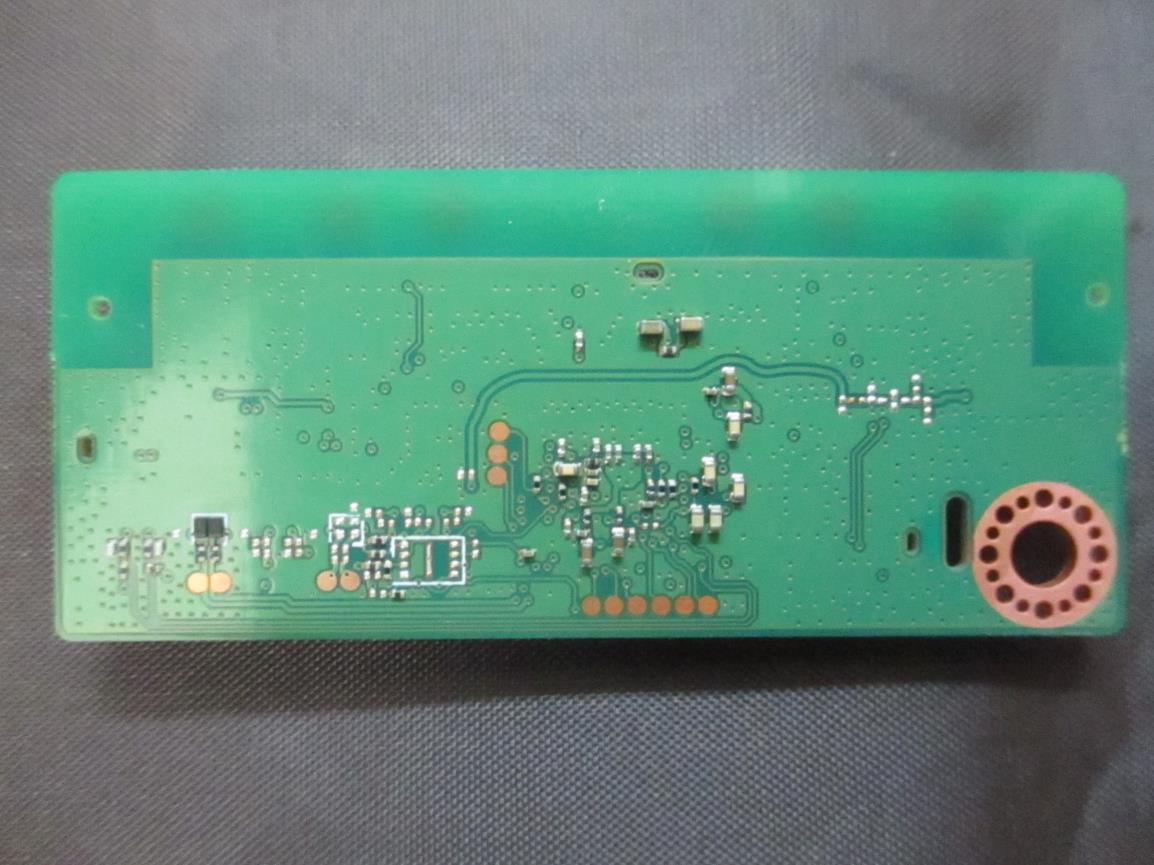

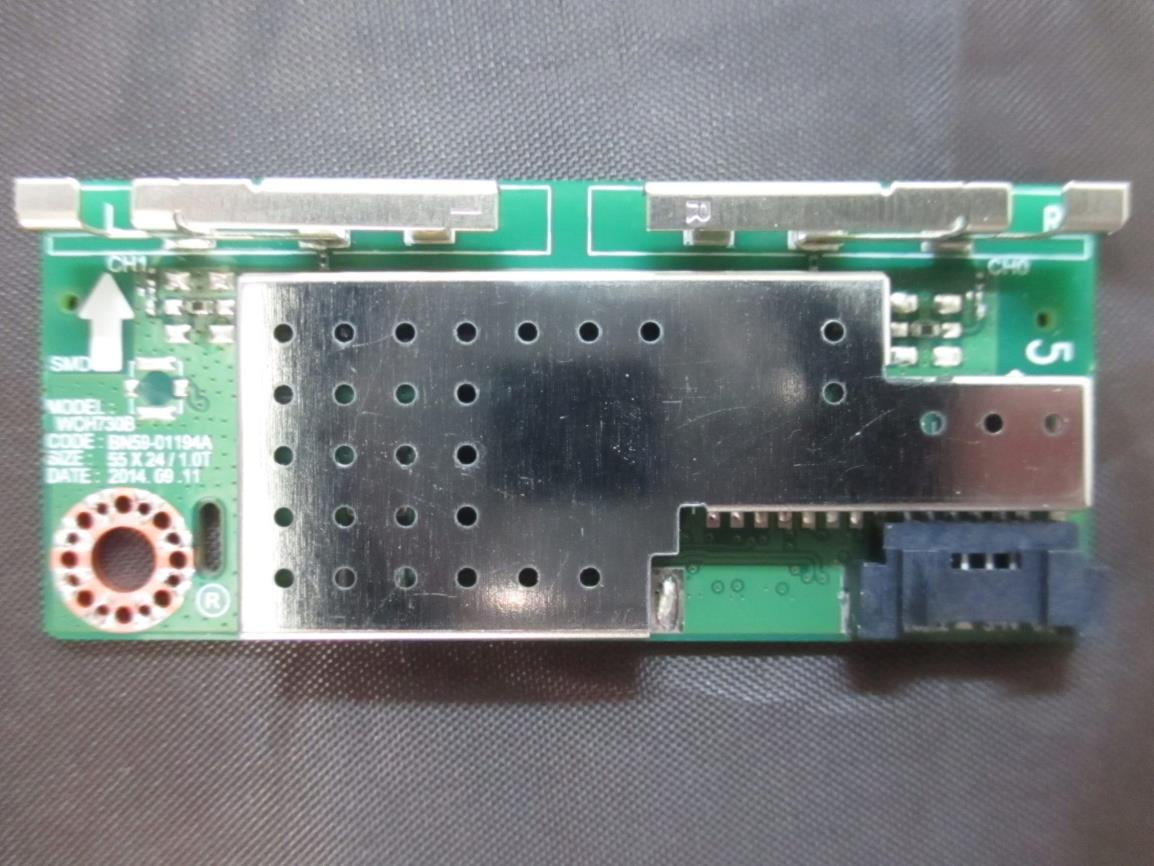

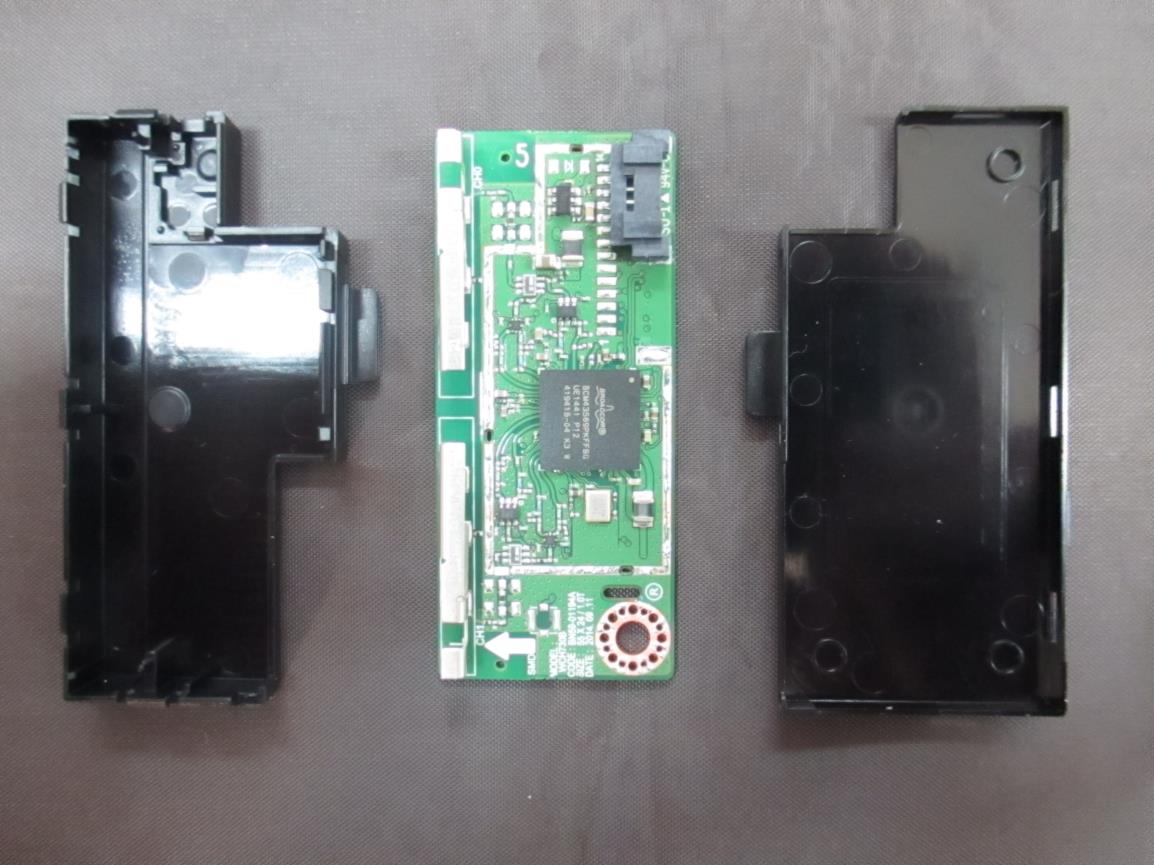

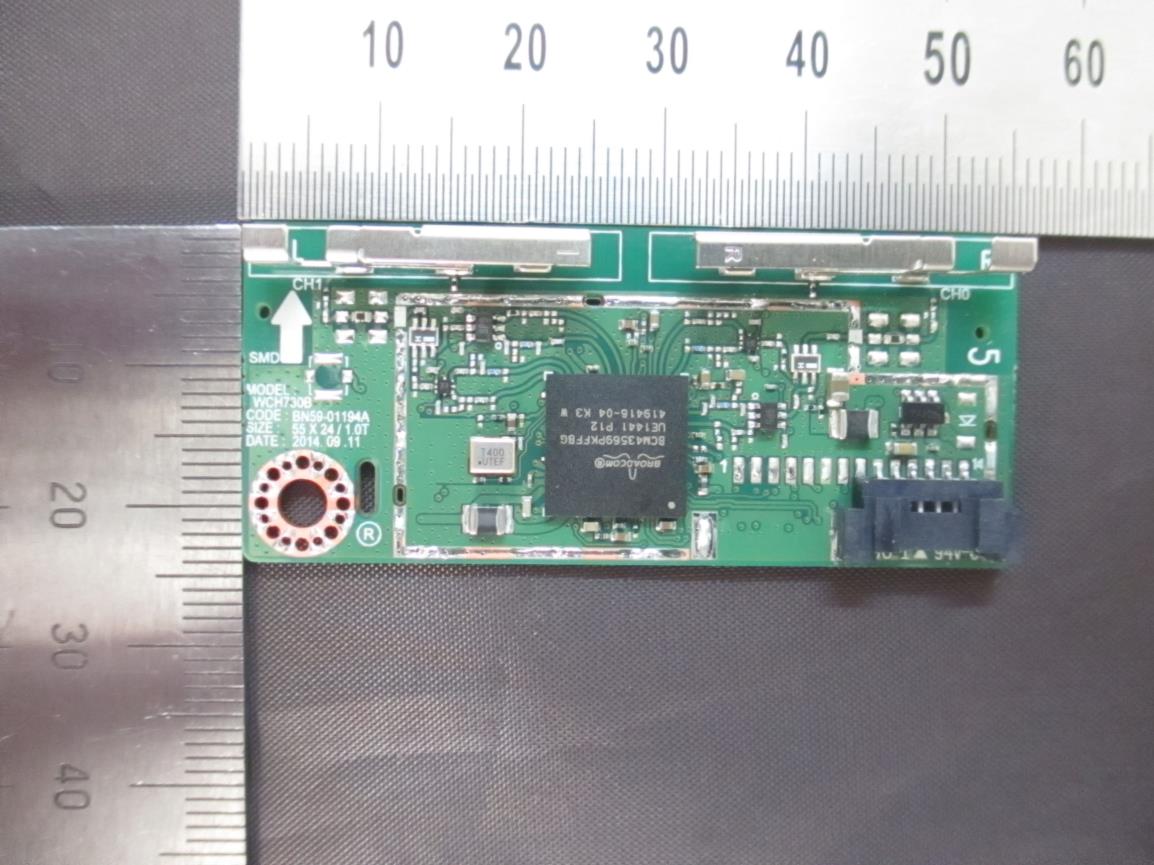

FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Page 1 / 4 View 1 FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Page 2 / 4 View 2 FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Page 3 / 4 View 3 FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Page 4 / 4 View 4

DT&C Co., Ltd. 42, Yurim-ro, 154beon-gil, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea 449-935 Date: January 20, 2015 Maximum Permissible Exposure (MPE) - FCCID : A3LWEH720B - Product name : Wi-Fi Transmitter - Model name : WEH720B - Device category : Mobile device For maximum permissible exposure(MPE) evaluation of mobile device, the calculation is: S = Maximum Power density P = Maximum power with tolerance G = Numeric power gain of the antenna R = Distance from transmitting antenna RF Function Frequency Range (MHz) Antenna gain (dBi) Max. Target Power (dBm) Power Tolerance (dB) MPE (mW/cm 2 ) ANT 1ANT 2Directional 802.11b/g 2412 ~ 2462 2.20 1.90 N/A16.00 ± 2.5 0.023374 802.11n(HT20) – 1TX 2412 ~ 2462 2.20 1.90 N/A16.00 ± 2.5 0.023374 802.11n(HT20) – 2TX 2412 ~ 2462 N/AN/A5.062 13.50 ± 2.5 0.025406 802.11n(HT40) – 1TX 2422 ~ 2452 2.20 1.90 N/A 11.25 ± 2.5 0.007829 802.11n(HT40) – 2TX N/A N/A 5.062 8.75 ± 2.5 0.008510 802.11a – 1TX 5180 ~ 5240 5260 ~ 5320 5500 ~ 5700 5745 ~ 5825 2.50 2.60 2.80 2.00 2.20 2.80 2.50 2.80 N/A 15.50 ± 2.5 0.022322 802.11(HT20) – 1TX 802.11ac(VHT20) – 1TX 5180 ~ 5240 5260 ~ 5320 5500 ~ 5700 5745 ~ 5825 2.50 2.60 2.80 2.00 2.20 2.80 2.50 2.80 N/A 15.50 ± 2.5 0.022322 802.11(HT20) – 2TX 802.11ac(VHT20) – 2TX 5180 ~ 5240 5260 ~ 5320 5500 ~ 5700 5745 ~ 5825 N/A N/A 5.362 5.711 5.662 5.420 11.50 ± 2.5 0.017176 802.11n(HT40) – 1TX 802.11ac(VHT40) – 1TX 5190 ~ 5230 5270 ~ 5310 5510 ~ 5670 5755 ~ 5795 2.50 2.60 2.80 2.00 2.20 2.80 2.50 2.80 N/A 15.50 ± 2.5 0.022322 802.11n(HT40) – 2TX 802.11ac(VHT40) – 2TX 5190 ~ 5230 5270 ~ 5310 5510 ~ 5670 5755 ~ 5795 N/A N/A 5.362 5.711 5.662 5.420 11.50 ± 2.5 0.017176 802.11ac(VHT80) – 1TX 5210 5290 5530 5775 2.50 2.60 2.80 2.00 2.20 2.80 2.50 2.80 N/A 13.50 ± 2.5 0.014084 802.11ac(VHT80) – 2TX 5210 5290 5530 5775 N/A N/A 5.362 5.711 5.662 5.420 10.50 ± 2.5 0.013644 According to above calculation, this device complies with FCC 1.1310 limit.

FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 2 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Test Report Version Test Report No. Date Description DRTFCC1501-0008 Jan. 20, 2014 Initial issue FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 3 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Table of Contents 1. EUT DESCRIPTION .................................................................... 4 2. INFORMATION ABOUT TESTING .............................................. 5 2.1 Test mode .......................................................................................................................... 5 2.3 Auxiliary equipment ......................................................................................................... 5 2.4 Tested environment ......................................................................................................... 5 2.5 EMI suppression Device(s) / Modifications ................................................................... 5 3. SUMMARY OF TESTS ................................................................ 6 4. TEST METHODOLOGY .............................................................. 7 4.1 EUT configuration ............................................................................................................ 7 4.2 EUT exercise ..................................................................................................................... 7 4.3 General test procedures .................................................................................................. 7 4.4 Description of test modes ............................................................................................... 7 5. INSTRUMENT CALIBRATION .................................................... 8 6. FACILITIES AND ACCREDITATIONS ........................................ 8 6.1 Facilities ............................................................................................................................ 8 6.2 Equipment ......................................................................................................................... 8 7. ANTENNA REQUIREMENTS ..................................................... 8 8. TEST RESULT ............................................................................ 9 8.1 6dB bandwidth .................................................................................................................. 9 8.2 Maximum peak conducted output power ..................................................................... 31 8.3 Maximum power spectral density ................................................................................. 34 8.4 Out of band emissions at the band edge / conducted spurious emissions ............. 55 8.5 Radiated spurious emissions ..................................................................................... 104 8.6 Power-line conducted emissions ............................................................................... 109 8.7 Occupied bandwidth .................................................................................................... 112 9. LIST OF TEST EQUIPMENT ................................................... 125 APPENDIX I................................................................................. 126 FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 4 / 127 Copyright ○ C 2015, DT&C Co., Ltd. 1. EUT DESCRIPTION FCC Equipment Class Digital Transmission System(DTS) Product Wi-Fi Transmitter Model Name WEH720B Add Model Name NA Power Supply DC 5 V Frequency Range 2.4 GHz Band ▪ 802.11b/g/n(HT20): 2412 MHz ~ 2462 MHz ▪ 802.11n(HT40): 2422 MHz ~ 2452 MHz Modulation Type ▪ 802.11b: CCK/DSSS ▪ 802.11g/n: OFDM Transmissions category Completely uncorrelated signal Antenna Specification Antenna type: Internal Antenna Antenna gain ▪ 2.4 GHz Band: ANT 1 : 2.200 dBi & ANT 2 : 1.900 dBi Antenna configuration ▪ 802.11b/g: Single Transmitting (ANT 1) ▪ 802.11n(MCS0 ~ 7) : Single Transmitting (ANT 1 or ANT 2) ▪ 802.11n(MCS8 ~ 15): Multiple Transmitting (ANT 1 and ANT 2) FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 5 / 127 Copyright ○ C 2015, DT&C Co., Ltd. 2. INFORMATION ABOUT TESTING 2.1 Test mode Transmitting Mode Test mode Worst case data rate Tested Frequency(MHz) Lowest Middle Highest Single TM 1 802.11b 1 Mbps 2412 2437 2462 TM 2 802.11g 6 Mbps 2412 2437 2462 TM 3 802.11n(HT20) MCS 0 2412 2437 2462 TM 4 802.11n(HT40) MCS 0 2422 2437 2452 Multiple TM 5 802.11n(HT20) MCS 8 2412 2437 2462 TM 6 802.11n(HT40) MCS 8 2422 2437 2452 Note 1: The worst case data rate is determined as above test mode. And all tests conducted in this report were made at the worst case data rate. Note 2: The test mode 5(TM 5) and 6(TM 6) are tested for measure-and-sum technique of multiple transmitting mode. 2.3 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note Notebook PC 20095 WB06116969 Lenovo DOC - - - - - 2.4 Tested environment Temperature : 22 ~ 23 °C Relative humidity content : 41 ~ 46 % R.H. Details of power supply : DC 5.0 V 2.5 EMI suppression Device(s) / Modifications EMI suppression device(s) added and/or modifications made during testing → None FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 6 / 127 Copyright ○ C 2015, DT&C Co., Ltd. 3. SUMMARY OF TESTS FCC Part Section(s) RSS Section(s) Parameter Limit Test Condition Status Note 1 I. Transmitter Mode (TX) 15.247(a) RSS-210 [A8.2] 6 dB Bandwidth > 500 kHz Conducted C 15.247(b) RSS-210 [A8.4] Transmitter Output Power < 1 Watt C 15.247(d) RSS-210 [A8.5] Out of Band Emissions / Band Edge 20 dBc in any 100 kHz BW C 15.247(e) RSS-210 [A8.2] Transmitter Power S…

Text truncated - open the document above for the full version.

FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 72 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 1 & Lowest Reference Low Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 73 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 74 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 75 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 1 & Middle Reference Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 76 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 77 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 1 & Highest Reference High Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 78 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 79 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 80 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 2 & Lowest Reference Low Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 81 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 82 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 83 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 2 & Middle Reference Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 84 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 85 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 3 & ANT 2 & Highest Reference High Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 86 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 87 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 88 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 4 & ANT 1 & Lowest Reference Low Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 89 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 90 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 91 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 4 & ANT 1 & Middle Reference Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 92 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 93 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 4 & ANT 1 & Highest Reference High Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 94 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 95 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 96 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 4 & ANT 2 & Lowest Reference Low Band-edge FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 97 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 98 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 99 / 127 Copyright ○ C 2015, DT&C Co., Ltd. TM 4 & ANT 2 & Middle Reference Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 100 / 127 Copyright ○ C 2015, DT&C Co., Ltd. Conducted Spurious Emissions FCCID: A3LWEH720B IC: 649E-WEH720B DTNC1412-05482, DTNC1412-05483 Report No.: DRTFCC1501-0008 TRF-RF-221(00)140218 Page 101 / 127 Copyright ○ C 2015,…

Text truncated - open the document above for the full version.

FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for radiated measurement EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for radiated measurement FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for radiated measurement FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for radiated measurement FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for conducted emissions FCCID: A3LWEH720B IC: 649E-WEH720B Copyright Ⓒ 2015, DT&C Co., Ltd. Test Setup photographs for DFS testing
