A3LWIDT20RWi-Fi Module

1. Introduction WIDT20R is a USB embedded module compliant with IEEE802.11n standard. The core chipset is from Ralink, part number is RT5572. 2. Hardware Architecture: 2.1 Main Chipset Information 2.2 Circuit Block Diagram The major internal components and external interfaces of WIDT20R are illustrated in Figure 1-1. Figure 1-1 WIDT20R Major Component and System Interface 3. Antennas Information Two SMD a ntennas supporting both TX & RX. Hz +VGO8GPFGT2CTVPWODGT 0$&%%35DGLR7UDQVFHLYHU3$5DOLQN57 * Information for OEM integrator : The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product. The user manual which is provided by OEM integrators for end users must include the following information in a prominent location. “To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.” Label for end product must include “Contains FCC ID: A3LWIDT20R/ IC ID:649E-WIDT20R or “ A RF transmitter inside , FCC ID: A3LWIDT20R/ IC ID:649E-WIDT20R”. g The major internal components and external interfaces of WIDT20R are illustrated in Figure 1-1. Figure 1-1 WIDT20R Major Component and System Interface 2.2 CircuitBlockDiagram +VGO8GPFGT2CTVPWO DGT 0$&%%35DGLR7UDQVFHLYHU3$5DOLQN57 *Information for OEMintegrator :The OEM integrator has tobe awarenot to provideinformationtothe end user regarding how to install or removethis RFmodule intheuser manualof the endproduct. Thlhihiid dbOEMittfdtildthfll iiftiiitlti 1. Introduction WIDT20R is a USB embedded module compliant with IEEE802.11n standard. The core chipset is from Ralink, part number is RT5572. m 2. Hardware Architecture: 2.1 Main Chipset Information The user manual which isprovidedby OEM integratorsfor end users mustinclude the followinginformation in a prominentlocation. “To complywith FCC RFexposure compliance requirements,theantennaused for this transmitter mustbe installedtoprovide a separation distance of at least20 cmfrom all persons and must notbe co-locatedor operatinginconjunction with any other antenna or transmitter.” Label for end productmust include “ContainsFCC ID: A3LWIDT20R/ ICID:649E-WIDT20Ror “ A RF transmitter inside, FCC ID: A3LWIDT20R/ IC ID:649E-WIDT20R”. 4. Operational Description WIDT20R is the 802.11a/b/g/n RF Module, that acts as a communication hub for users of a wireless device to connect to a wired LAN. MIMO type Product type: WLAN (11b mode: 1TX, 1RX, 11g mode: 1TX, 1RX, n mode: 2TX, 2RX) Time base of the transmission frequency For IF and RF frequency, Crystal is a clock reference. Synthesizer Synthesizer inside Transceiver. Internal voltage controlled oscillator (VCO) provides the desired LO signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. Transmission Base-band Processing (BBP) IC has DSSS (BPSK/QPSK/CCK) and OFDM (BPSK/QPSK/16QAM/64QAM) modulation function, it provides transmission data rate are 1, 2, 5.5, 11 Mbps on DSSS and 6, 12, 18, 24, 36, 48, 54 Mbps on OFDM. Digital data signal will be converted to analog (TX IQ) signals through DAC in BBPIC, TX IQ pass through to low pass filter. TX I/Q signal use direct conversion (zero-IF) architecture converter to generate carrier frequency signal. Transceiver IC and internal PA magnify output power. Receiver Reverse direction isolation of LNA inside Transceiver IC suppresses unwanted radiation. Then RF signal will be directly down to IF signal (RX IQ) and high frequency spurious emissions are suppressed by LPF. At last RX IQ signal will be demodulated digital data. Base band Processing 1. Channel selection is controlled by BBP IC to support data modulation: - DSSS (BPSK/QPSK/CCK) - OFDM (BPSK/QPSK/16QAM/64QAM) Power Control Level It uses closed-loop power control function to limit RF output power level. Transmit/Receive Switch EUT has Transmit/Receive Switch and Antenna switch. End user can’t select any power setting. Channel Selection Restriction For product available in the USA/Canada/Taiwan market, only channel 1~11 can be operated. Selection of other channels is not possible. But product also could be available in the Europe/Japan market, channel 1~13 can be operated under the manufacturer change the different driver. Data Rate Control The operation date rate is changing during data transfer base on the optimization of driver. Discontinue Transmitting with absence of Data or operational failure states “The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude the transmission of control or signaling information or the use of repetitive codes used by certain digital technologies to complete frame or burst intervals. Applicants shall include in their application for equipment authorization a description of how this requirement is met.” Data transmission is always initiated by software, which is then passed down through the MAC, through the digital and analog baseband, and finally to the RF chip. Several special packets (ACKs, CTS, PSPoll, etc...) are initiated by the MAC. These are the only ways the digital baseband portion will turn on the RF transmitter, which it then turns off at the end of the packet. Therefore, the transmitter will be on only while one of the aforementioned packets is being transmitted. Product Details > Modulation see the below table for draft n > Data Modulation OFDM (BPSK / QPSK / 16QAM / 64QAM) > Frequency : 2.4GHz and 5GHz > Data Rate (Mbps) see the below table for Draft n > Channel Number 4 for 20MHz bandwidth ; 2 for 40MHz bandwidth > Channel Band Width (99%) MCS8 (20MHz): 18.08 MHz ; MCS8 (40MHz): 36.48 MHz Modulation modes

               !  "  #  $$ %  & ' (  & (  ) '    *+,-'*   ./0     10  2 0 "  0 34"  2 0 $56 $ 27 & '8'5 $4 0 &  & '8'5   "0&     2%% & 9 %  0 3    22  2&    2 0 $*    " 4"  2 0 $56 $ 27& '8'5 $4  "0&00(0&&& / $     10  2 0 "  & 0/    ": && " &0   " &%   '  &0* ; 2*" *&+,,-$'$$ ,67$  1  0 3 2'8'5  2 / 2 30/  % "  7 % /00 ( % ( &0 & % 2 <  "7     2 & 0  &0(     2 % ( & =  2       6   2     % 7 %  & 0% %&(  6$2$ 2  %   (   7    &% <  7  2  2 &     %&0%& /00  & 0" 2  <  7    %   &   0  "  20 &  (   %      2  2 %    & /000 & (     2   0 3<  7 %  %     & &    &(  2  0    &  0      &     9  " 0 & ( <  &7  &    0%    &" 2  &   /0%&  <  27  (   0  &  %    % 0 &    2  <  07   0  &   %   &      0  " 0  (  2%/00 9   & 0 & ( <  7 %  &%  / 0   20%  > % /0 9   &0 (    0   ("0 & ( /0  9 <  :7 %% %  /0 % 0%   &  &  %    (0&&% /00 9   &   & <  7   0  $   .0 0 3 ( & 0 /   & 0%% $    '   ?      ' 25 26@ 7!A  2  ' 2B  $4$

Applicant/Grantee Samsung Electronics Co., Ltd. FCC ID: A3LWIDT20R Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. The radio portion of this module has been shielded, Please see photographs provided with the application. Y 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic U1 inputs. Refer to Block Diagram. Y 3 The modular transmitter must have its own power supply regulation. The IC Contain an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. Y 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. This module is equipped with an onboard PCB Antenna. For further details please refer to the antenna data sheet included in the filing. Y 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between This module was tested in a stand-alone configuration. Y the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. This module is labeled with its own FCC ID number, Please see product label design and the external photograph of the device with this label submitted with the application. Y 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. Y application for equipment authorization. 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. This module is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the test report. Y A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification m…

Text truncated - open the document above for the full version.

416, Maethan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: December 20, 2011 RE: Request of confidentiality for FCC ID: A3LWIDT20R To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Sectio 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. Temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, December 20, 2011 NAME : Jaywoo Lee TITLE : Engineer COMPANY : : Samsung Electronics Co., Ltd. 416 Maetan-dong, Young-Tong gu, Suwon, Korea 442-742

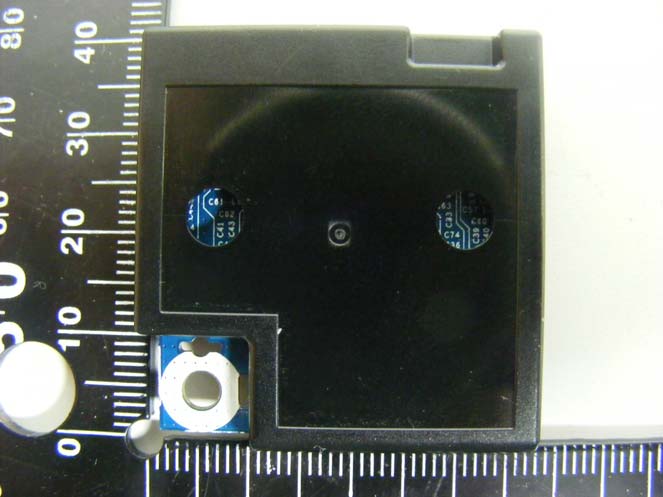

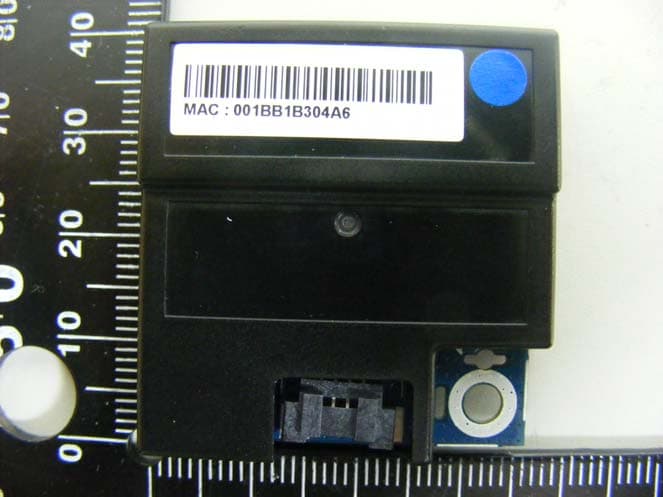

External photos of EUT Top view of EUT Bottom view of EUT Side view of EUT

* Label Information - Module Label -When the module’s installed in end product. Samsung Electronics Co., Ltd. Model : WIDT20R Contains Transmitter Module FCC ID: A3LWIDT20R Samsung Electronics Co., Ltd. Model: WIDT20R FCC ID: A3LWIDT20R IC: 649E-WIDT20R Made In Korea

Internal photos of EUT Top view of PCB Removing Shield Bottom view of PCB ANT1 (Tx/Rx) ANT2 (Tx/Rx)

NoRef DesQty VALUE2JEDEC_TYPEVendorVendor PartsVendor2 Vendor2 Part Number 1 A0 1 SMDANT-L TYCO ELECTRONICSNew Antenna 2 A1 1 SMDANT-R TYCO ELECTRONICSNew Antenna 3 BD1 1 BLM18PG181SN1D SMD-CAP-1608 MurataBLM15BB121SN1 4 C18 1 18PFSMD-CAP-0603-2 MURATAGRM0335C1H180JD01D TAIYOTMK063CH180JP-F 5 C21,C23,C24,C28,C49,C52, C54,C66,C69 9 100NFSMD-CAP-0603-2 MURATAGRM033R61A104KE15D 6 C33 1 2.7PFSMD-CAP-0603-2 7 C39-C41,C43 4 39PFSMD-CAP-0603-2 8 C44 1 3.3PF, 0.25pFSMD-CAP-0603-2 DARFONC0603NP0339CFT 9 C48,C58 2 1.2PF, 0.25pFSMD-CAP-0603-2 DARFONC0603NP0129CFT 10 C51,C57,C61,C67,C68 5 1PF, 0.25pFSMD-CAP-0603-2 DARFONC0603NP0109CGT 11 C73 1 0.2PFSMD-CAP-0603-2 12 C74 1 0.5PFSMD-CAP-0603-2 TAIYOTMK063CH0R5CP-F 13 C75,C76 2 0.7PFSMD-CAP-0603-2 14 C10 1 22PFSMD-CAP-1005-2 MURATAGRM1555C1H220JZ01D DARFONC1005NP0220JGT 15 C11 1 39PFSMD-CAP-1005-2 TAIYOUMK105CH390JW-FDARFONC1005NPO390JGT 16 C2,C3,C8,C12,C13,C30,C72 7 100NFSMD-CAP-1005-2 DARFONC1005X5R104KDT 17 C22,C25,C29,C32,C35,C37, C38,C42,C45- C47C50C53C59 14 1UFSMD-CAP-1005-2 DARFONC1005X5R105KCT 18 C4 1 47PFSMD-CAP-1005-2 MURATAGRM1555C1H470JZ01D 19 C56 1 5.6PF, 0.25pFSMD-CAP-1005-2 DARFONC1005NPO569DGT 20 C6 1 1UF,10VSMD-CAP-1005-2 MURATAGRM155R61A105KE15D 21 C65 1 100PFSMD-CAP-1005-2 MURATAGRM1555C1H101JZ01D 22 C7 1 8.2PF, 0.25pFSMD-CAP-1005-2 DARFONC1005NP0829CGT Q 23 C16 1 4.7uFSMD-CAP-1608 SAMSUNGCL10A475K Q8NNNC 24 C26,C27 2 10uFSMD-CAP-1608 MURATAGRM188R60J106ME47D 25 C1,C5 2 4.7uF, 16VSMD-CAP-2012 26 C14,C15 2 10uF,10VSMD-CAP-2012 MURATAGRM21BR60J106KE19L 27 CN1,CN2 2SMD-CN-COAXIAL MURATAMM8430-2600RB3 FoxconnKMC1001-F007-7F 28 CN3 1 12507WR-H04G SMD-HEADER-4P YEONHO12507WR-H04G 29 FT1,FT2 2 DPX165900DTSMD-FILTER-6P-1608 TD KDPX165900DT-8025A1 30 IC1 1 AUR9707SMD-DFN-12P PAMPAM2306AYPAAAURAMICRO AUR9707AGD 31 IC2 1 RT5572DSMD-QFN-76P RALIN KRT5572N 32 L10 1 2.2NHSMD-CAP-0603-2 33 L11 1 2.7NHSMD-CAP-0603-2 TAIYOHK06032N7S-TACXHI0603-1B2N7SHT 34 L3,L6,L7,L9 4 3.9NHSMD-CAP-0603-2 MURATAL QP03TN3N9B00D 35 L8 1 1NHSMD-CAP-0603-2 36 L4,L5 2 2.2uHSMD-COIL-2520 TD KVLS252010T-2R2M 37 R30,L1,L2 3 0OHMSMD-CAP-0603-2 38 R33,R34 2 3.3OHMSMD-CAP-0603-2 39 R1,R2,R4,R18 4 100KOHM,1%SMD-RES-1005-2 40 R11,R20-R23,R25-R28 9 0OHMSMD-RES-1005-2 TA-IRM04JTN0 41 R24 1 8.2KOHM,1%SMD-RES-1005-2 TA-IRM04FTN8201 42 R29 1 12KOHM,1%SMD-RES-1005-2 TA-IRM04JTN123 43 R3,R13,R14,R16,R19 5 1KOHM,1%SMD-RES-1005-2 TA-IRM04FTN1001 44 R7 1 267KOHM,1%SMD-RES-1005-2 TA-IRM04FTN2673 45 R8 1 90.9KOHM,1%SMD-RES-1005-2 TA-IRM04FTN9092 46 R9,R10 2 59KOHM,1%SMD-RES-1005-2 TA-IRM04FTN5902 47 VT1,VT2 2 TVM1G300M100R SMD-VARISTOR-1608 THINKINGTVM1G300M100R 48 X1 1 TZ0475BSMD-CRYSTAL-32X25 TSTTZ0475BHELEX3S040000BF1H-HZ 113 C9,C17,C19,C31C20,C55 6 NISMD-CAP-1005-2 C34,C36,C60,C62-C64 6 NISMD-CAP-0603-2 OP1 1 NISMD-LED-2P-1_4 R12,R15,R17 3 NISMD-RES-1005-2 Total
