A3LWISP30Wireless Audio Transmitter Module

Wireless audio Module Version 1.0 Samsung Electronics page 1 of 8 Manual for 5GHz dual-band Wireless Audio module Samsung Copyright notice The information furnished herein by Samsung is proprietary and confidential and it shall not be duplicated, published or disclosed to any third party in whole or in part without the prior written consent of Samsung. Version Number Version No. Date Comments 1.0 2010.10.27 First issued Revision History Revision No. Date Comments Wireless audio Module Version 1.0 Samsung Electronics page 2 of 8 1. Introduction This features an embedded 8052 MCU, new low-power modes and support for the 5 GHz dual-band RF receivers. This supports up to 4 stereo audio streams and comes together with additional features such as: data encryption, pairing functionality, bi-directional control data messages, full autonomy for receivers, low-power audio snooze mode, WLAN detection and automatic frequency allocation. This module itself provides the basic functions of audio processing and buffering, Data Link Layer and Physical Layer. This enables the module to provide the digital interfaces on one side and the radio interfaces on the other side. The core chipset is from STS, part number DARR 83. This application is designed for DVD/BD-HTS, and all kinds of AV-R model. 2. Hardware Architecture: 2.1 Main Chipset Information Item Vendor Part Number BBIC STS DARR 83 RFIC Airoha AL 5230 2.2 Circuit Block Diagram The major internal and external block diagram of Samsung 5GHz dual-band wireless audio module is illustrated in Figure 1-1. Figure 1-1 Samsung 5GHz dual-band wireless audio module block diagram and System Interface 2.3 Module output power information - Module output power within filter Class type TX power(typ.) Data rate Class2 + 10dBm 22Mbps Wireless audio Module Version 1.0 Samsung Electronics page 3 of 8 3. Operational Description Samsung wireless audio module is the 5GHz dual band RF Module that provide users of a wireless audio system to connect to TV. This uses 5GHz RF 2 channels. (5.2GHz band (5180, 5210, 5240 MHz), 5.8GHz band (5736, 5762, 5814MHz)) This enables a wide range of digital wireless audio applications. This wireless audio technology has been known for its extreme wireless fidelity and audio quality. This module further extends this offering a high level of integration resulting in a very low-cost complete wireless system solution, without any sacrifice to the main technology drivers: Audio Quality and Wireless Fidelity. - Time base of the RF frequency For Zero IF and RF frequency, a crystal (44MHz) is a clock reference. - Synthesizer Synthesizer inside transceiver internal voltage controlled oscillator (VCO) provides the desired LO Signal base on the phase-locked loop (PLL) with a relatively wide tuning range for this application. - Transmission In transmit mode, the audio engine controlled I2S, transforms the audio data into packetized digital IQ signals. These are in turn pulse-shaped before conversion by a 10 bits 44Msps DAC to match to the analog IQ inputs of the radio IC. The radio IC has programmable baseband filters to lower the RF spectrum side lobes and to suppress the DAC image and the DAC spurious. The output power is programmable. A power detector (PD_out) on the radio IC enables close-loop TX power control. The differential RF PA outputs are connected via a balun and low pass filter to a transmit/receive switch with TX diversity option to the antenna outputs. - Receiver In receive mode, antenna diversity is supported. The single ended output of the TR switch is connected to the RF LNA input through a matching network. Filtering and amplification is all performed by the radio transceiver. The gain setting is controlled by the BB. The analog IQ outputs are sampled by the BB by its integrated 22 Msps dual channel 8bit ADC. This received data is demodulated and fed to the audio processing engine controlling the I2S connections. - Power Control Level The integrated PA for this device can transmit at a maximum power of +4dBm for class 2 operation. - Transmit/Receive Switch DUT has Transmit/Receive Switch. End user can’t select any power setting. 3. Application for Wireless audio module With bidirectional audio stream transmission feature and stream broadcast/Unicast mode supported, this module supports unidirectional Audio Ack, NAck, Bidirectional Audio NAck, Headset Ack applications. Wirele Version 1.0 5. Pin desc 1.2 VDD 6.RESE T 7. I2C_SC 8. I2C_SD 12, 24. GR 13. BCK 14. LRC K 15. DAT_ 16. DAT_ 6. Installati This module And the loc 7. Brief s ys This radios ess audi cription : 5V powe r T # : it is use CL_S : I2C DA_S: I2C ROUND K _W _X ion e must be in ation of inst stem block d system bloc io Modu r supply inpu ed to 5V pow serial clock data conne c nstalled in a tallation is a Figu diagram ck diagram i Woofer ule Sa m ut wer supply i connection ction. device and n as follows Fi ure 6-1 The l s as follows Soun msung Elect input. . not allow th igure 6-1. location of in s figure 7-1 nd Bar ronics e user to rep nstallation place nor moodify it. page 4 o ff 8 Wireless audio Module Version 1.0 Samsung Electronics page 5 of 8 8. Notice FCC Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the f…

Text truncated - open the document above for the full version.

416, Maethan 3-Dong, Youngtong-Ku, Suwon-City, Kyung-ki-Do, KOREA Attn: Reviewing Engineer Federal communications Commission 7435 Oakland Mills Road Columbia, MD 21046 January 05, 2010 RE: PART 15 UNLICENSED MODULAR TRANSMITTER APPROVAL To whom It May Concern: We, Samsung Electronics Co., Ltd., Hereby requests a Modular Approval of our RF Transceiver Module, described as follows: Brand name: SAMSUNG Model name: WISP30 FCC ID: A3LWISP30 In FCC Public Notice DA 00-1407 released June 26, 2000 there are eight numbered requirements that our Blue tooth module complies with. 1. The modular transmitter must have an own shielding : The radio portion of this module has been shielded, Please see photographs provided with the application. 2. The modular transmitter must have buffered modulation/data inputs. : This module has a memory managements unit inside of the IC . It buffers the data inputs from USB terminal. 3. The modular transmitter must have its own power supply regulation. : The IC Contain an own voltage regulation. In case of changes in the supply voltage VCC (for example caused by temperature changes or other effects), the internal voltage will be stabilized. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c: This module is equipped with an onboard PCB Chip Antenna. For further details please refer to the antenna data sheet included in the filing. 5. The modular transmitter must be tested in a stand-alone configuration: This module was tested in a stand-alone configuration. 6. The modular transmitter must be labeled with its own FCC ID number: This module is labeled with its own FCC ID number, Please see product label design and the external photograph of the device with this label submitted with the application. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: A3LWISP30 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX IC : 649E-WISP30 ". 7. The modular transmitter must comply with any specific rule of operation requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements: This module is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the Users Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements: “This module is compliant with all applicable RF exposure requirements. RF Exposure is addressed in the test report. Sincerely, Name: Jaywoo Lee Title: Engineer Company: SAMSUNG ELECTRONICS CO., LTD

416, Maethan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, KOREA Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Date: March 5, 2011 RE: Request of confidentiality for FCC ID: A3LWI SP30 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Sectio 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. Hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 day after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. Temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Operational Description 3 Schematics SHORT-TERM 4 External Photos 5 Internal Photos 6 Test-Setup Photos 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Dec. 2, 2010 NAME : Sun Kwan Kim TITLE : S. Manager COMPANY : Samsung Electronics Co., Ltd. 416 Maetan-dong, Young-Tong gu, Suwon, Korea 442-742

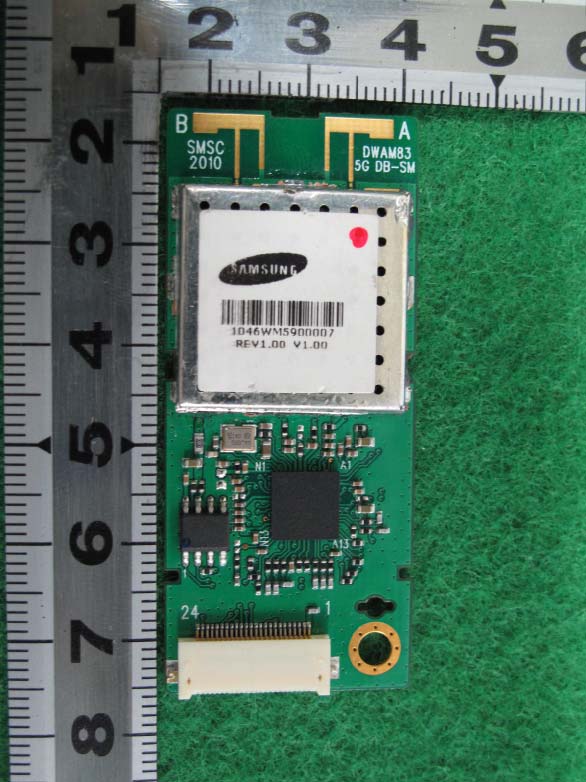

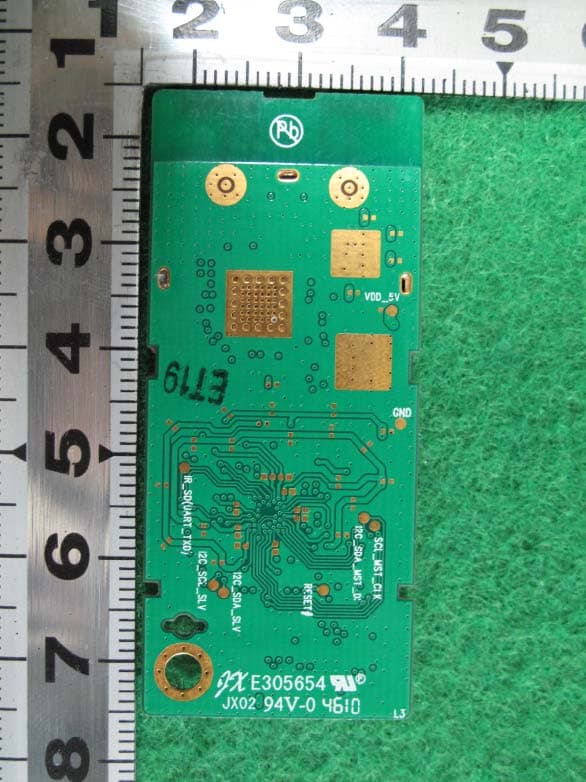

Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 49 of 51 APPENDIX C – EUT PHOTOGRAPHS Front View of EUT Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 50 of 51 Rear View of EUT

Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 46 of 51 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual Labelling Requirements

Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 51 of 51 Front View without shielding can

Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 44 of 54 9. MAXIMUM PERMISSIBLE EXPOSURE RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the Environmental of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) FrequencyElectric FieldMagnetic Field Power Density Averaging Time Range(MHz)Strength(V/m)Strength(A/m) (mW/cm 2 ) (Minutes) 30 - 30061.40.16316 300 - 1500......F/3006 1500 - 100000......56 30 - 30027.50.0730.230 300 - 1500......F/150030 1500 - 100000......130 (A) Limits for occupational / Contral Exposure (B) Limits for General Population / Uncontrolled Exposure F = Frequency (MHz) Fries formula Fries transmission formula : Pd = (Pout * G) / (4 * π* r²) r = √((Pout * G) / 4 * π* Pd)) Where Pd = Power density in ㎽/㎠ Pout = Output power to antenna in ㎽ G = Gain of antenna in linear scale π= 3.1416 r = Distance between observation point center of the radiator in cm Pd is the limit of MPE, 1 ㎽/㎠. If we know the Maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the Maximum distance r where the MPE limit is reached and Power density at prediction frequency. Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 45 of 54 TEST DATA Test Result : The maximum antenna gain is 3.36 dBi. Maximum peak output power at antenna input terminal:16.10 (dBm) Maximum peak output power at antenna input terminal:40.74 (mW) Antenna gain(typical):3.36 (dBi) Maximum antenna gain:2.17 (numeric) Prediction distance:20 (cm) Prediction frequency:5210 (MHz) MPE limit for uncontrolled exposure at prediction frequency:1 (mW/cm^2) Maximum allowable antenna gain:20.91 (dBi) Maximum Distance:2.65 (cm) Power density at prediction frequency : 0.017568 (mW/cm^2) Test result: PASS

Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 2 of 54 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operation During Test 7 3.2 Support Equipment 7 3.3 Setup Drawing 7 3.4 EUT Information 8 4. Summary of Test Results 9 5. Recommendation / Conclusion 10 6. Antenna Requirements 10 7. Description of Test 11 7.1 Conducted Emissions 11 7.2 Radiated Emissions 12 7.3 Radiated Spurious & Harmonic Emission (EIRP) 13 7.3 6 dB Bandwidth 14 7.4 Maximum Peak Output Power 14 7.5 Peak Power Spectral Density 15 7.6 Peak Excursion Measurement 15 7.7 Frequency Stability 16 8. Test Data 17 8.1 Conducted Emissions 17 8.2 Radiated Emissions 20 8.3 6 dB Modulated Bandwidth 21 8.4 Peak Power Output 25 Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 3 of 54 8.5 Power Spectral Density 26 8.6 Peak Excursion 30 8.7 Radiated Spurious Emissions 34 8.8 Receiver Spurious Emissions 42 8.9 Frequency Stability 43 9 Maximum Permissible Exposure 44 10 Accuracy of Measurement 46 11. Test Equipment 48 Appendix A: Labelling Requirement 49 Appendix B: Photographs of Test Set-up 50 Appendix C: EUT Photographs 52 Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 4 of 54 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jaywoo. Lee Samsung Electronics Co., Ltd. 416 Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 KOREA z FCC ID: A3LWISP30 z IC ID: 649E-WISP30 z Model: WISP30 z Brand Name: SAMSUNG z EUT Type: Audio transceiver module z Classification: Unlicensed National Information Infrastructure(UNII) z Applied Standard: FCC 47 CFR Part 15 subpart E 15.407 and IC RSS-210 Annex 9 z Test Procedure(s): ANSI C63.4 (2003) z Dates of Test: Nov. 23, 2010 ~ Dec. 9, 2010 z Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 5 of 54 2. INTRODUCTION 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 and IC ID : 649E-WISP30 These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-322-2333 Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 6 of 54 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E-1 VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 7 of 54 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT was controlled and monitored by testing jig which manufacturer supported. The EUT have two antennas which are not working simultaneously. All tests were performed At two antenna pathes then the worst case was recored. The EUT was programmed with the following power setting that used during the testing: Frequency 5180 MHz 5210 MHz 5240 MHz Power Level 6 6 6 3.2 Support Equipment EUT Samsung Electronics Co., Ltd. FCC ID: A3LWISP30 S/N: N/A Laptop Computer Dell Inc. Model : PP27L 1.5 m shielded USB cable FCC DOC S/N : N/A AC/DC Adapter Hipro Electronics(Dongguan) Co., Ltd. Model : HA90PE1-00 1.0 m unshielded power cable FCC DOC S/N : N/A 3.3 Setup Drawing EUT Laptop Computer AC/DC Ada pter 5 GHz Band Traffic USB Indoor Outdoor Power Cable I/O Cable Test Report No.: NK-10-R-378-2 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LWISP30 / IC ID :649E-WISP30 Page 8 of 54 3.4 EUT Information The EUT is the Samsung Audio transceiver module FCC ID: A3LWISP30, IC ID: 649E- WISP30. Specifications: Category Audio transceiver module Model Name WISP30 Brand Name SAMSUNG Frequency of Operation 5180 MHz to 5240 MHz Power Output (Conducted) 16.10 dBm …

Text truncated - open the document above for the full version.

Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 47 of 51 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK-10-R-378-1 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LSWA5000 / IC ID :649E-SWA5000 Page 48 of 51 z Radiated Test Picture (X-Axis, Front) z Radiated Test Picture (X-Axis, Rear)
