A3LWMG160Wireless Multimedia Transceiver

World Wide Web www.samsungmobile.com 11 Contents Safety and usage information .............................................. 2 Unpack ................................................................................. 4 Layout ................................................................................... 4 Connect your gateway to a TV ............................................ 5 Turn your gateway on .......................................................... 6 Connect your gateway to a DMC (Digital Media Controller) ..................................................... 7 Play files stored in a DMS (Digital Media Server) ............... 8 Warranty and parts replacement ....................................... 10 Correct disposal of this product ......................................... 11 English 2 Safety and usage information Comply with the following precautions to avoid dangerous or illegal situations and ensure peak performance of your product. Keep your product and all accessories out of the reach of small children or animals. Small parts may cause choking or serious injury if swallowed. Use only Samsung-approved accessories. Using incompatible accessories may damage your product or cause injury. Avoid exposing your product to very cold or very hot temperatures (below -10° C/14° F or above 40° C/104° F). Do not allow your product to get wet—liquids can cause serious damage. Do not handle your product with wet hands. Water damage to your product can void your manufacturer’s warranty. Allowing unqualified personnel to service your product may result in damage to your product and will void your warranty. Avoid using or storing your product in dusty, dirty areas to prevent damage to moving parts. Your product is a complex electronic product—protect it from impacts and rough handling to avoid serious damage. • • • • • • • English 3 Follow these instructions to connect your Wireless Multimedia Gateway to your TV and a DMC (Digital Media Controller) using the Wi-Fi technology. Once connected, you can access files on a DMS (Digital Media Server) with the DMC and view them on your TV screen, or view files stored in a memory card. Your gateway supports the IEEE 802.11b/g/n. 4 Unpack Gateway•Travel adapter•HDMI cable (for digital TVs)• Layout Digital TV jack Adapter jack Multi-function button Indicator light Memory card* slot * Your gateway accepts microSD™ or microSDHC™ memory cards up to 16 GB (depending on memory card manufacturer and type). English 5 Connect your gateway to a TV To connect to a digital TV, 1. Connect the gateway to your TV with the supplied HDMI cable. 2. Switch the TV to the appropriate HDMI mode. For further details, see the TV user manual. 6 Turn your gateway on 1. Connect your gateway to a TV with the HDMI cable. See "Connect your gateway to a TV." 2. Switch the TV to the appropriate HDMI mode. For further details, see the TV user manual. 3. Plug the small end of the travel adapter into the gateway and plug the large end of the travel adapter into a power outlet. 4. Press the Multi-function button until the indicator light becomes solid blue to turn the gateway on. To turn the gateway off, press and hold the Multi-function button. English 7 Connect your gateway to a DMC (Digital Media Controller) Connect the gateway to your DMC using the Wi-Fi technology. 1. Turn on the Wi-Fi feature of your DMC. 2. Press the Multi-function button to show the current Ad-hoc network WEP key. 3. When your DMC finds the WMG160_xxx Ad hoc network, connect to it using the WEP key. To change the WEP key, 1. Press the Multi-function button to show the current Ad-hoc network WEP key. 2. Press and hold the Multi-function button when the current WEP key is displayed. For further details, see the DMC user manual. 8 Play files stored in a DMS (Digital Media Server) 1. Open the media controller program from your DMC. 2. Select a DMS. You can also select a memory card inserted to your gateway. 3. Select files you want to view on the TV screen. 4. Select the gateway as a media renderer. Due to the DRM (Digital Rights Management) system, some files may not play. During playback, buffering may happen depending on the connected device, or the resolution or bit rate of the playing files. • • English 9 Supported file format File viewer: PPT, PPTX, DOC, DOCX, PDF, XLS, HTML, TEXT Picture viewer: JPEG, GIF, Animated GIF, PNG, BMP, TIFF Music player File format: MP3, WMA, AAC (M4A), OGG, FLAC, WAV (MS-PCM only) Audio decoder: MP3, WMA, AAC, Vorbis, FLAC, AC3 Video player File format: AVI, ASF, MP4, WMV, 3GP, K3G, SKM, TP, MKV, MPG Video decoder: DivX4/5/6, Xvid, H.263, MPEG-4 SP, H.264 MP, WMV9 (VC-1), MPEG-2, WMV7/8, DivX3.11 Audio decoder: MP3, AAC, AMR-NB/WB, AC3, WMA9 Standard Subtitle: SMI, SRT (ASCII and Extended ASCII only) For information about the firmware upgrade, visit http://www. samsungmobile.com. • • • - - • - - - - 10 Warranty and parts replacement Samsung warrants this product as free of defects in material, design and workmanship for the period of one year from the original date of purchase.* If during the period of warranty this product proves defective under normal use and service you should return the product to the retailer from whom it was originally purchased or qualified service centre. The liability of Samsung and its appointed maintenance company is limited to the cost of repair and/or replacement of the unit under warranty. The warranty is limited to the original purchaser A copy of your receipt or other proof of purchase is required for a proper warranty service The warranty is void if the serial number, date code label or product label is removed, or if the product has been subject to physical abuse, improper installation, modification, or repair by unauthorised third parties Specifically exempt from any warranty are limited-life consumable components such as batteries and other accessories Samsung will not assume any responsibility for any loss or damage incurred in shipping. …

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: February 8, 2010 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LWMG160 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, SAMSUNG ELECTRONICS CO.,LTD. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give SAMSUNG ELECTRONICS CO.,LTD. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description 1 Block Diagram 2 Operational Description PERMANENT 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos SHORT-TERM 7 Users Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

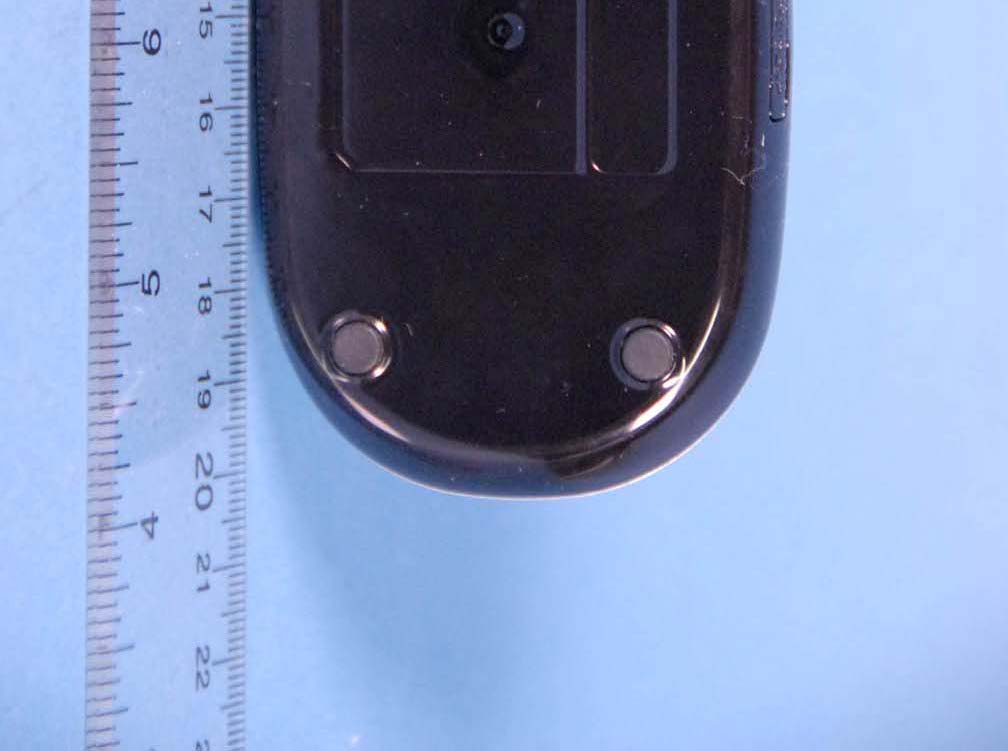

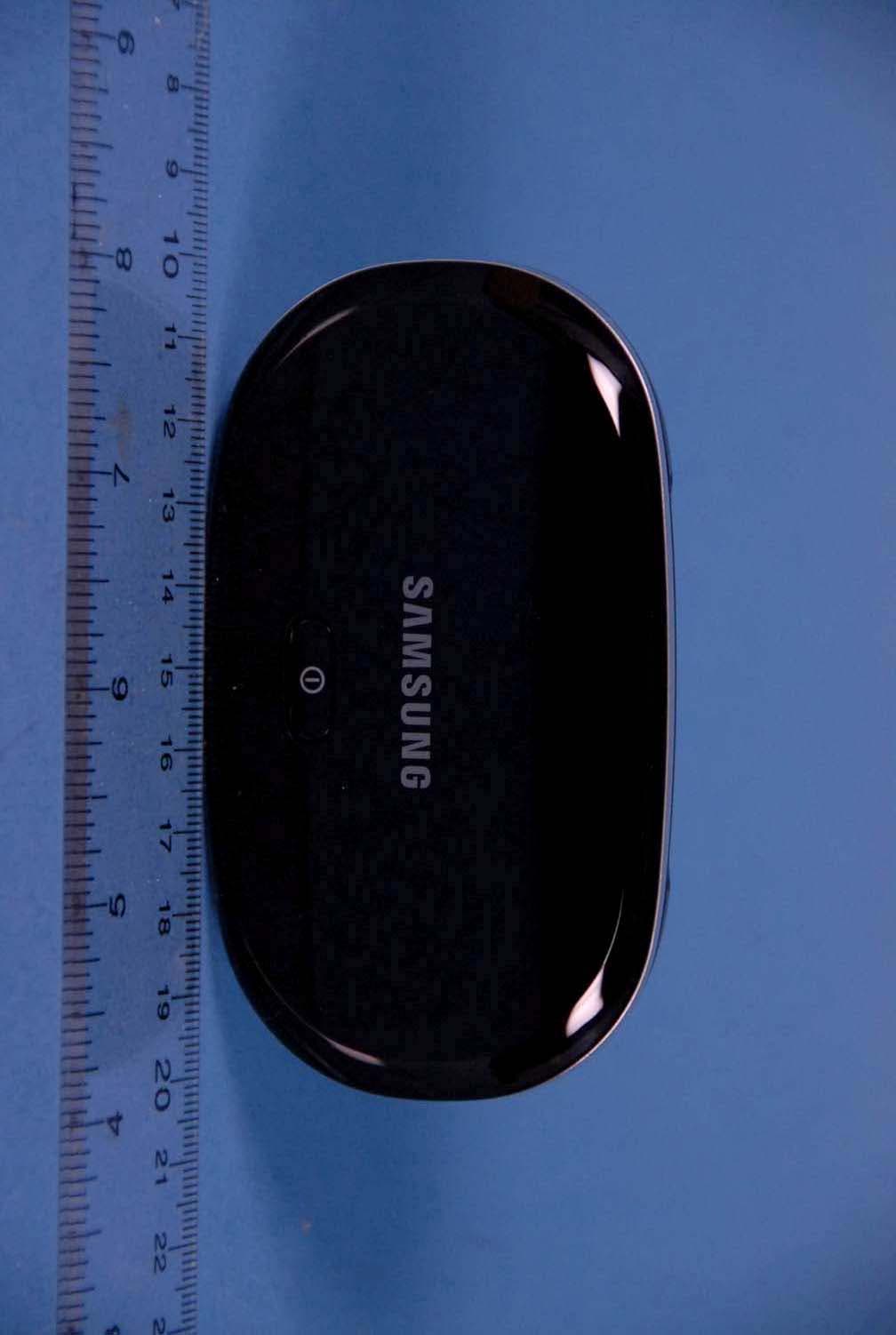

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWGM160 Model: WMG160 External Photos EUT Type: Wireless Multimedia Gateway Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. EXTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWGM160 Model: WMG160 External Photos EUT Type: Wireless Multimedia Gateway Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWGM160 Model: WMG160 External Photos EUT Type: Wireless Multimedia Gateway Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWGM160 Model: WMG160 External Photos EUT Type: Wireless Multimedia Gateway Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

WMG160 091211091211 MODEL:WMG160 FCC ID:A3LWMG160 IC:649E-WMG160 FOR INFORMATION CALL: 1-800-SAMSUNG MADE IN KOREA MODELE:WMG160 ID FCC:A3LWMG160 IC:649E-WMG160 RENSEIGNEMENTS: 1-800-SAMSUNG FABRIQUE EN COREE `` Munki Hong Junesop Kim Silver Aluminium PET LABEL(T=0.05) HANSUNG 15.00 2-R0.50 C2.0 30.00 27.00 3-R1 WMG160 LABEL LOCATION

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Internal Photos EUT Type: Wireless Multimedia Gateway Page 1 of 4 © 2010 PCTEST Engineering Laboratory Inc. INTERNAL PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Internal Photos EUT Type: Wireless Multimedia Gateway Page 2 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Internal Photos EUT Type: Wireless Multimedia Gateway Page 3 of 4 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Internal Photos EUT Type: Wireless Multimedia Gateway Page 4 of 4 © 2010 PCTEST Engineering Laboratory Inc.

Reviewed by: FCC ID: A3LWMG160 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120266.A3L February 12, 2010 Wireless Multimedia Gateway Page 1 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. February 12, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0Y1002120266.A3L FCC ID: A3LWMG160 APPLICANT: Samsung Electronics, Co. Ltd. EUT Type: Wireless Multimedia Gateway FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: Digital Transmission System (DTS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: A3LWMG160 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120266.A3L February 12, 2010 Wireless Multimedia Gateway Page 2 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 5 2.0 CONCLUSION..................................................................................................................................6 Reviewed by: FCC ID: A3LWMG160 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120266.A3L February 12, 2010 Wireless Multimedia Gateway Page 3 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of Samsung Electronics, Co. Ltd. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Samsung Wireless Multimedia Gateway Model: WMG160 contains 802.11b, 802.11g and 802.11n. For this MPE evaluation the device is set to transmit at maximum power and the RF exposure of the transmitter is evaluated. EUT: Model: WMG160 Grantee: Samsung Electronics, Co. Ltd. FCC ID: A3LWMG160 Antenna Gain: -0.66dBi Reviewed by: FCC ID: A3LWMG160 MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0Y1002120266.A3L February 12, 2010 Wireless Multimedia Gateway Page 4 of 6 © 2010 PCTEST Engineering Laboratory, Inc. REV 3.1MPE 02/09/09 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitters designed to be used by consumers or workers that can be easily re-located, such as a wireless modem operating in a laptop compu…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: A3LWMG160 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0912162276.A3L February 2 - 12, 2010 Wireless Multimedia Gateway Page 1 of 42 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 Applicant Name: Date of Testing: Samsung Electronics, Co. Ltd. February 2 - 12, 2010 18600 Broadwick St. Test Site/Location: Rancho Dominguez, CA 90220 PCTEST Lab, Columbia, MD, USA United States Test Report Serial No.: 0912162276.A3L FCC ID: A3LWMG160 APPLICANT: Samsung Electronics, Co. Ltd. Model(s): WMG160 EUT Type: Wireless Multimedia Gateway Max. RF Output Power: 8.77 mW (9.43 dBm) Conducted (b) 5.35 mW (7.28 dBm) Conducted (g) 4.95 mW (6.95 dBm) Conducted (n) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: FH-011-A, FH-011-C This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Power output listed is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 WLAN 802.11b/g/n Certification Reviewed by: FCC ID: A3LWMG160 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0912162276.A3L February 2 - 12, 2010 Wireless Multimedia Gateway Page 2 of 42 © 2010 PCTEST Engineering Laboratory, Inc. REV 2.8WBG 11/18/2009 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 SCOPE....................................................................................................................................................... 4 1.2 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 EVALUATION PROCEDURE..................................................................................................................... 6 3.2 CONDUCTED EMISSIONS........................................................................................................................ 6 3.3 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11B/G/N.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G/N .................................................................................. 18 6.5 POWER SPECTRAL DENSITY (802.11B/G/N) ....................................................................................... 19 6.6 CONDUCTED EMISSIONS AT THE BAND EDGE.................................................................................. 25 6.7 CONDUCTED SPURIOUS EMISSIONS .................................................................................................. 28 6.8 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 31 6.9 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 35 6.10 LINE-CONDUCTED TEST DATA............................................................................................................. 36 7.0 CONCLUSION .......................................................................................................................................42 Reviewed by: FCC ID: A3LWMG160 FCC Pt. 15.247 WLAN 802.11b/g/n TEST REPORT (CERTIFICATION) Quality Manager Test Rep…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Test Set-Up Photos EUT Type: Wireless Multimedia Gateway Page 1 of 3 © 2010 PCTEST Engineering Laboratory Inc. TEST SETUP PHOTOGRAPHS SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Test Set-Up Photos EUT Type: Wireless Multimedia Gateway Page 2 of 3 © 2010 PCTEST Engineering Laboratory Inc. SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LWMG160 Model: WMG160 Test Set-Up Photos EUT Type: Wireless Multimedia Gateway Page 3 of 3 © 2010 PCTEST Engineering Laboratory Inc.
