A4E-REMO423MOTO AUDIO

Remo4.23 USER MANUAL  Operating instructions (Stand-alone mode) ① Connect the products according to the assembly drawing. ② Connect the DC head to 29V power supply and power on. ③ Open the Bluetooth of the mobile phone, search the Bluetooth name: MOTO AUDIO, and pair. After successful pairing, the voice prompt: device paired. Turn on your phone songs and play music. And implemented on the mobile phone, music pause/play, the last song, the next song, volume plus, volume minus control. (Dual-machine mode (Product A and product B) ① Connect product A and product B according to the assembly drawing. ② Insert the AUX In head of product A into the hole of the control box of product B and connect them together. ③ Connect the DC heads of product A and product B to 29V power supply respectively to power up. ④ Open the Bluetooth of the mobile phone, search the Bluetooth name: MOTO AUDIO, and pair. After successful pairing, the voice prompt: device paired. Turn on your phone songs and play music. And implemented on the mobile phone, music pause/play, the last song, the next song, volume plus, volume minus control. Product parameters Power Input 29V2A Rated power 58W Sound power 7.5W*2 Bluetooth version 5.0 Common troubleshooting Problem/Issue Possible causes and solutions No sound at all The volume switch is on minimum; the unit is not set to the correct function; Please contact with the store or customer service. Bluetooth can not pair Please close all other pairing machines and retry; Please wait a few seconds or restart the machine; Do not pair the devices behind a wall or in corner, please keep the working space within 8 meters; Pair the device named Remo4. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

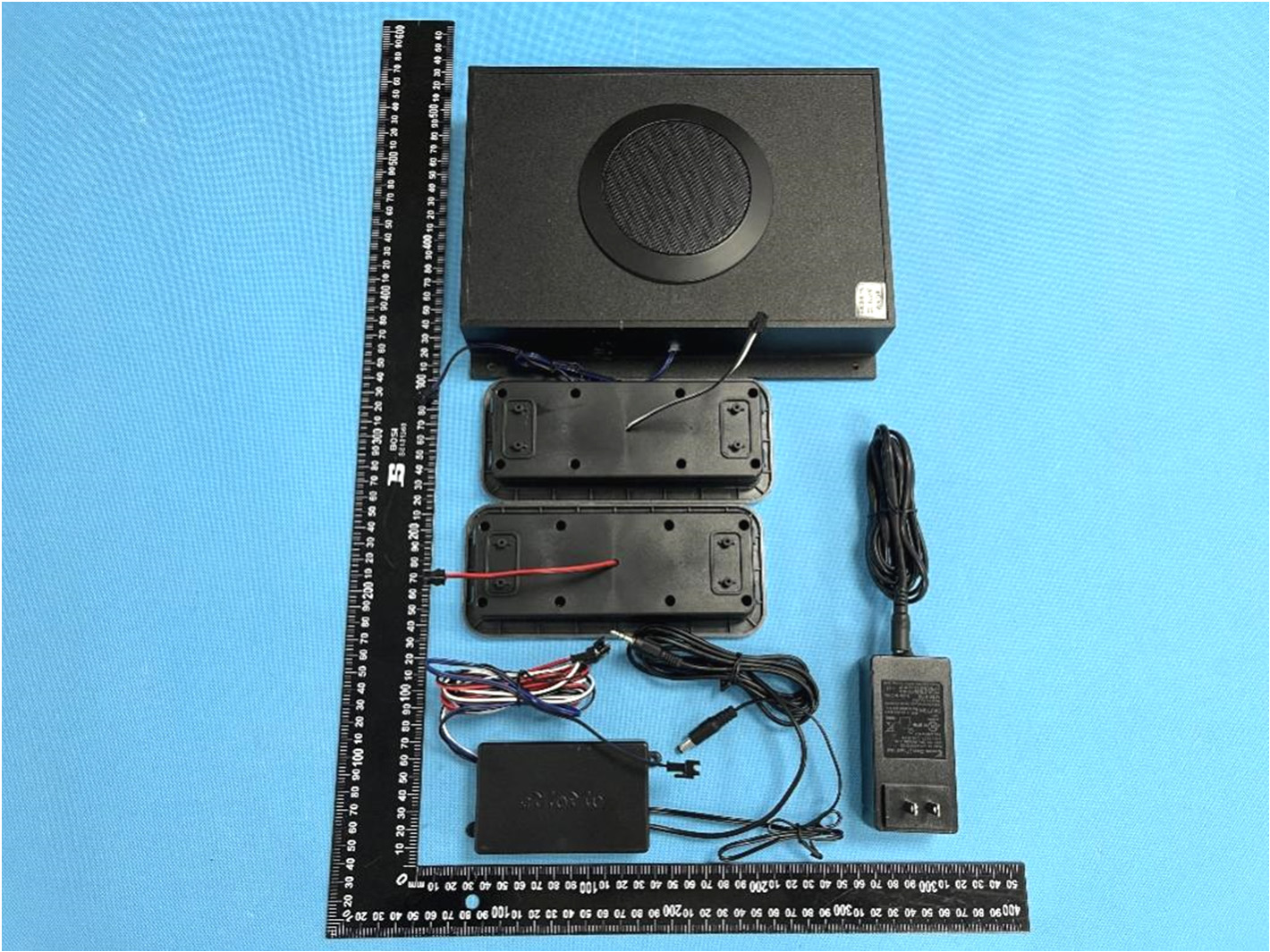

Reference No.: WTX23X09193562W001/002 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X09193562W001/002 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X09193562W001/002 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX23X09193562W001/002 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX23X09193562W001/002 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X09193562W001/002 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X09193562W001/002 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Antenna View BT Antenna

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: eMoMo Technology Co., Ltd Address of applicant: 4th, Floor, Yong He Building ,Tai Wan Industrial Park ,Shi Yan Town ,Bao’an District ,Shen Zhen, 518108, Guangdong, China Manufacturer: The same as Applicant Address of manufacturer: The same as Applicant General Description of EUT: Product Name: MOTO AUDIO Trade Name eMoMo Model No.: Remo4 Adding Model(s): Remo4.11, Rem4.11-CW02, Remo4.11-JJ11, Remo4.23, Remo4.4-JJ11, Remo4.401-JJ11 Rated Voltage: DC29V Battery Capacity: / Adapter Model: Model No.:GRP-A290020-CU Input:AC100-240v~50/60Hz 1.5A Output:DC29V,2.0A 58.0W FCC ID: A4E-REMO423 Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth(BLE mode) Bluetooth Version: V5.0 (BLE mode) Frequency Range: 2402-2480MHz RF Output Power: 5.21dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 40 Channel Separation: 2MHz Type of Antenna: PCB Antenna Antenna Gain: 3.38dBi Bluetooth (BR/EDR mode) Bluetooth Version: V5.0 (BR/EDR mode) Frequency Range: 2402-2480MHz RF Output Power: 5.47dBm (Conducted) Data Rate: 1Mbps, 2Mbps, 3Mbps Modulation: GFSK, π/4 DQPSK, 8DPSK Quantity of Channels: 79 Channel Separation: 1MHz Type of Antenna: PCB Antenna Antenna Gain: 3.38dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 5.47 3.38 100 6.00 7.23 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 C 20.00 7.23 5.28 768.00 0.01 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 64 TEST REPORT Reference No. ....................: WTX23X09193562W001 FCC ID ............................... .: A4E-REMO423 Applicant .......................... .: eMoMo Technology Co., Ltd Address ............................ .: 4th, Floor, Yong He Building ,Tai Wan Industrial Park ,Shi Yan Town ,Bao’an District ,Shen Zhen, 518108, Guangdong, China Manufacturer .................... .: The same as Applicant Address ............................ .: The same as Applicant Product Name .................. .: MOTO AUDIO Model No... ........................ .: Remo4 Standards ......................... .: FCC Part 15.247 Date of Receipt sample ... .: 2023-09-04 Date of Test....................... .: 2023-09-04 to 2023-09-11 Date of Issue .................... .: 2023-09-11 Test Report Form No. ...... . : WTX_Part 15_247W Test Result ........................ .: Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Mike Shi Silin Chen Reference No.: WTX23X09193562W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 64 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 5 1.2 TEST STANDARDS ................................................................................................................................................. 6 1.3 TEST METHODOLOGY ........................................................................................................................................... 6 1.4 TEST FACILITY ...................................................................................................................................................... 6 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 7 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 9 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 13 3. ANTENNA REQUIREMENT ................................................................................................................................. 14 3.1 STANDARD APPLICABLE ..................................................................................................................................... 14 3.2 EVALUATION INFORMATION ................................................................................................................................ 14 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .................................................................................... 15 4.1 STANDARD APPLICABLE ..................................................................................................................................... 15 4.2 FREQUENCY HOPPING SYSTEM ......................................................................................................................... 15 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................... 16 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION .................................................... 17 5.1 STANDARD APPLICABLE ..................................................................................................................................... 17 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 17 5.3 TEST PROCEDURE .............................................................................................................................................. 17 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 18 6. DWELL TIME OF HOPPING CHANNEL ........................................................................................................... 19 6.1 STANDARD APPLICABLE ..................................................................................................................................... 19 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 19 6.3 TEST PROCEDURE .............................................................................................................................................. 19 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 20 7. 20DB BANDWIDTH ............................................................................................................................................... 21 7.1 STANDARD APPLICABLE ..................................................................................................................................... 21 7.2 TEST SETUP BLOCK DIAGR…

Text truncated - open the document above for the full version.

N c v NOTE: This doc company. The te validation and in MORLA App PRO MO TRA BRA STA REC TES ISS cument is issue est results appl nformation confi AB SHENZ FL1-3, B Block67 plicant ODUCT NA ODEL NAM ADE NAM AND NAM ANDARD(S CEIPT DAT ST DATE SUE DATE ed by MORLAB y only to the pa rmed at our we ZHEN MORLAB COM Building A, FeiYang S 7, BaoAn District, She TE : AME : ME : E : ME : S) : ATE : : : B, the test repo articular sample bsite. MMUNICATIONS TEC Science Park, No.8 L enZhen , GuangDon EST SHANGHA MV_BP10 MV_BP10 MVSILICO MVSILICO ANSI/IEEE 2019-08-3 2019-09-0 2019-10-1 Edited Approved rt shall not be e(s) tested and CHNOLOGY Co., Ltd LongChang Road, g Province, P. R. Ch T RE AI MOUNT 0xx PCB An 0 ON ON E Std 149- 30 02 15 d by: by: reproduced exc to the specific d. ina Te l : 8 Http:/ RE EPOR TAIN VIEW ntenna -2008 Chi Sh Andy Yeh cept in full with tests carried o u 86-755-36698555 //www.morlab.cn EPORT No RT W SILICON ide(Rappo h(Technica out prior written ut which is avai Fax: 86-755-3669 E-mail: service@ o.：SZ190 CO,. LTD orteur) l Director) n permission of lable on reques 98525 @morlab.cn Page 1 of 1 080340E01 f the st for 4 1 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 2 of 14 REPORT No.：SZ19080340E01 DIRECTORY 1. Technical Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.1. Manufacturer and Factory Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 1.2. Equipment Under Test (EUT) Description ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 3 2. Test Results ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.1. Applied Reference Documents ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.2. Test Conditions ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 2.3. Test Results lists ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 4 Annex A Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 6 Annex B Figures ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 1. 2D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 7 2. 3D Radiation Pattern ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 9 3. Return Loss ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 10 4. VSWR ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 5. Input Impedance ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 11 Annex C Photographs ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 12 Annex D General Information ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.1 Identification of the Responsible Testing Laboratory ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.2 Identification of the Responsible Testing Location ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 1.3 Test Equipments Utilized ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ 14 Change History Version Date Reason for change 1.0 2019-10-15 First edition MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 3 of 14 REPORT No.：SZ19080340E01 1. Technical Information Note: Provide by manufacturer. 1.1. Manufacturer and Factory Information Applicant: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Applicant Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China Manufacturer: SHANGHAI MOUNTAIN VIEW SILICON CO,. LTD Manufacturer Address: Suite 4C, Building 3, 1238 Zhangjiang Road, Pudong New District, Shanghai, China 1.2. Equipment Under Test (EUT) Description Wireless Type N/A Frequency N/A MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 4 of 14 REPORT No.：SZ19080340E01 2. Test Results 2.1. Applied Reference Documents Leading reference documents for testing: No. Identity Document Title 1 ANSI/IEEE Std 149-2008 IEEE Standard Test Procedures for Antennas 2.2. Test Conditions Test Environment Conditions： Relative Humidity: 25 ... 75 % Temperature: +10 °C to +30 °C 2.3. Test Results lists 2.3.1. Gain Frequency Gain(dBi) 2400MHz 2.81 2410MHz 2.74 2420MHz 3.38 2430MHz 2.73 2440MHz 1.01 2450MHz 1.26 2460MHz 1.50 2470MHz 1.49 2480MHz 1.42 2490MHz 0.36 2500MHz 0.33 MORLAB SHENZHEN MORLAB COMMUNICATIONS TECHNOLOGY Co., Ltd. FL1-3, Building A, FeiYang Science Park, No.8 LongChang Road, Block67, BaoAn District, ShenZhen , GuangDong Province, P. R. China Tel: 86-755-36698555 Fax: 86-755-36698525 Http://www.morlab.cn E-mail: [email protected] Page 5 of 14 REPORT No.：SZ19080340E01 2.3.2. Return Loss/VSWR/Input Impedance Frequency Return Loss (dB) VSWR Input Impedance(Ω) 240…

Text truncated - open the document above for the full version.

Reference No.: WTX23X09193562W001/002 Page 8 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX23X09193562W001/002 Page 9 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX23X09193562W001/002 Page 10 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
