A4P-200-0013-01NextNav Local

NextNav,LLC
NextNav Local - FCC ID A4P-200-0013-01 - NextNav,LLC
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 16, 2013
Application Purpose
Original Equipment
Date of Application
Jun 16, 2013
Equipment Note
NextNav Local
Frequency Range
903.20000000 - 926.80000000
Company
NextNav,LLC
Country
United States

Documents & Files

Select a file to view

Users Manual

Block Diagram

โ†—

Cover Letter(s)

โ†—
โ†—

External Photos

โ†—

ID Label/Location Info

โ†—

Internal Photos

โ†—

RF Exposure Info

โ†—

Test Report

โ†—

Test Setup Photos

โ†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Block Diagram

Block Diagram FCC ID: A4Pโ€ 200โ€0013โ€01 1PPS 10M Figure 1 NextNav Local beacon block wiring diagram Figure 2: Maia Radio Modem Module Board Block Diagram

External Photos

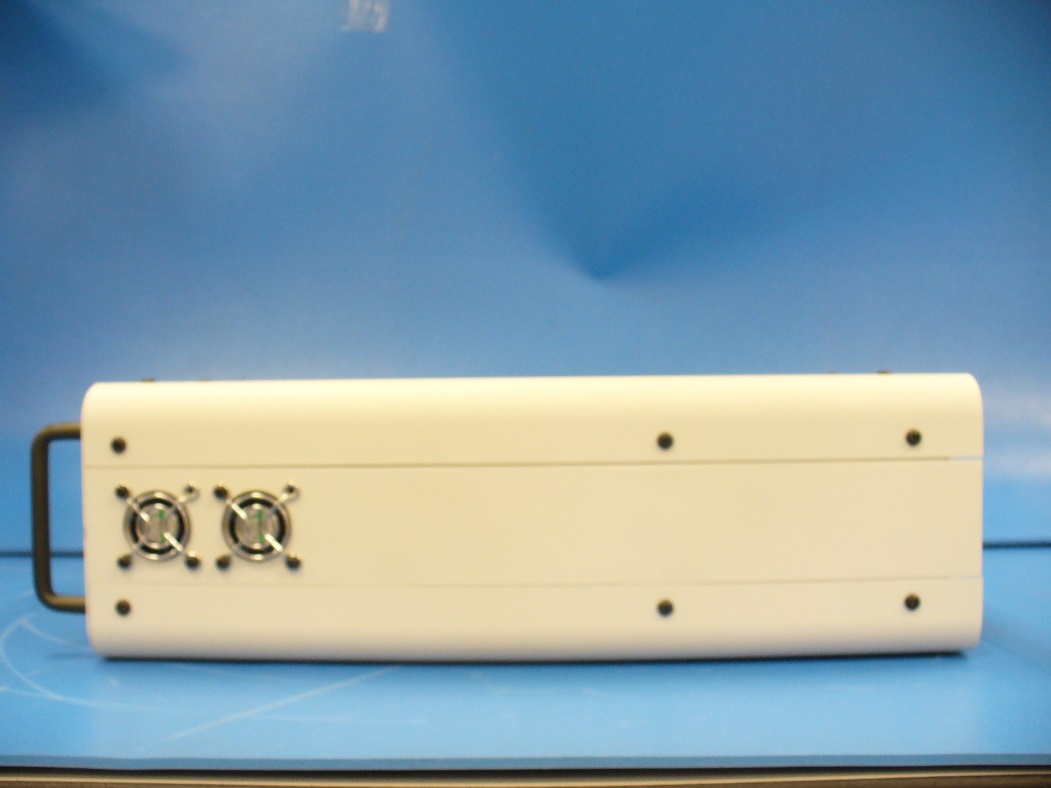

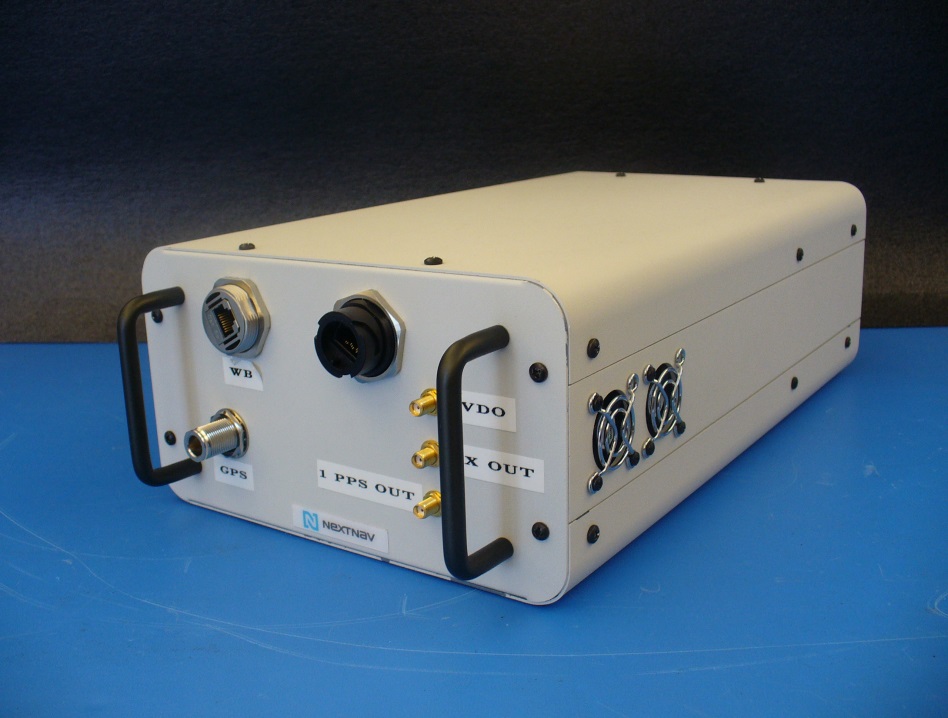

MARS BEACON ENCLOSURE ASSEMBLY FCC ID: A4Pโ€200โ€0013โ€01 MARS BEACON ENCLOSURE TOP W/LABELS MARS BEACON ENCLOSURE RIGHT SIDE MARS BEACON ENCLOSURE LEFT SIDE MARS BEACON ENCLOSURE FRONT SIDE MARS BEACON ENCLOSURE BACK SIDE MARS BEACON ENCLOSURE BOTTOM

ID Label/Location Info

FCC Labels MARS BEACON ENCLOSURE TOP W/LABELS

Internal Photos

MARS BEACON ENCLOSURE ASSEMBLY FCC ID: A4Pโ€200โ€0013โ€01 MARS BEACON MAIA PCBA (TOP) 202โ€0001โ€07 BOTTOM MARS BEACON MAIA PCBA (TOP) WITHOUT CAGES 202โ€0001โ€07 MARS BEACON RUBIDIUM PCBA (TOP) 202โ€0005โ€01 BOTTOM MARS BEACON POWER AMPLIFIER (TOP) COVER OFF 420โ€0017โ€01 BOTTOM BACK OF ENCLOSURE MARS BEACON ETHERNET SWITCH PCBA (TOP) 420โ€0002โ€01 BOTTOM MARS BEACON POWER PCBA (TOP) 202โ€0018โ€01 BOTTOM

RF Exposure Info

RF Exposure Evaluation The Model Number: 200-0013-01 is a Wireless device used in a mobile application, at least 20 cm away from any body part of the user or nearby persons. To comply with FCC requirements of RF exposure, the Radiated Power Density must be below the Maximum Permissible Exposure (MPE) set forth in FCC section 2.1091. The maximum average conducted power (without considering Duty Cycle) is 0.6 W, the highest Duty Cycle is 0.2, and the maximum antenna gain is 2.5 dBi (1.8). Therefore, the EIRP is 0.22 W. The Power Density (in W/m 2 ) can be calculated using the formula: S = EIRP/ 4๏ฐD 2 At the distance D = 0.2 m from the antenna S = 0.44 W/m 2 According to FCC sec. 1.1310 for 900 MHz the MPE Limit is 0.6 W/m 2 for General Population/Uncontrolled Exposure. So, the Model Number: 200-0013-01 complies with the FCC requirements of RF Exposure.

Test Report

EMC Report for NextNav LLC on the model 200-0013-01 File: 101123079MPK-002 Page 1 of 55 TEST REPORT Report Number: 101123079MPK-002 Project Numbers: G101123079, G101166195 April 30, 2013 Testing performed on the NextNav Local Model Number: 200-0013-01 FCC ID: A4P-200-0013-01 to FCC Part 15 Subpart C (15.247) FCC Part 15, Subpart B for NextNav LLC Test Performed by: Test Authorized by: Intertek 1365 Adams Court Menlo Park, CA 94025 USA NextNav LLC 484 Oakmead Parkway Sunnyvale, CA 94085, USA Prepared by: Date: April 30, 2013 Krishna K Vemuri Reviewed by: Date: April 30, 2013 David Chernomordik This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. This report must not be used to claim product endorsement by A2LA, NIST nor any other agency of the U.S. Government. EMC Report for NextNav LLC on the model 200-0013-01 File: 101123079MPK-002 Page 2 of 55 VERIFICATION OF COMPLIANCE Report No. 101123079MPK-002 Verification is hereby issued to the named APPLICANT and is VALID ONLY for the equipment identified hereon for use under the rules and regulations listed below. Equipment Under Test: NextNav Local Trade Name: NEXTNAV Model Numbers: 200-0013-01 Serial Numbers 001 Applicant: NextNav LLC Contact: Waldemar Kunysz Address: 484 Oakmead Parkway Sunnyvale, CA 94085 Country USA Tel. Number: (408) 400-7850 Email: [email protected] Applicable Regulation: FCC Part 15 Subpart C (15.247) FCC Part 15, Subpart B Date of Test: April 01 - 14, 2013 We attest to the accuracy of this report: Krishna K Vemuri EMC Senior Staff Engineer David Chernomordik Senior EMC Engineer EMC Report for NextNav LLC on the model 200-0013-01 File: 101123079MPK-002 Page 3 of 55 TABLE OF CONTENTS 1.0 Summary of Tests .......................................................................................................................... 4 2.0 General Information ...................................................................................................................... 5 2.1 Product Description ............................................................................................................ 5 2.2 Related Submittal(s) Grants ................................................................................................ 6 2.3 Test Facility ........................................................................................................................ 6 2.4 Test Methodology ............................................................................................................... 6 2.5 Measurement Uncertainty ................................................................................................... 6 3.0 System Test Configuration ............................................................................................................ 7 3.1 Support Equipment ............................................................................................................. 7 3.2 Block Diagram of Test Setup .............................................................................................. 8 3.3 Justification ......................................................................................................................... 9 3.4 Mode of Operation During Test .......................................................................................... 9 3.5 Modifications Required for Compliance ............................................................................ 9 3.6 Additions, Deviations and Exclusions from Standards ....................................................... 9 4.0 Measurement Results ................................................................................................................... 10 4.1 6-dB Bandwidth, 26-dB Bandwidth and Occupied Bandwidth ........................................ 10 4.2 Maximum Conducted Output Power at Antenna Terminals ............................................. 17 4.3 Maximum Power Spectral Density ................................................................................... 21 4.4 Unwanted Conducted Emissions ...................................................................................... 25 4.5 Transmitter Radiated Emissions ....................................................................................... 34 4.6 Radiated Emissions from Digital Parts ............................................................................. 41 4.7 AC Line Conducted Emission .......................................................................................... 48 5.0 List of Test Equipment ................................................................................................................ 54 6.0 Document History ........................................................................................................................ 55 EMC Report for NextNav LLC on the model 200-0013-01 File: 101123079MPK-002 Page 4 of 55 1.0 Summary of Tests Test Reference FCC Result RF Output Power 15.247(b)(3) Complies 6 dB Bandwidth 15.247(a)(2) Complies Power Density 15.247(e) Complies Out of Band Antenna Conducted Emission 15.247(d) Complies Transmitter Radiated Emissions 15.247(d), 15.209โ€ฆ

Text truncated - open the document above for the full version.

Test Setup Photos

Test Setup Photographs FCC ID: A4P-200-0013-01 Radiated Emission Test AC line Conducted Emission Test

Contact Information

Applicant

Prasad Vajjhala
[email protected]408-400-7818Fax: 408-822-0002

Technical Contact

ntertek Testing Services NA, Inc.Krishna Vemuri
[email protected]650-463-4644

1365 Adams Court ยท Menlo Park ยท United States

Non-Technical Contact

ntertek Testing Services NA, Inc.Krishna Vemuri
[email protected]650-463-4644

Test Firm

Intertek Testing Services NA Inc.John Quigley
[email protected]949-448-4100Fax: 650-463-2910

Technical Specifications

#Rule PartsFrequency RangePower Output
115C903.2 MHz - 926.8 MHz600.00 mW
Confidentiality
Long Term
Grant Notes
Output power listed is average conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter, except as described in this filing.
