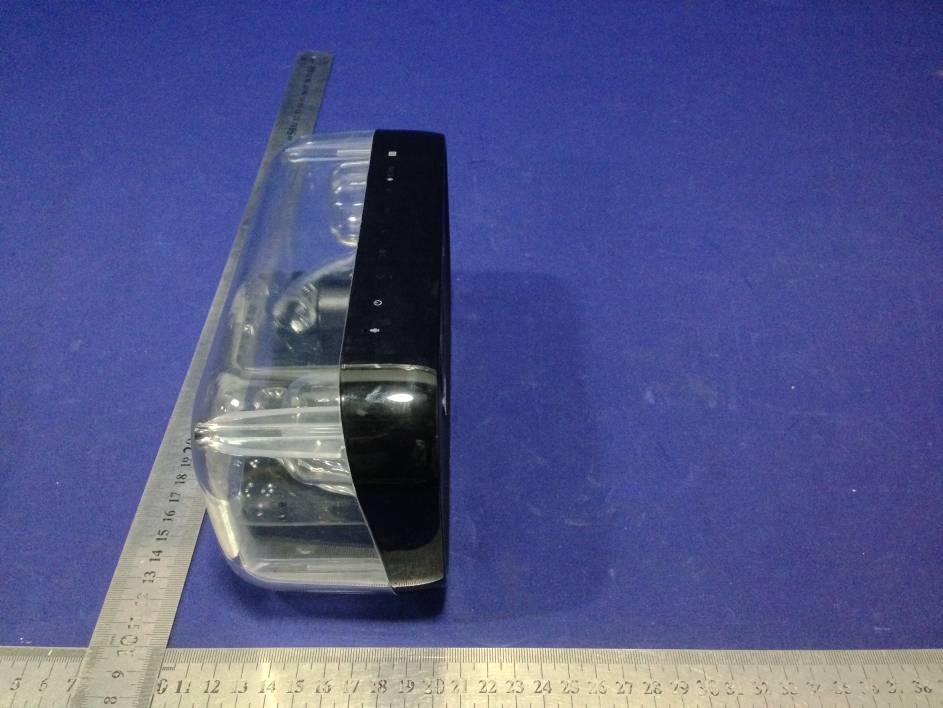

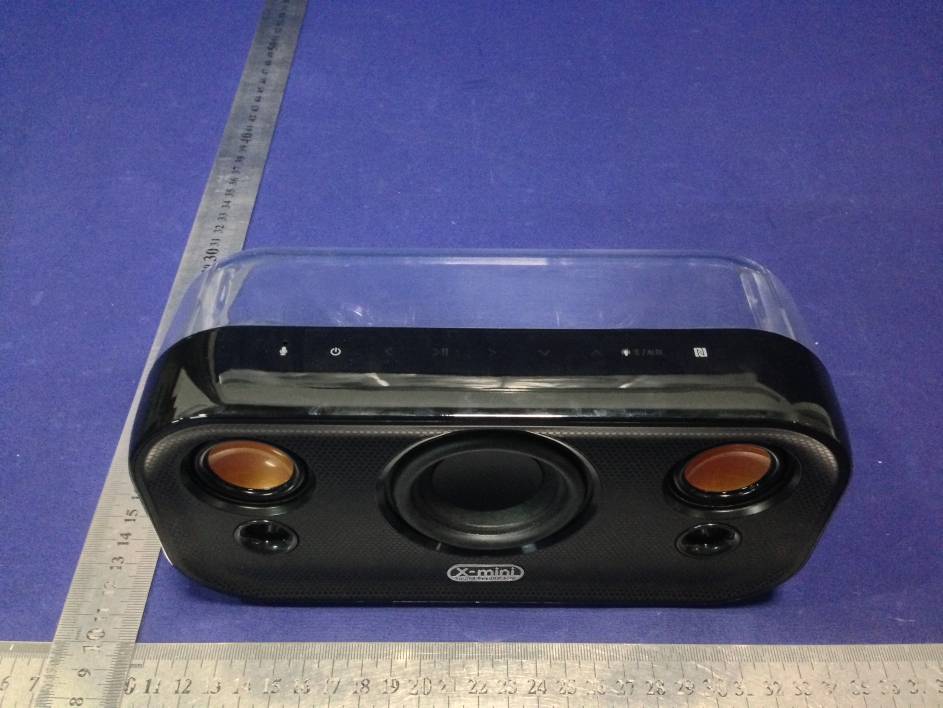

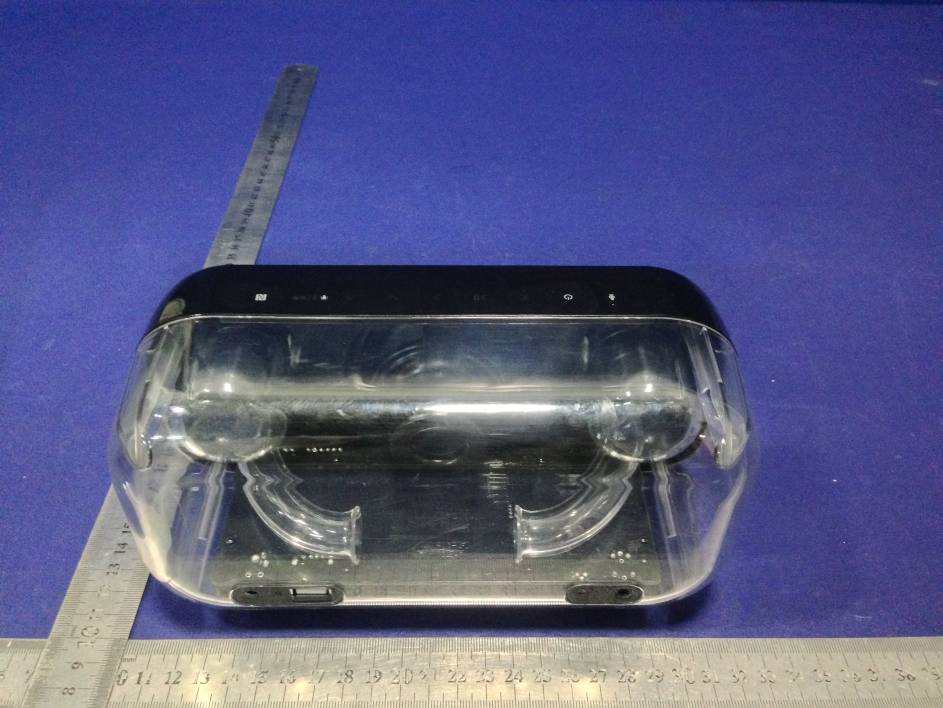

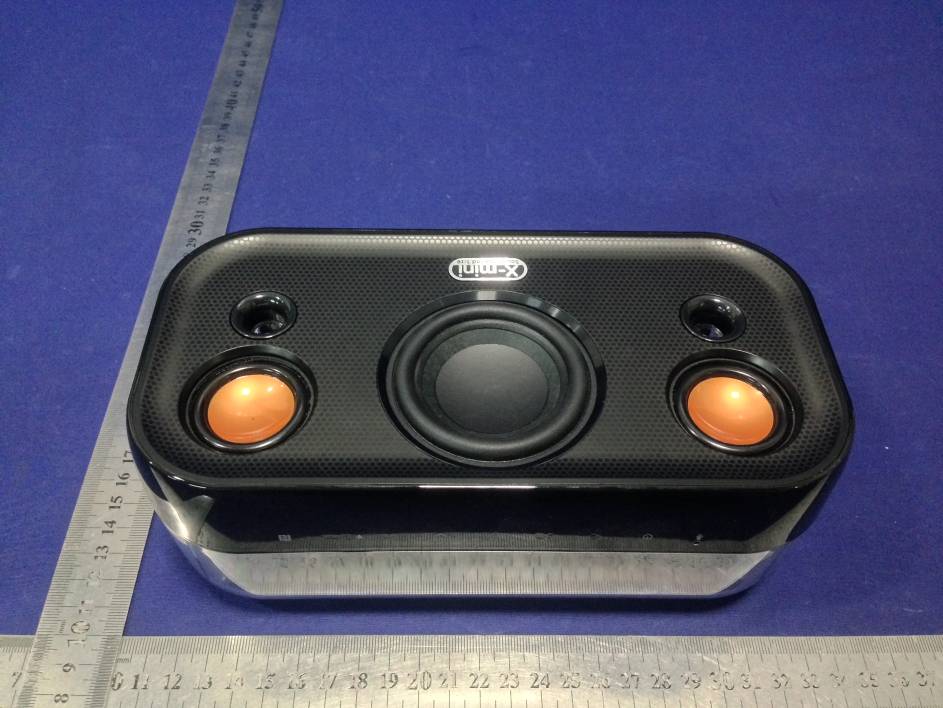

A4VXAM19X-mini CLEAR

Dimensione: 218mm x 89.5mm x 112mm Peso netto: 920g Speaker: 40mm magneticamente schermato (3.3Ω) x2 Subwoofer: 70mm magneticamente schermato (4.0Ω) Potenza output: 20W Frequenza: 40Hz – 20kHz Rapporto segnale/rumore: ≥89dB Distorsione: ≤1.0% Durata in playback: Fino a 10 ore Capienza batteria: 6600mAh Voltaggio ricarica batteria: 15V (Power Adapter) Tempo di ricarica: Minimo 3 ore Gamma di frequenza di funzionamento: 2.4GHz- 2.48GHz Gamma senza li: Fino a 10 metri metres/33 Bluetooth Conforme: v3.0 Supporto Prolo Bluetooth: A2DP Stereo,AVRCP v1.0, HFP v1.5 Durata in playback Bluetooth: Fino a 6 ore Tempo di conversazione: Fino a 12 ore Microfono Direzionalità: Omnidirezionale Sensibilità del microfono: -42dB Specificazioni Bluetooth Compatibilità Bluetooth (Requisiti minimi di sistema): - Windows: Vista / 7/8 e superiori - Mac: OS X 10.9.5 e superiori - Android: versione 4.0 e superiori - iPhone: la versione iOS 6.13 e superiori Specificazioni tecniche Dimensions: 218mm x 89.5mm x 112mm Poids net: 920g Haut-parleur de 40mm avec blindage magnétique (3.3Ω) x 2 Subwoofer de 70mm avec blindage magnétique (4,0 Ω) Puissance de sortie du haut-parleur: 20W Réponse en fréquence: 40Hz – 20kHz Rapport signal/bruit: > 89 dB Distorsion: ≤1.0% Jusqu'à 10 heures d'autonomie de lecture Capacité de la batterie: 6600 mAh Tension de charge de la batterie: 15V (adaptateur secteur) Temps de charge de la batterie: 3 heures minimum Fonctionne sur la gamme de fréquence: 2,4GHz - 2,48GHZ Portée Bluetooth: jusqu'à 10m Conforme Bluetooth: v3.0 Prol Bluetooth: stéréo A2DP, AVRCP 1.0, HFP v1.5 Jusqu'à 6h d'autonomie de lecture en Bluetooth Jusqu'à 12 heures d'autonomie en communication Directivité du microphone: omnidirectionnelle Sensibilité du microphone: -42 dB Spécifications Bluetooth Compatibilidade Bluetooth (Requisitos mínimos de sistema): - Windows: Vista / 7/8 e acima - Mac: OS X 10.9.5 ou superior - Android: Versão 4.0 e superior - iPhone: Versão iOS 6.13 e acima Specifications Techniques Dimension: 218mm x 89.5mm x 112mm Net Weight: 920g Speaker: Magnetically Shielded 40mm (3.3Ω) x 2 Subwoofer: Magnetically Shielded 70mm (4.0Ω) Loudspeaker Output: 20W Frequency Response: 40Hz – 20kHz Signal-to-Noise: ≥89dB Distortion: ≤1.0% Playback Time: Up to 10 hours Battery Capacity: 6600mAh Battery Charging Voltage: 15V (Power Adapter) Battery Charge Time: Minimum of 3 hours Operating Frequency Range: 2.4GHz - 2.48GHz Wireless Range: Up to 10 metres [33 ft] Bluetooth Compliant: v3.0 Bluetooth Prole Support: A2DP Stereo, AVRCP v1.0, HFP v1.5 Bluetooth Playback Time: Up to 6 hours Talk Time: Up to 12 hours Microphone Directivity: Omnidirectional Microphone Sensitivity: -42db Bluetooth Specifications Bluetooth Compatibility (Minimum System Requirements): - Windows: Vista/7/8 and above - Mac: OS X 10.9.5 and above - Android: Version 4.0 and above - iPhone: Version iOS 6.13 and above Technical Specifications Dimensions: 218mm x 89.5mm x 112mm Poids net: 920g Haut-parleur de 40mm avec blindage magnétique (3.3Ω) x 2 Subwoofer de 70mm avec blindage magnétique (4,0 Ω) Puissance de sortie du haut-parleur: 20W Réponse en fréquence: 40Hz – 20kHz Rapport signal/bruit : > 89 dB Distorsion: ≤1.0% Jusqu'à 10 heures d'autonomie de lecture Capacité de la batterie: 6600 mAh Tension de charge de la batterie: 15V (adaptateur secteur) Temps de charge de la batterie: 3 heures minimum Fonctionne sur la gamme de fréquence: 2,4GHz - 2,48GHZ Portée Bluetooth: jusqu'à 10m Conforme Bluetooth : v3.0 Prol Bluetooth: stéréo A2DP, AVRCP 1.0, HFP v1.5 Jusqu'à 6h d'autonomie de lecture en Bluetooth Jusqu'à 12 heures d'autonomie en communication Directivité du microphone: omnidirectionnelle Sensibilité du microphone: -42 dB Spécifications Bluetooth Compatibilité Bluetooth (Conguration minimale requise): - Windows: Vista / 7/8 et ci-dessus - Mac: OS X 10.9.5 et au-dessus - Android: Version 4.0 et supérieur - iPhone: Version iOS 6.13 et au-dessus Specifications Techniques Dimensiones: 218mm x 89.5mm x 112mm Peso neto: 920g Altavoz: 40mm blindados magnéticamente (3.3Ω) x 2 Subwoofer: 70 mm blindados magnéticamente (4,0 Ω) Altavoz de salida: 20W Respuesta de frecuencia: 40 Hz - 20 kHz Relación señal-ruido: ≥89dB Distorsión: ≤1.0% Tiempo de reproducción: hasta 10 horas Capacidad de la batería: 6600mAh Voltaje de carga de la batería: 15V (adaptador de corriente) Tiempo de carga de la batería: mínimo de 3 horas Rango de Frecuencia operativo: 2.4GHz-2.48GHz Alcance inalámbrico: hasta 10 metros (33 pies) Compatible con Bluetooth: v3.0 Compatible con Perles Bluetooth: A2DP Stereo, AVRCP v1.0, HFP v1.5 Bluetooth Tiempo de reproducción: hasta 6 horas Tiempo de conversación: Hasta 12 horas Directividad del Micrófono: Omnidireccional Sensibilidad del micrófono: -42 dB Especificaciones Bluetooth Compatibilidad Bluetooth (Requisitos mínimos del sistema): - Windows: Vista / 7/8 y por encima - Mac: OS X 10.9.5 y superior - Android: Versión 4.0 y superior - iPhone: Versión iOS 6.13 y superiores Especificaciones técnicas EN FR ES PT IT © 2014, XMI Pte. Ltd. All rights reserved. IC Caution RSS-Gen Issue 3 December 2010"&"CNR-Gen 3e éditionDécembre 2010: - English: This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device. - French: Le présentappareilestconforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitationestautorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareildoit accepter tout brouillageradioélectriquesubi, mêmesi le brouillageest susceptible d'encompromettre le fonctionnement. IC Caution : 11808A-XAM19 The name "X-mini”, “Capsule Speaker” and "X-mini Logo" are trademarks or registered trademarks of XMI Pte. Ltd.…

Text truncated - open the document above for the full version.

Rev 11/20/07 Xmi Pte Ltd Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A4VXAM19. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, A4VXAM19_Block Diagram.pdf, Schematics, A4VXAM19_Schematics.pdf, Operational Description A4VXAM19_Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Xmi Pte Ltd Choon Hong Soo/Senior Manager Product Development

Xmi Pte Ltd Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 2014-12-03 SUBJECT: FCC Application for A4VXAM19 To Whom It May Concern: We, the undersigned, hereby authorize SHENZHEN EMTEK CO., LTD (MR. David Lee, Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by SHENZHEN EMTEK CO., LTD (MR. David Lee, Manager) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, Xmi Pte Ltd, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Xmi Pte Ltd Choon Hong Soo/Senior Manager P roduct Development

X-mini™ CLEAR 2.1 Audio System MODEL : XAM19 MSIP-CMM-XMI-XAM19 FCC ID : A4VXAM19 IC ID11808A-XAM19 PRODUCT OF SINGAPORE MADE IN CHINA

Label Location

Antenna Module

FCC ID : A4VXAM19 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: 2.0dBi BT Mode Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) GFSK 2402 -1.982 -2.0±1 -1.0 1.5849 0.0003 1 GFSK 2441 -3.674 -3.0±1 -2.0 1.5849 0.0002 1 GFSK 2480 -5.583 -5.0±1 -4.0 1.58490.00011 π/4-DQPSK 2402 -1.758 -2.0±1-1.01.58490.00031 π/4-DQPSK 2441 -3.290 -3.0±1 -2.0 1.58490.00021 π/4-DQPSK 2480 -5.172 -5.0±1 -4.0 1.58490.00011 8DPSK 2402 -1.142 -2.0±1 -1.0 1.58490.00031 8DPSK 2441 -2.637 -3.0±1 -2.0 1.58490.00021 8DPSK 2480 -4.585 -5.0±1 -4.0 1.58490.00011

TRF No.:FCC 15.247/A Page 1 of 62 Report No.: ES141021264E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World FCC 47 CFR PART 15 SUBPART C CERTIFICATION TEST REPORT For X-mini CLEAR MODEL No.: XAM19 FCC ID: A4VXAM19 Trademark: N/A REPORT NO.: ES141021264E ISSUE DATE: December 1, 2014 Prepared for Xmi Pte Ltd 134 Neil Road, Singapore Prepared by SHENZHEN EMTEK CO., LTD. Bldg 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China TEL: 86-755-26954280 FAX: 86-755-26954282 TRF No.:FCC 15.247/A Page 2 of 62 Report No.: ES141021264E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World Table of Contents 1 TEST RESULT CERTIFICATION ............................................................................................................. 3 2 EUT TECHNICAL DESCRIPTION ............................................................................................................ 4 3 SUMMARY OF TEST RESULT ................................................................................................................ 5 4 TEST METHODOLOGY ........................................................................................................................... 6 4.1 General Description Of Applied Standards .................................................................................... 6 4.2 Measurement Equipment Used ..................................................................................................... 6 4.3 Description Of Test Modes ............................................................................................................ 6 5 FACILITIES AND ACCREDITATIONS ...................................................................................................... 8 5.1 Facilities ......................................................................................................................................... 8 5.2 Laboratory Accreditations And Listings ......................................................................................... 8 6 TEST SYSTEM UNCERTAINTY .............................................................................................................. 9 7 SETUP OF EQUIPMENT UNDER TEST ............................................................................................... 10 7.1 Radio Frequency Test Setup 1 .................................................................................................... 10 7.2 Radio Frequency Test Setup 2 .................................................................................................... 10 7.3 Conducted Emission Test Setup .................................................................................................. 11 7.4 Block Diagram Configuration Of Test System ............................................................................. 12 7.5 Support Equipment ...................................................................................................................... 12 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ......................................................................... 13 8.1 Standard Applicable ..................................................................................................................... 13 8.2 EUT Pseudorandom Frequency Hopping Sequence .................................................................. 13 8.3 Equal Hopping Frequency Use ................................................................................................... 14 8.4 Frequency Hopping System ........................................................................................................ 14 9 TEST REQUIREMENTS ......................................................................................................................... 15 9.1 20db Bandwidth ........................................................................................................................... 15 9.2 Carrier Frequency Separation ..................................................................................................... 21 9.3 Number Of Hopping Frequencies ................................................................................................ 27 9.4 Average Time Of Occupancy (Dwell Time) ................................................................................. 29 9.5 Maximum Peak Conducted Output Power .................................................................................. 32 9.6 Conducted Suprious Emission .................................................................................................... 38 9.7 Radiated Spurious Emission ....................................................................................................... 45 9.8 Conducted Emission Test ............................................................................................................ 59 9.9 Antenna Application ..................................................................................................................... 62 TRF No.:FCC 15.247/A Page 3 of 62 Report No.: ES141021264E Ver.1.0 Shenzhen EMTEK Co.,Ltd. Building 69, Majialong Industry Zone, Nanshan District, Shenzhen,Guangdong,China www.emtek.com.cn Tel: +86-755-2695 4280 Fax: +86-755-2695 4282 Access to the World 1 TEST RESULT CERTIFICATION Applicant: Xmi Pte Ltd 134 Neil Road, Singapore Manufacturer: Xmi Pte Ltd 134 Neil Road, Singapore Product Description: X-mini CLEAR Model Number: XAM19 File Number: ES141021264E Date of Test: November 15, 2014 to December 1, 2014 Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by SHENZHEN EMTEK CO., LTD. The…

Text truncated - open the document above for the full version.

Conducted Emission Radiated Emission
