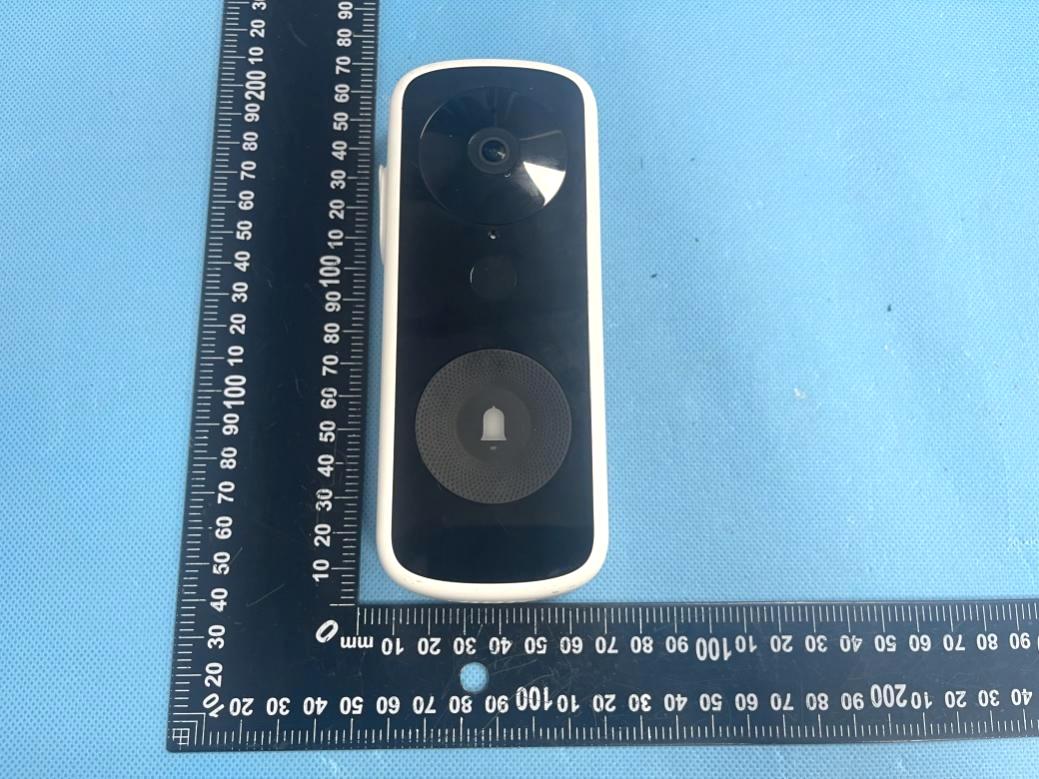

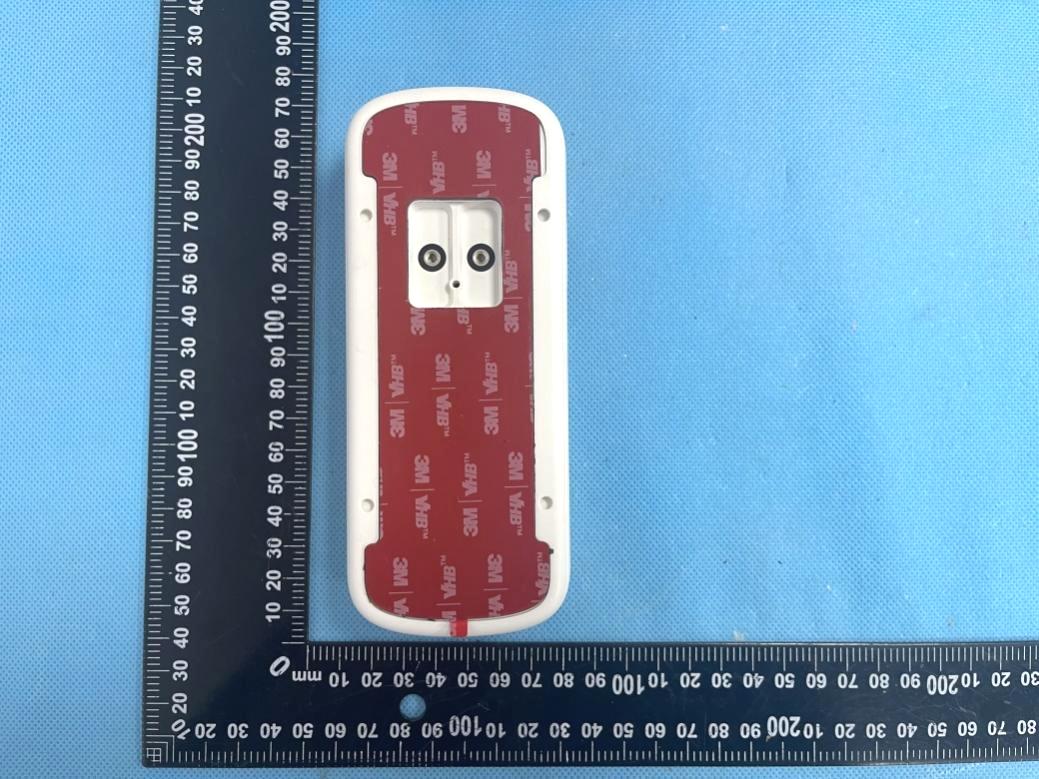

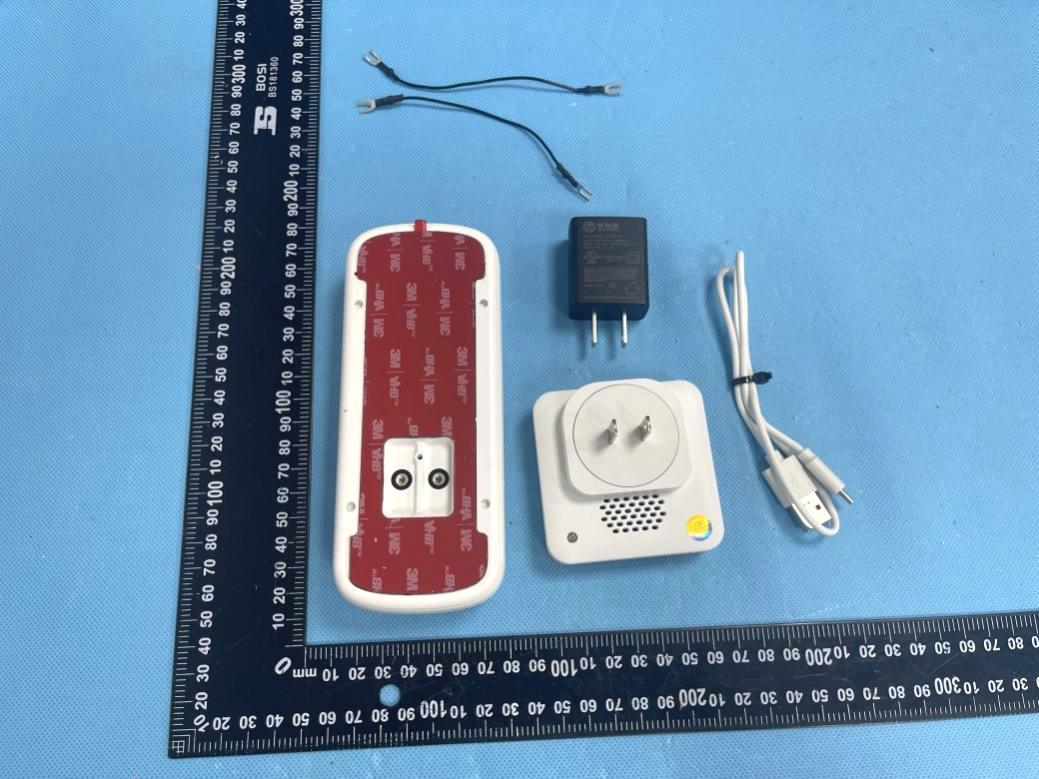

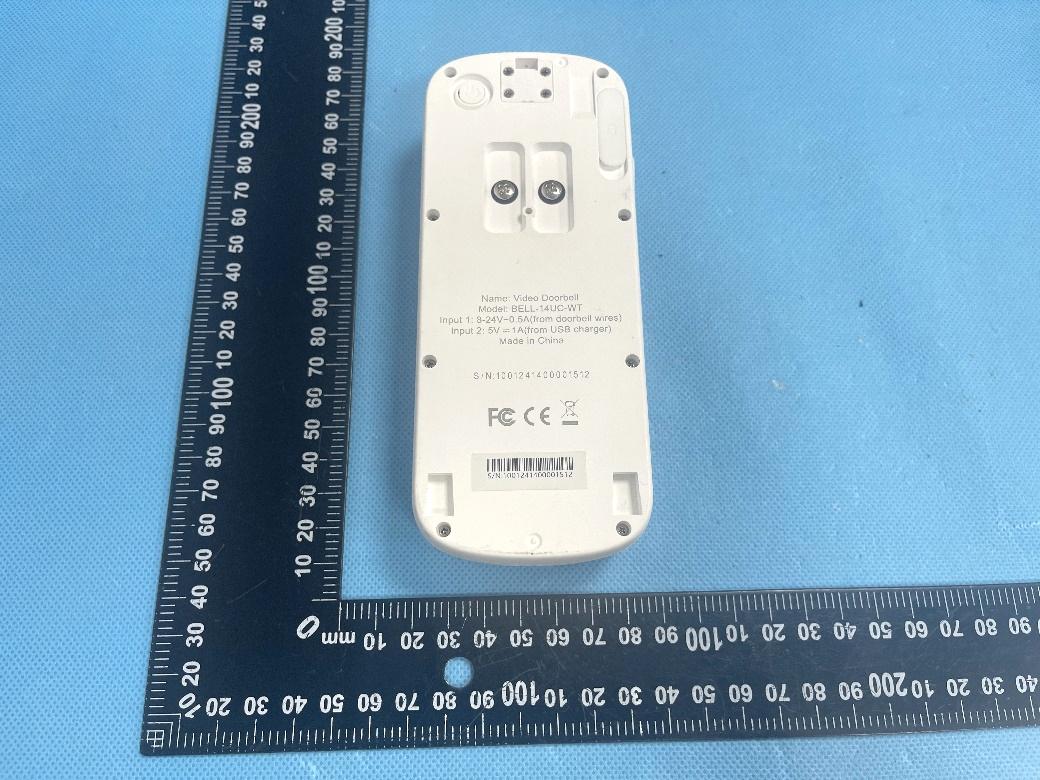

ReferenceNo.:WTX24X05122057W001/002Page2of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EXHIBIT2-EUTEXTERNALPHOTOGRAPHS EUTView1 EUTView2 ReferenceNo.:WTX24X05122057W001/002Page3of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView3 EUTView4 ReferenceNo.:WTX24X05122057W001/002Page4of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView5 EUTView6 ReferenceNo.:WTX24X05122057W001/002Page5of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView7 EUTView8 ReferenceNo.:WTX24X05122057W001/002Page6of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn EUTView9 EUTView10

ReferenceNo.:WTX24X05122057W001/002Page1of19 WaltekTestingGroup(Shenzhen)Co.,Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT1-PRODUCTLABELING ProposedFCCIDLabelFormat FCCID:A4X-L4701 Specifications:Thelabelshallbesecurelyaffixedtoapermanentlyattachedpartofthedevice,inalocation whereitisvisibleoreasilyaccessibletotheuser,andshallnotbereadilydetachable.Thelabelshallbe sufficientlydurabletoremainfullylegibleandintactonthedeviceinallnormalconditionsofusethroughout thedevice’sexpectedlifetime. ProposedLabelLocationonEUT FCCIDLabel Location

Reference No.: WTX24X05122057W001/002 Page 7 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 EUT Housing and Board View 2 Reference No.: WTX24X05122057W001/002 Page 8 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX24X05122057W001/002 Page 9 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX24X05122057W001/002 Page 10 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Solder Board-Component View 6

Reference No.: WTX24X05122057W001/002 Page 11 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 7 Solder Board-Component View 8 Reference No.: WTX24X05122057W001/002 Page 12 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 9 Solder Board-Component View 10 Reference No.: WTX24X05122057W001/002 Page 13 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 11 Solder Board-Component View 12 Reference No.: WTX24X05122057W001/002 Page 14 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 13 Solder Board-Component View 14 Reference No.: WTX24X05122057W001/002 Page 15 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 15 Solder Board-Component View 16

Reference No.: WTX24X05122057W001/002 Page 16 of 19 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View WIFIAntenna SRDAntenna

1.RFExposureRequirements 1.1GeneralInformation ClientInformation Applicant:CELINKLIMITED Addressofapplicant: 22DongkangRoad,DalingshanTown,DongguanCity,Guangdong Province,China. Manufacturer:DongguanCELINKLIMITED Addressofmanufacturer: 22DongkangRoad,DalingshanTown,DongguanCity,Guangdong Province,China. Factory1#:ANFUCELINKLIMITED Addressoffactory:AnfuCountyIndustrialZone,Ji'ancity,JiangxiProvince, P.R.China. Factory2#:CELINKVIETNAMCOMPANYLIMITED Addressoffactory:LotCNSG04&CNSG06VanTrungIndustrialZone,Viet Yendistrict,BacGiangProvince,Vietnam GeneralDescriptionofEUT: ProductName:VideoDoorbell TradeName:CE-LINK ModelNo.:L4701 AddingModel(s):/ RatedVoltage: RechargeableLithium-ionBattery:3.6V Externalpowersupply:DC5V ExtensionWires:8-24V~ RatedCurrent: Externalpowersupply:1.0A ExtensionWires:500mAmax BatteryCapacity:5200mAh PowerAdapter: Model:ADS-6RA-06-05050EPCU Input:100-240V~50/60Hz Output:5.0V1.0A5W FCCID:A4X-L4701 EquipmentType:Fixeddevice TechnicalCharacteristicsofEUT: Wi-Fi SupportStandards:802.11b,802.11g,802.11n FrequencyRange:2412-2462MHzfor802.11b/g/n(HT20) RFOutputPower:16.76dBm(Conducted) TypeofModulation:CCK,OFDM,QPSK,BPSK,16QAM,64QAM QuantityofChannels:11for802.11b/g/n(HT20) ChannelSeparation:5MHz TypeofAntenna:Built-inPCBantenna AntennaGain:3.01dBi SRD FrequencyRange:433.92MHz Max.FieldStrength:433.92MHz:79.62dBuV/m(3m) DataRate:/ Modulation:FSK AntennaType:Built-inSpringantenna AntennaGain:-4.43dBi 1.2RFExposureExemption Accordingto§1.1307(b)(3)andKDB447498D04InterimGeneralRFExposureGuidancev01,system operatingundertheprovisionsofthissectionshallbeoperatinginamannerthatthepublicisnotexposedto radiofrequencyenergylevelinexcesslimitformaximumpermissibleexposure. OptionA:FCCRulePart1.1307(b)(3)(i)(A):Theavailablemaximumtime-averagedpowerisnomorethan 1mW,regardlessofseparationdistance. OptionB:FCCRulePart1.1307(b)(3)(i)(B):Theavailablemaximumtime-averagedpoweroreffective radiatedpower(ERP),whicheverisgreater,islessthanorequaltothethresholdP th (mW)describedinthe followingformula.P th isgivenby: OptionC:FCCRulePart1.1307(b)(3)(i)(C):Theminimumseparationdistance(Rinmeters)fromthebodyof anearbypersonforthefrequency(finMHz)atwhichthesourceoperates,theERP(watts)isnomorethanthe calculatedvalueprescribedforthatfrequency.Rmustbeatleastλ/2π,whereλisthefree-spaceoperating wavelengthinmeters. SingleRFSourcesSubjecttoRoutineEnvironmentalEvaluation RFSourcefrequency(MHz)ThresholdERP(watts) 0.3-1.341,920R 2 1.34-303,450R 2 /f 2 30-3003.83R 2 300-1,5000.0128R 2 f 1,500-100,00019.2R 2 ForMultipleRFsources:FCCRulePart1.1307(b)(3)(ii): (A)Theavailablemaximumtime-averagedpowerofeachsourceisnomorethan1mWandthereisa separationdistanceoftwocentimetersbetweenanyportionofaradiatingstructureoperatingandthe nearestportionofanyotherradiatingstructureinthesamedevice,exceptifthesumofmultiplesourcesis lessthan1mWduringthetime-averagingperiod,inwhichcasetheymaybetreatedasasinglesource (separationisnotrequired). (B)InthecaseoffixedRFsourcesoperatinginthesametime-averagingperiod,orofmultiplemobileor portableRFsourceswithinadeviceoperatinginthesametimeaveragingperiod,ifthesumofthe fractionalcontributionstotheapplicablethresholdsislessthanorequalto1asindicatedinthefollowing equation. 1.3CalculatedResult Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-AveragedPower ERP (MHz)(dBm)(dBi)(%)(dBm)(dBm) Wi-Fi241216.763.0110017.0017.86 SRD433.92-11.21-4.4310.4-11.00-17.58 Frequency Option Min.DistanceMax.PowerExposureLimit Ratio Result (MHz)(cm)(dBm)(mW)(mW)Pass/Fail 2412C20.0017.8661.09768.000.08 Pass 433.92C20.00-17.580.02222.170.01Pass Note:1.a.Time-AveragedPower=OutputPower*DutyCycle; ERP=Time-AveragedPower+Antennagain-2.15dB; b.EIRP=E-104.8+20logD;OutputPower=EIRP-AntennaGain; ERP=EIRP-2.15dB 2.OptionA,BandCrefersasclause1.2. 3.ForoptionB,Max(time-averagedpower,effectiveradiatedpower(ERP))convertstoMax.Power.For optionC,ERPconvertstoMax.Power; 4.ForoptionB,P th (mW)convertstoExposureLimit(mW);ForoptionC,ERP(W)convertstoExposure Limit(mW). 5.Ratio=Tune-UpERP(mW)/ExposureLimit(mW) ModeforSimultaneousMulti-bandTransmission: RadioAccessTechnologyRatio1Ratio2 Simultaneous Ratio Limit Result Pass/Fail Wi-Fi+SRD0.080.010.091Pass Result:Pass

Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 1 - Shenzhen Lxc Electronics Technology Co ., Ltd APPROVAL SHEET For CE LINK LIMITED BELL-14SC-WT Project A02520005004 Antenna componentst Frequency range WIFI:2400-2500（MHz） VSWR <2.0 Input Impedance 50（Ω） Polarization Vertical Polarization （3dB）HPW 180°H-plane 120°E-plane Antenna type WIFI antenna（Built-in PCB antenna） Antenna gain MAX (dBi) 3.01dBi Antenna supplier Shenzhen Lxc Electronics Technology Co ., Ltd Antenna Model LXC-PCB-088 RF by Checked by ME by Date 2023-10-12 Customer Confirm Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 2 - Revision History Date Revision Description of Changes 2023-10-12 RA Measured with PCB sample. 1 TECHNICAL SUMMARY ......................................................................................... 3 2 GENERAL DESCRIPTION ...................................................................................... 3 2.1 Components/Part revisions ............................................................................................................................. 3 3 MECHANICAL DESCRIPTION ................................................................................ 3 4 ELECTRICAL PERFORMANCE .............................................................................. 3 4.1 Set-up ................................................................................................................................................................ 3 4.1.1 VSWR ........................................................................................................................................................ 3 4.1.2 Gain & Radiation Patterns .......................................................................................................................... 3 5 PLOTS .................................................................................................................... 4 6 MECHANICAL DRAWING ....................................................................................... 6 7 RELIABILITY TESTS ............................................................................................... 7 7.1 Test content ...................................................................................................................................................... 7 7.2 Test results ....................................................................................................................................................... 7 8 CONCLUSION ......................................................................................................... 7 Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 3 - 1 Technical Summary This report summarizes the electrical results of the proposed antenna to support the Built-in WIFI antenna program. We test the antenna with the latest version handset. And it seems to be acceptable. 2 General Description 2.1 Components/Part revisions VSWR: Voltage Standing Wave Rate. 3 Mechanical Description 4 Electrical Performance 4.1 Set-up 4.1.1 VSWR VSWR measurements (S21) were performed using an Agilent 8753D Network Analyzer and the previously described test fixture. Coaxial chokes were used to mitigate surface currents on the outside of the cabling. The testing was performed in free space. 4.1.2 Gain & Radiation Patterns The gain of the antenna was measured in the HUMAN’s anechoic chamber. Coaxial chokes on the feed cable were used to mitigate surface currents. The chamber provides less than –30 dB reflectivity from 800 MHz through 3 GHz and an 18” diameter spherical quite zone. The measurement results are calibrated using both dipole and leaky wave horn standards. Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 4 - 5 Plots 2400-2500（MHz) Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 5 - Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 6 - 6 Mechanical drawing MD Project: WIFI antenna Author: Zhu File Name: A02520005004-APP-RA Date: 2023-10-12 TEST: Language: Check: Wang A English Shenzhen Lxc Electronics Technology Co ., Ltd Address: 4 / F, Building C, Jinruihua Industrial Park, No.12 Huafang Road, Dalang Street, Longhua District, Shenzhen - 7 - 7 Reliability tests 7.1 Test content No Test item Test method Standard of criterion 1 Salt spray test Spray a 5% salt solution 48HR There can be no discoloration, distortion (deformation) fall off and other shortcomings of the corrosion area can not be too large 2 Operational Temperature -40°C～+65°C 3 Storage Temperature -50°C～+85°C 4 Humidity 40%～95% 7.2 Test results NO Sample number Test time Test rsdults Remark 1 50…
